B2 Audio RAGE Series 200W RMS 4-Ohm Bolt-On Compression Driver & Horn Package

• Complete Compression Driver Kit – Includes RAGECDR-44 drivers and matching RAGECDH-44 horns
• High Output Performance – 200W RMS drivers with 1.75" titanium diaphragms deliver extreme clarity and volume.
• Optimized Projection – Horns provide smooth dispersion and controlled, high-impact sound.
• Pro-Audio Grade Build – Ferrite motors, CCAW coils, and composite horns built for demanding setups.
• Universal Bolt-On Fitment – Standard 4-bolt M5 pattern installs easily on most compression driver layouts.

B2 Audio RAGE Series 200W RMS 4-Ohm Bolt-On Compression Driver & Horn Package

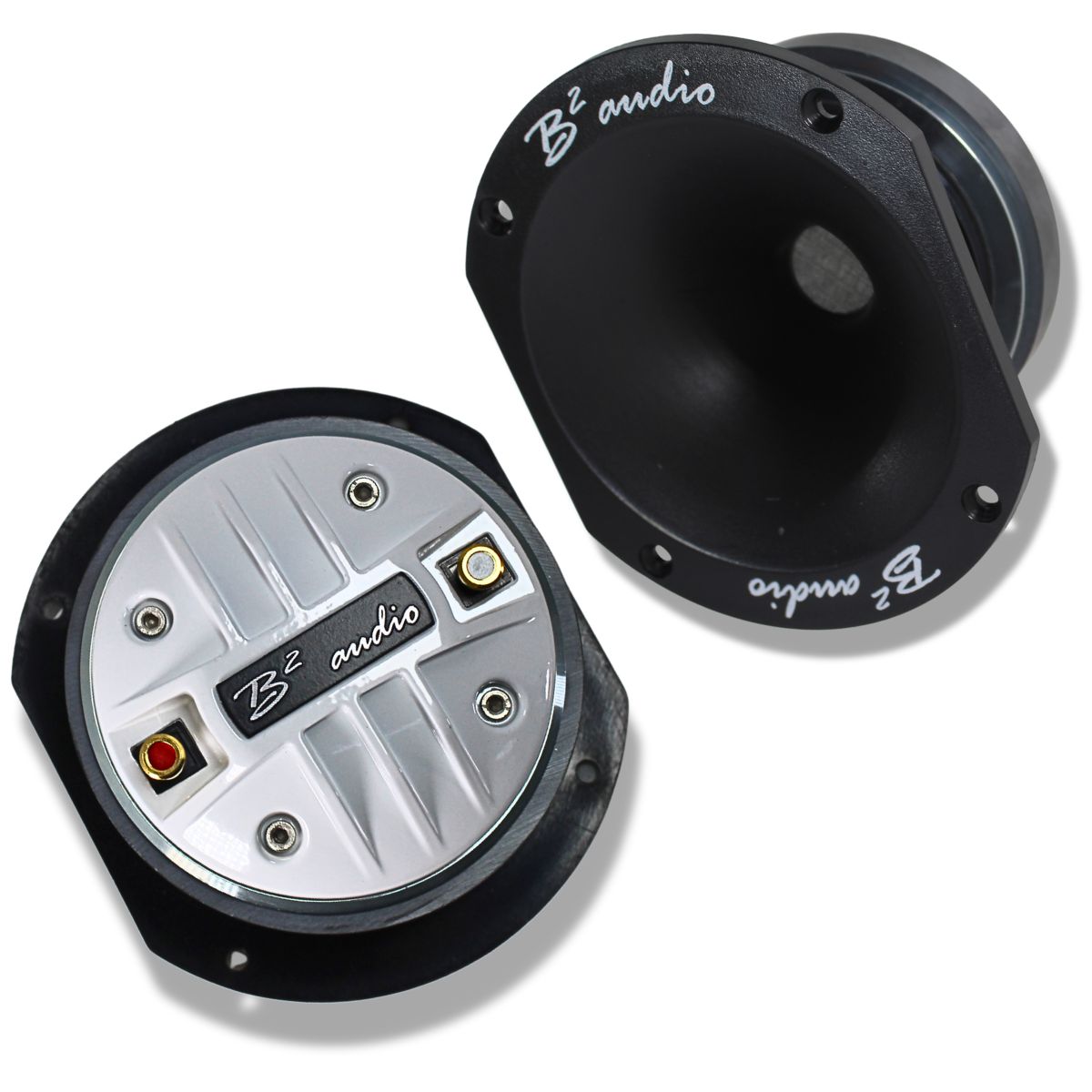

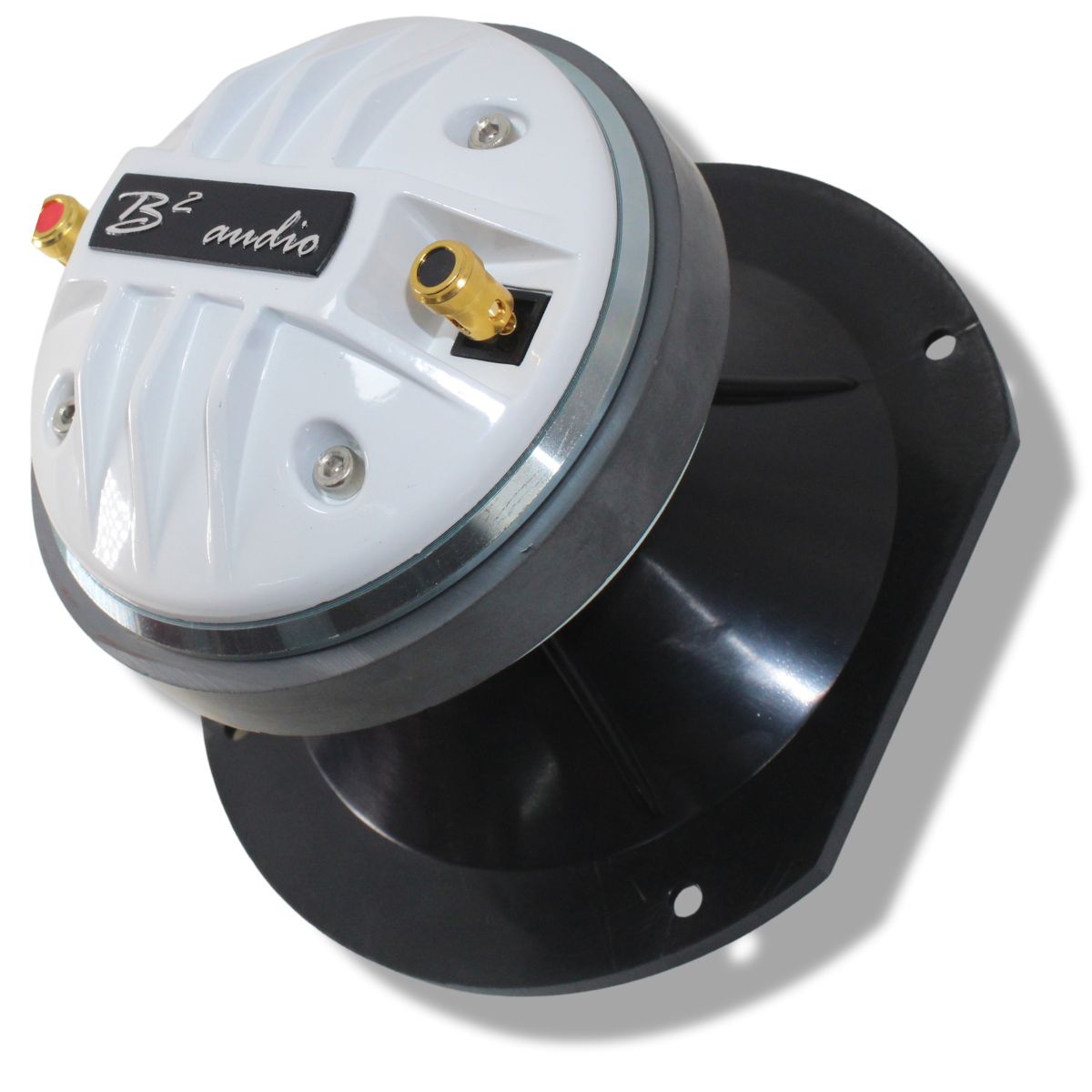

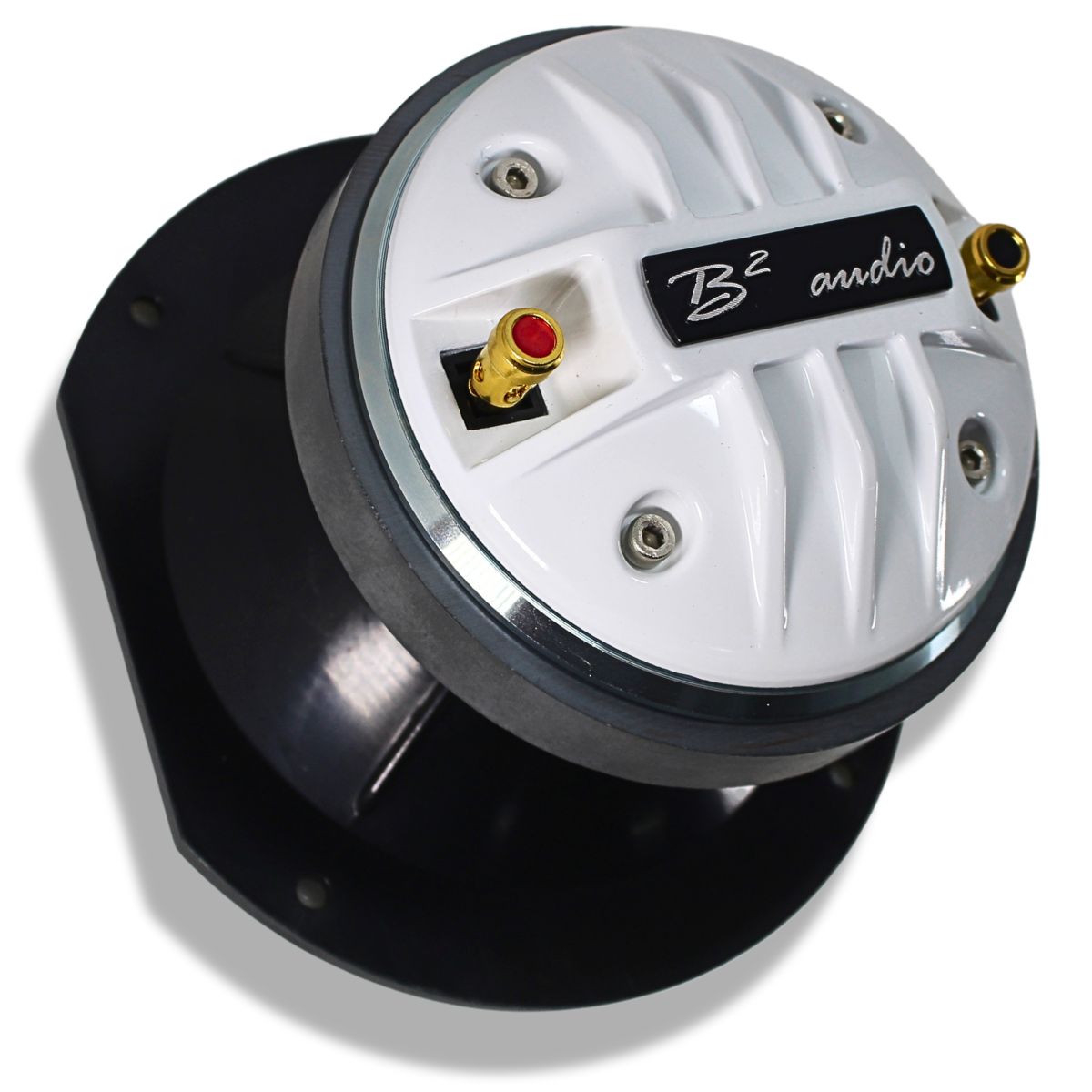

This Listing Includes

• (2) B2-RAGECDR-44 Bolt-On Compression Drivers


• (2) B2-RAGECDH-44 Bolt-On Horns


• Mounting Hardware

Level up your high-frequency stage with the B2 Audio RAGECDR-44-PKG, a complete bolt-on compression driver and horn system engineered for extreme clarity, output, and projection. This package includes the full-size RAGECDR-44 200W RMS compression drivers along with their perfectly matched RAGECDH-44 bolt-on horns, delivering a seamless, high-performance top-end solution for any high-output build.

The RAGECDR-44 features a robust ferrite motor, 1.75" titanium diaphragm, and precision-wound CCAW coil, producing crisp, controlled highs from 1.5 kHz all the way to 20 kHz. When paired with the included RAGECDH-44 horns, the system offers wide, smooth dispersion and aggressive projection ideal for door pods, pro-audio arrays, open-air builds, and competition-level setups.

Everything is bolt-on, perfectly matched, and ready to dominate.

Features

• Matched Driver + Horn System – Optimized for perfect acoustic alignment and bolt pattern compatibility.


• Extreme High-Frequency Output – 200W RMS compression drivers produce powerful, crisp upper-band performance.


• Smooth, Wide Dispersion – RAGECDH-44 horns enhance projection, detail, and clarity at high volume.


• Pro-Grade Durability – Built for punishing, high-output environments without distortion.


• Universal Fitment – Standard 4-bolt M5 mounting works with most bolt-on compression assemblies.

Specifications:

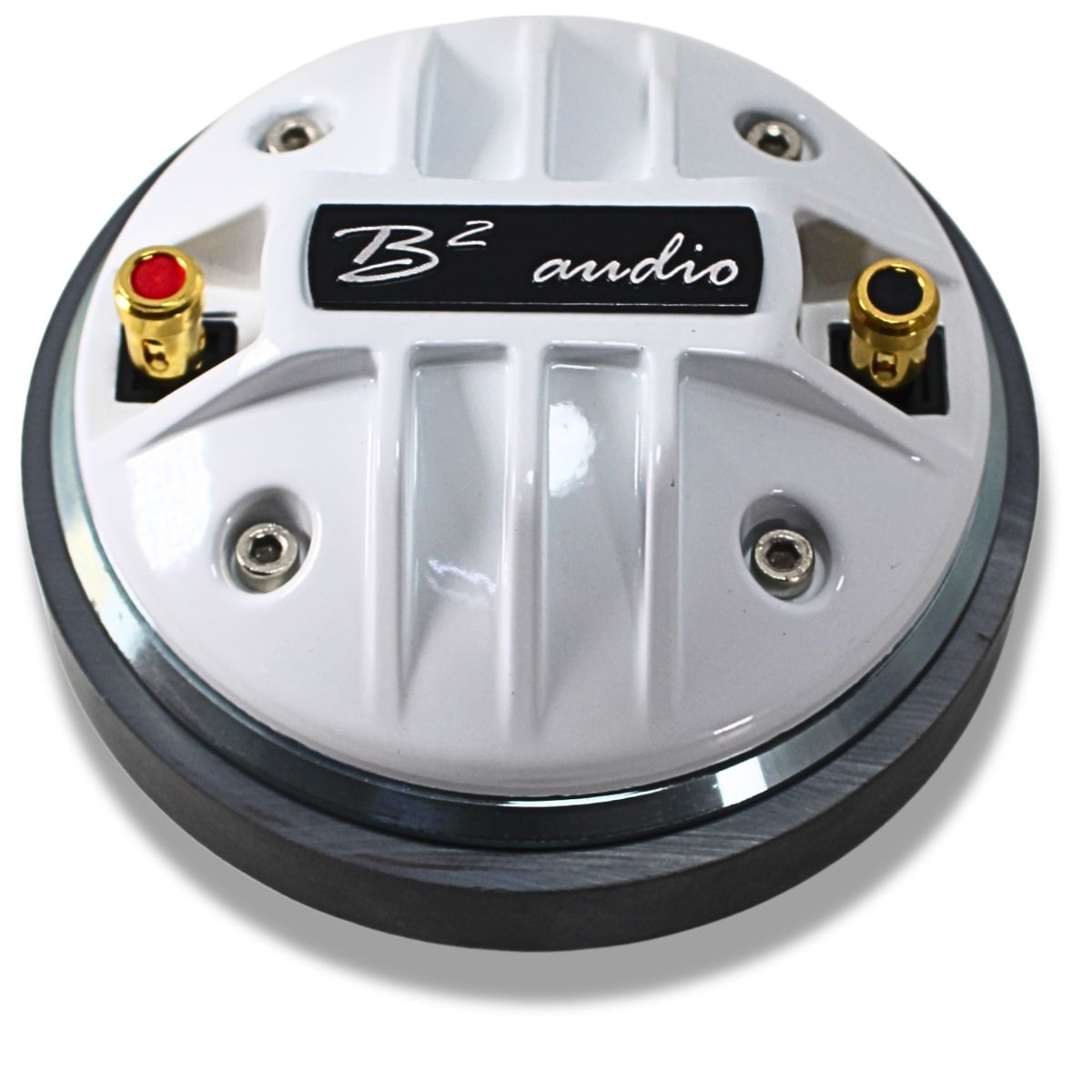

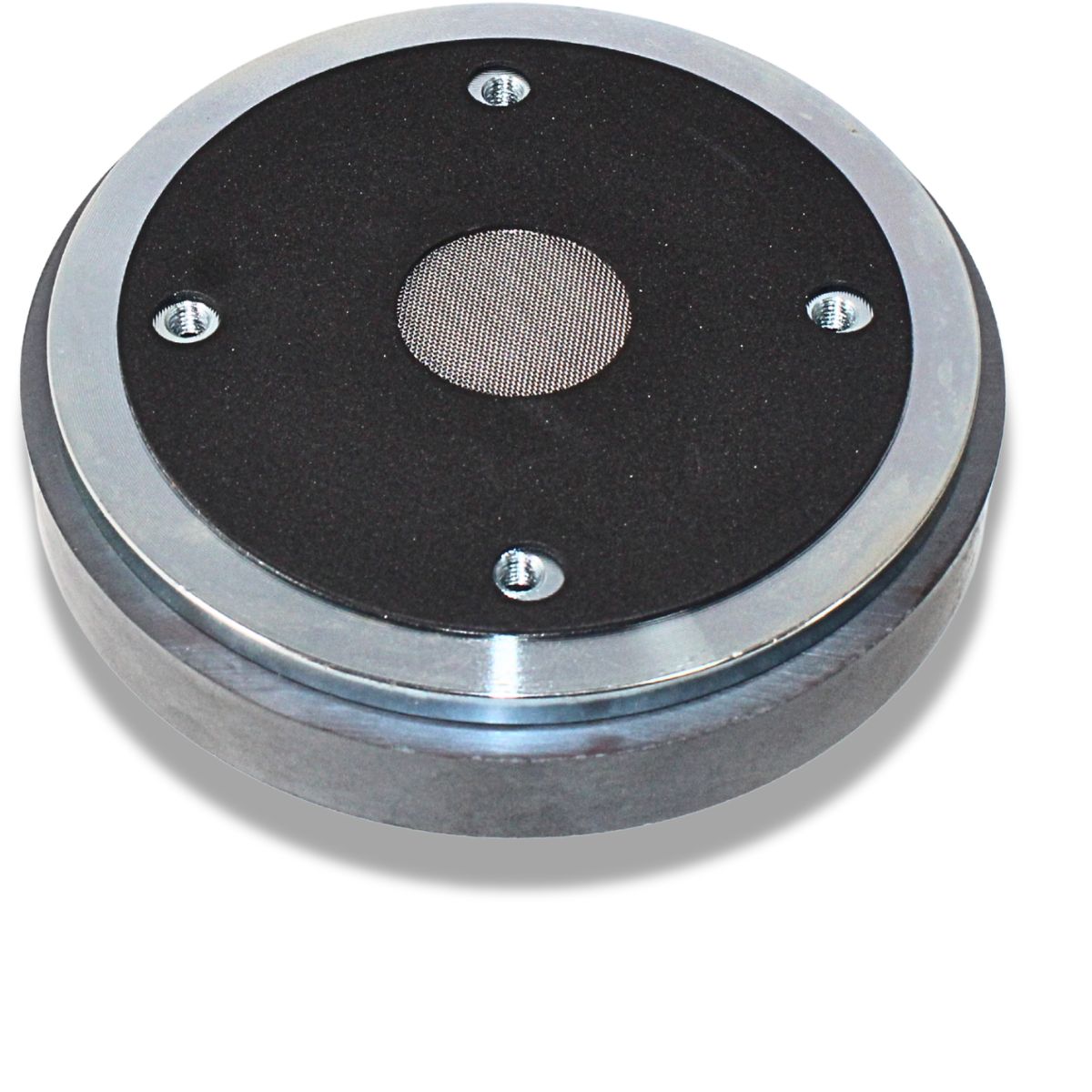

RAGECDR-44 Compression Drivers (Pair)

• Throat Diameter:  28.0 mm


• Max Power: 400 Watts


• RMS Power Impedance: 200 Watts


• Impedance: 4-Ohms


• Frequency Response: 1.5 Khz-20 Khz


• Sensitivity(1w/1m): 106 dB


• Voice Coil Diameter: 44.4mm/1.75"


• Winding Material: CCAW


• Magnet: Ferrite


• Diaphragm typ: Titanium

Dimensions:

• Overall Diameter: 4.53"


• Bolt Circle Diameter: 4 holes/75mm apart/M5 bolts


• Depth: 2.07"

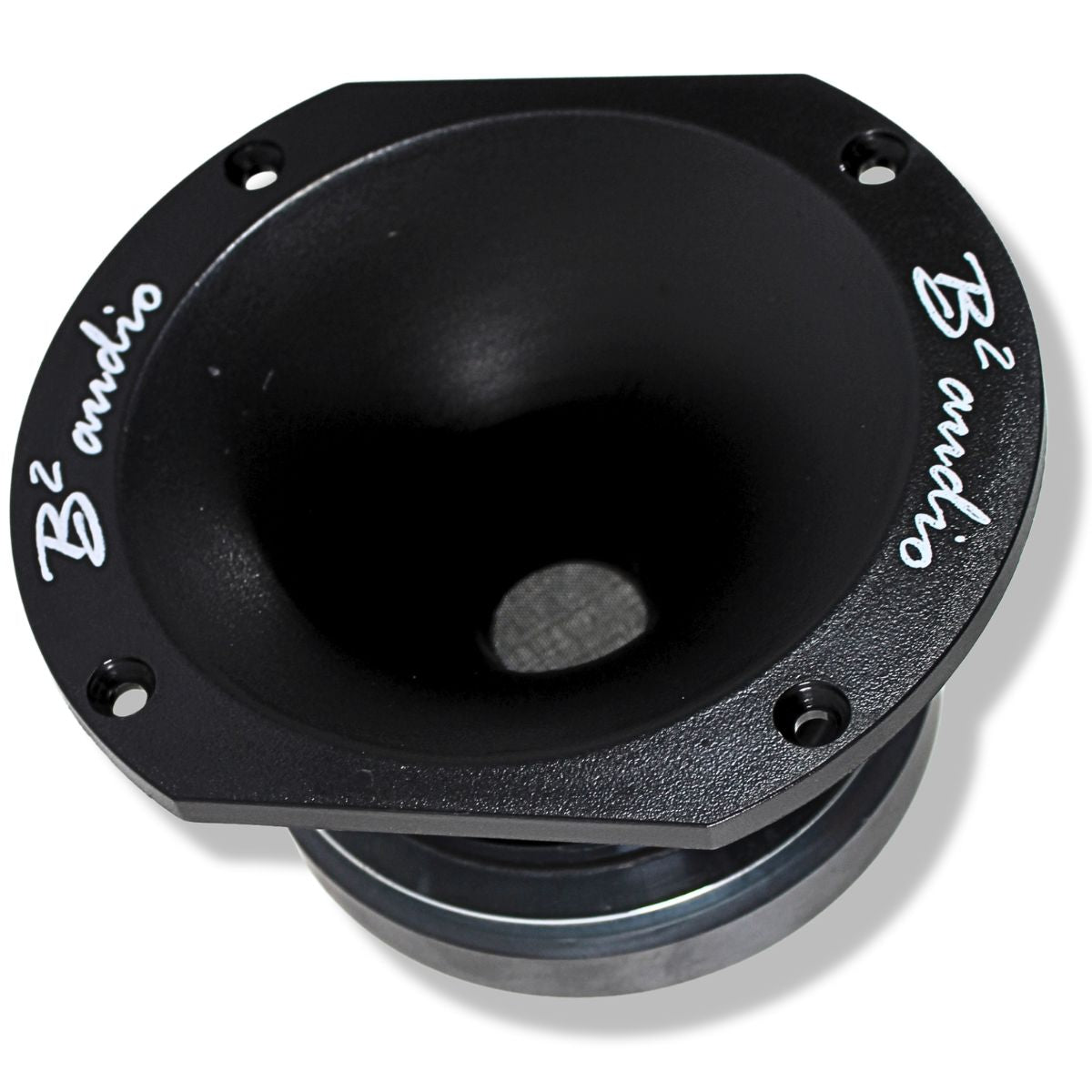

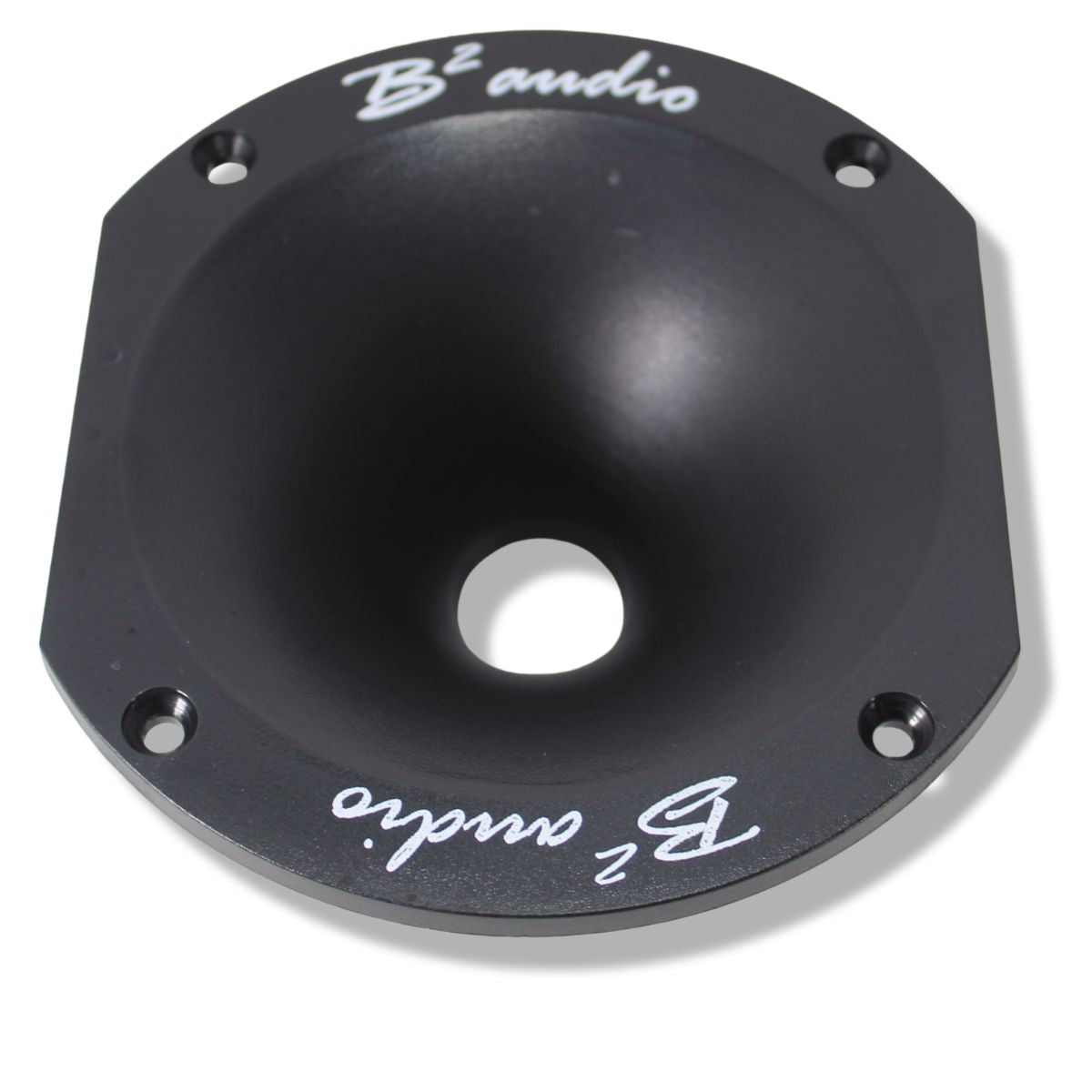

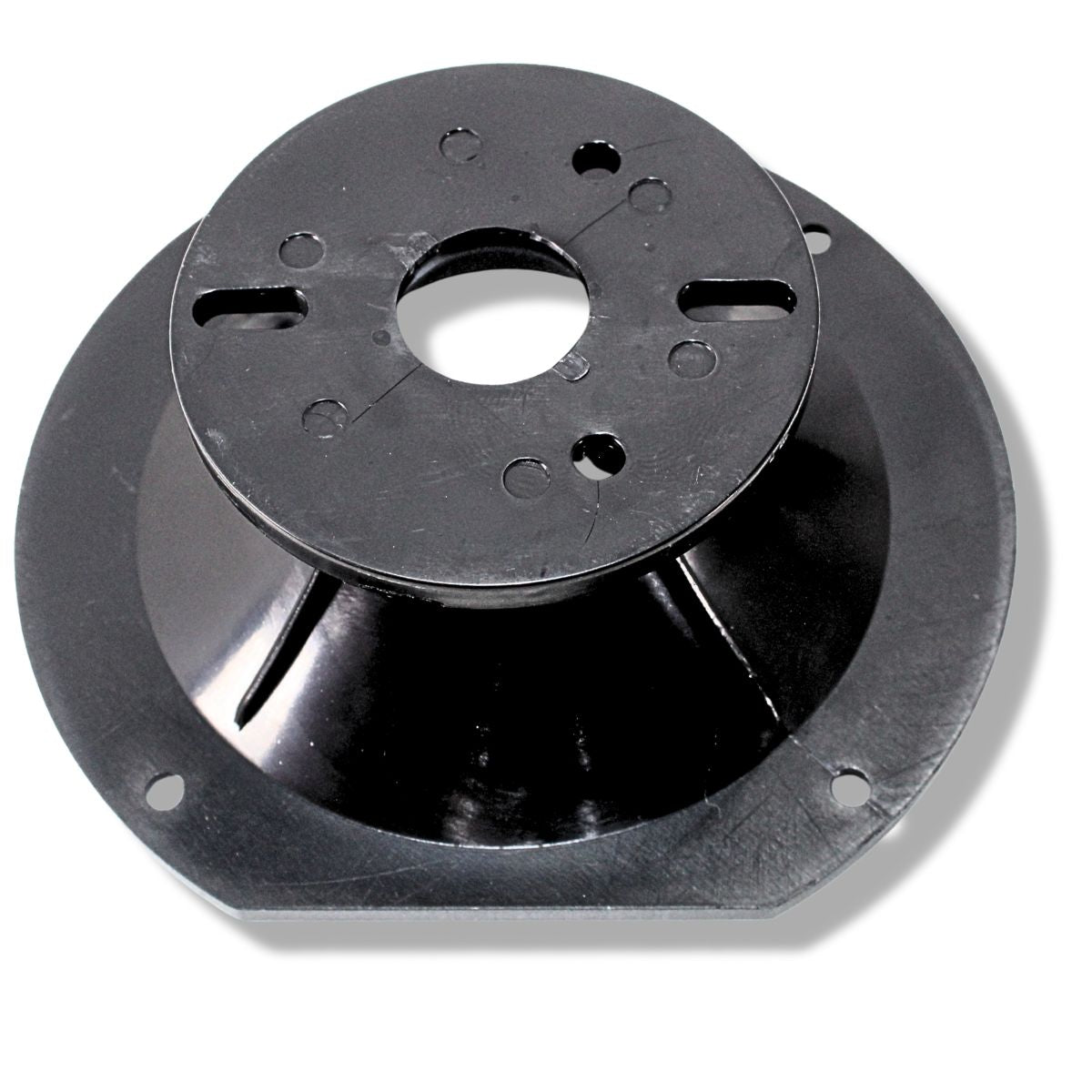

RAGECDH-44 Bolt-On Horns (Pair)

• Mount Type: 4-Bolt Bolt-On (M5)


• Throat Diameter: 28 mm


• Compatible Driver: B2-RAGECDR-44


• Material: High-temperature molded composite


• Finish: Matte black

Dimensions:

• Length: 6.125"


• Width: 5.375"


• Depth: 2.25"


• Display Depth: .25"


• Mounting Diameter: 3.875"


• Driver Bolt On Diameter: 3.25"
