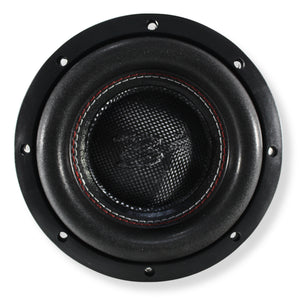

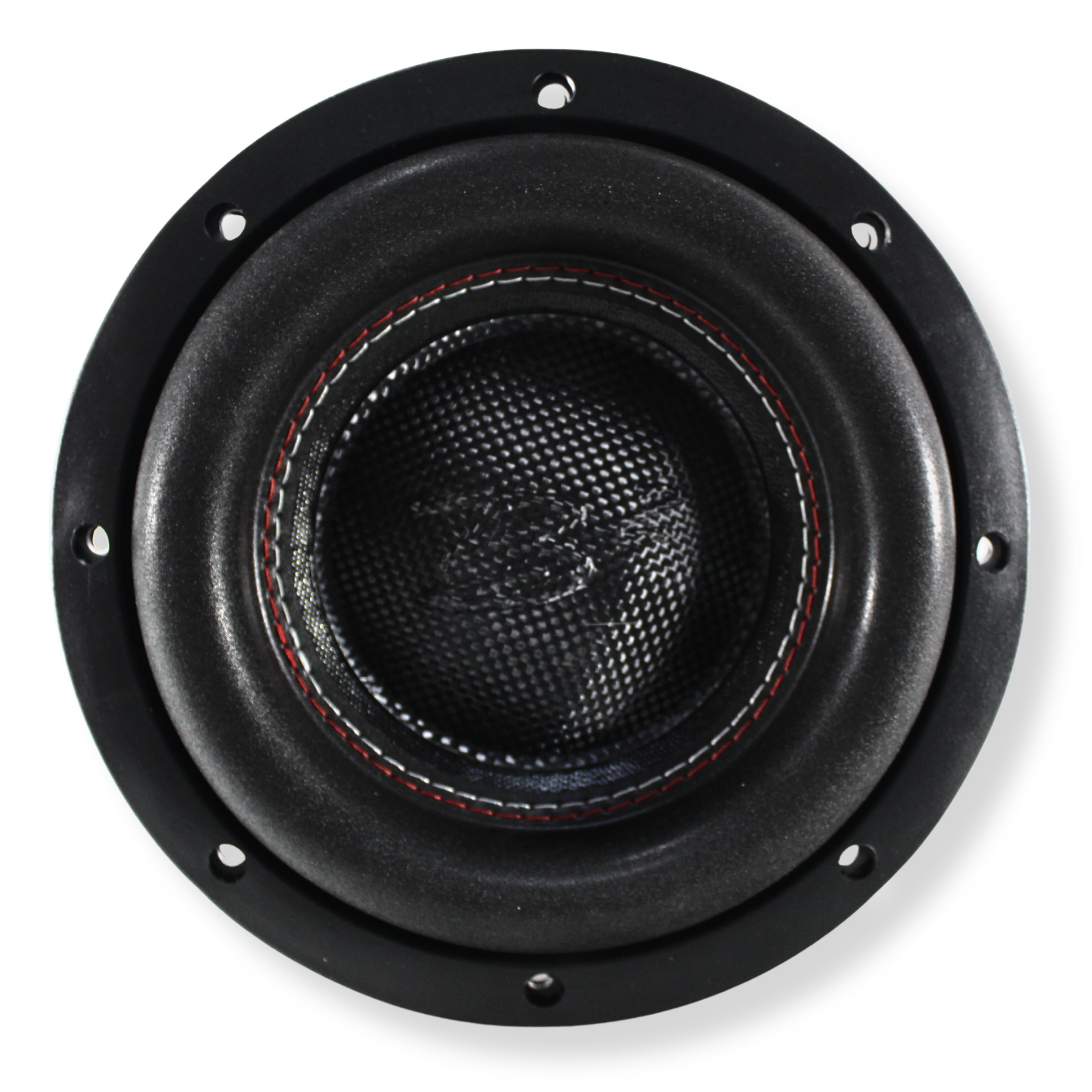

B2 Audio RAGE Series V2 8" 500 Watt RMS Dual 4-Ohm 2" Voice Coil High Excursion Subwoofer

• Enhanced Subwoofer Performance: The RAGE8-D4-V2 subwoofer features a redesigned Bolted down spider and additional pole vents for increased power handling and minimized mechanical noise.
• Custom Carbon Fiber Dustcap: The new protruding logo on the carbon fiber dustcap adds rigidity and strength to the cone, ensuring stable performance even at high volumes.
• Powerful Audio Output: With a frequency response of 10 Hz to 500 Hz and a power handling of 500 Watts RMS, this subwoofer delivers deep, impactful bass.
• Dual Voice Coil Configuration: Dual 4-Ohm impedance allows for versatile wiring options, making it compatible with various amplifier setups.
• Premium Construction: Built with quality materials and a 2" voice coil diameter, this subwoofer offers durability and longevity for long-term use.

B2 Audio RAGE Series 8" Dual 2" Voice Coil 4-Ohm 500W RMS Subwoofer RAGE8-D4-V2

This Listing Includes:

• (1) 8" DVC 4-ohm  RAGE Subwoofer

Get ready to experience pure sonic aggression with the B2 Audio RAGE8-D4-V2 8" Dual Voice Coil Subwoofer. With its redesigned spider configuration and six extra pole vents, this subwoofer packs a 25% power handling increase over its predecessors, delivering thunderous bass without compromise. Its custom composite fiber dustcap adds strength and attitude, while its dual 4-Ohm impedance offers wiring versatility for any amplifier setup. With a frequency response ranging from 10 Hz to 500 Hz and a power handling of 500 Watts RMS (1000 Watts peak), this subwoofer promises relentless performance. Built tough with premium materials and a 2" voice coil diameter, it's ready to dominate the audio landscape with bass that bites back.

Features

• 500W RMS / 1000W Max Power Handling – Increased power capacity with a 25% improvement over previous models for heavy-duty bass performance


• Dual 4-Ohm Voice Coil Configuration – Offers flexible wiring options for matching various amplifier setups


• 2" High-Temperature Voice Coil – Designed for durability and sustained high-output performance


• Redesigned Spider with Six Extra Pole Vents – Enhances heat dissipation and reliability during extended play


• Custom Composite Fiber Dustcap – Adds structural strength and aggressive styling to the subwoofer


• Frequency Response: 10Hz – 500Hz – Wide bass range to cover deep lows and punchy mid-bass tones


• Sensitivity: 82.4 dB – Efficient output for powerful sound without excessive power draw


• Heavy-Duty 175 oz Magnet Structure – Supports strong magnetic force for accurate cone control and bass response


• Maximum Excursion (Xmax): 15mm (0.59") – Allows significant cone movement for deep, impactful bass


• 12 AWG Push Terminals – Provides secure and reliable speaker wire connections


• Optimized for Various Enclosure Types – Sealed, ported, and 4th order bandpass enclosure compatible with recommended volumes and tuning

Specifications:

• RMS Power Handling: 500W


• Max Power handling: 1000W


• Nominal Impedance: Dual 4 Ohm


• Voice Coil Diameter: 2"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 82.4 dB


• Magnet Weight: 175 Oz


• Displacement: 2.5 L / 0.088 cu.ft


• 12 AWG Wire Inputs For Push Terminals

Thiele & Small

• Free Air Resonance (Fs): 40.9 Hz


• Resistance (Re): 3.2 Ohm


• Mechanical Factor (Qms): 5.64


• Electrical Factor (Qes): 0.54


• Total Factor (Qts): 0.47


• Equivalent Volume (Vas): 5.9 L


• Compliance (Cms): 110 um/N


• Moving Mass (Mms): 129.7 g


• BL Factor (BL): 69.5 TM


• Excursion Max (Xmax): 0.59" / 15 mm

Dimensions:

• Overall Diameter: 8.66" / 220mm


• Mounting Diameter: 7.83" / 199mm


• Front Mount Baffle Cutout: 7.28" / 185mm


• Overall Depth: 6.57" / 167mm


• Mounting Depth: 5.31" / 135mm

Enclosure Suggestions:

Sealed:

• 7.6L / 0.269 cu.ft


• Qtc 0.513

Ported Compact:

• 15L / 0.53 cu.ft


• Port: 2"


• Length : 7.16" / 18.2 cm


• FB: 42 Hz

Ported:

• 28L / 0.636 cu.ft


• Port Area: 7.75 sq.in


• Length: 3.34" / 33.9 cm


• FB: 38 Hz

4th Order Bandpass: 3:1 Ratio
