B2 Audio Rage 4800 Watt 1-Ohm Monoblock Amplifier w RAGEXL V2 15" Subwoofer

• Massive Power Combo – B2 Audio RAGE 4800 Monoblock Amplifier delivers up to 5000W paired with the RAGEXL V2 15" Subwoofer rated at 3500W RMS for competition-level bass.
• Precision Engineering – Subwoofer features a 3" DVC, 23mm Xmax, and 10,000W peak handling for extreme excursion and clean output.
• Advanced Amplifier Design – Class D full-range technology with low/high/subsonic crossovers, >90 dB S/N ratio, and built-in protection for reliable performance.
• Complete Installation Ready – Includes bass knob with voltage/temperature display, remote wire, mounting screws, and hex wrenches.
• Built for Enthusiasts – Perfect combo for audiophiles and SPL competitors demanding earth-shaking lows, clarity, and durability in their car audio system.

B2 Audio Rage 4800 Watt 1-Ohm Monoblock Amplifier w RAGEXL V2 15" Subwoofer

This listing includes:

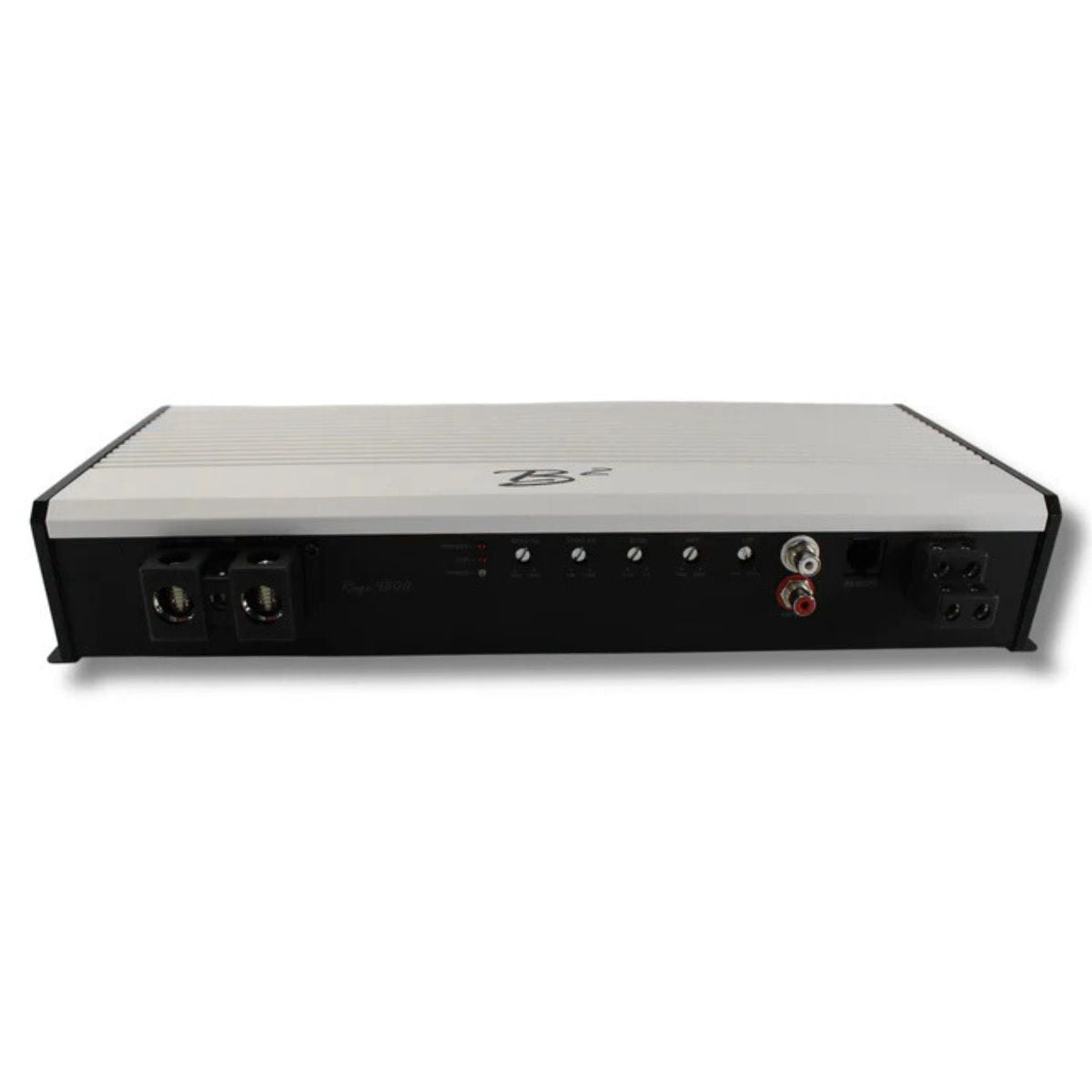

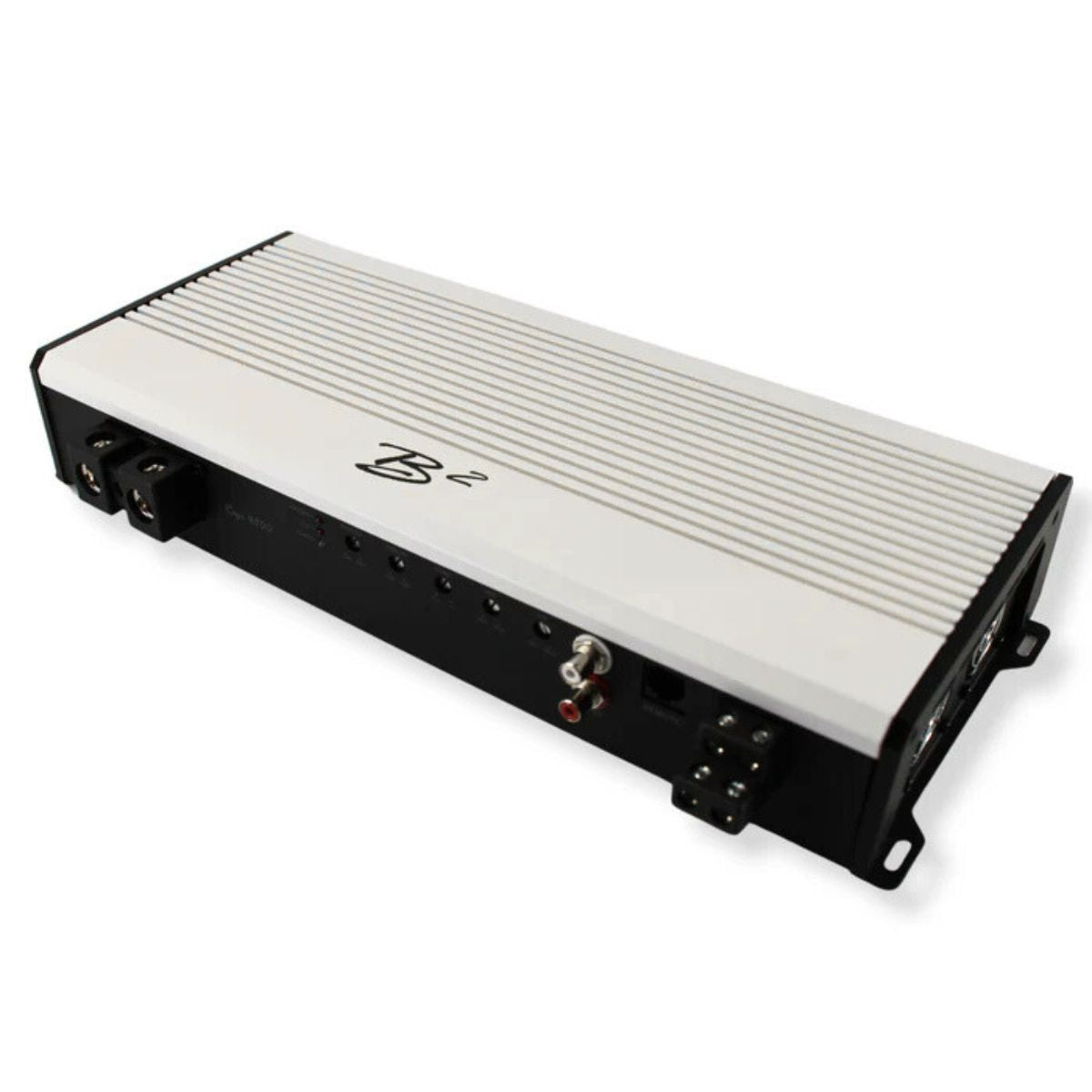

• (1) B2 Audio RAGE Series 4800 Watt 1-Ohm Class D Full Range Monoblock Amplifier

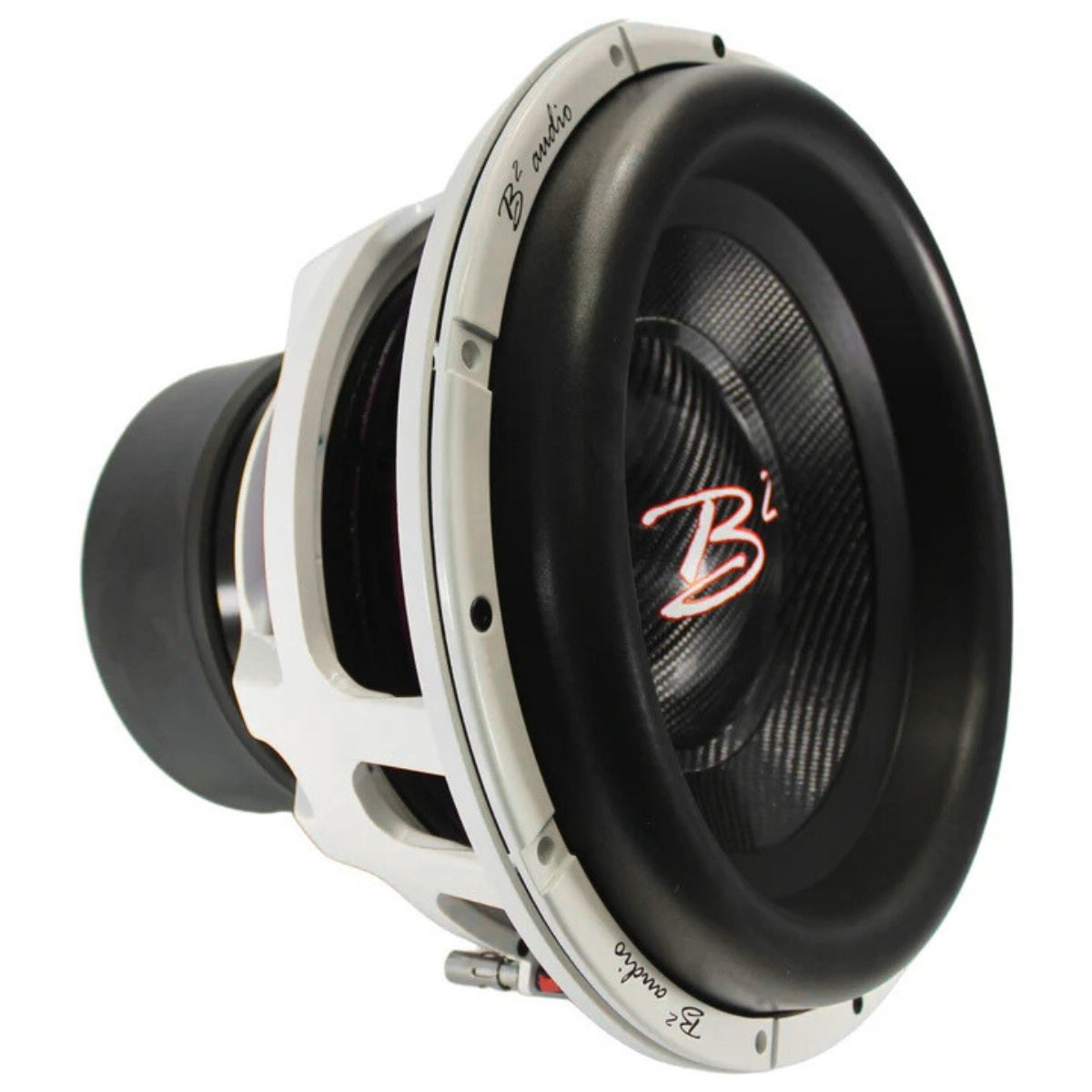

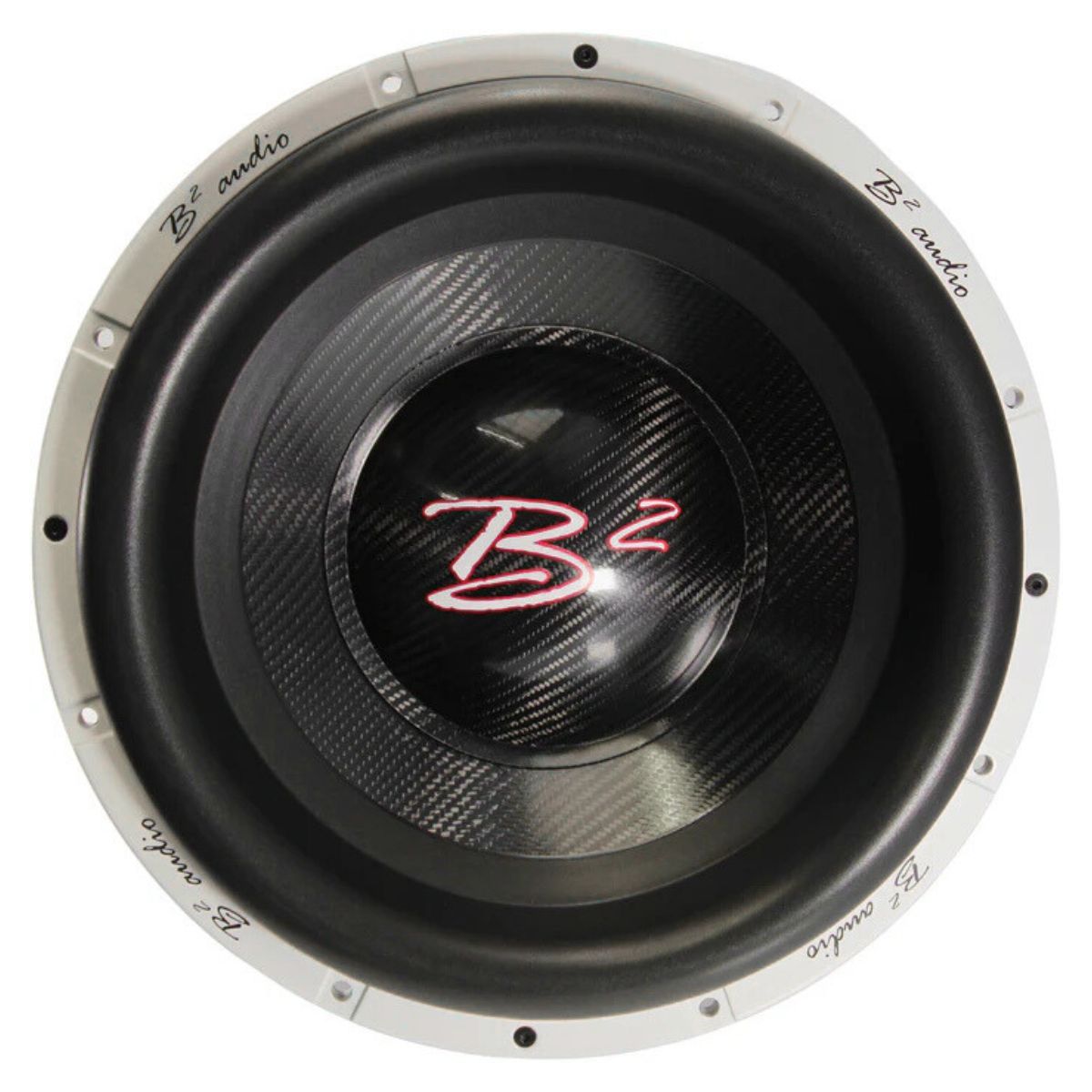

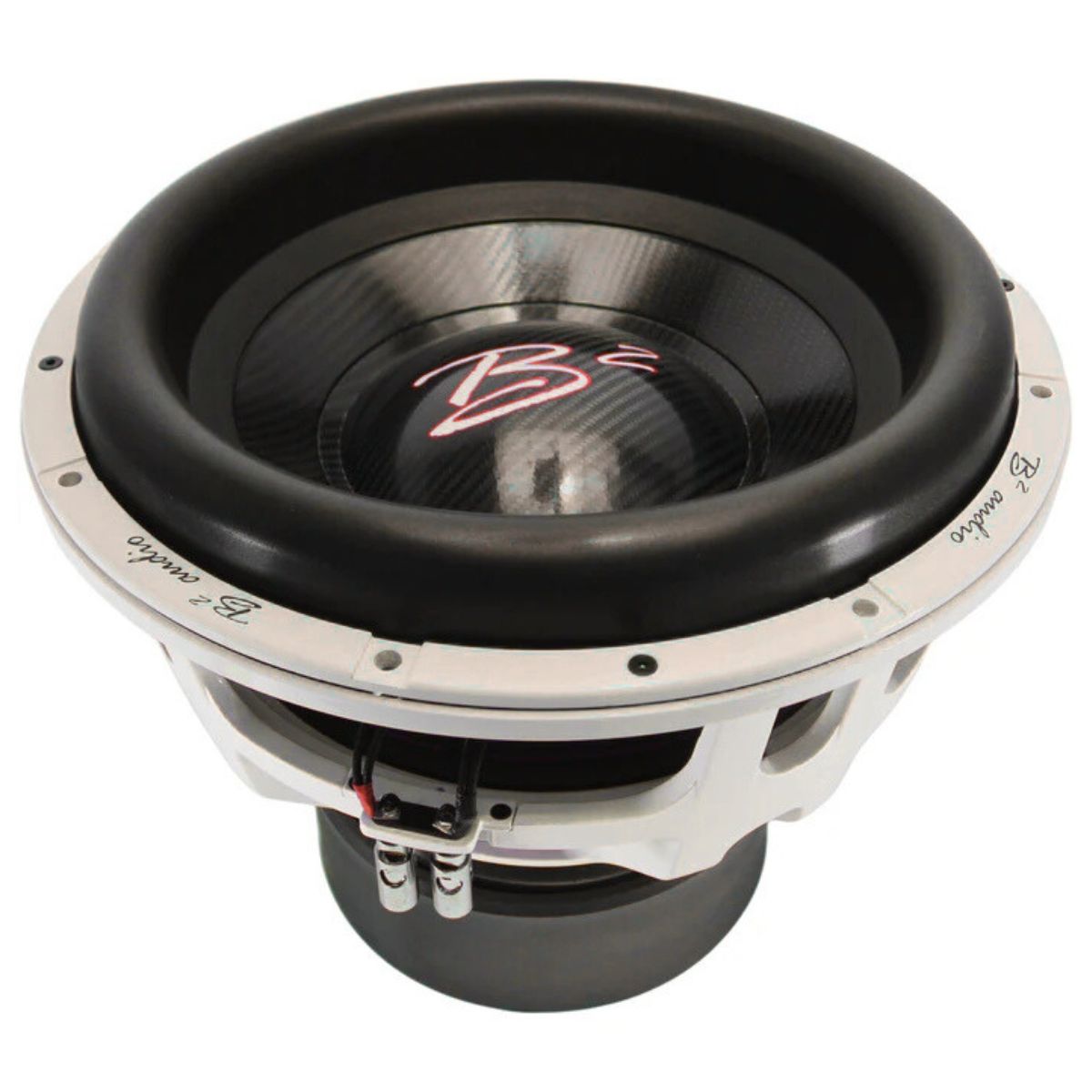

• (1) B2 Audio RAGEXL V2 Series 15" 3500 RMS 1 Ohm 3" DVC Subwoofer

Elevate your car audio experience to a whole new level with the B2 Audio RAGEXL V2 15" Subwoofer and RAGE-4800 Monoblock Amplifier. This dynamic duo delivers earth-shaking power and premium sound clarity, offering everything you need to dominate both on the streets and in SPL competitions. Precision-engineered for true audio enthusiasts, these components combine performance, durability, and innovative design to set a new standard in car audio.

Subwoofer Specifications:

• RMS Power Handling: 3500 Watts


• Max Power Handling: 10,000 Watts / 13.4 HP


• Nominal Impedance: Dual 1 Ohm


• Voice Coil Diameter: 3 inches


• Sensitivity: 90.7 dB


• Motor Assembly Displacement: 12.6 L / 0.445 cu ft


• Free Air Resonance (Fs): 26.7 Hz


• Resistance (Re): 2 Ohms


• Mechanical Factor (Qms): 5.99


• Electrical Factor (Qes): 0.69


• Total Factor (Qts): 0.59


• Equivalent Volume (Vas): 58.2 L


• Compliance (Cms): 70 um/N


• BL Factor (BL): 128


• Moving Mass (Mms): 507.6 g


• Excursion Max (Xmax): 23


• XMECH: 52


• SD: 765.1 sq cm


• Overall Diameter: 15.48 in / 393 mm


• Mounting Diameter: 13.5 in / 343 mm


• Bolt Pattern Diameter: 14.5 in / 368.3 mm


• Overall Depth: 13.622 in / 346 mm


• Mounting Depth: 11.69 in / 297 mm

Amplifier Specifications:

• RMS Power @ 4 ohm: 1650W - 1800W


• RMS Power @ 2 ohm: 3000W - 3250W


• RMS Power @ 1 ohm: 4800W - 5000W


• Frequency Response: 10 Hz - 20 KHz


• Signal to Noise Ratio: > 90 dB


• Input Sensitivity: 6 V - 0.2 V


• Power Terminal Gauge: 0 Gauge


• Fuse Rating: 400A


• Bass Level: 30 - 80 Hz

Crossover Circuit:

• Low Pass Crossover: 50 Hz - 20 KHz


• High Pass Crossover: 10 Hz -  KHz


• Subsonic Crossover: 10 Hz - 2 KHz

Measurements:

• Overall Length: 15.5 inches


• Overall Width: 7.25 inches


• Overall Height: 2.5 inches


• Overall Weight: 9.90 lbs

Included Accessories:

• Bass Knob w/ Voltage & Temp Meter


• Remote Wire


• Hex Wrenches & Mounting Screws

Take control of your sound and leave your competition in the dust with the B2 Audio RAGEXL V2 Subwoofer and RAGE-4800 Amplifier combo. Built for those who demand power, clarity, and precision, this setup is ready to shake the streets and set new standards in car audio.
