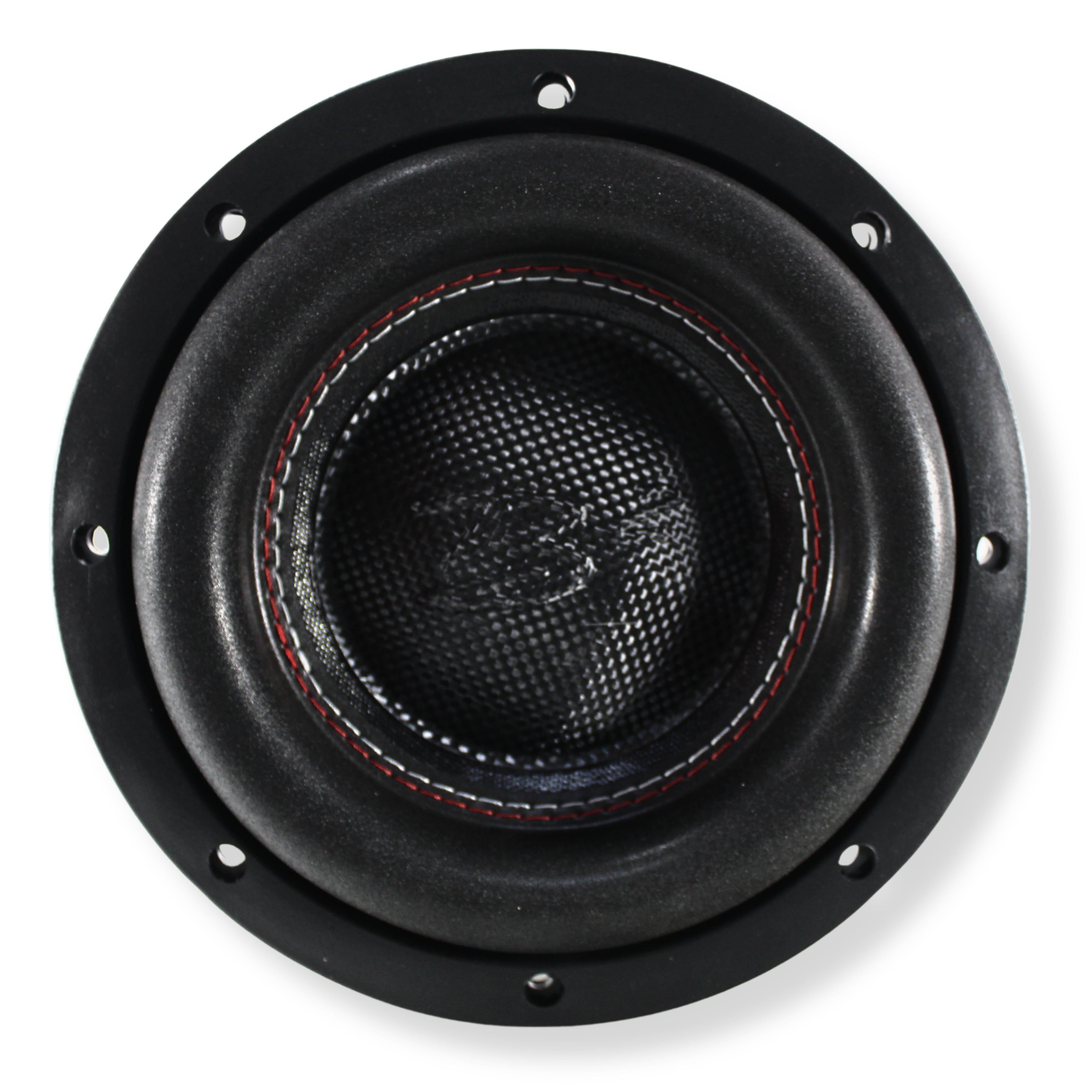

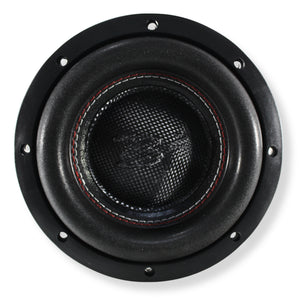

B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 500W RMS Subwoofer RAGE8-D2-V2

• Enhanced Subwoofer Performance: The RAGE8-D2-V2 subwoofer features a redesigned Bolted down spider and additional pole vents for increased power handling and minimized mechanical noise.
• Custom Carbon Fiber Dustcap: The new protruding logo on the carbon fiber dustcap adds rigidity and strength to the cone, ensuring stable performance even at high volumes.
• Powerful Audio Output: With a frequency response of 10 Hz to 500 Hz and a power handling of 500 Watts RMS, this subwoofer delivers deep, impactful bass.
• Dual Voice Coil Configuration: Dual 2-Ohm impedance allows for versatile wiring options, making it compatible with various amplifier setups.
• Premium Construction: Built with quality materials and a 2" voice coil diameter, this subwoofer offers durability and longevity for long-term use.

B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 500W RMS Subwoofer RAGE8-D2-V2

This Listing Includes:

• (1) 8" DVC 2-ohm  RAGE Subwoofer

Product Description:

Rev up your car audio to the next level with the B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 1000W Max Subwoofer RAGE8-D2-V2. This isn't just any speaker  it's a relentless powerhouse engineered to obliterate your expectations. Designed to deliver bone-shattering clarity and gut-wrenching bass, this speaker doesn't just demand attention, it commands respect on the road. With a ferocious 1000 Watts Max power handling capability and dual 2-Ohm impedance, it's ready to dominate any audio challenge you throw its way. Featuring a 2" voice coil diameter and 12 AWG wire inputs for push terminals, it's built to withstand the most intense audio assaults. Thiele & Small specifications ensure optimized performance, while its aggressive enclosure suggestions cater to the most hardcore audio enthusiasts. So, buckle up and brace yourself for a sonic onslaught like never before with the B2 Audio RAGE8-D2-V2.

Features

• 500W RMS / 1000W Max Power Handling – Built for serious bass in compact spaces


• Dual 2-Ohm Voice Coil Configuration – Flexible wiring options for system matching


• 2" High-Temperature Voice Coil – Handles extended play at high output levels


• Heavy-Duty 175 oz Motor Structure – Provides deep, forceful low-end performance


• Frequency Response: 10Hz – 500Hz – Wide range coverage for dynamic bass reproduction


• Sensitivity: 83.8 dB – Efficient design delivers powerful output with less power

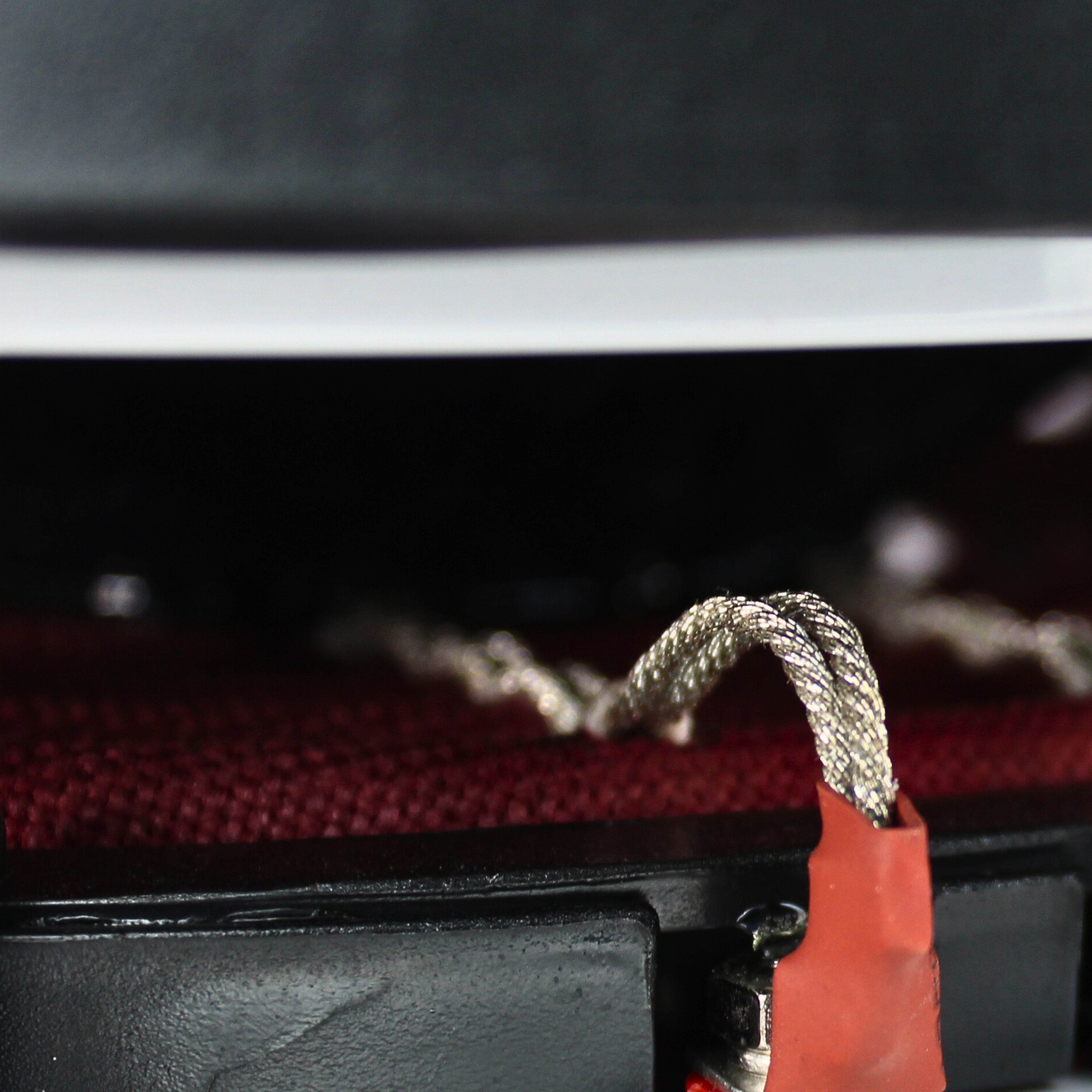

• 12 AWG Push Terminals – Secure connections for high current signal delivery


• High Excursion Xmax: 15mm (0.59") – Deep cone movement for powerful, punchy bass


• Engineered with Thiele/Small Parameters – Optimized for sealed, ported, or bandpass enclosures


• Compact Mounting Depth: 5.31" – Ideal for tight installs without sacrificing performance

Specifications:

• RMS Power Handling: 500W


• Max Power handling: 1000W


• Nominal Impedance: Dual 2 Ohm


• Voice Coil Diameter: 2"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 83.8 dB


• Magnet Weight: 175 Oz


• Displacement: 2.5 L / 0.088 cu.ft


• 12 AWG Wire Inputs For Push Terminals

Thiele & Small

• Free Air Resonance (Fs): 39.3 Hz


• Resistance (Re): 1.9 Ohm


• Mechanical Factor (Qms): 6.09


• Electrical Factor (Qes): 0.5


• Total Factor (Qts): 0.48


• Equivalent Volume (Vas): 5.8 L


• Compliance (Cms): 110 um/N


• Moving Mass (Mms): 138.5 g


• BL Factor (BL): 72.9 TM


• Excursion Max (Xmax): 0.59" / 15 mm

Dimensions:

• Overall Diameter: 8.66" / 220mm


• Mounting Diameter: 7.83" / 199mm


• Front Mount Baffle Cutout: 7.28" / 185mm


• Overall Depth: 6.57" / 167mm


• Mounting Depth: 5.31" / 135mm

Enclosure Suggestions:

Sealed:

• 7.6L / 0.269 cu.ft


• Qtc 0.513

Ported Compact:

• 15L / 0.53 cu.ft


• Port: 2"


• Length : 7.16" / 18.2 cm


• FB: 42 Hz

Ported:

• 28L / 0.636 cu.ft


• Port Area: 7.75 sq.in


• Length: 3.34" / 33.9 cm


• FB: 38 Hz

4th Order Bandpass: 3:1 Ratio
