B2 Audio RAGE 1200.4 Amplifier + RIOT8P 8" Midrange + RAGE T1 NEO Tweeter Combo

• High-Output Mid & High System: Two pairs of midrange speakers and two pairs of tweeters provide strong front-stage volume and projection.
• Efficient Power Delivery: Hi-EF Class D amplifier design supports high-output performance with controlled heat and current draw.
• Aggressive Clarity Across Frequencies: RIOT8P mids deliver impactful vocals and midrange punch, while T1 NEO tweeters produce sharp, clean highs.
• Built for Demanding Installs: Durable speaker construction, included tweeter capacitors, and amplifier protection circuitry support long-term reliability.

B2 Audio RAGE 1200.4 Amplifier + RIOT8P 8" Midrange + RAGE T1 NEO Tweeter Combo

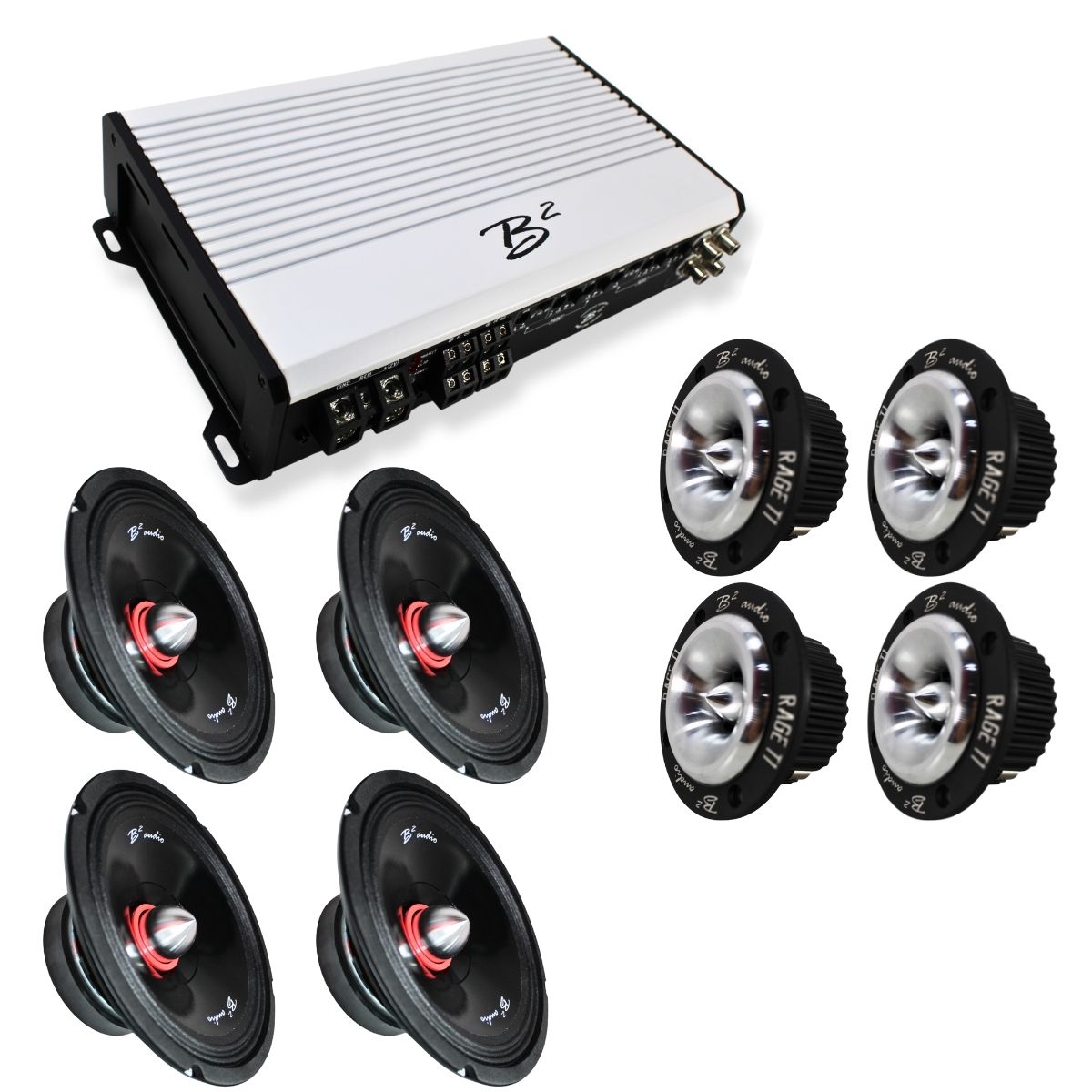

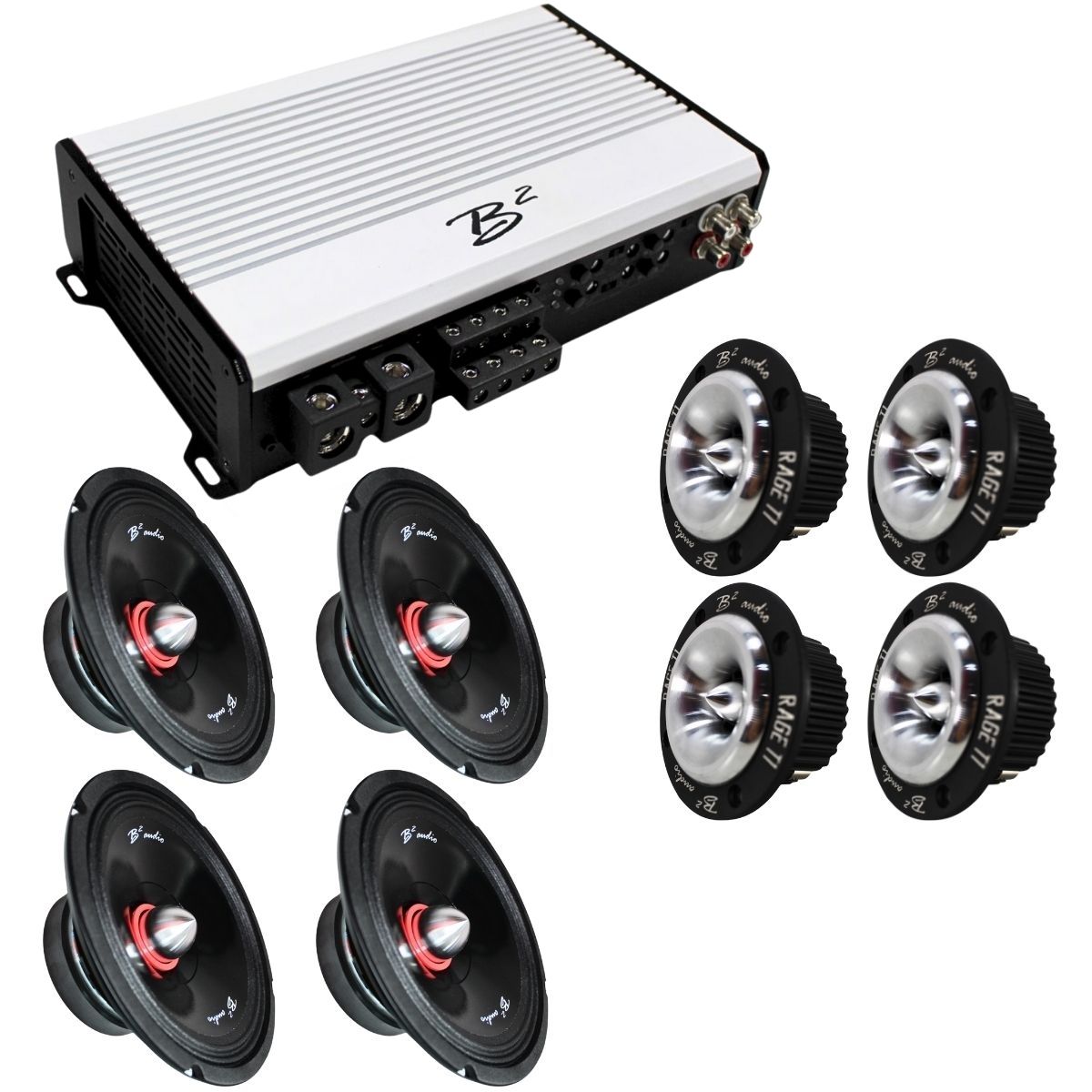

This listing includes:

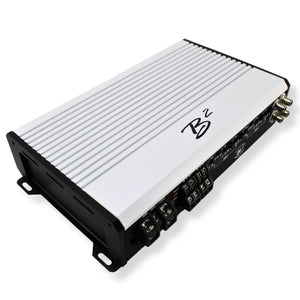

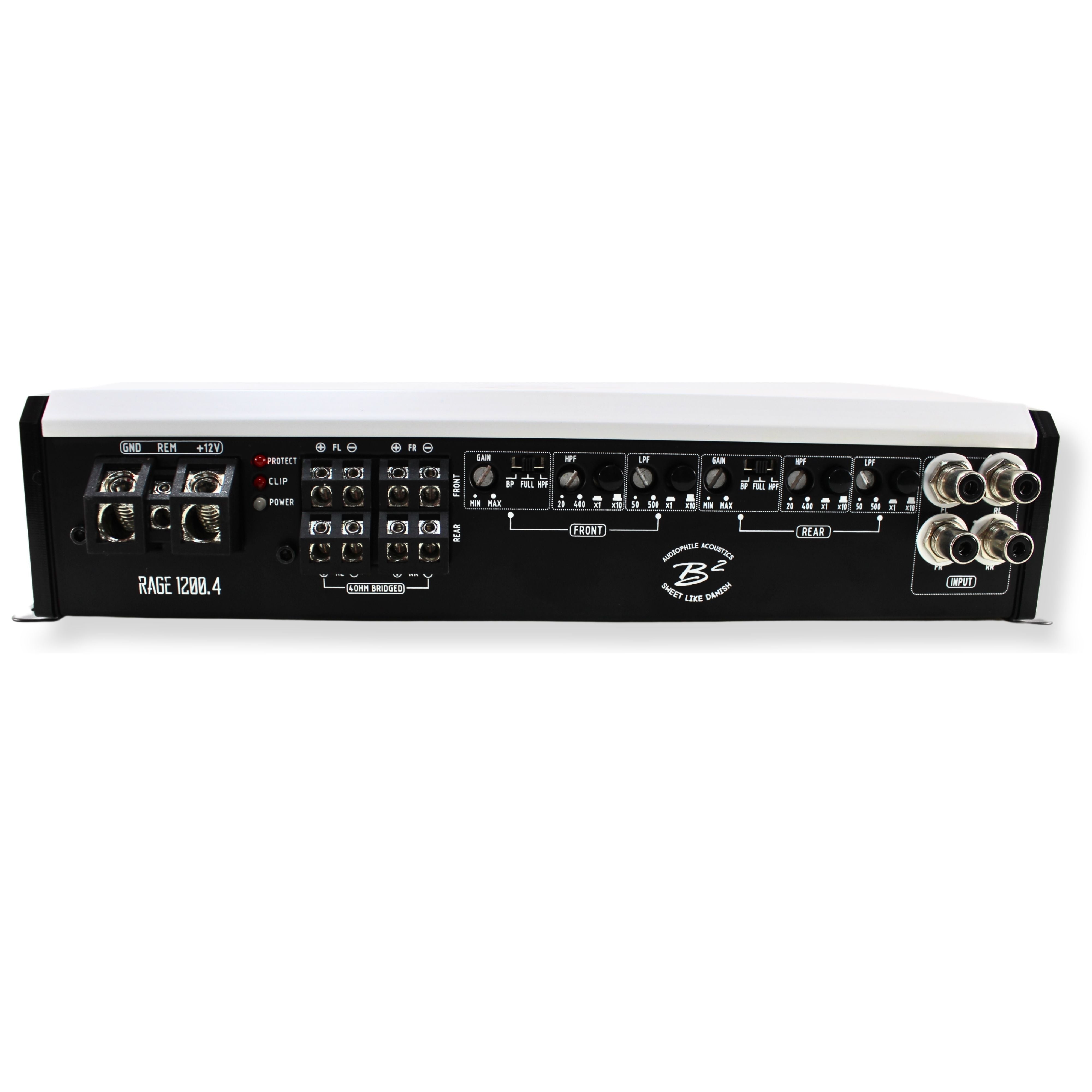

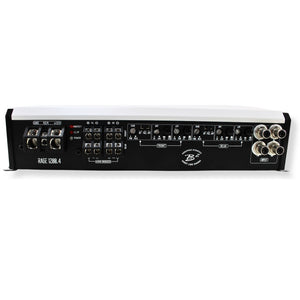

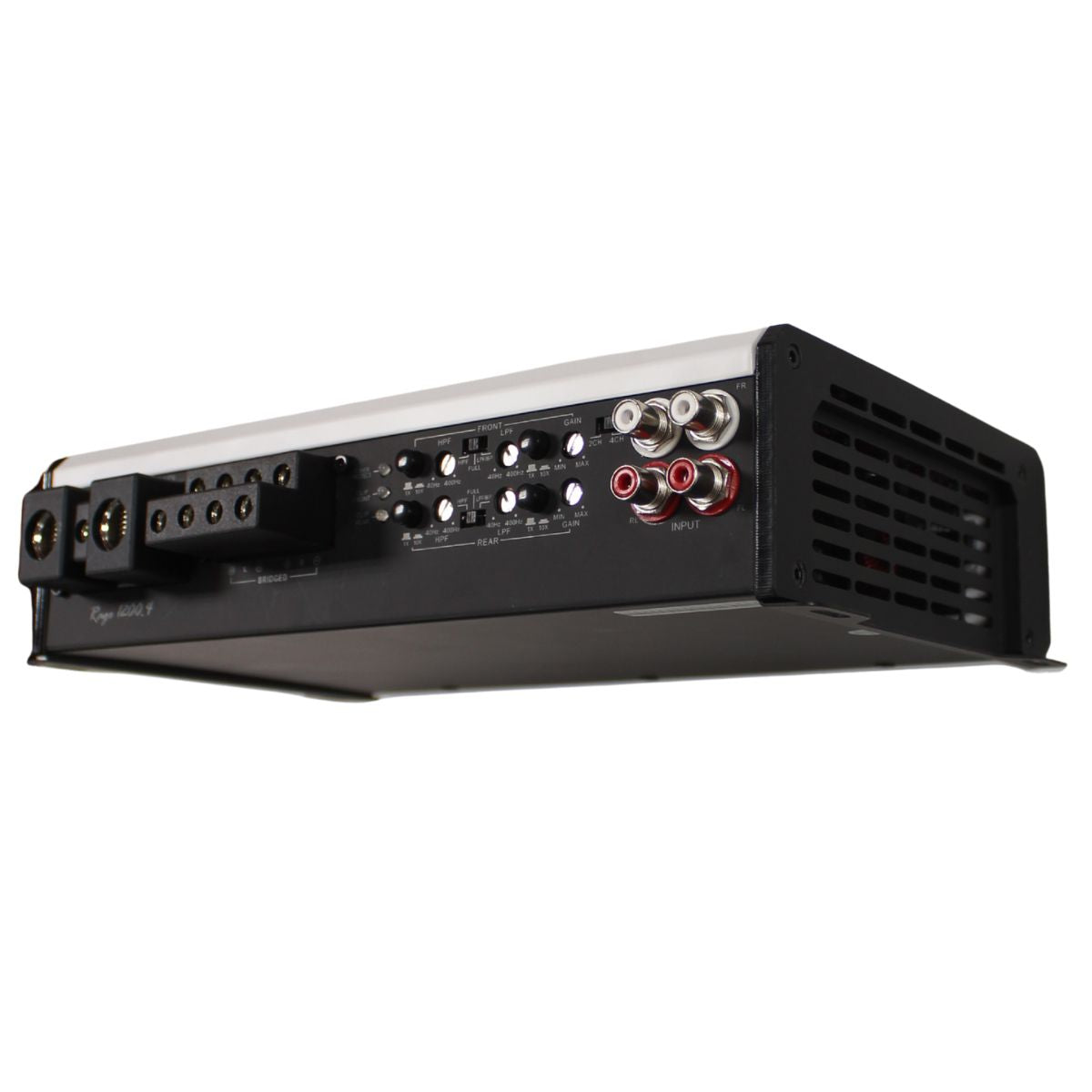

• (1) B2 Audio RAGE-1200.4-V2 4-Channel Amplifier

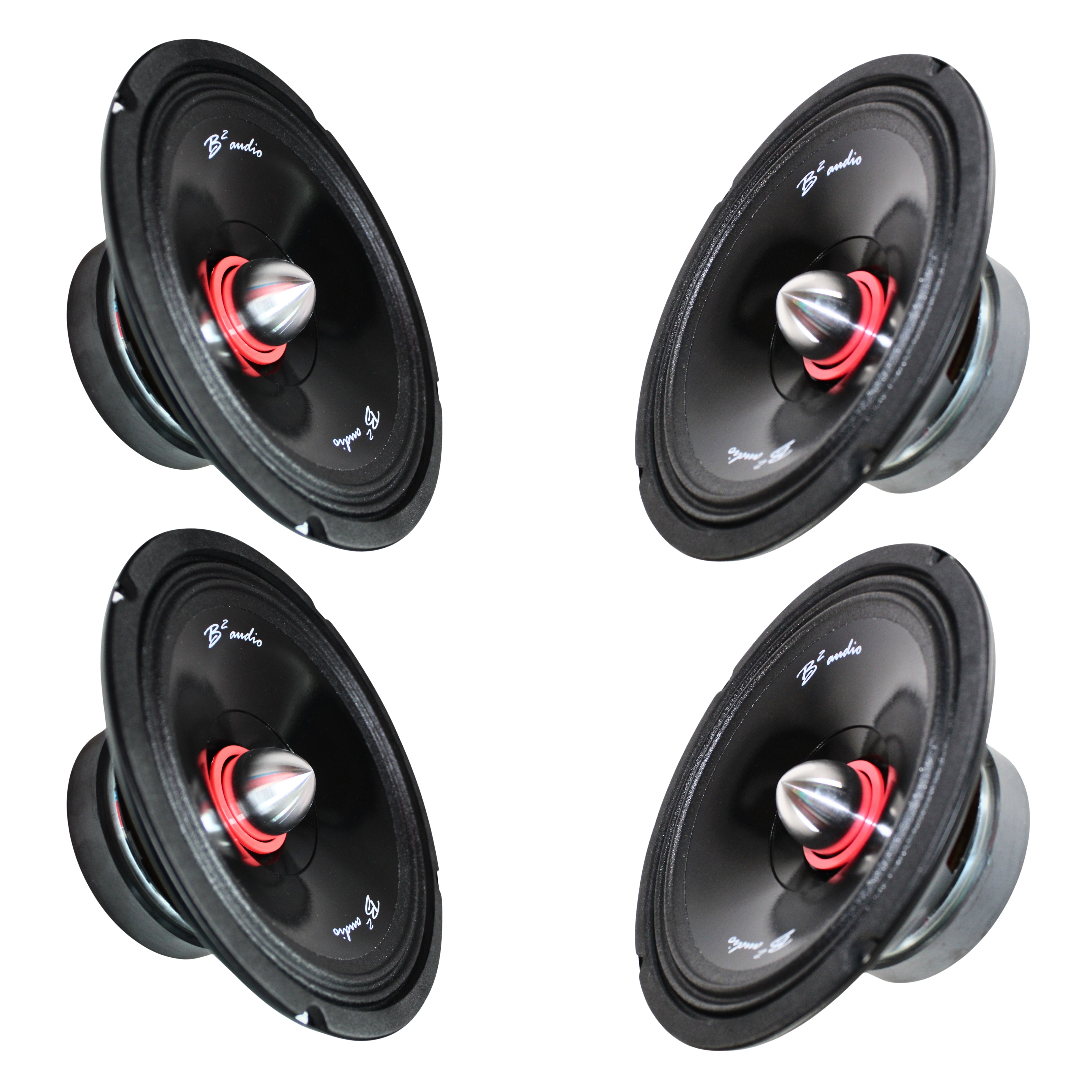

• (4) B2 Audio RIOT8P 8" 4-Ohm Midrange Speakers (2 Pairs)

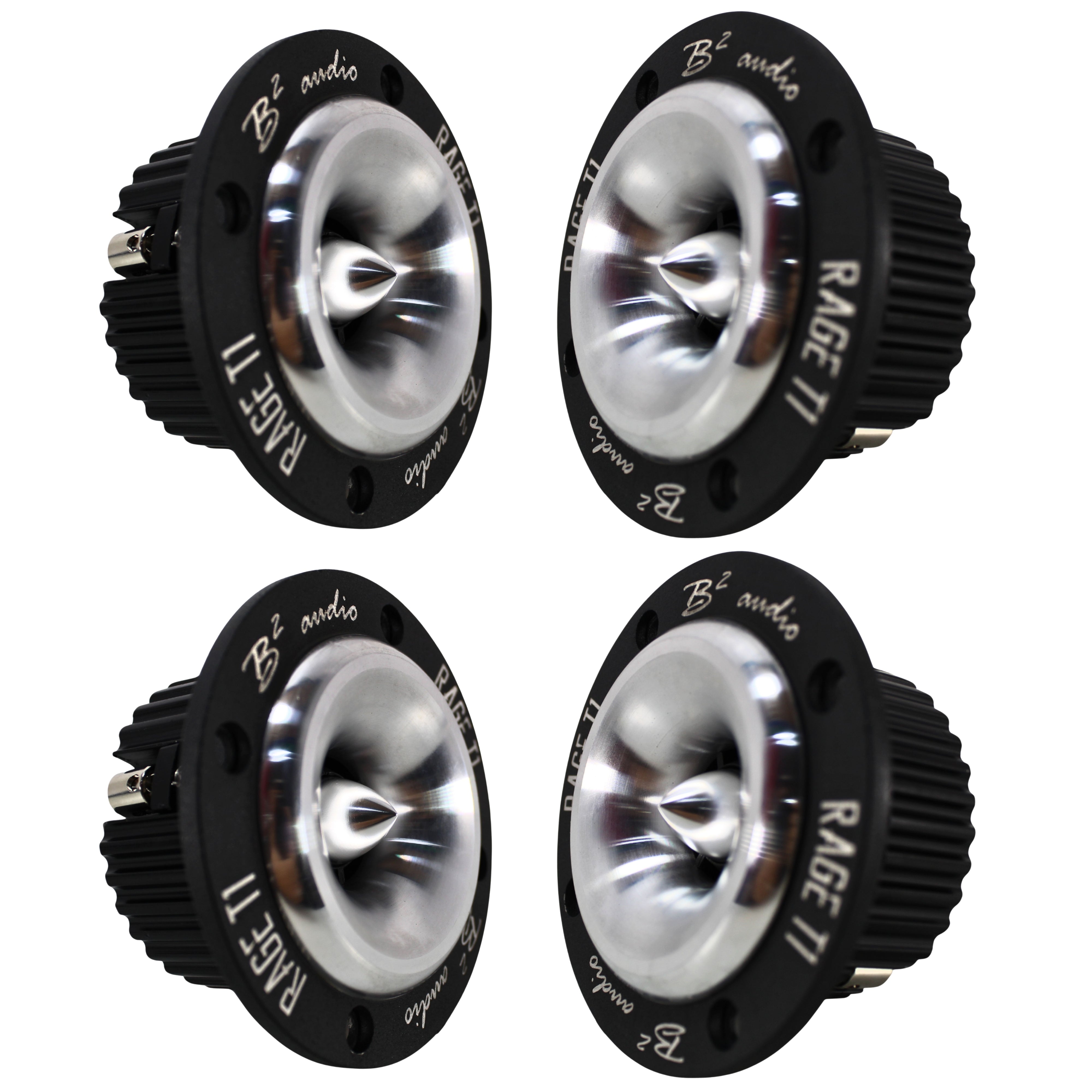

• (4) B2 Audio RAGE T1 NEO 4-Ohm Bullet Tweeters (2 Pairs)

This combo pairs the B2 Audio RAGE 1200.4 4-channel amplifier with two pairs of RIOT8P 8" midrange speakers and two pairs of RAGE T1 NEO bullet tweeters to create a high-output mid and high frequency system designed for maximum front-stage impact. Built for users who want strong projection, clarity, and efficiency, this setup is ideal for aggressive door builds or pod-based installs.

The RAGE 1200.4 provides flexible channel configuration, allowing mids and tweeters to be distributed across channels for proper power management and tuning. Built on B2's Hi-EF Class D platform, the amplifier delivers consistent output while maintaining efficiency and thermal stability in high-demand systems.

The RIOT8P midrange speakers deliver loud, punchy mids with high sensitivity, while the RAGE T1 NEO tweeters add crisp, detailed highs using a titanium diaphragm and neodymium motor structure. With the included capacitors, the tweeters are protected for reliable high-frequency operation.

This combo is designed for systems where output and clarity matter without stepping into excessive complexity.

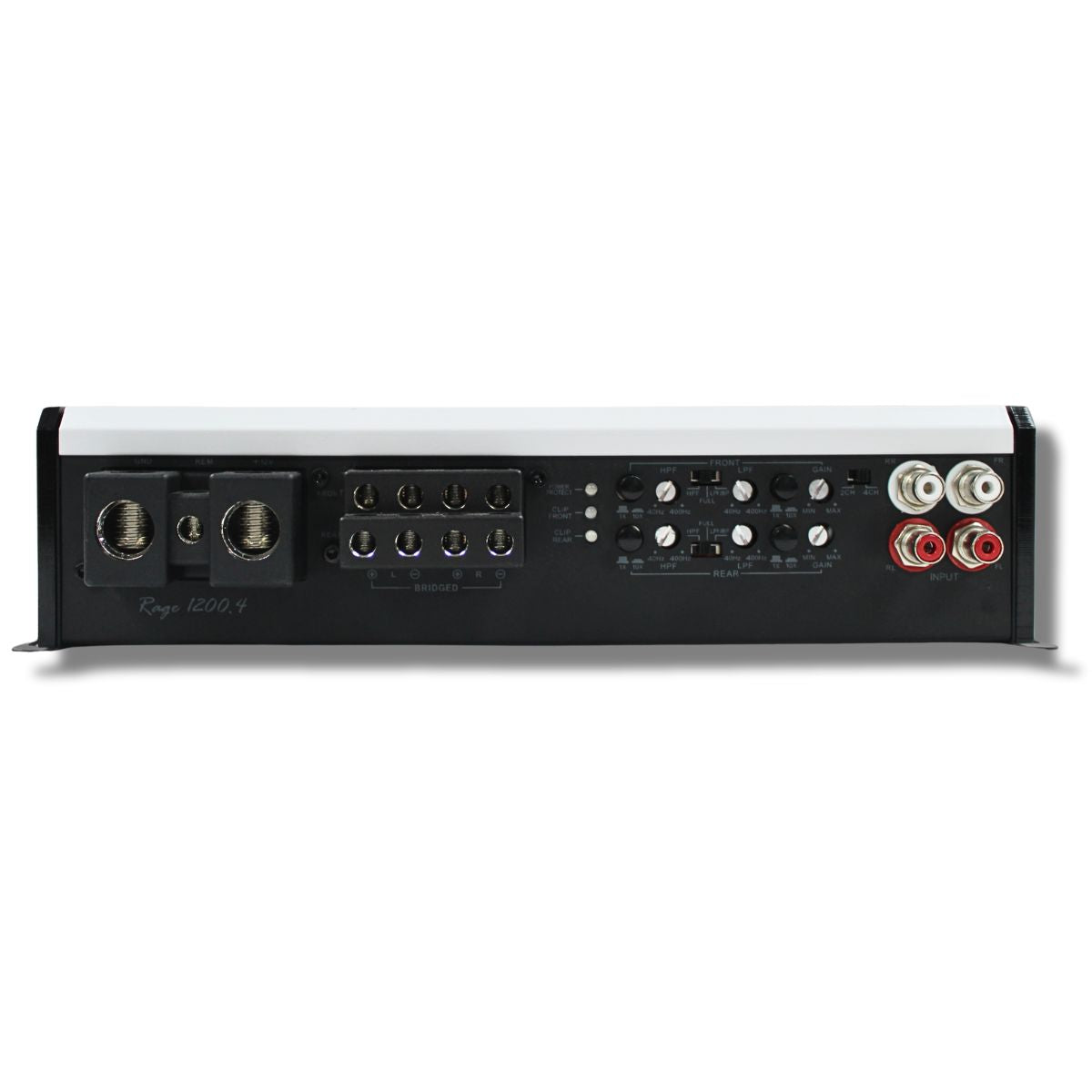

Amplifier Specifications - B2 Audio RAGE-1200.4-V2

• RMS Power @ 4 Ohm: 4 x 200 Watts


• RMS Power @ 2 Ohm: 4 x 300 Watts


• RMS Power @ 4 Ohm Bridged: 2 x 1200 Watts


• Circuit Type: Hi-EF Class D


• Frequency Response: 20 Hz – 20 kHz


• Signal-to-Noise Ratio: > 90 dB


• Input Sensitivity: 6V – 0.2V


• Crossover Slope: 12 dB / Octave


• Low-Pass Filter: 40 Hz – 4 kHz


• High-Pass Filter: 40 Hz – 4 kHz


• Damping Factor: > 200


• Power Terminals: 0 AWG Compatible


• Fuse Rating: 100A

Speaker Specifications - B2 Audio RIOT8P (Each Speaker)

• RMS Power Handling: 150 Watts


• Maximum Power Handling: 300 Watts


• Nominal Impedance: 4 Ohm


• Frequency Response: 80 Hz – 10 kHz


• Sensitivity: 97 dB


• Mounting Depth: 3.23"


• Cutout Diameter: 7.2"

Tweeter Specifications - B2 Audio RAGE T1 NEO (Each Tweeter)

• RMS Power Handling: 100 Watts


• Maximum Power Handling: 200 Watts


• Nominal Impedance: 4 Ohm


• Frequency Response: 3 kHz – 20 kHz


• Sensitivity: 106 dB


• Diaphragm Type: Titanium


• Mounting Depth: 1.30"

Recommended Wiring Configuration

1. Wire two RIOT8P midrange speakers per channel in parallel for a 2-ohm load on two amplifier channels


2. Wire two RAGE T1 NEO tweeters per channel in parallel for a 2-ohm load on the remaining two channels

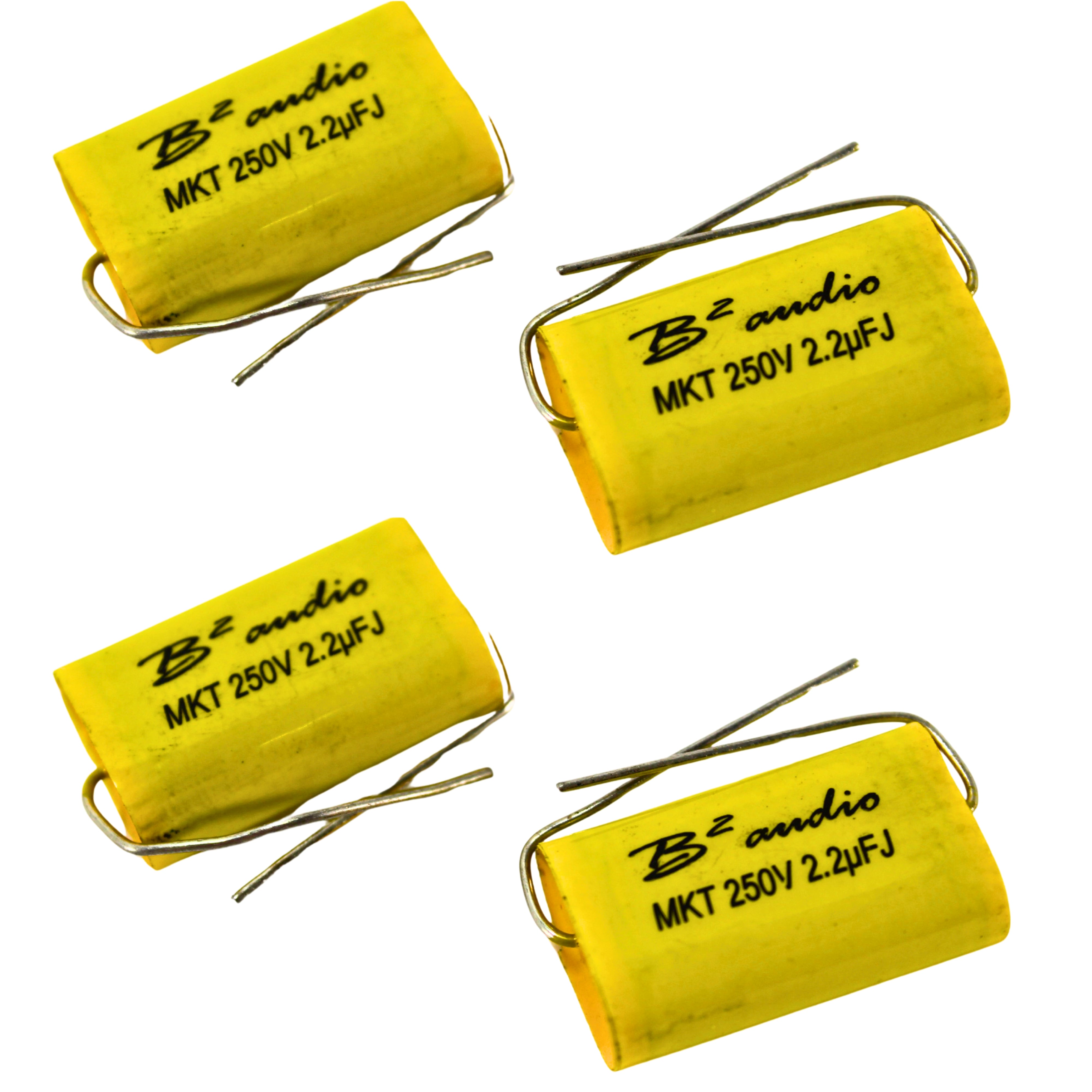

3. Install the included capacitors inline with each tweeter for high-pass protection


4. Set appropriate high-pass crossover points and gains to maintain clean output and speaker longevity
