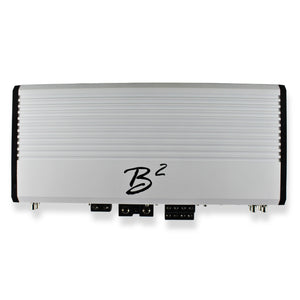

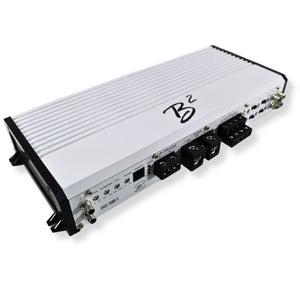

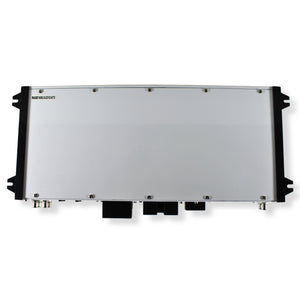

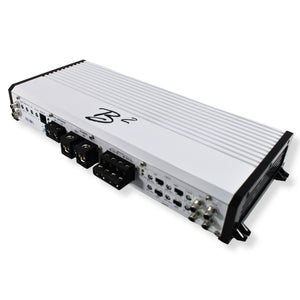

B2 Audio RAGE 5 Channel 1.6k Watt 4-Ohm Half Bridge Class-D Amplifier

• High-Performance Amplification: Delivers 1600W of total power for a superior audio experience.
• Versatile Configuration: Bridgeable Class D amplifier with 5 channels, perfect for custom car audio setups.
• Precise Controls: Includes a bass knob/volt meter with LED indicators for easy monitoring and adjustment.
• Robust Construction: Comes with mounting hardware for secure installation in your vehicle.
• Wide Frequency Response: Ensures accurate sound reproduction across the audible spectrum.

B2 Audio RAGE 5 Channel 1.6k Watt 4-Ohm Half Bridge Class-D Amplifier

This Listing Includes:

• (1) 1.6k Watt 2 Ohm 5CH Class D Amplifier

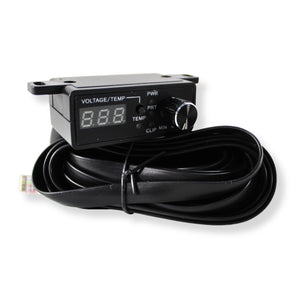

• (1) Bass Knob/ Volt Meter With PWR/CLP/PRT/TEMP LED


• (1) Set of Mounting Hardware

B2 Audio Rage 1600.5: Unleash the Power of 5 Channels! Tired of bulky multi-amp setups? The B2 Audio Rage 1600.5 is the sleek, powerhouse solution for running your entire car audio system with a single, compact amplifier. This Class D, 5-channel marvel is engineered to deliver serious, regulated power, making it an exceptional choice for audiophiles and bass enthusiasts alike. Unlike many competitors, the Rage 1600.5 delivers massive output from the subwoofer channel, pushing up to an incredible 1100 Watts at 1 Ohm. Combined with the clean power for your mids and highs, this amp provides a comprehensive, high-performance platform for a full-range system. Designed for a clean, professional install, all wiring inputs (power, ground, turn-on, and speaker outputs) are conveniently located on the bottom panel. Complete with a premium B2 Audio bass knob featuring a voltage/temp/clip indicator, the Rage 1600.5 ensures you have full control and visibility of your system's performance.

Features:

• True 5-Channel Amplifier: Power your entire system from one unit.


• Class D Topology: Efficient, powerful, and small footprint.


• Regulated Power Supply: Delivers consistent, reliable power, often exceeding ratings (demonstrated 1780 Watts Max/RMS on the sub channel in real-world testing).


• High Subwoofer Output: Up to 1100 Watts @ 1 Ohm (mono) or 600 Watts @ 2 Ohms (mono).


• Premium Bass Knob Included: Features voltage, temperature, clipping, and power indicators.

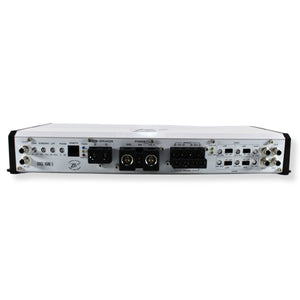

• Clean Installation Design: All terminals and wiring outputs are located on the bottom of the amp.


• Certified Ratings: DB Drag Race Certified, USACi SQL, IASCA.

Specifications:

• Total Watts: 1600W


• RMS Power @ 4 ohm: 670W (4 x 80W + 1 x 350W)


• RMS Power @ 2 ohm: 1100W (4 x 125W + 1 x 600W)


• RMS Power Bridged: 1600W (2 x 250 @ 4-Ohm + 1 x 1100 @ 1 Ohm Mono)


• Circuit Configuration: Hi-EF Class D


• Frequency Response: (CH 1-4: 10 Hz ~ 27 KHz) ( Ch5: 10Hz ~ 250 Hz)


• Signal to Noise Ratio: >95 DB


• Input Sensitivity: 0.2V ~ 5V


• Crossover Circuit: 24 dB / Octave


• Low Pass Crossover: (CH 1-4: 50 Hz ~ 5 KHz) ( Ch5: 35Hz ~ 250 Hz)


• High Pass Crossover: 30 Hz ~ 5 KHz


• Phase: 0-180

Level Control (with clip/volt/temp):

• Power Terminal Gauge: 0 AWG


• Fuse Rating: 150 A

Measurements:

• Length: 16.73" / 425mm


• Width: 7.87" / 200mm


• Height: 2.75" / 70mm
