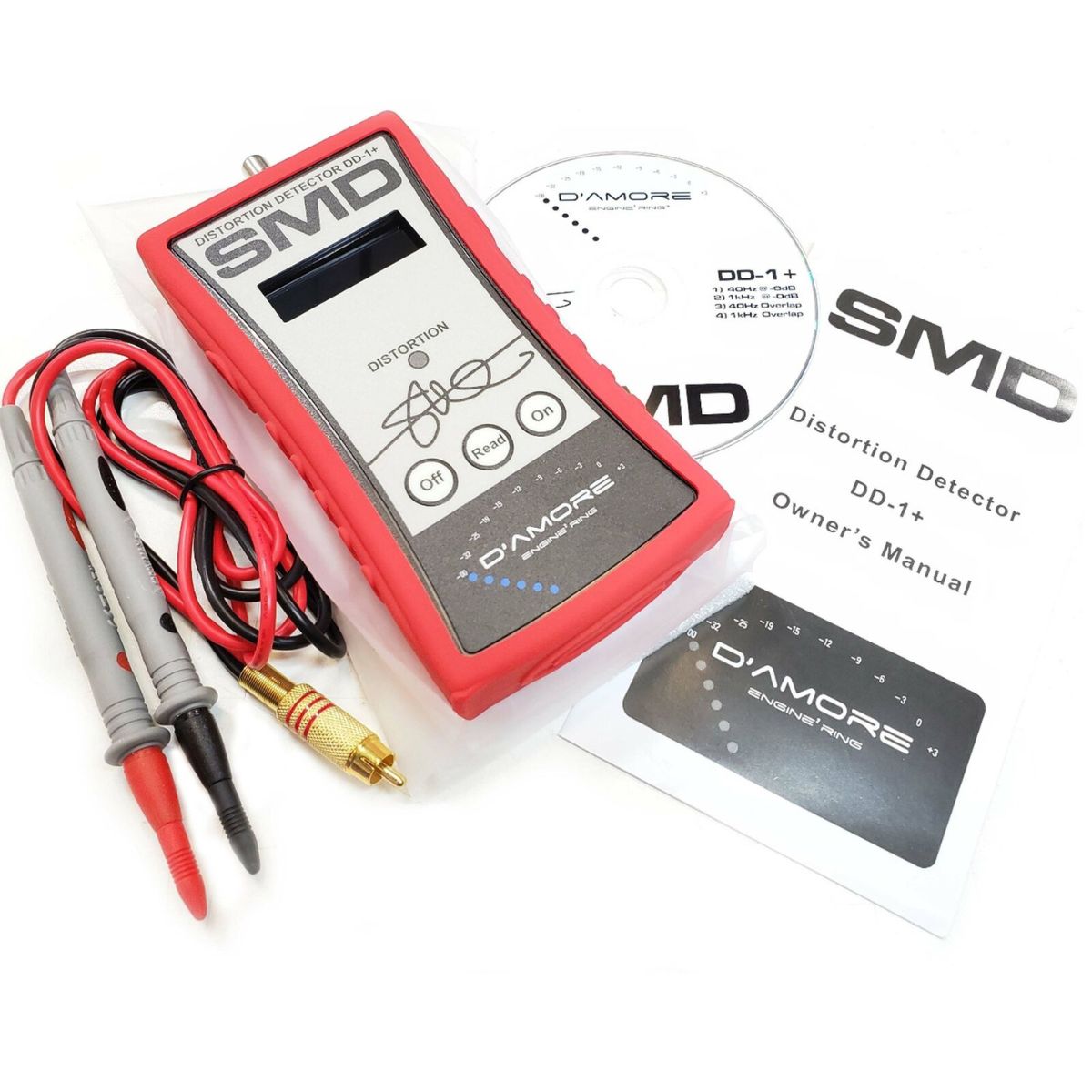

This Listing Includes:

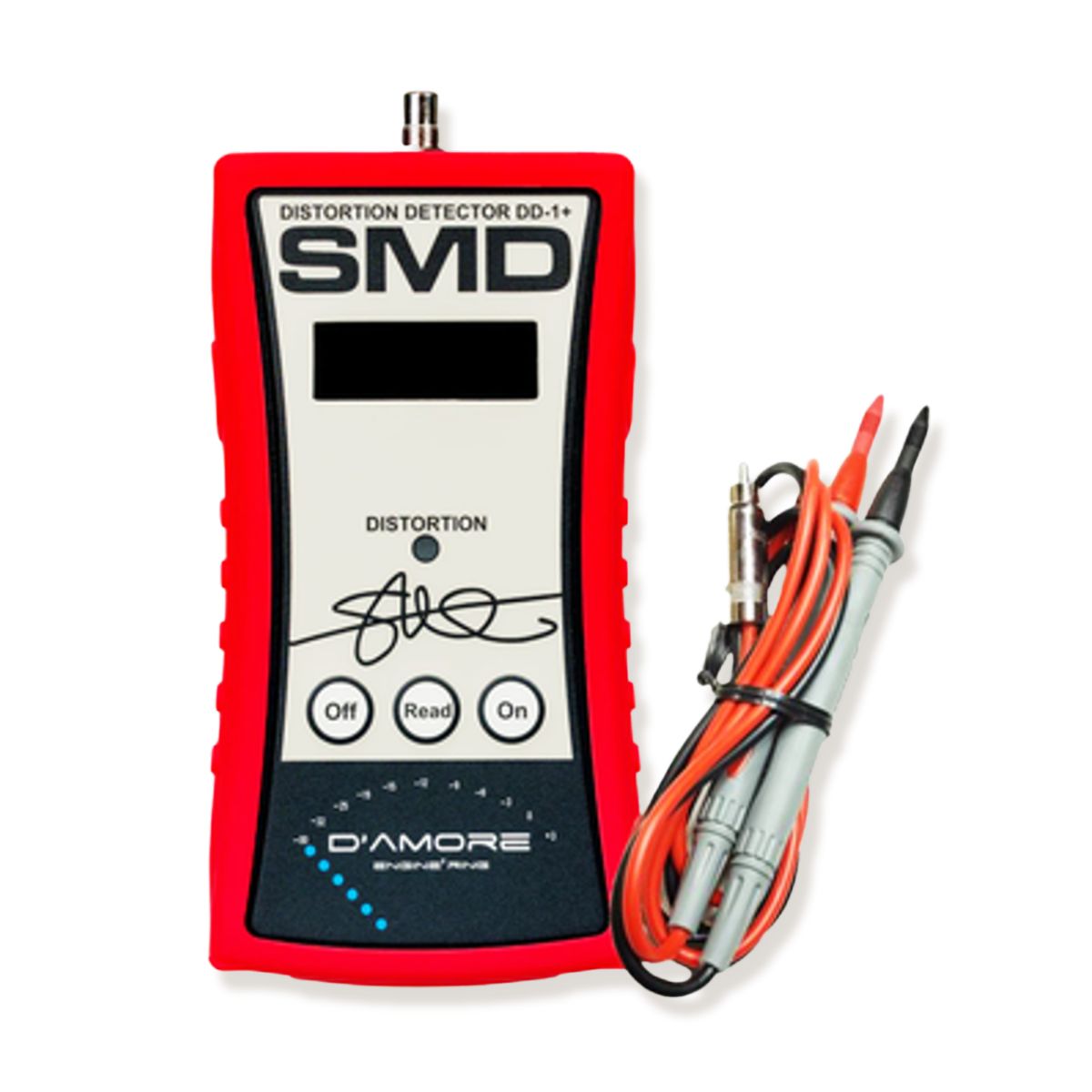

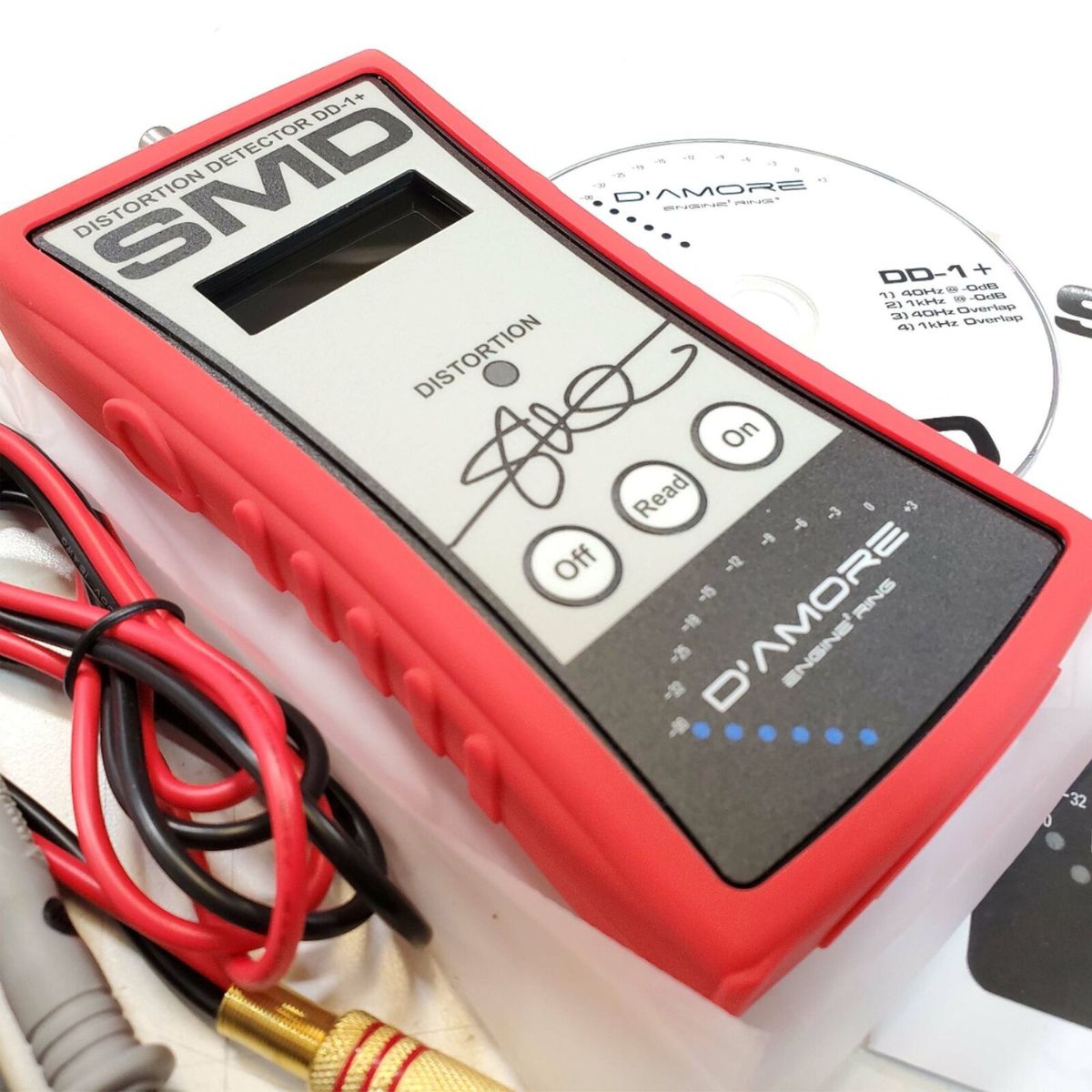

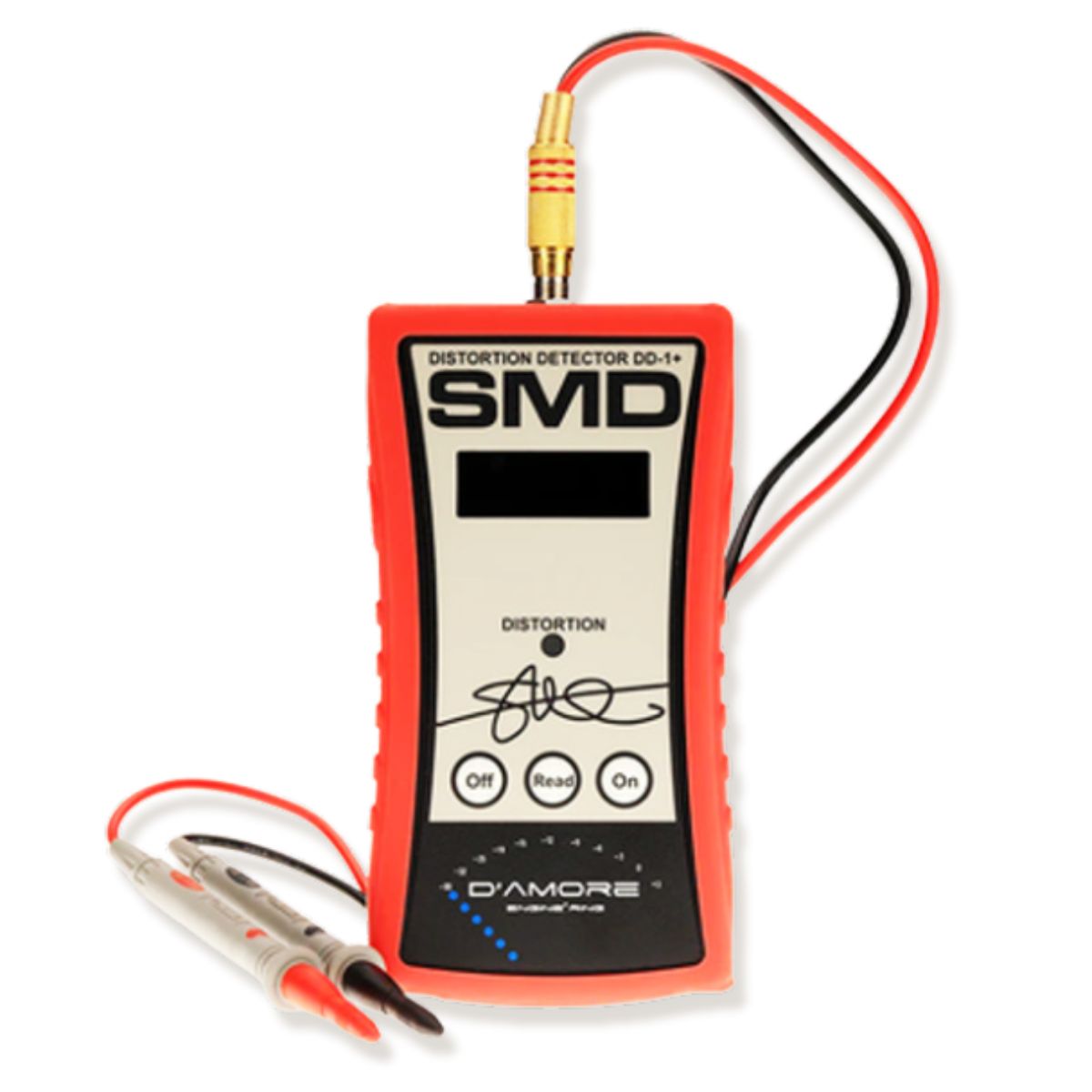

• (1) Distortion Detector PLUS
• (1) Calibrated Test Tone CD

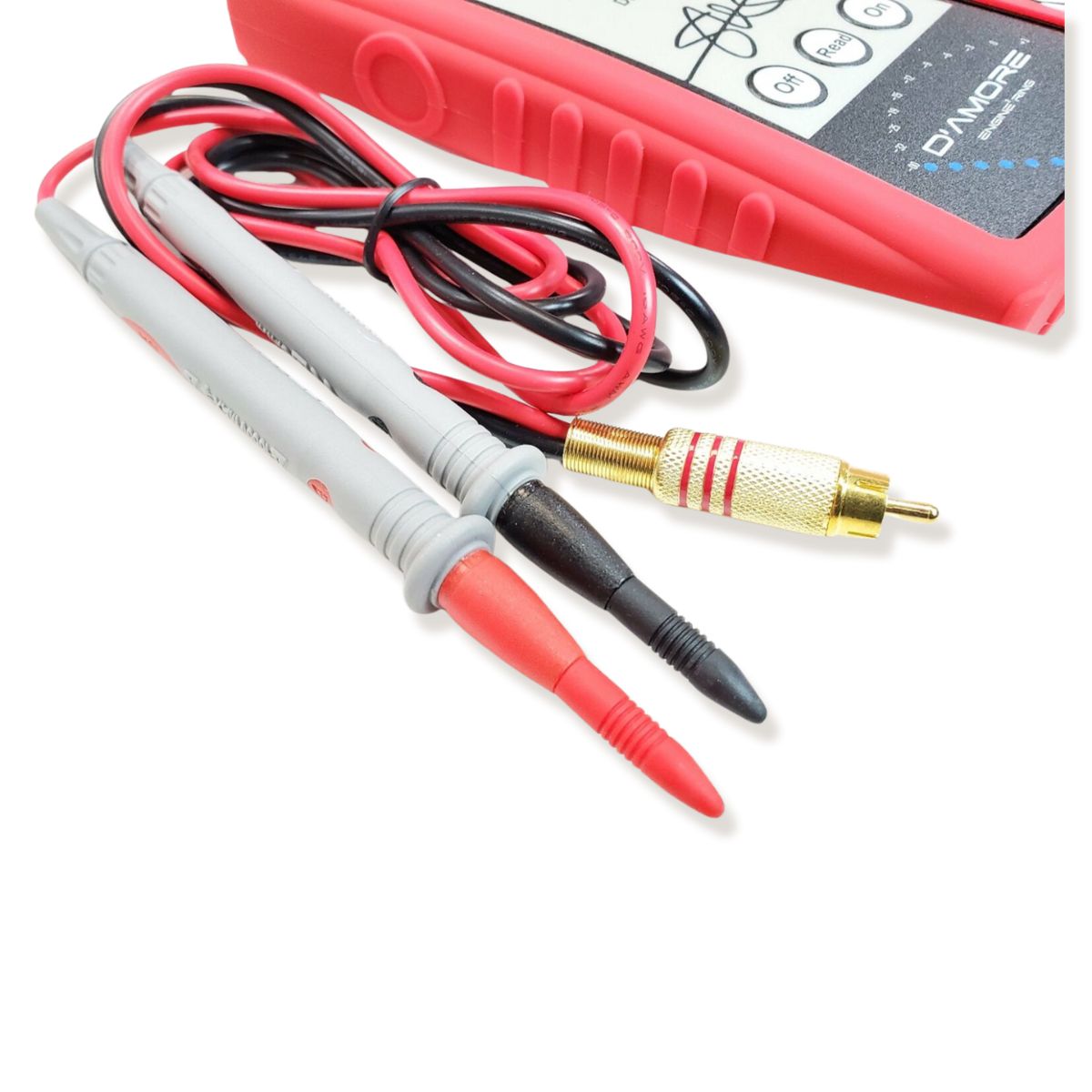

• (1) Harness
• (1) User Manual

Product Description:
Protect your amplifiers and speakers while optimizing system performance with this Amplifier Signal Distortion Detector Plus. Designed to detect distortion, clipping, and improper gain settings, it helps you fine-tune any audio system for clean, balanced sound. Continuously adjustable gain overlap (0.0–15.0dB in 0.1dB steps) and a Quasi-RMS voltmeter make it easy to troubleshoot and verify installs without altering existing settings. The complete kit includes a test tone CD and harness for professional-grade diagnostics.

Features:

• Continuously variable gain overlap adjustment (0.0–15.0dB)
• Detects amplifier distortion and clipping at any frequency
• Verifies gain overlap without changing current settings
• Confirms install integrity after installation
• 200V maximum input, suitable for high-power systems
• Auto-shutoff 8–10 minutes after activation
• Battery self-test and low-battery LED indicator

Specifications:

• Distortion Detection Trigger: >1.0% Harmonic Distortion
• Input Signal Range: 1.2Vrms – 200Vrms
• Low Battery Threshold: <6.5Vdc
• Dimensions: 9" x 6" x 2"

Specific Uses / Applications:

• Optimizing gain overlap in car audio, home theater, and professional systems
• Detecting distortion and clipping in high-power amplifiers
• Verifying proper system installation and preventing speaker damage
• Field or workshop diagnostics for pro installers and serious enthusiasts
