B2 Audio RAGE63 Series 3" Midrange 6 Ohm With 3-Way Crossovers

• High-Performance Midrange: Enjoy clear and detailed midrange frequencies with these 3" coated paper cone speakers from B2 Audio RAGE series.
• Powerful RMS Handling: Each speaker handles 80W RMS power, delivering robust and dynamic sound reproduction.
• Complete Audio Solution: Includes 3-way crossovers for seamless integration into your car audio system.
• Versatile Compatibility: With a nominal impedance of 6 Ohm, these speakers are compatible with a wide range of setups.
• Enhanced Sound Quality: Designed with optimized Thiele & Small parameters for superior audio performance.

B2 Audio RAGE 3" 80 Watt RMS 6-Ohm Coated Paper Cone Midrange W/ 3-Way Crossover

This Listing Includes:

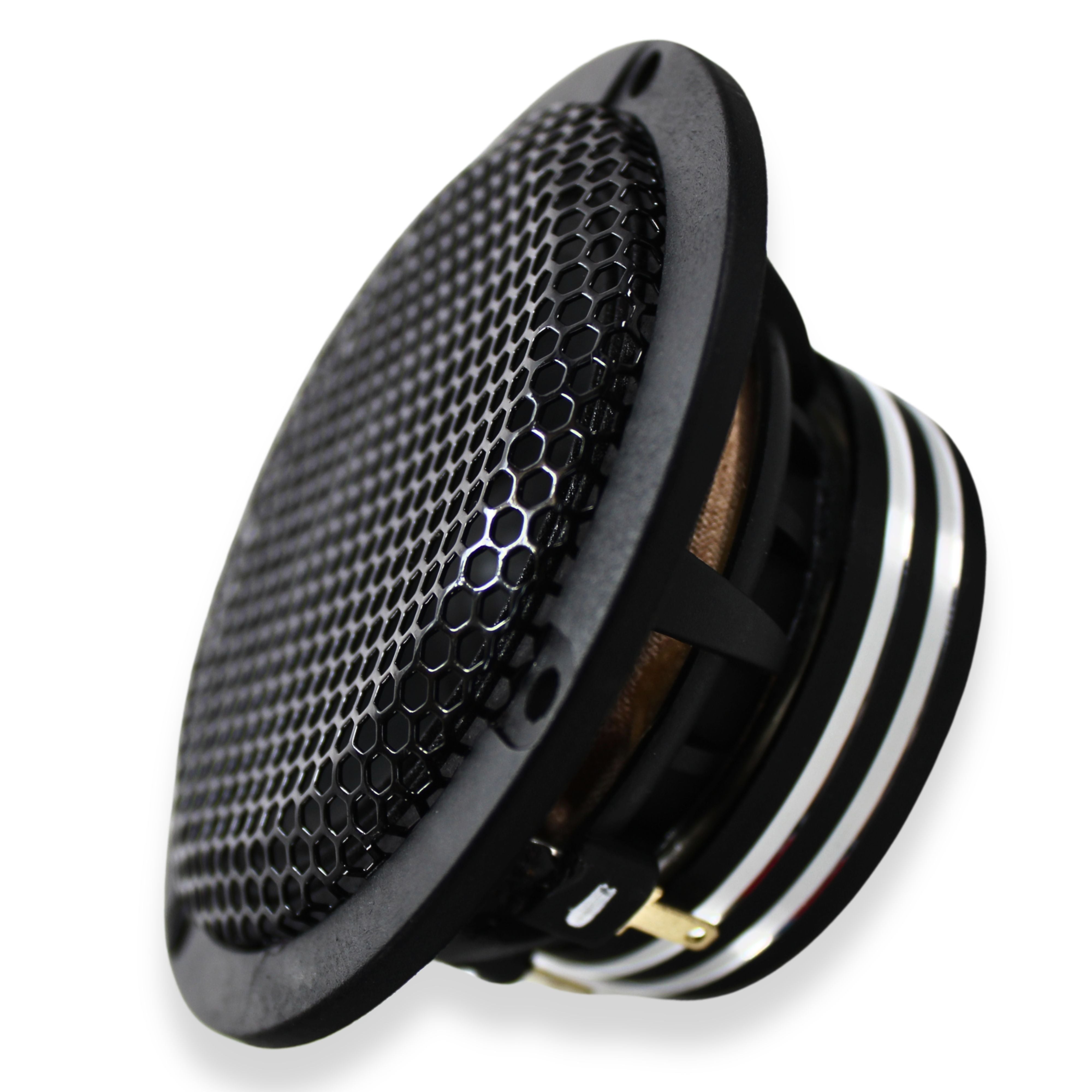

• (2) B2 Audio RAGE3MR 3" Midrange Speakers


• (2) B2 Audio RAGE63XO 3-Way Passive Crossovers

Bring precision, clarity, and aggressive midrange performance to your front stage with the B2 Audio RAGE3MR 3" Midrange Speaker Package. Engineered for high-performance SQL and pro-audio-inspired car audio systems, these compact drivers deliver crisp vocals, detailed instrument reproduction, and smooth upper-mid response in a space-saving design built for custom installations.

Paired with the included B2 Audio RAGE63XO 3-way passive crossovers, this package helps create a cleaner and more controlled soundstage by properly distributing frequencies between your woofer, midrange, and tweeter. Whether you're building a competition-ready setup or upgrading your daily driver, the RAGE3MR delivers powerful output and excellent articulation far beyond its size class.

With an 80 Watt RMS power rating per speaker, a coated paper cone for natural tonal response, and a wide 200 Hz – 18 kHz frequency range, these drivers are designed to handle demanding listening sessions while maintaining smooth and accurate sound reproduction. The 6-ohm impedance also offers flexible system integration across a wide range of amplifiers and multi-speaker configurations.

Designed for custom 3-way component systems. Tweeters and woofers sold separately.

Features

• Compact 3" midrange speaker design


• Coated paper cone for natural vocal response


• Excellent upper-mid and vocal clarity


• Wide frequency response for detailed sound reproduction


• High-performance SQL and pro-audio applications


• Included 3-way passive crossovers


• Flexible 6-ohm impedance design


• Compact size ideal for custom installations


• Sold as pairs

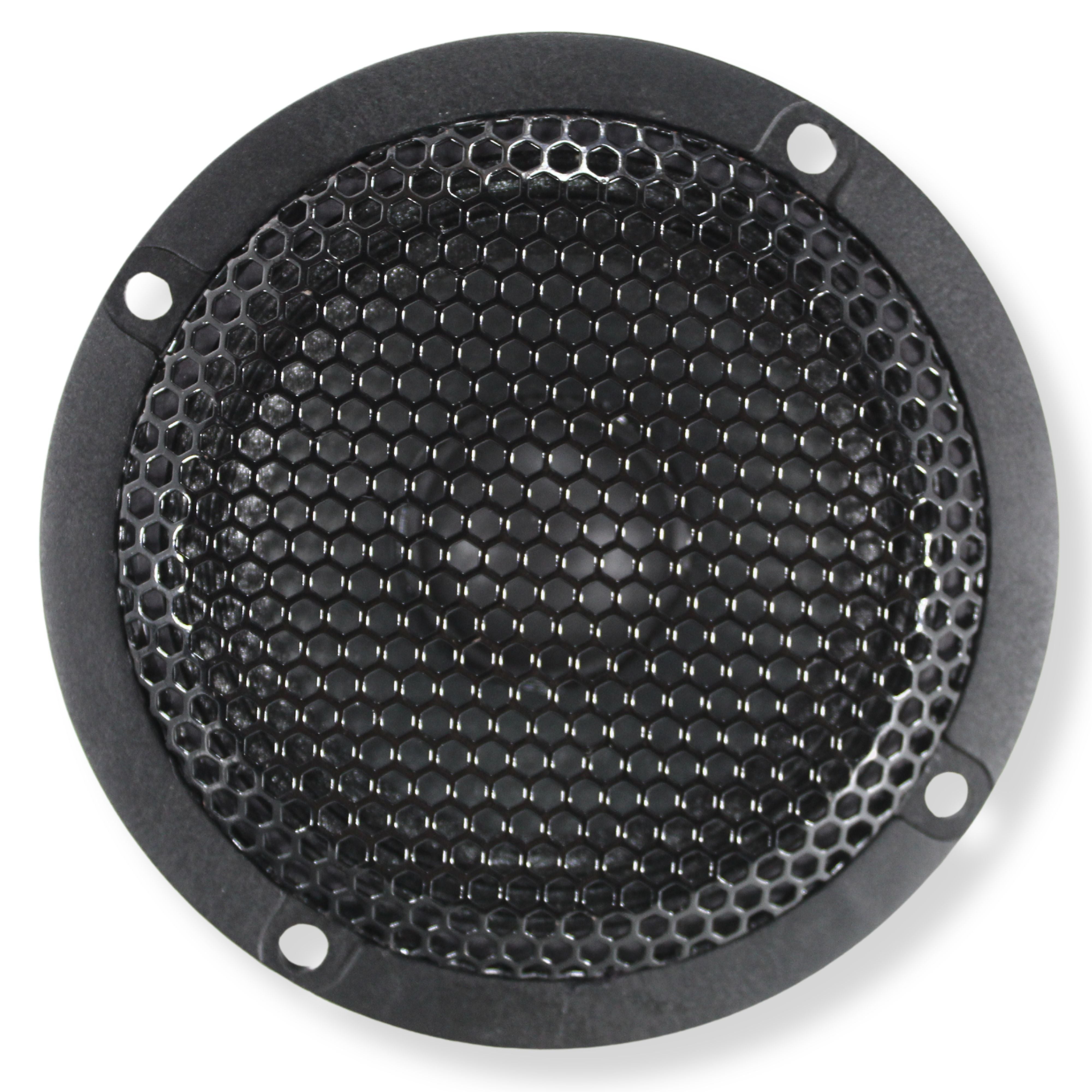

B2-RAGE3MR Speaker Specifications (Each):

• RMS Power Handling: 80 Watts


• Nominal Impedance: 6 Ohms


• Reactive Impedance: 5 Ohms


• Frequency Response: 200 Hz – 18 kHz


• Resonance Frequency (Fs): 209 Hz


• Qms: 6


• Qes: 1.28


• Qts: 1.05


• Voice Coil Diameter: 1"

Speaker Dimensions (Each):

• Total Diameter: 90 mm (3.54")


• Total Depth: 47.8 mm (1.88")


• Mounting Depth: 38.7 mm (1.52")


• Mounting Diameter: 72.3 mm (2.85")


• Mounting Hole Diameter: 83 mm (3.27")

Important Note:

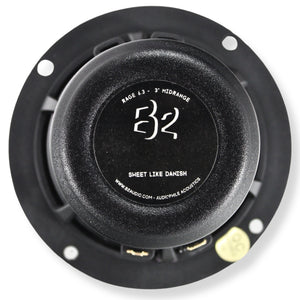

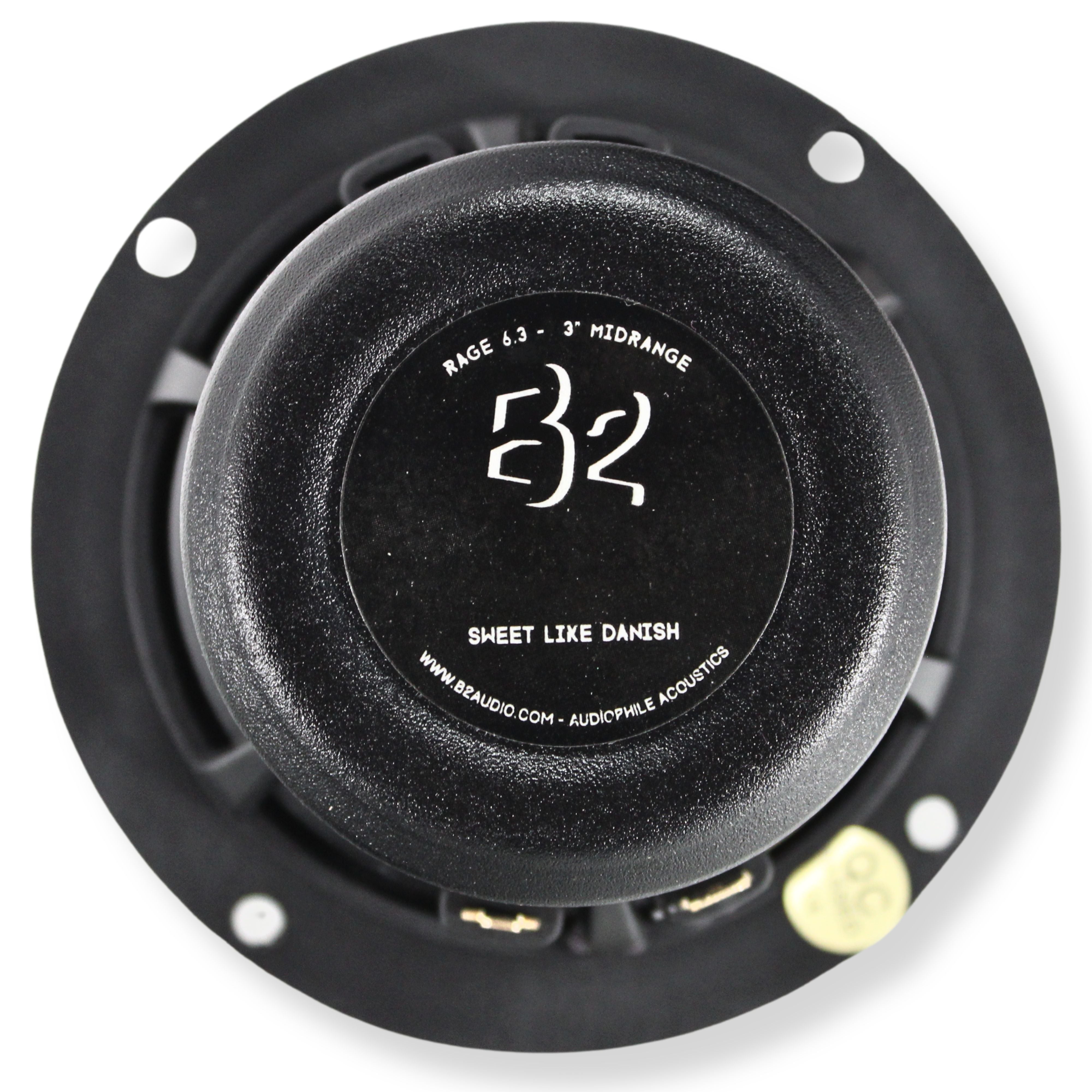

• The speaker magnet has a factory misprint showing incorrect specifications. Correct specifications are listed above and on the product packaging documentation.

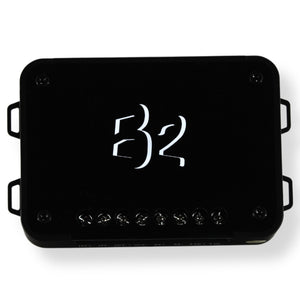

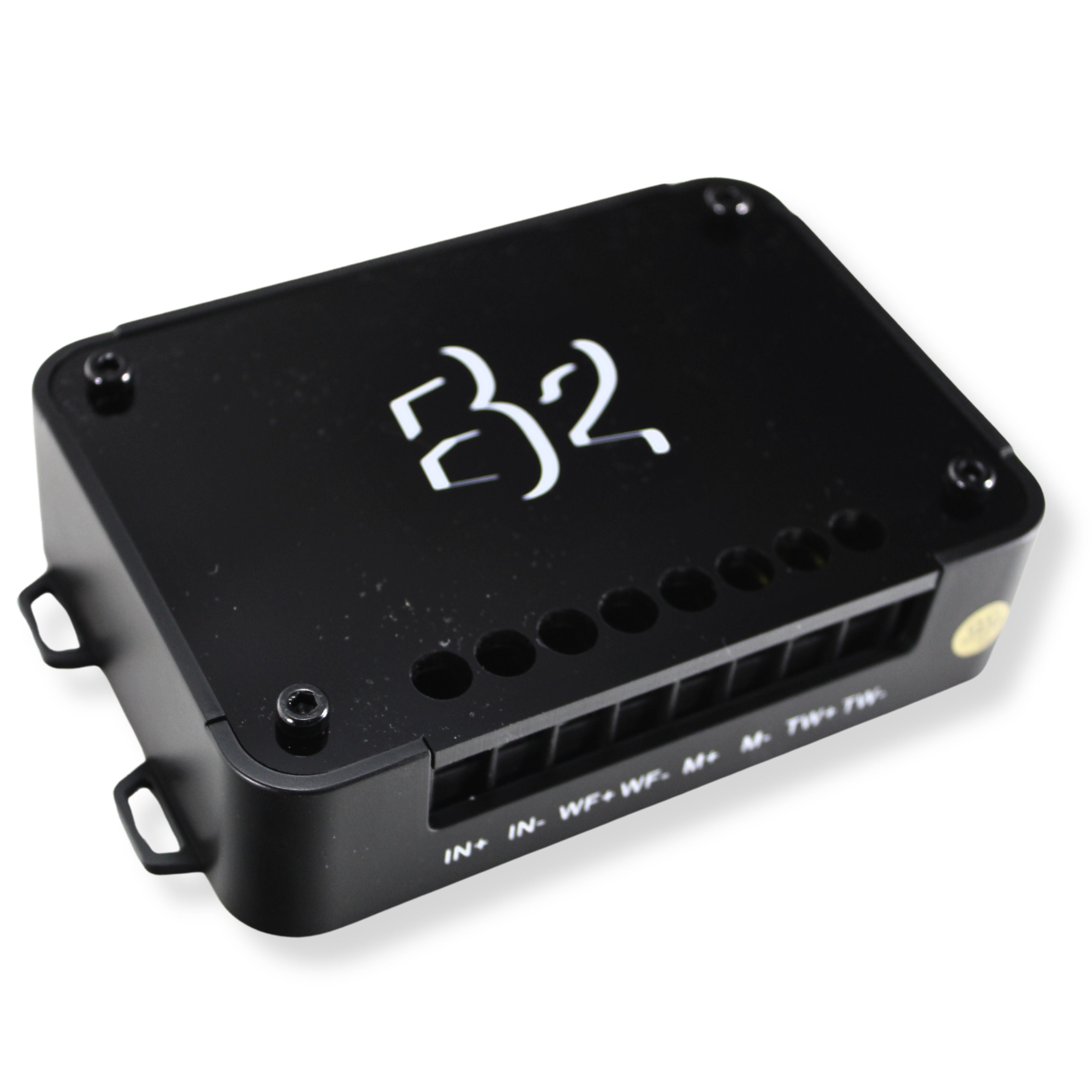

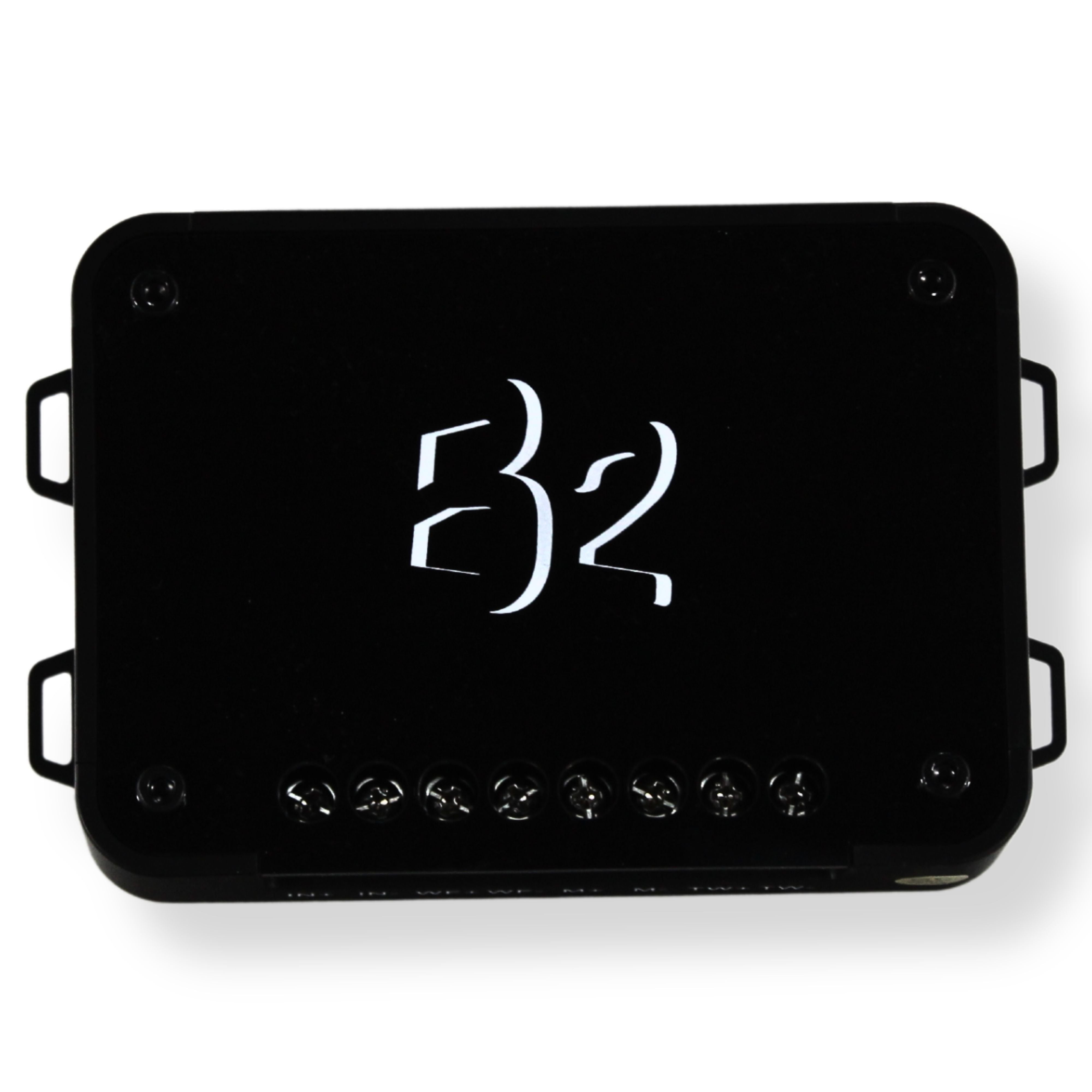

B2-RAGE63XO Crossover Features:

• Premium 3-way passive crossover network


• Designed for woofer, midrange, and tweeter integration


• Compact enclosed housing design


• Durable protective casing

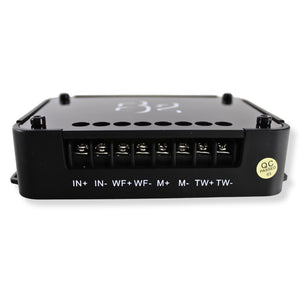

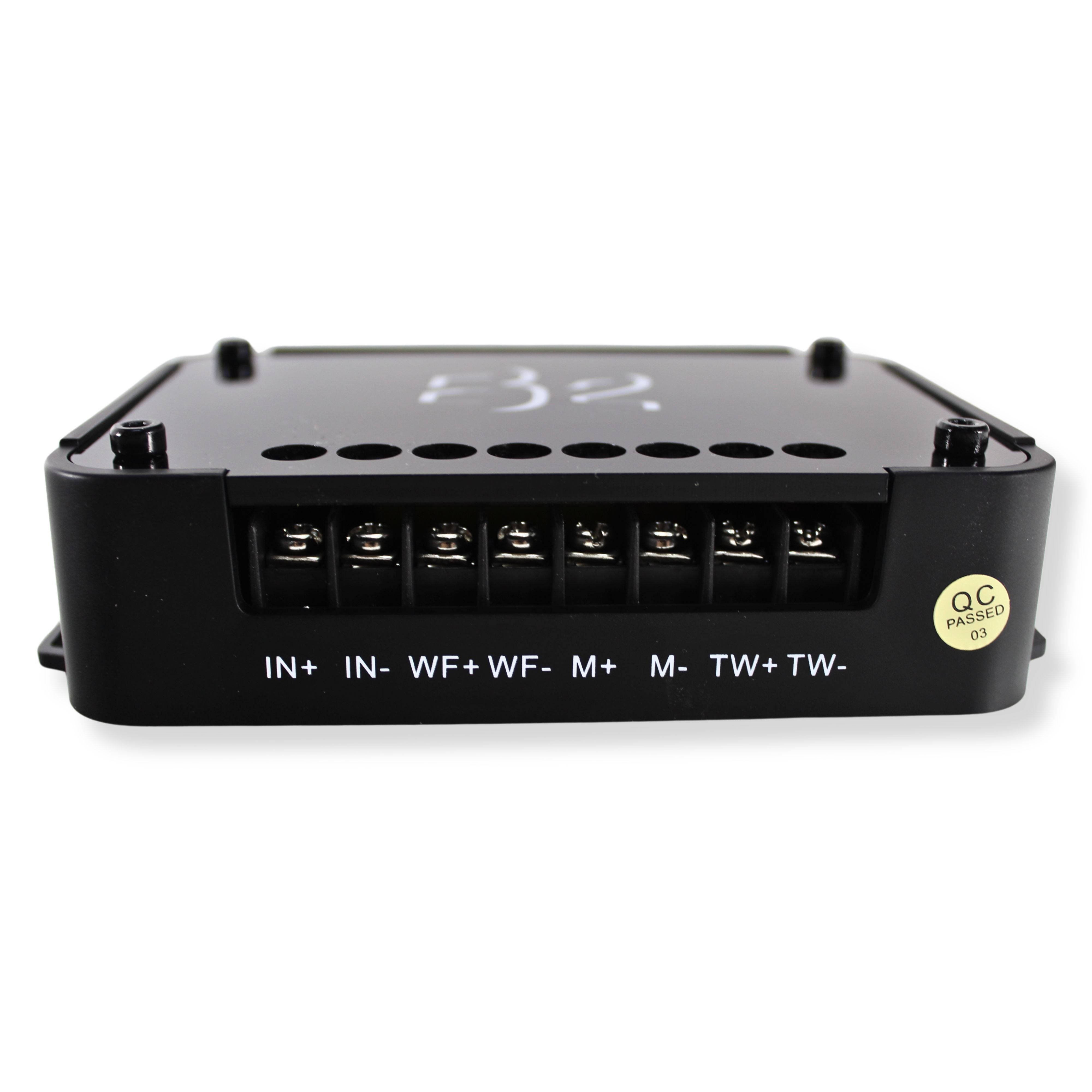

• Clearly labeled input and output terminals


• Screw terminal connections


• Integrated mounting tabs for easy installation


• Clean OEM-inspired appearance


• Organized signal distribution for improved sound reproduction

Crossover Specifications:

• Model: B2-RAGE63XO


• Type: 3-Way Passive Crossover


• Configuration: Woofer / Midrange / Tweeter


• Connection Type: Screw Terminal


• Mounting Style: Surface Mount


• Application: Car Audio Component Speaker Systems

Crossover Dimensions (Each):

• Length: 5.8"


• Width: 3.625"


• Height: 1.5"
