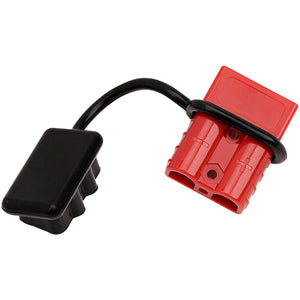

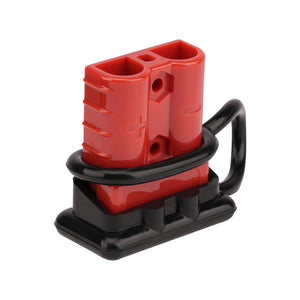

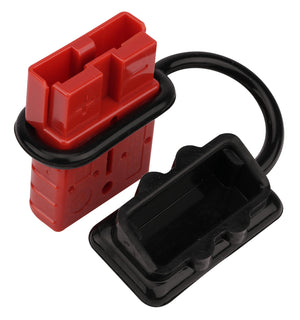

50A 12 to 6 AWG Anderson Plug Wire Connector with Dust Cap MLX Series

50A 12 to 6 AWG Anderson Plug Wire Connector with Dust Cap MLX-5012

This Listing Includes:

• (1) MLX-5012 DC Plug with Dust Cap

Description:

This 50A Anderson Plug Wire Connector with Dust Cap (MLX-5012) provides a secure, high-performance power connection for automotive, marine, RV, and industrial applications. Designed for efficiency and durability, it ensures stable power transfer while resisting heat and wear. The included dust cap protects the connector from dirt and debris, extending its lifespan and maintaining reliable operation. With silver-plated copper contacts and a keyed housing to prevent mismatching, this connector is built for safe, long-lasting use in demanding environments.

Key Features:

• Rated for 50A and 600V for reliable high-power applications
• Compatible with 12–6 AWG wire sizes
• Silver-plated copper contacts for conductivity and durability
• Keyed housing prevents accidental mismating

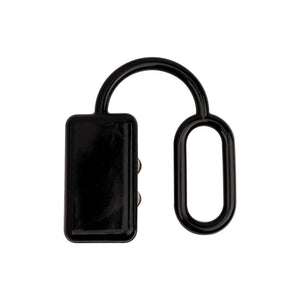

• Dust cap included to protect against dirt and debris
• Terminals can be crimped or soldered to cable
• Durable PPO insulation housing with UL94-V0 fire rating

Specifications:

• Dimensions: 48 x 37 x 16 mm
• Rated Current: 50A
• Rated Voltage: 600V
• Contact Material: Silver-plated copper
• Insulation Material: PPO
• Operating Temperature: -20°C to 105°C
• Fire Rating: UL94-V0
• Color Options: Plug (Grey/Red), Dust Cap (Black)
• Interface Type: Straight plug, 2-pole design
• Compatible Wire Gauge: 12–6 AWG
