B2 Audio RAVE Series 800 Watt RMS 1 Ohms 4 Channel Class-D Car Audio Amplifier

RAVE Series 800 Watt RMS 2-Ohm 4-Channel Class D Car Audio Amplifier RAVE 800.4

This Listing Includes:

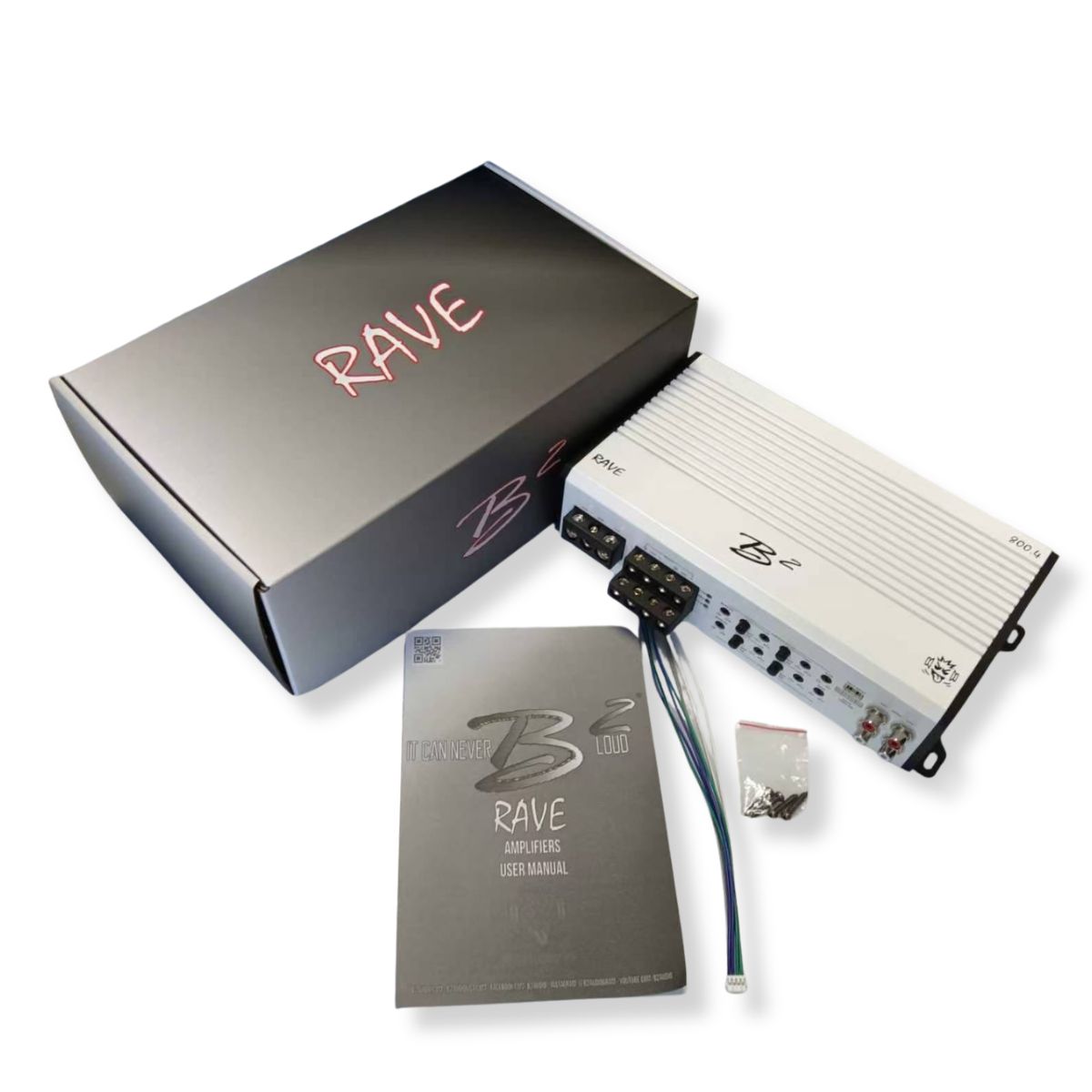

• (1) B2 Audio RAVE 800.4 4-Channel Amplifier

The B2 Audio RAVE 800.4 delivers clean, flexible full-range power for daily-driver systems, door speakers, mids, highs, and custom amp-rack builds. This compact 4-channel Class D amplifier produces up to 800 watts RMS total at 2 ohms—giving your speakers the stronger, cleaner output they need without taking up unnecessary space.

Run four speakers at 2 ohms for up to 4 x 200W RMS, or bridge the amplifier into a powerful 2-channel setup with 2 x 400W RMS at 4 ohms. Adjustable high-pass and low-pass crossovers let you dial in the right frequency range for your speakers, whether you are upgrading factory audio, powering a loud daily driver, or building a more customized system.

The RAVE 800.4 is 2-ohm stable per channel, internally fused, and built with 4-gauge power terminals for a clean, reliable installation.

Features:

• 4-Channel Full-Range Class D Car Audio Amplifier
• 800W RMS Total Output at 2 Ohms
• 2-Ohm Stable Per Channel
• Bridgeable 2-Channel Configuration
• Ideal for Mids, Highs, Door Speakers, Coaxials, and Full-Range Upgrades
• Adjustable High-Pass and Low-Pass Crossovers
• Compact Chassis for Clean Daily-Driver and Amp-Rack Installs
• 4-Gauge Power and Ground Terminals
• 90A Internally Fused
• Part of the B2 Audio RAVE Amplifier Series

Specifications:

• Model: RAVE 800.4
• Amplifier Type: 4-Channel Full-Range
• Circuit Configuration: High-Efficiency Class D
• Power Rating @ 4 Ohms: 4 x 120W RMS
• Power Rating @ 2 Ohms: 4 x 200W RMS
• Bridged Power Rating @ 4 Ohms: 2 x 400W RMS
• Minimum Speaker Impedance: 2 Ohms Stereo / 4 Ohms Bridged
• Frequency Response: 10Hz–35kHz
• Signal-to-Noise Ratio: >90dB
• Input Sensitivity: 6V–0.2V
• High-Level Input Sensitivity: 8V
• Crossover Slope: 12dB/Octave
• Low-Pass Crossover: 10Hz–8kHz
• High-Pass Crossover: 10Hz–8kHz
• Remote Level Control: N/A
• Power Terminal Gauge: 4 Gauge / 21mm²
• Fuse Rating: 90A Internally Fused (3x 30A fuses)

Dimensions:

• Length: 9.88"
• Width: 5.83"
• Depth: 2.48"
