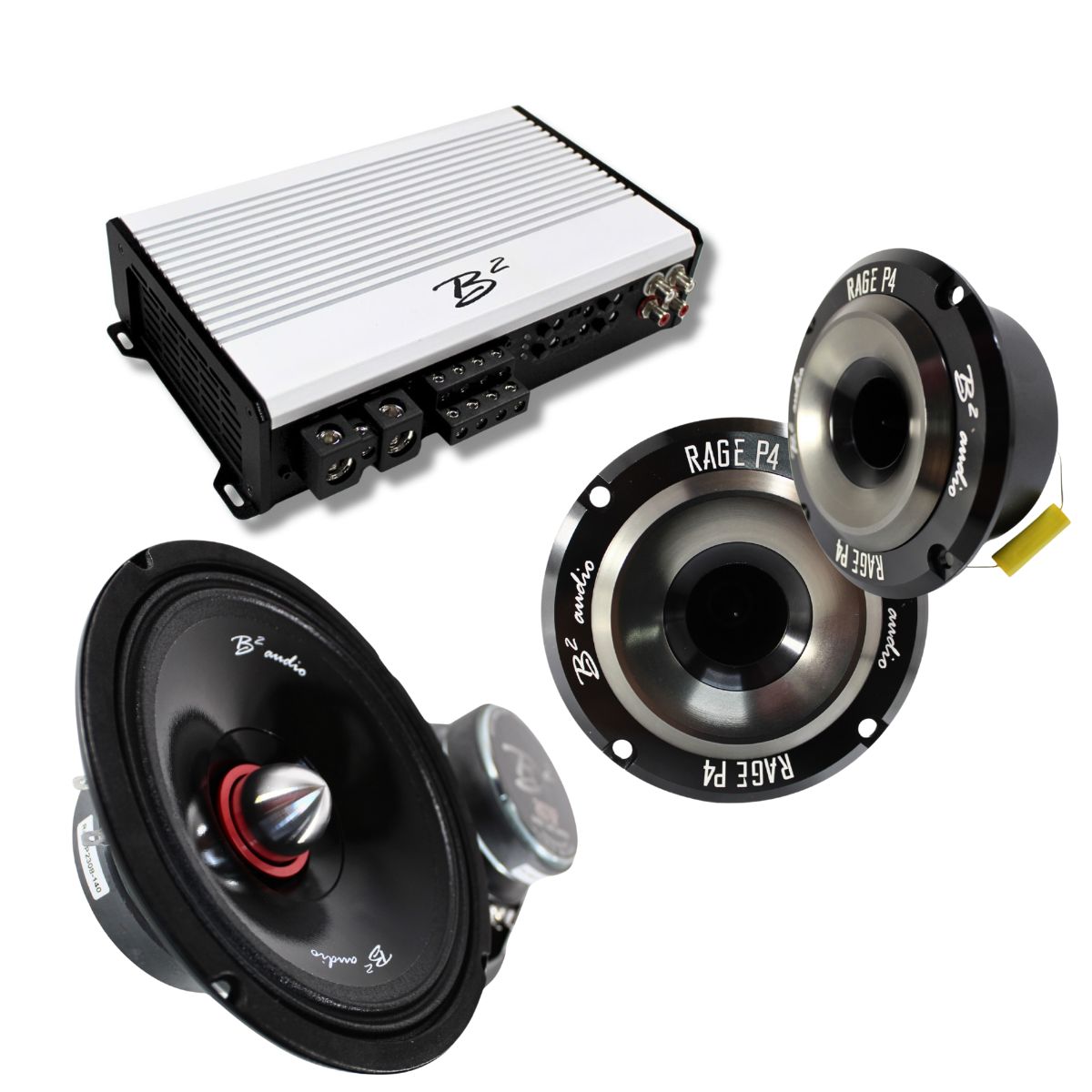

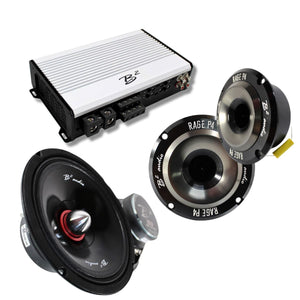

B2 Audio RAGE 1200.4 Amplifier + RIOT8P 8" Midrange + RAGE P4 Tweeter Combo

• Balanced Mid & High Frequency Combo: Properly matched amplifier, midrange speakers, and tweeters for clear, high-output front-stage performance.
• High-Efficiency Power Management: Hi-EF Class D amplifier design delivers strong output with reduced heat and current draw.
• Loud, Clear Sound Reproduction: RIOT8P mids provide aggressive midrange presence, while RAGE P4 tweeters deliver crisp, detailed highs with excellent sensitivity.
• Built for Demanding Installs: Durable components and amplifier protection circuitry make this combo ideal for daily drivers or high-output systems.

B2 Audio RAGE 1200.4 Amplifier + RIOT8P 8" Midrange + RAGE P4 Tweeter Combo

This Listing Includes:

• (1) B2 Audio RAGE-1200.4-V2 4-Channel Amplifier


• (2) B2 Audio RIOT8P 8" 4-Ohm Midrange Speakers (1 Pair)


• (2) B2 Audio RAGE P4 4-Ohm Tweeters (1 Pair)

This combo pairs the B2 Audio RAGE 1200.4 4-channel amplifier with one pair of RIOT8P 8" midrange speakers and a matching set of RAGE P4 tweeters for a complete, high-output mid and high frequency solution. Designed for systems that prioritize clarity, projection, and efficiency, this setup delivers clean power distribution across mids and highs with proper headroom.

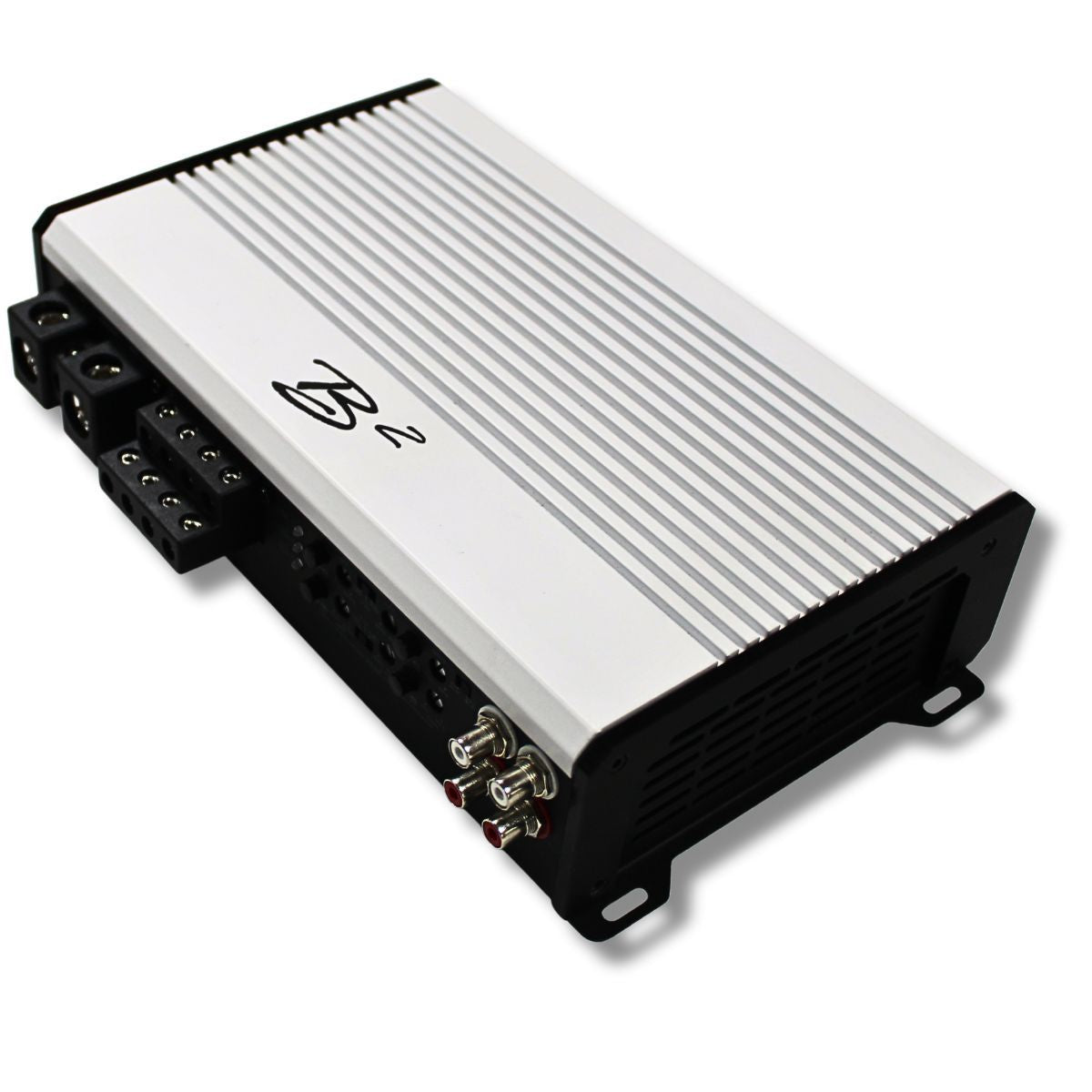

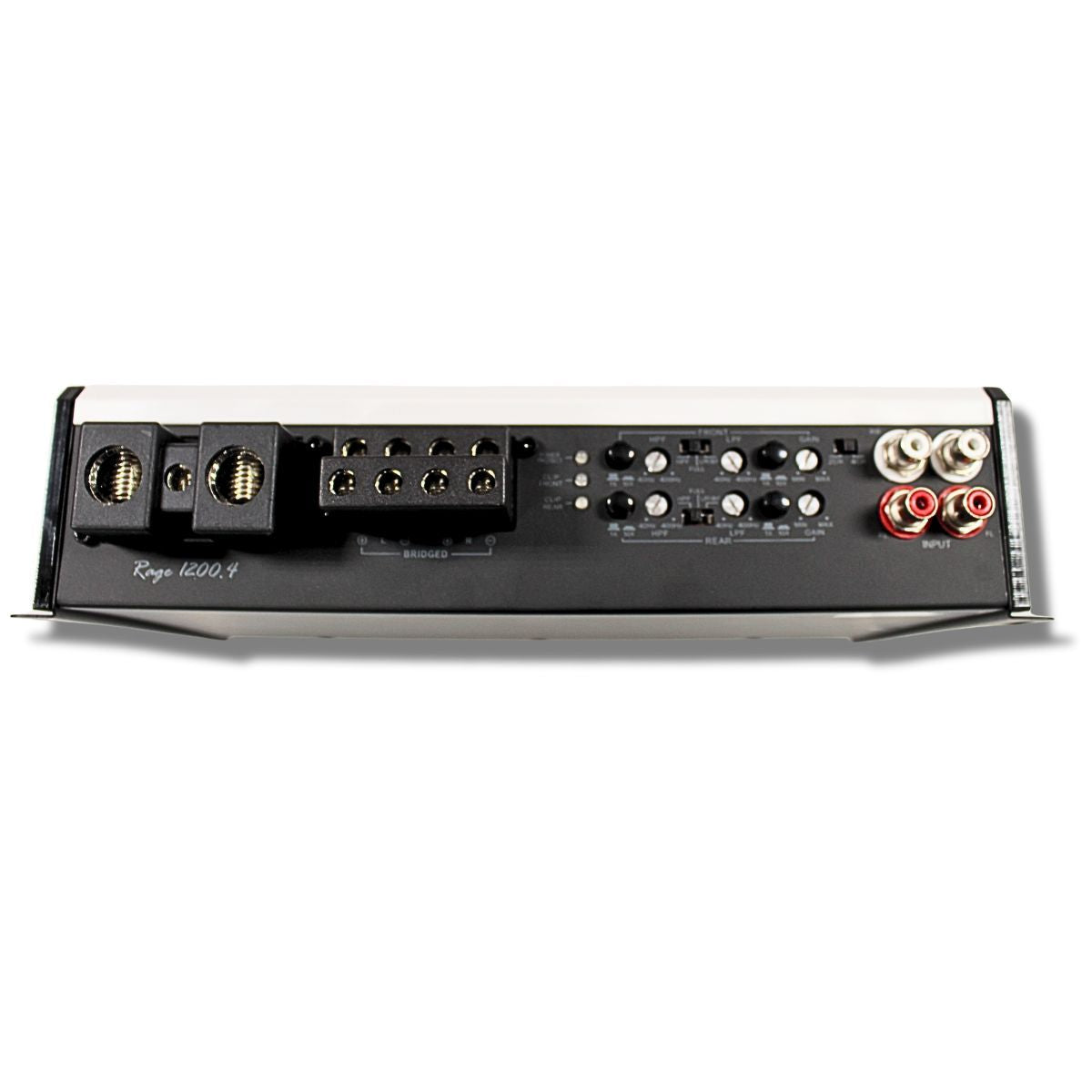

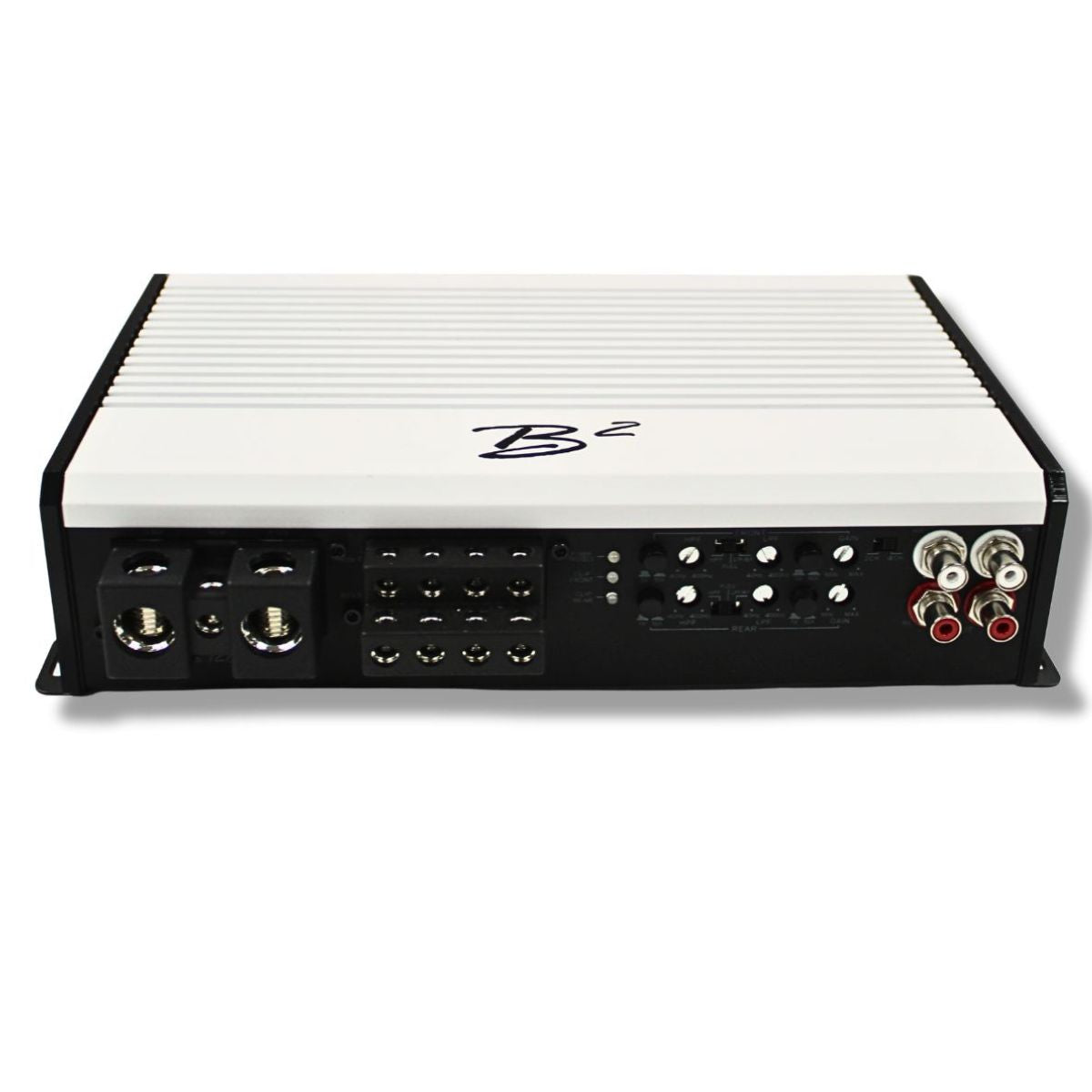

The RAGE 1200.4 provides flexible 4-channel output, allowing mids and tweeters to be powered separately for improved control and tuning. Built on B2's Hi-EF Class D platform, the amplifier delivers strong, consistent power while maintaining efficiency and thermal stability in daily or high-output installs.

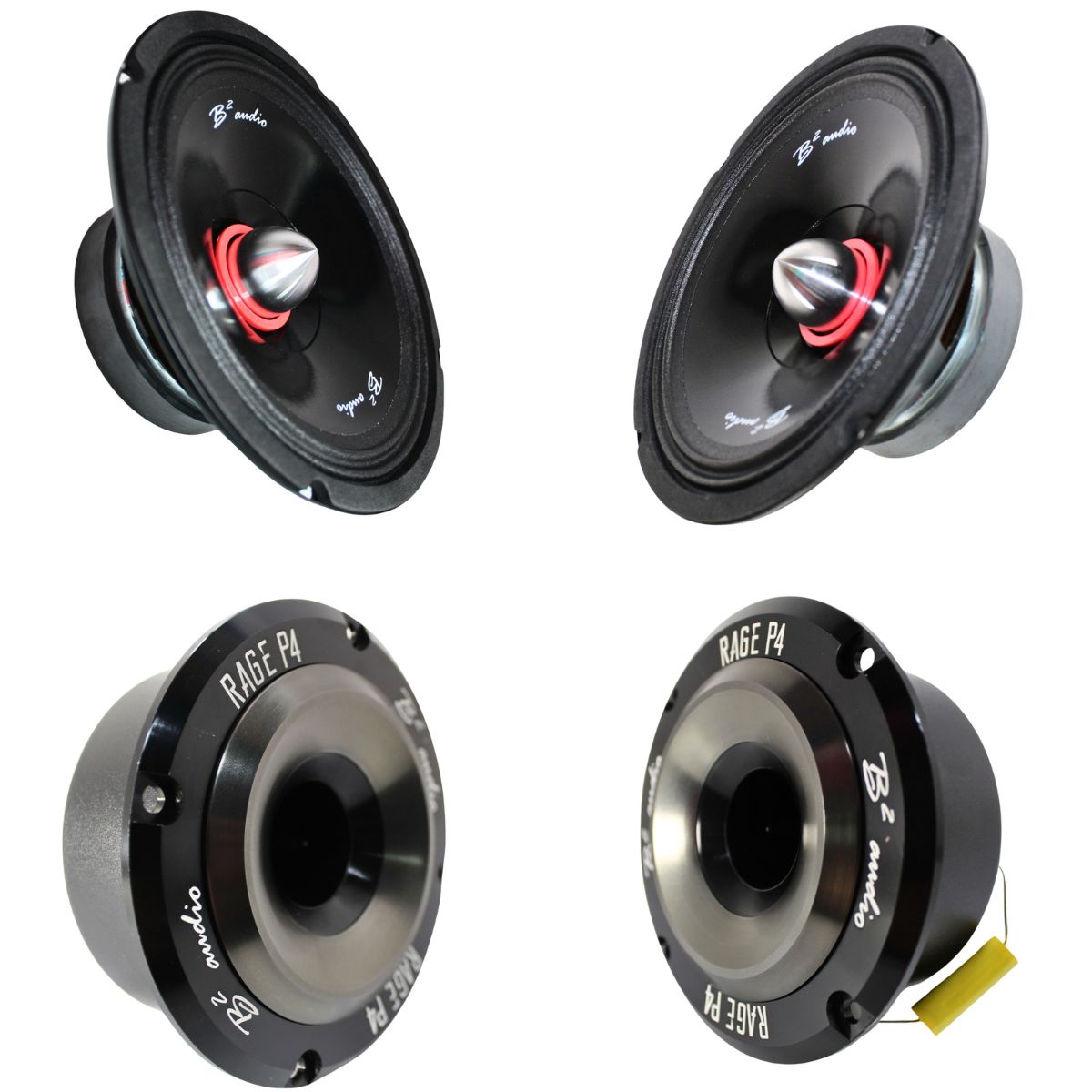

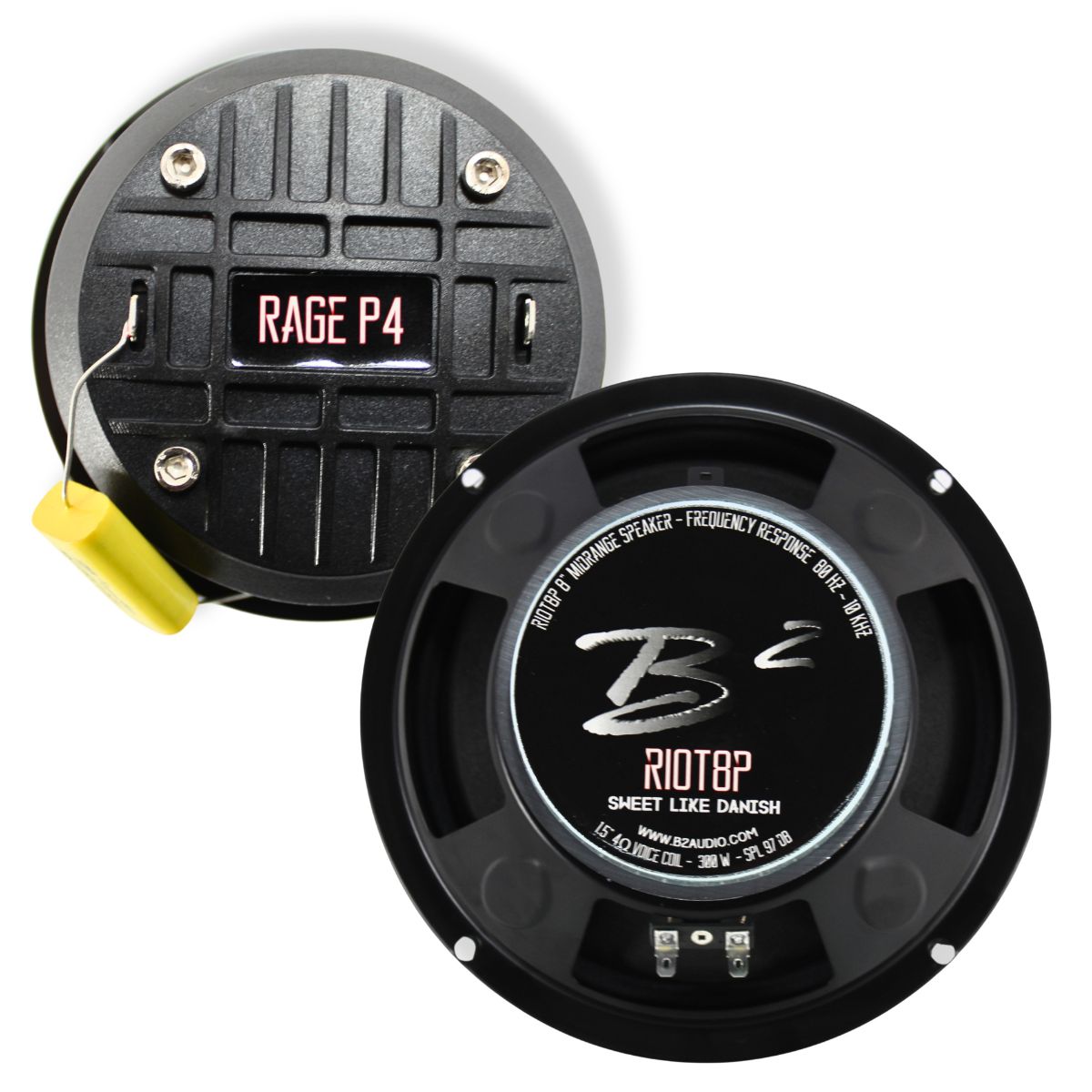

The RIOT8P 8" midrange speakers deliver aggressive midrange output with high sensitivity, making them ideal for vocals and midband impact. Paired with the RAGE P4 tweeters, which feature a 1.5" ALR voice coil and extremely high sensitivity, this combo produces clean, detailed highs that cut through the mix without strain.

This setup is well-suited for door builds, pods, or front-stage focused systems where midrange presence and high-frequency clarity are critical.

Amplifier Specifications - B2 Audio RAGE-1200.4-V2

• RMS Power @ 4 Ohm: 4 x 200 Watts


• RMS Power @ 2 Ohm: 4 x 300 Watts


• RMS Power @ 4 Ohm Bridged: 2 x 1200 Watts


• Circuit Type: Hi-EF Class D


• Frequency Response: 20 Hz - 20 kHz


• Signal-to-Noise Ratio: > 90 dB


• Input Sensitivity: 6V - 0.2V


• Crossover Slope: 12 dB / Octave


• Low-Pass Filter: 40 Hz - 4 kHz


• High-Pass Filter: 40 Hz - 4 kHz


• Damping Factor: > 200


• Power Terminals: 0 AWG Compatible


• Fuse Rating: 100A

Speaker Specifications - B2 Audio RIOT8P (Each Speaker)

• RMS Power Handling: 150 Watts


• Maximum Power Handling: 300 Watts


• Nominal Impedance: 4 Ohm


• Frequency Response: 80 Hz - 10 kHz


• Sensitivity: 97 dB


• Mounting Depth: 3.23"


• Cutout Diameter: 7.2"

Tweeter Specifications – B2 Audio RAGE P4 (Each Tweeter)

• RMS Power Handling: 125 Watts


• Maximum Power Handling: 250 Watts


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1.5"


• Frequency Response: 1.5 kHz – 20 kHz


• Sensitivity: 107 dB


• Mounting Depth: 1.85"

Recommended Wiring Configuration

1. Use two amplifier channels for the RIOT8P midrange speakers at 4 ohms per channel


2. Use the remaining two channels to power the RAGE P4 tweeters at 4 ohms per channel


3. Proper high-pass crossover settings are required for both mids and tweeters to prevent damage


4. Gain structure and crossover tuning should be set carefully to ensure clean output and long-term reliability
