B2 Audio RAGE 1200.4 Amp + RAGE6P 6.5" Midrange + RAGE H1 Neo Tweeter Combo

• High-Output Mid & High System: Two pairs of 6.5" midrange speakers and two pairs of tweeters provide strong front-stage volume and projection.
• Efficient Power Delivery: Hi-EF Class D amplifier design supports high output with controlled heat and current draw.
• Clear, Balanced Sound: RAGE6P mids deliver strong midrange clarity, while H1 Neo tweeters provide smooth, accurate high-frequency detail.
• Built for Demanding Installs: Reinforced speaker baskets, included tweeter capacitors, and amplifier protection circuitry support long-term reliability.

B2 Audio RAGE 4 Channel 1.2k Amp W/ 2 RIOT6P Sets + RAGE H1 NEO Tweeters

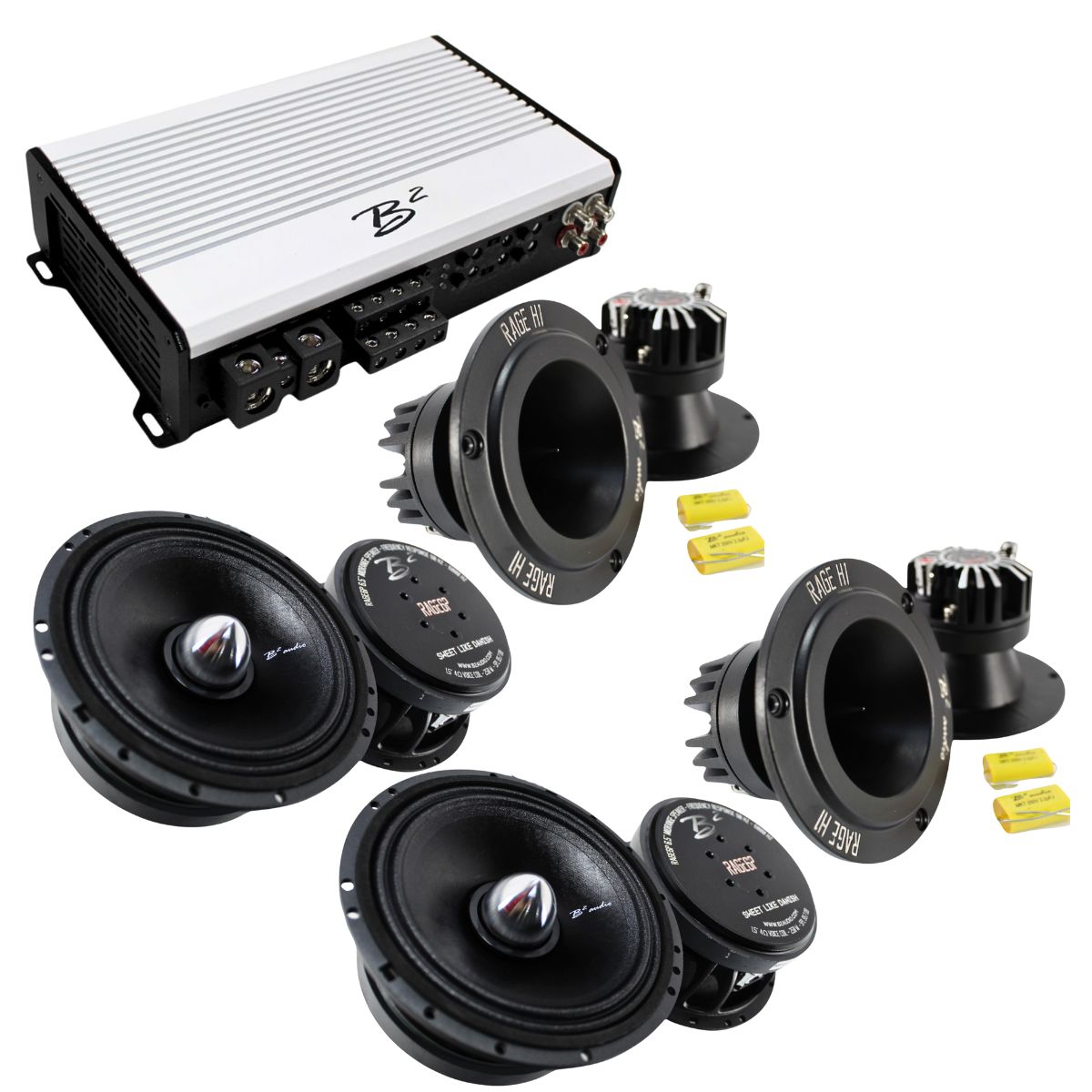

This Listing Includes:

• (1) B2 Audio RAGE-1200.4-V2 4-Channel Amplifier


• (4) B2 Audio RAGE6P-V2 6.5" 4-Ohm Midrange Speakers (2 Pairs)


• (4) B2 Audio RAGE H1 Neo 4-Ohm Tweeters (2 Pairs)

This combo pairs the B2 Audio RAGE 1200.4 4-channel amplifier with two pairs of RAGE6P-V2 6.5" midrange speakers and two pairs of RAGE H1 Neo tweeters to create a high-output, front-stage focused mid and high frequency system. Designed for users who want strong vocal presence, clean detail, and efficient power delivery, this setup is ideal for door pods, custom panels, and pro-style builds.

The RAGE 1200.4 amplifier delivers stable, flexible power distribution and is capable of driving multiple speakers per channel while maintaining control and efficiency. Built on B2's Hi-EF Class D platform, it provides consistent output with reduced heat and current draw, making it suitable for both daily-driven and high-output systems.

The RAGE6P-V2 midrange speakers feature an upgraded rigid basket design for improved stability and airflow, delivering punchy mids and clear vocals with excellent efficiency. Paired with the RAGE H1 Neo tweeters, which use titanium diaphragms and neodymium magnets, this combo produces smooth, detailed highs without the harshness commonly associated with bullet-style tweeters. Included capacitors protect the tweeters for reliable, long-term operation.

This combo is ideal for users looking for loud, clean, and controlled front-stage performance without unnecessary complexity.

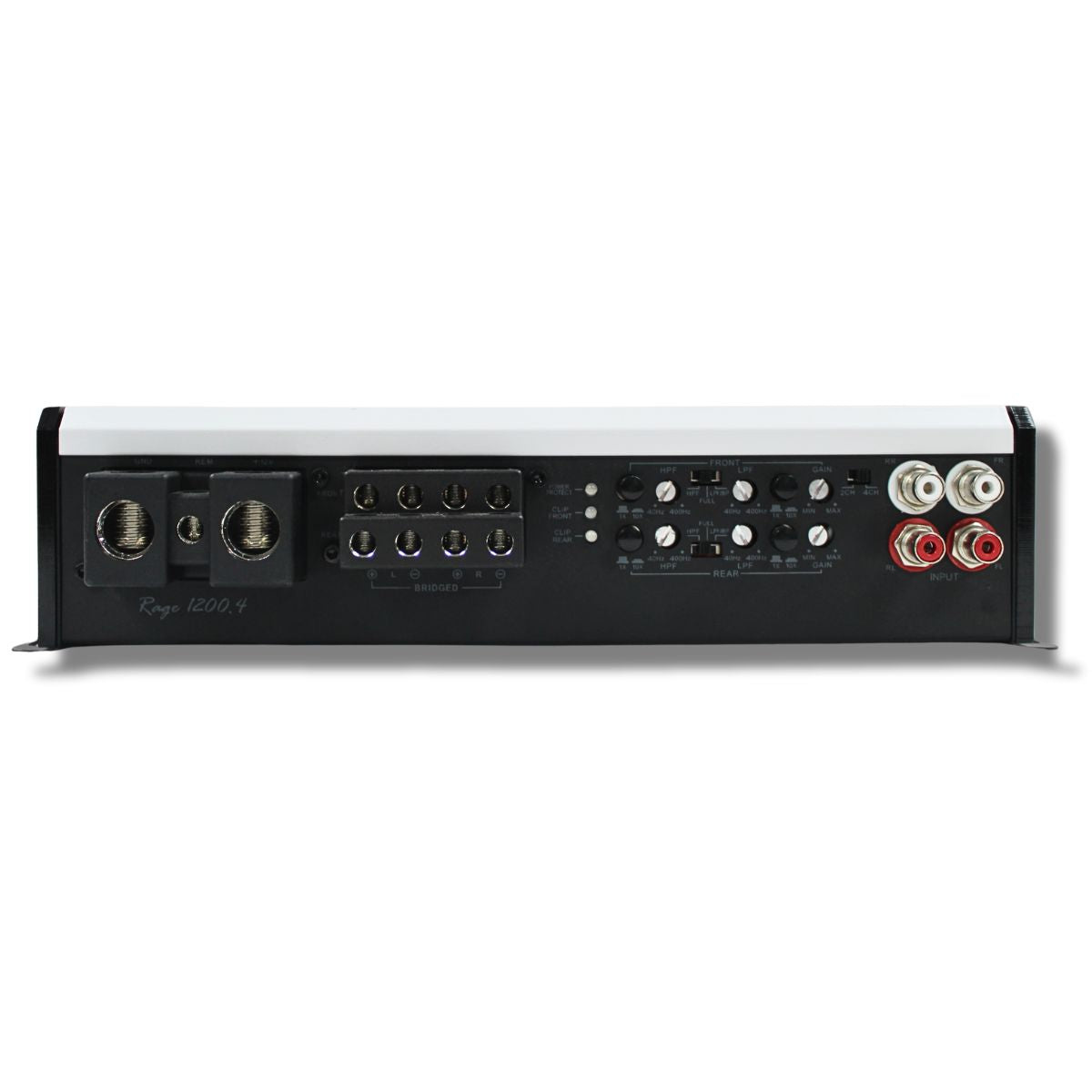

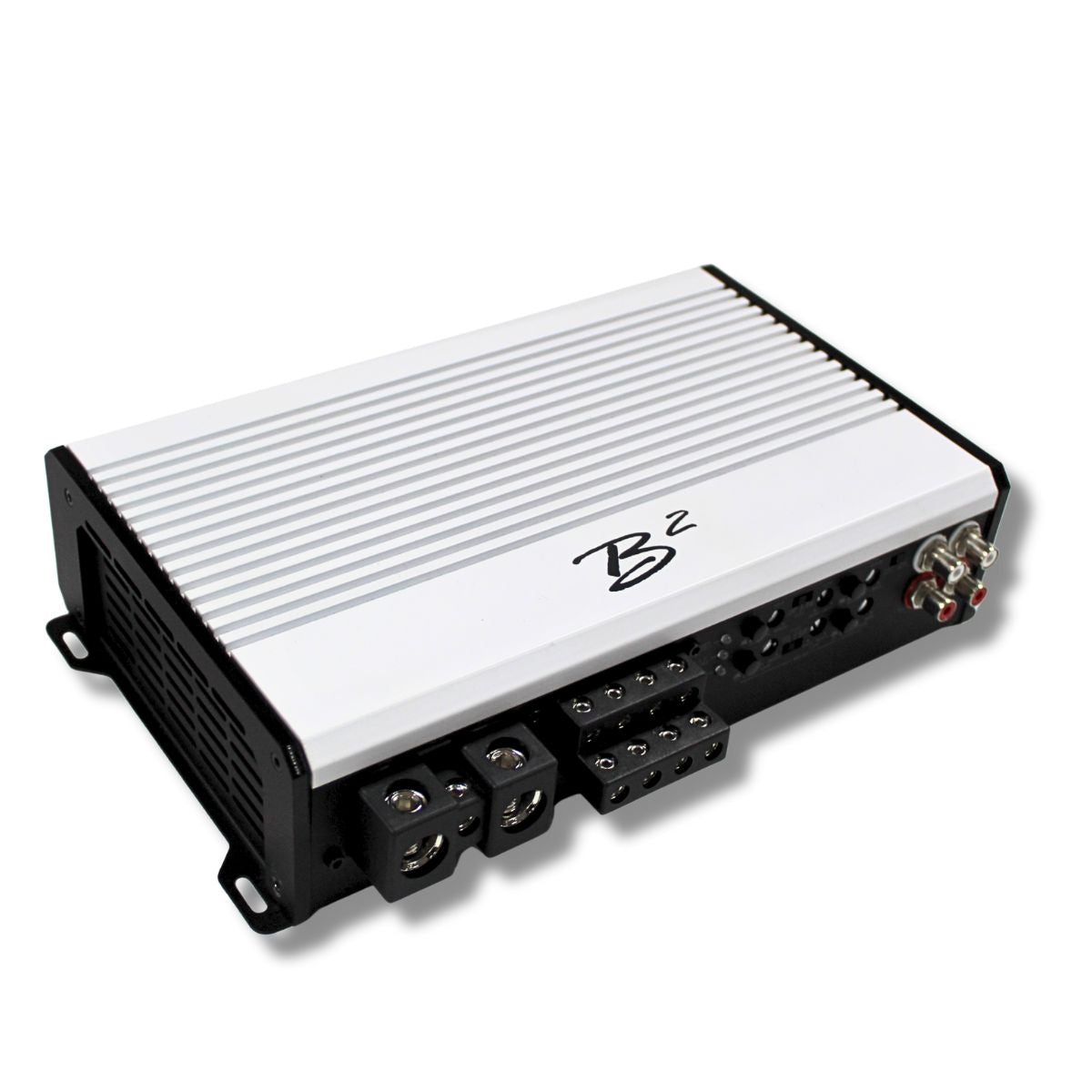

Amplifier Specifications - B2 Audio RAGE-1200.4-V2

• RMS Power @ 4 Ohm: 4 x 200 Watts


• RMS Power @ 2 Ohm: 4 x 300 Watts


• RMS Power @ 4 Ohm Bridged: 2 x 1200 Watts


• Circuit Type: Hi-EF Class D


• Frequency Response: 20 Hz - 20 kHz


• Signal-to-Noise Ratio: > 90 dB


• Input Sensitivity: 6V - 0.2V


• Crossover Slope: 12 dB / Octave


• Low-Pass Filter: 40 Hz - 4 kHz


• High-Pass Filter: 40 Hz - 4 kHz


• Damping Factor: > 200


• Power Terminals: 0 AWG Compatible


• Fuse Rating: 100A

Speaker Specifications - B2 Audio RAGE6P-V2 (Each Speaker)

• RMS Power Handling: 175 Watts


• Maximum Power Handling: 350 Watts


• Nominal Impedance: 4 Ohm


• Frequency Response: 100 Hz - 13 kHz


• Sensitivity: 96.1 dB


• Mounting Depth: 2.6"


• Cutout Diameter: 5.71"

Tweeter Specifications - B2 Audio RAGE H1 Neo (Each Tweeter)

• RMS Power Handling: 100 Watts


• Maximum Power Handling: 200 Watts


• Nominal Impedance: 4 Ohm


• Frequency Response: 2 kHz – 20 kHz


• Sensitivity: 104 dB


• Diaphragm Type: Titanium


• Magnet Type: Neodymium


• Mounting Depth: 2.48"

Recommended Wiring Configuration

1. Wire two RAGE6P midrange speakers per channel in parallel for a 2-ohm load on two amplifier channels


2. Wire two RAGE H1 Neo tweeters per channel in parallel for a 2-ohm load on the remaining two channels


3. Install the included capacitors inline with each tweeter for high-pass protection


4. Set appropriate high-pass crossover points and tune gains carefully for clean output and speaker longevity
