B2 Audio RAGE 1200.4 Amp + RAGE6P 6.5" Midrange + RAGE T1 NEO Tweeter Combo

• High-Output Mid & High System: Two pairs of 6.5" midrange speakers and two pairs of tweeters provide strong front-stage volume and projection.
• Efficient Power Delivery: Hi-EF Class D amplifier design supports high output with controlled heat and current draw.
• Clear, Aggressive Sound: RAGE6P mids deliver punchy vocals and midrange clarity, while T1 NEO tweeters provide crisp, detailed highs.
• Built for Demanding Installs: Reinforced speaker baskets, included tweeter capacitors, and amplifier protection circuitry support long-term reliability.

B2 Audio RAGE 1200.4 Amp + RAGE6P 6.5" Midrange + RAGE T1 NEO Tweeter Combo

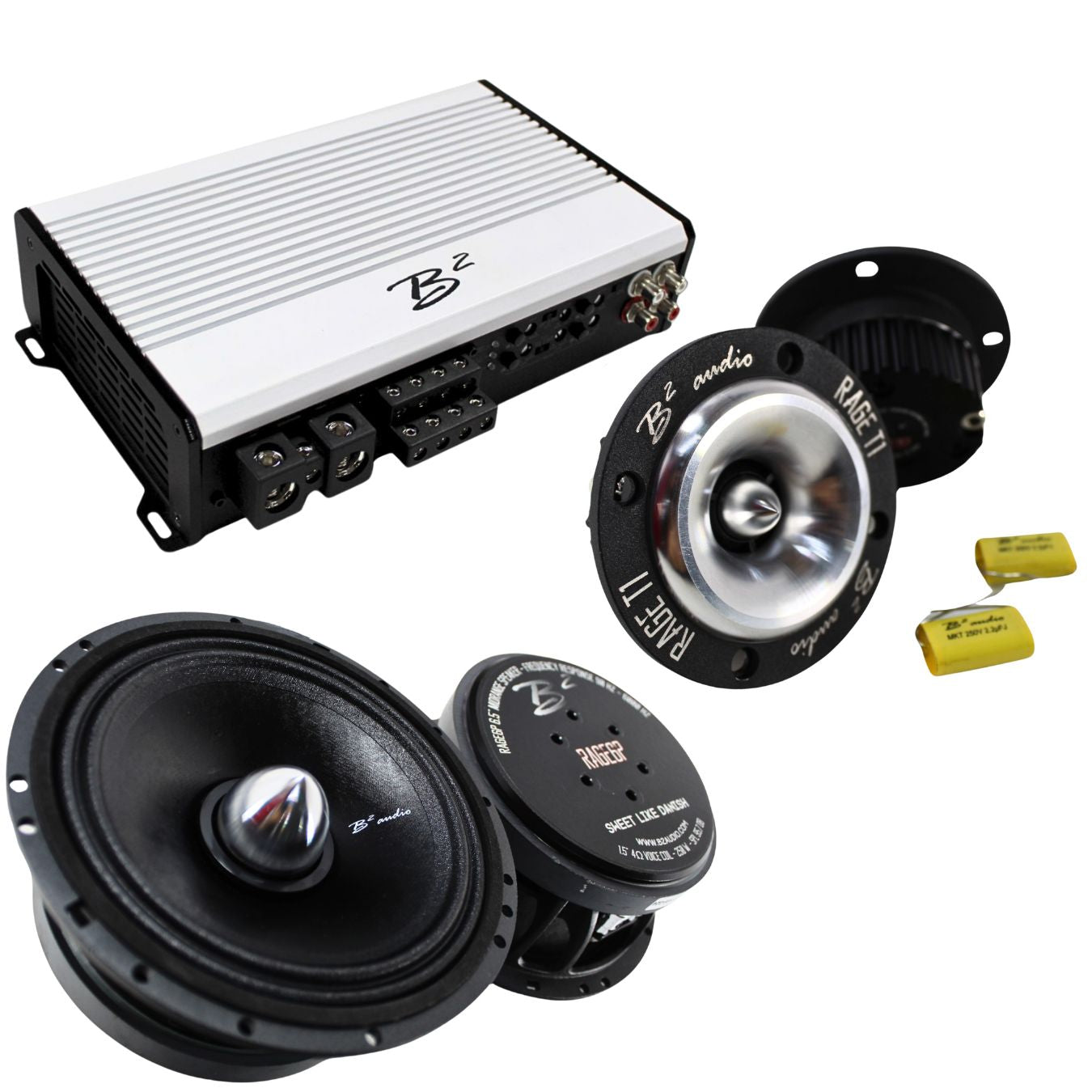

This Listing Includes:

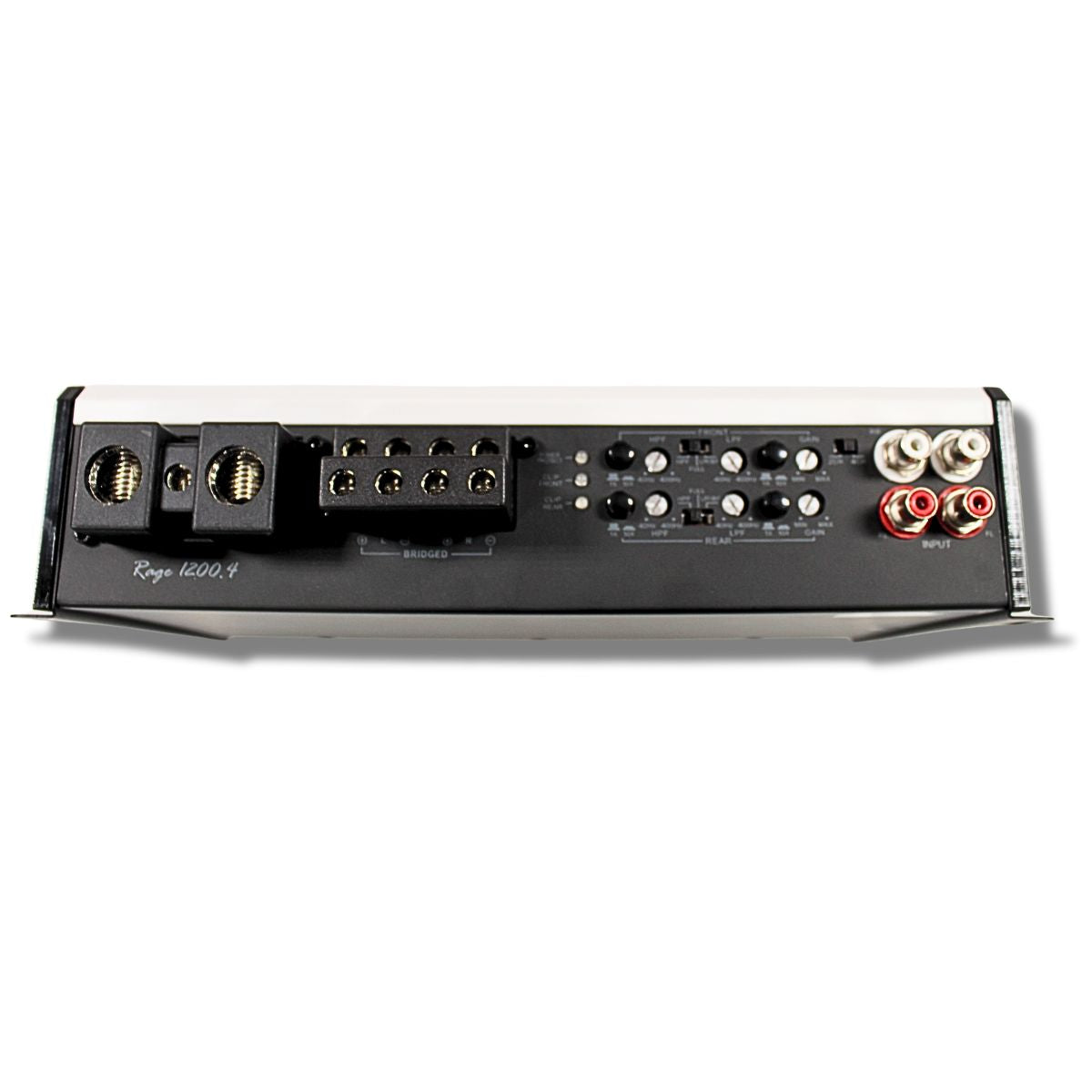

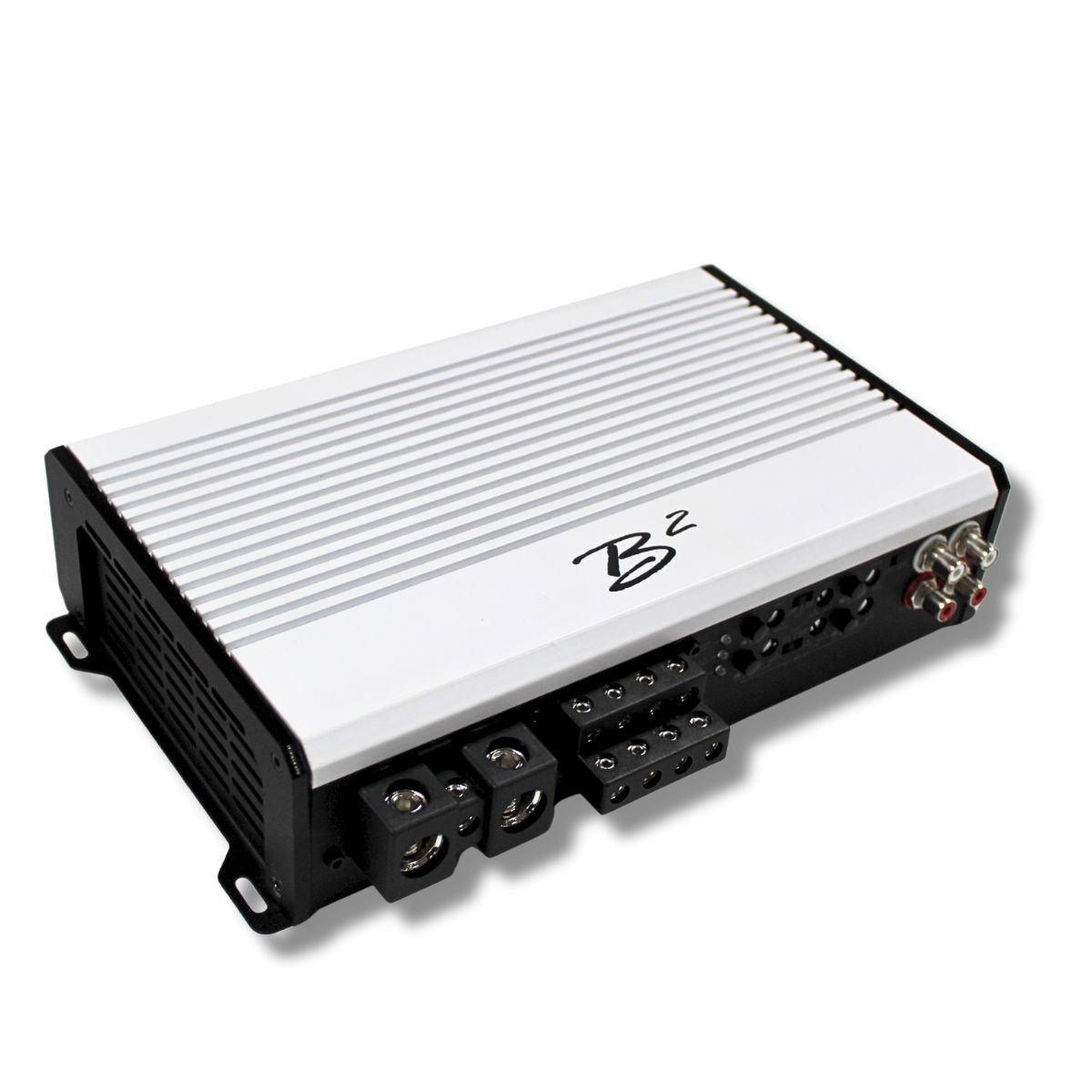

• (1) B2 Audio RAGE-1200.4-V2 4-Channel Amplifier

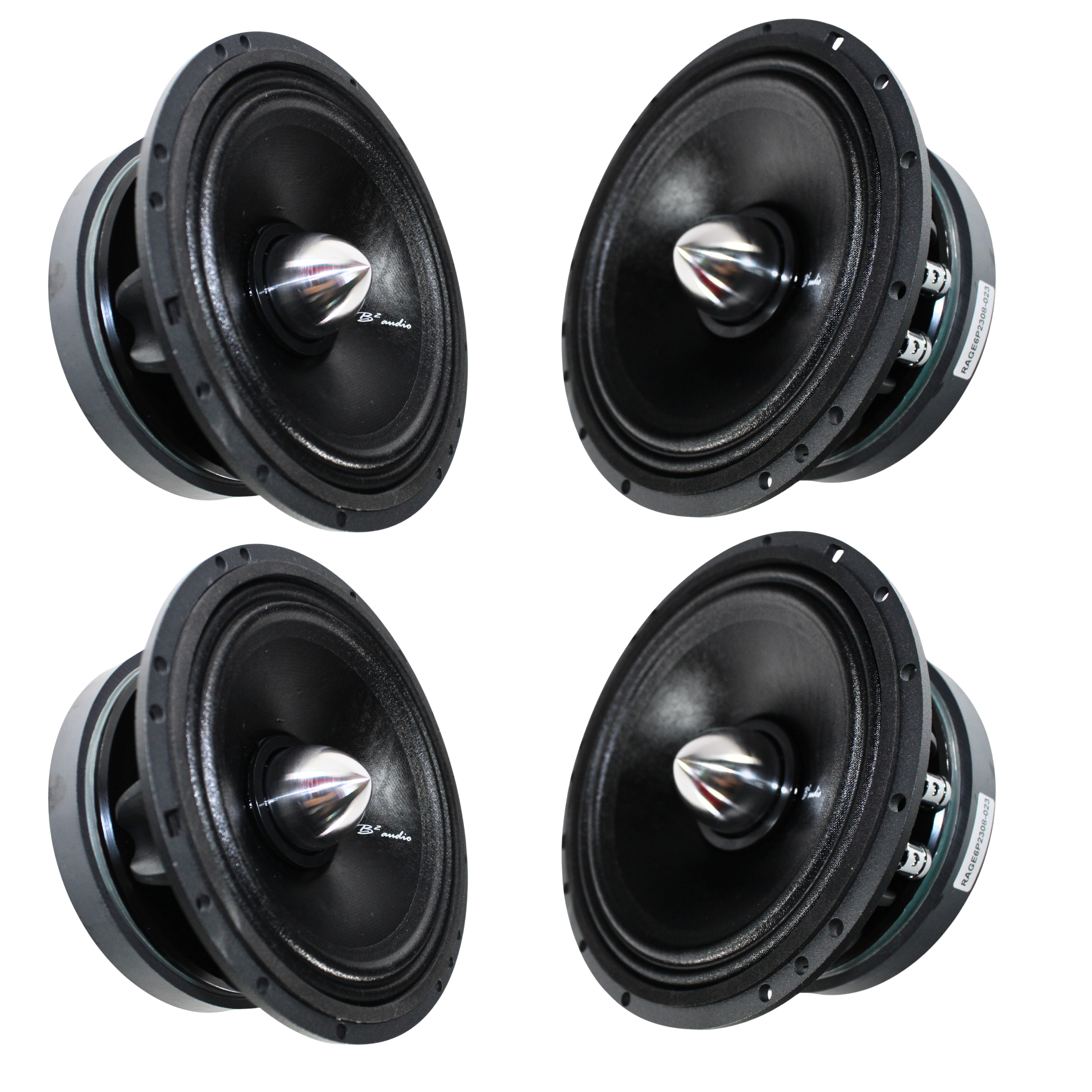

• (4) B2 Audio RAGE6P-V2 6.5" 4-Ohm Midrange Speakers (2 Pairs)

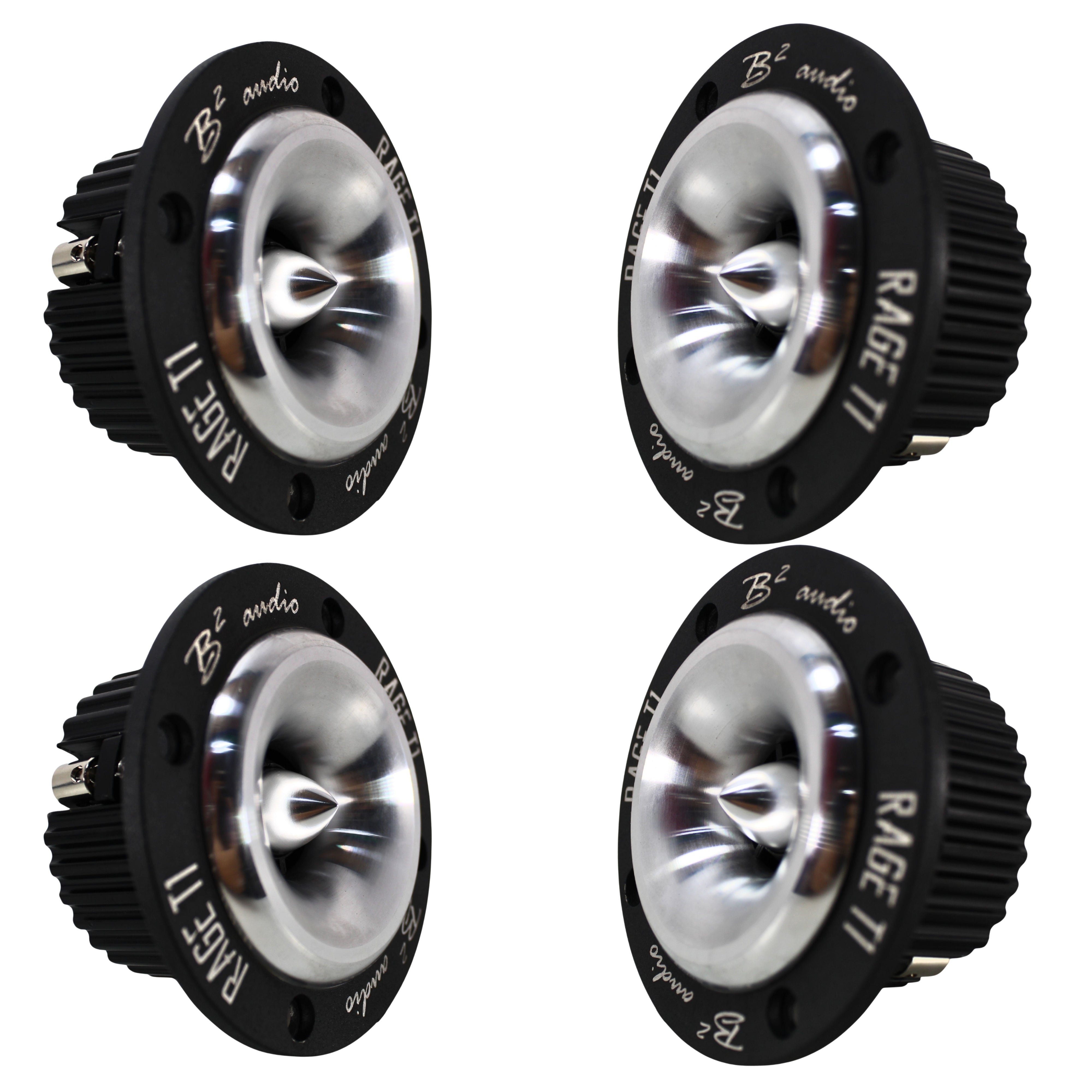

• (4) B2 Audio RAGE T1 NEO 4-Ohm Bullet Tweeters (2 Pairs)

This combo pairs the B2 Audio RAGE 1200.4 4-channel amplifier with two pairs of RAGE6P-V2 6.5" midrange speakers and two pairs of RAGE T1 NEO tweeters to create a high-output, pro-style mid and high frequency system. Designed for clarity, efficiency, and aggressive output, this setup is ideal for door pods, custom panels, or front-stage focused builds.

The RAGE 1200.4 provides stable, flexible power distribution, allowing multiple speakers per channel while maintaining control and efficiency. Built on B2's Hi-EF Class D platform, the amplifier delivers consistent output with reduced heat and current draw, making it well suited for both daily-driven and high-output systems.

The RAGE6P-V2 midrange speakers feature a redesigned rigid basket for improved stability and airflow, delivering punchy mids and clear vocals with high efficiency. Paired with the RAGE T1 NEO tweeters, which use titanium diaphragms and neodymium magnets, this combo produces sharp, detailed highs that cut through the mix without strain. Included capacitors protect the tweeters for reliable integration.

This combo is ideal for users who want a loud, clean, and efficient front-stage without stepping into excessive system complexity.

Amplifier Specifications - B2 Audio RAGE-1200.4-V2

• RMS Power @ 4 Ohm: 4 x 200 Watts


• RMS Power @ 2 Ohm: 4 x 300 Watts


• RMS Power @ 4 Ohm Bridged: 2 x 1200 Watts


• Circuit Type: Hi-EF Class D


• Frequency Response: 20 Hz - 20 kHz


• Signal-to-Noise Ratio: > 90 dB


• Input Sensitivity: 6V - 0.2V


• Crossover Slope: 12 dB / Octave


• Low-Pass Filter: 40 Hz - 4 kHz


• High-Pass Filter: 40 Hz - 4 kHz


• Damping Factor: > 200


• Power Terminals: 0 AWG Compatible


• Fuse Rating: 100A

Speaker Specifications - B2 Audio RAGE6P-V2 (Each Speaker)

• RMS Power Handling: 175 Watts


• Maximum Power Handling: 350 Watts


• Nominal Impedance: 4 Ohm


• Frequency Response: 100 Hz - 13 kHz


• Sensitivity: 96.1 dB


• Mounting Depth: 2.6"


• Cutout Diameter: 5.71"

Tweeter Specifications - B2 Audio RAGE T1 NEO (Each Tweeter)

• RMS Power Handling: 100 Watts


• Maximum Power Handling: 200 Watts


• Nominal Impedance: 4 Ohm


• Frequency Response: 3 kHz - 20 kHz


• Sensitivity: 106 dB


• Diaphragm Type: Titanium


• Mounting Depth: 1.30"

Recommended Wiring Configuration

1. Wire two RAGE6P midrange speakers per channel in parallel for a 2-ohm load on two amplifier channels


2. Wire two RAGE T1 NEO tweeters per channel in parallel for a 2-ohm load on the remaining two channels

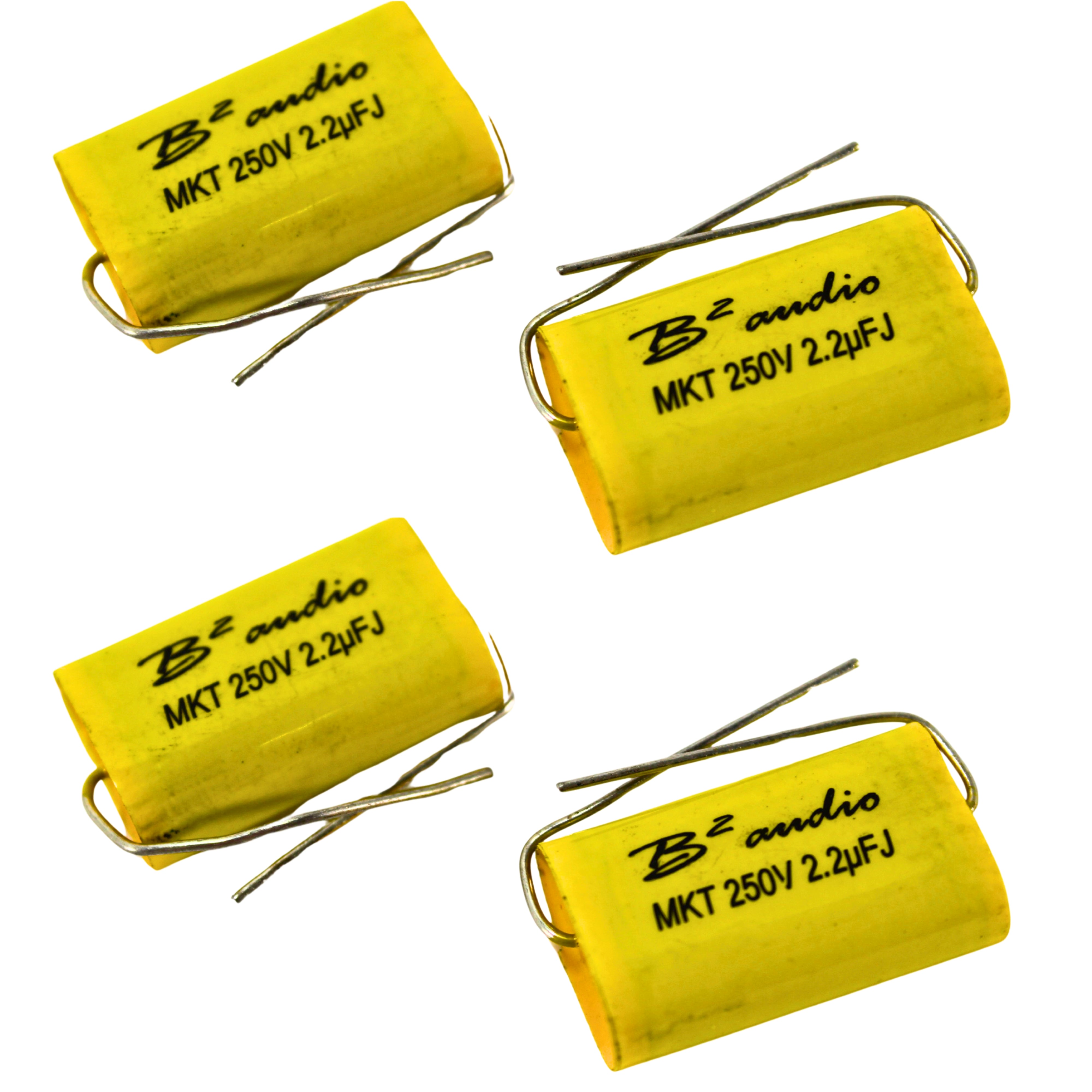

3. Install the included capacitors inline with each tweeter for high-pass protection


4. Set appropriate high-pass crossover points and tune gains carefully for clean output and speaker longevity
