B2 Audio Monoblock Amplifier RAGE 7800W Class D 1 Ohm Full Range

• 7,800W RMS 1-OHM MONOBLOCK – B2 Audio RAGE 7800 Class D amplifier delivers 7,800–8,000W RMS at 1 ohm with sufficient electrical support; also rated 4,200–4,500W RMS at 2 ohms and 2,400–2,600W RMS at 4 ohms.
• FULL-RANGE CLASS D PERFORMANCE – Wide 10Hz–12.5kHz frequency response lets this monoblock power hard-hitting subwoofers or serve high-output full-range applications where a powerful single-channel amplifier is needed.

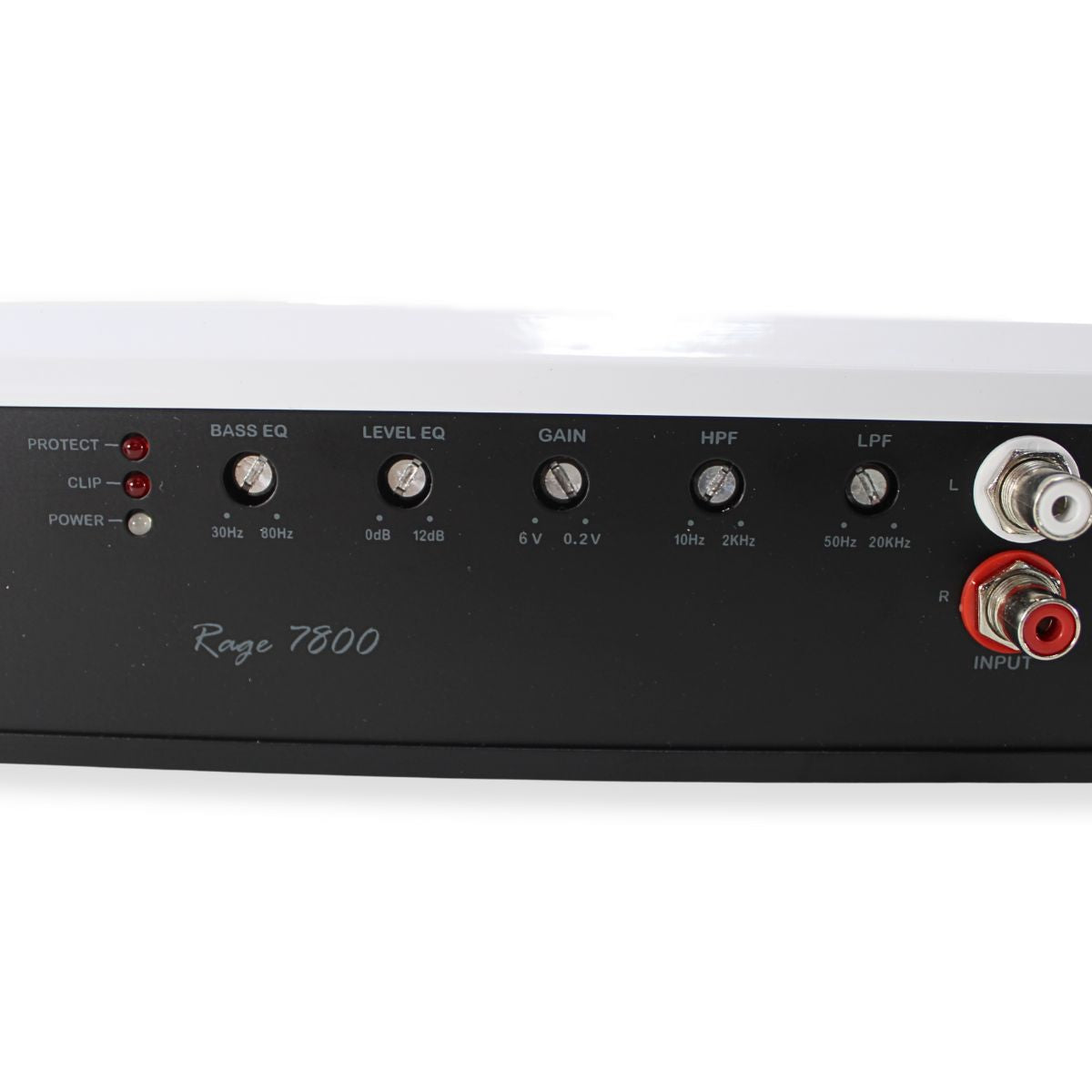

• ADJUSTABLE SYSTEM TUNING – Features adjustable low-pass, high-pass, and subsonic crossovers, plus 0.2V–6V input sensitivity and 30Hz–80Hz bass-level adjustment to dial the amplifier into your system.
• INCLUDED VOLTAGE & TEMPERATURE BASS KNOB – Includes a wired B2 bass knob with voltage and temperature display, giving you convenient output control and a quick view of key amplifier system information from the driver’s seat.
• BUILT FOR SERIOUS ELECTRICAL SYSTEMS – Dual 0-gauge power terminals, minimum 10-gauge speaker-wire recommendation, and 600A fuse requirement support demanding high-power builds. Thermal, short-circuit, and overcurrent protection help safeguard the amplifier during operation.

B2 Audio RAGE 7800 Watt Class D 1-Ohm Full Range Monoblock Amplifier

This Listing Includes:

• (1) B2-RAGE-7800 Amplifier

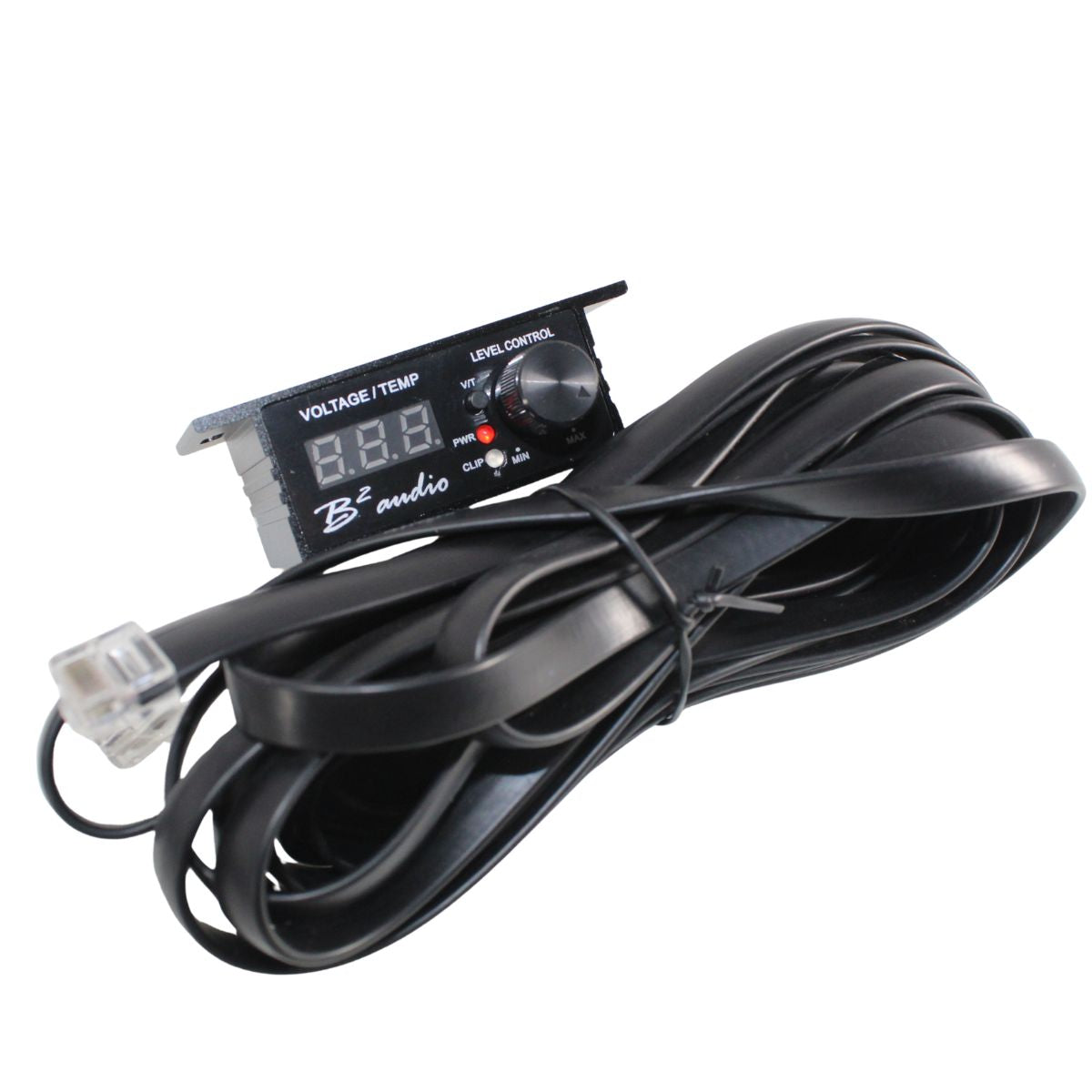

• (1) Bassknob w/ voltage/temp meter & cable

Unleash the power of the B2 Audio RAGE Series 7800 - 7800 Watt 1-Ohm Class D Monoblock Amplifier. This amplifier delivers an earth-shattering 7800 watts of pure, relentless power at 1-ohm, transforming your audio setup into a thunderous soundscape with bone-rattling bass and electrifying performance. Designed with advanced Class D technology, it maximizes efficiency, offering intense, precise sound that will leave you craving more. Whether you’re upgrading for a premium listening experience or competing for supremacy, the RAGE 7800 is the amplifier to dominate the scene. It features advanced protection against thermal overload, short circuits, and overcurrent, ensuring rock-solid reliability under even the most demanding conditions. With its sleek design and heavy-duty construction, the RAGE 7800 seamlessly integrates into any high-performance system, ready to push the limits and take your audio experience to new heights. Embrace the power, embrace the rage

Specifications

• RMS Power @ 4 ohm: 2400W* - 2600 W


• RMS Power @ 2 ohm: 4200W* - 4500 W


• RMS Power @ 1 ohm: 7800W*- 8000 W


• Frequency Response:10 Hz - 12.5 KHz


• Signal to Noise Ratio: >90dB


• Input Sensitivity: 6 V - 0.2 V

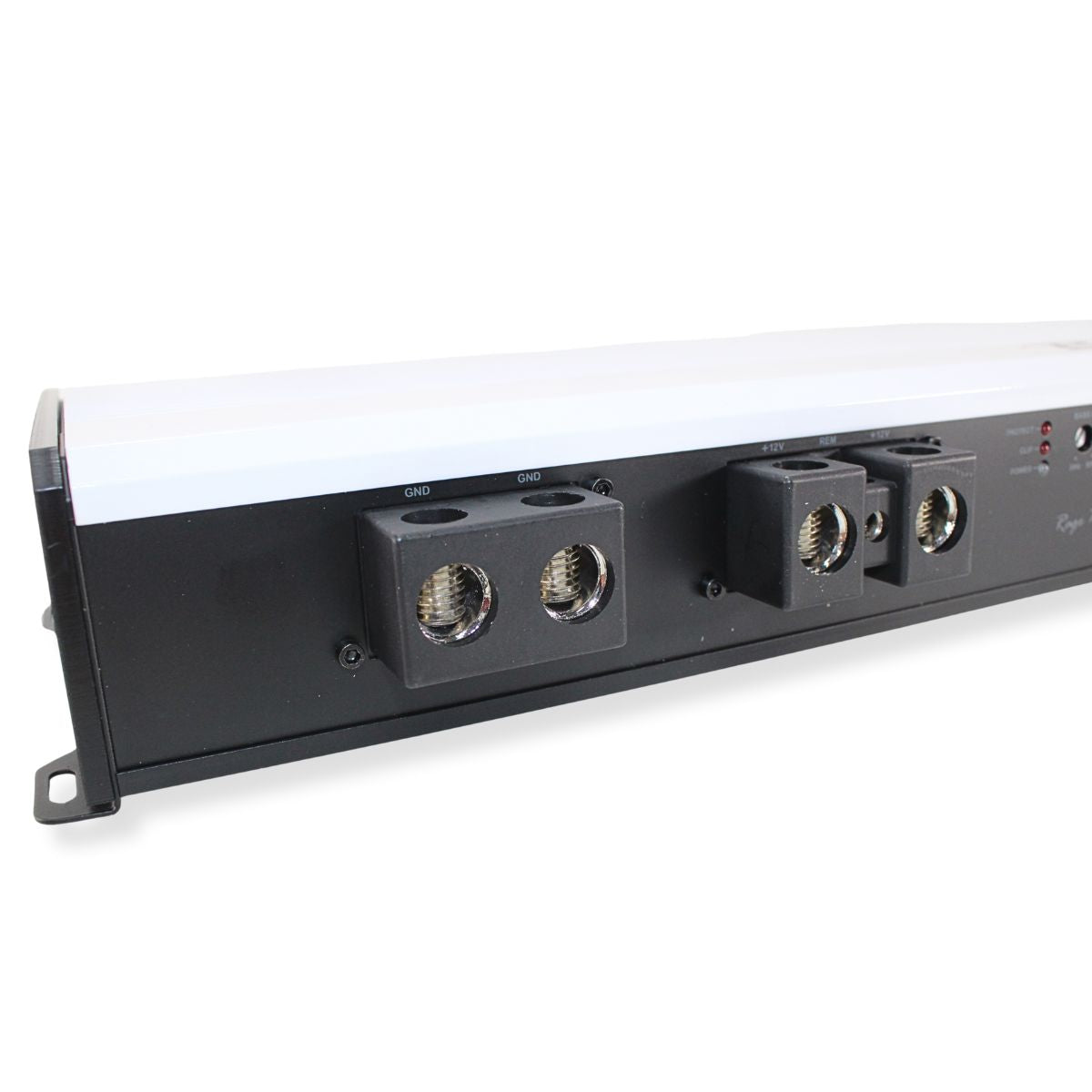

• Power Terminal Gauge: 2 x 0 Gauge


• Recommended  Speaker  Wire: 10 AWG (Minimum)


• Fuse Rating: 600 A


• Bass Level: 30 Hz - 80 Hz

* The lower number is based on amp dyno performance measured at 1000 KHZ for multi channels and 100 Hz for the mono.  The other is audio precision up to 1% THD.  Full output power according to the spec is based on a sufficient electrical supply system.

Crossover Circuit:

• Low Pass Crossover: 30 Hz -12.5 Hz


• High Pass Crossover: 10 Hz - 2 KHz


• Subsonic Crossover: 10 Hz - 2 KHz

Measurements:

• Length: 22"


• Width: 6.5"


• Height: 2.5"


• Weight: 14.95 Lbs

Turn your setup into a powerhouse of clean, controlled, and unmatched sound. The B2 Audio RAGE 7800 isn’t just an amplifier, it’s a statement of dominance and precision for serious bass enthusiasts and competitors who demand the best.
