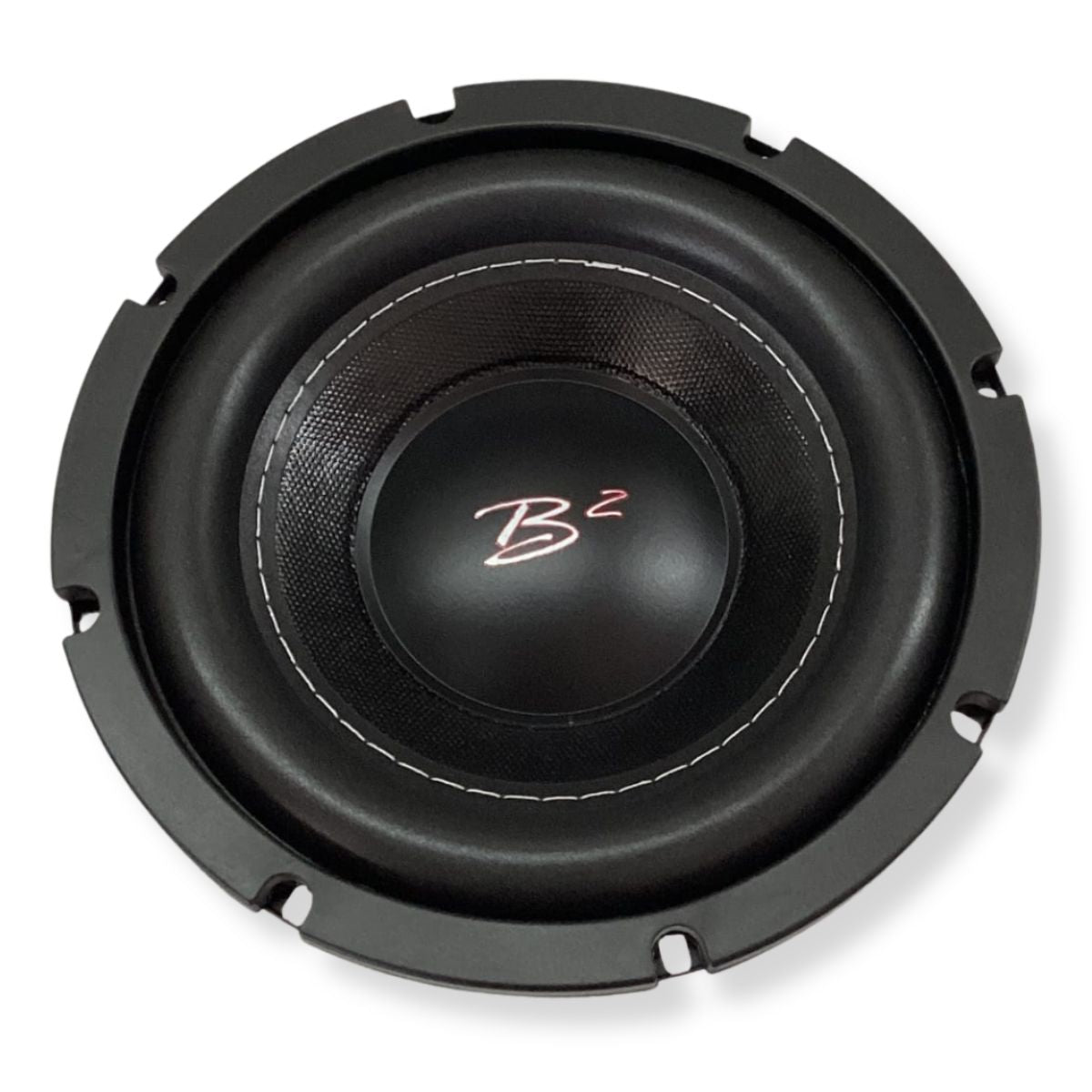

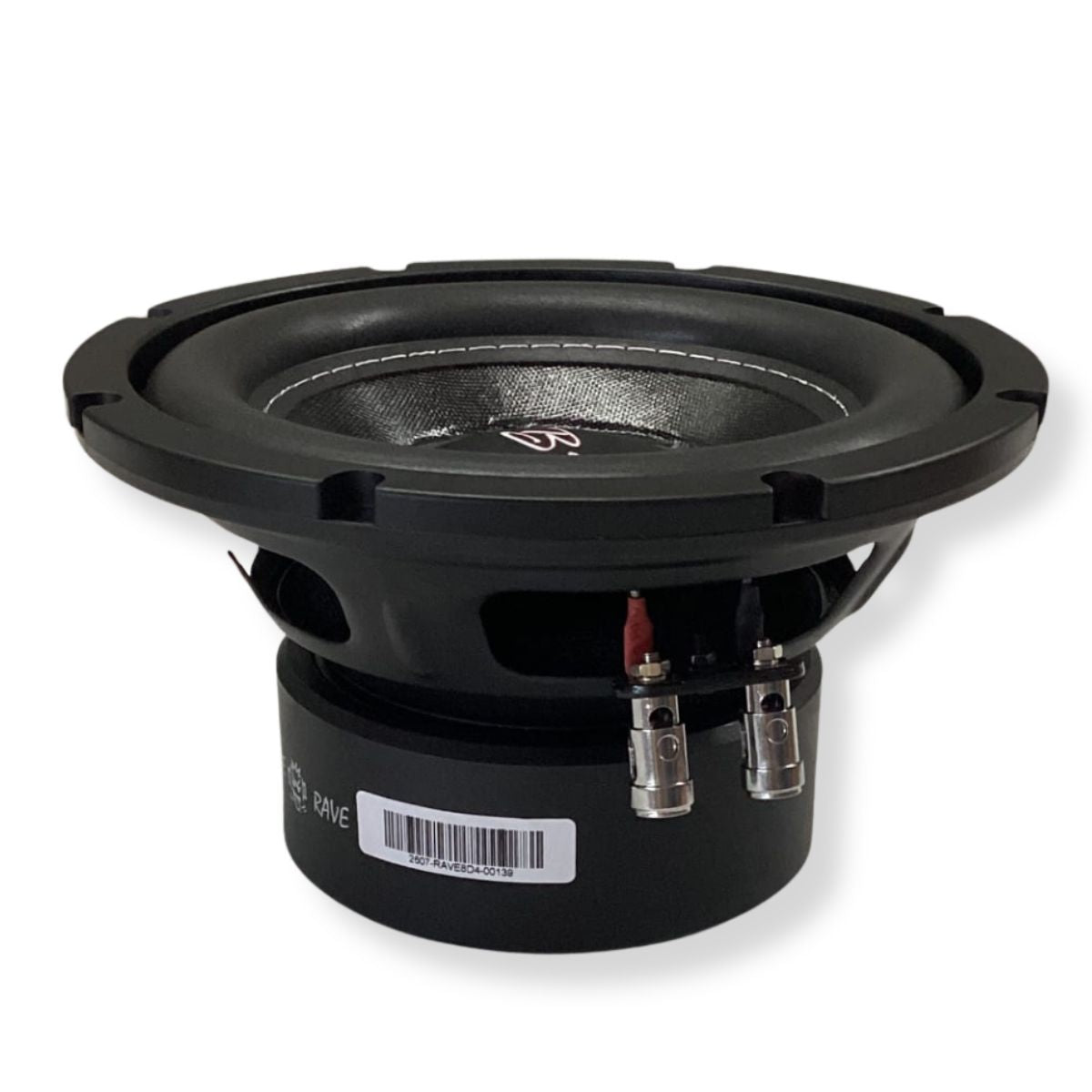

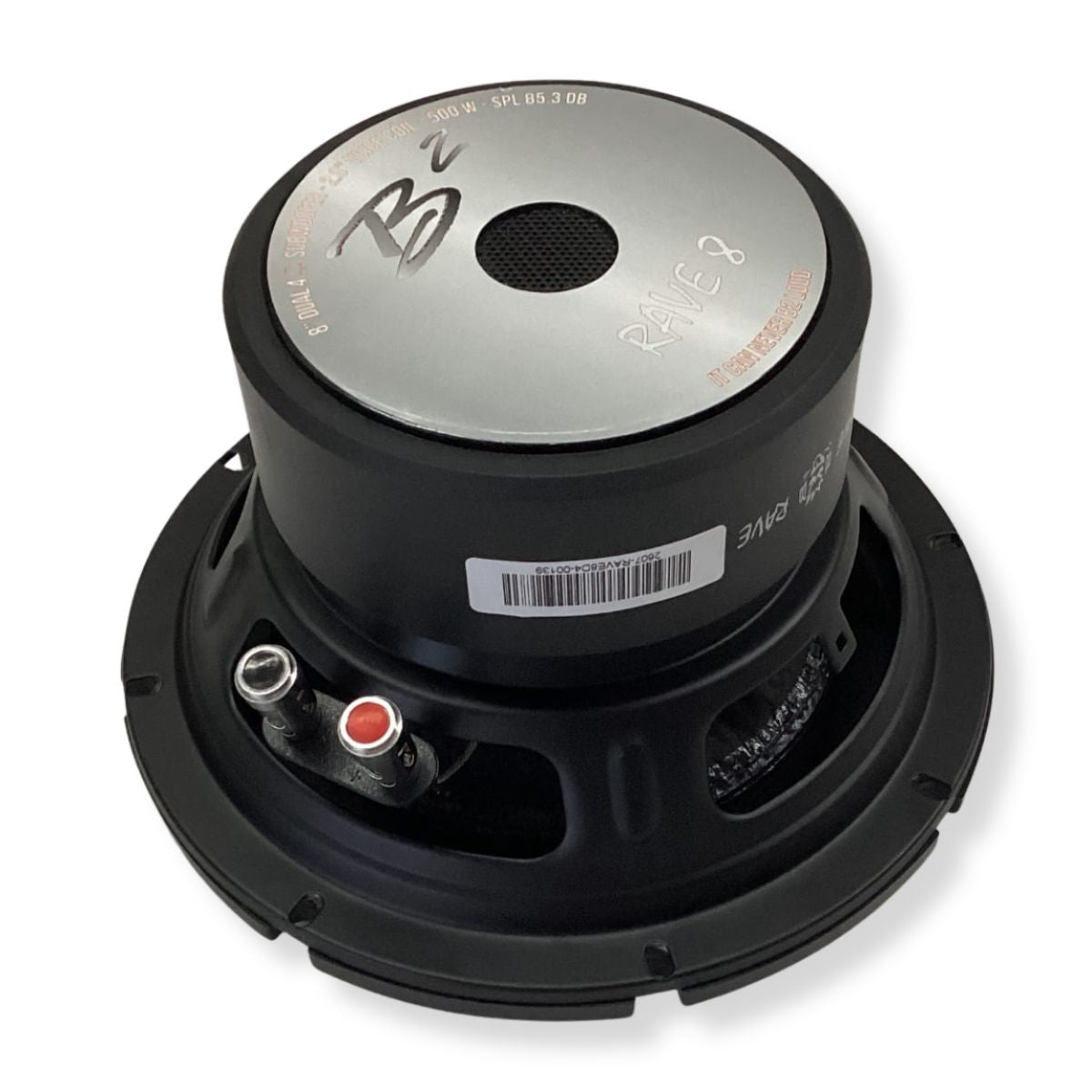

B2 Audio RAVE 8" Subwoofer 250W RMS Dual 4-Ohm 2" Voice Coil RAVE8-D4

• COMPACT 8" BASS: Add strong low-frequency performance without requiring the installation space of a larger subwoofer.
• DUAL 4-OHM VOICE COILS: Flexible DVC configuration gives installers multiple wiring options for matching compatible amplifiers.
• 2" VOICE COIL: Built around a substantial 2-inch voice coil for dependable everyday bass performance.
• 250-WATT RMS POWER RATING: Designed to bring impressive output to affordable daily-driver car audio systems.
• B2 AUDIO RAVE SERIES: Budget-friendly performance for anyone looking to add B2 Audio bass without moving into the higher-end subwoofer lines.

B2 Audio RAVE 8" Subwoofer 250W RMS Dual 4-Ohm 2" Voice Coil RAVE8-D4

This Listing Includes:

• (1) B2 Audio RAVE8-D4 8" Subwoofer

The B2 Audio RAVE8-D4 brings B2 Audio bass performance to compact daily-driver systems. Rated for 250 watts RMS, this 8-inch RAVE Series subwoofer is built for customers who need real low-end output in space-conscious enclosures and practical everyday installs.

Its dual 4-ohm voice coil configuration gives builders flexible wiring options for compatible amplifiers, while the compact 8-inch platform works well for smaller bass systems, factory-audio upgrades, and custom installs where larger subwoofers are not the right fit.

With a ferrite motor assembly, NPP cone, slim U-shaped foam surround, and 7 mm one-way Xmax, the RAVE8-D4 is designed to deliver controlled bass from a compact platform. Manufacturer ported-enclosure recommendations are included below for builders looking to get the intended performance from their system.

Features:

• 250W RMS / 500W Max Power Handling


• Dual 4-Ohm Voice Coil Configuration


• Compact 8-Inch Subwoofer Platform


• 2.0-Inch / 50.8 mm Voice Coil Diameter


• 120 Oz Ferrite Motor Assembly


• NPP Cone with Slim U-Shaped Foam Surround


• 7 mm One-Way Xmax


• Manufacturer Compact and Standard Ported Enclosure Suggestions

Specifications:

• Brand: B2 Audio


• Series: RAVE


• Model: RAVE8-D4


• Nominal Chassis Diameter: 8.2" / 209 mm


• Voice Coil Configuration: Dual Voice Coil


• Nominal Impedance: Dual 4 Ohm


• RMS Power Handling: 250 Watts


• Maximum Power Handling: 500 Watts


• Frequency Response: 50 Hz - 2300 Hz


• Resonant Frequency, Fs: 52.2 Hz


• Sensitivity: 85.3 dB (1W/1m)


• Voice Coil Diameter: 2.0" / 50.8 mm


• Magnet Type: Ferrite


• Motor Assembly Weight: 120 Oz


• Cone Material: NPP


• Surround Type: Slim U-Shaped Foam


• One-Way Xmax: 7 mm


• Overall Diameter: 8.2" / 209 mm


• Bolt Circle Diameter: 7.8" / 198 mm


• Baffle Cutout Diameter: 7.3" / 185 mm


• Mounting Depth: 4.3" / 110 mm


• Net Weight: 3.3 kg

Thiele/Small Parameters:

• Fs: 52.2 Hz


• Vas: 8.75 L


• Re, Parallel: 1.7 Ohm


• Qms: 3.87


• Qes: 0.58


• Qts: 0.506


• BL: 7.38 T/m


• Mms: 56.9 g


• Xmax, One Way: 7 mm


• Sd: 196 cm squared


• Efficiency: 0.205%


• Le, 1 kHz: 8.9 mH


• EBP: 90

Manufacturer Enclosure Suggestions:

Ported Compact

• Enclosure Volume: 19.5 L / 0.689 ft cubed


• Tuning Frequency: 42 Hz


• Port Area: 6.6 in squared


• Port Length: 13.14"

Ported

• Enclosure Volume: 22.5 L / 0.79 ft cubed


• Tuning Frequency: 40 Hz


• Port Area: 6.6 in sqaured


• Port Length: 12.35"
