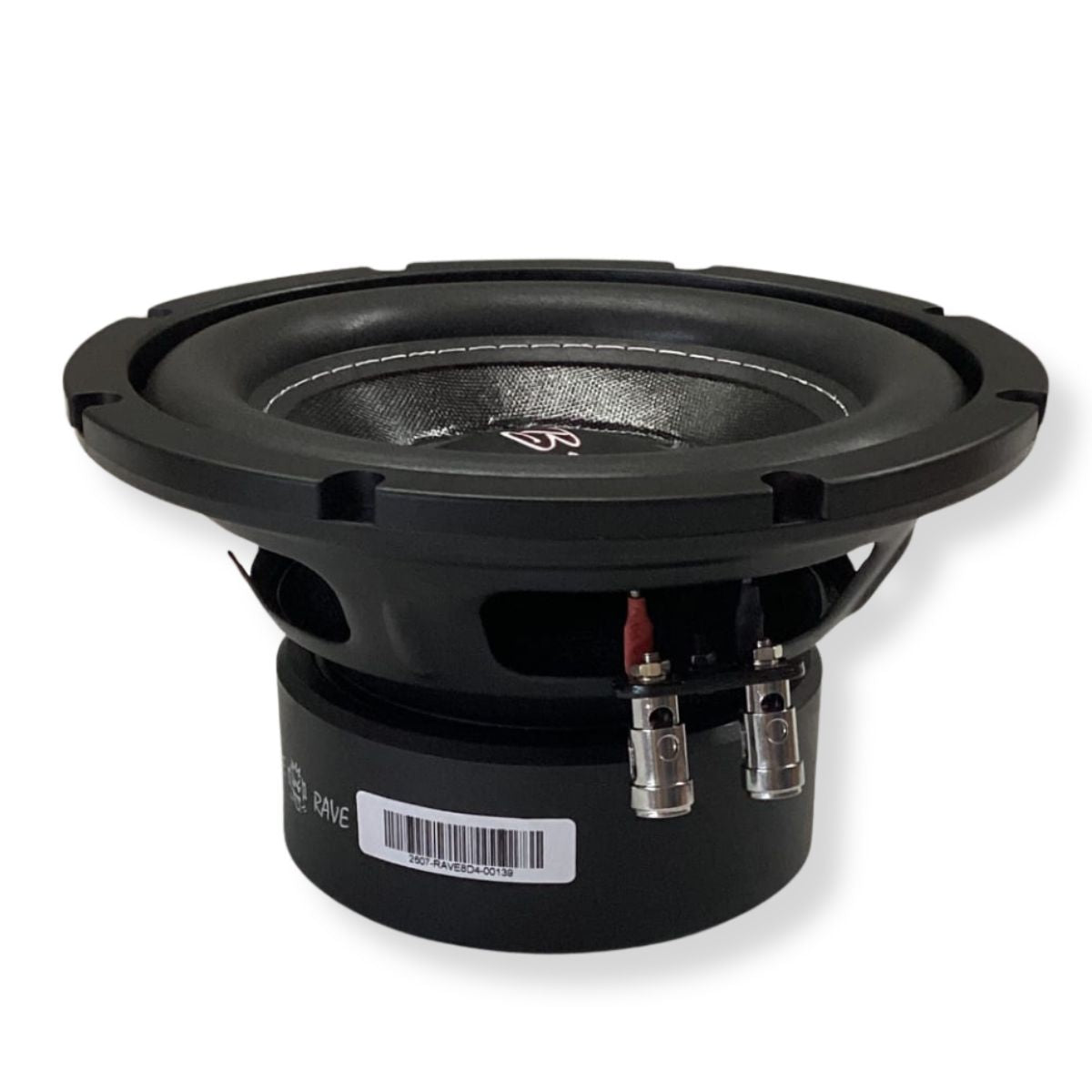

B2 Audio RAVE 10" Subwoofer 300W RMS Dual 4-Ohm 2.5" VC RAVE10-D4

• 10" CAR AUDIO SUBWOOFER: Versatile 10-inch design delivers strong bass while remaining practical for everyday installations.
• DUAL 4-OHM VOICE COILS: DVC configuration provides flexible wiring options for matching compatible car audio amplifiers.v
• 2" VOICE COIL: Built around a 2-inch voice coil for dependable everyday bass performance.
• 300-WATT RMS POWER RATING: Designed to deliver strong low-frequency output for affordable daily-driver audio systems.
• B2 AUDIO RAVE SERIES: Budget-friendly B2 Audio performance designed for everyday car audio systems and custom builds.

B2 Audio RAVE 10" Subwoofer 300W RMS Dual 4-Ohm 2.5" VC RAVE10-D4

This Listing Includes:

• (1) B2 Audio RAVE10-D4 10" Subwoofer

COMING SOON: The B2 Audio RAVE Series is on the way! This is a brand-new product line, and complete specifications and additional product details will be added as they become available. Please check back soon for the latest information.

Get solid everyday bass performance with the B2 Audio RAVE10-D4. Part of the RAVE Series, this 10-inch subwoofer is rated for 300 watts RMS and features dual 4-ohm voice coils for flexible wiring with compatible amplifier setups.

The RAVE10-D4 uses a 2.5-inch copper voice coil with aluminum winding material, backed by a ferrite magnet and 140 oz motor assembly. An NPP cone and slim U-shaped foam surround complete the design, while its 85.6 dB sensitivity and 36 to 1800 Hz frequency response support responsive low-frequency performance.

With a 10.2-inch overall diameter, 7.8-inch baffle cutout, and 4.96-inch mounting depth, the RAVE10-D4 provides a practical 10-inch platform for daily car audio builds. B2 Audio also provides recommended compact and standard ported enclosure specifications for builders looking to get the intended performance from the subwoofer.

Features:

• 300 Watts RMS: Rated for 300 watts RMS power handling with a 600-watt maximum power rating.

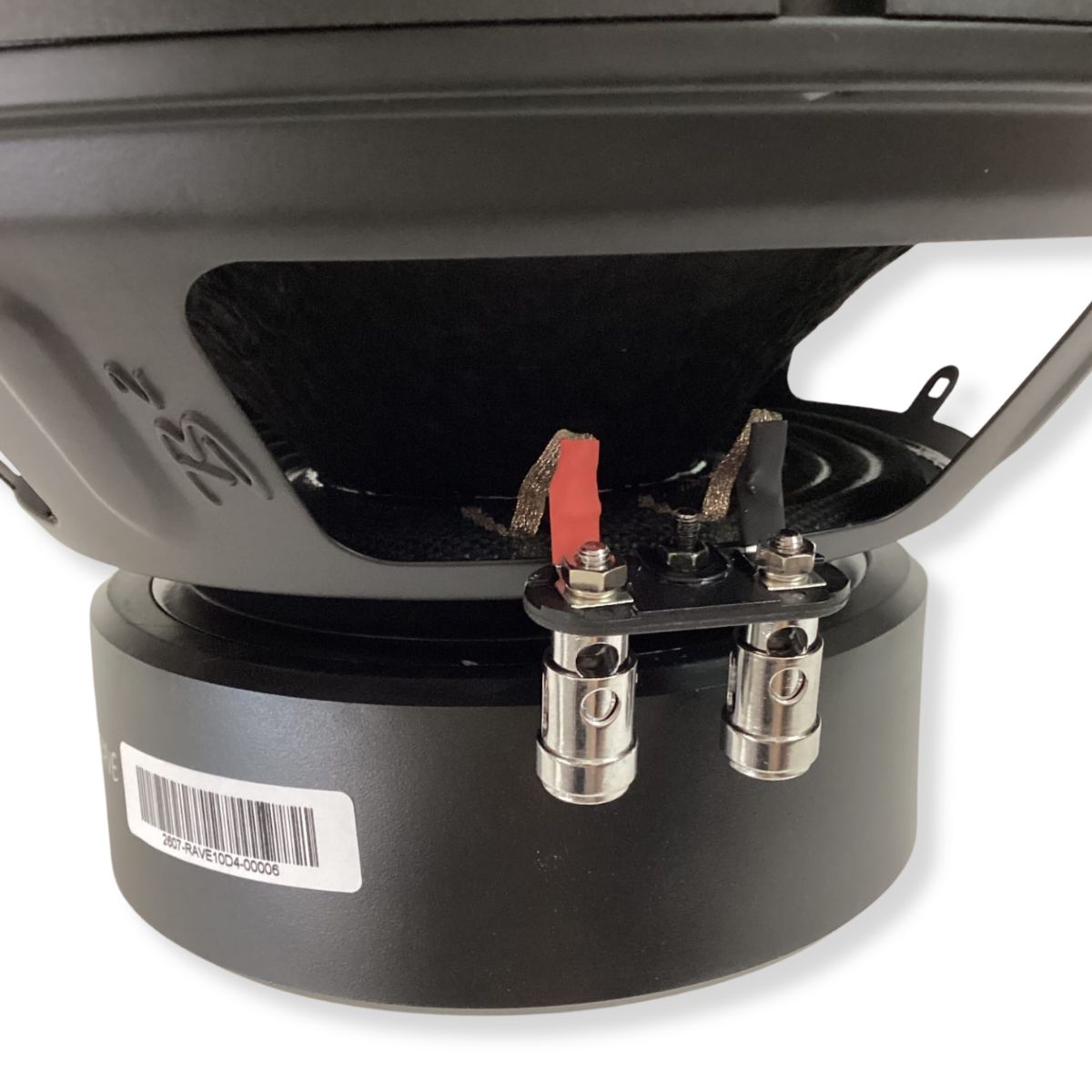

• Dual 4-Ohm Voice Coils: DVC 4-ohm configuration provides flexible wiring options for compatible amplifier setups.


• 2.5-Inch Copper Voice Coil: Features a 63.5 mm copper voice coil with aluminum winding material.

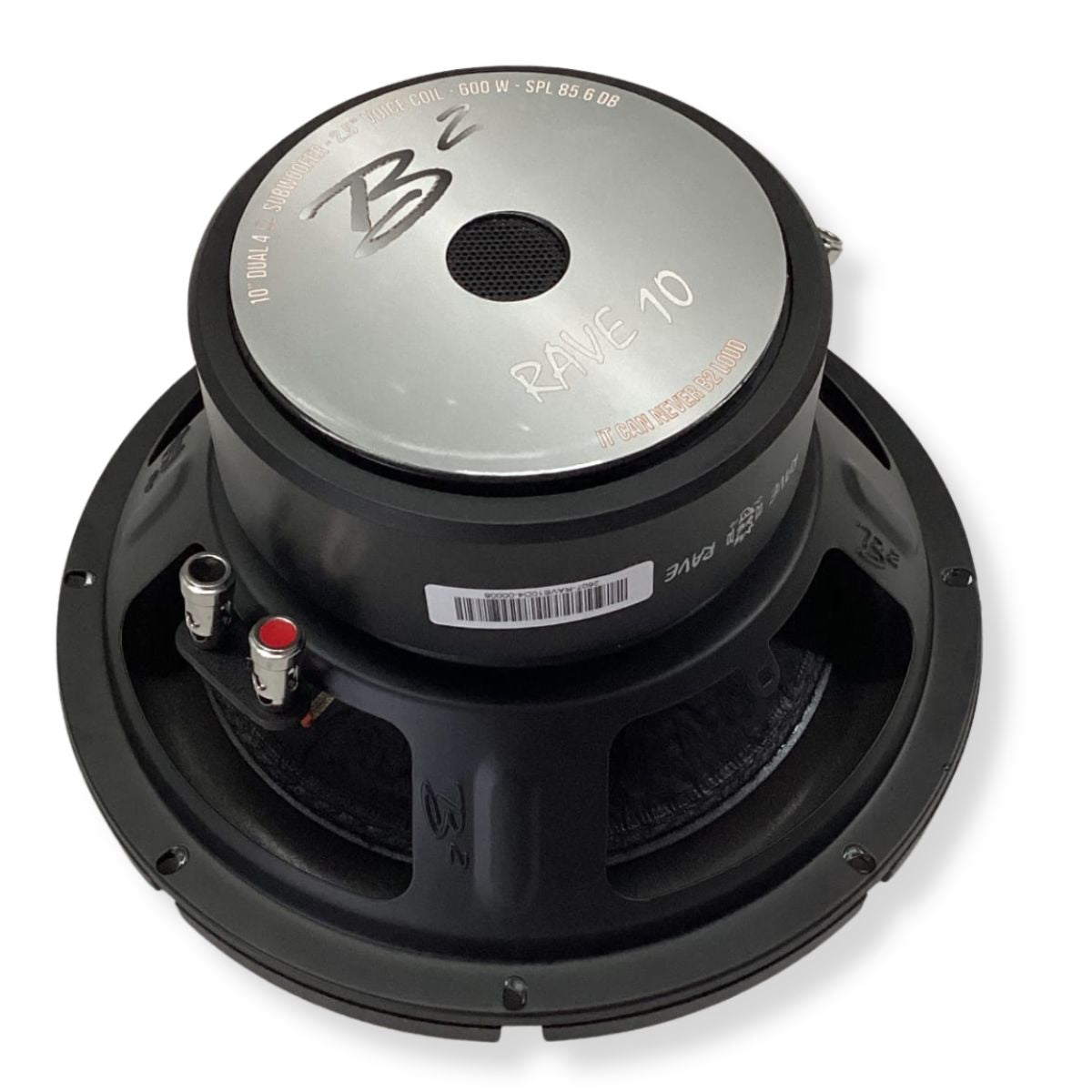

• Ferrite Motor Assembly: Built with a ferrite magnet and 140 oz motor assembly.

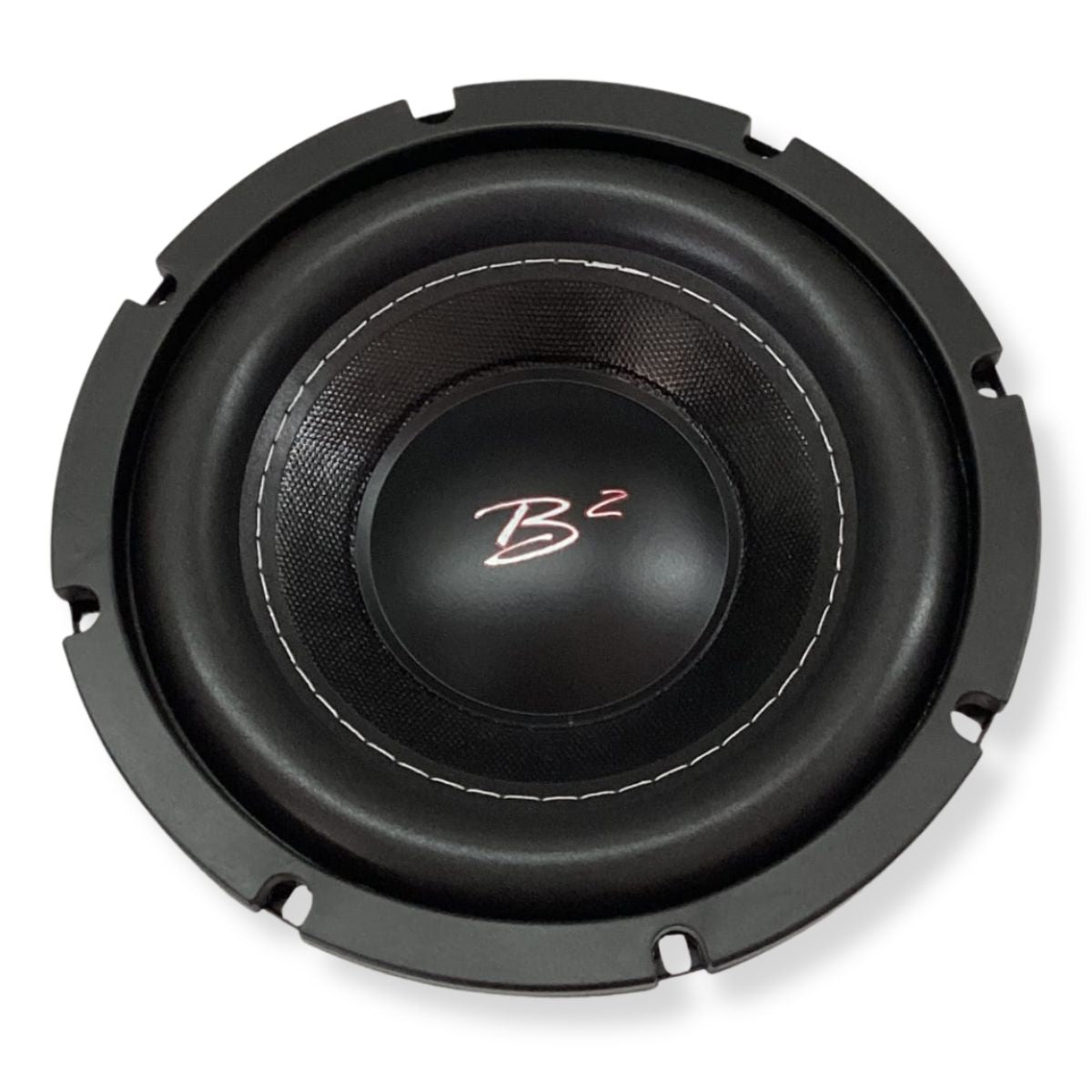

• NPP Cone: Features an NPP cone paired with a slim U-shaped foam surround.


• 10-Inch Design: 10.2-inch overall diameter with a 7.8-inch baffle cutout and 4.96-inch mounting depth.

Specifications:

• Brand: B2 Audio


• Series: RAVE


• Model: RAVE10-D4


• Nominal Chassis Diameter: 10" / 254 mm


• Voice Coil Configuration: Dual Voice Coil


• Nominal Impedance: Dual 4 Ohm


• RMS Power: 300 Watts


• Max Power: 600 Watts


• Frequency Response: 36 Hz to 1800 Hz


• Resonance Frequency: 36.2 Hz


• Sensitivity: 85.6 dB (1W/1m)


• Voice Coil Diameter: 2.5" / 63.5 mm


• Voice Coil Material: Copper


• Winding Material: Aluminum


• Magnet Type: Ferrite


• Motor Assembly Weight: 140 oz


• Cone Material: NPP


• Surround Type: Slim U-Shaped Foam

Thiele-Small Parameters:

• Fs: 36.2 Hz


• Vas: 26.2 L


• Re (Parallel): 1.7 Ohm


• Qms: 3.97


• Qes: 0.54


• Qts: 0.48


• BL: 9.06 T/m


• Mms: 116 g


• Xmax (One Way): 8.5 mm


• Sd: 336 cm


• Efficiency: 0.21%


• Le (1 kHz): 13.6 mH


• EBP: 67

Mounting Information:

• Overall Diameter: 10.2" / 260 mm


• Bolt Circle Diameter: 9.6" / 244 mm


• Baffle Cutout Diameter: 7.8" / 198 mm


• Mounting Depth: 4.96" / 126 mm


• Net Weight: 4.5 kg

Manufacturer Enclosure Suggestions:

Ported Compact

• Enclosure Volume: 37.2 L / 1.31 ft


• Tuning Frequency: 38 Hz


• Port Area: 10.2 in


• Port Length: 11.52"

Ported

• Enclosure Volume: 52 L / 1.84 ft


• Tuning Frequency: 32 Hz


• Port Area: 11.2 in


• Port Length: 13"
