Dual RAGEXL V2 12" 3500W RMS D2 Subwoofers + ZERO 12 12,500W Mono Amplifier

• COMPLETE B2 AUDIO BASS BUNDLE: Includes (2) B2 Audio RAGEXL V2 12-inch dual 2-ohm subwoofers, model B2-RAGEXL12-D2-V2, plus (1) B2 Audio ZERO 12 Class-D half-bridge monoblock amplifier, model B2-ZERO12.
• 7,000W RMS DUAL-12 SYSTEM: Each RAGEXL V2 12 handles 3,500 watts RMS and 10,000 watts peak dynamic power, providing 7,000 watts RMS and 20,000 watts max combined subwoofer power handling.
• RECOMMENDED 2-OHM FINAL LOAD: Wire each subwoofer’s dual 2-ohm voice coils in series, then wire both subwoofers in parallel for a 2-ohm final impedance. This configuration safely matches the included ZERO 12 amplifier; do not wire this bundle to 0.5 ohm.
• ZERO 12 POWER OUTPUT: The included Korean half-bridge Class-D monoblock delivers 7,000W RMS at 13.8V and 7,500W RMS at 14.4V into 2 ohms—an excellent output match for the dual RAGEXL V2 12-inch subwoofer system.
• EXTREME BASS BUILD: RAGEXL V2 subwoofers feature carbon-fiber cones, massive 3-inch dual voice coils, high-excursion design, and purpose-built baskets. A properly upgraded electrical system, correctly fused OFC wiring, suitable enclosure, and careful gain setting are required; installation accessories are not included.

Dual RAGEXL V2 12" 3500W RMS D2 Subwoofers + ZERO 12 12,500W Mono Amplifier

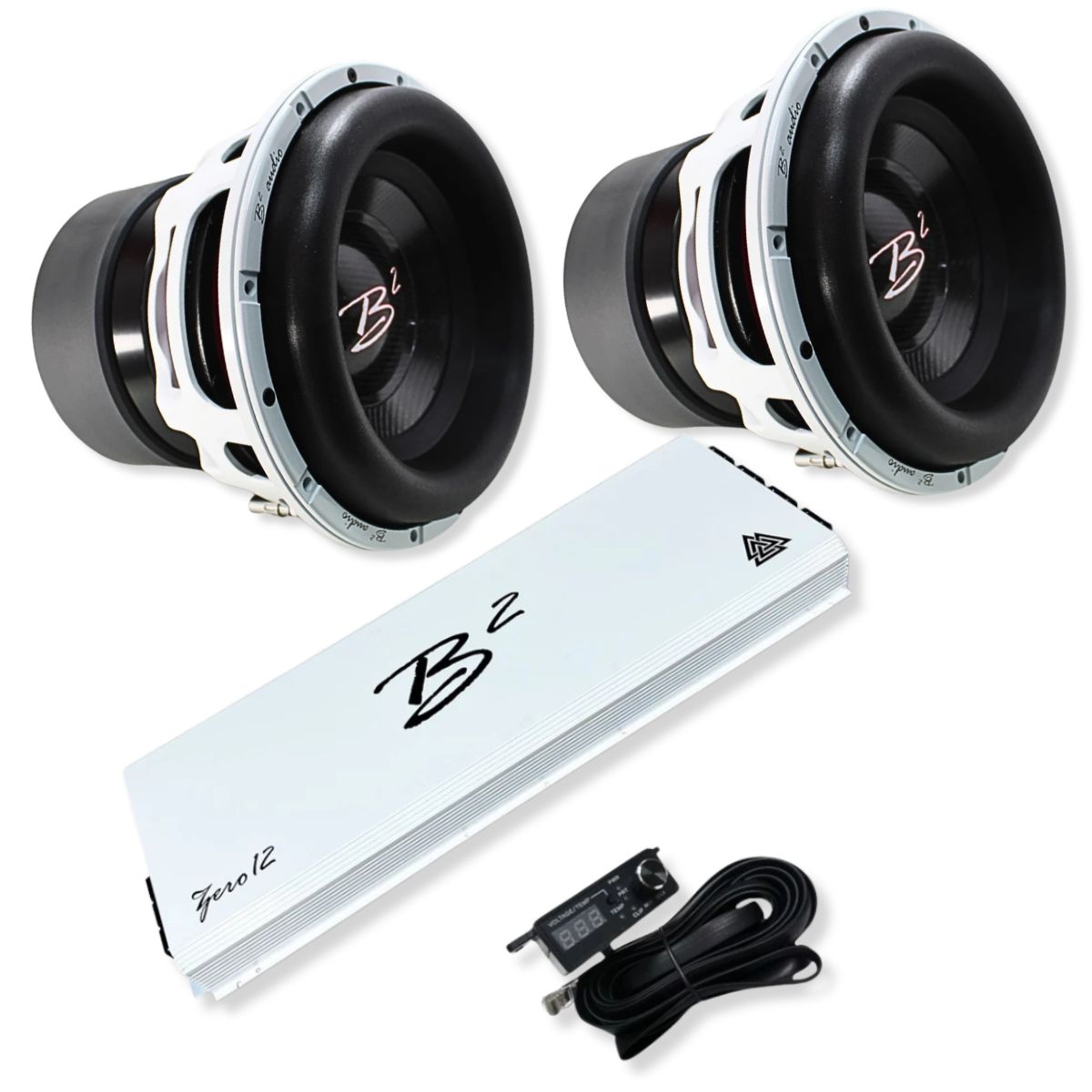

This Listing Includes:

• (2) B2 Audio 12" Subwoofers B2-RAGEXL12-D2-V2

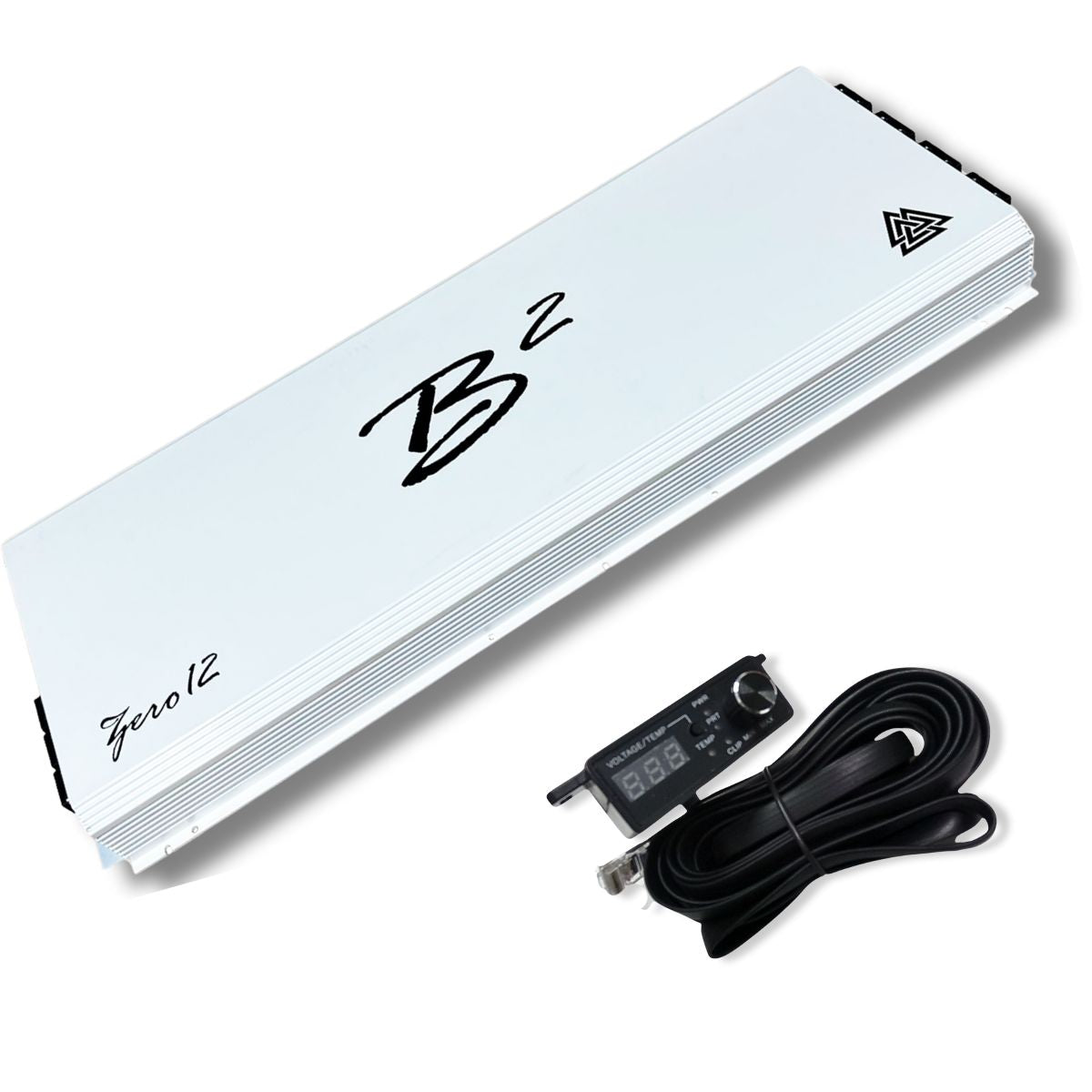

• (1) B2 Audio ZERO 12 Amplifier B2-ZERO12

Build a serious high-output bass system with two B2 Audio RAGEXL V2 12-inch subwoofers and the ZERO 12 monoblock amplifier. Each RAGEXL12-D2-V2 handles 3,500 watts RMS, giving this bundle a combined 7,000-watt RMS subwoofer rating.

The dual 2-ohm RAGEXL V2 subwoofers are designed to be wired to a 2-ohm final load with the included ZERO 12. In this configuration, the ZERO 12 produces 7,000 watts RMS at 13.8V and 7,500 watts RMS at 14.4V—an excellent power match for the pair.

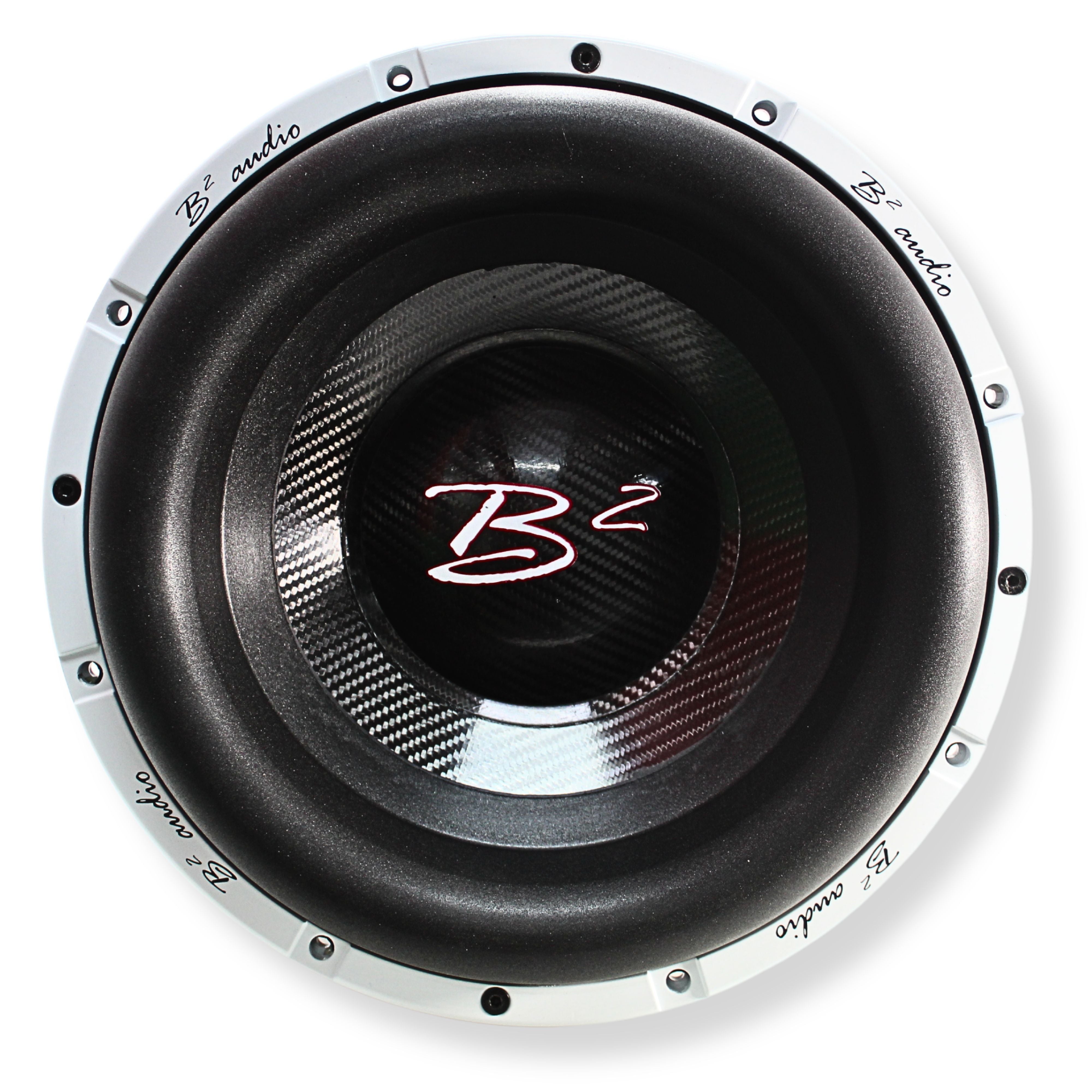

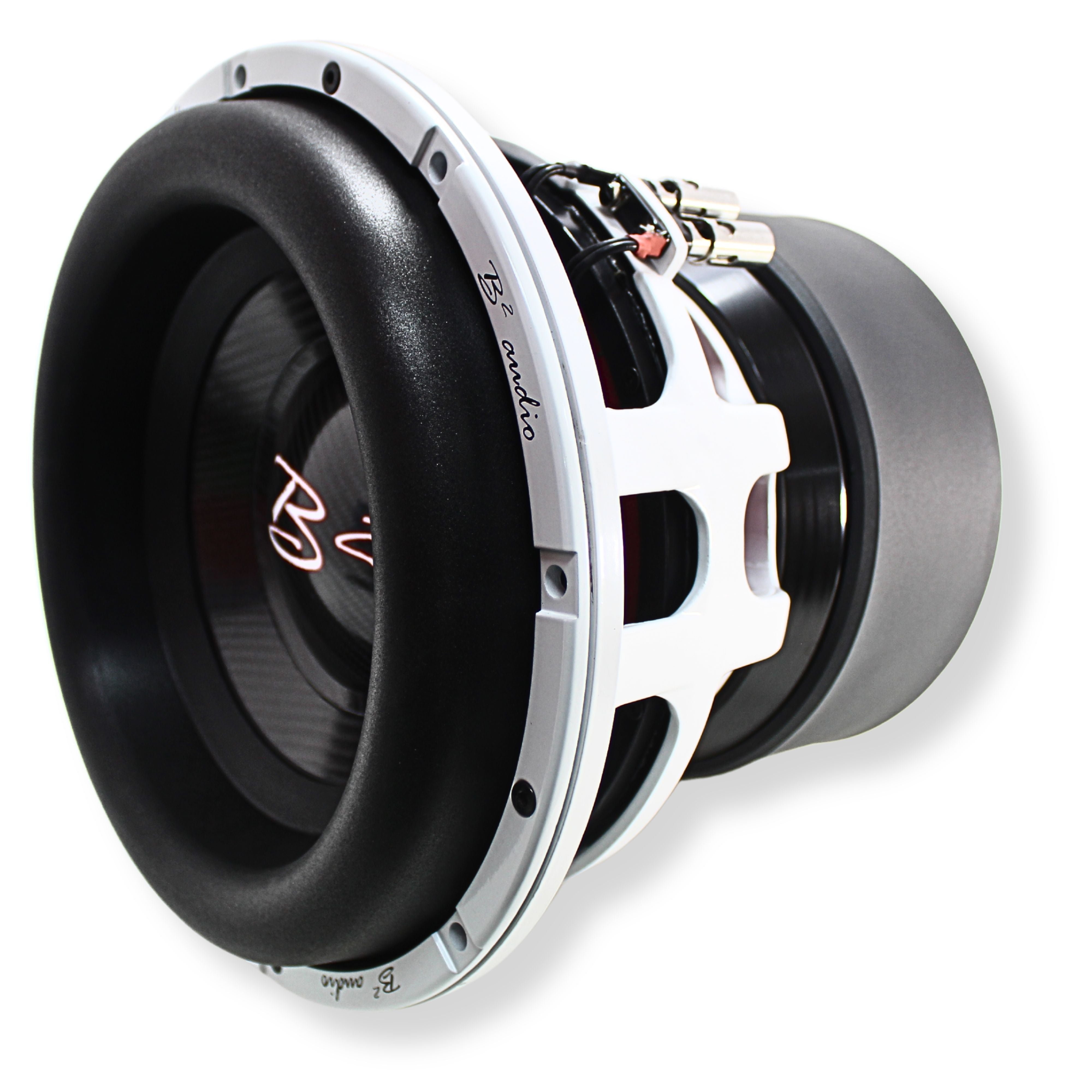

The RAGEXL V2 12 combines a carbon-fiber cone, massive 3-inch dual voice coils, high-excursion design, and a purpose-built basket for hard-hitting, controlled bass. The ZERO 12 supplies Korean Class-D half-bridge power, adjustable crossover controls, oversized terminals, and the current capacity needed for a no-compromise B2 Audio build.

Features

• Complete B2 Audio amplifier and dual 12-inch subwoofer bundle


• Two RAGEXL V2 12-inch dual 2-ohm subwoofers


• 7,000 watts RMS combined subwoofer power handling


• 20,000 watts max combined subwoofer power handling


• Recommended 2-ohm final load for the included ZERO 12 amplifier


• ZERO 12 produces 7,000W RMS at 13.8V / 7,500W RMS at 14.4V into 2 ohms


• Carbon-fiber cones and 3-inch dual voice coil platforms


• Built for high-output daily drivers, demos, and SPL-minded systems

Recommended Wiring Configuration

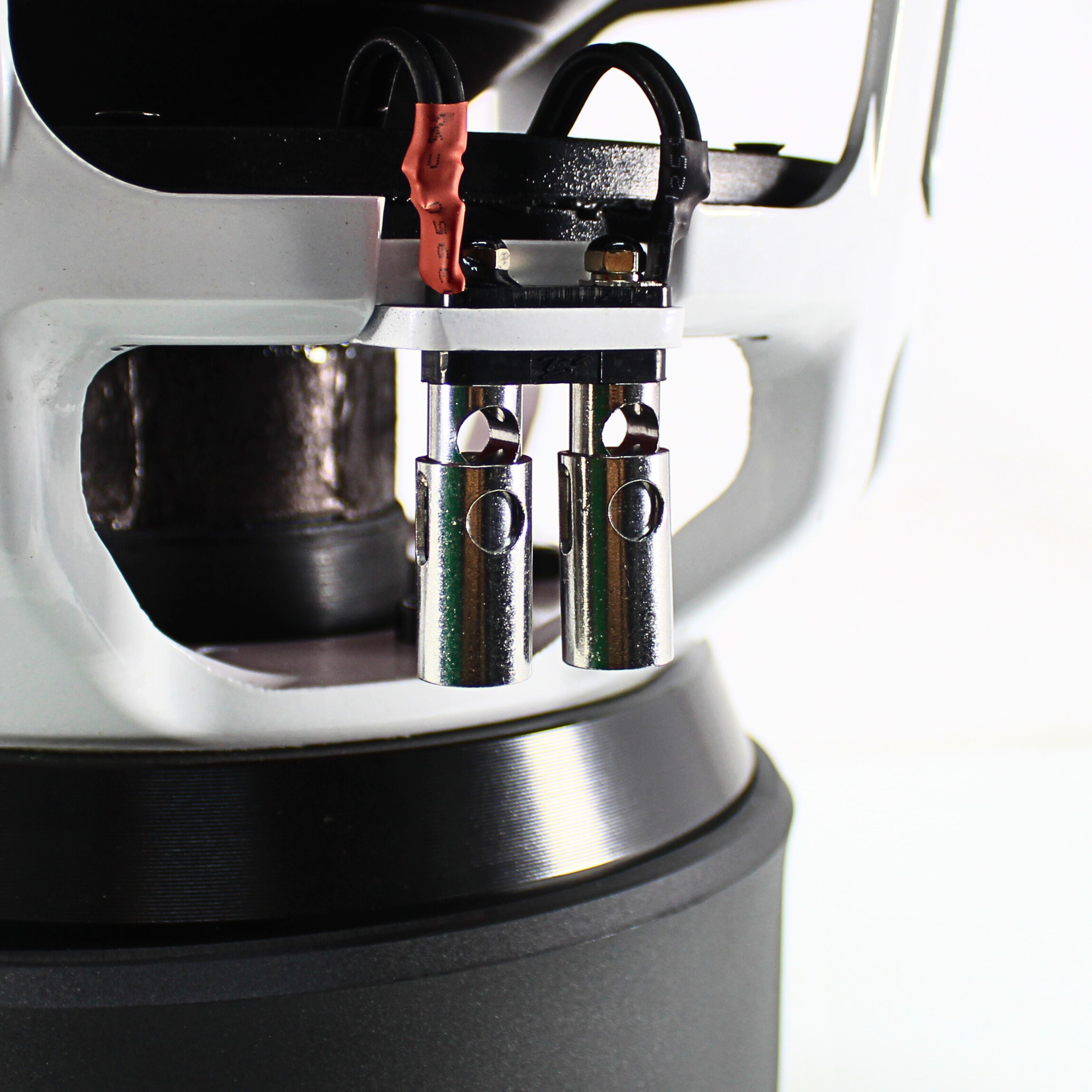

Wire the voice coils of each RAGEXL12-D2-V2 in series to create a 4-ohm load per subwoofer. Then wire the two subwoofers in parallel for a 2-ohm final load at the amplifier.

Do not wire this bundle to 0.5 ohm. The ZERO 12 is designed for a 1-ohm minimum load.

Subwoofer Specifications (Each):

• RMS Power Handling: 3,500W


• Peak Dynamic Power: 10,000W


• Nominal Impedance: Dual 2 ohm


• Voice Coil Diameter: 3"


• Cone Material: Carbon fiber


• Frequency Response: 10Hz–500Hz


• Sensitivity: 86 dB

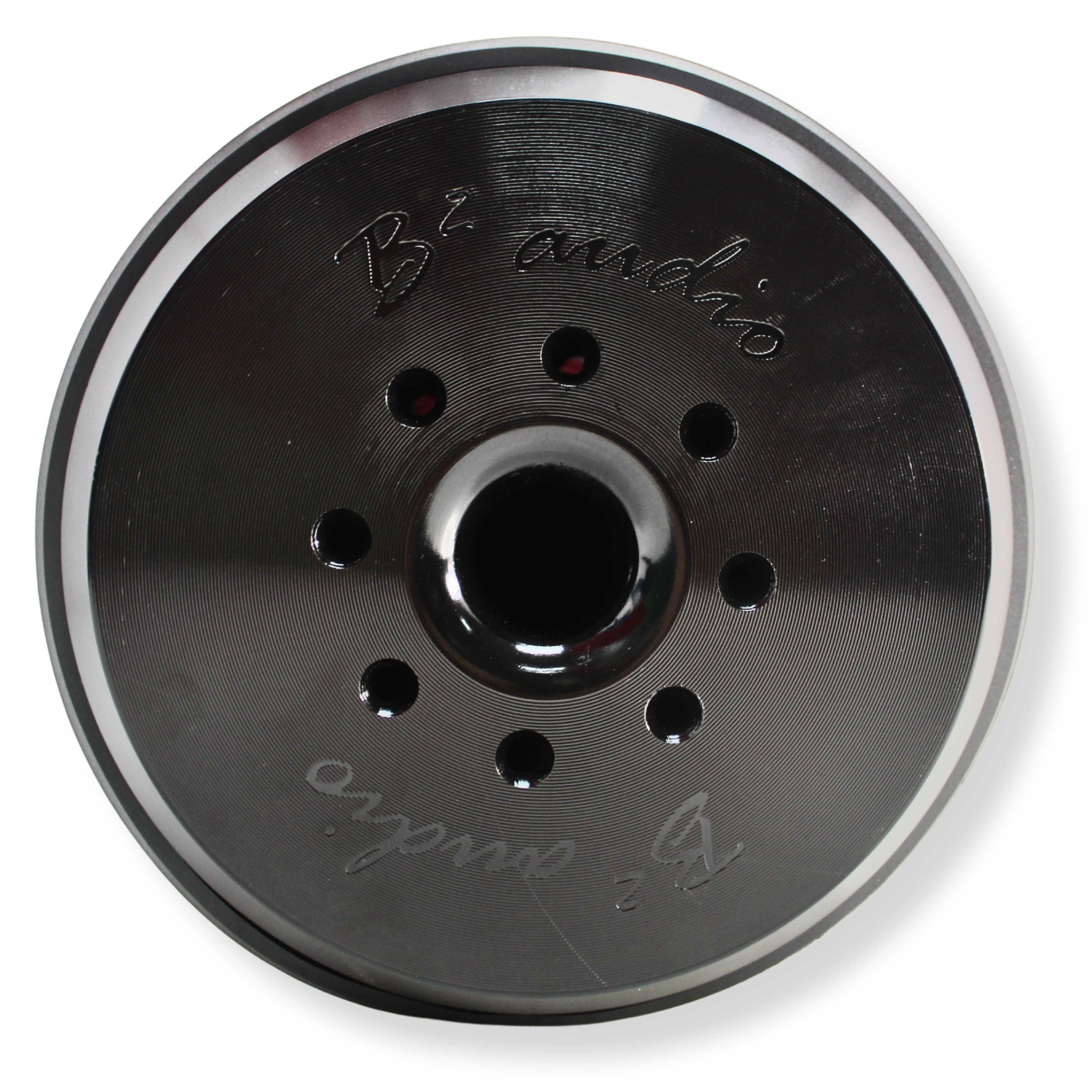

• Magnet Weight: 880 oz


• Motor Displacement: 8.9 L / 0.314 cu. ft.


• Free-Air Resonance: 31Hz


• Xmax: 23 mm


• Overall Diameter: 12.25"


• Mounting Diameter: 11.10"


• Mounting Depth: 10.12"


• Overall Depth: 12.12"

Amplifier Specifications:

• Circuit Configuration: HI-EF Class-D half-bridge


• RMS Power at 2 Ohms:

  5,800W RMS at 12.6V

  7,000W RMS at 13.8V

  7,500W RMS at 14.4V


• RMS Power at 1 Ohm:

  9,500W RMS at 12.6V

  11,000W RMS at 13.8V

  12,500W RMS at 14.4V

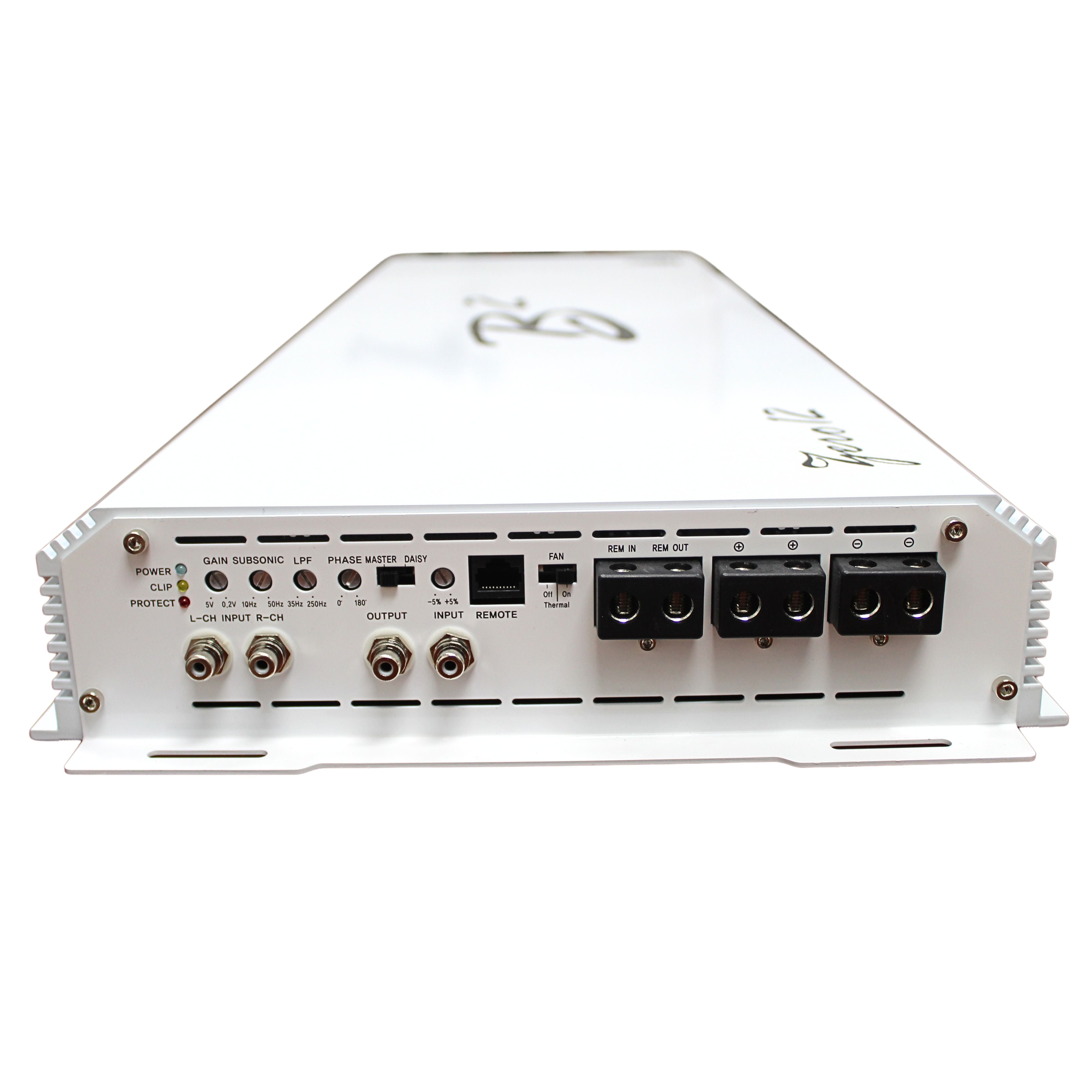

• Frequency Response: 10Hz-300Hz


• Low-Pass Filter: 35Hz-250Hz


• Subsonic Filter: 10Hz-50Hz


• Phase Control: 0-180

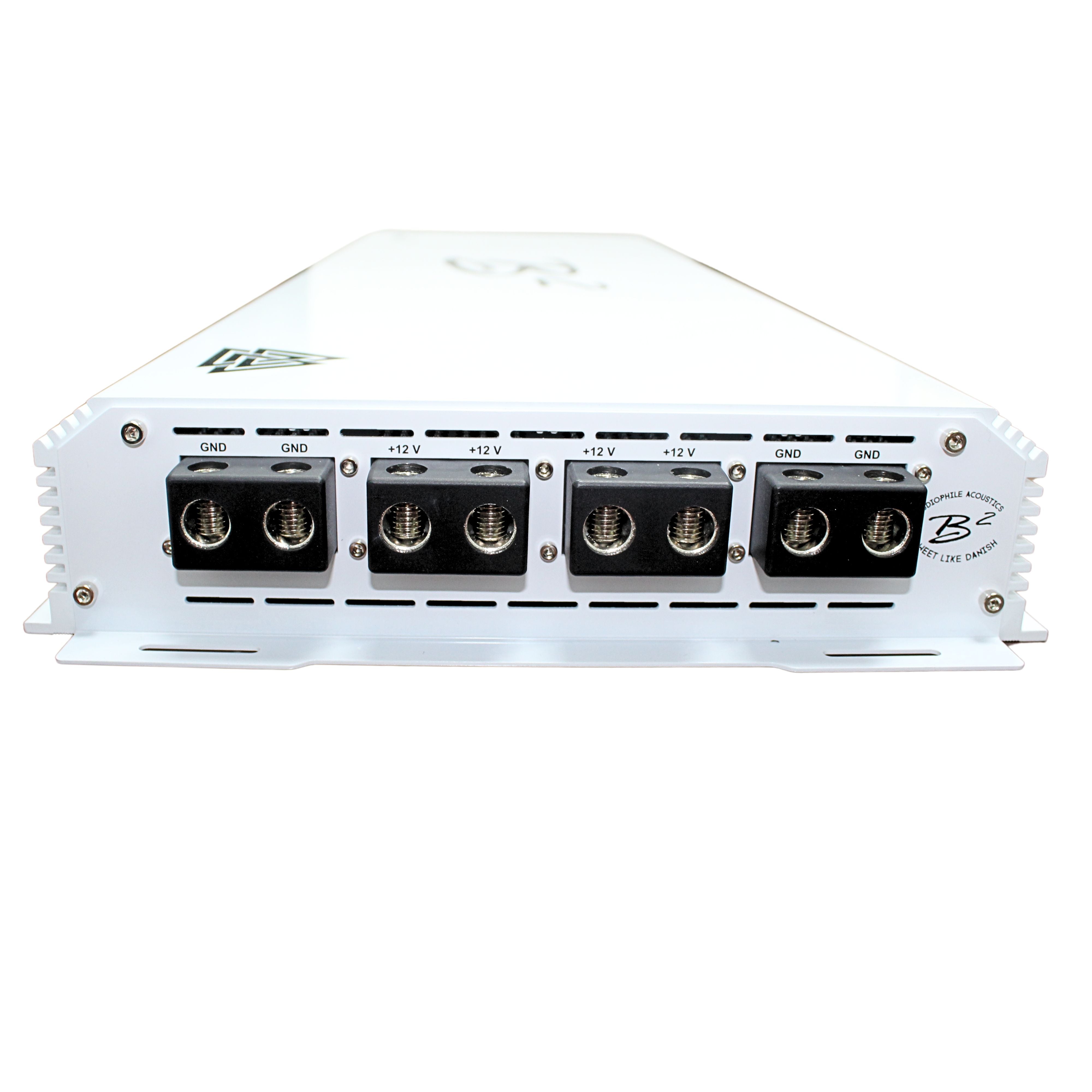

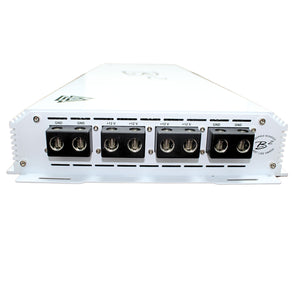

• Power Terminals: 0 gauge


• Speaker Terminals: 4 gauge


• Fuse Rating: 1,000A


• Dimensions: 31.5" L x 12.4" W x 2.95" H

Important Installation Note

This high-current system requires a properly designed electrical upgrade, quality OFC wiring, correct fusing, a suitable enclosure, and careful gain setting. This system does not include the enclosure, wiring, batteries, alternator upgrades, or installation hardware.
