B2 Audio 44Ah 5000W LiFePO4 Battery 12V w SAE Posts & 1/0 AWG 6 Input Terminals

• COMPLETE BATTERY COMBO: Includes a B2 Audio 44AH lithium battery, tall brass SAE top post terminals, and a pair of Big Jeff Audio 6 input terminals.
• SUPPORTS UP TO 10,000 WATTS: Rated for 5,000 watts continuous music power and 10,000 watts burst, with 594 watt-hours of reserve energy and up to 4,100 amps of output.
• ADVANCED LiFePO4 TECHNOLOGY: Faster charging, longer lifespan, lighter weight, and better efficiency than traditional AGM batteries.
• M6 TO SAE CONVERSION: Short brass adapters mount to the battery’s M6 terminals and convert them to standard clamp-style SAE top posts.
• SIX 1/0 GAUGE INPUTS PER TERMINAL: Polished aluminum Big Jeff Audio terminals give you six input positions each for power and ground wiring.

B2 Audio 44Ah 5000W LiFePO4 Battery 12V w SAE Posts & 1/0 AWG 6 Input Terminals

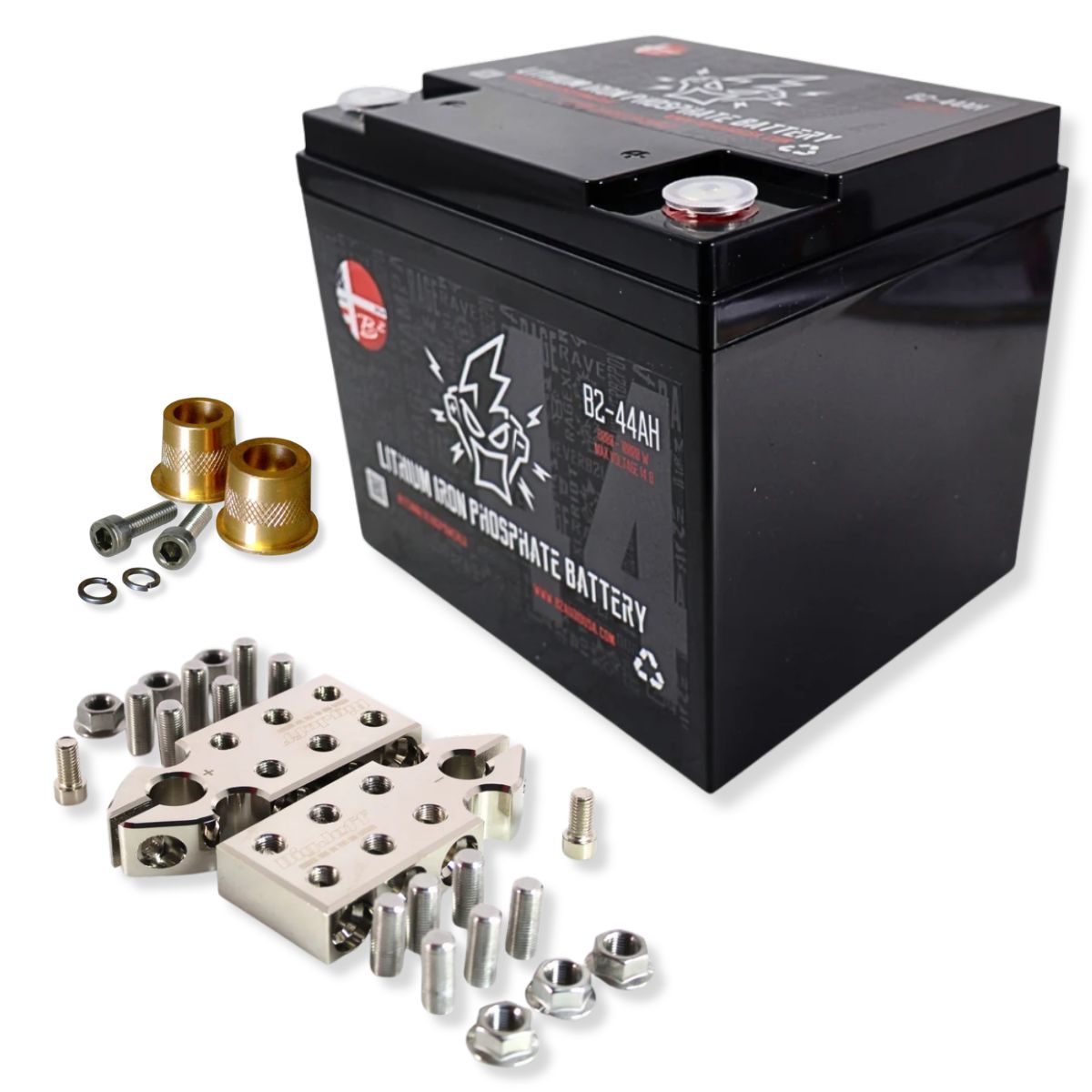

This Listing Includes:

• (1) B2 Audio 44AH Lithium Iron Phosphate Battery


• (1) Pair of Short Brass SAE Top Post Adapters (Positive & Negative), with (2) stainless steel M6 hex-head machine screws and (2) split lock washers

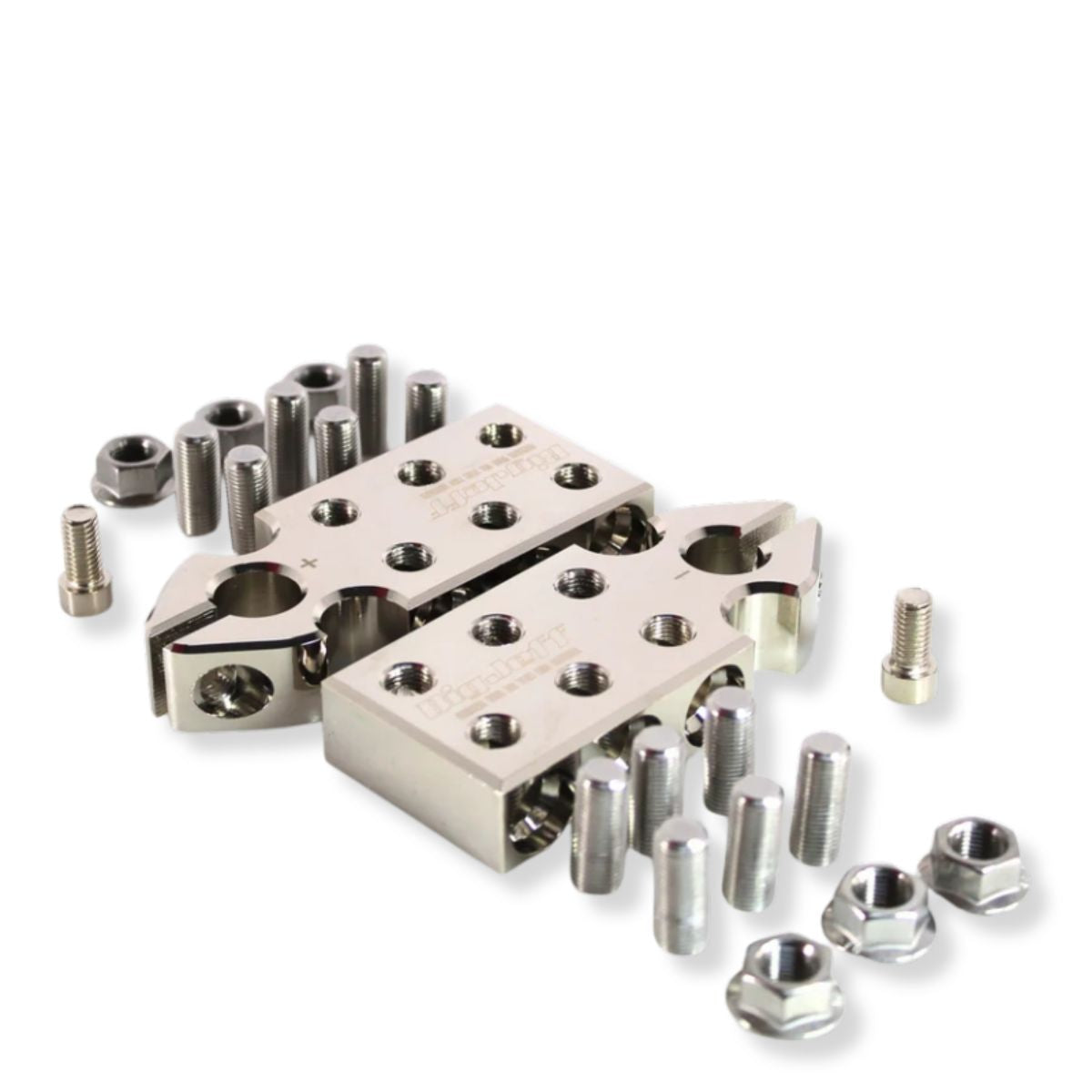

• (2) Big Jeff Audio 6 Input SAE Top Post Battery Terminals, BJ-AL-6-INPUT-SAE, with installation hardware

Get a complete battery setup in one order. This combo pairs the B2 Audio 44AH LiFePO4 battery with short brass SAE top post adapters and a pair of Big Jeff Audio 6 input terminals, so you can run up to six power or ground wires per terminal from one clean top post setup.

The B2 Audio 44AH supports up to 5,000 watts of continuous music power and 10,000 watts of burst power, with 594 watt-hours of reserve energy to help reduce voltage drop when your amps pull hard. It’s lighter than a traditional AGM battery, charges fast, and is maintenance free. It works for car audio, marine, and off-road electrical setups.

The short brass adapters bolt directly to the battery’s M6 terminals with the included stainless steel screws and give you standard clamp-style SAE posts. From there, the polished aluminum Big Jeff Audio terminals clamp on, each with six 1/0 gauge inputs.

Requires a lithium-compatible battery charger. Pair it with a properly upgraded charging system to keep your setup playing strong.

Features:

• 594 watt-hours of reserve energy to help cut voltage drop on hard bass hits


• High shock resistance for daily drivers and competition builds


• Short-style posts keep the overall height of your battery setup low


• Positive post is larger than the negative, matching standard SAE sizing to help prevent mixed-up connections


• Terminals fit tapered SAE posts: 11/16 inch positive and 5/8 inch negative

Specifications

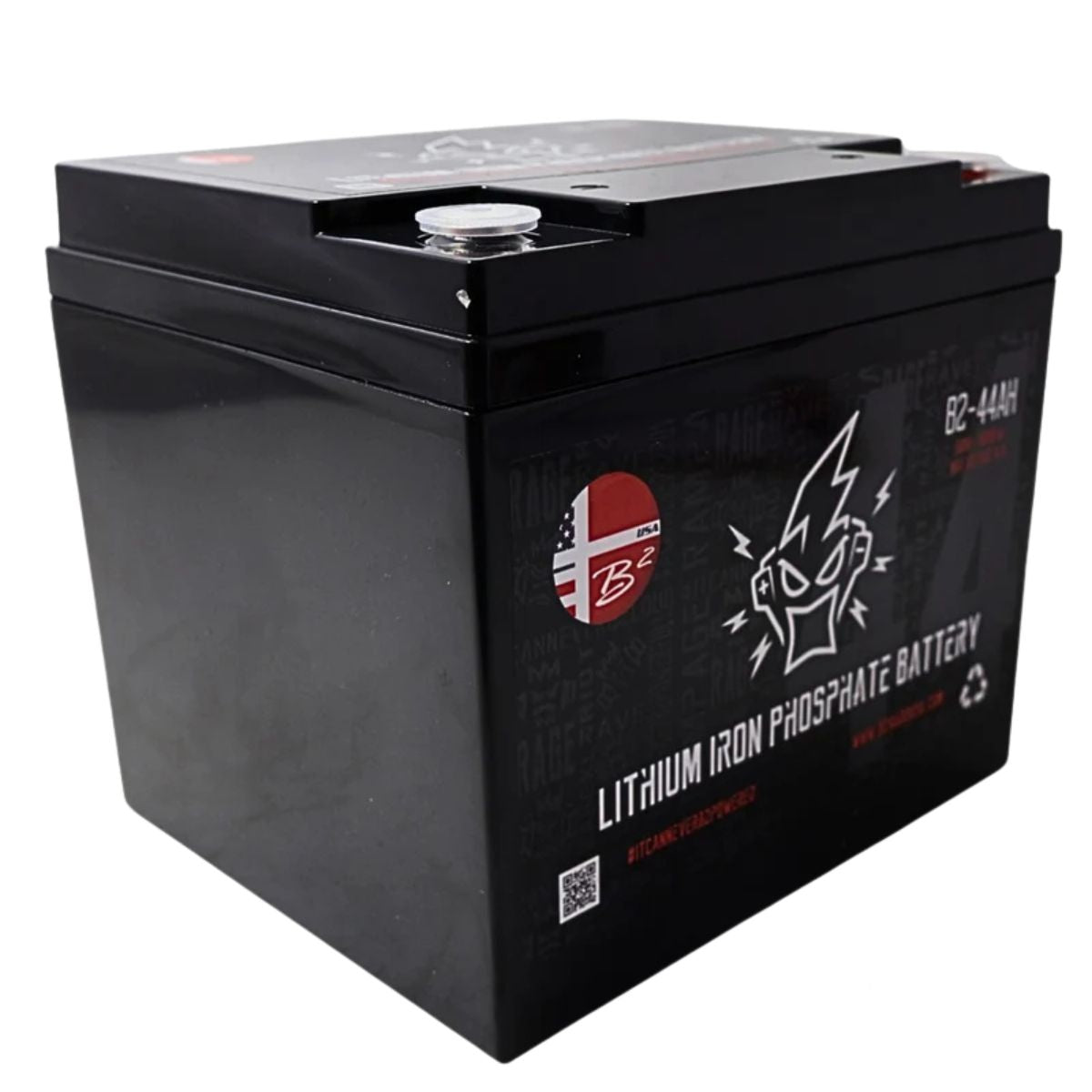

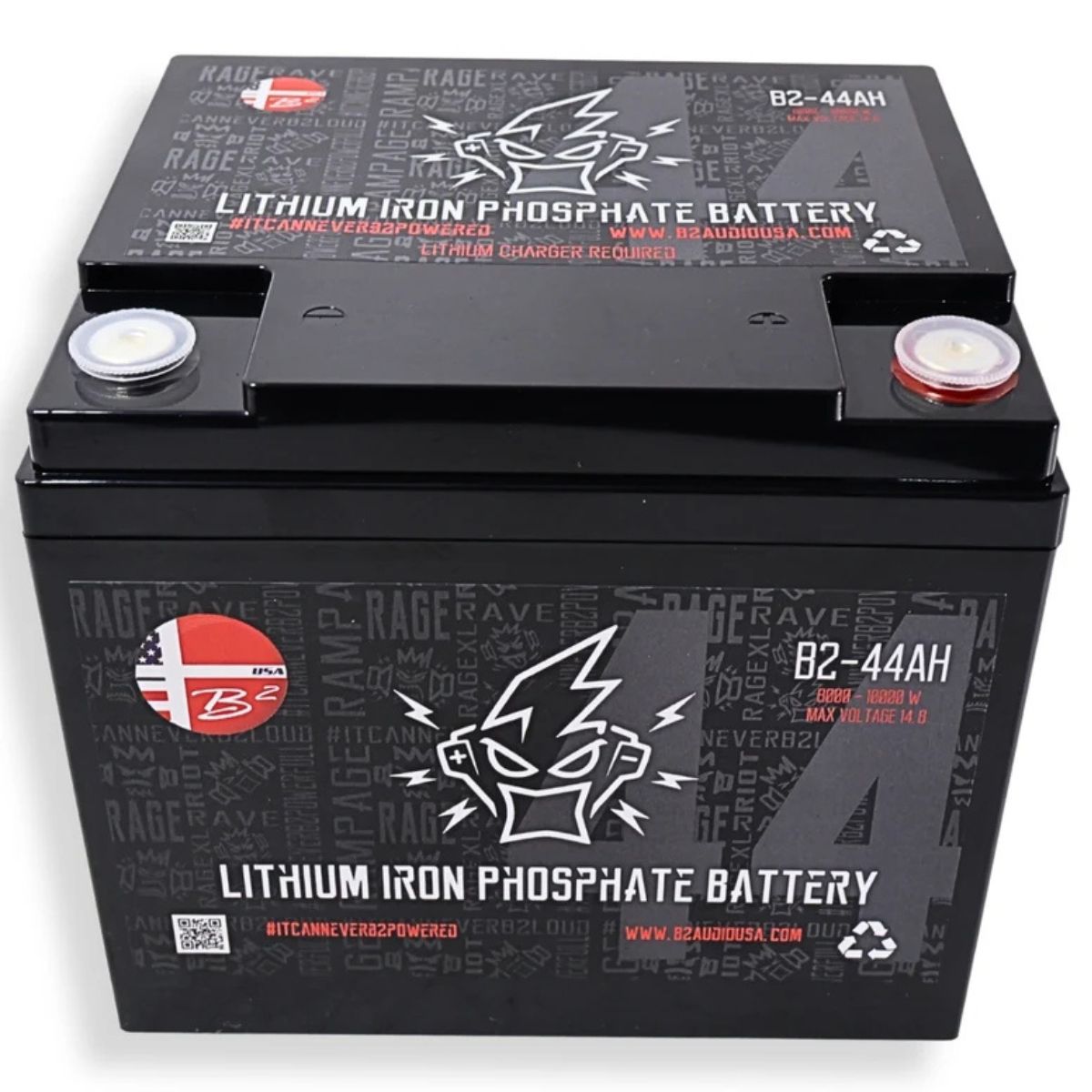

B2 Audio 44AH Battery

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)


• Nominal Voltage: 12V


• Capacity: 44AH


• Continuous Music Power: 5,000 Watts


• Maximum Wattage Support: 10,000 Watts


• Energy Capacity: 594 Watt Hours


• Maximum Output Current: 4,100 Amps


• Maintenance Free Operation


• Dimensions: 7.75 in L x 6.54 in W x 7 in H

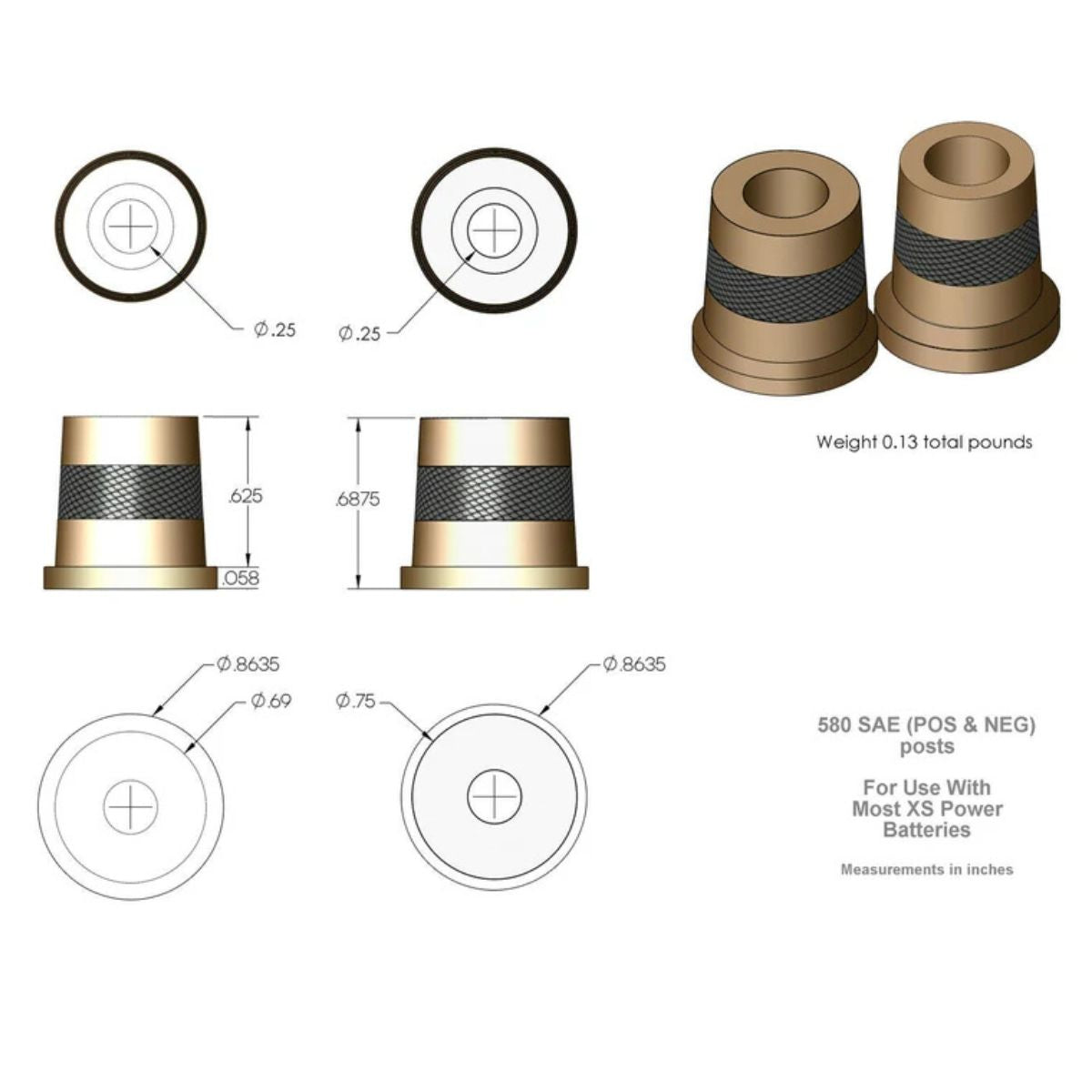

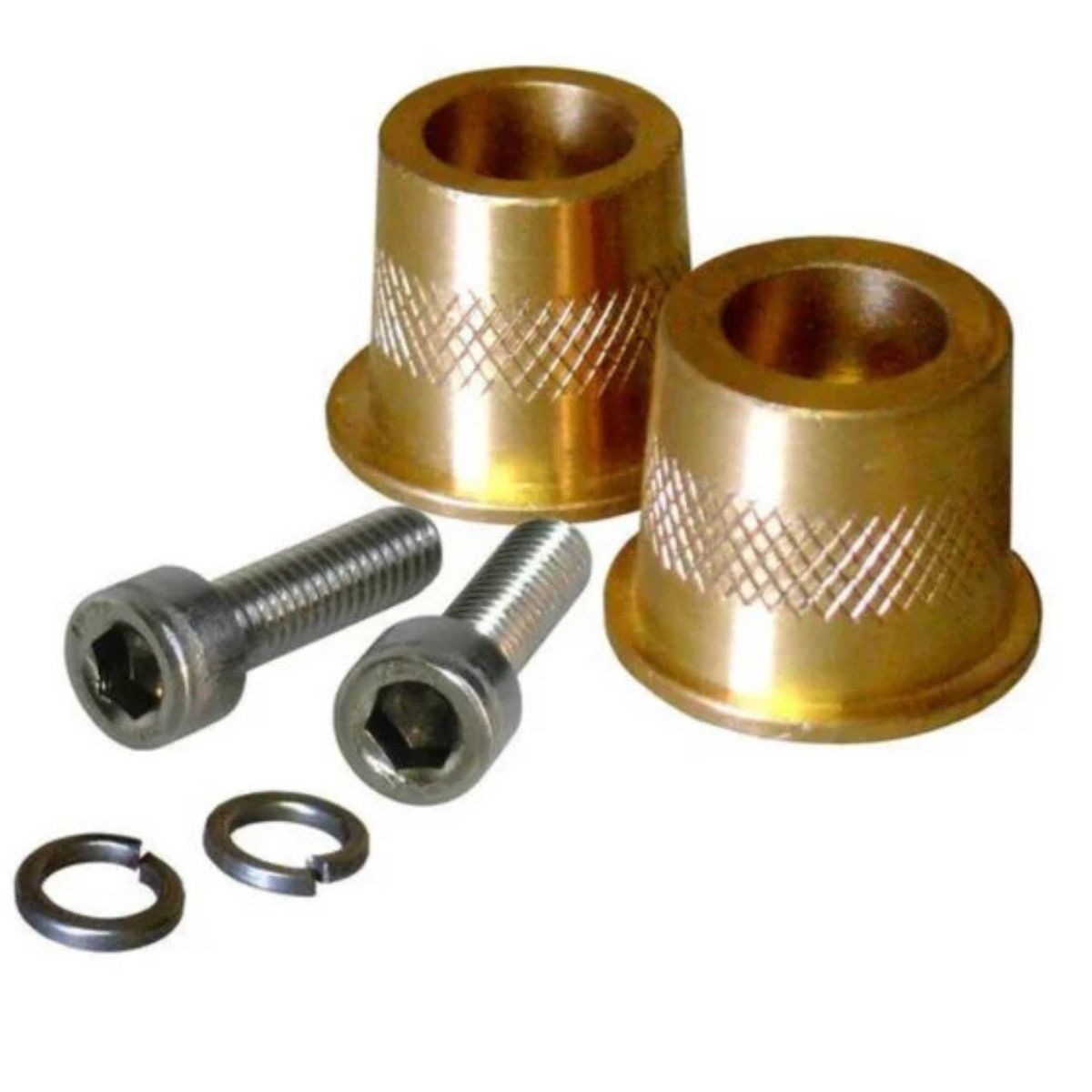

Short Brass SAE Top Post Adapters

• Terminal Type: SAE Automotive Top Post Adapters


• Material: Brass


• Mounting Thread: M6


• Mounting Hole Diameter: 0.25 in


• Base Diameter: 0.8635 in


• Base Flange Thickness: 0.058 in


• Positive Post Height: 0.6875 in


• Positive Post Diameter: 0.75 in


• Negative Post Height: 0.625 in


• Negative Post Diameter: 0.69 in


• Hardware: (2) Stainless Steel M6 Hex-Head Machine Screws, (2) Split Lock Washers


• Weight: 0.13 lb per pair

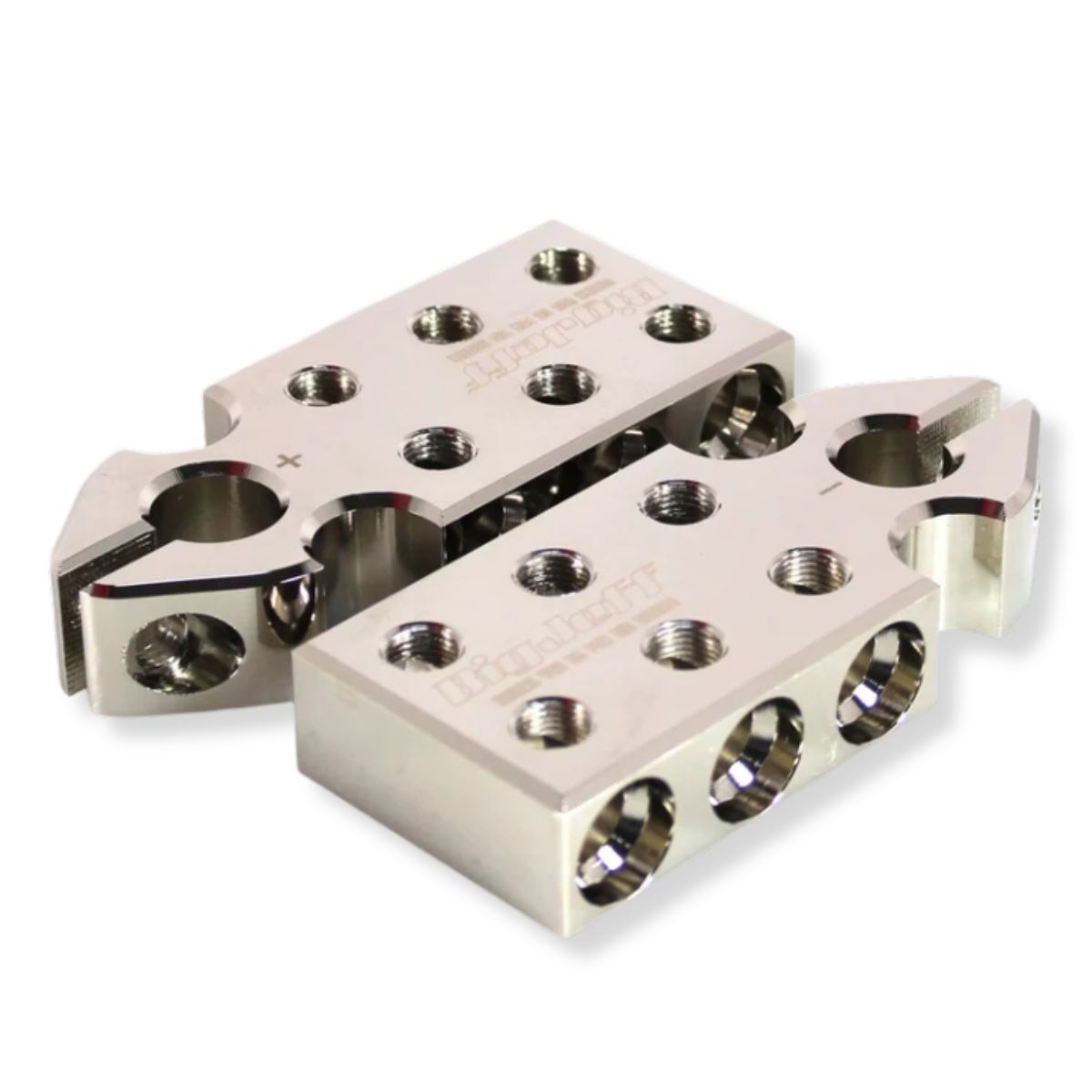

Big Jeff Audio 6 Input Terminals

• Model: BJ-AL-6-INPUT-SAE


• Material: Polished Aluminum


• Polarity: One Positive and One Negative


• Battery Post Style: Tapered SAE Top Post (11/16 in positive, 5/8 in negative)


• Wire Capacity: 6 Inputs per Terminal


• Compatible Wire Size: 1/0 Gauge


• Dimensions: 4.34 in L x 1.90 in W x 0.80 in H


• Weight: 0.4 lbs
