B2 Audio 6.5" Carbon Fiber Marine, Motorcycle, Powersports, 3.3-Ohm Shallow Mount Speakers, Sold in pairs RAGE6CFM

• Pair of 6.5" carbon fiber 3.3-ohm shallow mount speakers for marine, motorcycle, and powersports applications.
• Fully weatherproof design, ideal for motorcycles, ATVs, side-by-sides, and marine environments.
• Copper shorting rings reduce distortion for fatigue-free listening during extended use.
• Genuine carbon fiber cones and dual U-shaped Santoprene surrounds combine lightweight durability with superior sound quality, enhancing weather resistance, efficiency, and linearity for exceptional performance in any environment.

Pair of 6.5" Carbon Fiber 3.3-Ohm 80W Shallow Mount Water Resistant Speakers

This Listing Includes:

• (2) 6.5" Carbon Fiber 3.3-Ohm 80W Shallow Mount Water Resistant Speakers

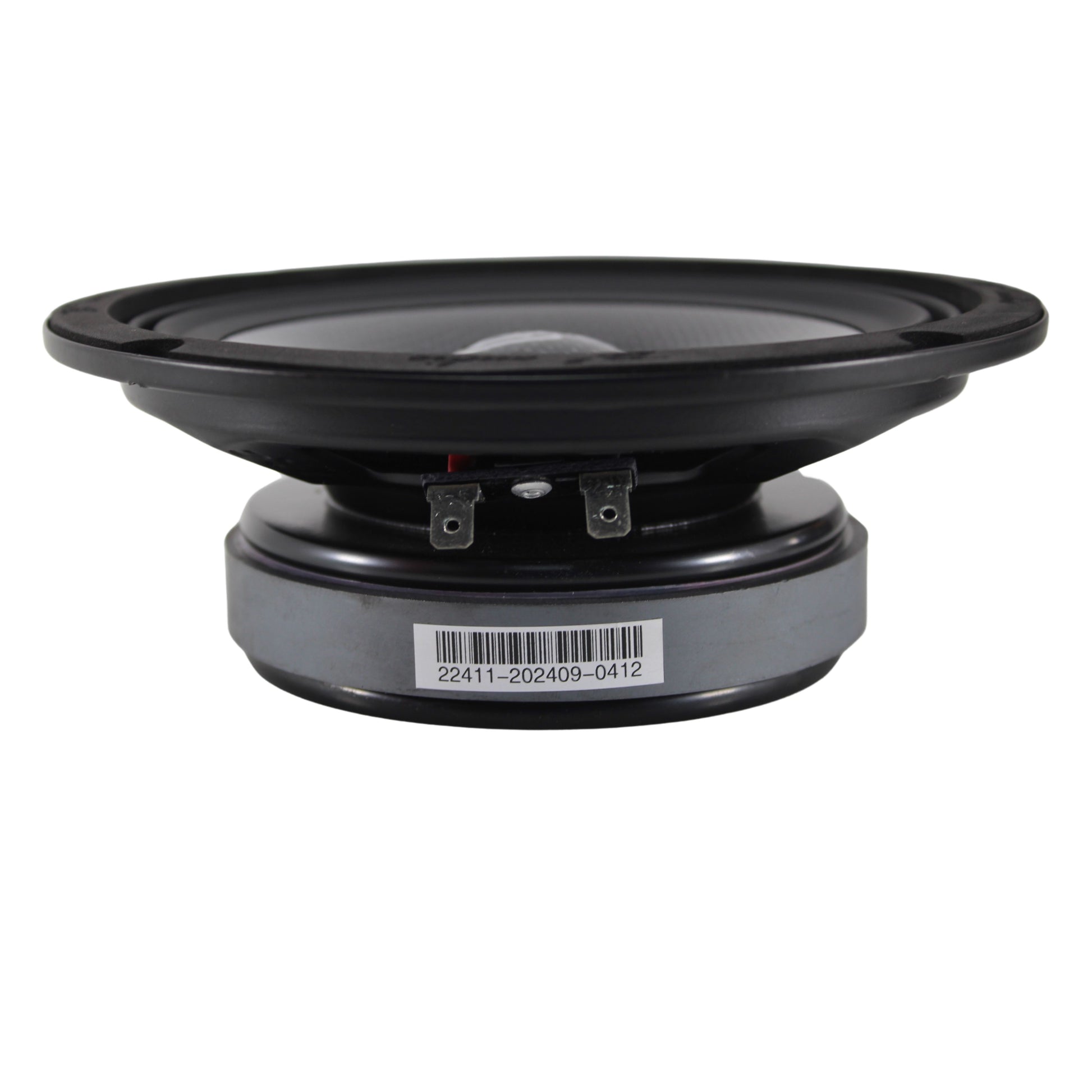

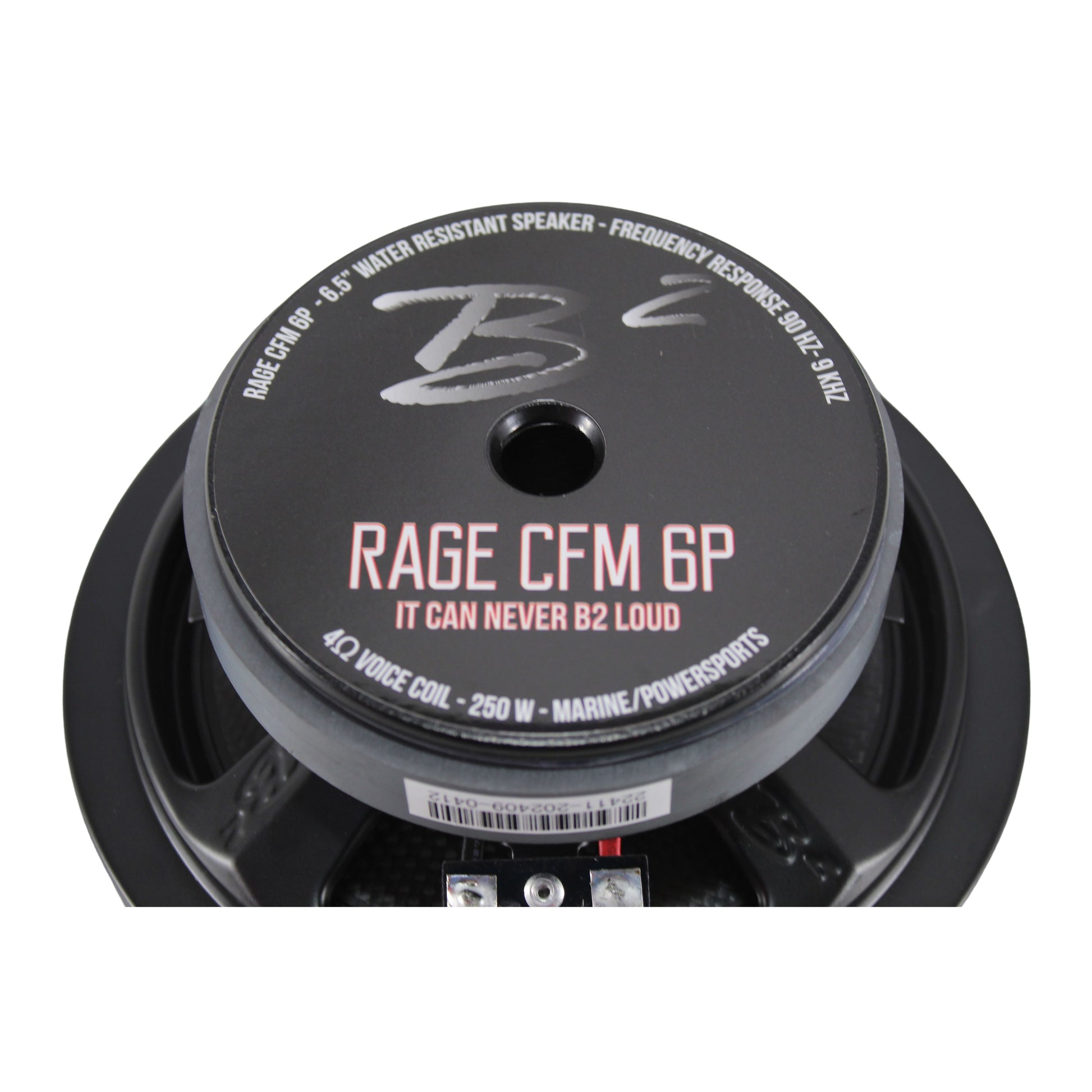

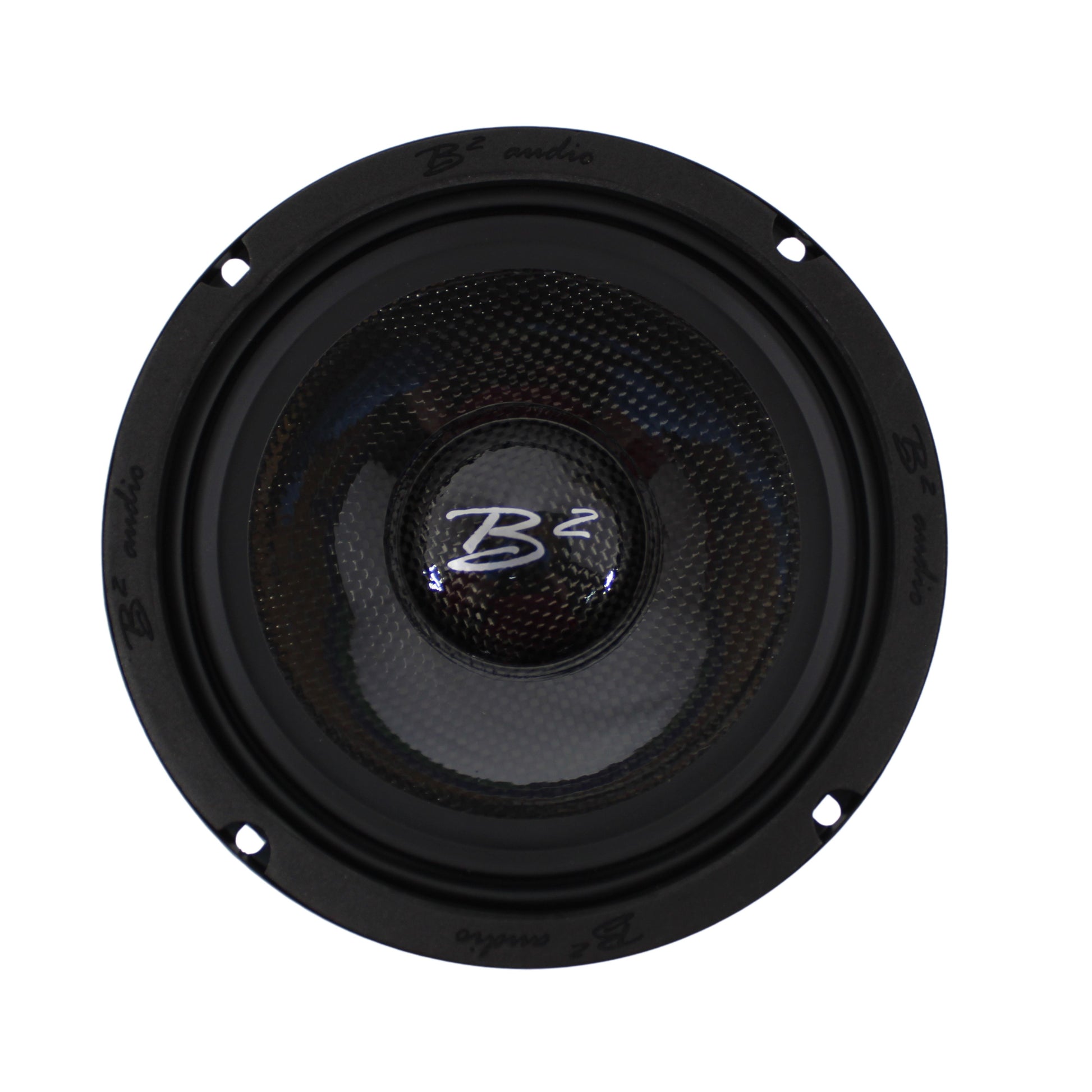

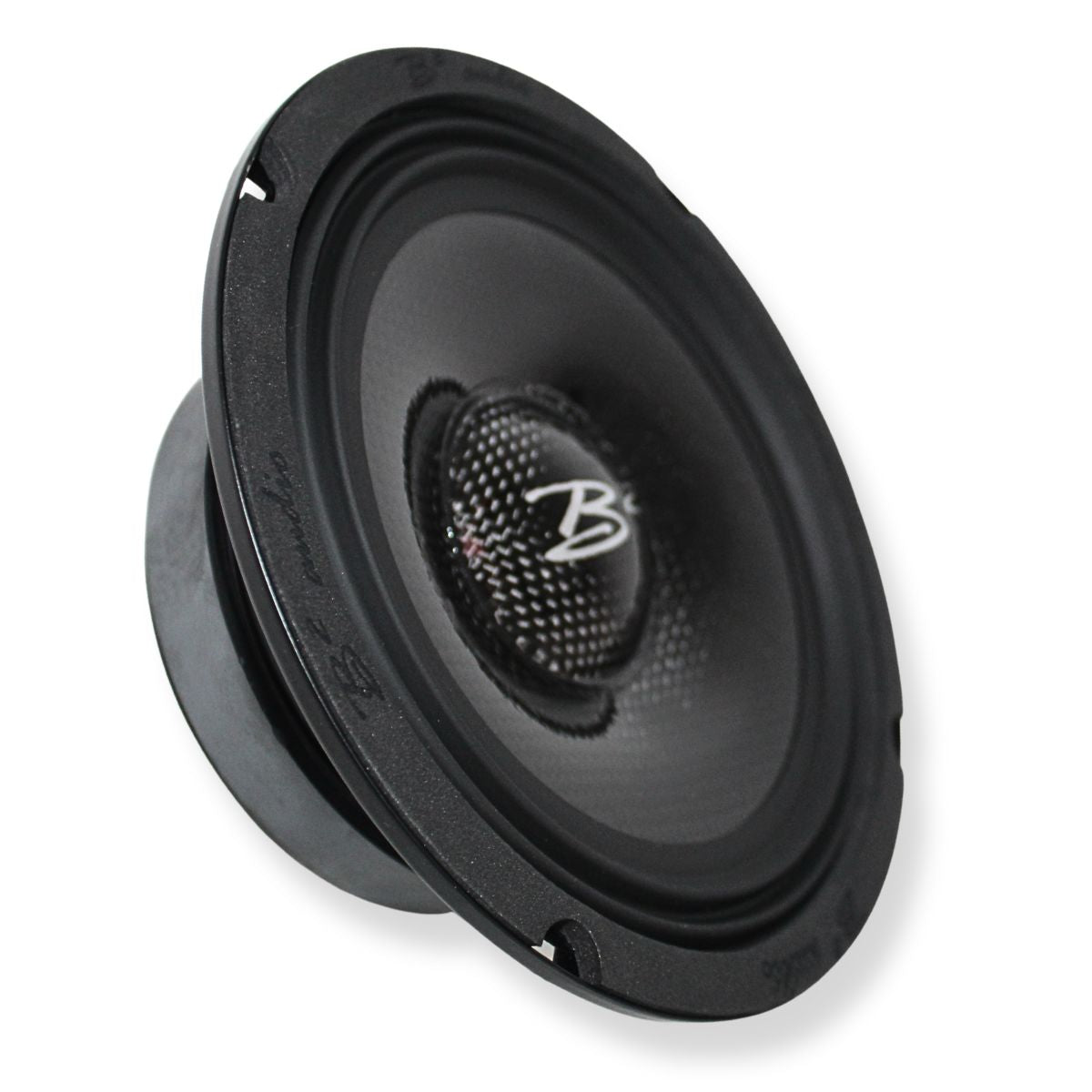

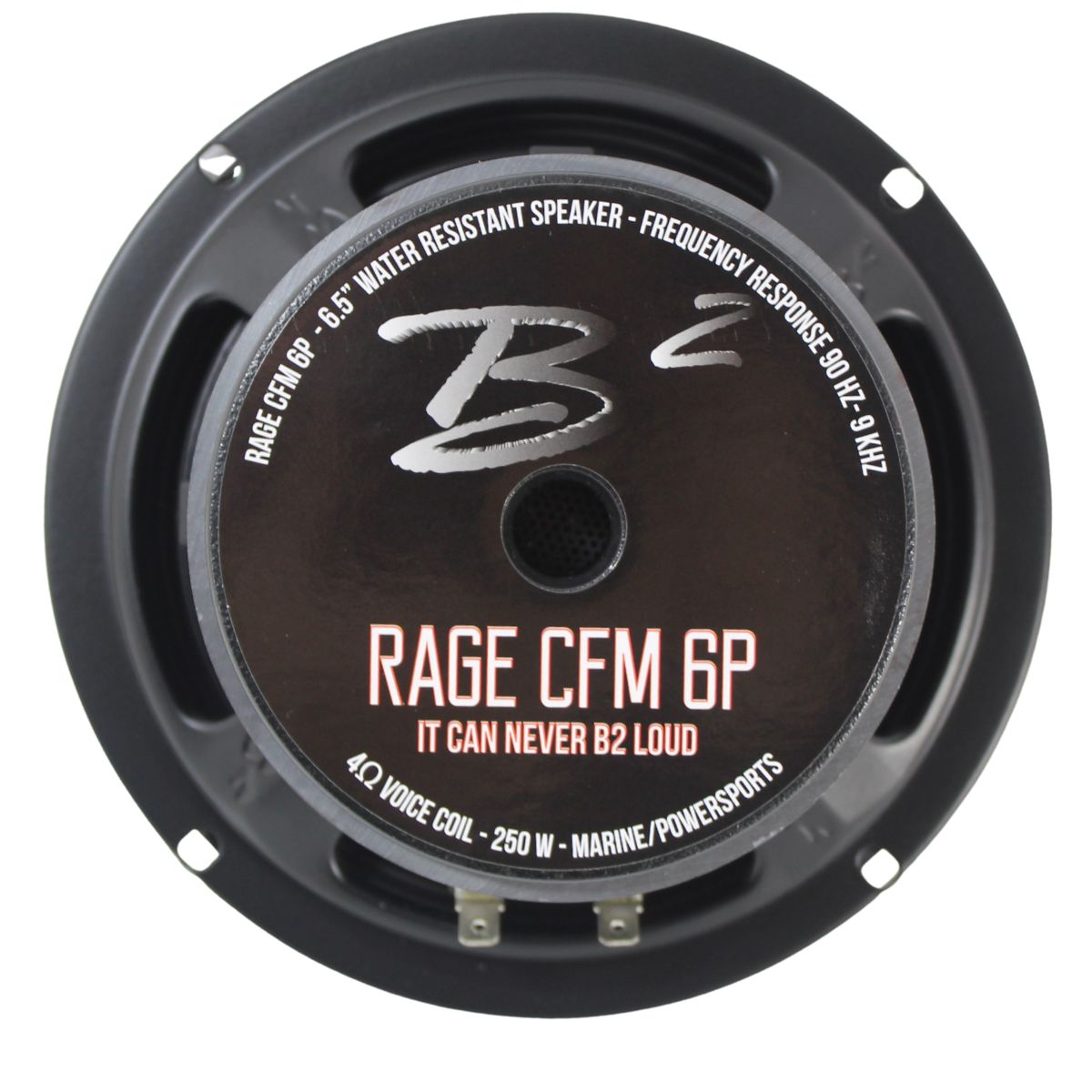

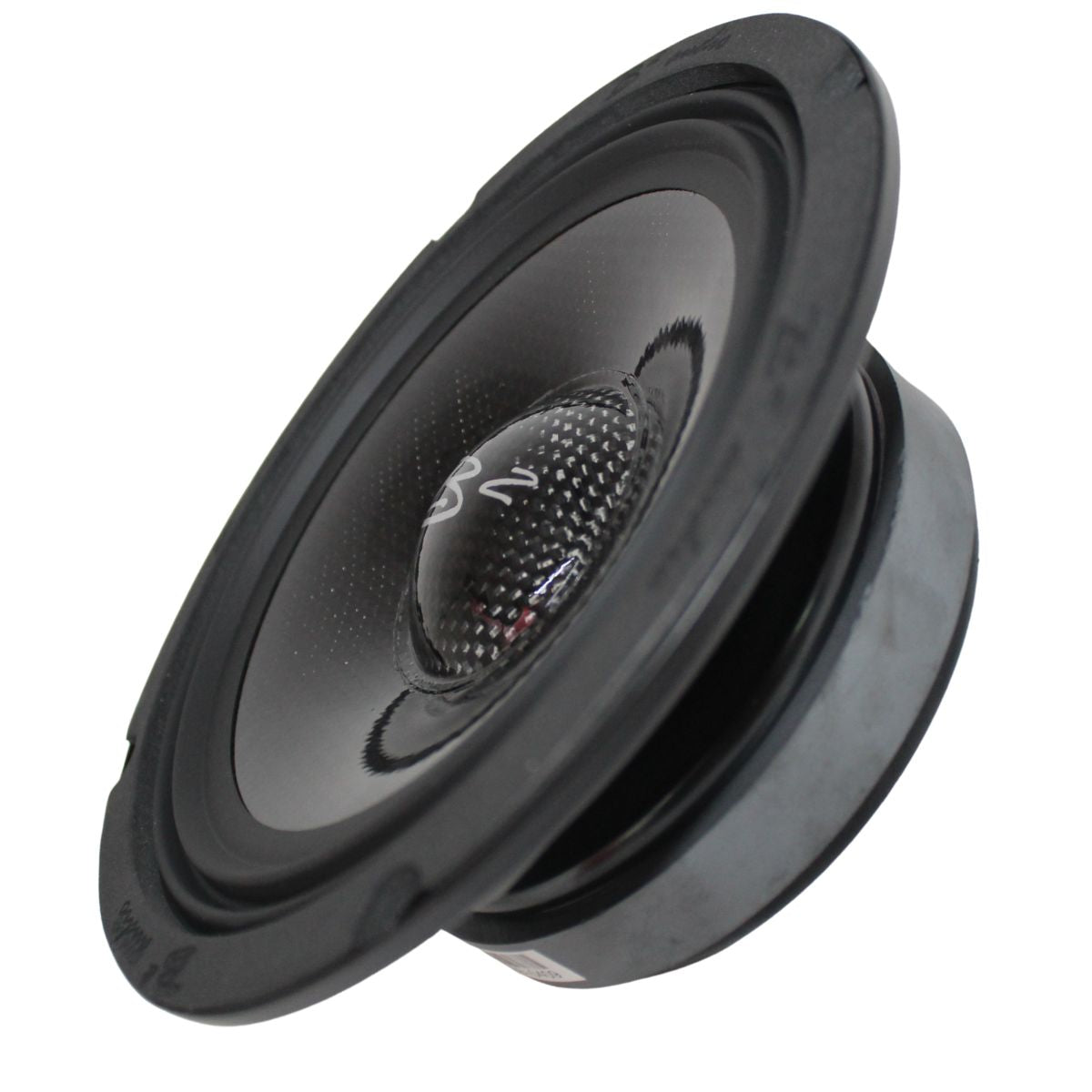

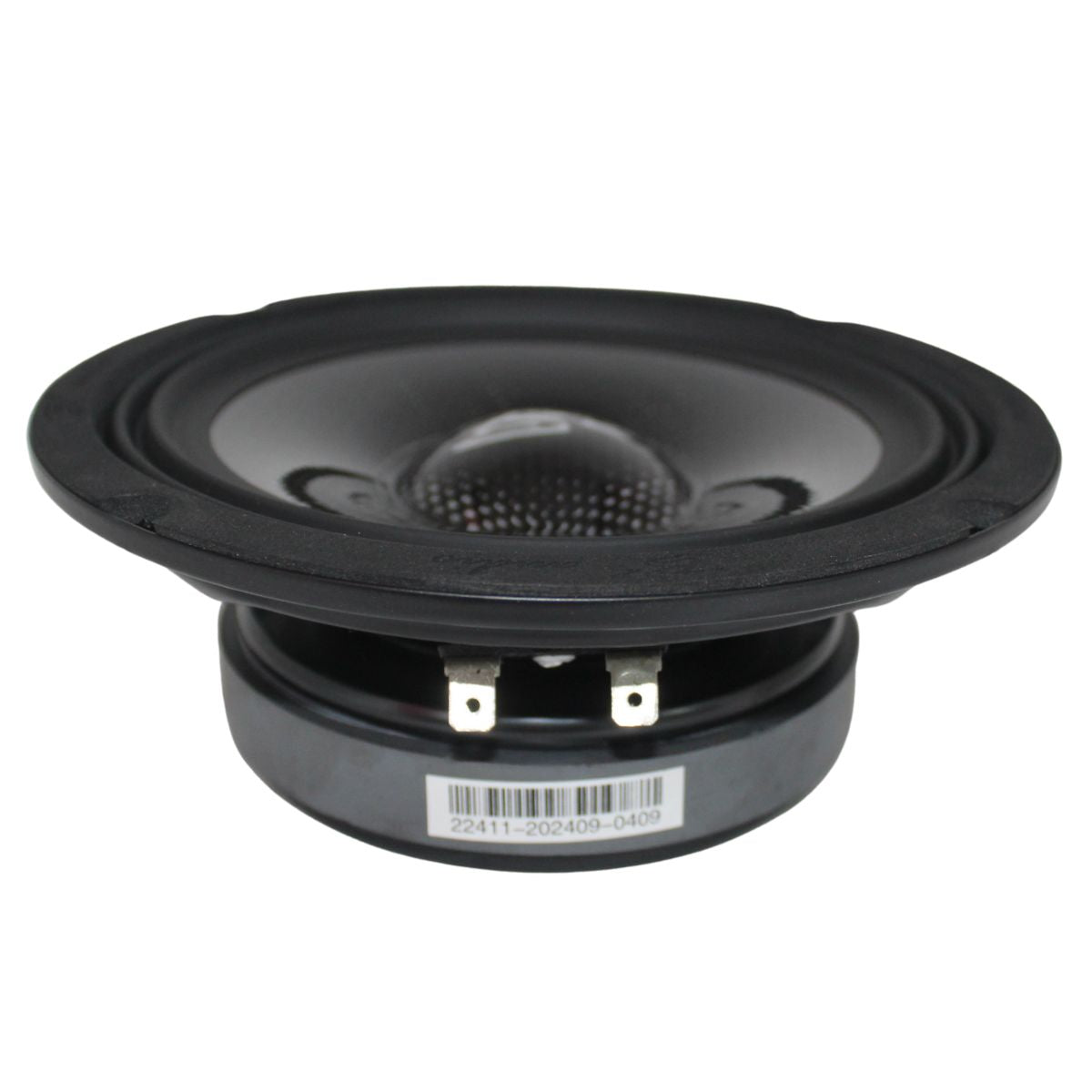

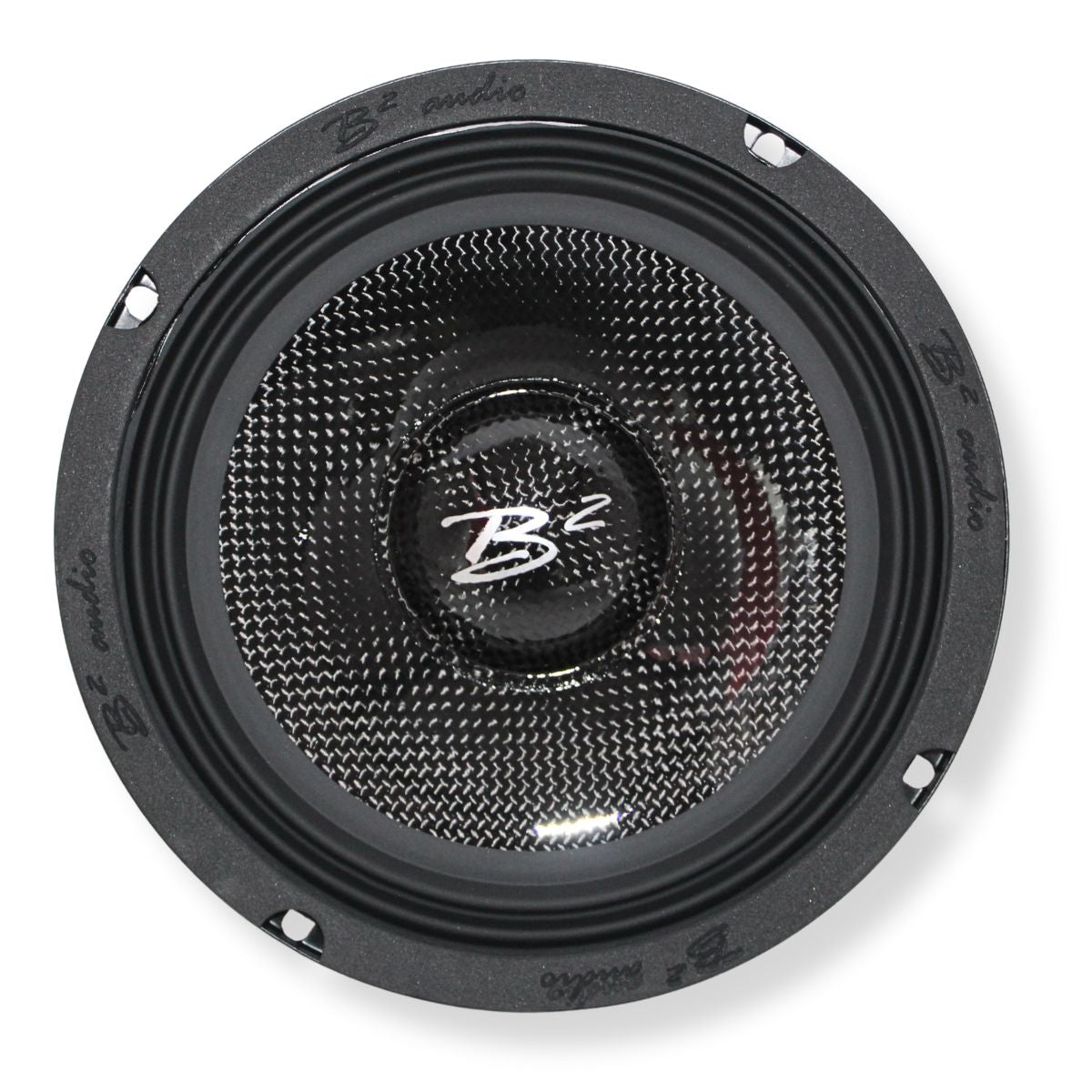

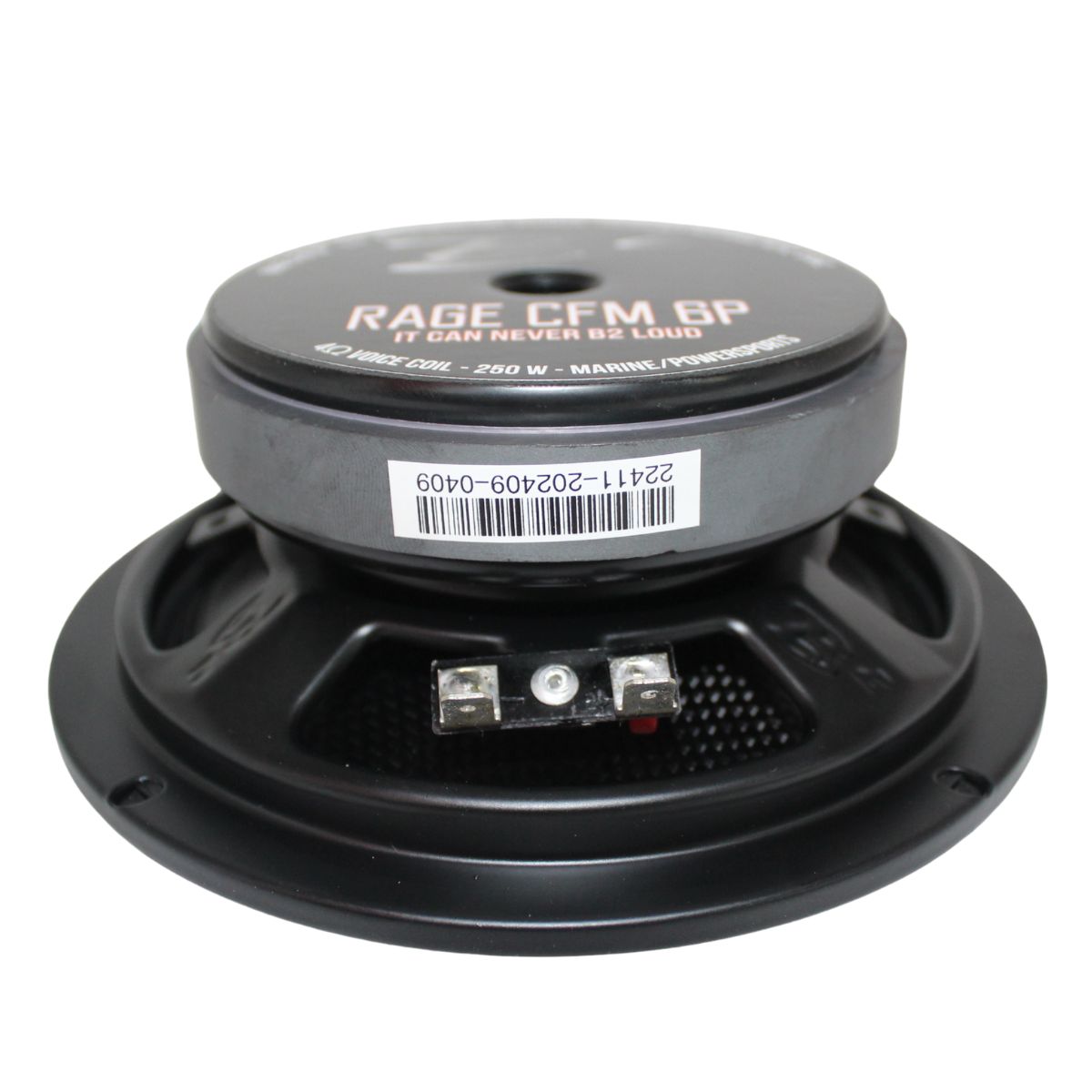

The B2 RAGE6 CFM is a slim-profile speaker designed to be fully weather-resistant, making it perfect for motorcycles, marine applications,

ATVs, and side-by-sides. Featuring genuine carbon fiber cones and dual U-shaped Santoprene surrounds, these speakers are built to withstand harsh weather conditions while delivering exceptional sound quality. With a broad frequency response of 90 Hz to 8 KHz, the

RAGE6 CFM handles lower frequencies with ease. Its custom-tooled water-resistant Santoprene surround enhances efficiency and linearity, resulting in a highly capable loudspeaker. The carbon fiber cones reduce the MMS (moving mass of the speaker) for a lightweight yet durable design, outperforming fiberglass alternatives. By incorporating copper shorting rings, the RAGE CFM series minimizes distortion, ensuring a fatigue-free listening experience even during extended use. At just 2.28 inches (58 mm) in mounting depth, these speakers

combine compact design with top-tier performance, making them a reliable choice for any weather-resistant audio setup.

Specifications

• Nominal Chassis Diameter: 6.5"


• Max Power: 250 Watts


• RMS Power: 80 Watts


• Impedance: 3.3 Ohm


• Frequency Response: 90 Hz ~ 8 KHz


• Sensitivity: 90.2 dB (2.83V)


• Resonance Frequency: 120 Hz


• Voice Coil Diameter: 1.5"


• Winding Material: EICCW


• Magnet Type: Ferrite


• Magnet: 110 * 15mm


• Cone Material: Carbon-fiber


• Surround Type: Santoprene


• Displacement: 0.019 cu.ft / 0.52 L

Thiele Small Parameters

• FS: 110 Hz


• Vas: 3


• RE: 3.3 Ohm


• Qms: 12.44


• Qes: 1.9


• Qts: 1.64


• Cms: 119.9 um/N


• BL: 4.4


• MMS: 14.6 G


• Xmax (one way): 4 mm


• SD: 132.7 cm^2


• Efficiency: 0.26%


• Le (1 KHz): 0.51


• EBP: 63.2

Mounting/Shipping Information

• Overall Diameter: 6.5"


• Baffle Cutout diameter: 5.67 in / 144 mm


• Mounting Depth: 2.28 in / 58 mm


• Total Depth: 2.52 in / 64 mm


• Net Weight (1pc): 1.7 kgs Overall

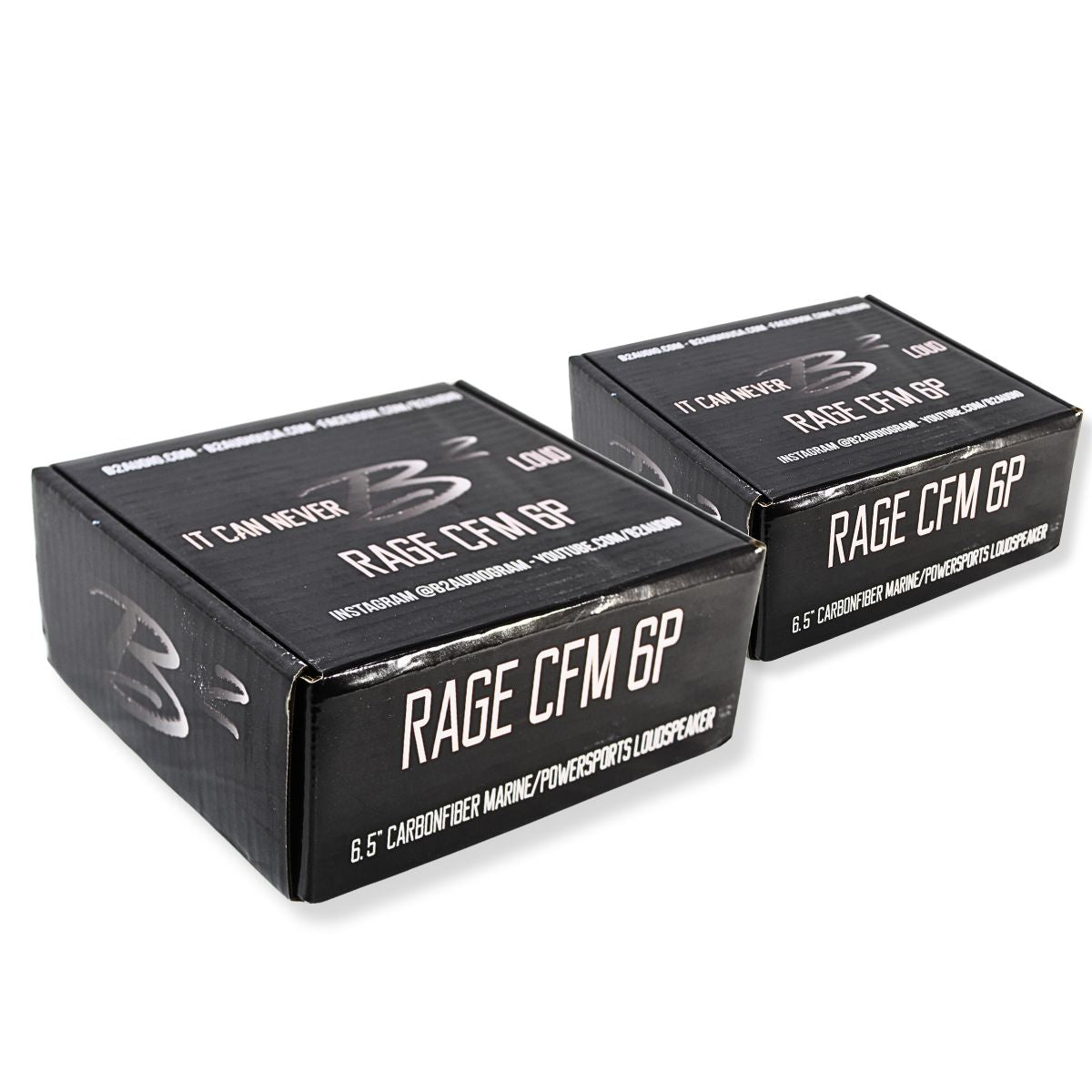

• Shipping Weight (Set): 7.4 kgs


• Shipping Master Box / 2 Pairs: 415 x 192 x 194  mm
