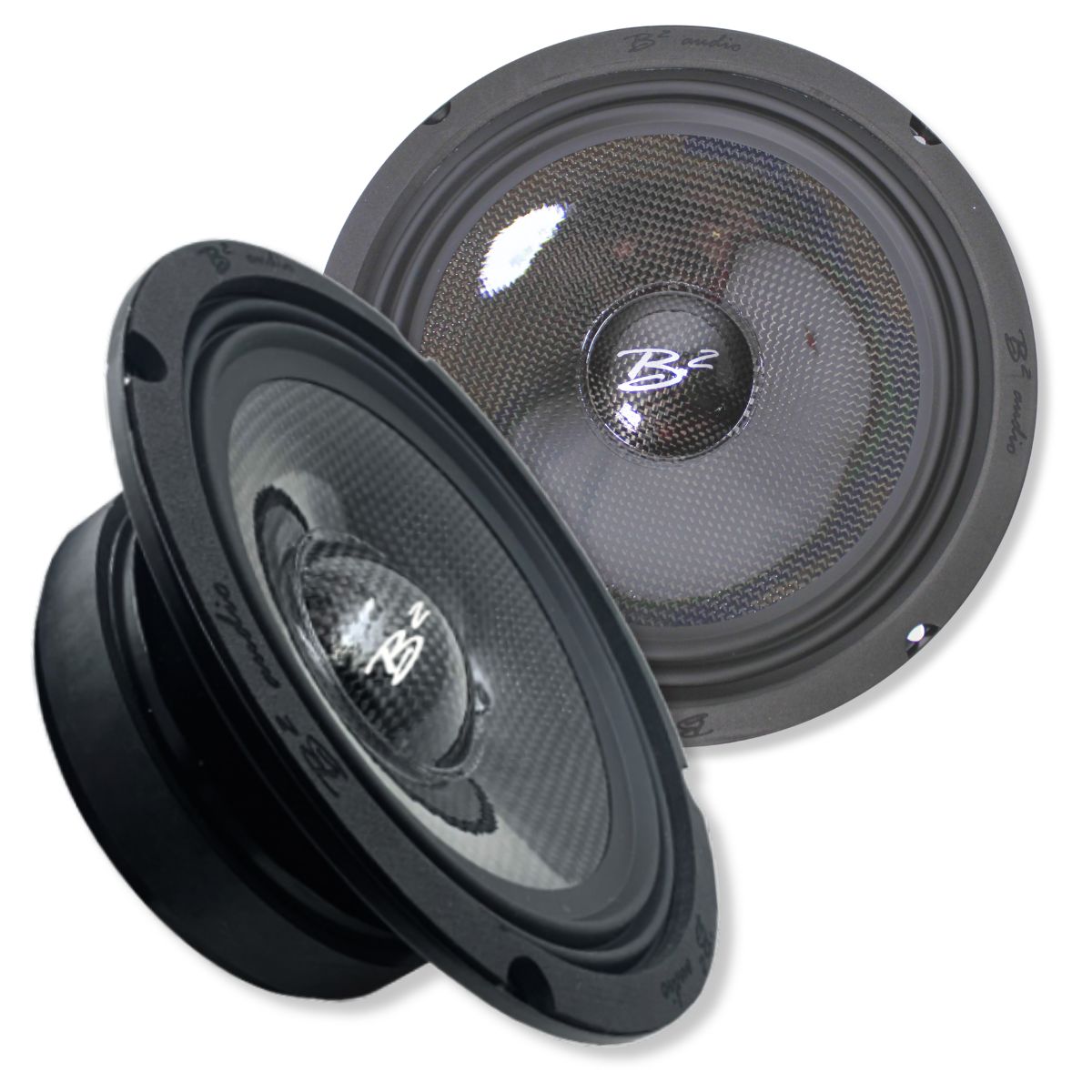

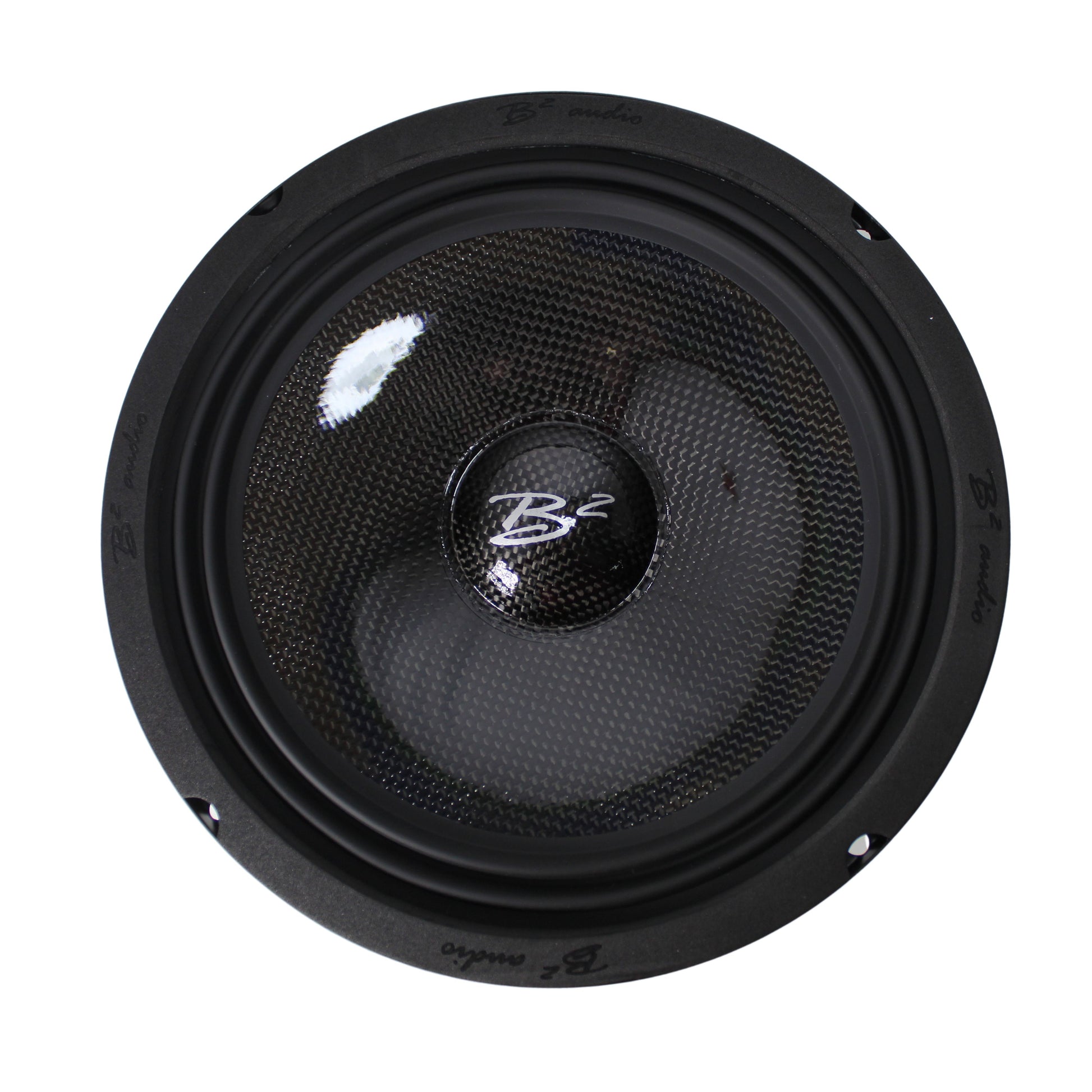

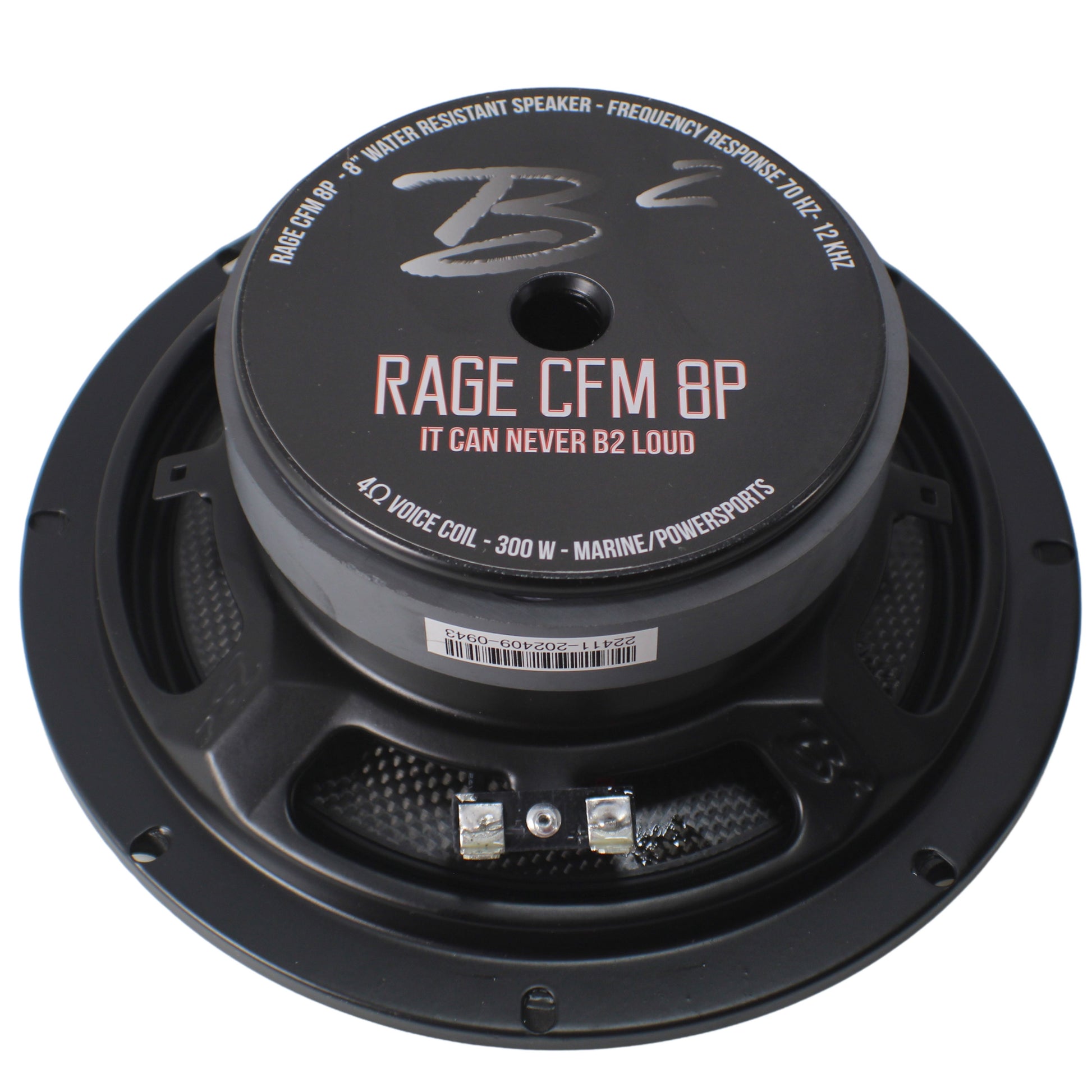

B2 Audio 8" Carbon Fiber Marine, Motorcycle, Powersports, 3.3-Ohm Shallow Mount Speakers, Sold in pairs RAGE8CFM

B2 Audio 8" Carbon Fiber Marine, Motorcycle, Powersports, 3.3-Ohm Shallow Mount Speakers, Sold in pairs RAGE8CFM

SKU:B2-RAGE8-CFM

CASE QUANTITY: 4

PACKAGE WEIGHT: 6.0 LB

Regular price $143.96
Regular price Sale price $143.96
Sale Sold out
  • Pair of 8" carbon fiber 3.3-ohm shallow mount speakers for marine, motorcycle, and powersports applications.
  • Fully weatherproof design, ideal for motorcycles, ATVs, side-by-sides, and marine environments.
  • Copper shorting rings reduce distortion for fatigue-free listening during extended use.
  • Genuine carbon fiber cones and dual U-shaped Santoprene surrounds combine lightweight durability with superior sound quality, enhancing weather resistance, efficiency, and linearity for exceptional performance in any environment.


Pair of 8" Carbon Fiber 3.3-Ohm 100 Watts Shallow Mount Water Resistant Speakers


This Listing Includes:



  • (2) 8" Carbon Fiber 3.3-Ohm 100 Watts Shallow Mount Water Resistant Speakers


The B2 RAGE8 CFM is a slim-profile speaker designed to be fully weather-resistant, making it perfect for motorcycles, marine applications,


ATVs, and side-by-sides. Featuring genuine carbon fiber cones and dual U-shaped Santoprene surrounds, these speakers are built to withstand harsh weather conditions while delivering exceptional sound quality. With a broad frequency response of 60 Hz to 10 KHz, the


RAGE8 CFM handles lower frequencies with ease. Its custom-tooled water-resistant Santoprene surround enhances efficiency and linearity, resulting in a highly capable loudspeaker. The carbon fiber cones reduce the MMS (moving mass of the speaker) for a lightweight yet durable design, outperforming fiberglass alternatives. By incorporating copper shorting rings, the RAGE CFM series minimizes distortion, ensuring a fatigue-free listening experience even during extended use. At just 2.67 inches (68 mm) in mounting depth, these speakers


combine compact design with top-tier performance, making them a reliable choice for any weather-resistant audio setup.


Specifications



  • Nominal Chassis Diameter: 8"

  • Max Power: 300 Watts

  • RMS Power: 100 Watts

  • Frequency Response: 60 Hz ~ 10 KHz

  • Sensitivity: 93.8 dB (2.83V)

  • Impedance: 3.3 Ohm

  • Resonance Frequency: 78 Hz

  • Voice Coil Diameter: 1.5"

  • Winding Material: EICCW

  • Magnet Type: Ferrite

  • Magnet: 120 * 20mm

  • Cone Material: Carbon-fiber

  • Surround Type: Dual U-Shaped Santoprene

  • Displacement: 0.03 cu.ft / 0.83 L


Thiele Small Parameters



  • FS: 78 Hz

  • Vas: 14.74

  • RE: 3.3 Ohm

  • Qms: 12.4

  • Qes; 1.15

  • Qts: 1.05

  • Cms: 244 um/N

  • BL: 4.9

  • MMS: 16.8 G

  • Xmax (one way): 4 mm

  • SD: 206 cm^2

  • Efficiency: 0.6%

  • Le(1Khz): 0.59

  • EBP: 68.3


Mounting/Shipping Information



  • Overall Diameter: 8"

  • Baffle Cutout Diameter: 7.01 in / 178 mm

  • Mounting Depth: 2.67 in / 68 mm

  • Total Depth: 2.87 in / 73 mm

  • Net Weight (1PC): 2.5 kgs

  • Shipping Weight (set): 10.5 kgs
