B2 Audio Pair of Mani Series 1.5" 15 Watts RMS 4 Ohms Flush Mount Sound Quality Tweeters

• Precision Highs: 1.5" diaphragm delivers crisp, detailed high frequencies from 900 Hz to 25 kHz with ultra-low distortion.
• Flush Mount Design: Compact and sleek, perfect for stealth installs in factory or custom locations.
• Flexible System Integration: Ideal for 2-way or 3-way setups, enhancing imaging and soundstage in any build.
• Reliable Performance: Handles 15W RMS (30W max) at 4 ohms, balanced for smooth output and clean transitions.
• Efficient & Clear: 90 dB sensitivity ensures punchy, dynamic highs even at moderate power levels.

B2 Audio Pair of Mani 1.5" 15 Watts RMS 4 Ohms Flush Mount Tweeters MANI-15TW

This Listing Includes:

• (1) B2 Audio Pair of Mani Series 1.5" 15 Watts RMS 4 Ohms Flush Mount Tweeters

Item Description

Upgrade your car audio system with the B2 Audio B2-MANI-15TW tweeter, designed for precision and clarity. Featuring a 1.575-inch diaphragm, it delivers exceptional high-frequency performance with a wide range of 900 Hz to 25 kHz. With a sensitivity of 90 dB and a nominal impedance of 4 ohms, it ensures efficient power handling and crisp sound quality. Whether part of a 2-way or 3-way system, this tweeter brings an immersive audio experience to your vehicle. Used in our REFERENCE Series.

These tweeters do not include inline capacitors (bass blockers). To protect them from damaging low frequencies, we recommend wiring a non-polarized capacitor in series with each tweeter:

• 2.2 F @ 4 Ohm > ~18,000 Hz cutoff - Provides maximum protection by blocking nearly all midrange and bass. Tweeter will only play the very top end. Best choice for basic installs or when safety is the priority.


• 3.3 F @ 4 Ohm > ~12,000 Hz cutoff - Balanced option. Allows upper treble and some presence range through while still blocking harmful lower content. Great for most 2-way or 3-way systems.


• 4.7 F @ 4 Ohm > ~8,500 Hz cutoff - Extended high-pass. Lets more upper mids and highs pass through for a smoother blend with midrange speakers. Requires careful tuning to avoid overpowering the tweeter.

Features

• Wide frequency range: 900 Hz – 25 kHz for clear, detailed highs


• Compact 1.5" diaphragm with flush mount design for tight-space installations


• 15W RMS / 30W Max power handling for efficient, reliable performance


• 4-ohm impedance and 90 dB sensitivity for smooth system integration


• Compatible with both 2-way and 3-way car audio setups


• Precision-built for accurate, distortion-free high-frequency response

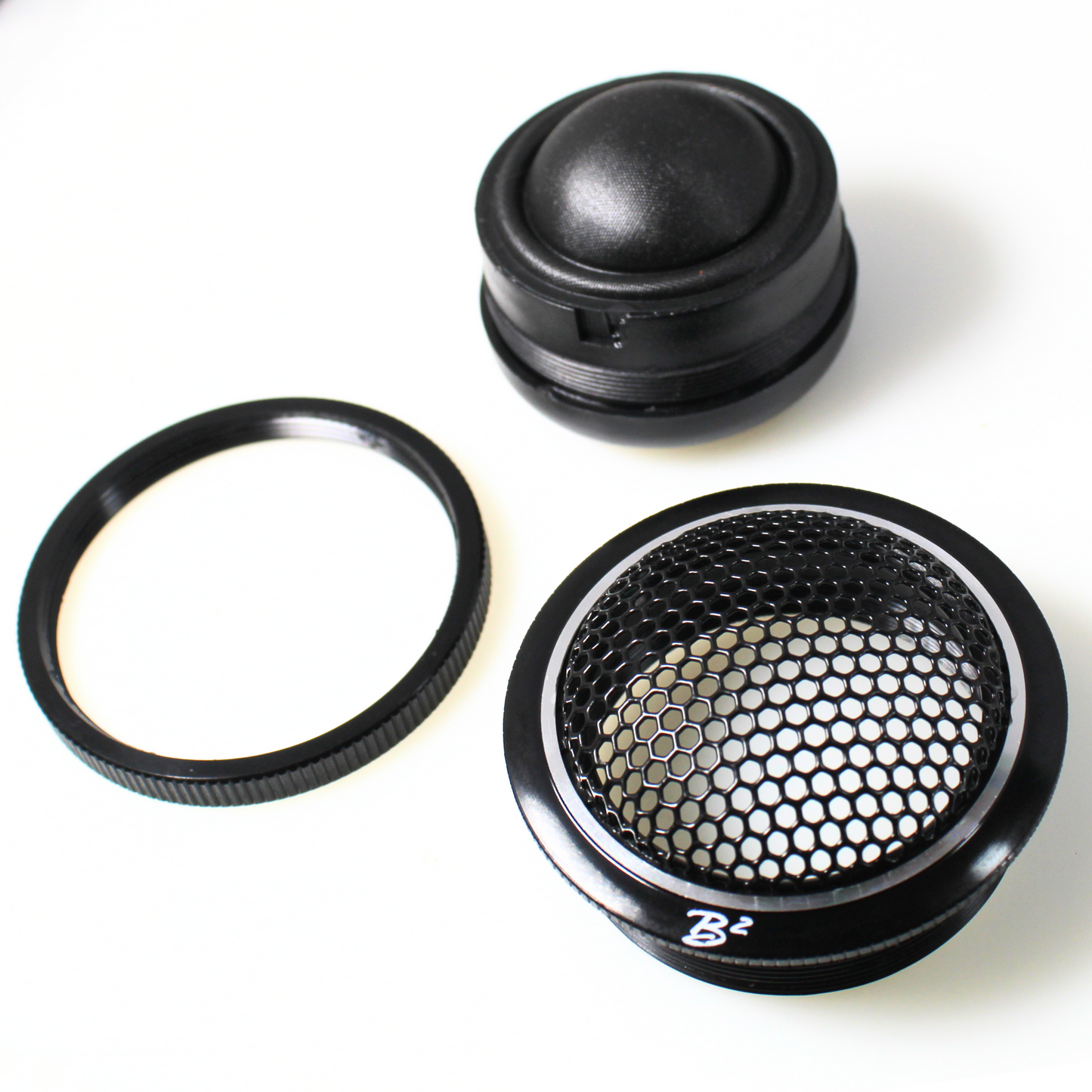

• Sold as a pair – includes mounting hardware for easy installation


• Part of the premium B2 Audio MANI series for pro-grade sound quality

Specifications

• Diaphragm Size: 1.5 inches / 38.1 mm


• Frequency Response: 900 Hz – 25 kHz


• Sensitivity: 90 dB


• Impedance: 4 ohms


• Max Power: 30 watts max


• RMS: 15 watts

Measurements

• Overall Diameter: 2.11" / 53.5 mm


• Mounting Diameter: 1.85" / 47 mm


• Overall Depth: 1.56" / 39.6 mm


• Mounting Depth: 0.78" / 36.8 mm

Sold as Pair
