RAGE Series 6.5" 4-Ohm 120W RMS Mid-Range Speaker UV-Coated Cone, Sold As Pair B2-RAGE6P

• Immersive Sound Experience: Enjoy high-quality audio with a frequency range of 94Hz to 6kHz, providing clear and balanced sound reproduction across a wide spectrum of frequencies.
• Enhanced Sensitivity: With a sensitivity of 95.7 dB, these speakers efficiently convert power into sound, delivering loud and clear audio even at lower power levels.
• Durable Construction: Constructed with a coated paper cone and dual U-shaped cloth surround, these speakers are designed to withstand the rigors of daily use while maintaining optimal performance.
• High Power Handling: Featuring a nominal impedance of 4 ohms and an RMS power rating of 120W, these speakers deliver powerful and dynamic sound, perfect for upgrading your car audio system.
• Easy Installation: With a nominal diameter of 6.5 inches and a 1.5-inch voice coil, these speakers are easy to install in various vehicles, making them a versatile choice for enhancing your car audio experience.

B2 Audio Rage 6.5" 4-Ohm 120W RMS Mid-Range Speaker Pair B2-RAGE6P

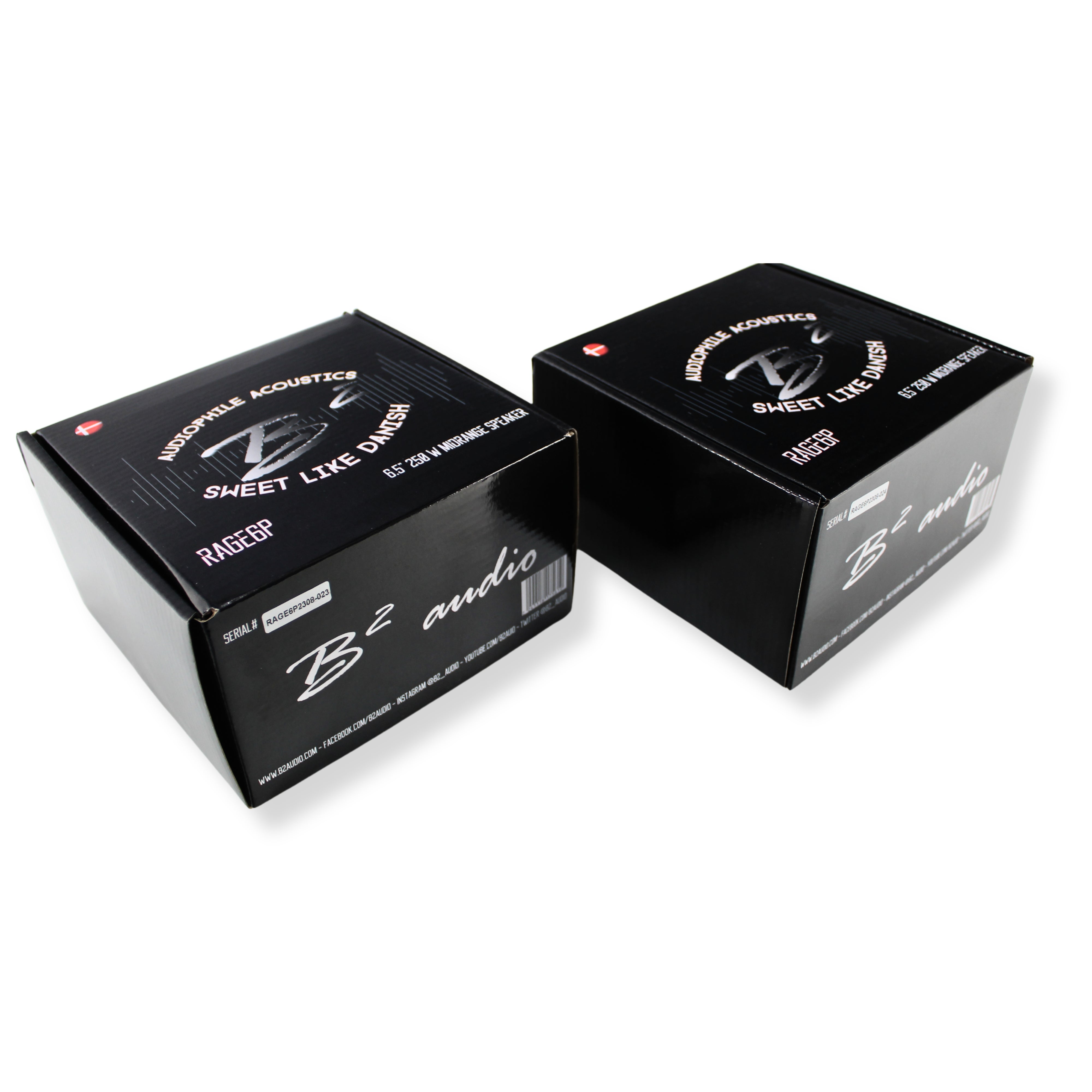

This Listing Includes:

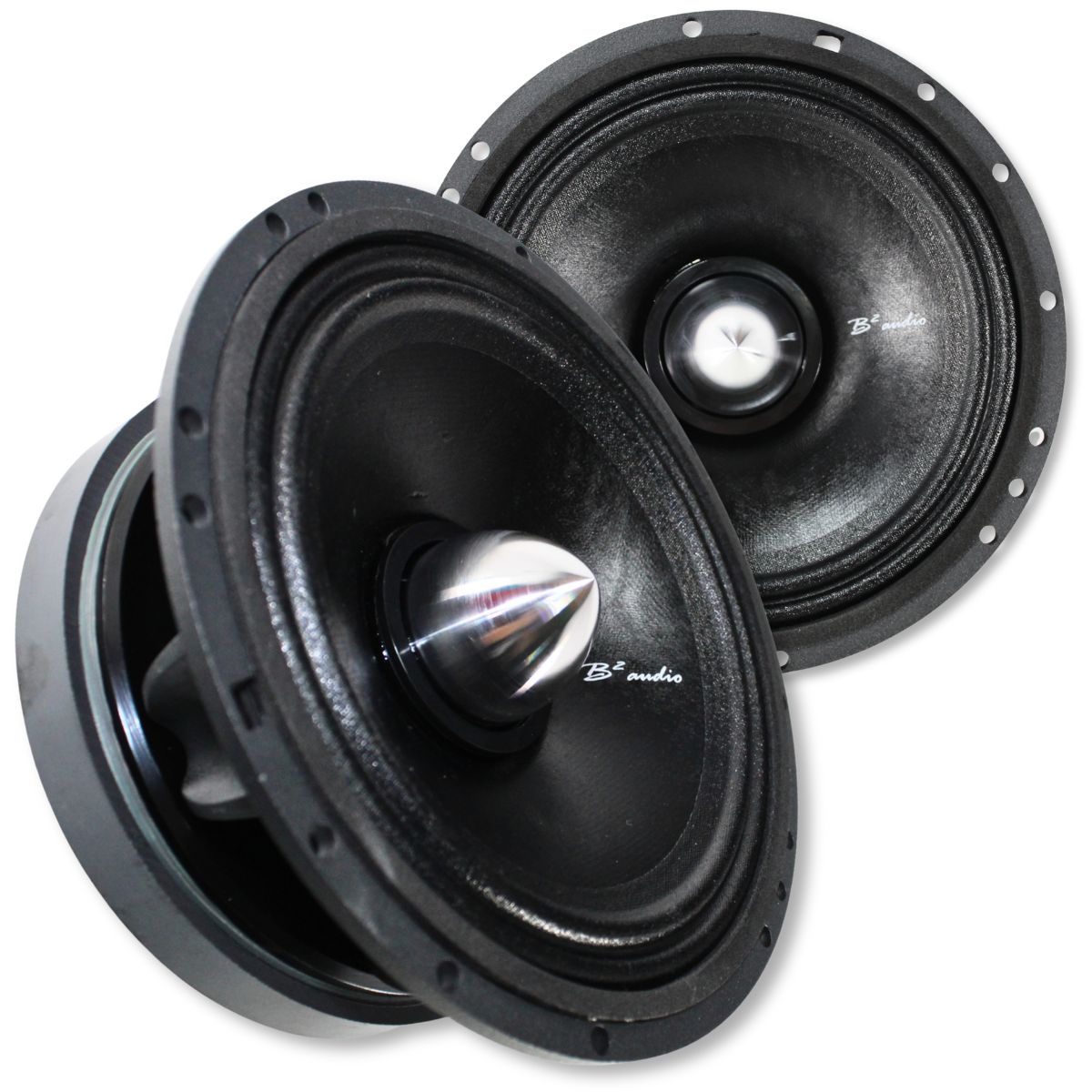

• (2) B2 Audio Rage 6.5" Speakers RAGE6P

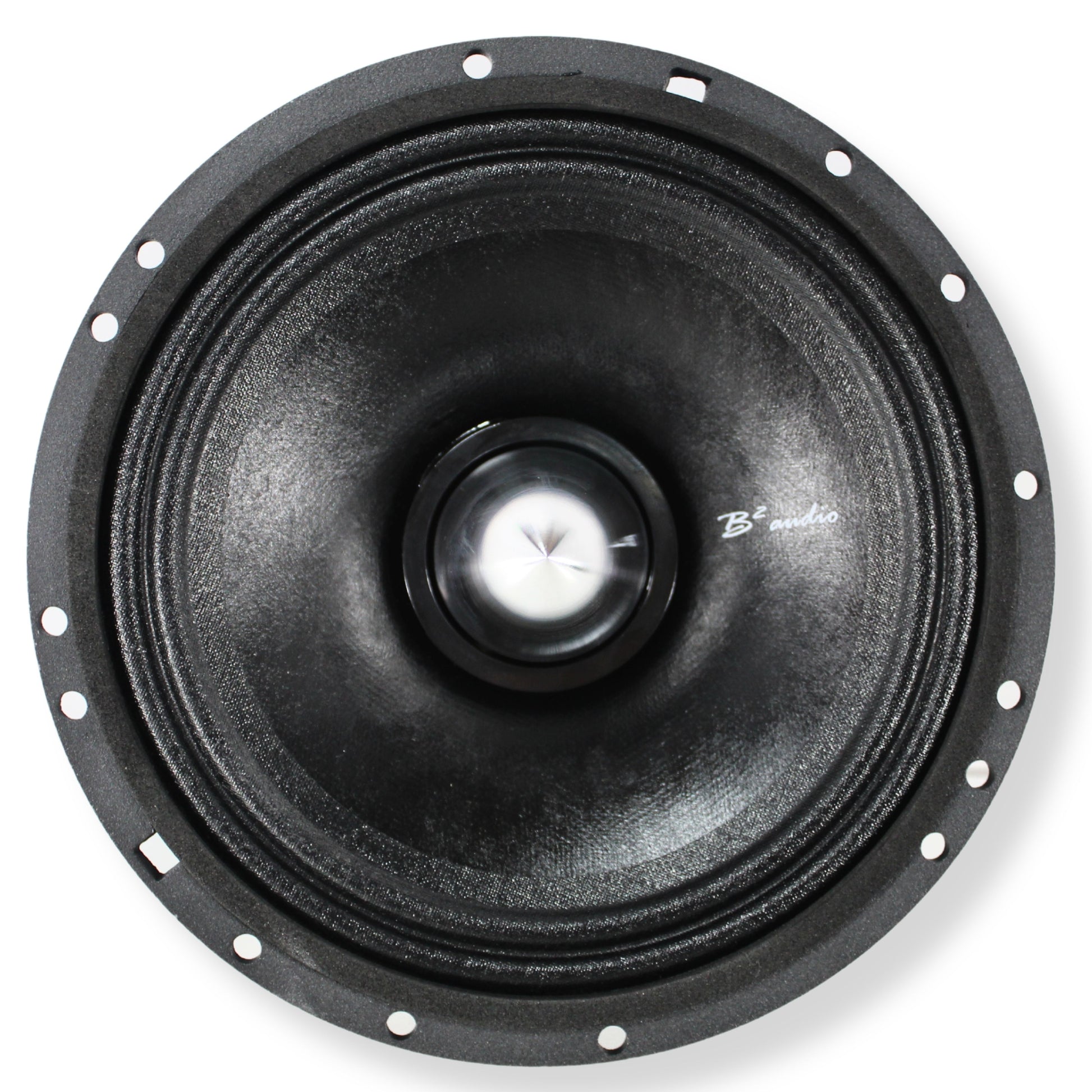

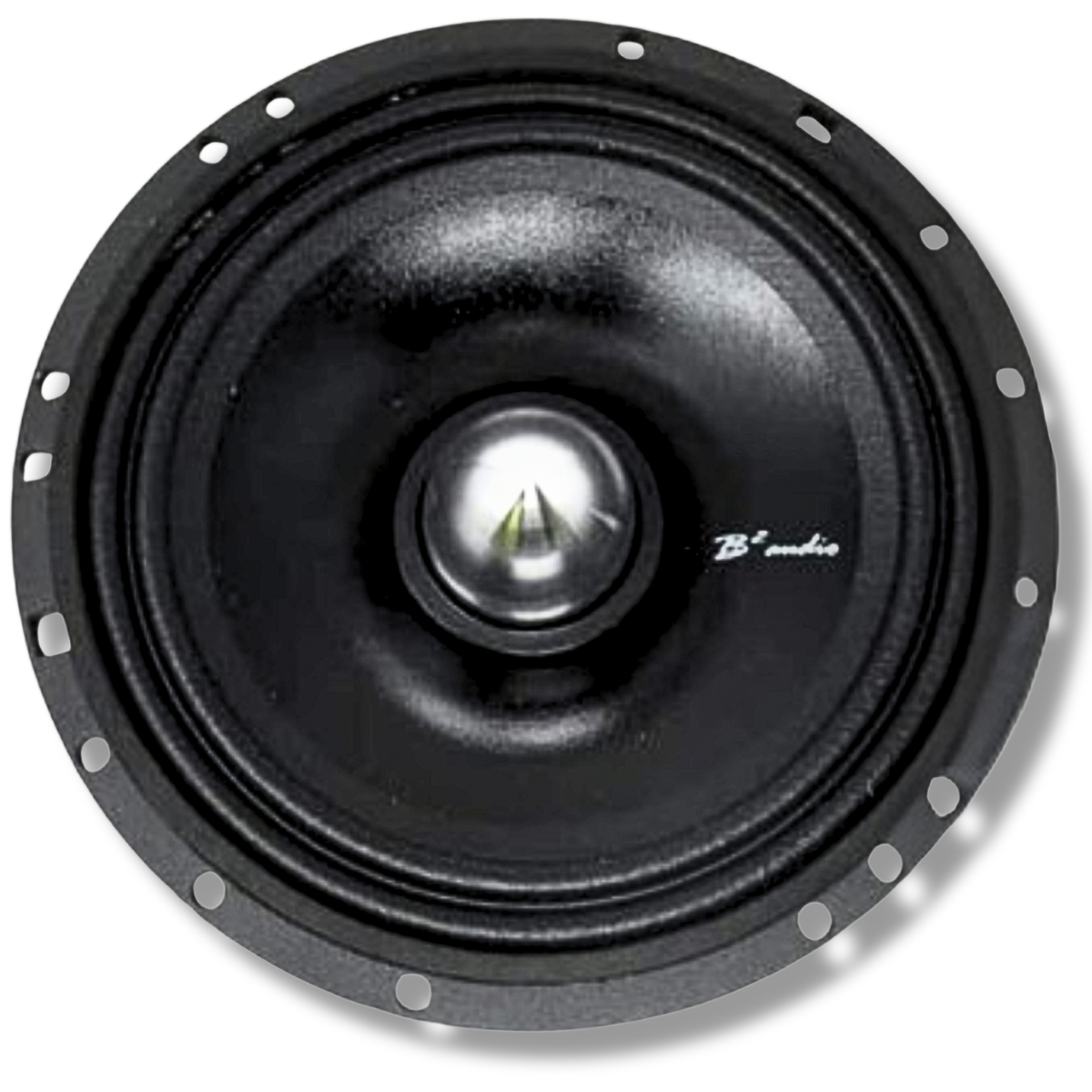

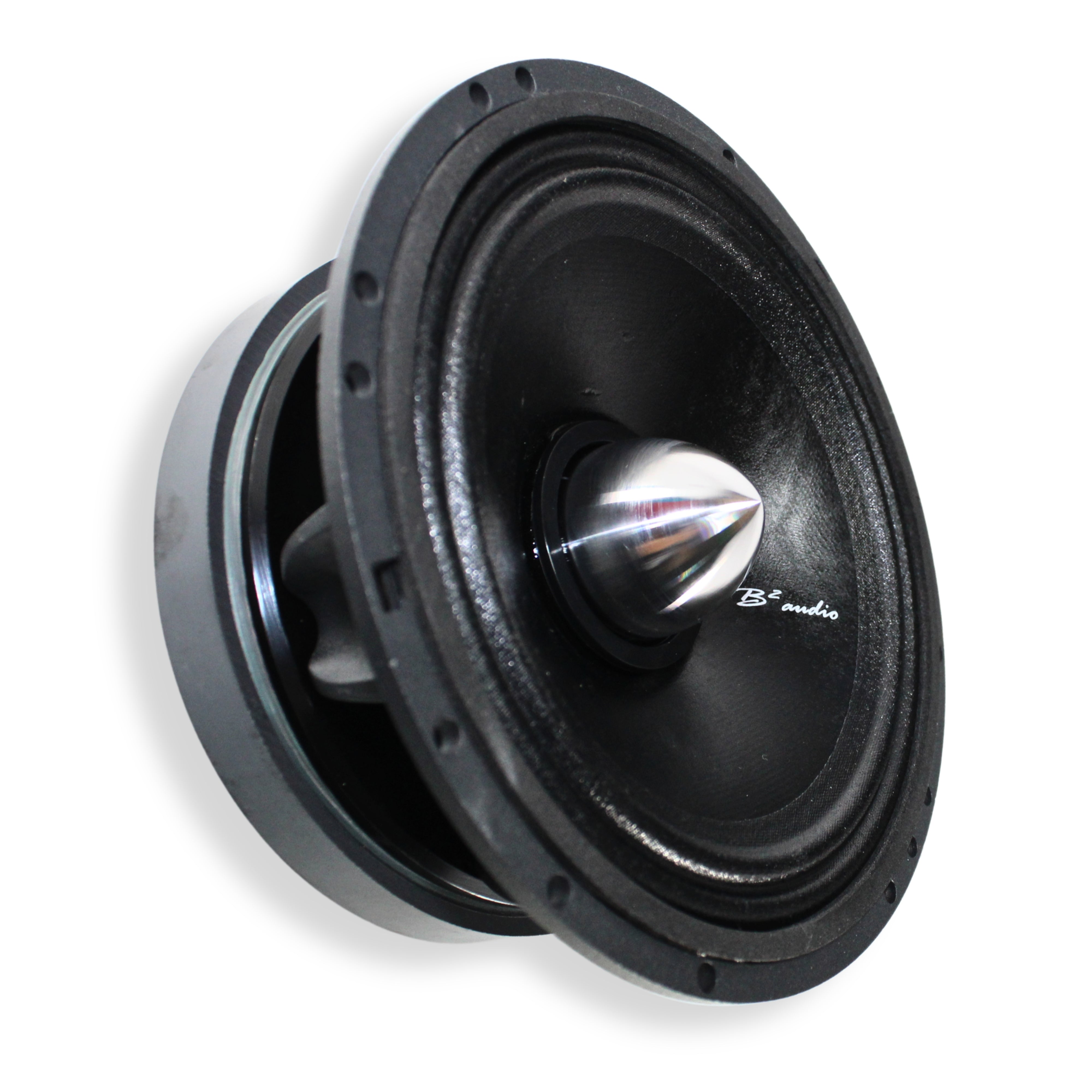

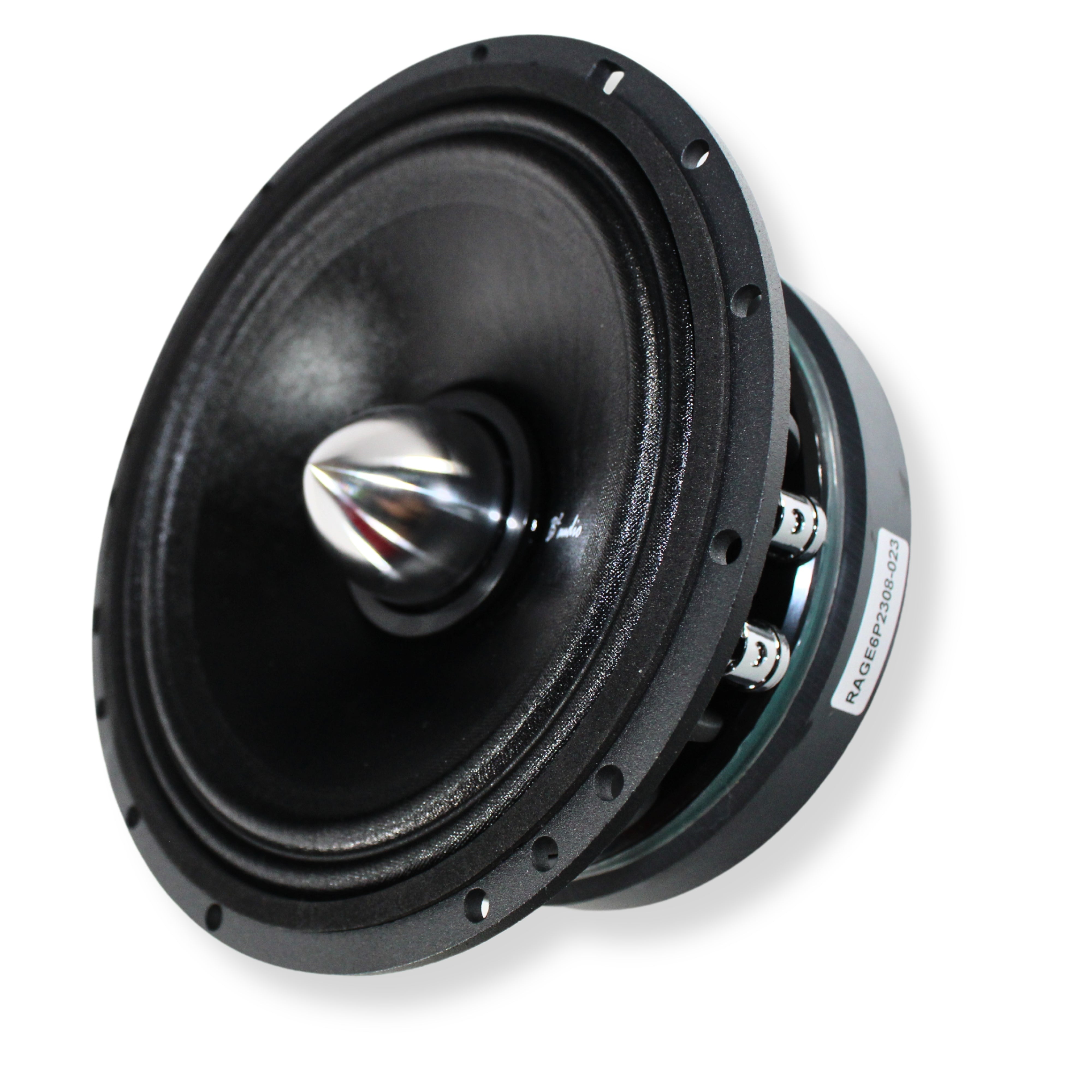

Experience powerful, high-clarity mid-range performance with the B2 Audio RAGE6P, a 6.5" pro-style mid-range speaker engineered for clean vocals, sharp detail, and extreme output. Built with a coated paper cone, dual cloth surround, and a strong 30 oz motor structure, the original RAGE6P delivers exceptional sound projection and efficiency—making it a top choice for door pods, custom builds, and high-output car audio systems.

With a wide frequency response of 90 - 6000 Hz and an impressive 95.7 dB sensitivity, these speakers get loud effortlessly while maintaining accuracy and tonal clarity. The 1.5" CCAR voice coil ensures reliable power handling at 120W RMS (250W Max), while the tuned 94 Hz Fs and high BL factor of 7 T/M give the speaker tight control and dynamic response.

Designed for easy installation, the RAGE6P fits most standard 6.5" openings with a 5.71" cutout and a compact 2.71" mounting depth—perfect for daily drivers, demo builds, or full competition-level systems.

If you're looking for a mid-range speaker that combines durability, high output, and clean acoustic performance, the original B2 Audio RAGE6P delivers unmatched value and sound quality.

Features

• 120W RMS / 250W Max: Powerful mid-range output for loud, dynamic performance.


• High Sensitivity (95.7 dB): Gets loud easily with clean, detailed sound.


• 90–6000 Hz Range: Crisp vocals, rich mids, and strong projection.


• Durable Build: Coated paper cone and dual cloth surround for long-lasting reliability.

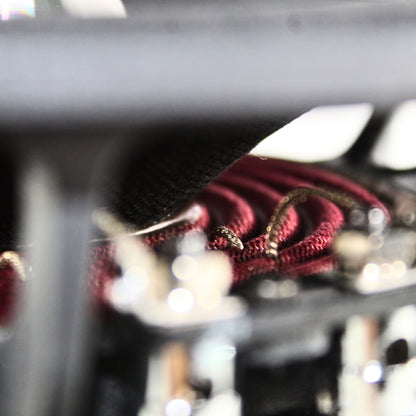

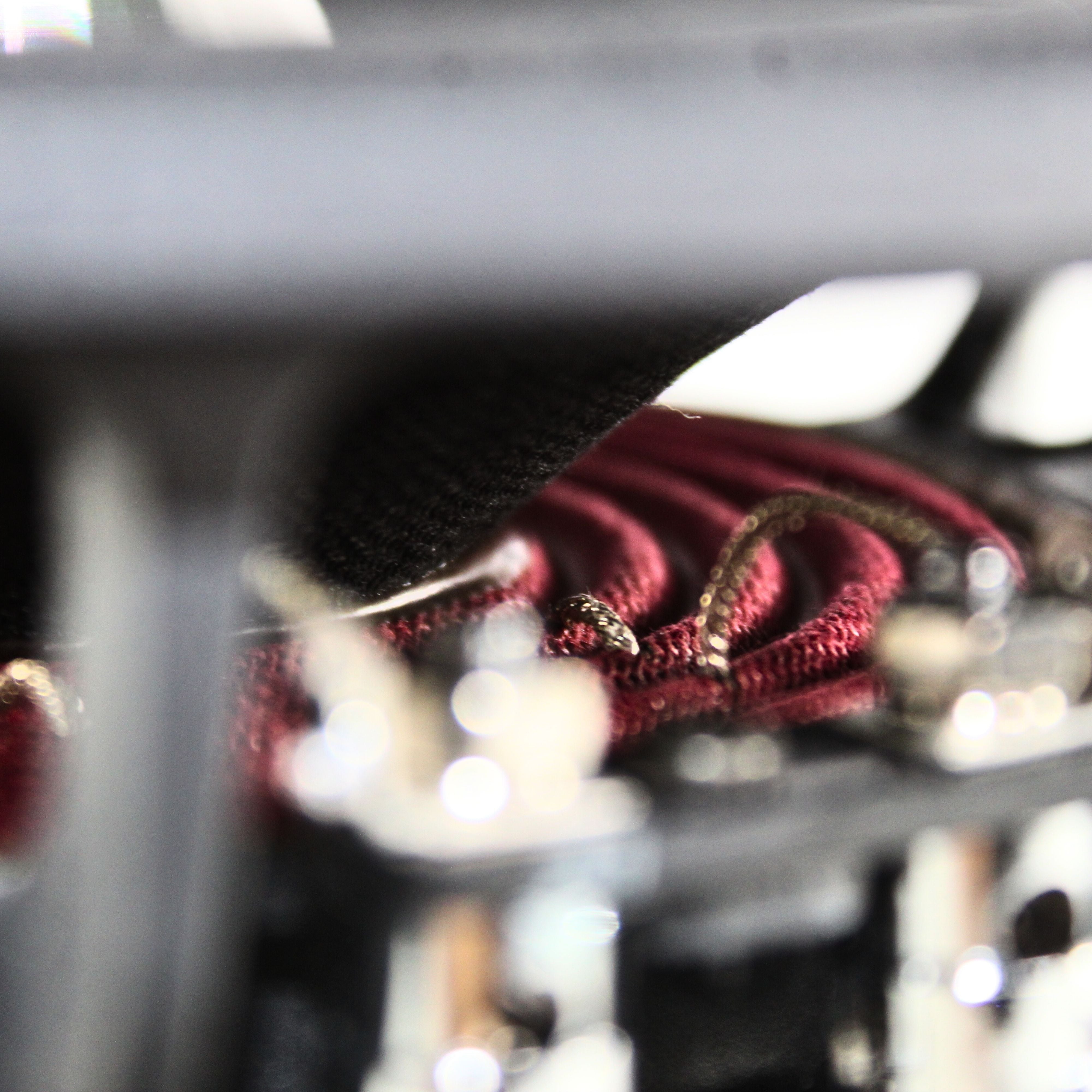

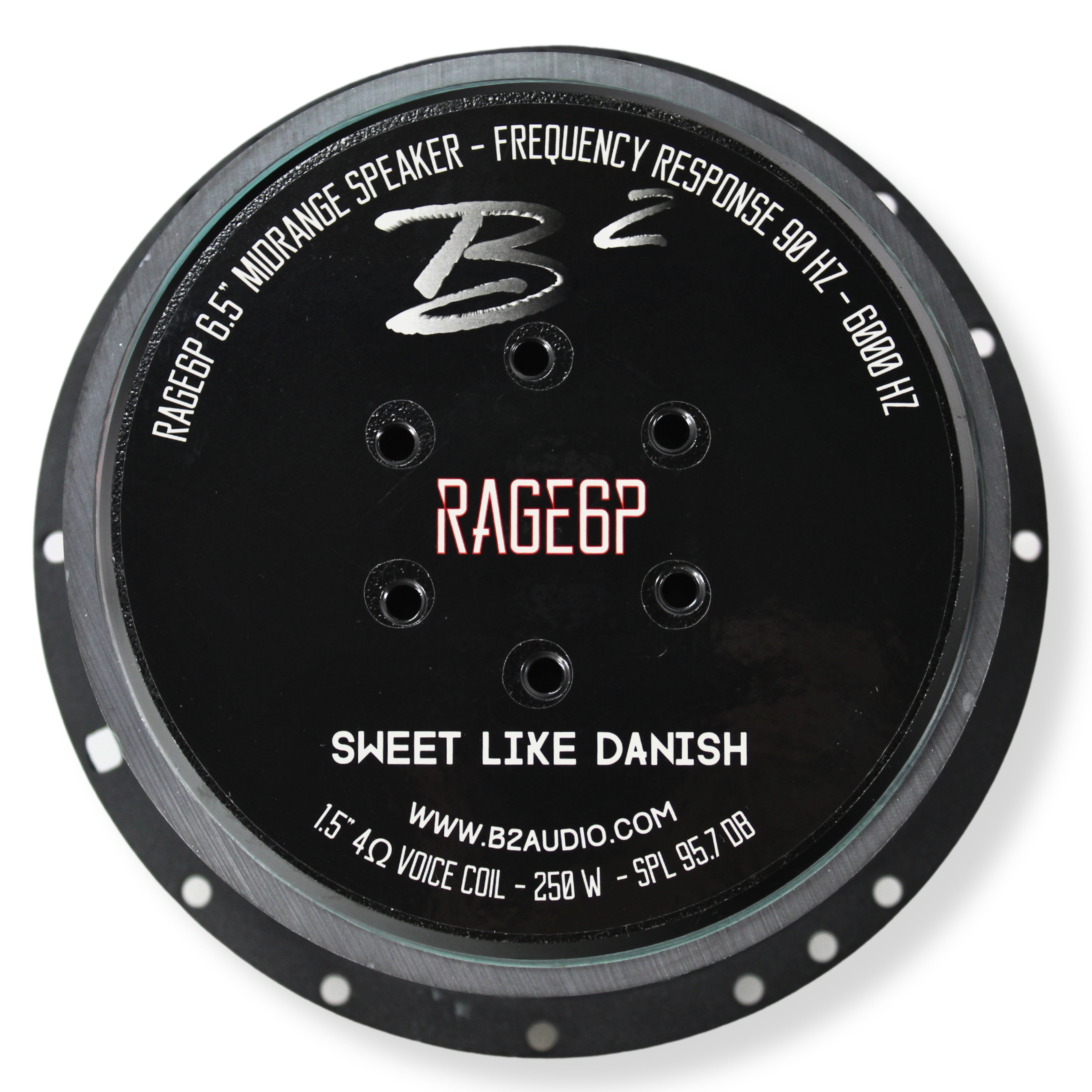

• Strong Motor: 30 oz magnet and 1.5" CCAR voice coil for tight, accurate sound.


• Optimized Sound: 94 Hz Fs and 7 T/M BL factor for precise response.


• Easy Installation: Standard 6.5" size with 5.71" cutout and 2.71" mounting depth.


• Lightweight Design: High performance without added bulk.


• Sold as a Pair: Includes two RAGE6P mid-range speakers.

Specifications:

• RMS Power Handling: 120W


• Maximum Power Handling: 250W


• Nominal Impedance: 4-Ohm


• Voice Coil Diameter: 1.5" (38.6 mm)


• Magnet Weight: 30 Oz


• Frequency Response: 90 - 6000 Hz


• Sensitivity: 95.7 dB


• Nominal Chassis Diameter: 6.5" (165 mm)


• Resonance Frequency: 94 Hz


• Voice Coil Material: CCAR


• Product Weight Per: 5.7 LBS

Thiele & Small Parameters:

• Free Air Resonance (Fs): 94 Hz


• (Re) Ohms: 3.4


• Mechanical Factor (Qms): 13.5


• Electrical Factor (Qes): 0.65


• Total Factor (Qts): 0.6


• Equivalent Volume (Vas): 5.4 L


• L Efficiency: 0.7%


• BL Factor (BL): 7 T/m


• Moving Mass (Mms): 14 grams


• Excursion Max (Xmax): 3.5 mm


• Sd (cm^2) 145 cm^2


• EBP: 144

Measurements:

• Overall Diameter: 6.5" (165 mm)


• Bolt Circle Diameter: 6.11" ( 155 mm)


• Baffle Cutout Diameter: 5.71" (145 mm)


• Mounting Depth: 2.71" (69 mm)
