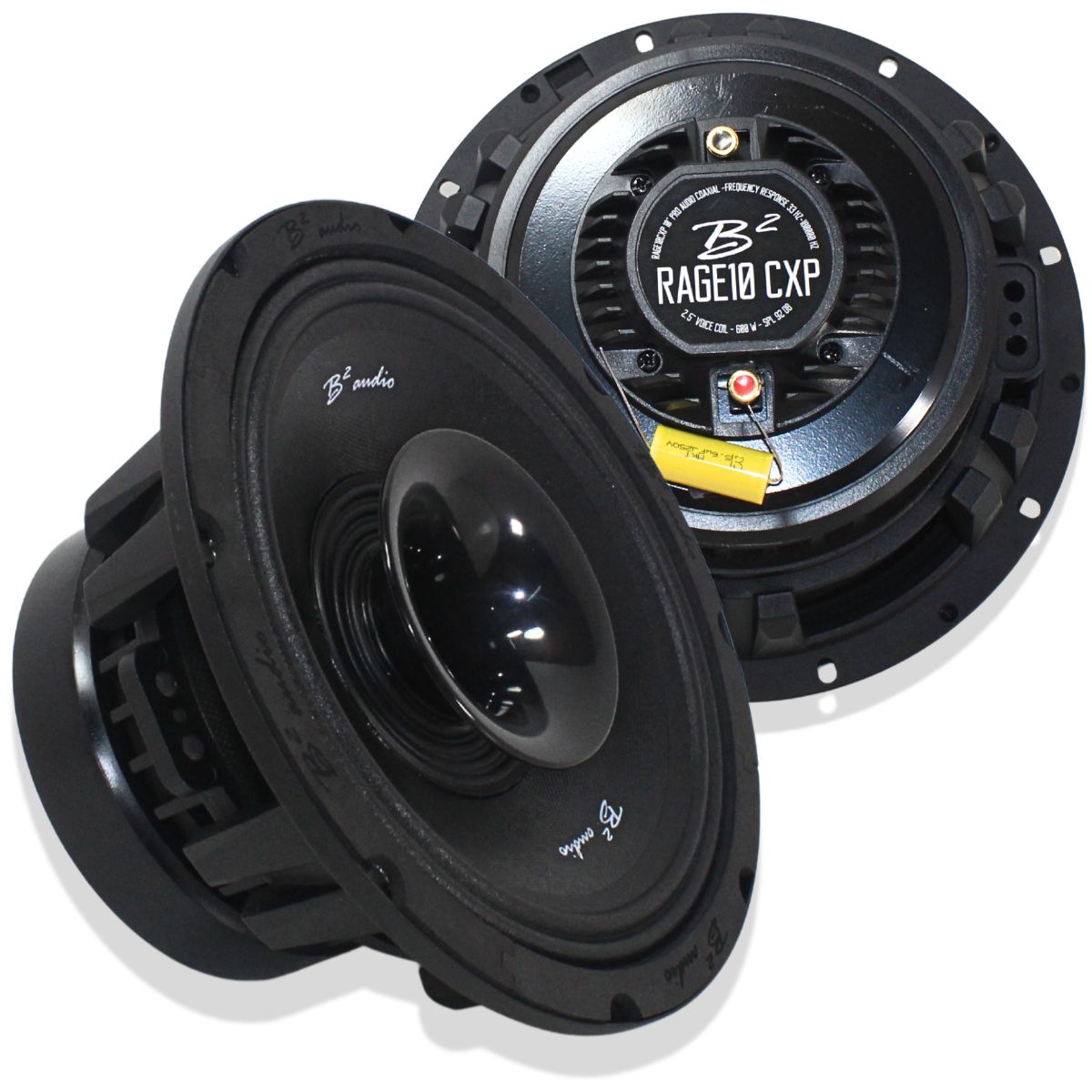

B2 Audio RAGE 10" 4-Ohm 300 Watt RMS Hybrid Coaxial Speaker Pair RAGE10CXP

• HYBRID PRO AUDIO COAXIAL DESIGN: Includes (2) B2 Audio RAGE10CXP 10" hybrid coaxial speakers featuring a pro audio midwoofer and real compression driver for powerful mids and crisp highs.
• 300W RMS POWER HANDLING: Each speaker handles 300W RMS and 600W max with a large 2.5" aluminum voice coil for strong output and durability.
• HIGH SENSITIVITY OUTPUT: 92 dB sensitivity allows these speakers to play loud with excellent efficiency, ideal for high-output car audio systems.
• WIDE FREQUENCY RESPONSE: 33 Hz to 18 kHz range delivers strong midbass, aggressive mids, and detailed highs for a full front-stage sound.
• BI-AMP CAPABLE DESIGN: Separate midwoofer and compression driver allow bi-amp setups for precise tuning and greater system control, or use the included capacitor for simple single-amplifier installations.

B2 Audio RAGE 10" 4-Ohm 300 Watt RMS Hybrid Coaxial Speaker Pair RAGE10CXP

This Listing Includes:

• (2) B2 Audio RAGE10CXP 10" Hybrid Coaxial Mid-Range Speakers

The B2 Audio RAGE10CXP is a hybrid pro audio speaker designed to deliver powerful mids and clear, projecting highs in high-output car audio systems. Unlike typical coaxial speakers, the RAGE10CXP combines a dedicated 10" midrange woofer with a real compression driver, giving you the punch of a pro audio mid and the clarity of a horn driver in one speaker.

Each speaker uses a large 2.5" aluminum voice coil on the midrange and a 1.75" aluminum voice coil in the compression driver, allowing the speaker to handle 300 watts RMS while maintaining clarity at high volume levels.

Because the midrange and compression driver are separate components, the RAGE10CXP can be bi-amped. This allows you to power the woofer and driver separately for greater tuning flexibility and system control. For simpler installations, each speaker also includes a capacitor to block low frequencies from reaching the compression driver.

With 92 dB sensitivity and a wide frequency response from 33 Hz to 18,000 Hz, the RAGE10CXP delivers loud, controlled mids and crisp highs that cut through heavy bass systems. This makes it ideal for pro audio door builds, demo vehicles, and high-output daily driver setups.

Features:

• Hybrid 2-Way Design - Pro audio midwoofer + compression driver


• 300W RMS / 600W MAX per speaker


• 2.5" Aluminum Midwoofer Voice Coil


• 1.75" Aluminum Compression Driver Coil


• 92 dB Sensitivity


• Wide 33 Hz - 18 kHz Frequency Response


• 4 Ohm Impedance

Specifications:

• Model: RAGE10CXP


• Speaker Size: 10"


• Impedance: 4 Ohms


• RMS Power: 300 Watts


• Peak Power: 600 Watts


• Frequency Response: 33 Hz - 18,000 Hz (Recommended High-Pass Filter: 50 Hz for optimal efficiency and performance.)


• Sensitivity: 92 dB


• Voice Coil Diameter (Mid): 2.5" / 63.5mm


• Tweeter Voice Coil Diameter: 1.75" / 44mm


• Winding Material: Aluminum


• Magnet Weight: 50 oz

T/S PARAMETERS (Each):

• Fs: 51.0 Hz


• Vas: 46.0 L


• Re: 3.4 Ohm


• Qms: 3.57


• Qes: 0.631


• Qts: 0.536


• BLT/m: 7.97 T/m


• Mms (g): 36.7 grams


• Xmax: 5 mm


• Sd: 353 cm


• Le (1k Hz): 0.7 mH


• EBP: 80.79

Dimensions (Each):

• Overall Diameter: 10.4" (265 mm)


• Bolt Circle Diameter: 9.9" (252 mm)


• Baffle Cutout Diameter: 9.2" (235 mm)


• Mounting Depth: 6.2" (158 mm)


• Overall Depth : 7" (177.8 mm)


• Net Weight (single): 11 lbs
