B2 Audio RAGE 15" 4-Ohm 400 Watt RMS Hybrid Coaxial Speaker Pair RAGE15CXP

• HYBRID PRO AUDIO DESIGN: Includes (2) B2 Audio RAGE15CXP 15" hybrid coaxial speakers combining a high-output midwoofer with an integrated compression driver for powerful mids and clear highs.
• 400W RMS POWER HANDLING: Each speaker handles 400W RMS and 800W max with a large 2.5" aluminum voice coil for strong output and durability.

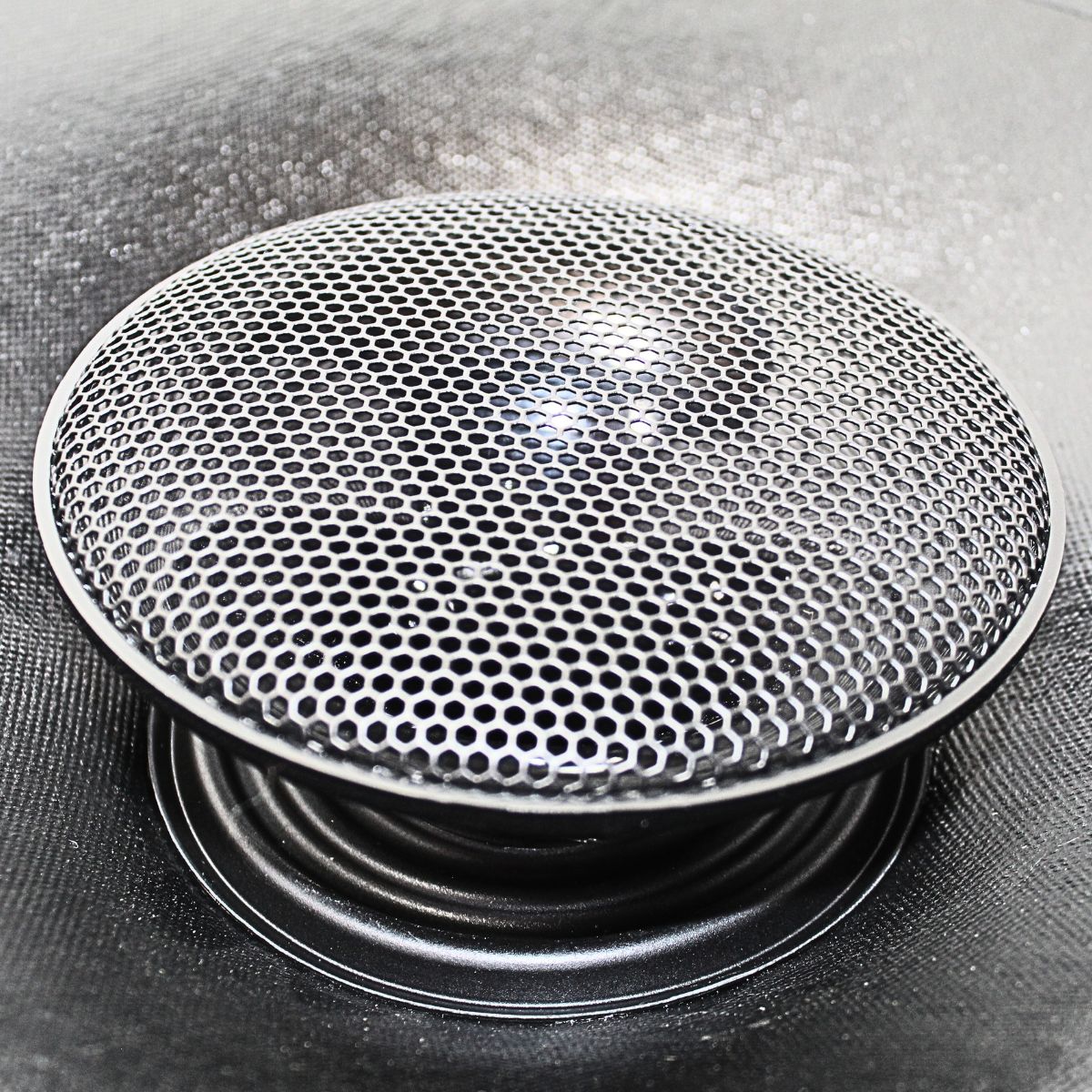

• COMPRESSION DRIVER HIGHS: Built-in compression driver with a 1.75" aluminum voice coil delivers clear, projecting high frequencies.
• BI-AMP CAPABLE DESIGN: Midwoofer and compression driver can be powered separately for advanced tuning and system flexibility.
• WIDE FREQUENCY RESPONSE: 25 Hz to 18 kHz response provides strong midbass, aggressive mids, and detailed highs.

B2 Audio RAGE 15" 4-Ohm 400   Watt RMS Hybrid Coaxial Speaker Pair RAGE15CXP

This Listing Includes:

• (2) B2 Audio RAGE15CXP 15" Coaxial Mid-Range Speakers

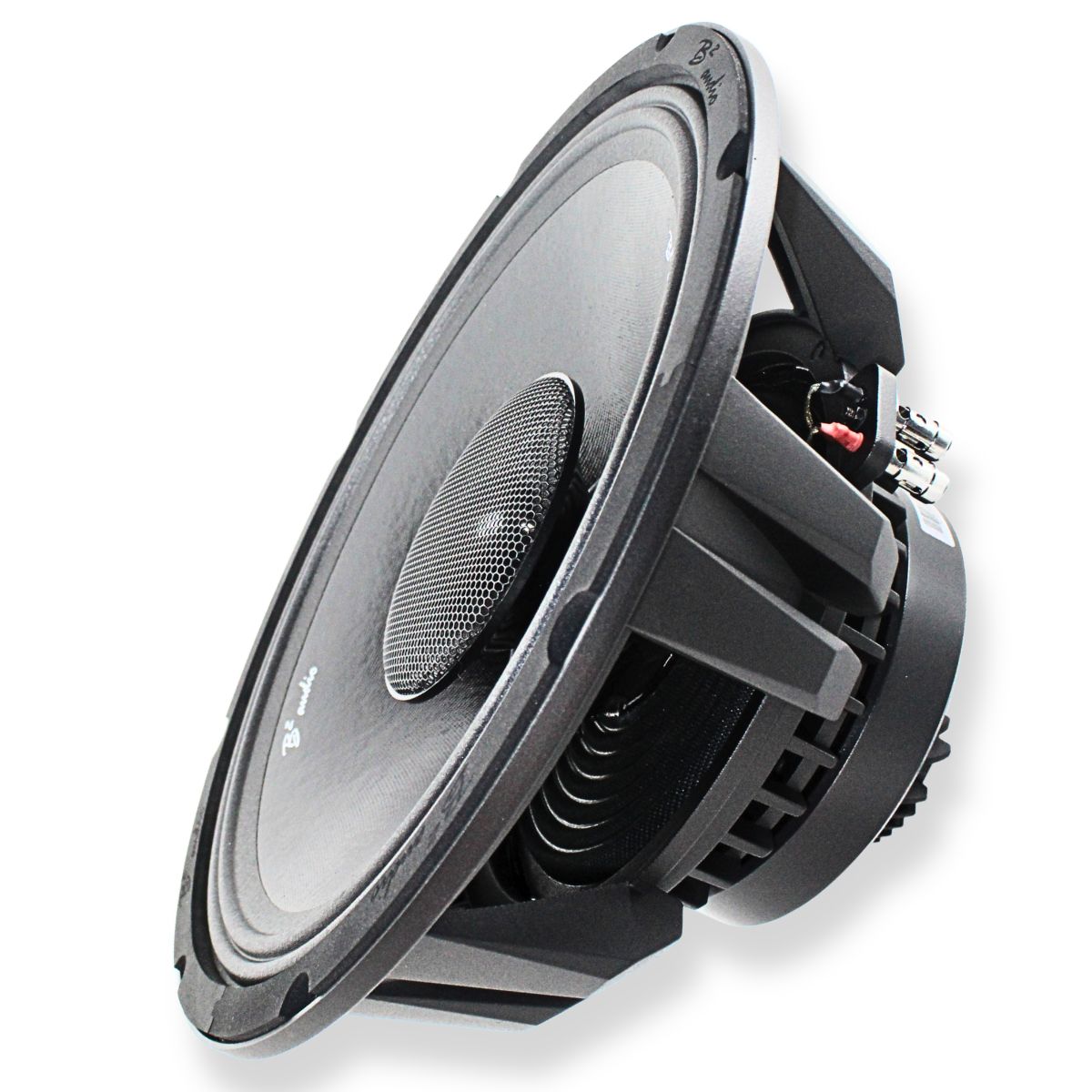

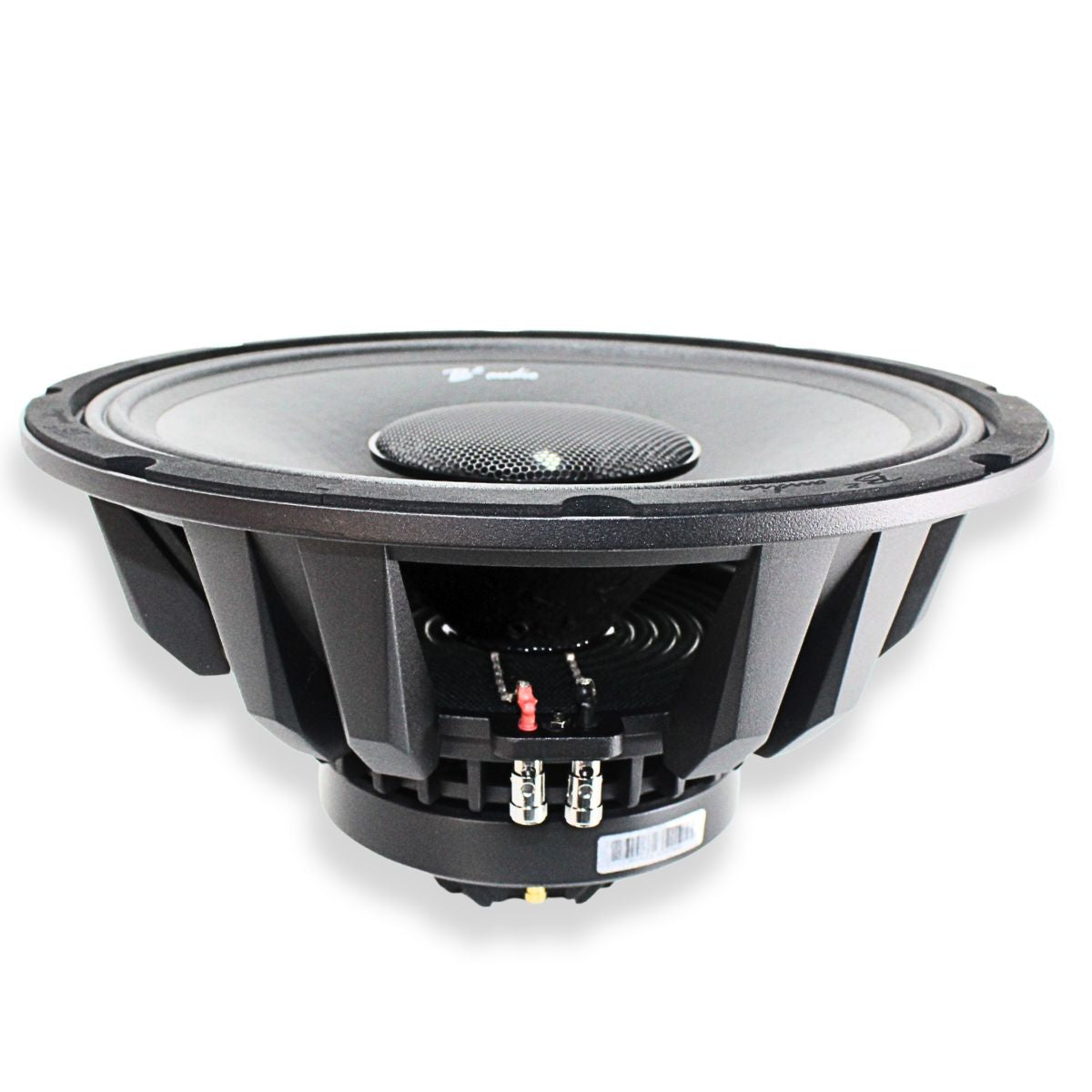

The B2 Audio RAGE15CXP is a hybrid pro audio speaker designed to deliver powerful midbass, aggressive midrange output, and clear high-frequency projection in high-output car audio systems. Unlike typical coaxial speakers, the RAGE15CXP combines a dedicated 15" midrange woofer with a compression driver, giving you the punch of a pro audio mid and the clarity of a horn driver in one speaker.

Each speaker features a large 2.5" aluminum voice coil on the midwoofer and a 1.75" aluminum voice coil in the compression driver, allowing the speaker to handle 400 watts RMS while maintaining clarity at high volume levels.

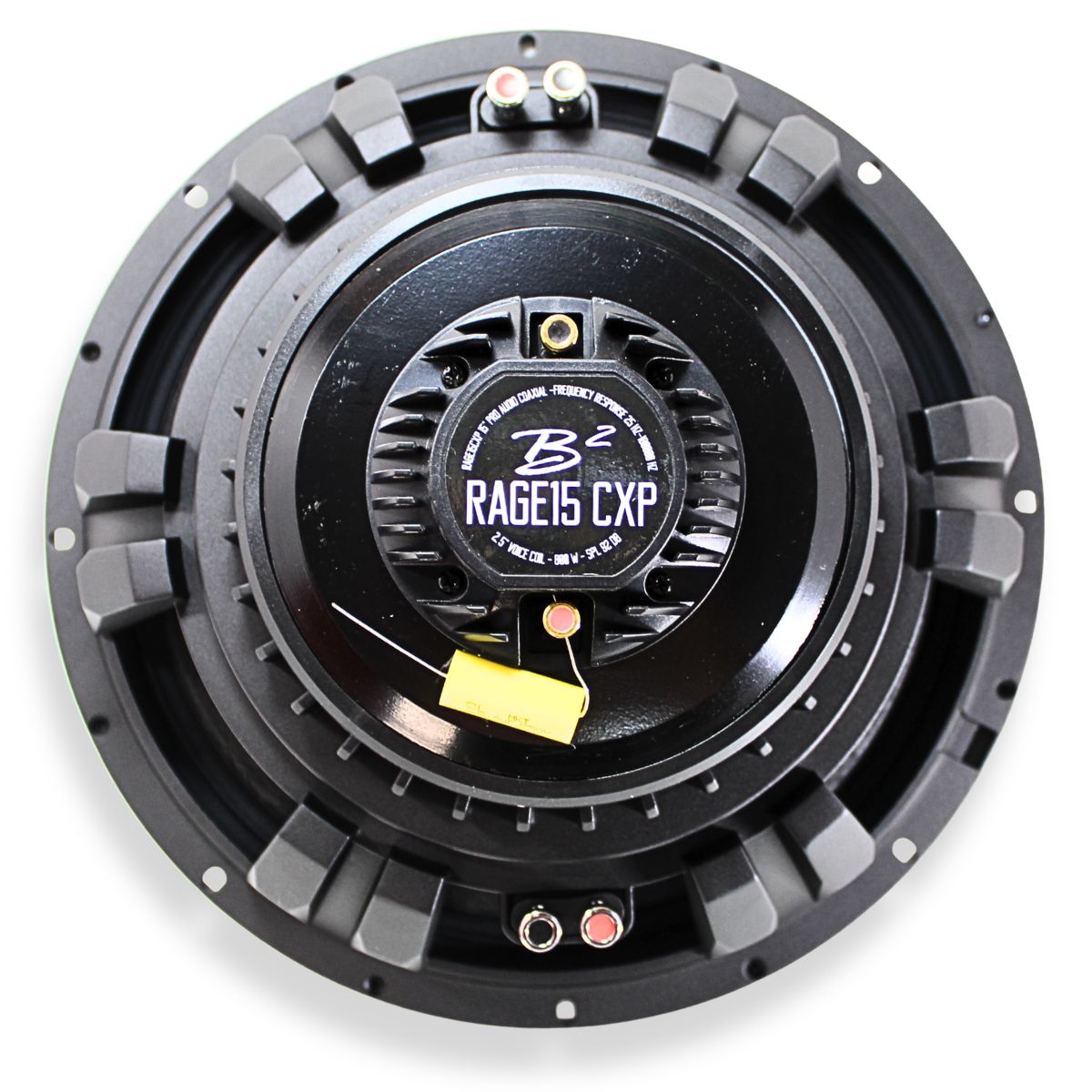

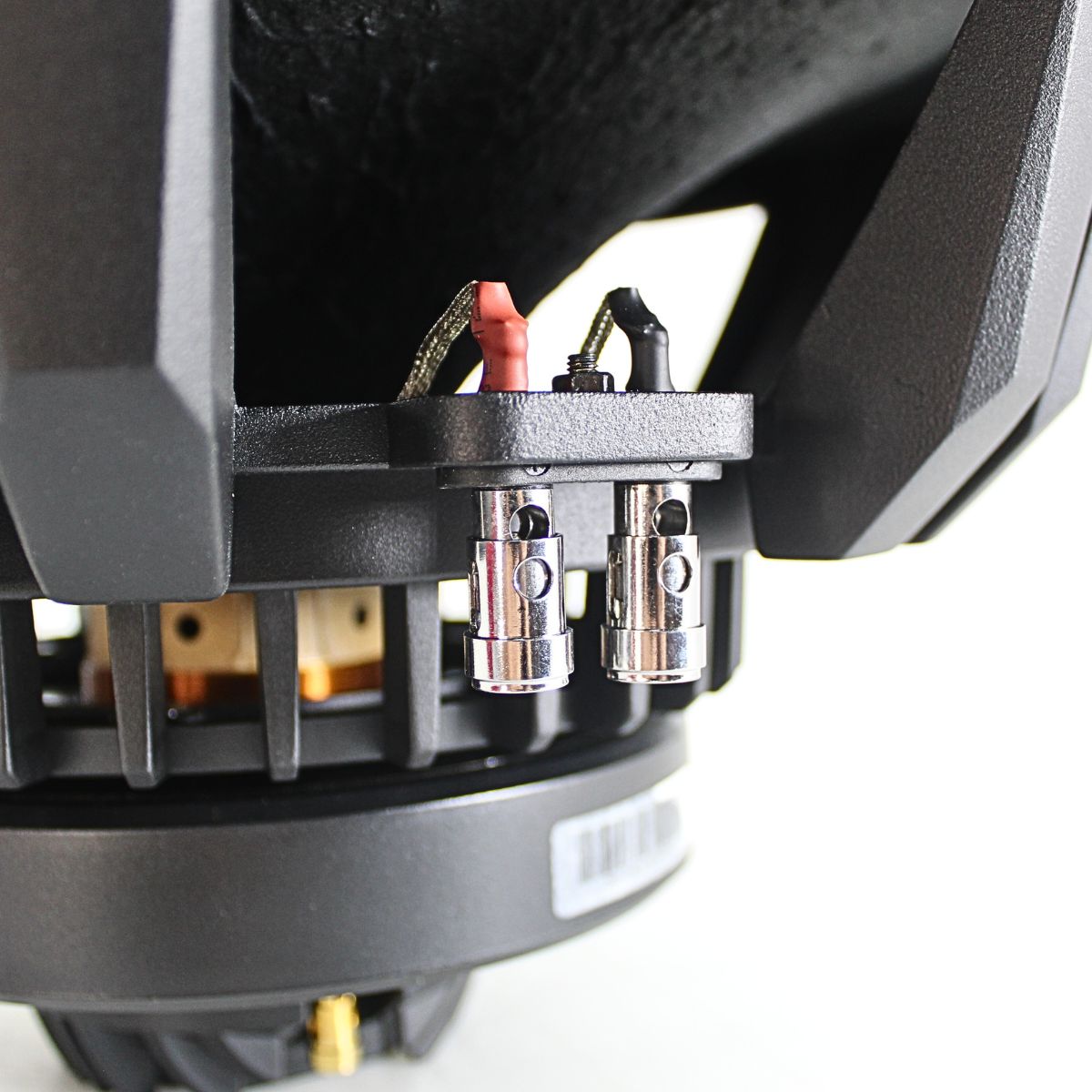

Because the midwoofer and compression driver are separate components, the RAGE15CXP can be bi-amped. This allows installers to power the woofer and compression driver separately for greater tuning flexibility and system control. For simple installations, each speaker also includes a capacitor designed to block low frequencies from reaching the compression driver.

With 92 dB sensitivity and a wide frequency response up to 18 kHz, the RAGE15CXP delivers strong midbass, aggressive mids, and crisp highs that cut through heavy bass systems. The large 15" cone provides additional output and impact, making this speaker ideal for pro audio door builds, demo vehicles, wall builds, and high-output daily driver systems.

Features

• Hybrid 2-Way Design – Pro audio midwoofer + compression driver


• 400W RMS / 800W MAX per speaker


• 2.5" Aluminum Midwoofer Voice Coil


• 1.75" Aluminum Compression Driver Coil


• 92 dB Sensitivity


• Wide 50 Hz - 18 kHz Frequency Response


• 4 Ohm Impedance


• Designed for high-output front stages & extreme builds

Specifications:

• Model: RAGE15CXP


• Speaker Size: 15"


• Impedance: 4 Ohm


• Resonance (natural) Frequency: 25.8 Hz


• RMS Power: 400 Watts


• Peak Power: 800 Watts


• Frequency Response: 25 Hz - 18,000 Hz


• Sensitivity: 92 dB


• Voice Coil Diameter: 2.5"/ 63.5mm


• Tweeter Voice Coil Diameter: 1.75" / 44mm


• Voice Coil Material: Aluminum


• Magnet Weight: 60 oz

T/S PARAMETERS:

• Fs: 25.8 Hz


• Vas: 275 L


• Re: 1.7 Ohm


• Qms: 2.23


• Qes: 0.4878


• Qts: 0.4004


• BL: 8.9 T/m


• Mms: 140 g


• Xmax: 5 mm


• Sd (cm): 855 cm­­­


• Le (1k Hz): 0.7 mH


• Efficiency: 0.93%


• EBP: 52.89

Dimensions:

• Overall Diameter: 15.4" (393 mm)


• Bolt Circle Diameter: 14.9" (380 mm)


• Baffle Cutout Diameter: 14.2" (360 mm)


• Mounting Depth: 7.4" (188 mm)


• Overall Depth: 8.25" (209 mm)


• Net Weight (Pair): 15.21 lbs
