B2 Audio Rage 5000 5K Watt 1-Ohm Monoblock Amplifier w/ RAGEXL V2 15" Subwoofer

• Unmatched Bass Power – The B2 Audio RAGEXL V2 15" Subwoofer delivers 3,500 watts RMS at 1 ohm, providing heart-pounding bass for both SPL competitions and everyday driving.
• Premium Amplification – The RAGE-5000 Monoblock Amplifier unleashes 5000 watts of dynamic power with advanced cooling and precision controls for crystal-clear audio performance.
• High-Performance Design – Subwoofer features a 3" dual voice coil and custom-tooled basket, while the amplifier boasts a compact extended heatsink and robust power supply for durability.
• Robust Protection Features: Keep your system safe and sound with built-in safeguards against thermal overload, short circuits, and overcurrent, ensuring reliable performance even under heavy demand.
• Complete Audio Solution – Get everything you need to build the ultimate car audio system with this power-packed subwoofer and amplifier combo, perfect for enthusiasts and competitors alike

B2 Audio Rage 5000 5K Watt 1-Ohm Monoblock Amplifier w/ RAGEXL V2 15" Subwoofer

This listing includes:

• (1) B2 Audio RAGE Series 5k 5000 watt 1-Ohm Class D Full Bridge Monoblock Amplifier


• (1) B2 Audio RAGEXL V2 Series 15"  3500 RMS 1 Ohm 3" DVC Subwoofer

Elevate your car audio experience to a whole new level with the B2 Audio RAGEXL V2 15" Subwoofer and RAGE-5000 Monoblock Amplifier. This dynamic duo delivers earth-shaking power and premium sound clarity, offering everything you need to dominate both on the streets and in SPL competitions. Precision-engineered for true audio enthusiasts, these components combine performance, durability, and innovative design to set a new standard in car audio.

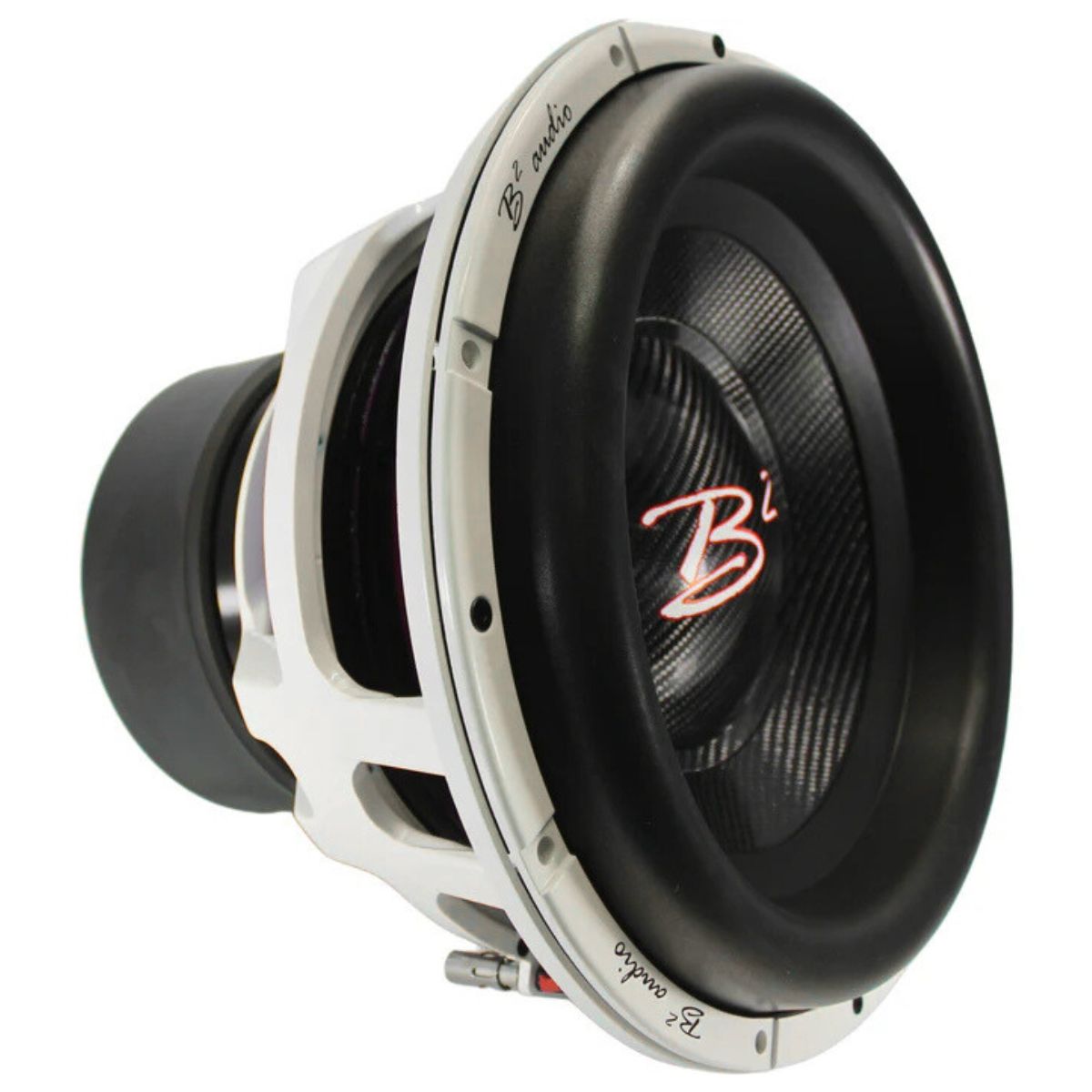

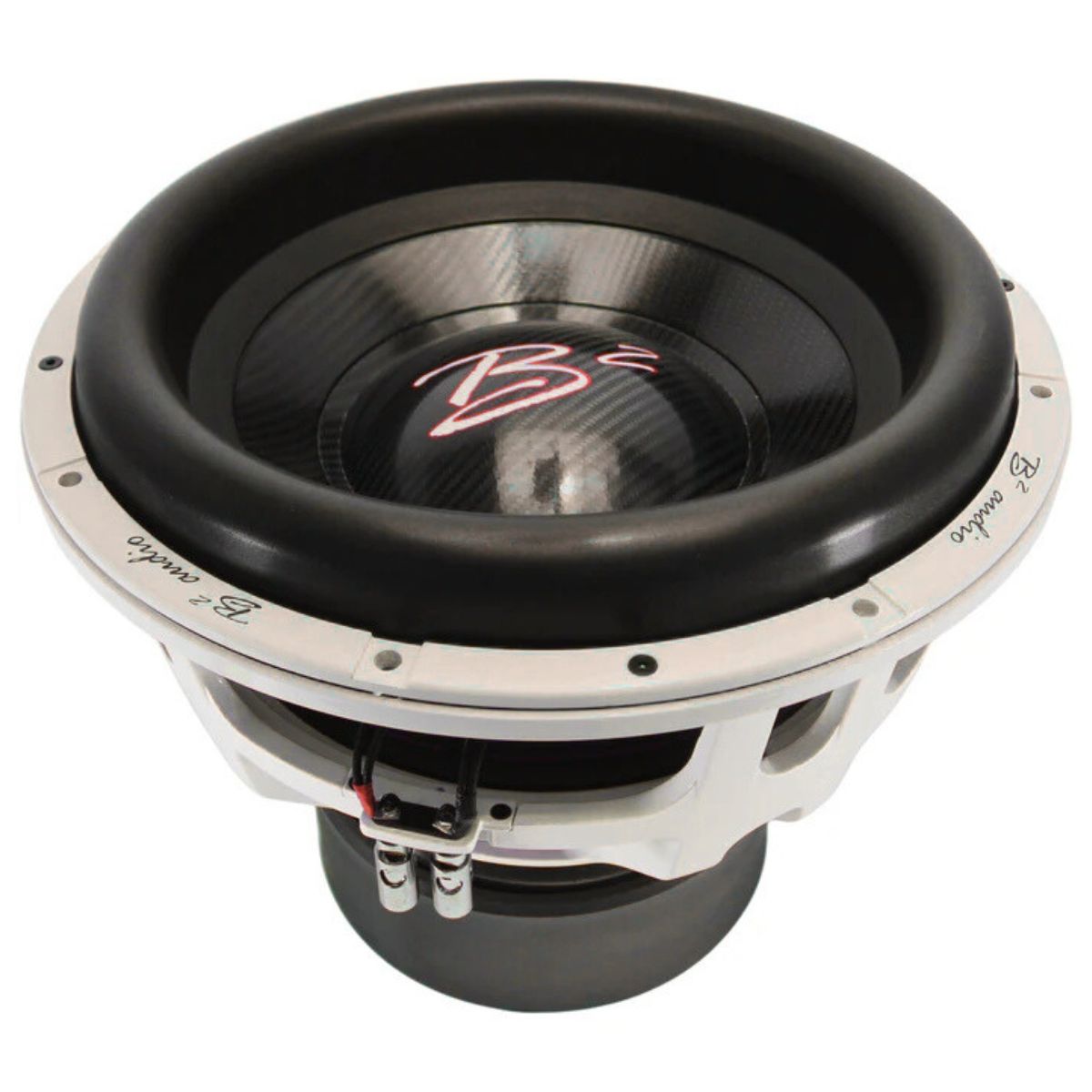

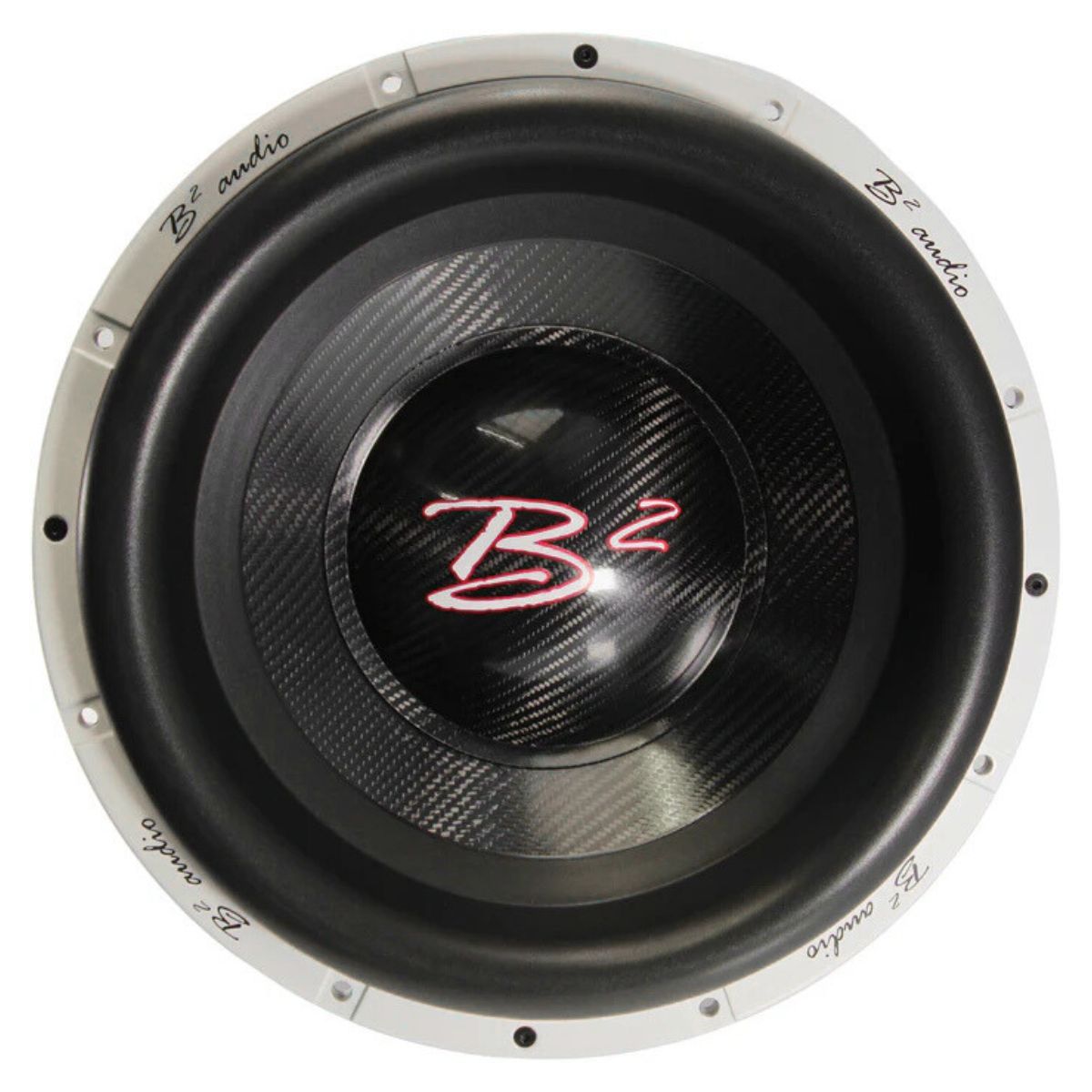

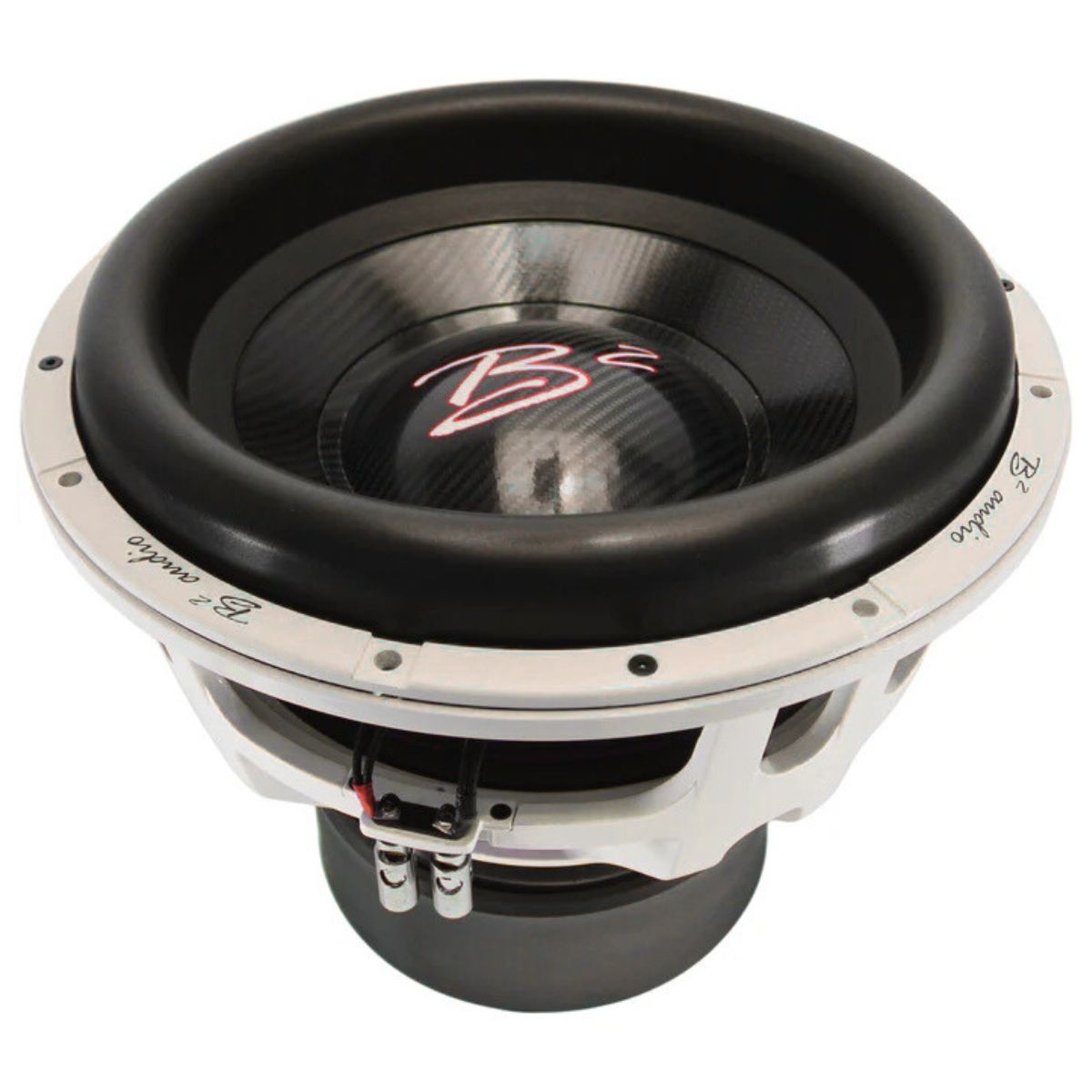

Subwoofer Specifications:

• RMS Power Handling: 3500 Watts


• Max Power Handling: 10,000 Watts / 13.4 HP


• Nominal Impedance: Dual 1 Ohm


• Voice Coil Diameter: 3 inches


• Sensitivity: 90.7 dB


• Motor Assembly Displacement: 12.6 L / 0.445 cu ft


• Free Air Resonance (Fs): 26.7 Hz


• Resistance (Re): 2 Ohms


• Mechanical Factor (Qms): 5.99


• Electrical Factor (Qes): 0.69


• Total Factor (Qts): 0.59


• Equivalent Volume (Vas): 58.2 L


• Compliance (Cms): 70 um/N


• BL Factor (BL): 128


• Moving Mass (Mms): 507.6 g


• Excursion Max (Xmax): 23


• XMECH: 52


• SD: 765.1 sq cm


• Overall Diameter: 15.48 in / 393 mm


• Mounting Diameter: 13.5 in / 343 mm


• Bolt Pattern Diameter: 14.5 in / 368.3 mm


• Overall Depth: 13.622 in /  346 mm


• Mounting Depth: 11.69 in / 297 mm

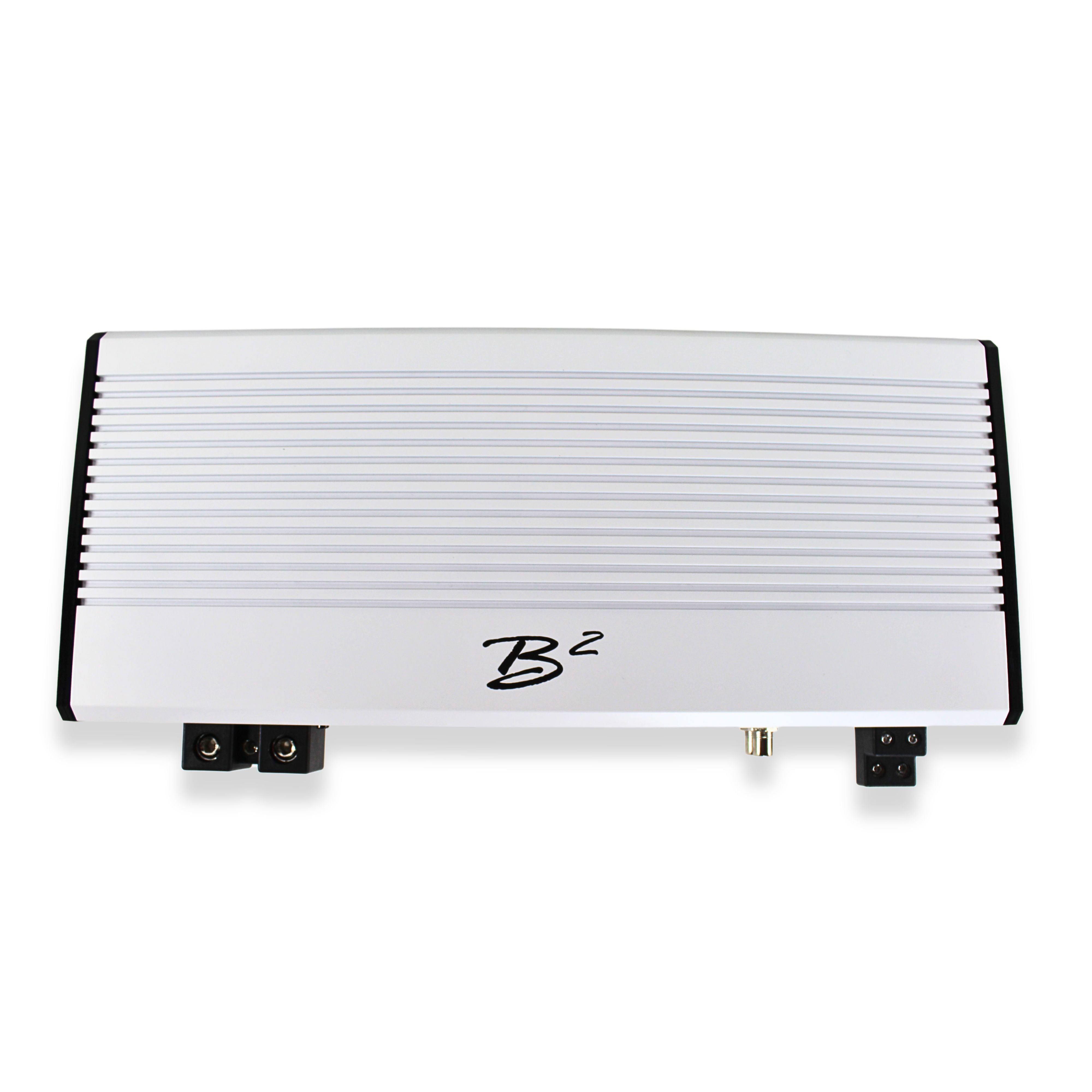

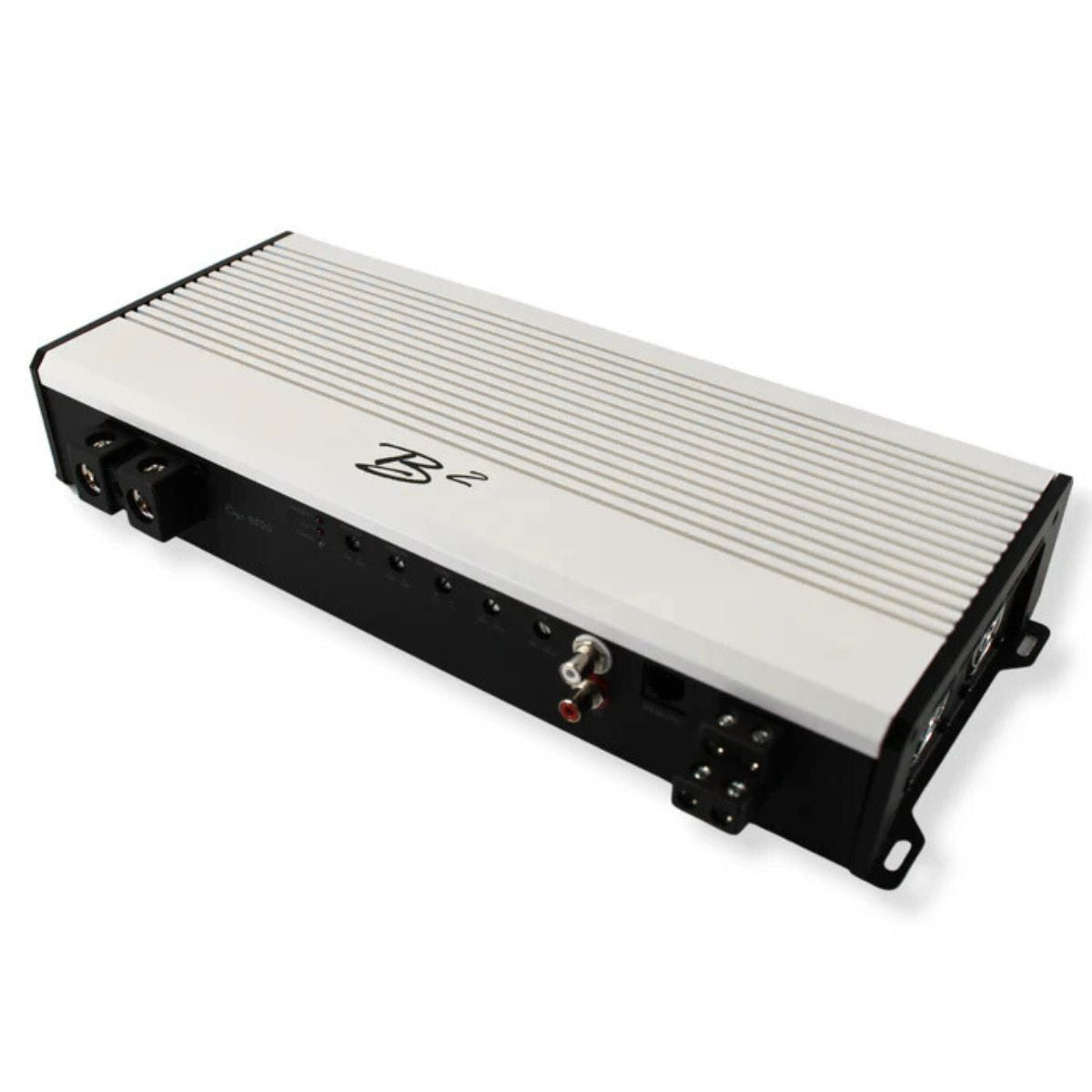

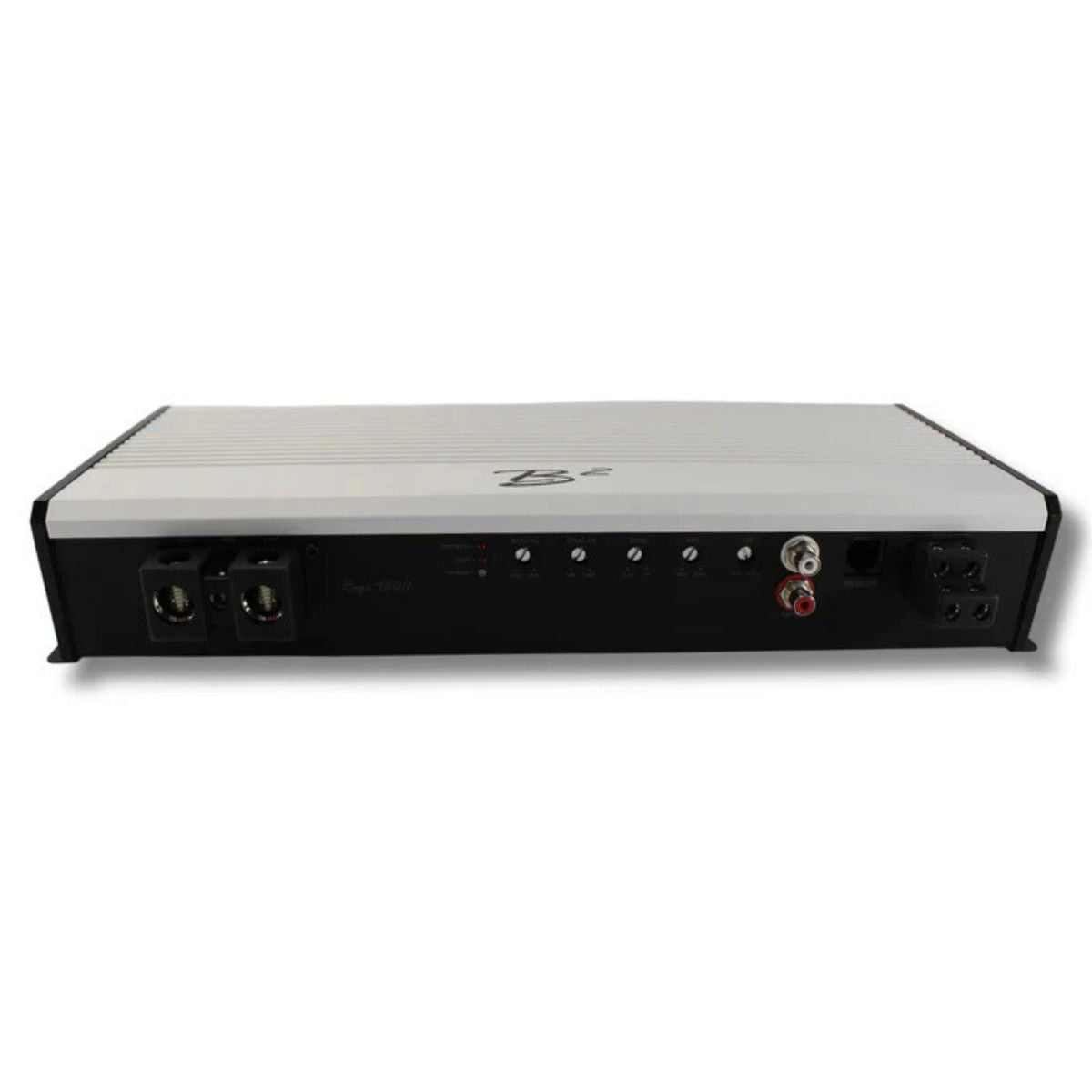

Amplifier Specifications:

• RMS Power @ 4 ohm: 3000 Watts


• RMS Power @ 2 ohm: 5000 Watts


• RMS Power @ 1 ohm: 5000 Watts


• Frequency Response: 10 Hz - 10 KHz


• Signal to Noise Ratio: > 90 dB


• Input Sensitivity: 5 V - 0.2 V


• Crossover Circuit: 12 dB / OCT


• Low Pass Crossover: 40 Hz - 10 KHz


• High Pass Crossover: 15 Hz - 500 Hz


• Damping Factor: > 200


• Power Terminal Gauge: 0 GA x 2


• Fuse Rating: 500 A


• Bass Level: 0 - 12 dB at 45 Hz

Take control of your sound and leave your competition in the dust with the B2 Audio RAGEXL V2 Subwoofer and RAGE-5000 Amplifier combo. Built for those who demand power, clarity, and precision, this setup is ready to shake the streets and set new standards in car audio.
