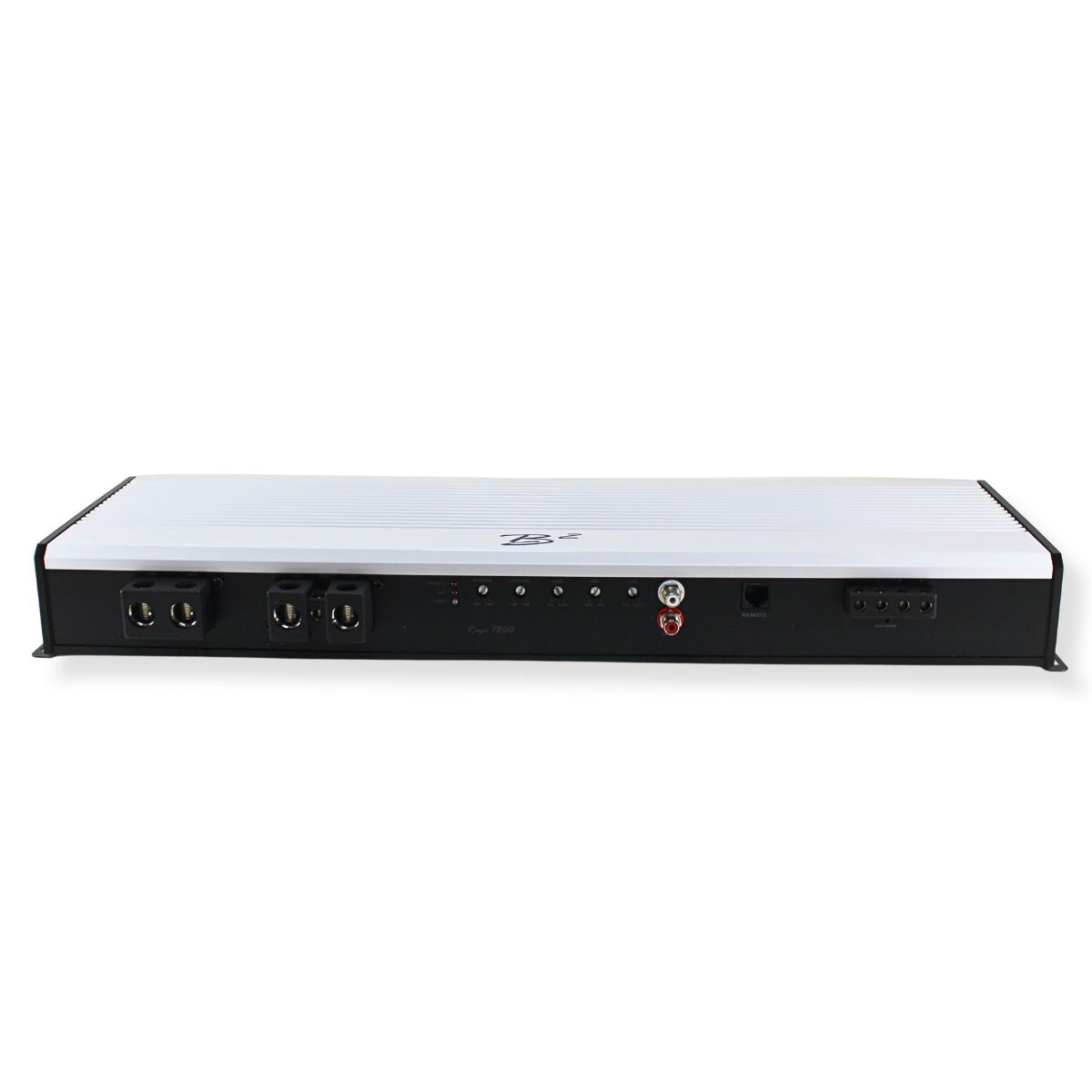

B2 Audio RAGE 7800 Watt 1-Ohm Class D Full Range Monoblock Amplifier

• Extreme Power Output: Delivers up to 8,000 Watts RMS at 1 Ohm for ground-shaking performance that drives even the most demanding subwoofers.
• Advanced Class D Design: Engineered for maximum efficiency with low heat buildup and precise power delivery across the full frequency range.
• Precision Tuning Control: Includes variable low-pass, high-pass, and subsonic crossovers from 10Hz–12.5kHz for ultimate flexibility and sound customization.
• Complete Installation Kit: Comes with bass knob featuring voltage and temperature display, remote wire, and sturdy terminals for 0-gauge power input.
• Built for Competition: Heavy-duty construction with multiple protection circuits against thermal overload, short circuit, and overcurrent for unmatched reliability.

B2 Audio RAGE 7800 Watt 1-Ohm Class D Full Range Monoblock Amplifier

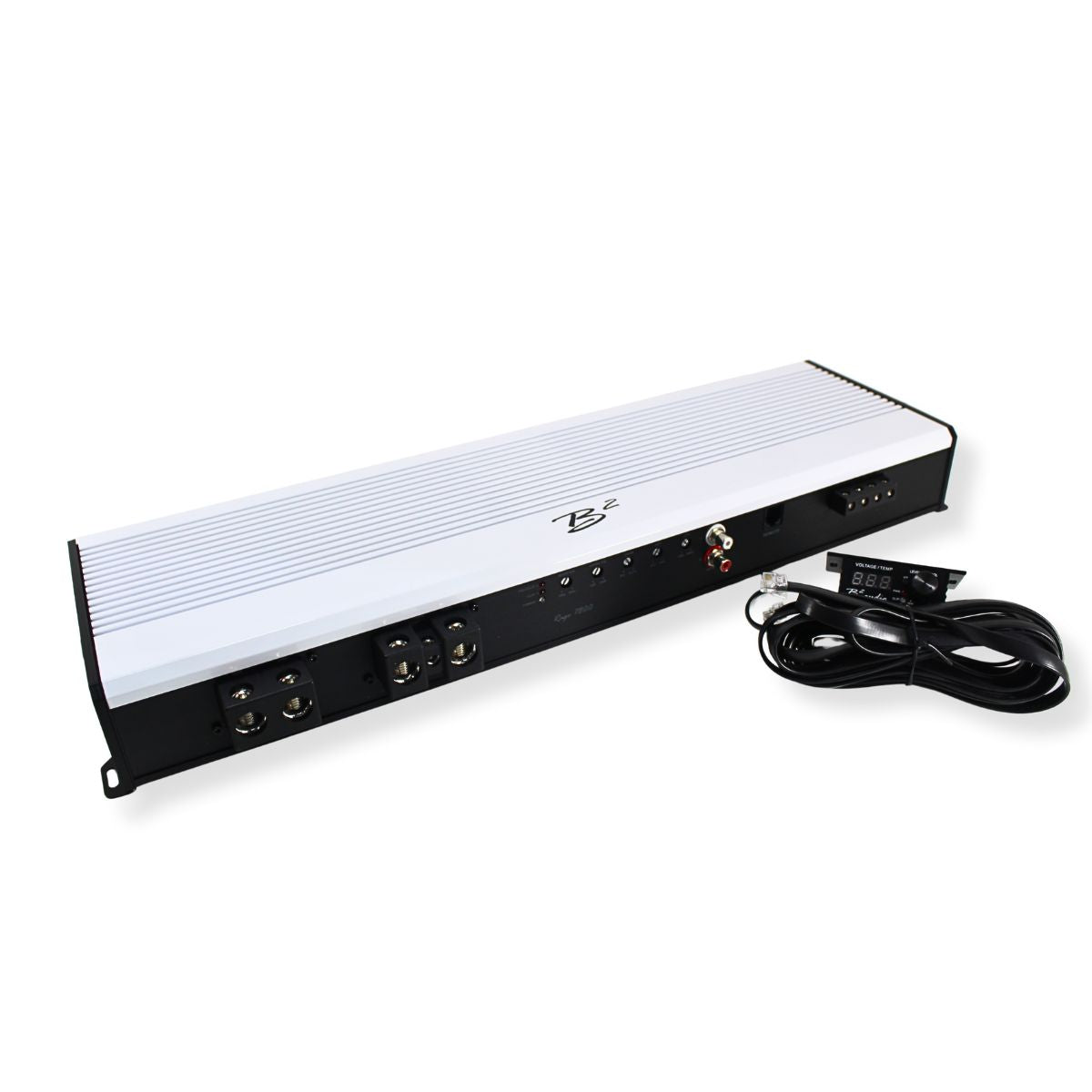

This Listing Includes:

• (1) B2-RAGE-7800 Amplifier

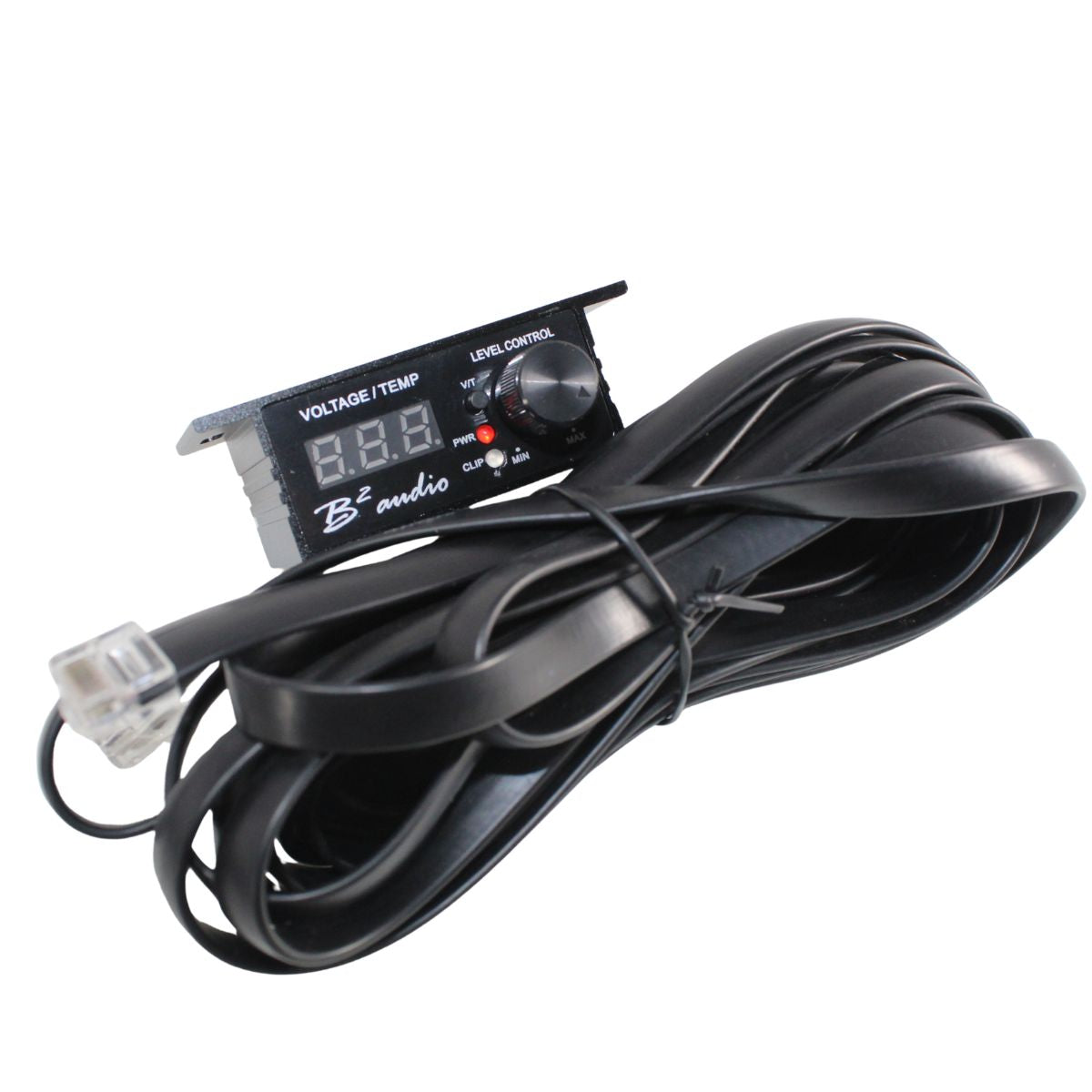

• (1) Bass Knob w/ Voltage / Temp Meter


• (1) Remote Wire

Unleash the power of the B2 Audio RAGE Series 3.5K 3500 Watt 1-Ohm Class D Monoblock Amplifier. This amplifier delivers an earth-shattering 3500 watts of pure, relentless power at 1-ohm, transforming your audio setup into a thunderous soundscape with bone-rattling bass and electrifying performance. Designed with advanced Class D technology, it maximizes efficiency, offering intense, precise sound that will leave you craving more. Whether you’re upgrading for a premium listening experience or competing for supremacy, the RAGE 3.5K is the amplifier to dominate the scene. It features advanced protection against thermal overload, short circuits, and overcurrent, ensuring rock-solid reliability under even the most demanding conditions. With its sleek design and heavy-duty construction, the RAGE 3.5K seamlessly integrates into any high-performance system, ready to push the limits and take your audio experience to new heights. Embrace the power, embrace the rage

Specifications

• RMS Power @ 4 ohm: 2400W* - 2600 W


• RMS Power @ 2 ohm: 4200W* - 4500 W


• RMS Power @ 1 ohm: 7800W*- 8000 W


• Frequency Response:10 Hz - 12.5 KHz


• Signal to Noise Ratio: >90dB


• Input Sensitivity: 6-0.2 V

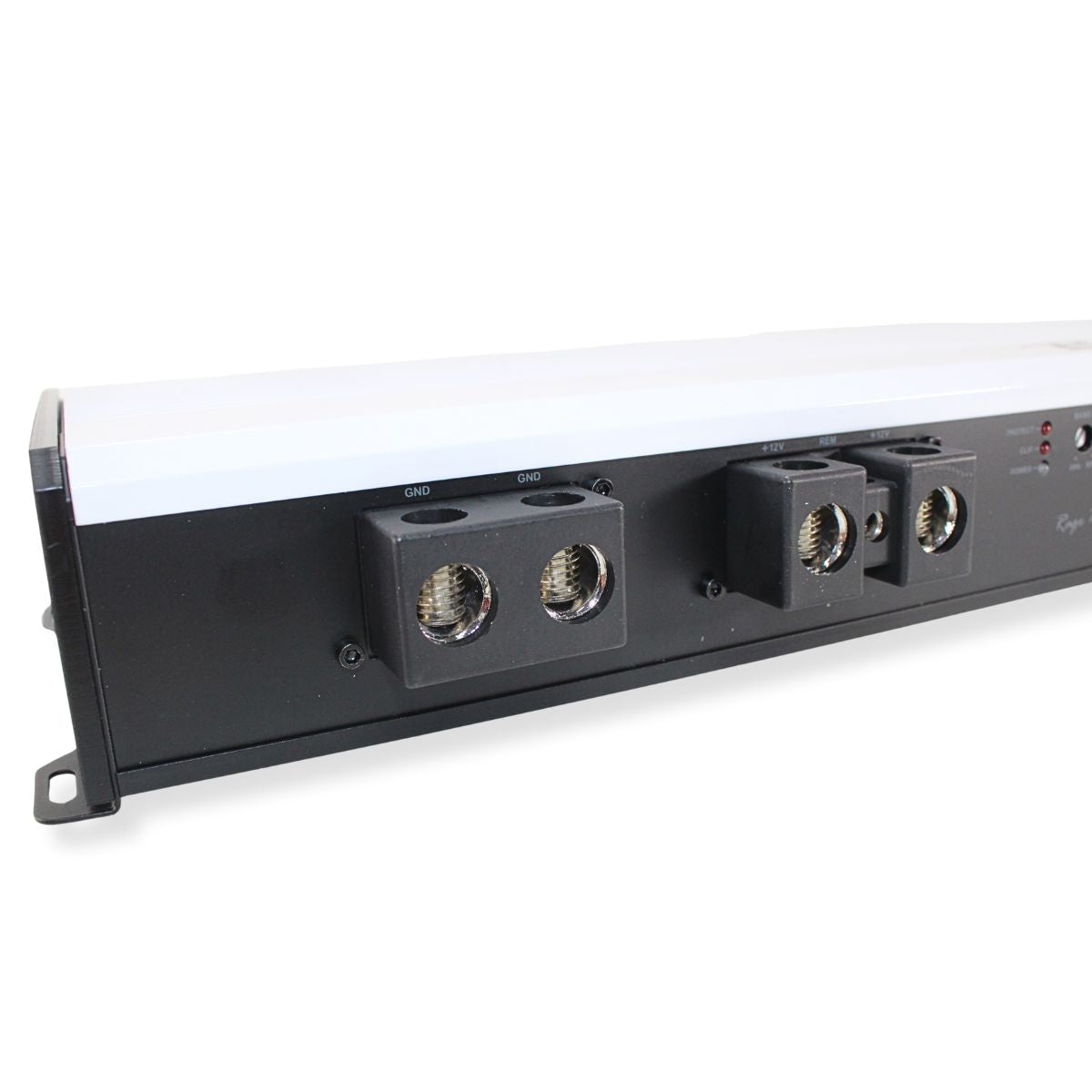

• Power Terminal Gauge: 2 x 0 Gauge


• Recommended  Speaker  Wire: 10 AWG (Minimum)


• Fuse Rating: 600 A


• Bass Level: 30 Hz - 80 Hz

* The lower number is based on amp dyno performance measured at 1000 KHZ for multi channels and 100 Hz for the mono.  The other is audio precision up to 1% THD.  Full output power according to the spec is based on a sufficient electrical supply system.

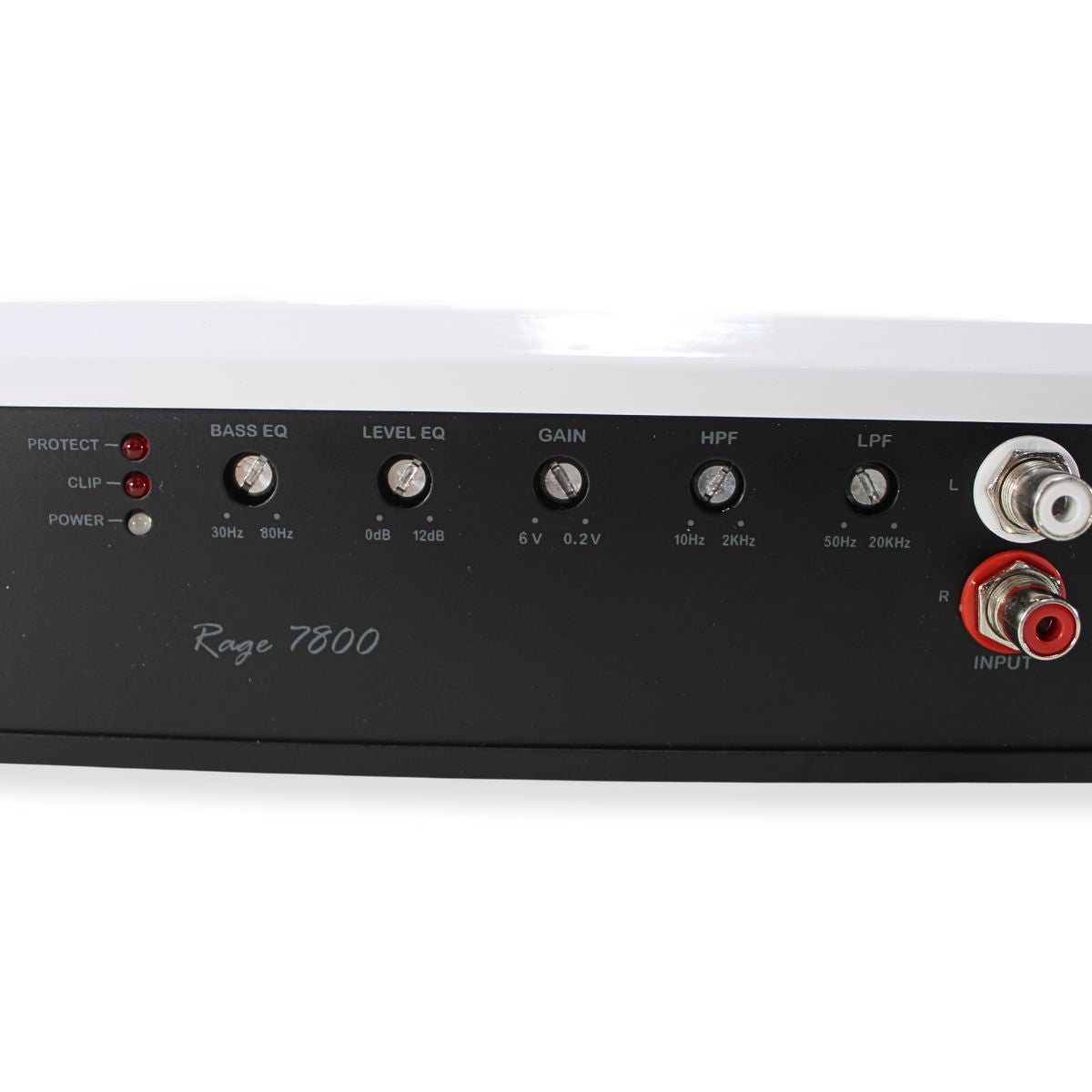

Crossover Circuit:

• Low Pass Crossover: 30 Hz -12.5 Hz


• High Pass Crossover: 10 Hz - 2 KHz


• Subsonic Crossover: 10 Hz - 2 KHz

Measurements:

• Length: 22"


• Width: 6.5"


• Height: 2.5"


• Weight: 14.95 Lbs

Turn your setup into a powerhouse of clean, controlled, and unmatched sound. The B2 Audio RAGE 7800 isn’t just an amplifier, it’s a statement of dominance and precision for serious bass enthusiasts and competitors who demand the best.
