B2 Audio RAGE Series 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

• Power-Packed Performance: Experience unparalleled bass performance with the B2 Audio RAGE15-D2-V2 subwoofer, featuring 2000 watts RMS power handling and a massive 600 oz magnet weight for thunderous sound reproduction.

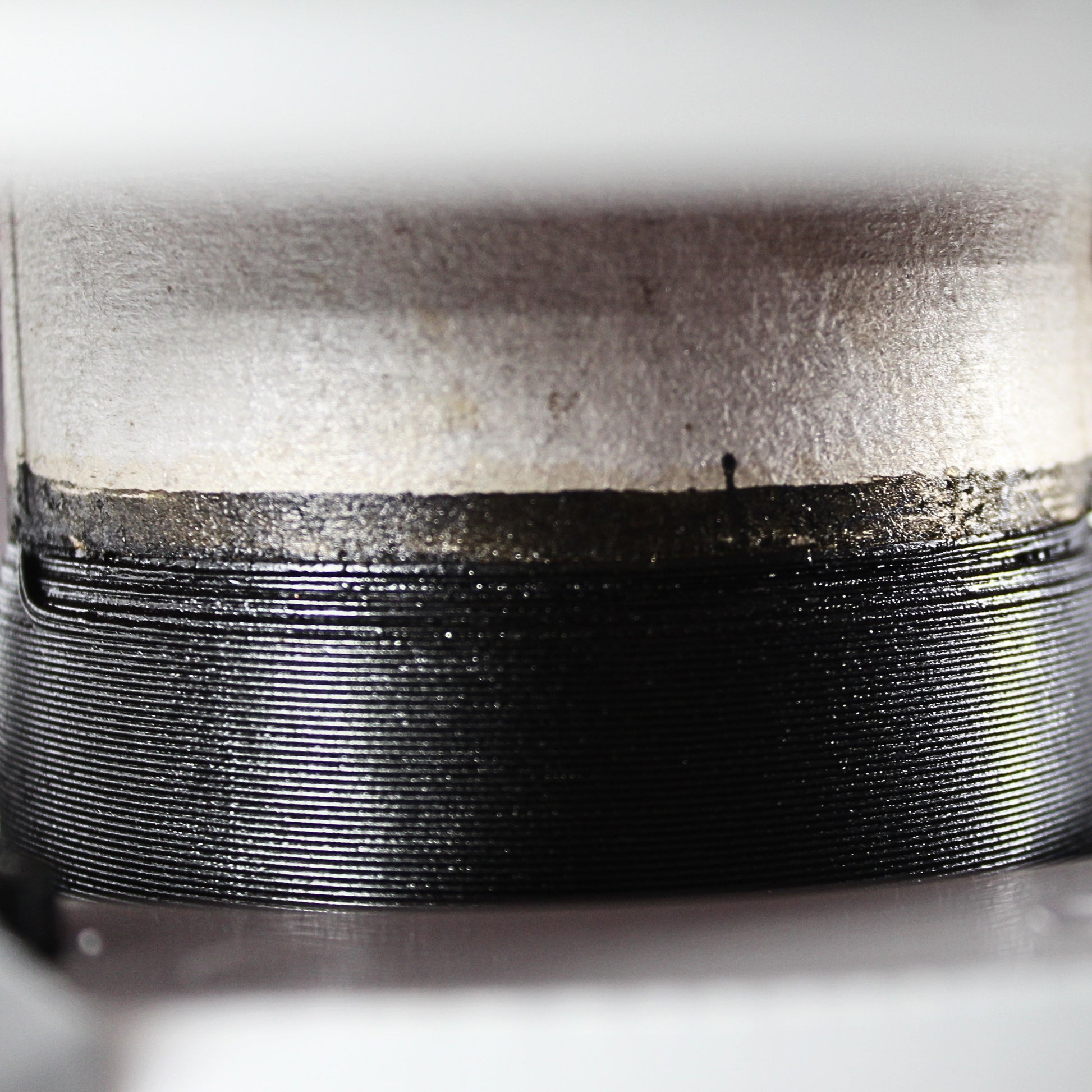

• Dual Voice Coil Design: Equipped with a 3" voice coil and dual 2-ohm impedance, this subwoofer offers versatile wiring options and exceptional flexibility in audio configurations.
• High Sensitivity: With a sensitivity rating of 90.7 dB, the RAGE15-D2-V2 efficiently converts power into sound, delivering deep, impactful bass with clarity and precision.
• Precision Engineering: Engineered with precision Thiele & Small parameters and premium materials, this subwoofer ensures optimized performance and durability for long-lasting enjoyment.
• Versatile Enclosure Options: With enclosure suggestions for sealed, ported compact, and ported setups, the RAGE15-D2-V2 adapts to various audio environments, delivering optimal bass response.

B2 Audio RAGE Series 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

This Listing includes:

• (1) 15" DVC 2-Ohm RAGE Subwoofer

Get pumped for the B2 Audio RAGE15 D2 V2 15" subwoofer! This speaker is a beast! It doesn't just play nice; it dominates with bone-shaking bass that'll make your bones rattle. With a massive 2000 watts RMS power handling and a dual 2-ohm impedance, this sub doesn't just flex its musclesit obliterates the competition. Engineered with precision Thiele & Small parameters and top-notch materials, it's built to handle anything you throw its way. Whether you want to pound the pavement with a sealed, ported compact, or ported enclosure setup, the RAGE15 D2 V2 doesn't mess aroundit's here to blow your mind with its earth-shattering sound. So strap in, turn it up to eleven, and get ready to be blown away by the audio powerhouse that is the RAGE15 D2 V2!

Specifications:

• RMS Power Handling: 2000W


• Max Power Handling: 4000W


• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 2 Ohm


• Voice Coil Diameter: 3"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 90.6 dB


• Magnet Weight: 600 oz


• Displacement Volume: 10.7 L / 0.37 cu.ft

Thiele & Small

• Free Air Resonance (Fs): 25.5 Hz


• Resistance (Re): 1.9 ohm


• Mechanical Factor (Qms): 5.38


• Electrical Factor (Qes): 0.35


• Total Factor (Qts): 0.33


• Equivalent Volume (Vas): 67 L


• Compliance (Cms): 70 um/N


• BL Factor (BL): 262.3


• Moving Mass (Mms): 524.2 g


• Excursion Max (Xmax): 20 mm

Measurements:

• Overall Diameter: 15.35" / 390 mm


• Mounting Diameter: 13.77" / 350 mm


• Bolt Pattern Diameter: 14.76" / 375 mm


• Overall Depth: 9.92" / 252 mm


• Mounting Depth: 8.66" / 220 mm

Enclosure Suggestions:

Sealed:

• 50 L / 1.77 cu.ft


• Qtc 0.41

Ported Compact:

• 100 L / 3.5 cu.ft


• Port: 2 x 4"


• Length : 11.2" / 28.5cm


• FB: 35 Hz

Ported:

• 142 L / 5 cu.ft


• Port Area: 43.4 sq.in


• Length: 22.2" / 56cm


• FB: 30hz
