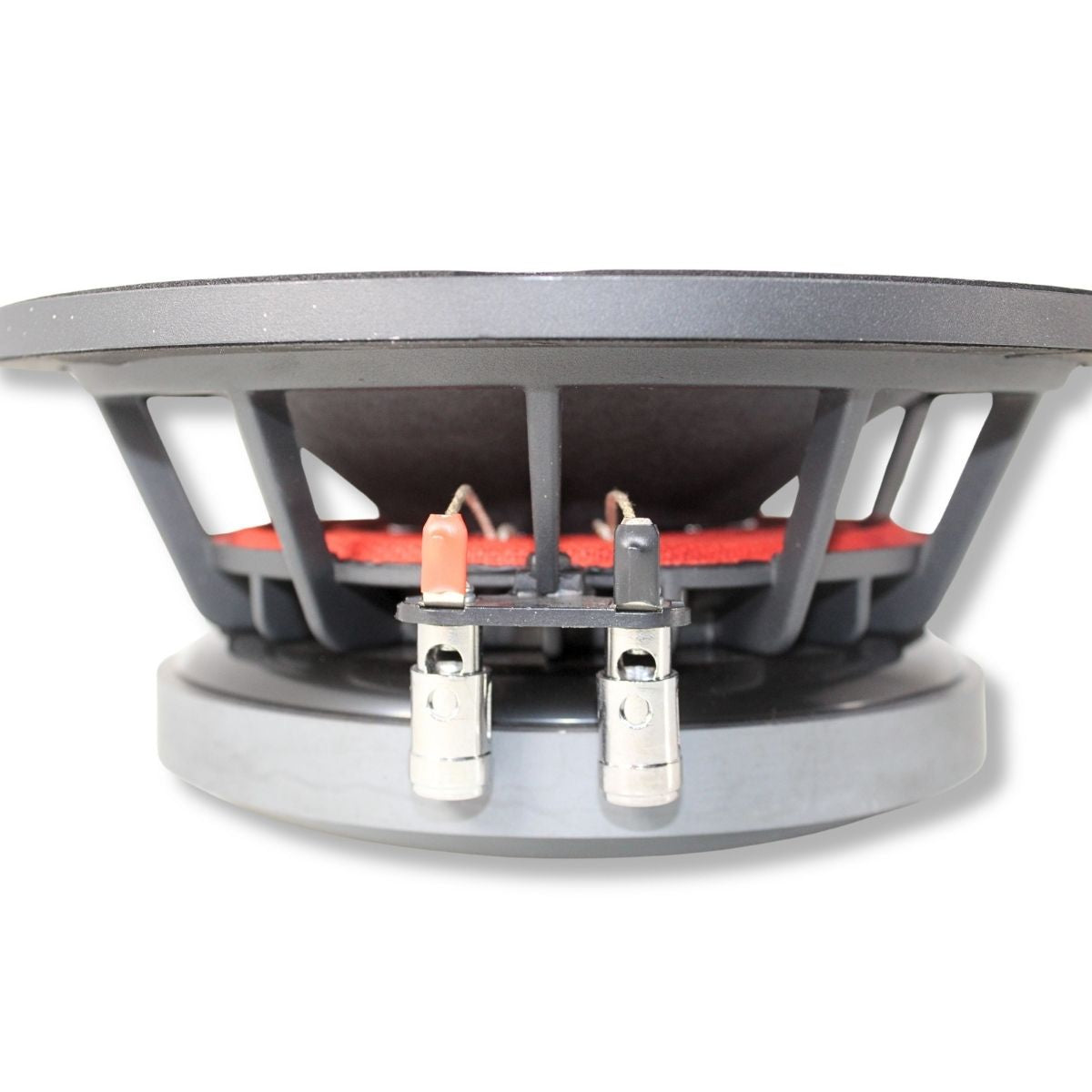

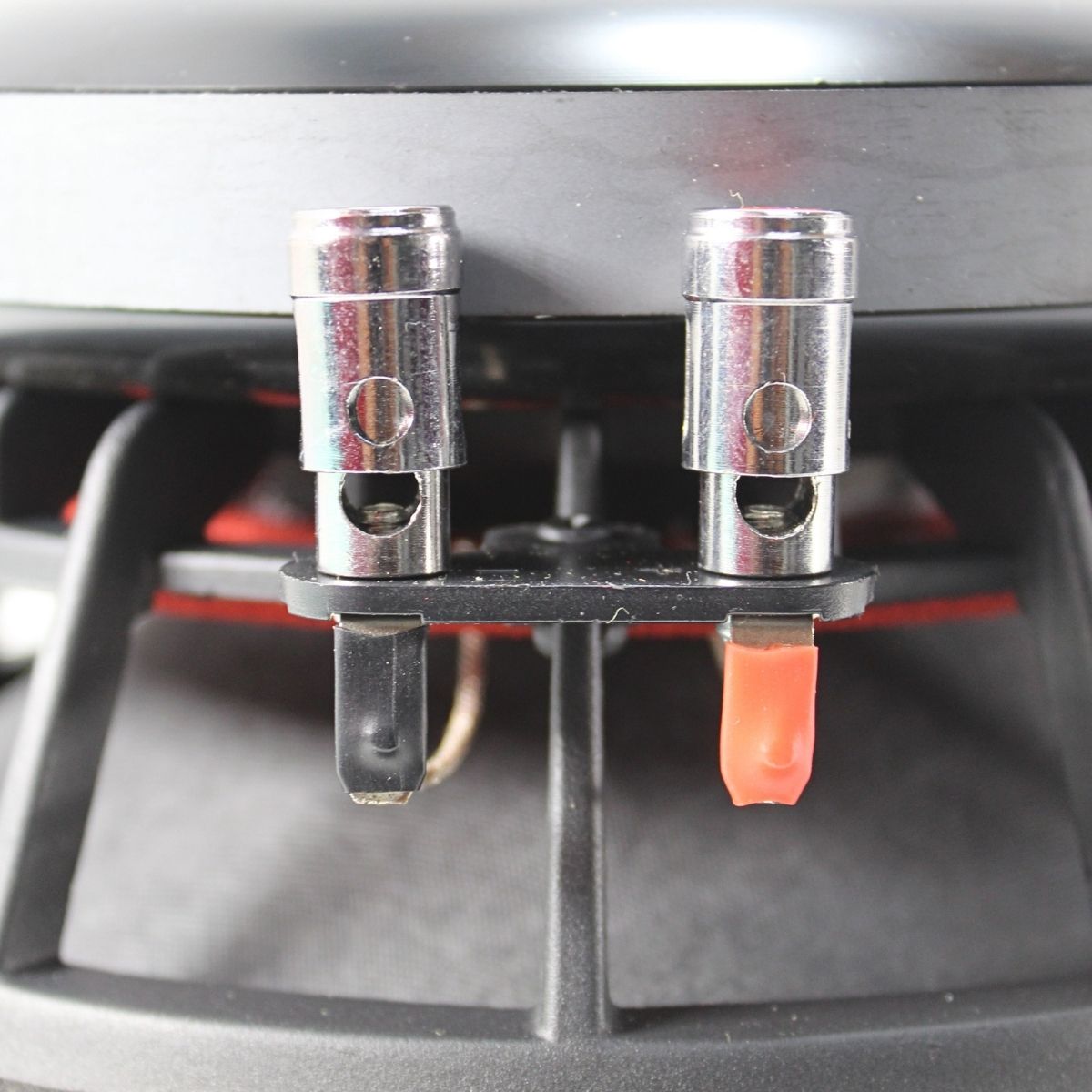

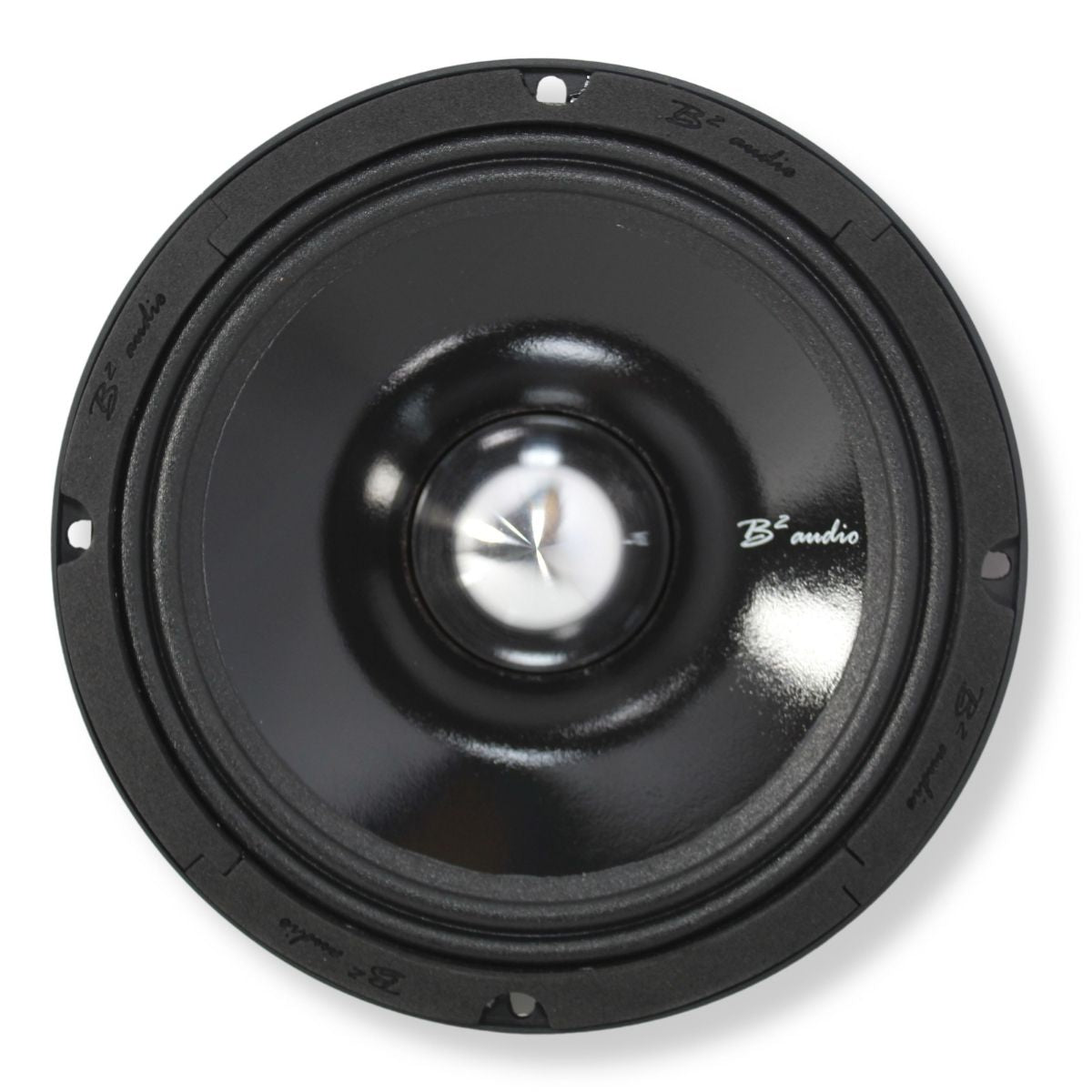

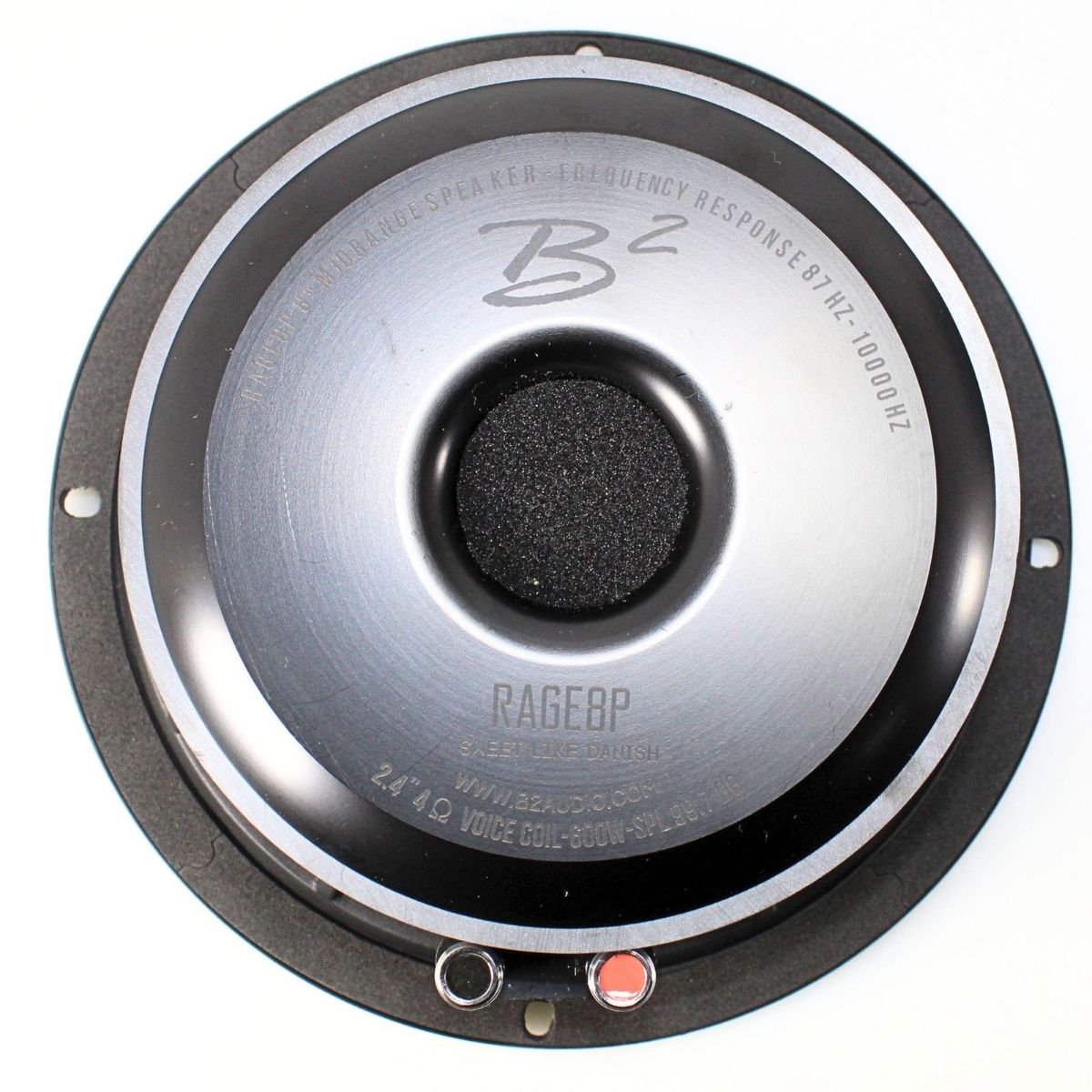

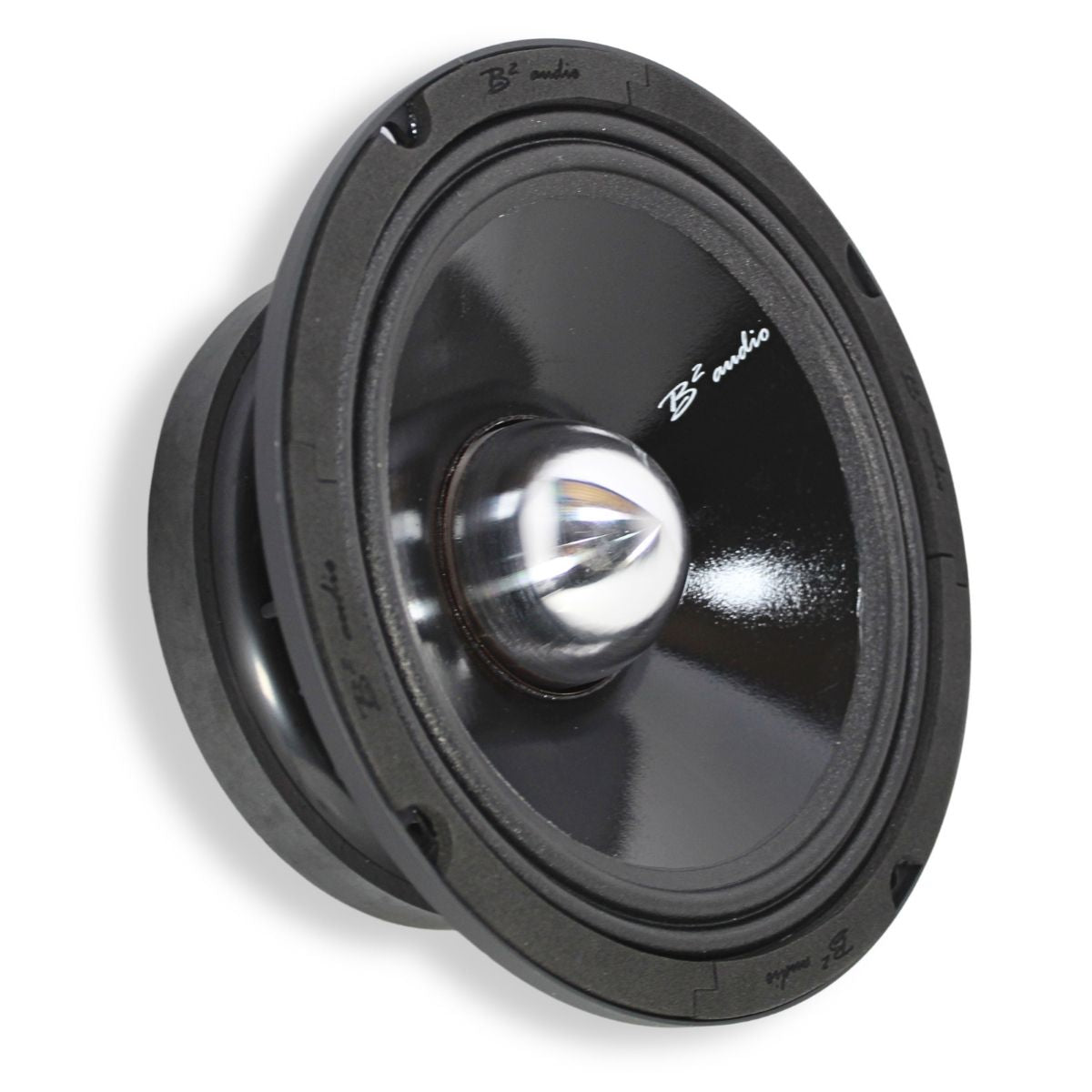

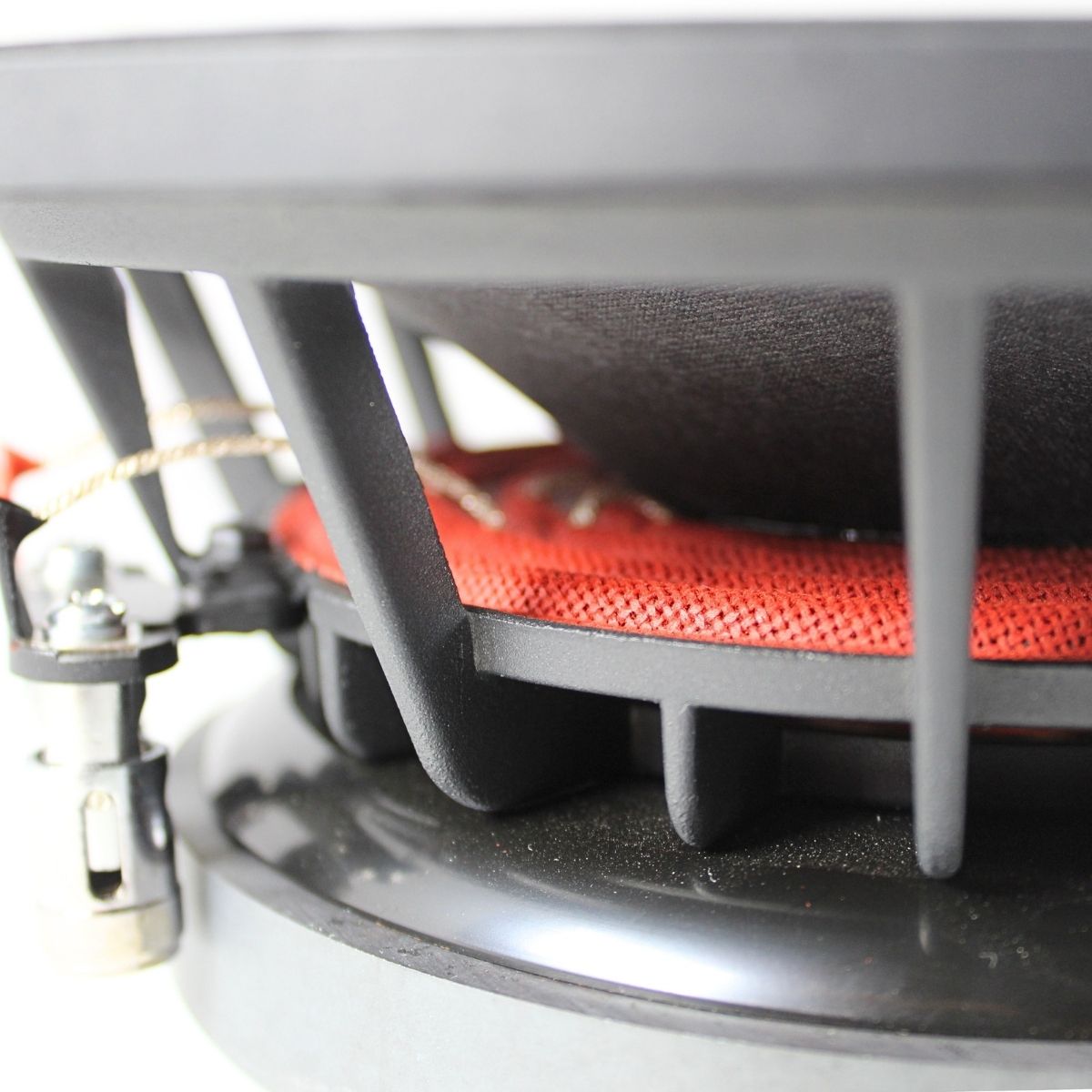

B2 Audio RAGE Series 8" 4-Ohm 250 Watt RMS Mid-Range Speakers UV-Coated Cone, Sold in Pairs RAGE8P

B2 Audio RAGE Series 8" 4-Ohm 250 Watt RMS Mid-Range Speakers UV-Coated Cone, Sold in Pairs RAGE8P

SKU:B2-RAGE8P

CASE QUANTITY: 2

PACKAGE WEIGHT: 8.8 LB

Regular price $224.96
Regular price Sale price $224.96
Sale Sold out
  • Immersive Sound Experience: Enjoy high-quality audio with a frequency range of 80Hz to 8kHz, providing clear and balanced sound reproduction across a wide spectrum of frequencies.
  • Enhanced Sensitivity: With a sensitivity of 95.7 dB, these speakers efficiently convert power into sound, delivering loud and clear audio even at lower power levels.
  • High Power Handling: Featuring a nominal impedance of 4 ohms and an RMS power rating of 250W, these speakers deliver powerful and dynamic sound, perfect for upgrading your car audio system.
  • Linear Frequency Response: The upper frequencies of the RAGE8 speakers feature a linear, but peaked response of up to 5 dB compared to frequencies below 3 kHz, providing an open and uncompressed sound experience.


B2 Audio Pair of Rage 8" 4-Ohm 300W RMS Mid-Range Speakers RAGE8P


This Listing Includes:



  • (2) B2 Audio Rage 8" Speakers

  • (2) Set of Hardware


Get ready to unleash the rage of premium sound with the B2 Audio Pair of Rage 8" 4-Ohm 300 Watt RMS Mid-Range Speakers! Engineered for maximum performance, these speakers pack a punch with 300 watts RMS power handling, ensuring every beat hits with precision and power. Whether you're cruising down the highway or rocking out in your garage, the crystal-clear sound and robust construction of these speakers deliver an audio experience like no other. Upgrade your car audio system or revamp your home setup with the B2 Audio Rage series and feel the power of pure sound


Specifications:



  • Nominal Chassis Diameter: 8.31 / 211 in/mm

  • RMS Power Handling: 300W

  • Max Power Handling: 600W

  • Nominal Impedance: 4 Ohm

  • Voice Coil Diameter: 2.4"

  • Winding Material: CCAR

  • Frequency Response: 87 Hz ~ 10 kHz

  • Sensitivity: 99.7 dB

  • Resonance (Natural) Frequency: 87 Hz

  • Magnet Weight: 41.5 oz

  • Magnet Type: Neo / Ferrite

  • Cone Material: UV Treated Paper

  • Surround Type: Dual U Shaped Cloth


Thiele & Small:



  • Free Air Resonance (Fs): 87 Hz

  • Resistance (Re): 3.3 ohm

  • Mechanical Factor (Qms): 11.025

  • Electrical Factor (Qes): 0.256

  • Total Factor (Qts): 0.251

  • Equivalent Volume (Vas): 14.69 L

  • Compliance (Cms): 110 um/N

  • BL Factor (BL): 10.79 T/M

  • Moving Mass (Mms): 16.4 g

  • Excursion Max (Xmax) (One Way): 0.20" / 5 mm

  • SD: 226 cm squared

  • Efficiency: 3.742 percent

  • Le (1 KHz): 0.303 mH

  • EBP: 339.8


Measurements:



  • Overall Diameter: 8.3" /211mm

  • Bolt Circle Diameter: 7.48" / 190mm

  • Baffle Cutout Diameter: 7.13" / 181mm

  • Total Depth: 3.35" / 85mm

  • Mounting Depth: 3.05" / 77.5mm

  • Net Weight(1 PC): 3.41 kgs

  • Shipping Weight (1 PC): 4.32 kgs

  • Shipping Box (1 PC): 257 x 241 x 110 mm
