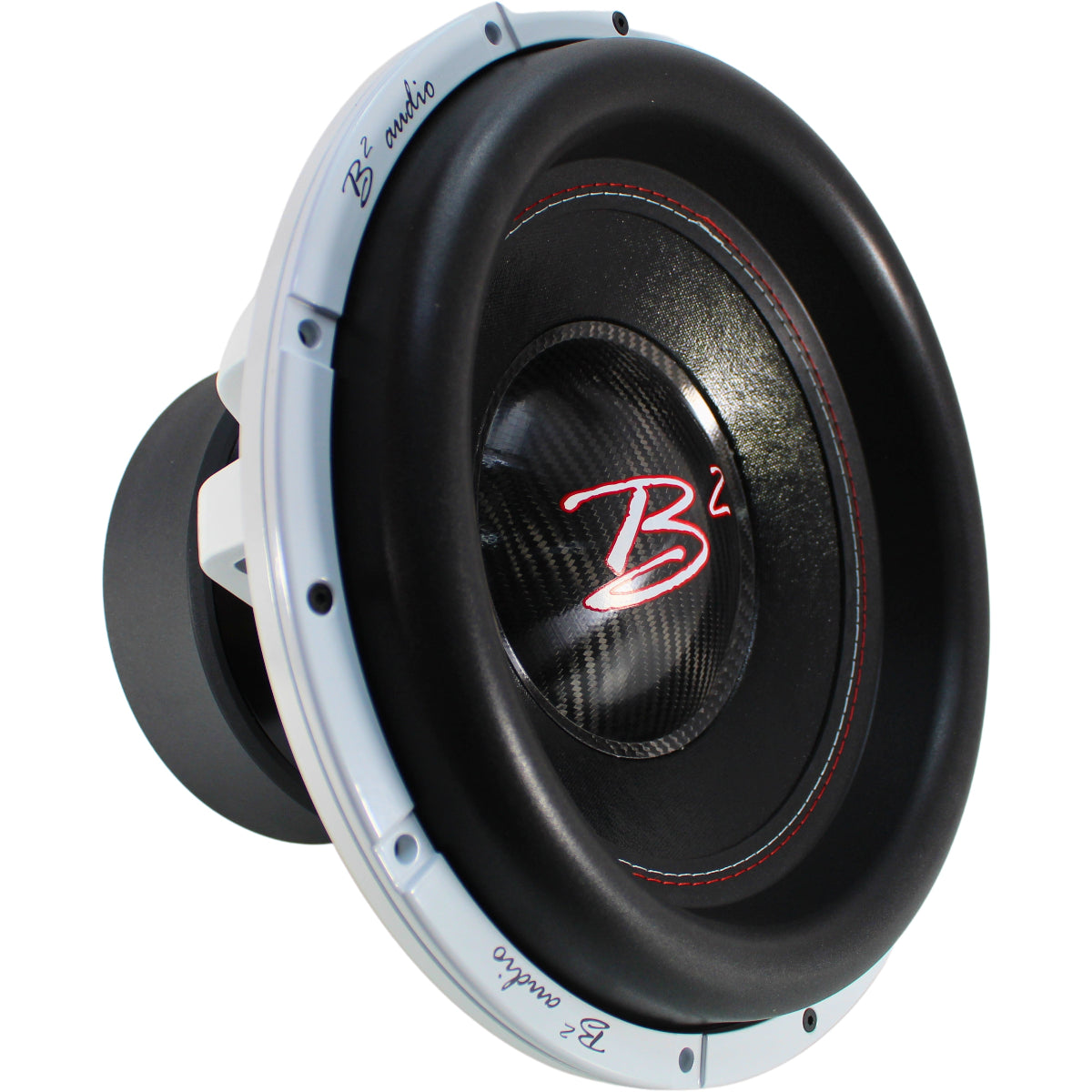

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 1-Ohm 3" Voice Coil Subwoofer

• Unleash Thunderous Bass: Experience spine-tingling lows and room-shaking bass with the B2 Audio RAGE Series 15" Subwoofer's impressive 2000W RMS power output.
• Dual 1-Ohm Voice Coils: Enhance flexibility and compatibility with various amplifier configurations, allowing for seamless integration into your car audio system or home setup.
• Robust 3" Voice Coil: Built for maximum performance and durability, the 3" voice coil ensures optimal heat dissipation, enabling extended listening sessions without sacrificing sound quality.
• Precision Engineering: Crafted with meticulous attention to detail, the B2 Audio RAGE Series 15" Subwoofer delivers unparalleled sonic accuracy and clarity, immersing you in a world of pure audio perfection.
• Ultimate Audio Experience: Whether you're a die-hard audiophile or a car audio enthusiast, this subwoofer promises to elevate your listening experience to new heights, allowing you to feel the music like never before.

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 1-Ohm 3" Voice Coil Subwoofer

This Listing Includes:

• (1) B2-RAGE15-D1-V3 15" Subwoofer

Unleash the fury of thunderous bass with the B2 Audio RAGE Series 15" Subwoofer. Engineered for the most demanding audiophiles and car audio enthusiasts, this powerhouse delivers an unparalleled sonic experience. With a jaw-dropping 2000W RMS power output, dual 1-ohm voice coils, and a robust 3" voice coil, prepare to feel the rumble in your bones with every beat. Whether you're craving earth-shaking lows for your car audio setup or seeking to elevate your sound system to new heights, the B2 Audio RAGE Series 15" Subwoofer is your ultimate weapon of choice. Dominate the competition and immerse yourself in pure, unadulterated audio bliss. It's not just a subwoofer; it's a force to be reckoned with.

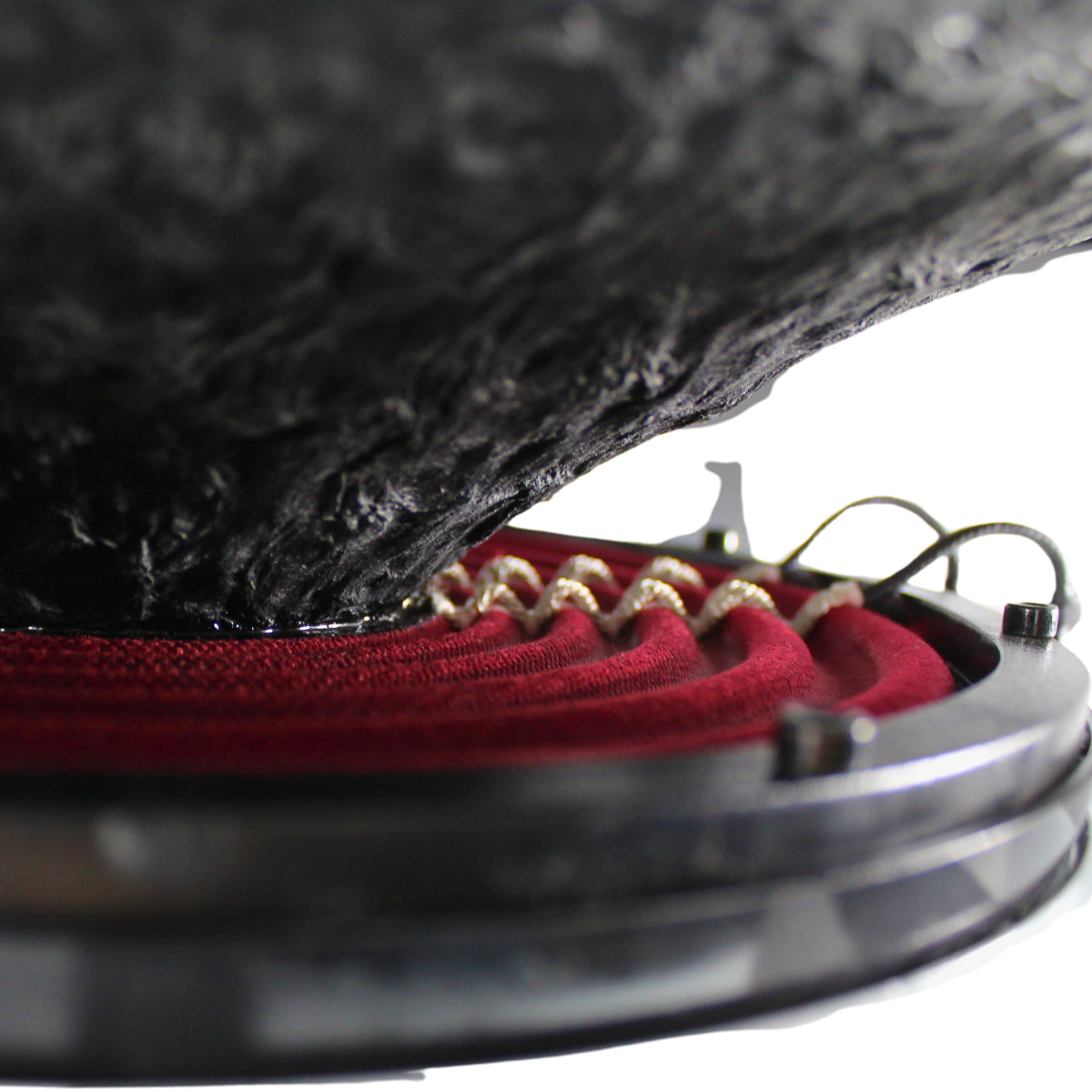

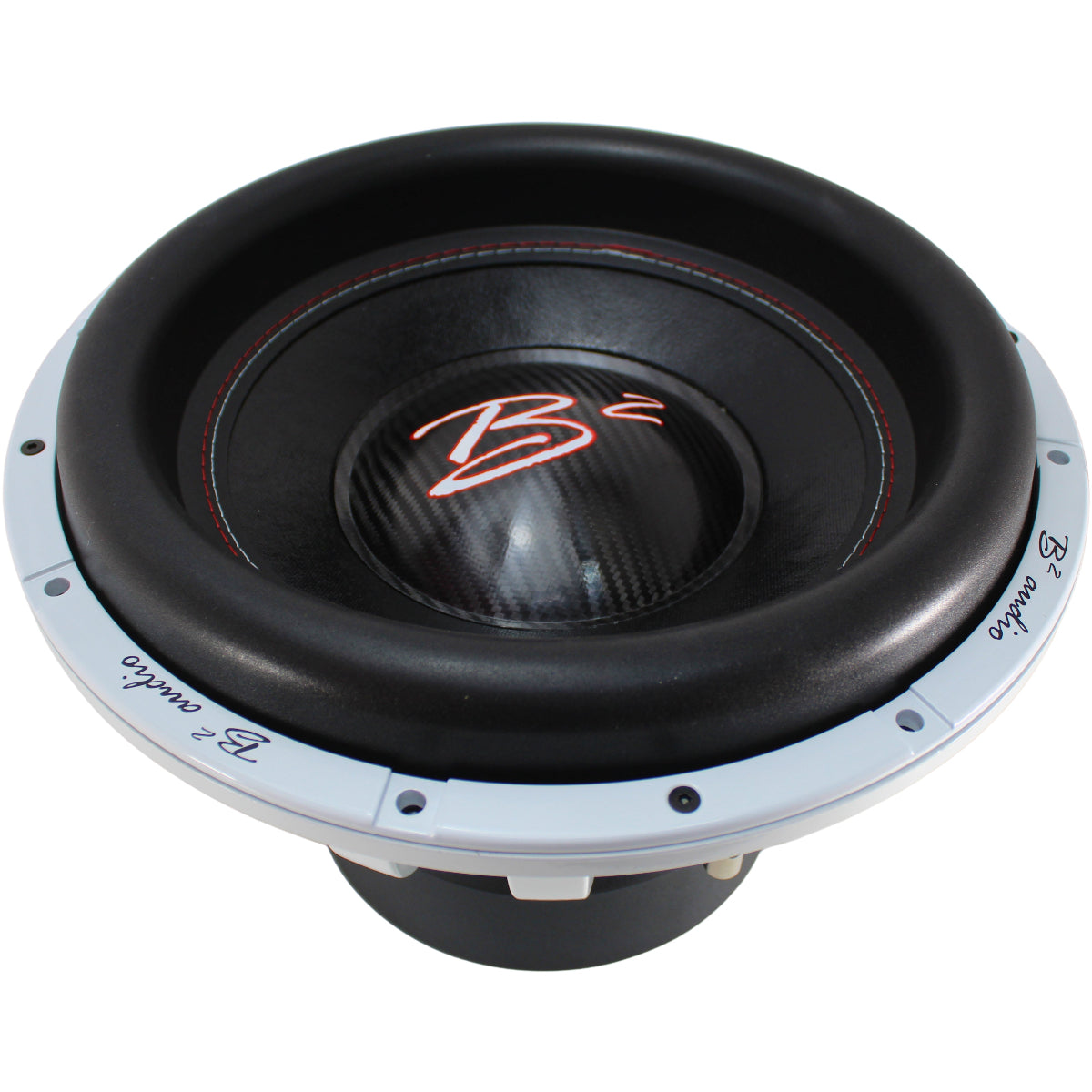

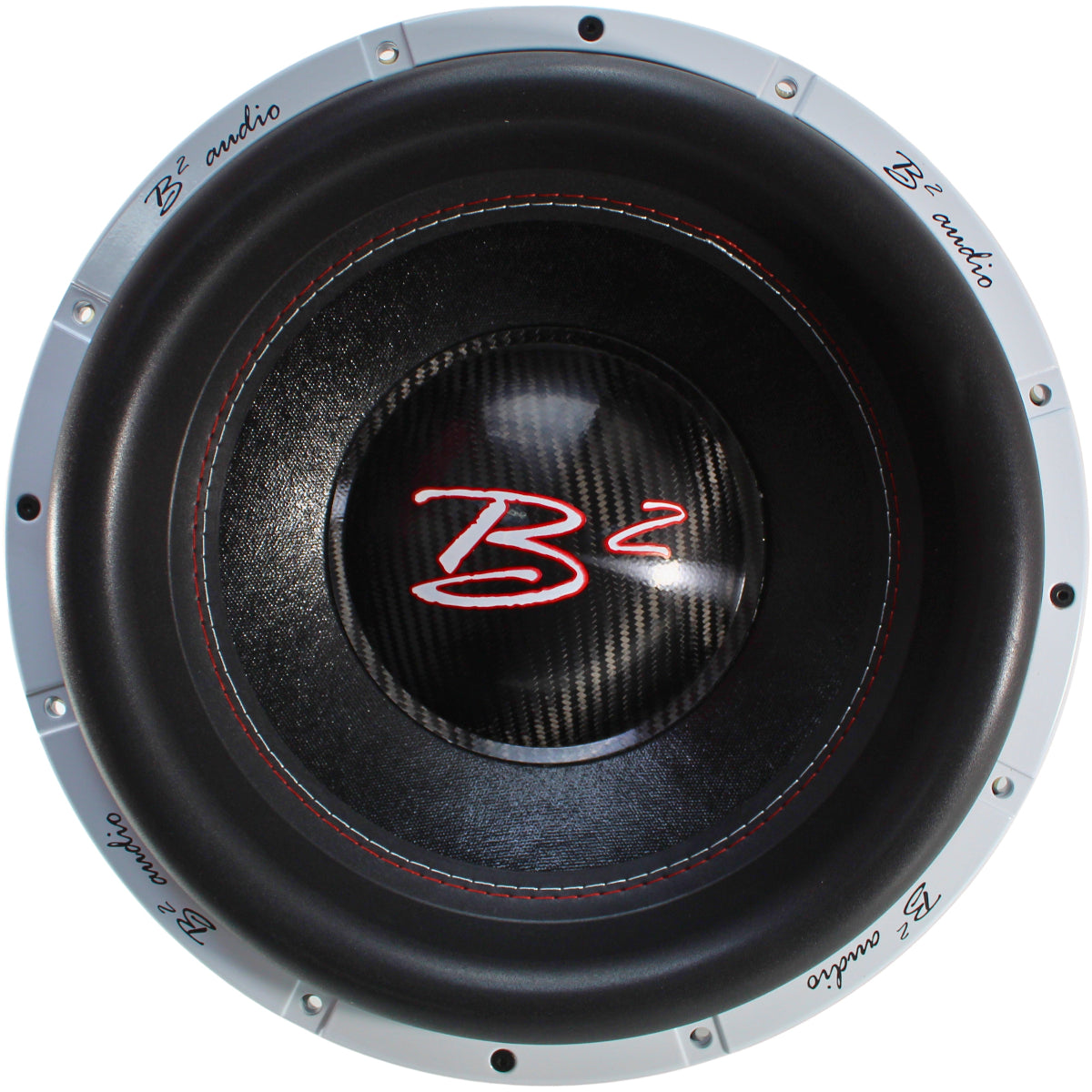

Version 3 features a carbon fiber cone with a dust cap and a noticeably taller surround for enhanced performance.

Features

• 2000W RMS / 4000W Max for extreme bass output


• Dual 1-ohm configuration for versatile amplifier wiring


• 3" high-temperature voice coil for long-term thermal stability


• Carbon fiber cone with tall surround for improved excursion and rigidity

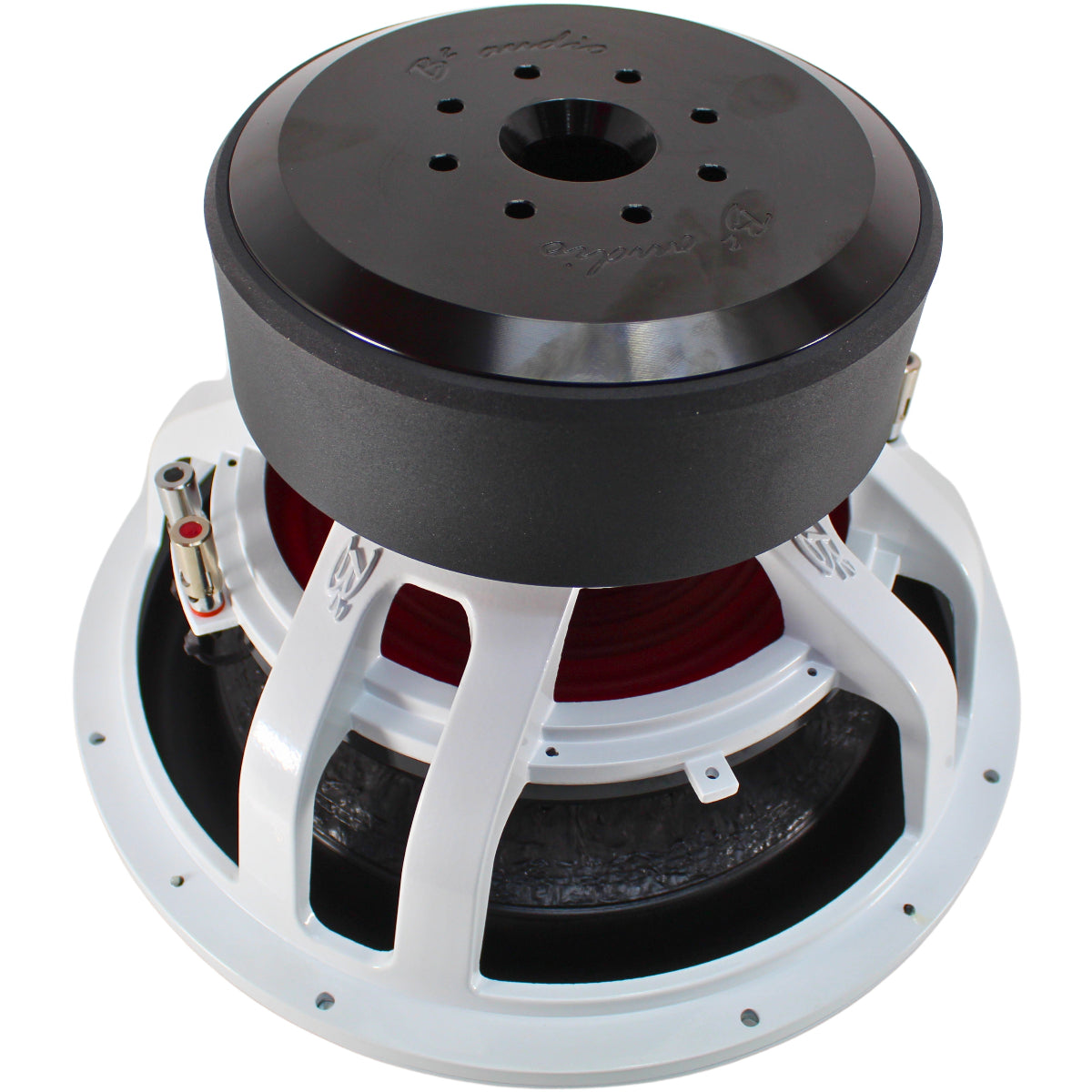

• 600 oz ferrite motor for strong motor force and deep low-frequency control


• 20 mm Xmax (one way) for powerful, controlled sub-bass extension


• Wide 10 Hz – 500 Hz frequency response


• Designed for sealed, compact ported, and large ported enclosures


• Ideal for high-powered daily systems, demo builds, and SPL-ready setups

Specifications:

• RMS Power Handling: 2000 Watts


• Max Power Handling: 4000 Watts


• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 1-Ohm


• Voice Coil Diameter: 3"


• Frequency Response: 10 Hz - 500 Hz


• Sensitivity: 82.4 dB


• Magnet Weight: 600 oz


• Displacement Volume: 10.7 L / 0.37 cu. ft.

Thiele & Small Parameters

• Free Air Resonance (Fs): 26.8 Hz


• Resistance (Re): 1-Ohm


• Mechanical Factor (Qms): 5.11


• Electrical Factor (Qes): 0.41


• Total Factor (Qts): 0.38


• Equivalent Volume (Vas): 67.1 L


• Compliance (Cms): 70 um/N


• BL Factor (BL): 200 BL^2/RE


• Moving Mass (Mms): 476.3 g


• Excursion Max (Xmax): 20 mm

Enclosure Suggestions:

Sealed:

• 50 L / 1.77 cu.ft


• Otc: 0.464

Ported Compact:

• 100 L / 3.5 cu.ft


• Port: 2 x 4"


• Length: 11.2" / 28.5 cm


• FB: 35 Hz

Ported:

• 142 L / 5 cu.ft


• Port Area: 43.4 sq.in


• Length: 22.2" / 56 cm


• FB: 30 Hz

Dimensions:

• Overall Diameter: 15.35"   / 390 mm


• Mounting Diameter: 13.77"   / 350 mm


• Bolt Pattern Diameter:   14.76" / 375 mm


• Overall Depth: 9.92" /   252 mm


• Mounting Depth: 8.66" /   220 mm
