B2 Audio RAGE12-D1-V4 12" 2000W RMS Subwoofer with RAGE 3500 Amp

• 2000W RMS High-Excursion Subwoofer: the RAGE Series V4 uses a larger surround, 3-inch voice coil, and 20 mm Xmax for powerful low-frequency output.
• Properly Matched at 2 Ohms: wire the dual 1-ohm voice coils in series so the included amplifier can deliver between 1850 and 2150 watts RMS.
• Heavy-Duty Construction: a 630 oz magnet assembly, 4-gauge push terminals, and upgraded suspension support demanding high-power applications.
• Flexible Enclosure Options: works with sealed, compact ported, and full-size ported boxes for different space and bass-response requirements.
• Includes Monitoring Bass Knob: adjust the bass level while viewing amplifier temperature and vehicle voltage from the included remote display.

B2 Audio RAGE12-D1-V4 12" 2000W RMS Subwoofer with RAGE 3500 Amp

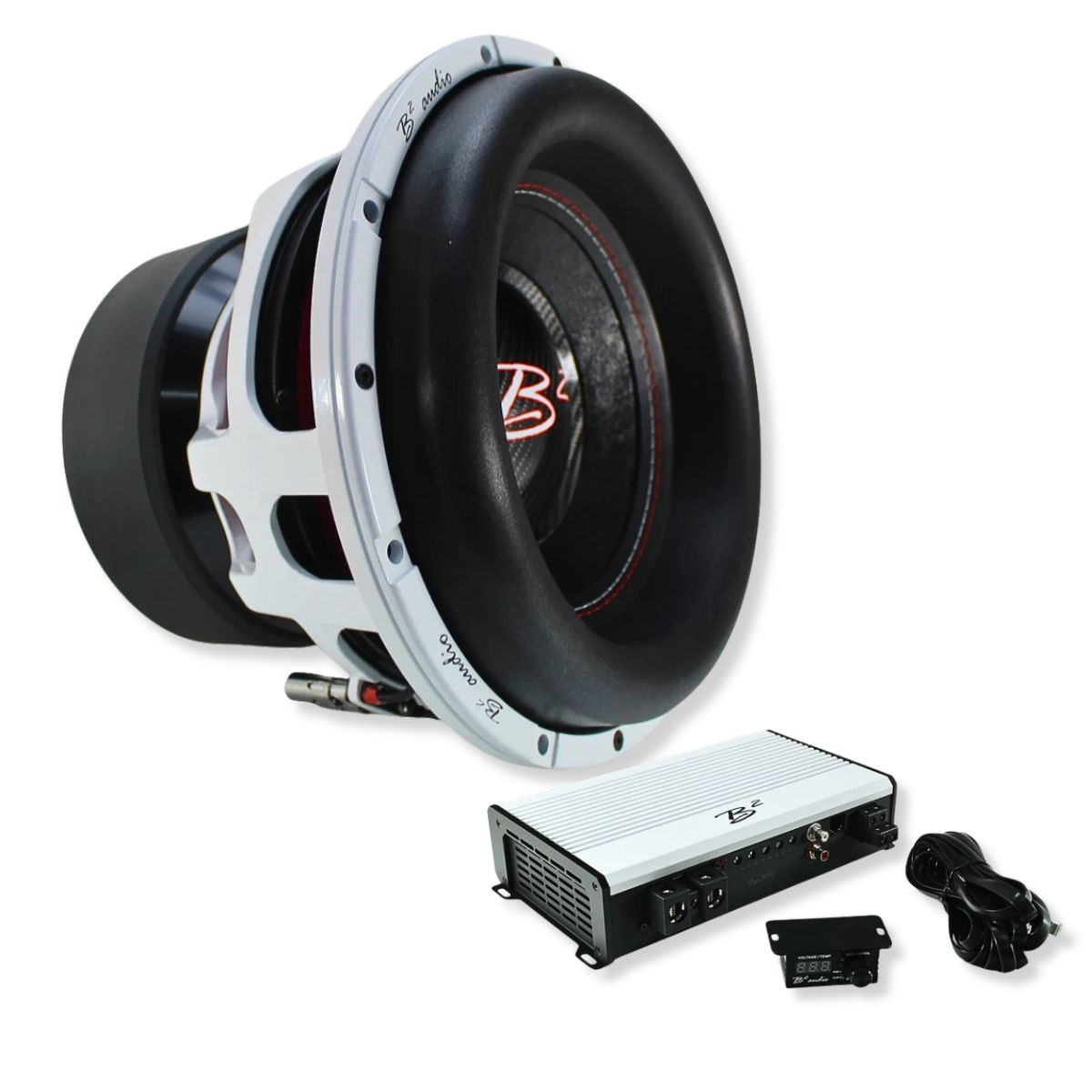

This Listing Includes:

• (1) B2 Audio RAGE Series V4 12" Dual 1-Ohm Subwoofer

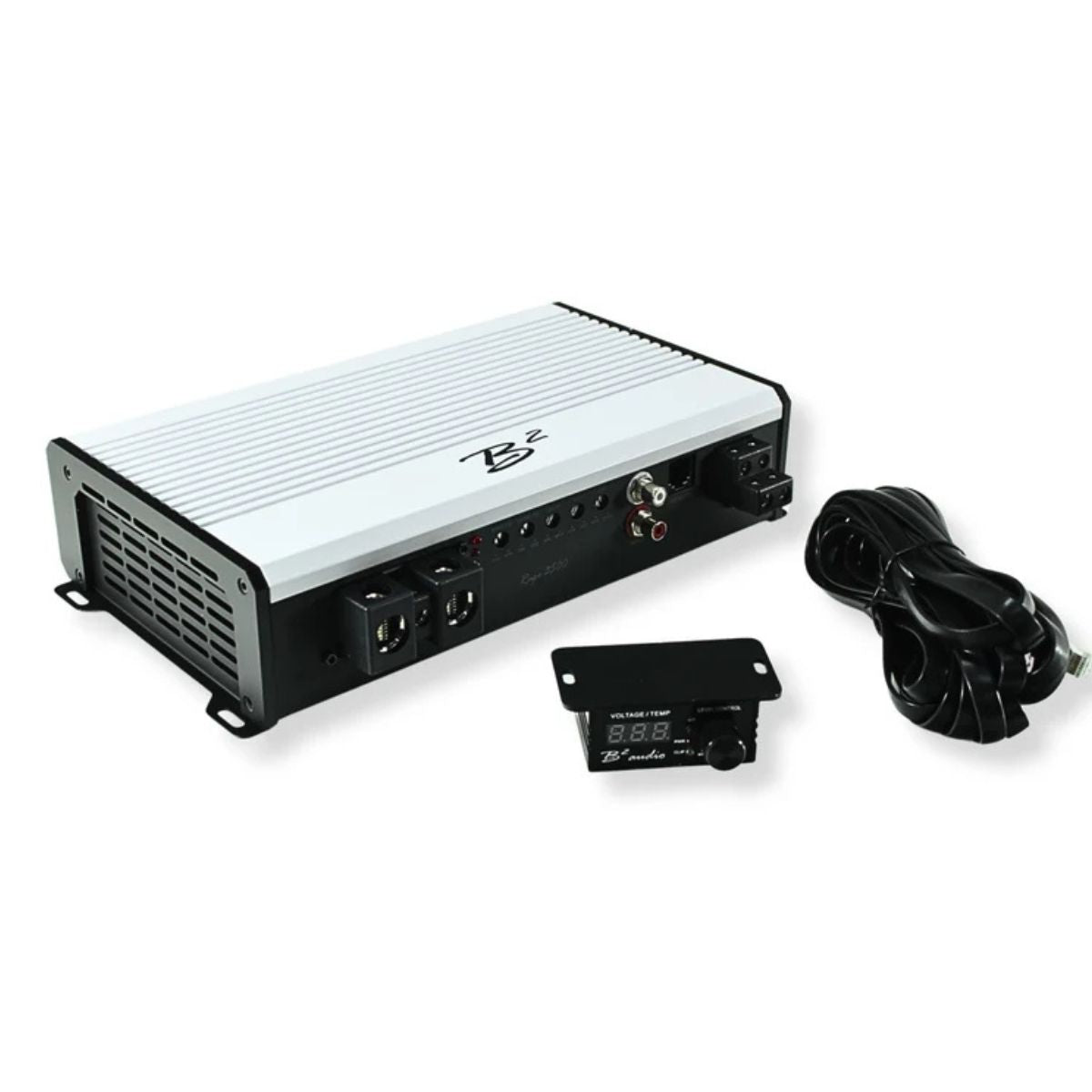

• (1) B2 Audio RAGE 3500 Monoblock Amplifier

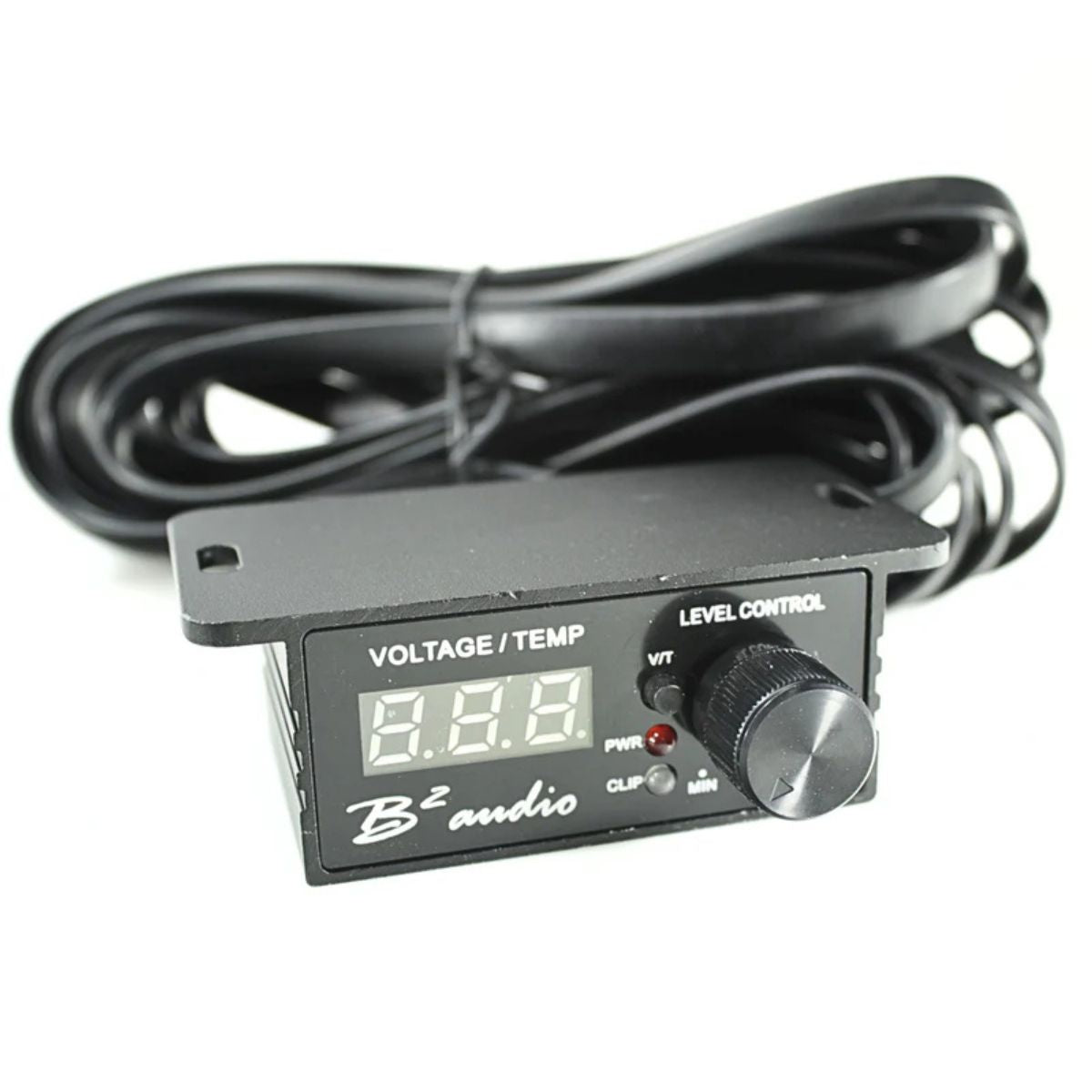

• (1) Bass Knob with Voltage and Temperature Display


• (1) Remote Wire


• Mounting Hardware

The B2 Audio RAGE Series V4 12-inch subwoofer delivers 2000 watts RMS of high-excursion bass from an upgraded design featuring a larger surround, 3-inch voice coil, and 20 mm Xmax. This package includes the B2 Audio RAGE 3500 monoblock amplifier, providing a strong power match when the subwoofer is wired correctly.

The subwoofer’s dual 1-ohm voice coils should be wired in series to create a 2-ohm final load. At 2 ohms, the RAGE 3500 amplifier produces between 1850 and 2150 watts RMS, closely matching the subwoofer’s 2000W RMS power rating.

The V4 design features a larger surround for increased excursion and improved low-frequency output. Its 630 oz magnet assembly, 4-gauge push terminals, and heavy-duty motor structure are built to handle demanding daily and high-output applications.

The included full-range Class-D monoblock amplifier offers adjustable low-pass, high-pass, and subsonic crossovers. Its remote bass knob allows convenient output adjustment while displaying vehicle voltage and amplifier temperature.

The voice coils must not be wired in parallel with this amplifier. A parallel connection creates a 0.5-ohm final load, which is below the amplifier’s rated 1-ohm minimum impedance.

Features

• 12-inch RAGE Series V4 high-excursion subwoofer


• 2000W RMS and 4000W maximum power handling


• Dual 1-ohm voice coils wire in series to 2 ohms


• Heavy-duty 3-inch voice coil


• Upgraded larger surround for increased excursion


• 20 mm Xmax for strong low-frequency output


• Massive 630 oz magnet assembly


• Heavy-duty 4-gauge push terminals


• Compatible with sealed and ported enclosures


• RAGE 3500 full-range Class-D monoblock amplifier


• 1850 to 2150 watts RMS at the recommended 2-ohm load


• Adjustable low-pass, high-pass, and subsonic crossovers


• Bass knob with voltage and temperature display included

Specifications

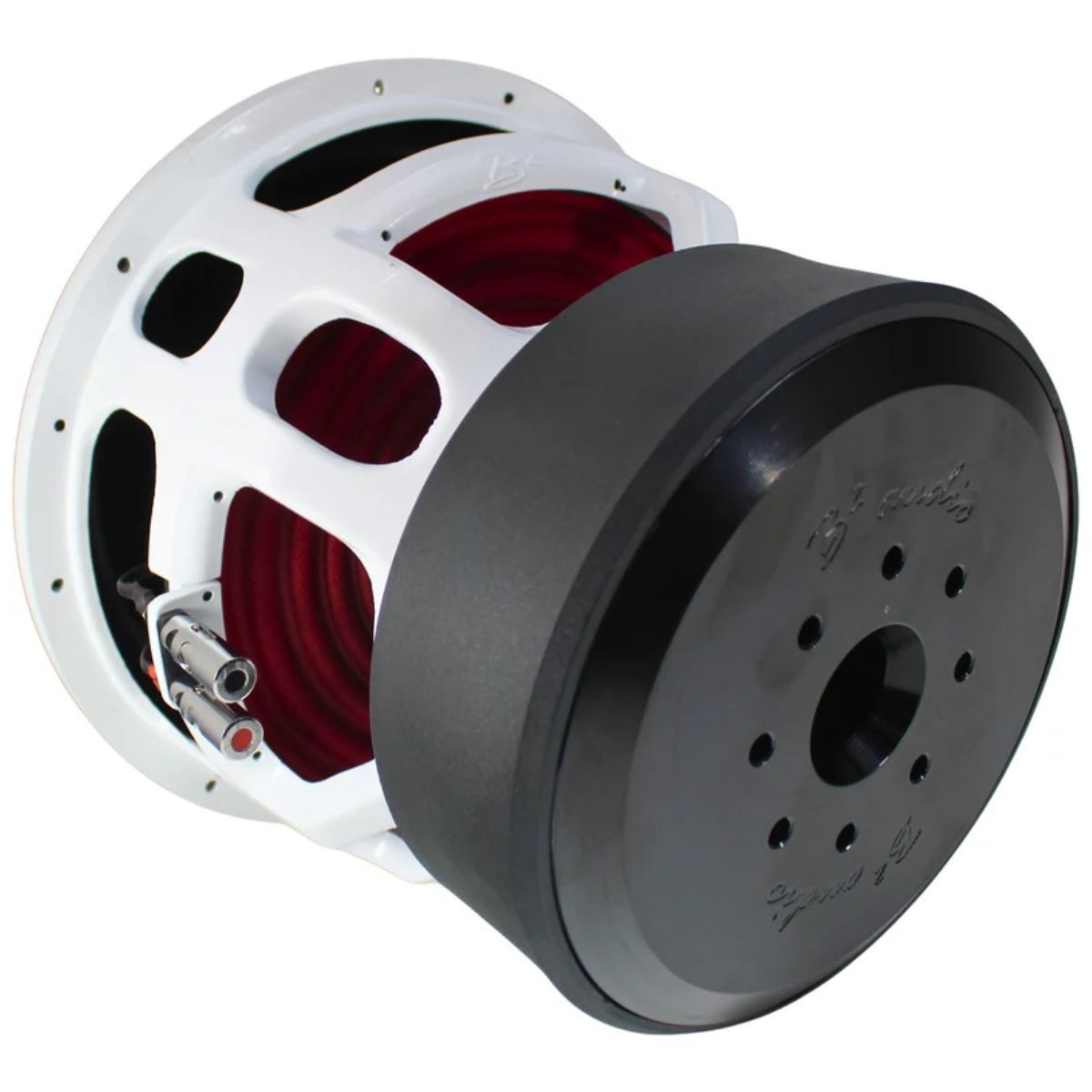

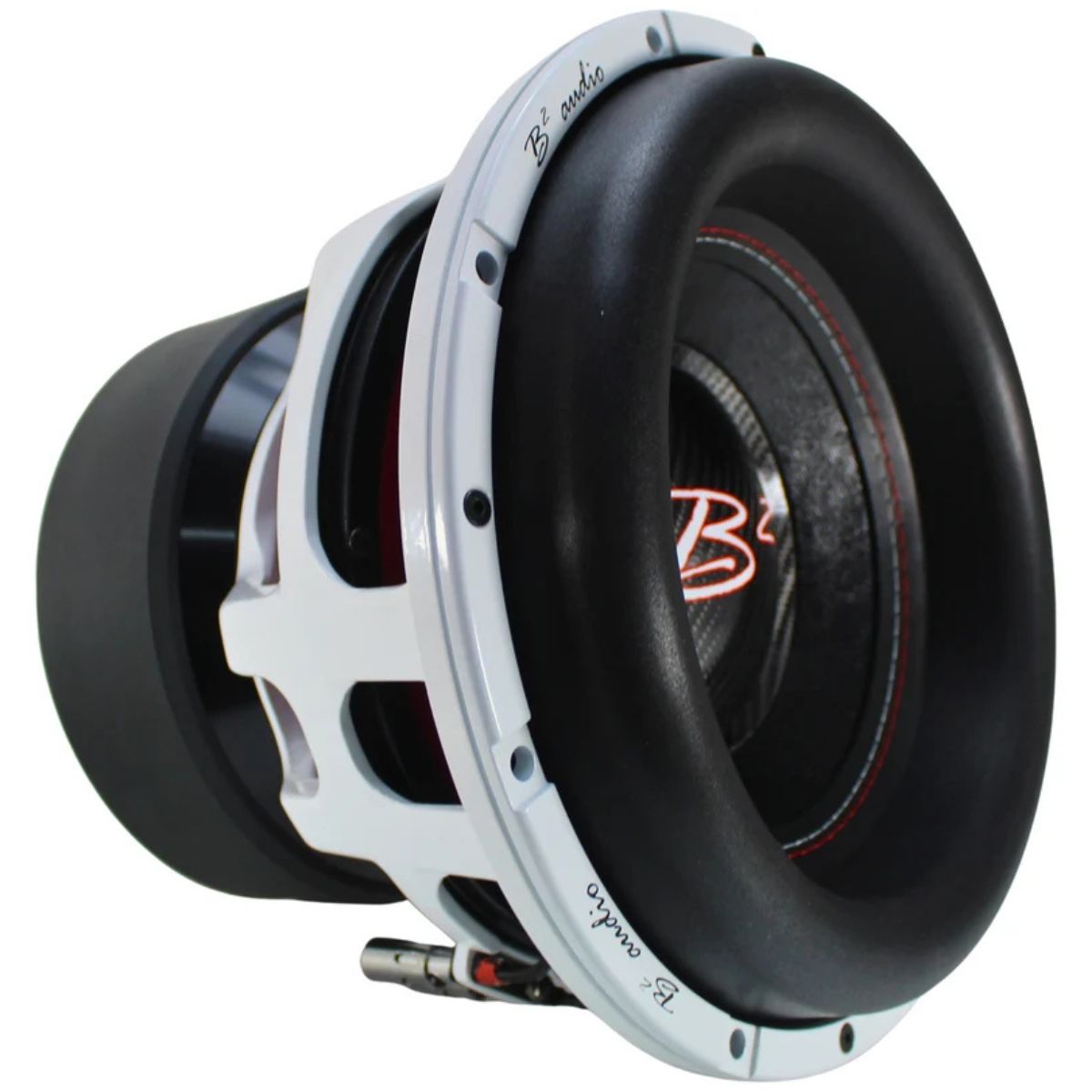

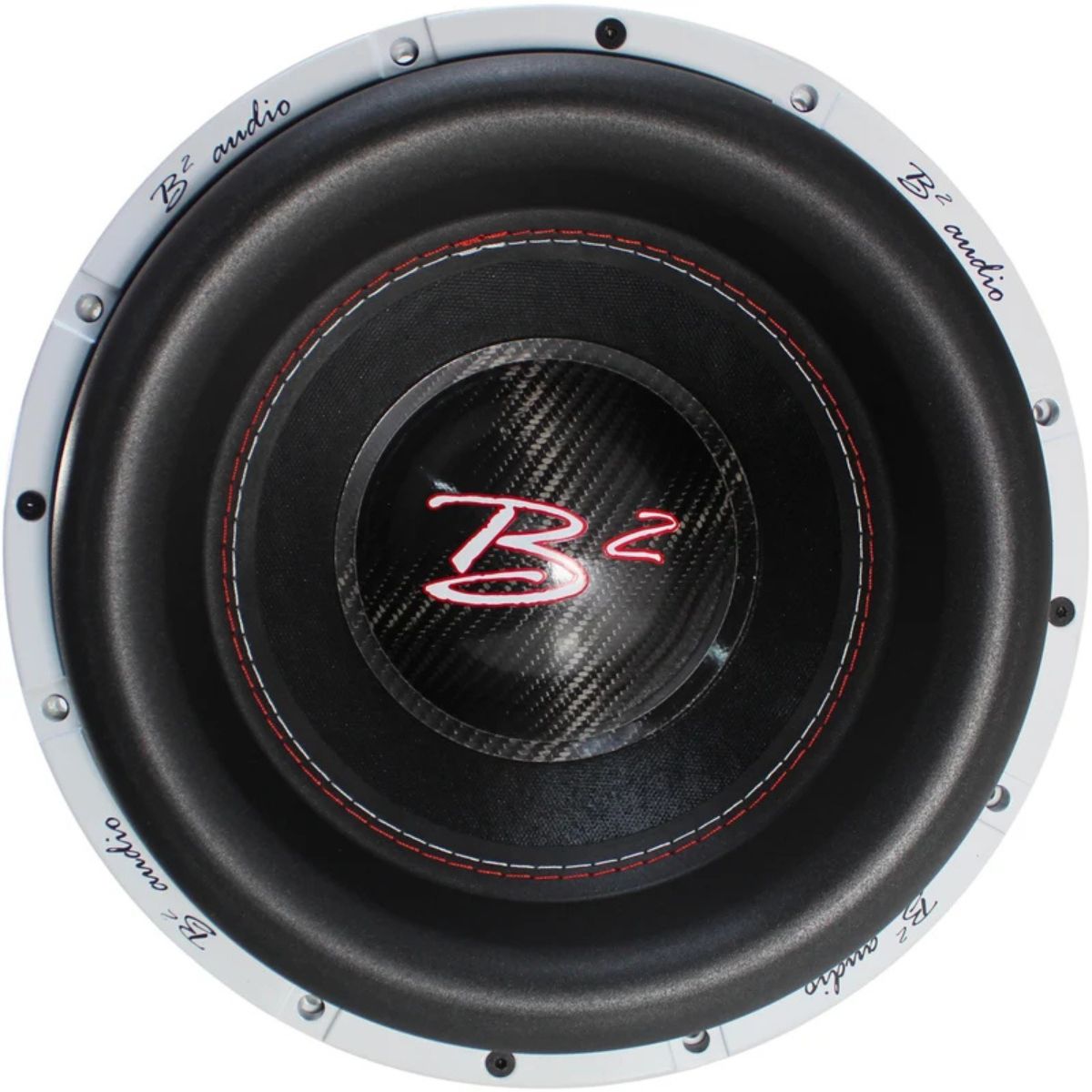

RAGE12-D1-V4 Subwoofer

• Size: 12 inches


• RMS Power Handling: 2000 watts


• Maximum Power Handling: 4000 watts


• Nominal Impedance: Dual 1 ohm


• Recommended Final Load: 2 ohms


• Voice Coil Diameter: 3 inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 91.2 dB


• Xmax: 20 mm


• Magnet Weight: 630 oz


• Push Terminal Capacity: 4 gauge


• Displacement Volume: 7.4 L / 0.26 cubic feet


• Overall Diameter: 12.24 inches


• Mounting Diameter: 11.11 inches


• Bolt Pattern Diameter: 11.57 inches


• Mounting Depth: 8.85 inches


• Overall Depth: 10.21 inches

Thiele and Small Parameters

• Free-Air Resonance: 29.5 Hz


• Resistance: 1 ohm


• Qms: 5.19


• Qes: 0.44


• Qts: 0.4


• Vas: 29.4 L


• Cms: 80 um/N


• BL Factor: 151.38


• Moving Mass: 334.6 g


• Xmax: 20 mm

Suggested Enclosures

• Sealed Volume: 1.05 cubic feet


• Sealed Qtc: 0.451


• Compact Ported Volume: 1.13 cubic feet


• Compact Port Diameter: 4 inches


• Compact Port Length: 13.2 inches


• Compact Tuning Frequency: 42 Hz


• Ported Volume: 2.25 cubic feet


• Port Area: 18.6 square inches


• Port Length: 19.7 inches


• Ported Tuning Frequency: 32 Hz

Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.

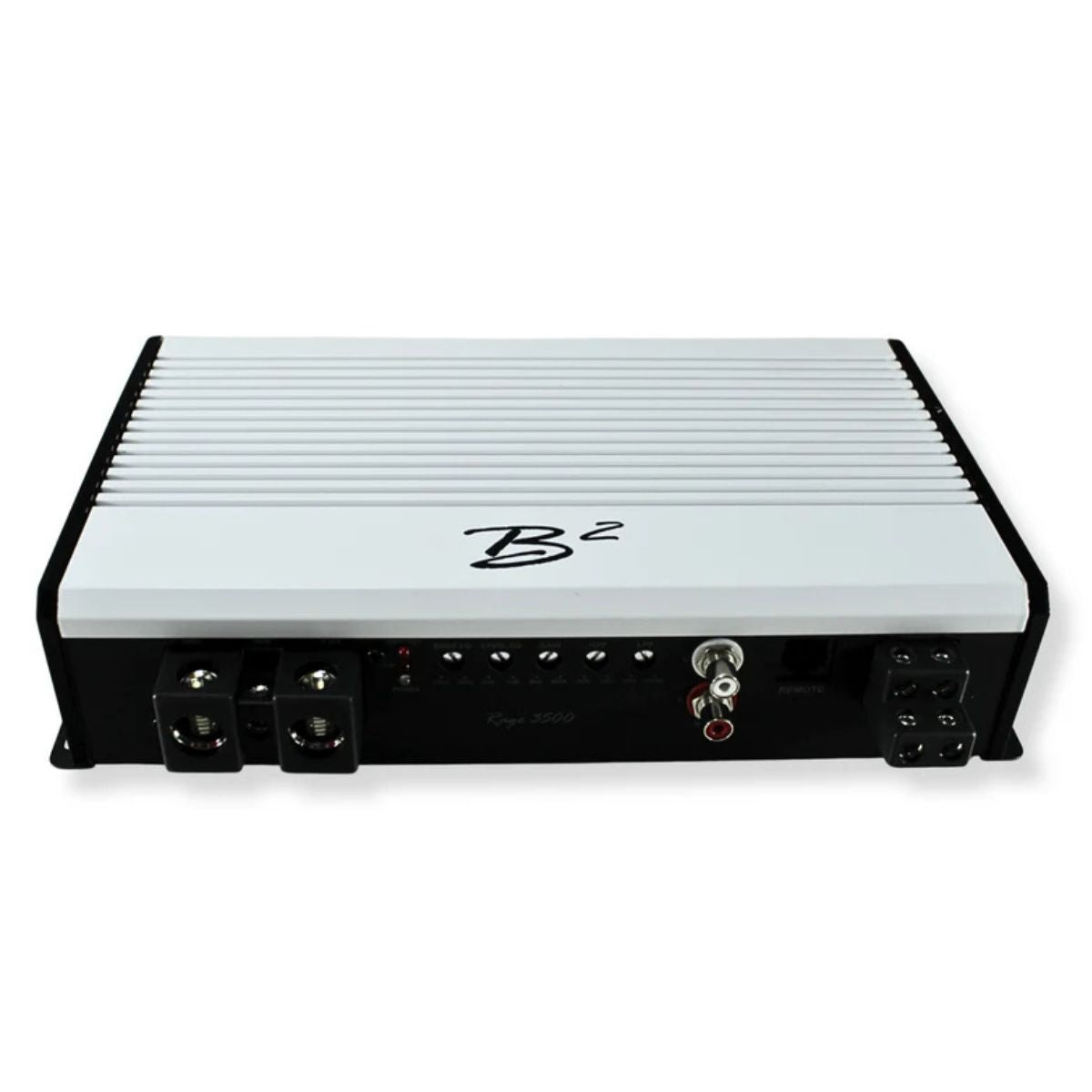

RAGE 3500 Amplifier

• Amplifier Type: Full-Range Class-D Monoblock


• RMS Power at 4 Ohms: 1050 to 1200 watts


• RMS Power at 2 Ohms: 1850 to 2150 watts


• RMS Power at 1 Ohm: 3000 to 3500 watts


• Frequency Response: 10 Hz to 20 kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 0.2V to 6V


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Bass Control Frequency: 30 Hz to 80 Hz


• Low-Pass Crossover: 50 Hz to 20 kHz


• High-Pass Crossover: 10 Hz to 2 kHz


• Subsonic Crossover: 10 Hz to 2 kHz


• Length: 11.5 inches


• Width: 7.25 inches


• Height: 2.5 inches


• Weight: 7.25 lb

A properly matched 2000W RMS package built for powerful, controlled bass at 2 ohms.
