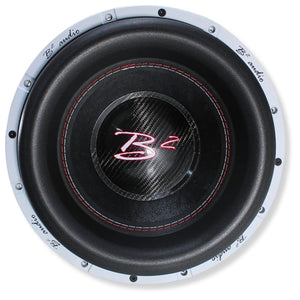

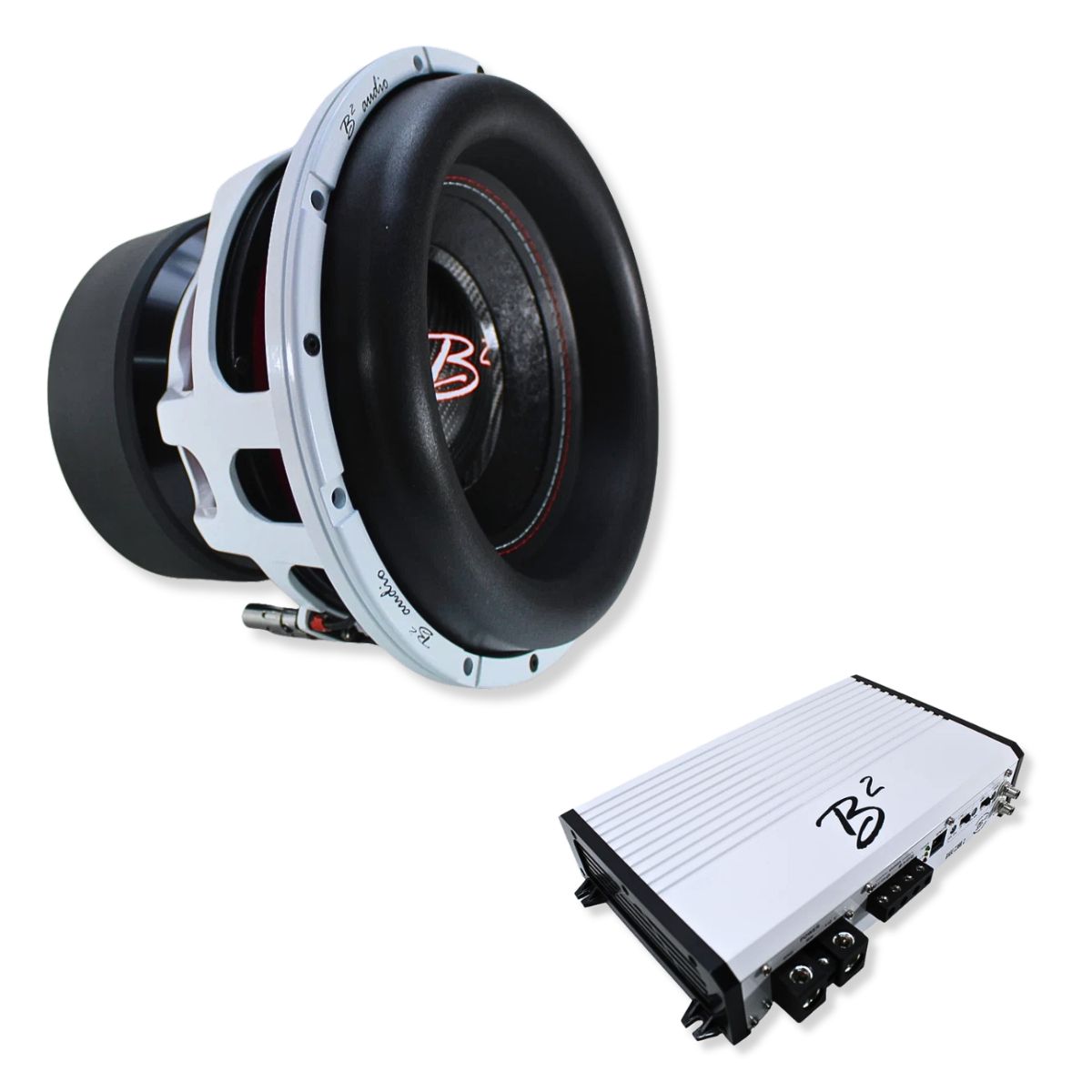

B2 Audio RAGE12-D2-V4 12" 2000W RMS Subwoofer with RAGE 2300.2 Amp

• 2000W RMS High-Excursion Subwoofer: the RAGE Series V4 uses a larger surround, 3-inch voice coil, and 20 mm Xmax for powerful low-frequency output.
• Matched 4-Ohm Bridged Configuration: wire the dual 2-ohm coils in series and bridge the included amplifier for up to 2300 watts RMS.
• Heavy-Duty Motor Platform: a 630 oz magnet assembly and 4-gauge push terminals support high-current operation in demanding bass systems.
• Flexible Enclosure Options: works with sealed, compact ported, and full-size ported boxes for different space, response, and output goals.
• Efficient Bridgeable Amplifier: the RAGE-2300.2 combines Hi-EF Class-D technology, adjustable crossovers, and built-in protection circuits.

B2 Audio RAGE12-D2-V4 12" 2000W RMS Subwoofer with RAGE 2300.2 Amp

This Listing Includes:

• (1) B2 Audio RAGE12-D2-V4 12" Dual 2-Ohm Subwoofer


• (1) B2 Audio RAGE-2300.2 2-Channel Amplifier


• (1) User Manual


• (2) Hex Wrenches


• Mounting Hardware

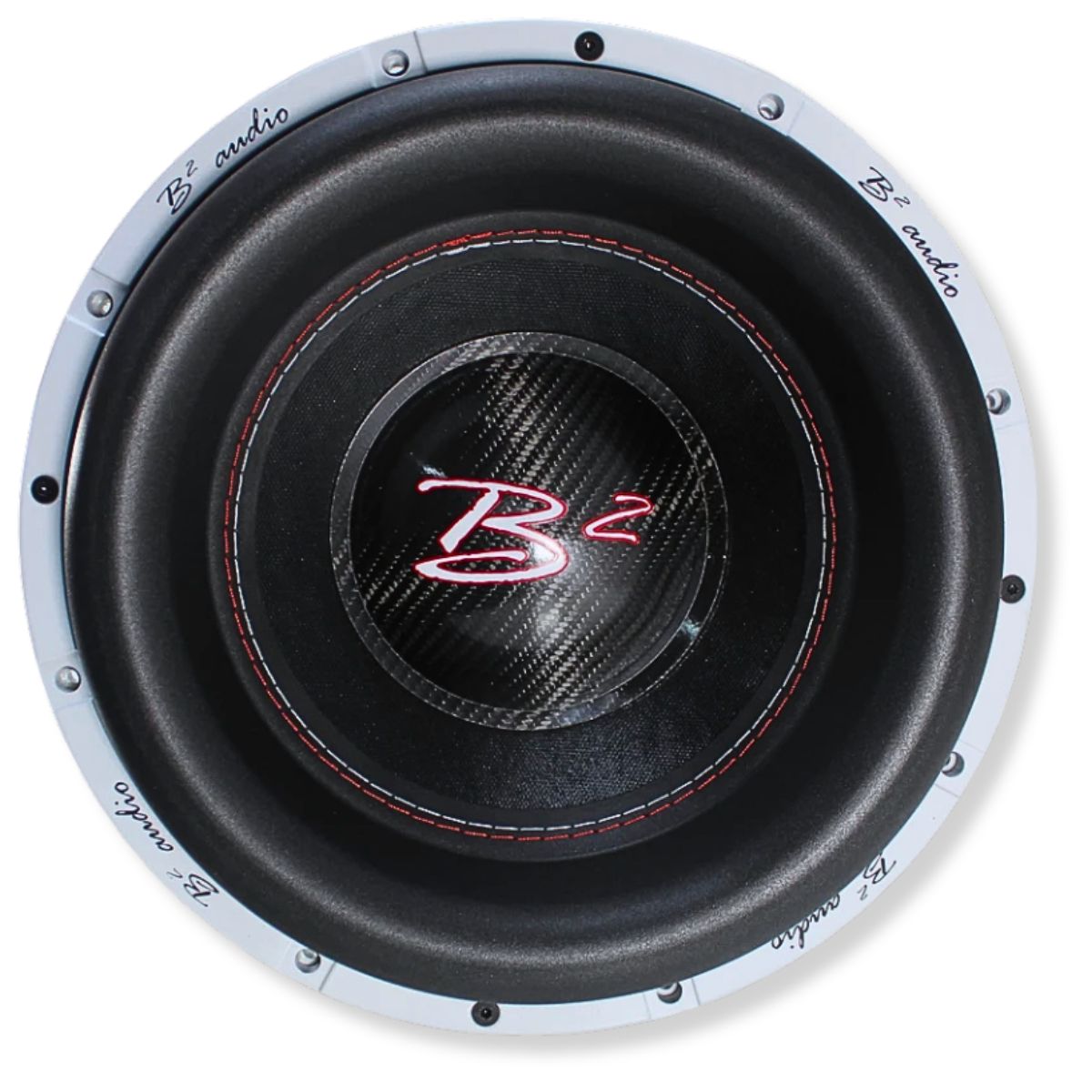

The B2 Audio RAGE12-D2-V4 delivers 2000 watts RMS of high-excursion bass from a heavy-duty 12-inch platform. This package includes the bridgeable B2 Audio RAGE-2300.2 amplifier, creating a strong power match when the subwoofer and amplifier are configured at 4 ohms.

The subwoofer’s dual 2-ohm voice coils should be wired in series to create a 4-ohm final load. With the amplifier bridged at 4 ohms, it produces up to 2300 watts RMS. This provides enough headroom to drive the 2000W RMS subwoofer cleanly when the gain and crossover controls are set correctly.

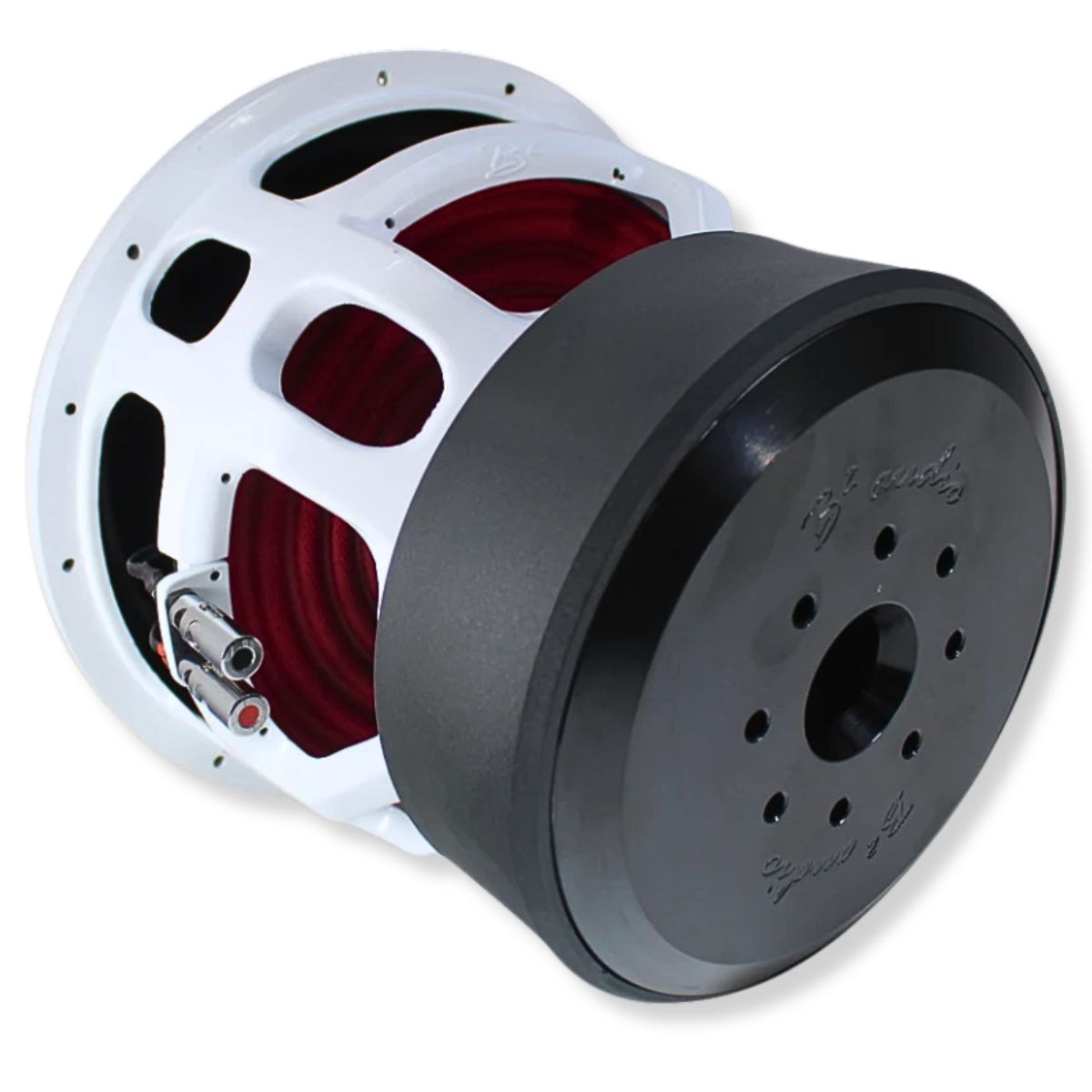

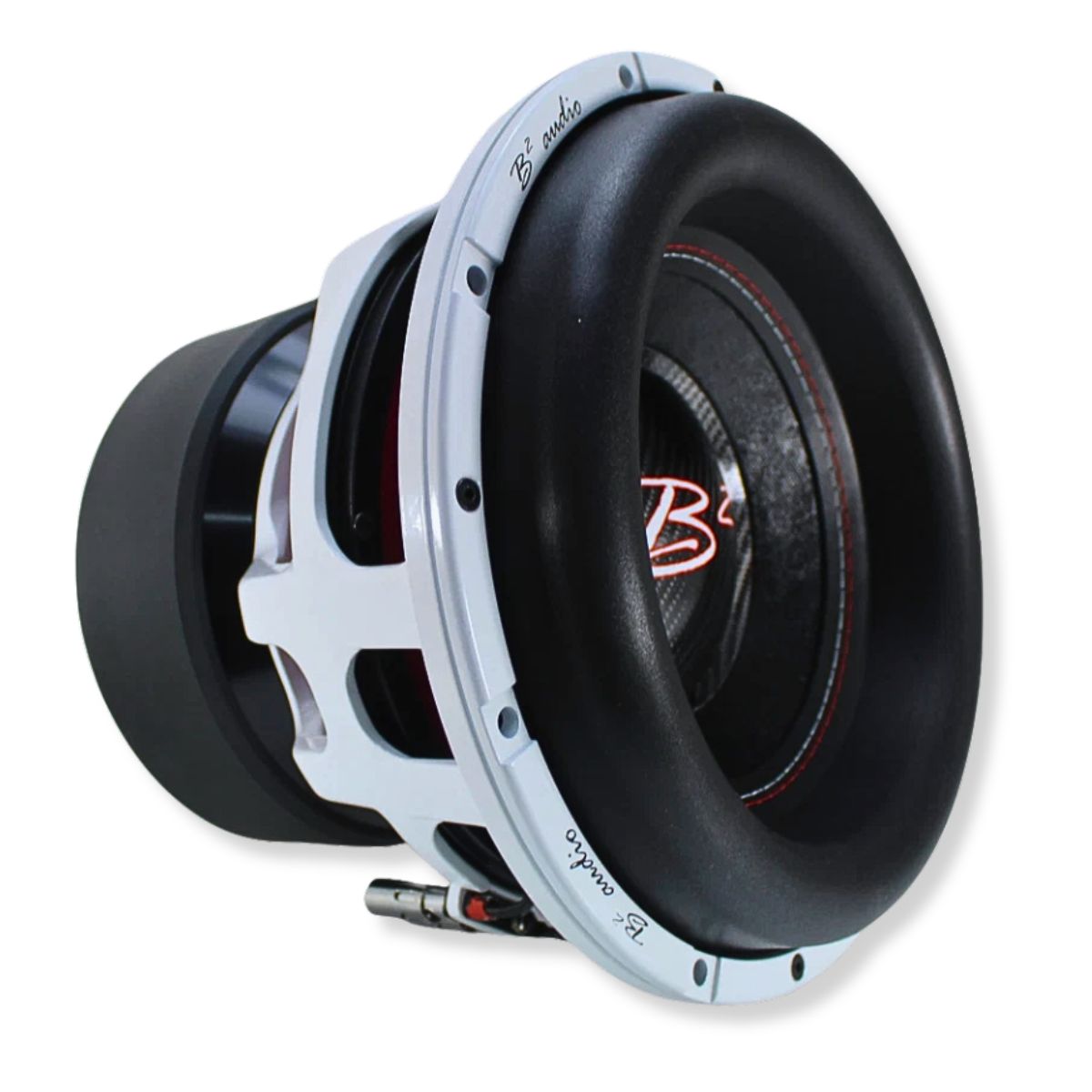

Version 4 features an enlarged surround for increased excursion. Its 3-inch voice coil, 20 mm Xmax, 630 oz magnet assembly, and 4-gauge push terminals support powerful, controlled low-frequency output under demanding conditions.

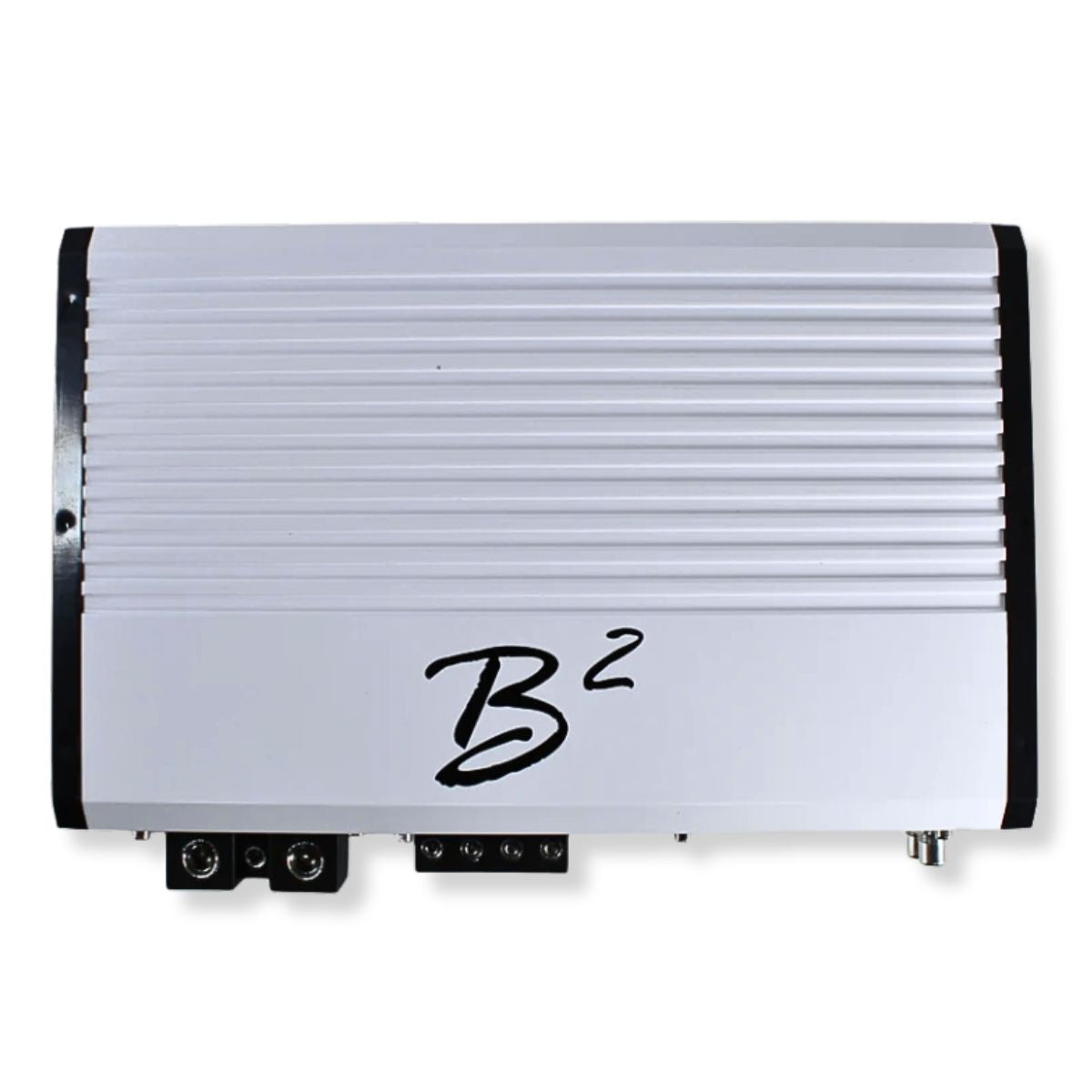

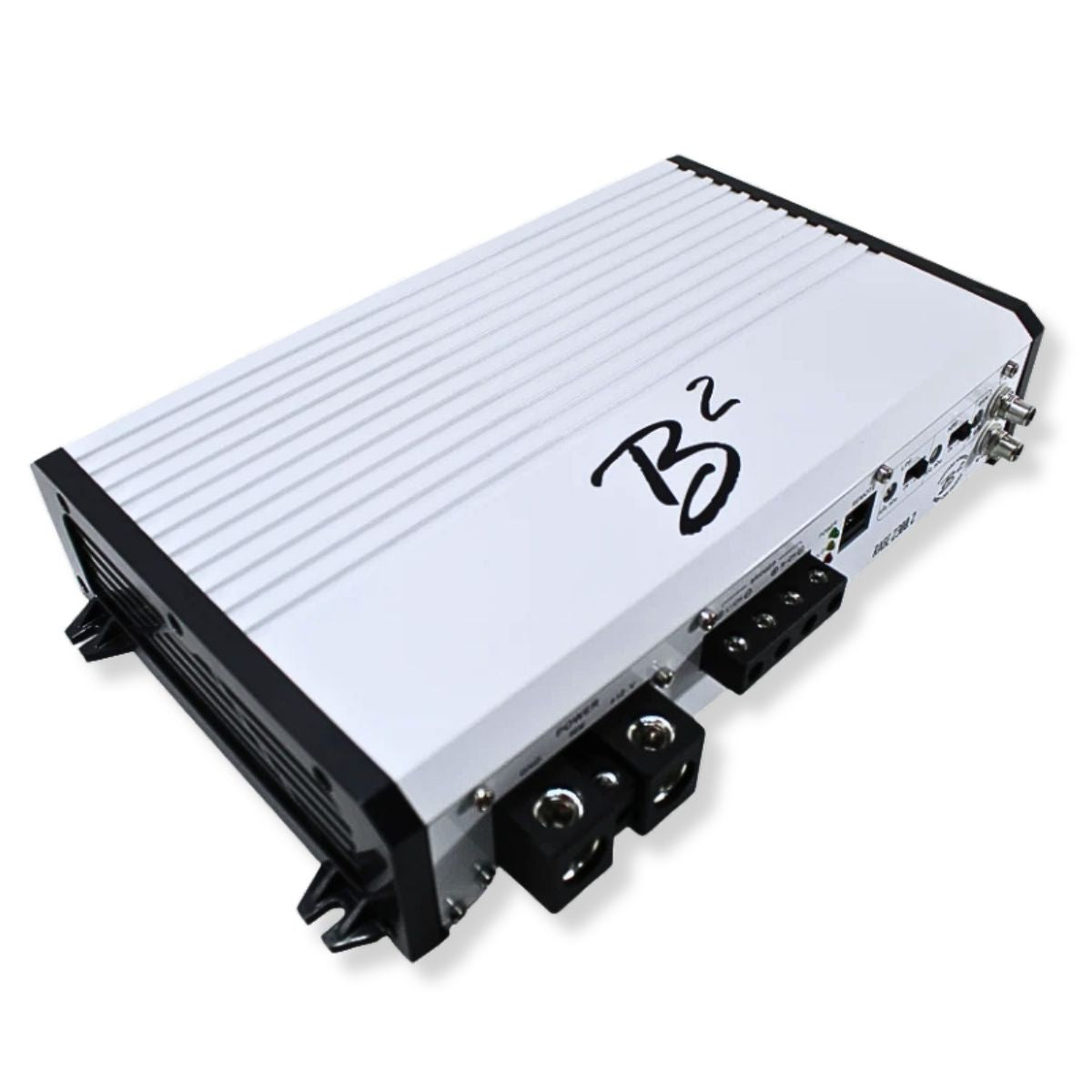

The included RAGE-2300.2 uses high-efficiency Class-D technology and can operate as a two-channel amplifier or a single bridged channel. Adjustable low-pass and high-pass crossovers provide control over the frequencies sent to the subwoofer.

This combination should be operated with the subwoofer wired to 4 ohms and the amplifier correctly bridged. Proper gain adjustment, electrical support, enclosure construction, and professional installation are recommended.

Features

• 12-inch RAGE Series V4 high-excursion subwoofer


• 2000W RMS and 4000W maximum power handling


• Dual 2-ohm voice coils wire in series to 4 ohms


• Heavy-duty 3-inch voice coil


• Enlarged V4 surround for increased excursion


• 20 mm maximum excursion


• Massive 630 oz magnet assembly


• Heavy-duty 4-gauge push terminals


• Compatible with sealed and ported enclosures


• RAGE-2300.2 bridgeable 2-channel amplifier


• Up to 2300W RMS bridged at 4 ohms


• Adjustable low-pass and high-pass crossovers


• Thermal, short-circuit, and overcurrent protection

Specifications

RAGE12-D2-V4 Subwoofer

• Size: 12 inches


• RMS Power Handling: 2000 watts


• Maximum Power Handling: 4000 watts


• Nominal Impedance: Dual 2 ohms


• Recommended Final Load: 4 ohms


• Voice Coil Diameter: 3 inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 88 dB


• Xmax: 20 mm


• Magnet Weight: 630 oz


• Push Terminal Capacity: 4 gauge


• Displacement Volume: 7.4 L / 0.26 cubic feet


• Overall Diameter: 12.24 inches


• Mounting Diameter: 11.11 inches


• Bolt Pattern Diameter: 11.57 inches


• Mounting Depth: 8.85 inches


• Overall Depth: 10.21 inches

Thiele and Small Parameters

• Free-Air Resonance: 28.1 Hz


• Resistance: 1.9 ohms


• Qms: 5.4


• Qes: 0.39


• Qts: 0.36


• Vas: 28.9 L


• Cms: 80 m/N


• BL Factor: 183.4


• Moving Mass: 384.7 g


• Xmax: 20 mm

Suggested Enclosures

• Sealed Volume: 1.05 cubic feet


• Sealed Qtc: 0.39


• Compact Ported Volume: 1.41 cubic feet


• Compact Port Area: 13.9 square inches


• Compact Port Length: 13.3 inches


• Compact Tuning Frequency: 42 Hz


• Ported Volume: 2.25 cubic feet


• Port Area: 18.6 square inches


• Port Length: 19.7 inches


• Ported Tuning Frequency: 32 Hz

Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.

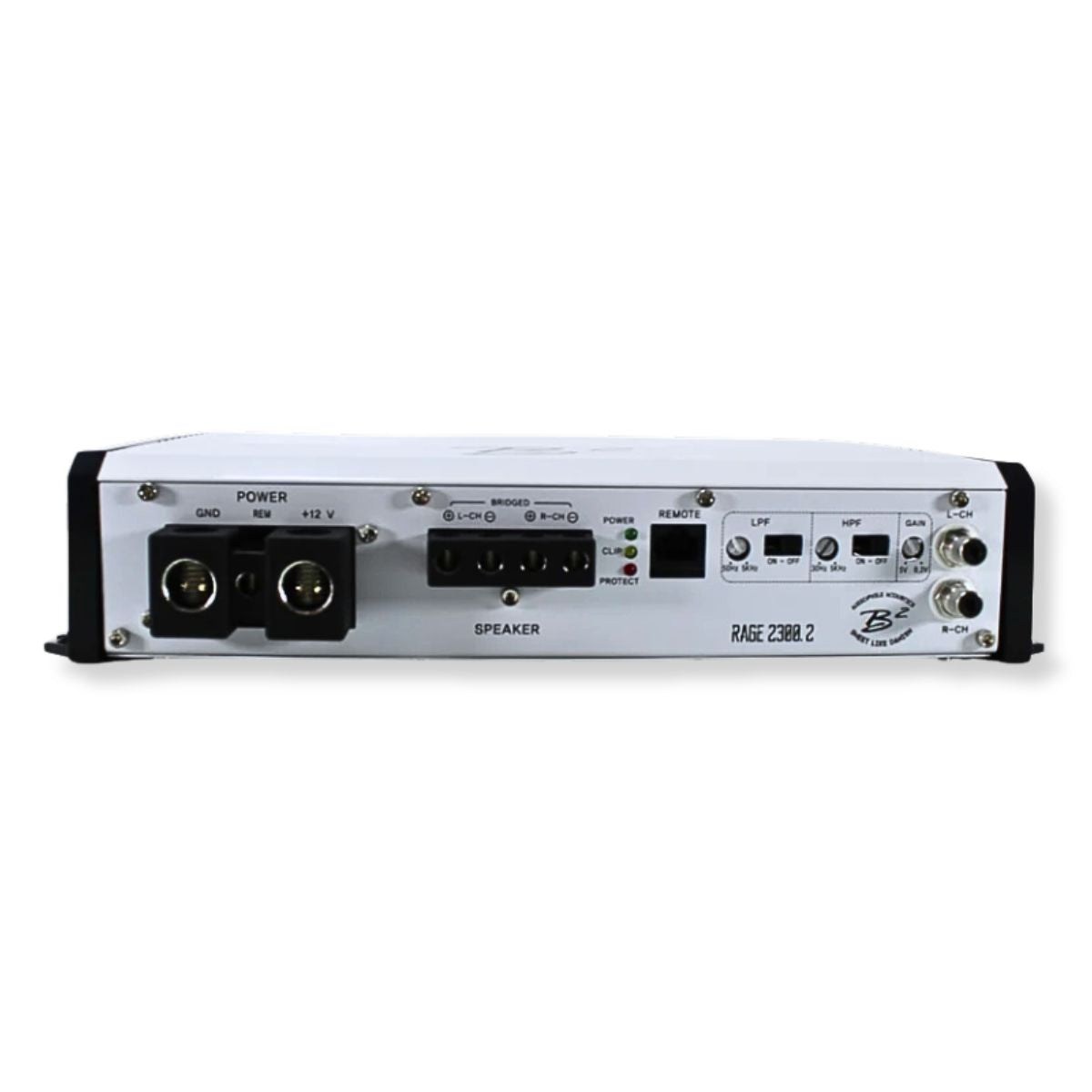

RAGE-2300.2 Amplifier

• Amplifier Type: Bridgeable 2-Channel Hi-EF Class-D


• RMS Power at 4 Ohms: 650 watts x 2


• RMS Power at 2 Ohms: 1150 watts x 2


• RMS Power Bridged at 4 Ohms: 2300 watts x 1


• Frequency Response: 10 Hz to 27 kHz


• Signal-to-Noise Ratio: Greater than 95 dB


• Input Sensitivity: 0.2V to 5V


• Crossover Slope: 24 dB per octave


• Low-Pass Crossover: 50 Hz to 5 kHz


• High-Pass Crossover: 30 Hz to 5 kHz


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Length: 12 inches


• Width: 7.87 inches


• Height: 2.75 inches

A high-excursion 2000W RMS subwoofer with a bridgeable amplifier delivering up to 2300 watts at 4 ohms.
