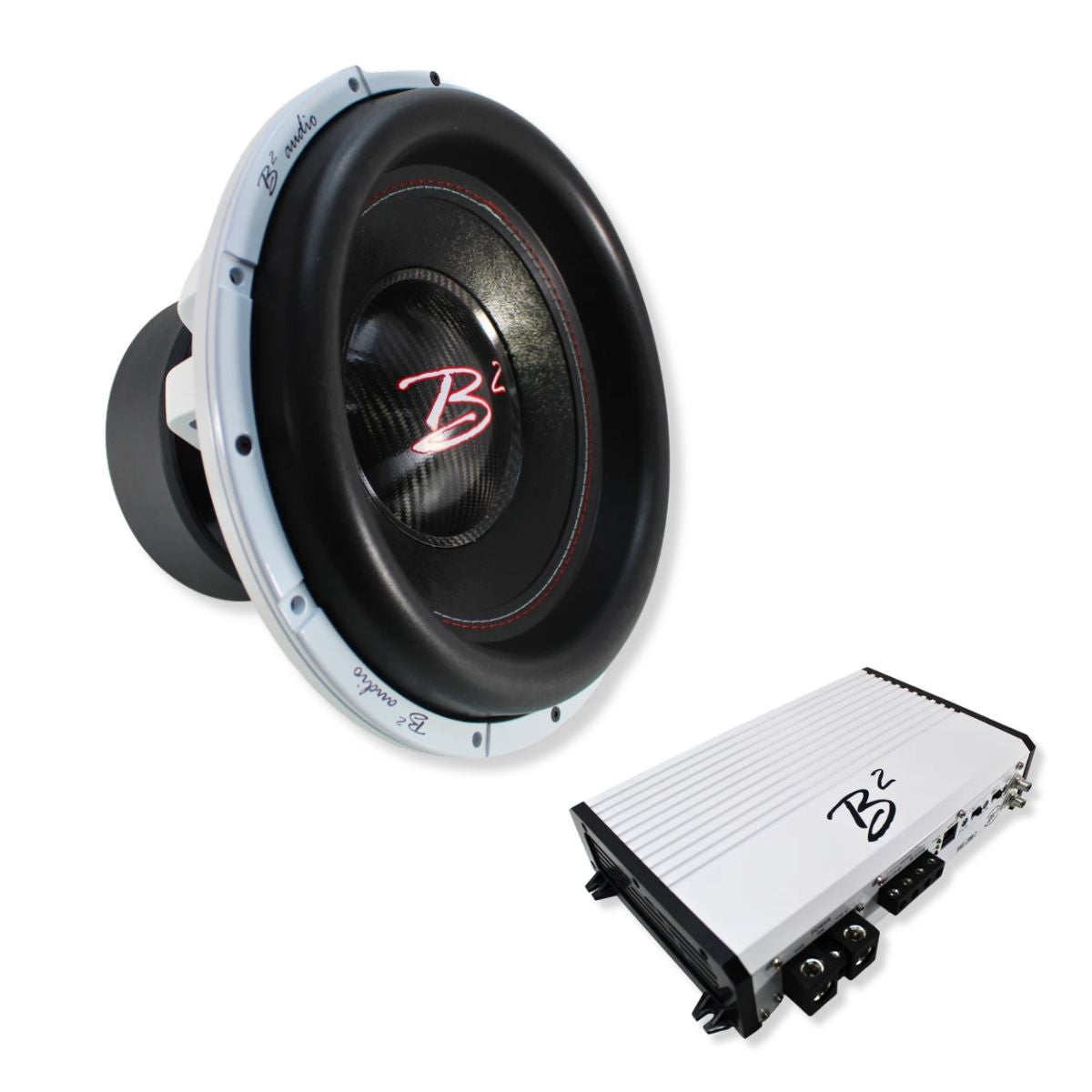

B2 Audio RAGE15-D2-V3 15" 2000W RMS Subwoofer with RAGE 2300.2 Amp

• 2000W RMS Carbon-Fiber Subwoofer: the RAGE15-D2-V3 combines a rigid carbon-fiber cone, integrated dust cap, and tall surround for powerful, controlled output.
• Matched 4-Ohm Bridged Configuration: wire the dual 2-ohm coils in series and bridge the included amplifier for up to 2300 watts RMS.
• Heavy-Duty Motor Platform: a 3-inch high-temperature voice coil, 600 oz ferrite motor, 20 mm Xmax, and 4-gauge terminals support high-power operation.
• Flexible Enclosure Options: works in sealed, compact ported, and full-size ported boxes for different space, extension, and output requirements.
• Efficient Bridgeable Amplifier: the RAGE-2300.2 includes Hi-EF Class-D circuitry, adjustable crossovers, and protection against thermal overload and electrical faults.

B2 Audio RAGE15-D2-V3 15" 2000W RMS Subwoofer with RAGE 2300.2 Amp

This Listing Includes:

• (1) B2 Audio RAGE15-D2-V3 15" Dual 2-Ohm Subwoofer


• (1) B2 Audio RAGE-2300.2 2-Channel Amplifier


• (1) User Manual


• (2) Hex Wrenches


• Mounting Hardware

The B2 Audio RAGE15-D2-V3 delivers powerful low-frequency output with 2000 watts RMS of power handling, a rigid carbon-fiber cone, tall surround, and 20 mm of Xmax. This package includes the bridgeable B2 Audio RAGE-2300.2 amplifier, creating a strong power match when properly configured at 4 ohms.

The subwoofer’s dual 2-ohm voice coils should be wired in series to create a 4-ohm final load. With the amplifier bridged at 4 ohms, it produces up to 2300 watts RMS. This provides useful power headroom while closely matching the subwoofer’s 2000W RMS rating.

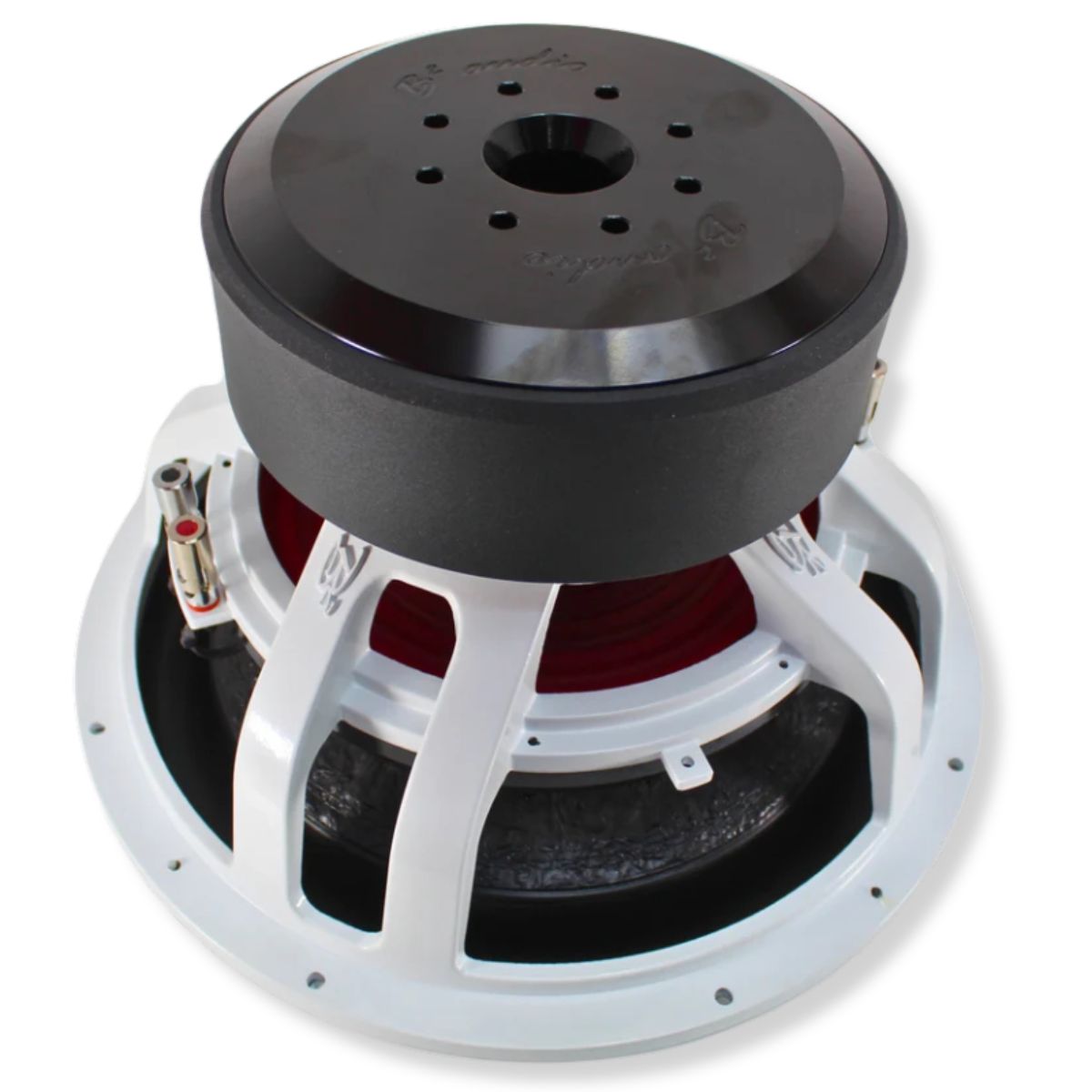

The V3 subwoofer uses a high-temperature 3-inch voice coil, integrated carbon-fiber dust cap, taller surround, 600 oz ferrite motor, and 4-gauge push terminals. This heavy-duty platform provides the excursion, thermal capacity, and motor control needed for daily high-power systems, demo vehicles, and SPL-focused installations.

The RAGE-2300.2 uses high-efficiency Class-D technology and can operate as a two-channel amplifier or as one powerful bridged channel. Adjustable low-pass and high-pass crossovers help control the frequencies delivered to the subwoofer.

This combination should be operated with the subwoofer wired to 4 ohms and the amplifier correctly bridged. Proper gain adjustment, electrical support, enclosure construction, and professional installation are recommended.

Features

• 15-inch RAGE Series V3 high-excursion subwoofer


• 2000W RMS and 4000W maximum power handling


• Dual 2-ohm voice coils wire in series to 4 ohms


• High-temperature 3-inch voice coil


• Carbon-fiber cone with integrated dust cap


• Tall surround for increased excursion


• 20 mm Xmax


• Massive 600 oz ferrite motor


• Heavy-duty 4-gauge push terminals


• Compatible with sealed and ported enclosures


• RAGE-2300.2 bridgeable 2-channel amplifier


• Up to 2300W RMS bridged at 4 ohms


• Adjustable low-pass and high-pass crossovers


• Thermal, short-circuit, and overcurrent protection

Specifications

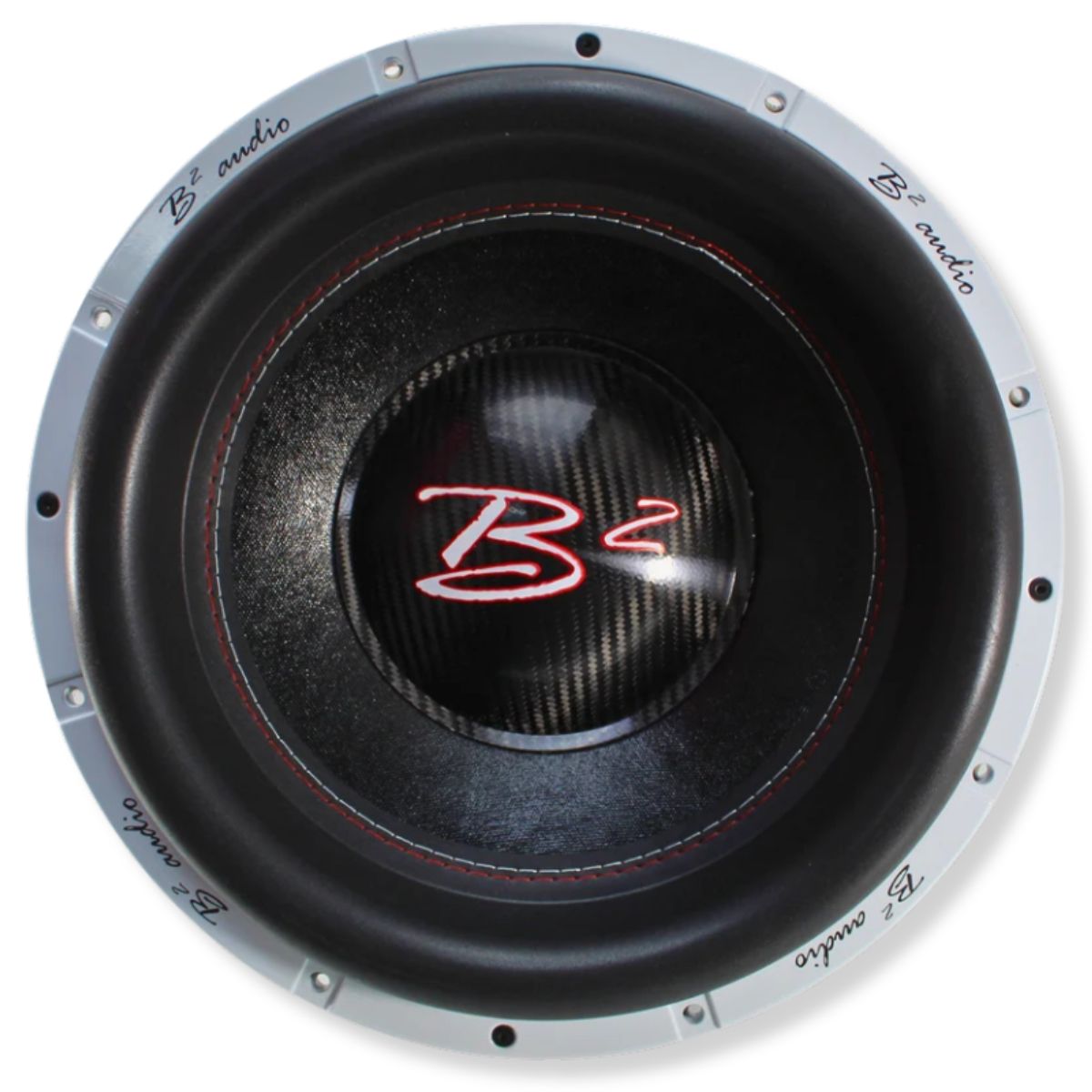

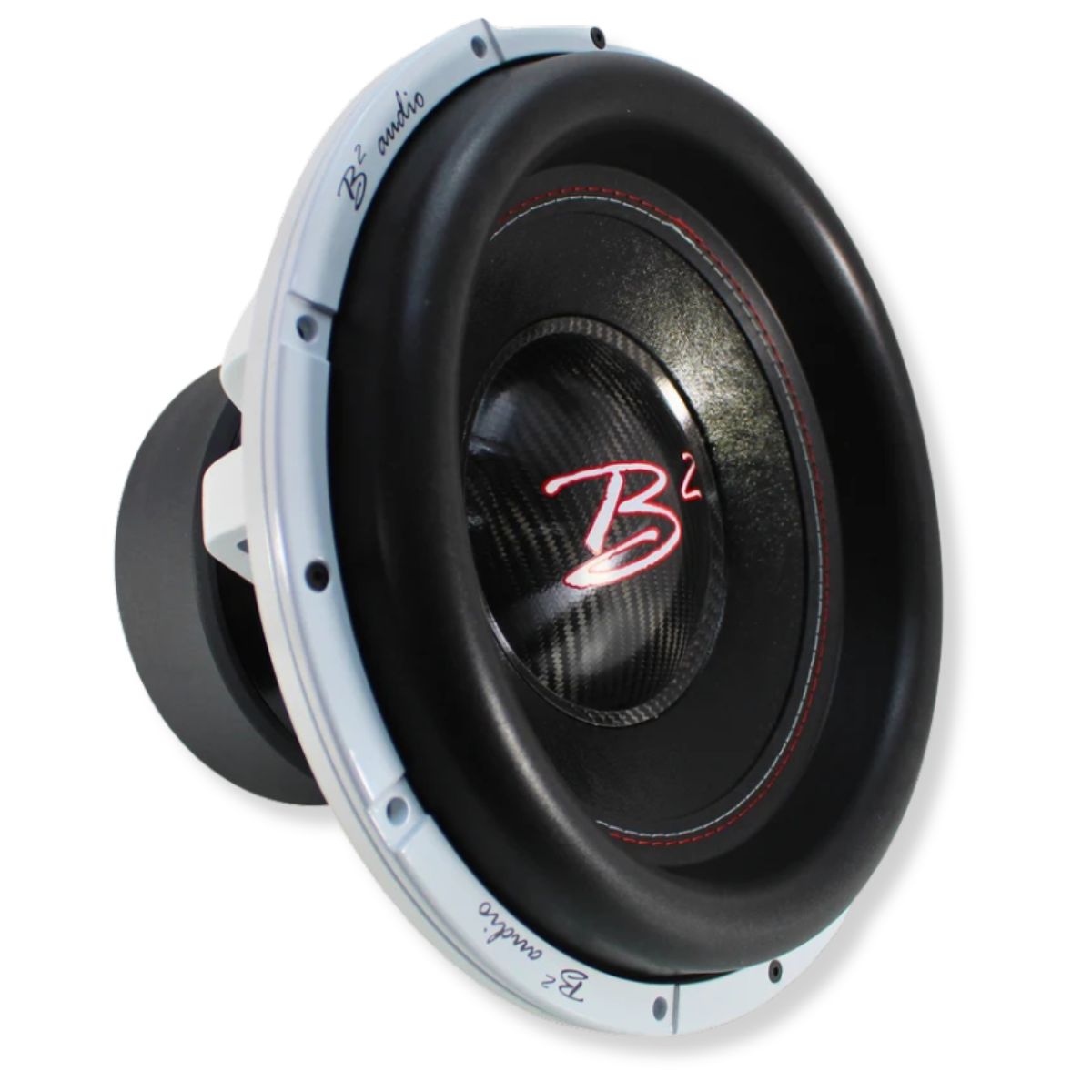

RAGE15-D2-V3 Subwoofer

• Size: 15 inches


• RMS Power Handling: 2000 watts


• Maximum Power Handling: 4000 watts


• Nominal Impedance: Dual 2 ohms


• Recommended Final Load: 4 ohms


• Voice Coil Diameter: 3 inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 90.6 dB


• Xmax: 20 mm


• Cone Material: Carbon fiber


• Magnet Type: Ferrite


• Magnet Weight: 600 oz


• Terminal Type: 4-gauge push terminals


• Displacement Volume: 10.7 L / 0.37 cubic feet


• Overall Diameter: 15.35 inches


• Mounting Diameter: 13.77 inches


• Bolt Pattern Diameter: 14.76 inches


• Mounting Depth: 8.89 inches


• Overall Depth: 10.24 inches

Thiele and Small Parameters

• Free-Air Resonance: 25.5 Hz


• Resistance: 1.9 ohms


• Qms: 5.38


• Qes: 0.35


• Qts: 0.33


• Vas: 67 L


• Cms: 70 m/N


• BL Factor: 262.3


• Moving Mass: 524.2 g


• Xmax: 20 mm

Suggested Enclosures

• Sealed Volume: 1.77 cubic feet


• Sealed Qtc: 0.41


• Compact Ported Volume: 3.5 cubic feet


• Compact Ports: Two 4-inch ports


• Compact Port Length: 11.2 inches


• Compact Tuning Frequency: 35 Hz


• Ported Volume: 5.0 cubic feet


• Port Area: 43.4 square inches


• Port Length: 22.2 inches


• Ported Tuning Frequency: 30 Hz

Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, ports, and internal bracing when constructing the enclosure.

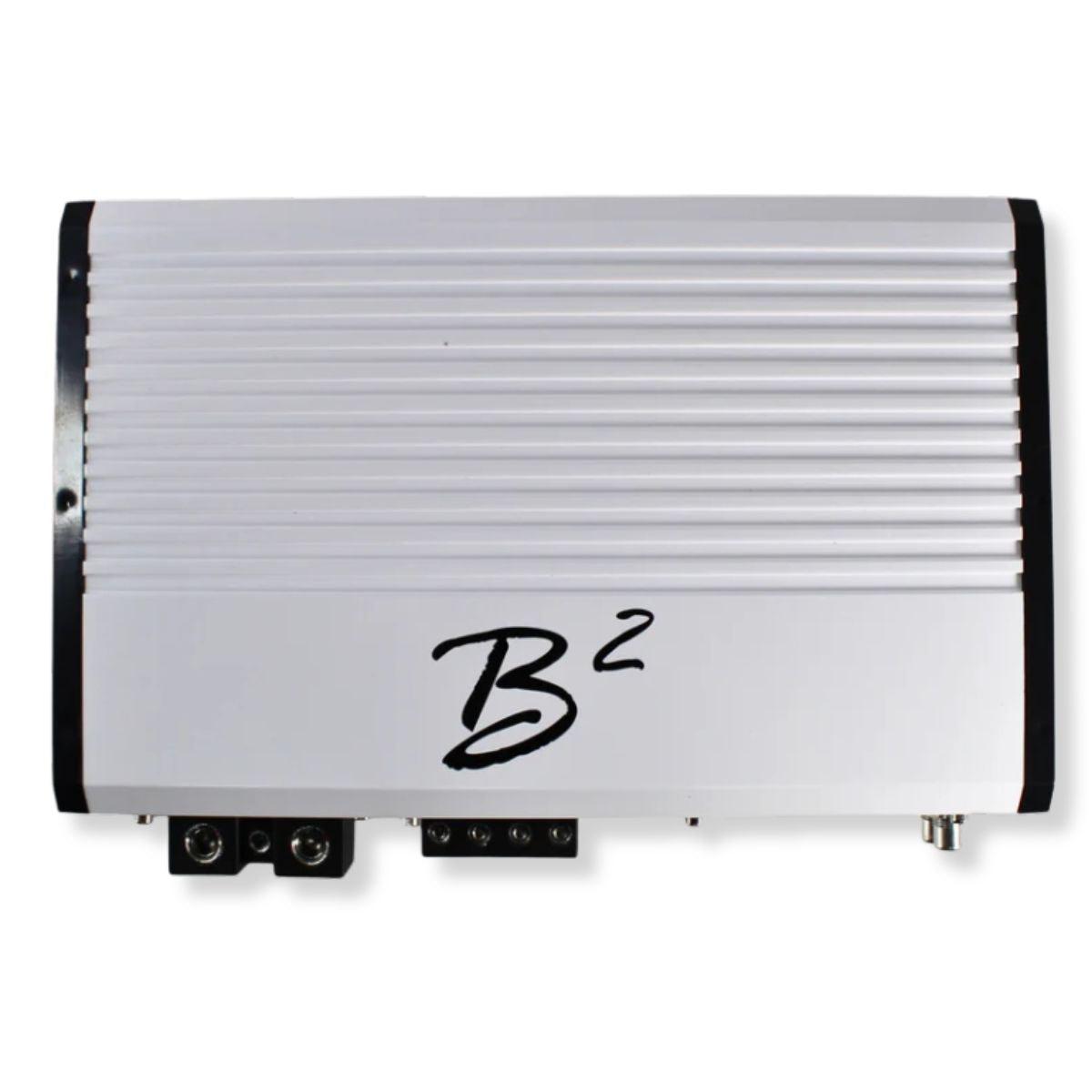

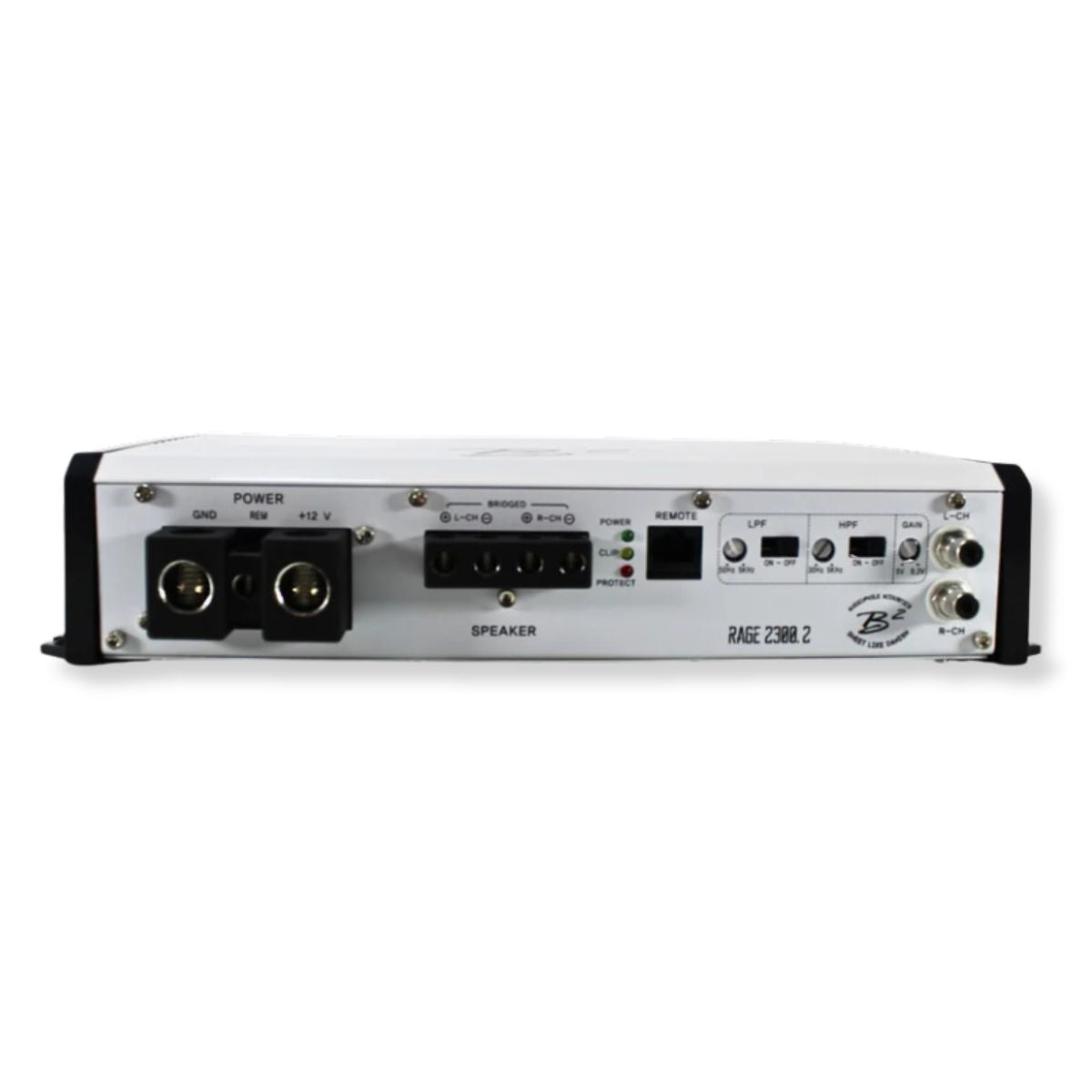

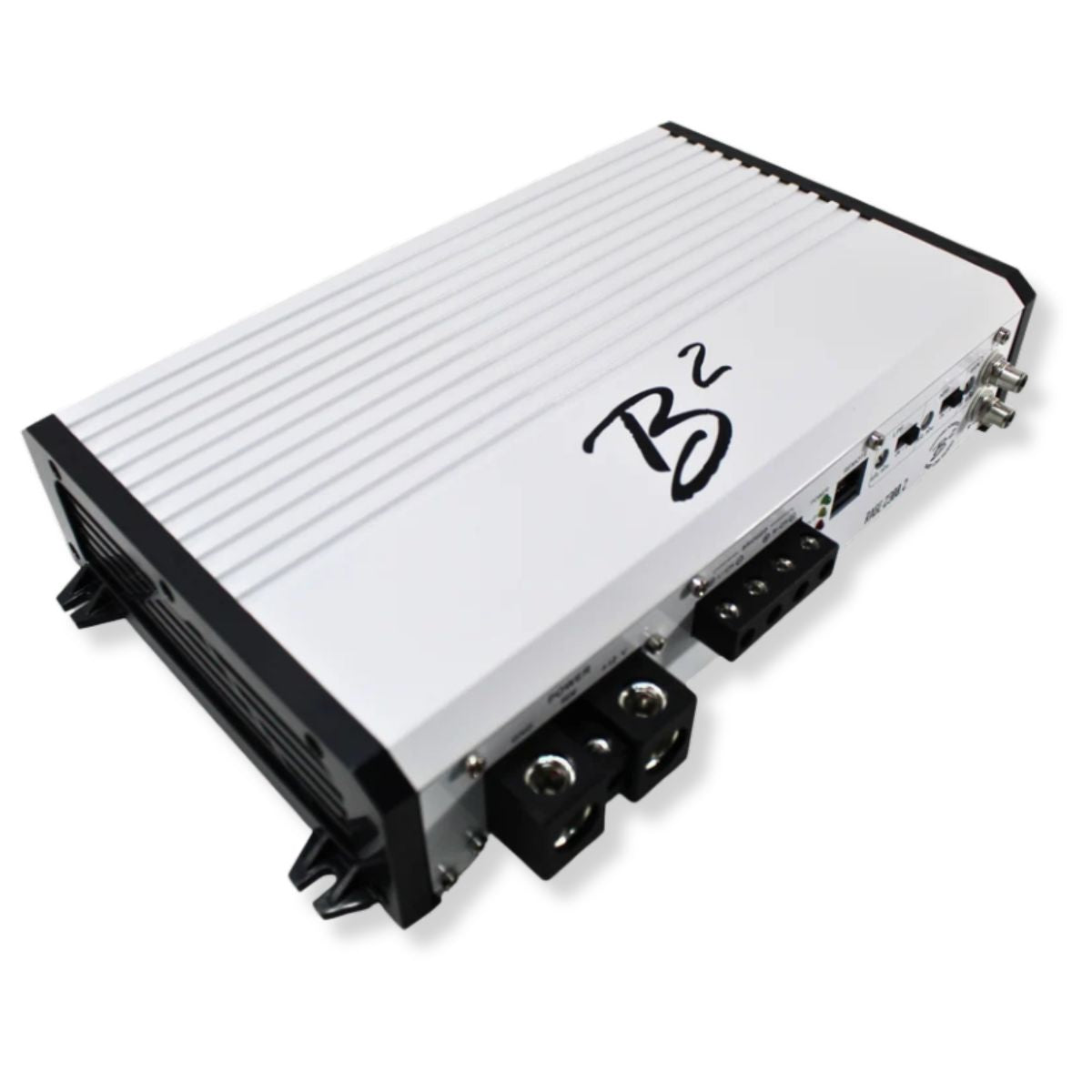

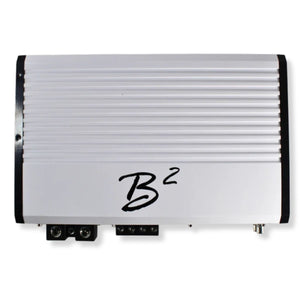

RAGE-2300.2 Amplifier

• Amplifier Type: Bridgeable 2-Channel Hi-EF Class-D


• RMS Power at 4 Ohms: 650 watts x 2


• RMS Power at 2 Ohms: 1150 watts x 2


• RMS Power Bridged at 4 Ohms: 2300 watts x 1


• Frequency Response: 10 Hz to 27 kHz


• Signal-to-Noise Ratio: Greater than 95 dB


• Input Sensitivity: 0.2V to 5V


• Crossover Slope: 24 dB per octave


• Low-Pass Crossover: 50 Hz to 5 kHz


• High-Pass Crossover: 30 Hz to 5 kHz


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Length: 12 inches


• Width: 7.87 inches


• Height: 2.75 inches

Carbon-fiber construction, 2000 watts RMS, and up to 2300 watts of matched bridged power.
