B2 Audio RAGEXL 12" 3500W RMS Dual 1-Ohm w/Tru Spec S12ELITE Enclosure COMBO-21

B2 Audio RAGEXL 12" 3500W RMS Dual 1-Ohm w/Tru Spec S12ELITE Enclosure COMBO-21

SKU:B2-COMBO-21

CASE QUANTITY: N/A

PACKAGE WEIGHT: 70.0 LB

Regular price $1,289.95
Regular price $1,289.95 Sale price $1,289.95
0% OFF Sold out


B2 Audio RAGEXL 12" 3500W RMS Dual 1-Ohm w/Tru Spec S12ELITE Enclosure COMBO-21


This Listing Includes:

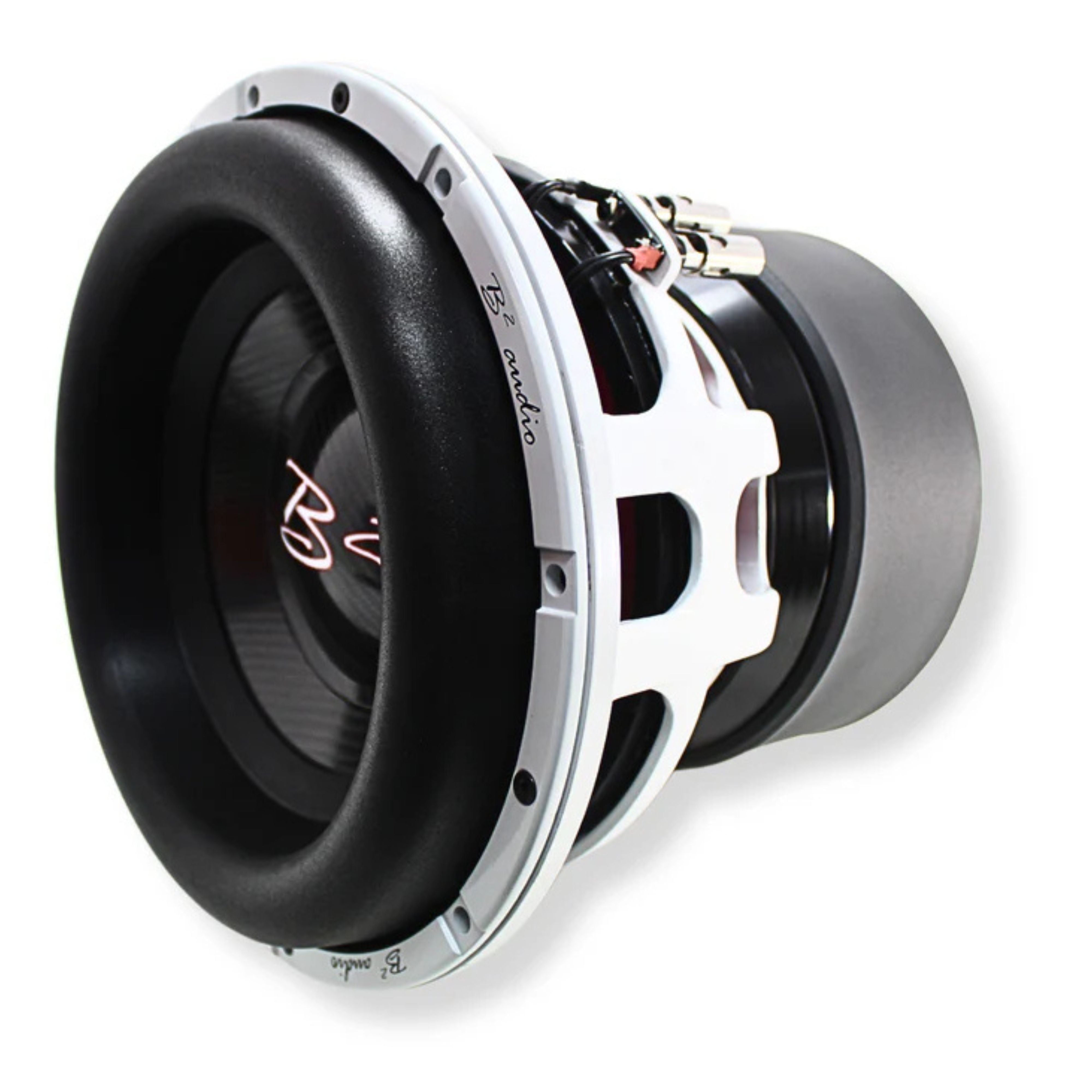

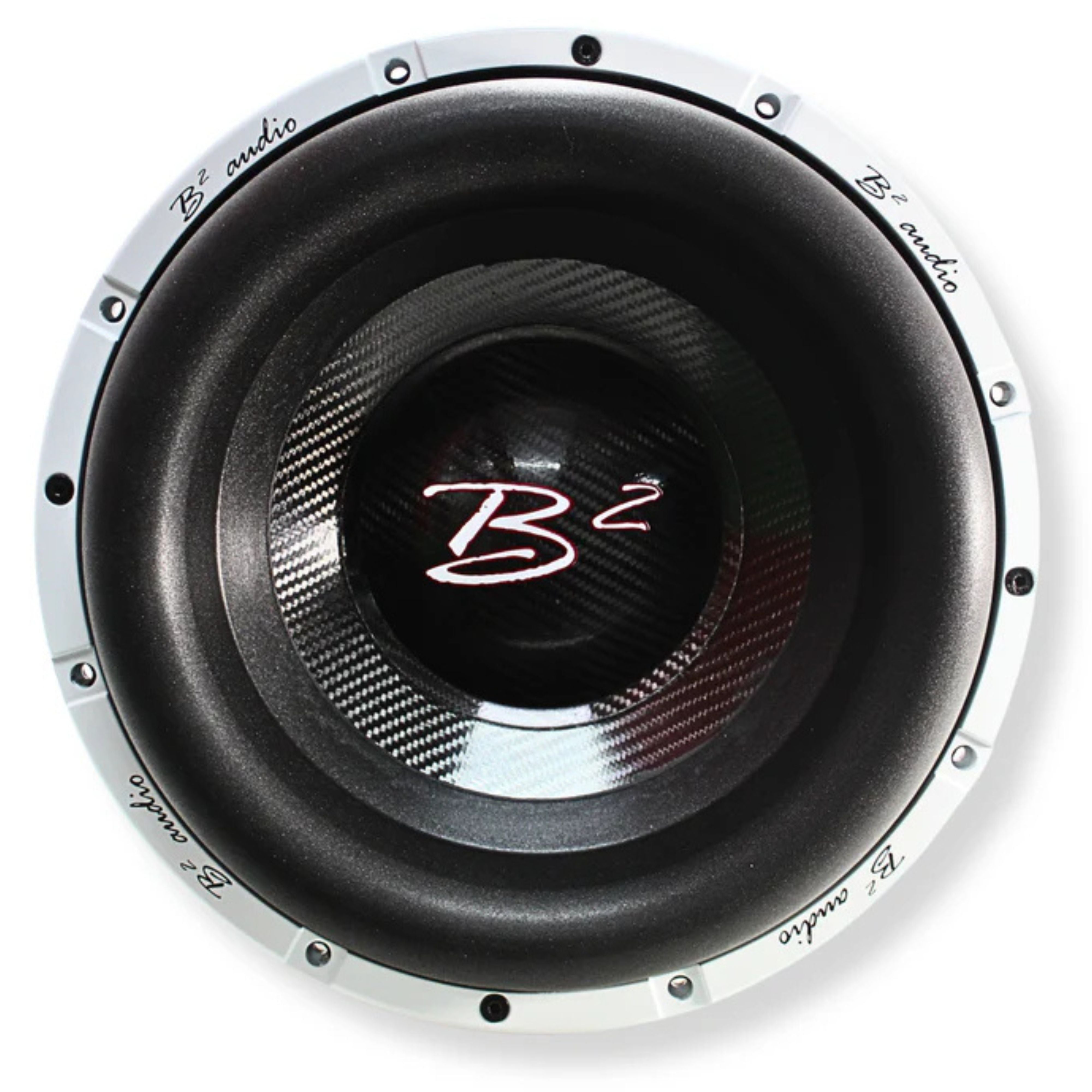

  • (1) B2-RAGEXL-12-D1-V2 3500 Watt RMS Subwoofer

  • (1) GP-S12ELITEXXL-B2 Tru Spec Enclosure


Please note that these items will ship separately.


Experience unmatched bass performance with the Tru Spec Elite 12" XXL Subwoofer Enclosure paired with the B2 Audio RAGEXL 12" Subwoofer. This powerhouse combo is designed to deliver deep, resonant lows and high-impact sound. The enclosure’s precision-engineered triple and quad baffle construction is perfectly tuned at 32 Hz for optimal performance, while the B2 Audio RAGEXL subwoofer boasts an incredible 3500W RMS power handling. Together, they offer uncompromising durability and earth-shaking bass, making this the ultimate choice for serious car audio enthusiasts looking to elevate their sound system.


Subwoofer Specifications:



  • RMS Power Handling: 3500 Watts

  • Peak Dynamic Power: 10,000 Watts

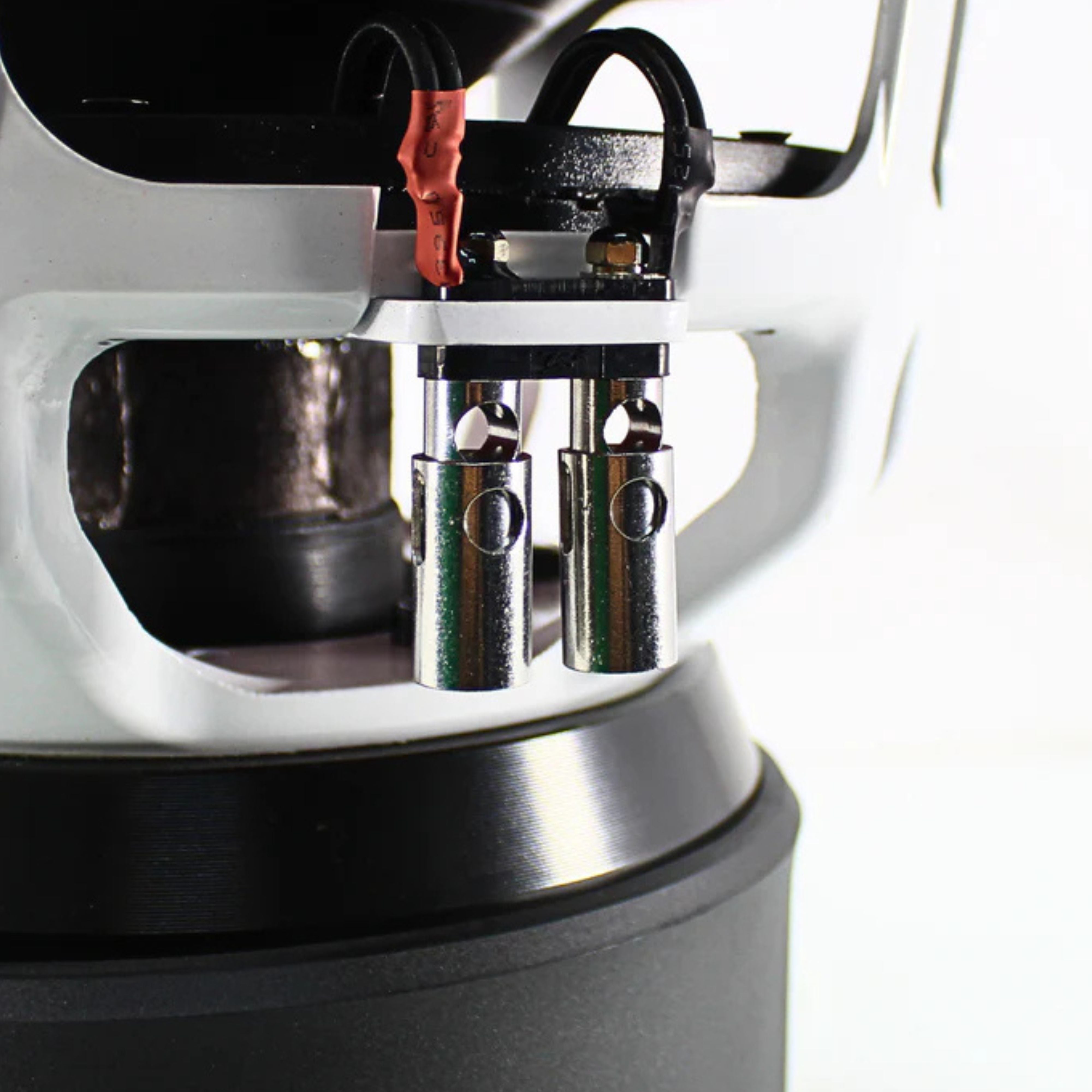

  • Push Terminal Wire Gauge: 4 Ga

  • Nominal Impedance: Dual 1 Ohm

  • Voice Coil Diameter: 3"

  • Frequency Response: 10 Hz ~ 500 Hz

  • Sensitivity: 88.6 dB

  • Magnet Weight: 880 Oz

  • Displacement Volume: 8.9 L / .314 cu ft


Thiele & Small Parameters



  • Free Air Resonance (Fs): 28 Hz

  • Resistance (Re): 2 Ohm

  • Mechanical Factor (Qms): 5.38

  • Electrical Factor (Qes): 0.54

  • Total Factor (Qts): 0.49

  • Equivalent Volume (Vas): 23.7 L

  • Compliance (Cms): 80 um/N

  • BL Factor (BL): 131.5 BL^2/RE

  • Moving Mass (Mms): 403.9 g

  • Excursion Max (Xmax): 23 mm


Measurements:



  • Overall Diameter: 12.25" / 311 mm

  • Mounting Diameter: 11.10 / 282 mm

  • Bolt Pattern Diameter: 11.57" / 294 mm

  • Overall Depth: 12.12" / 308 mm

  • Mounting Depth: 10.12" / 257 mm

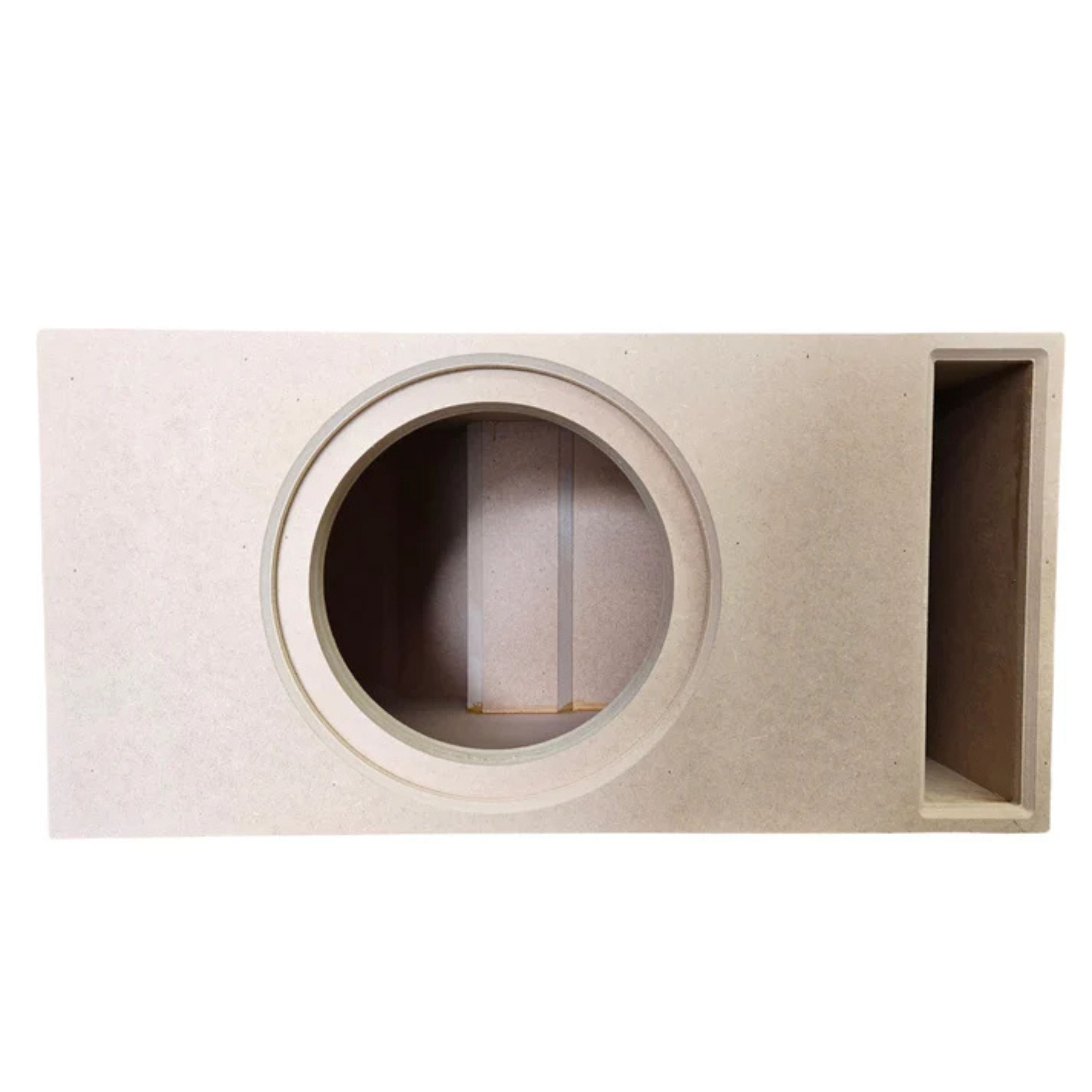

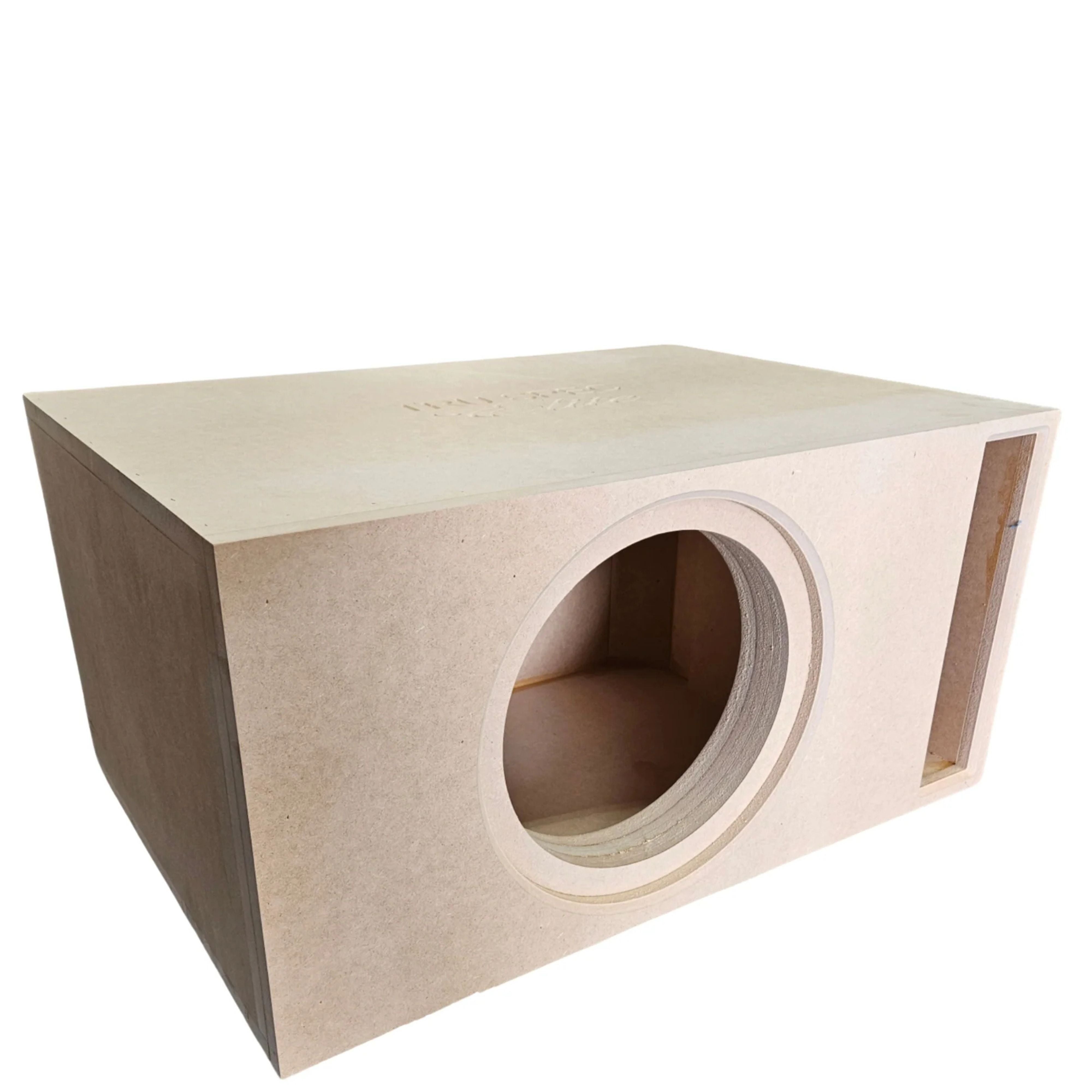

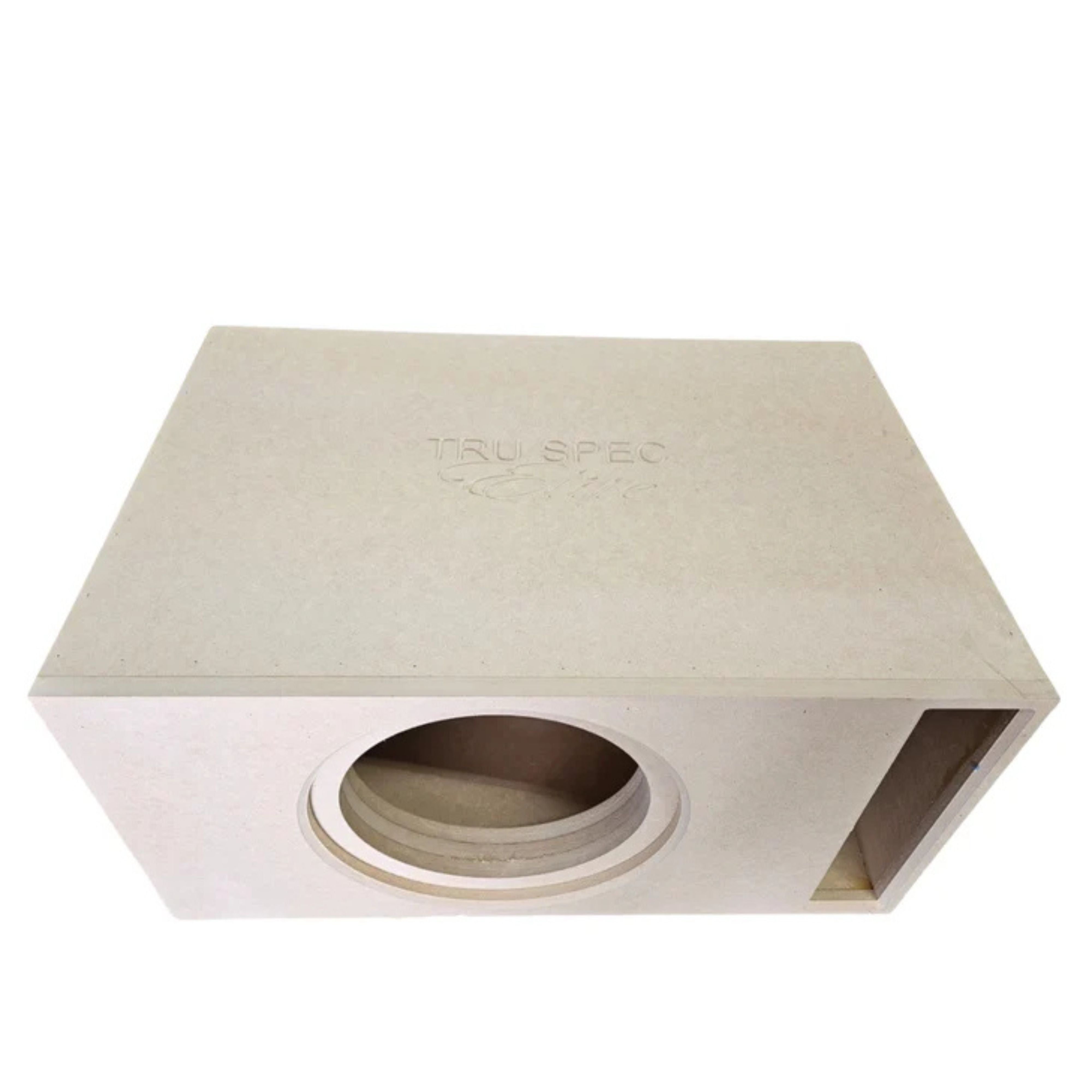

Enclosure Specifications:



  • Material: MDF

  • Cutout: 11.20"

  • Box External Dimensions

  • Width x Height x Depth (30.00" x 15.00" x 21.21")

  • Material Thickness: 0.75"

  • Net Internal Volume: 2.50 ft3

  • Tuning Frequency: 32 Hz

  • Port Area: 40.00 inch2
