B2 Audio RAGEXL12-D2 12" 3500W RMS Subwoofer with RAGE 3500 Amp

• 3500W RMS High-Excursion Subwoofer: the 12-inch RAGEXL12-D2 uses a 3-inch voice coil, 23 mm excursion, and an 850 oz magnet assembly for extreme low-frequency output.
• Matched RAGE 3500 Amplifier: the included Class-D monoblock produces between 3000 and 3500 watts RMS at the recommended 1-ohm configuration.
• Dual 2-Ohm Voice Coils: wire the subwoofer’s voice coils in parallel to create the 1-ohm final load required for maximum amplifier output.
• Built for High-Power Systems: heavy-duty construction, 4-gauge push terminals, adjustable crossovers, and amplifier protection circuits support demanding installations.
• Includes Monitoring Bass Knob: adjust the bass level while monitoring amplifier temperature and vehicle voltage from the included remote display.

B2 Audio RAGEXL12-D2 12" 3500W RMS Subwoofer with RAGE 3500 Amp

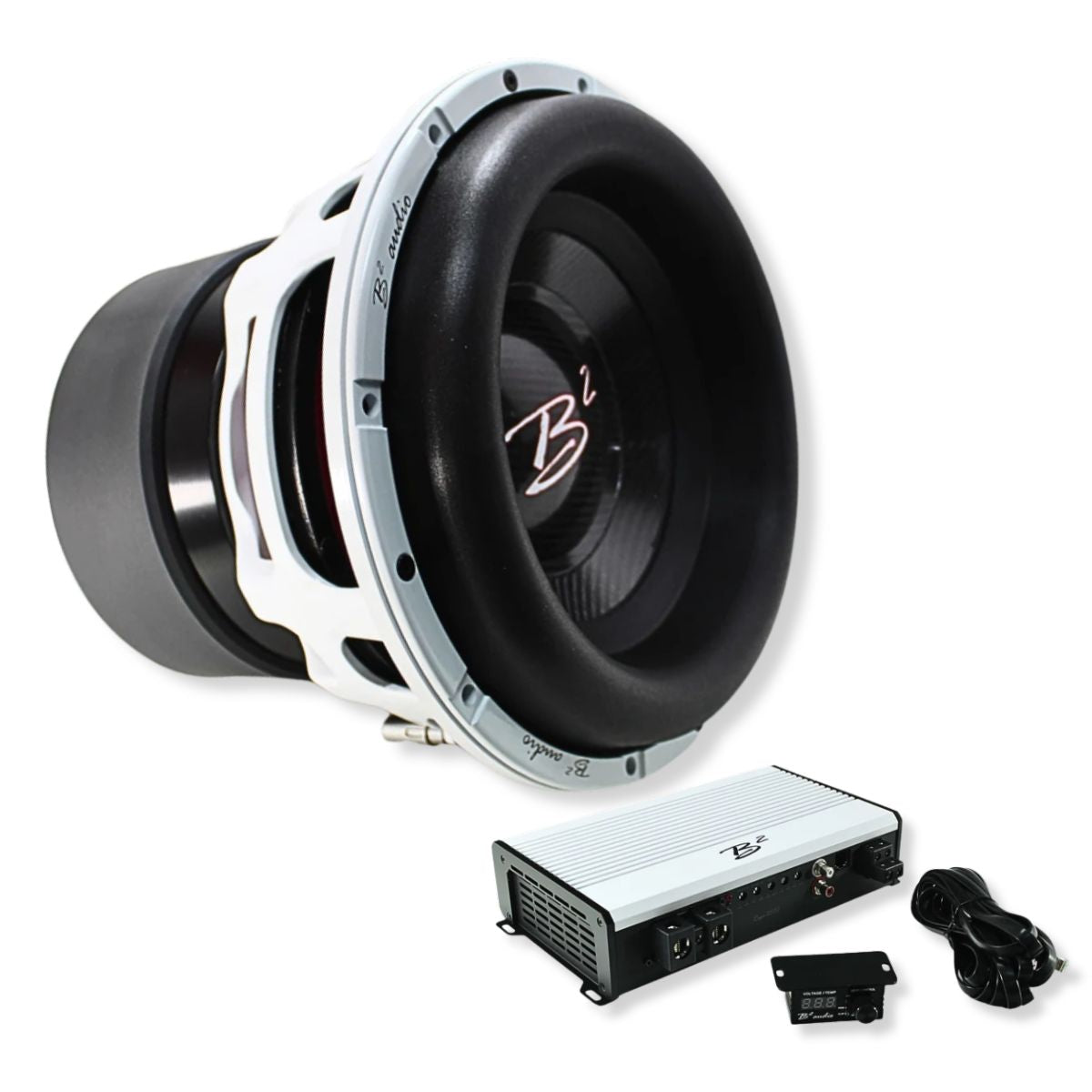

This Listing Includes:

• (1) B2 Audio RAGEXL12-D2 12" Dual 2-Ohm Subwoofer


• (1) B2 Audio RAGE 3500 Monoblock Amplifier

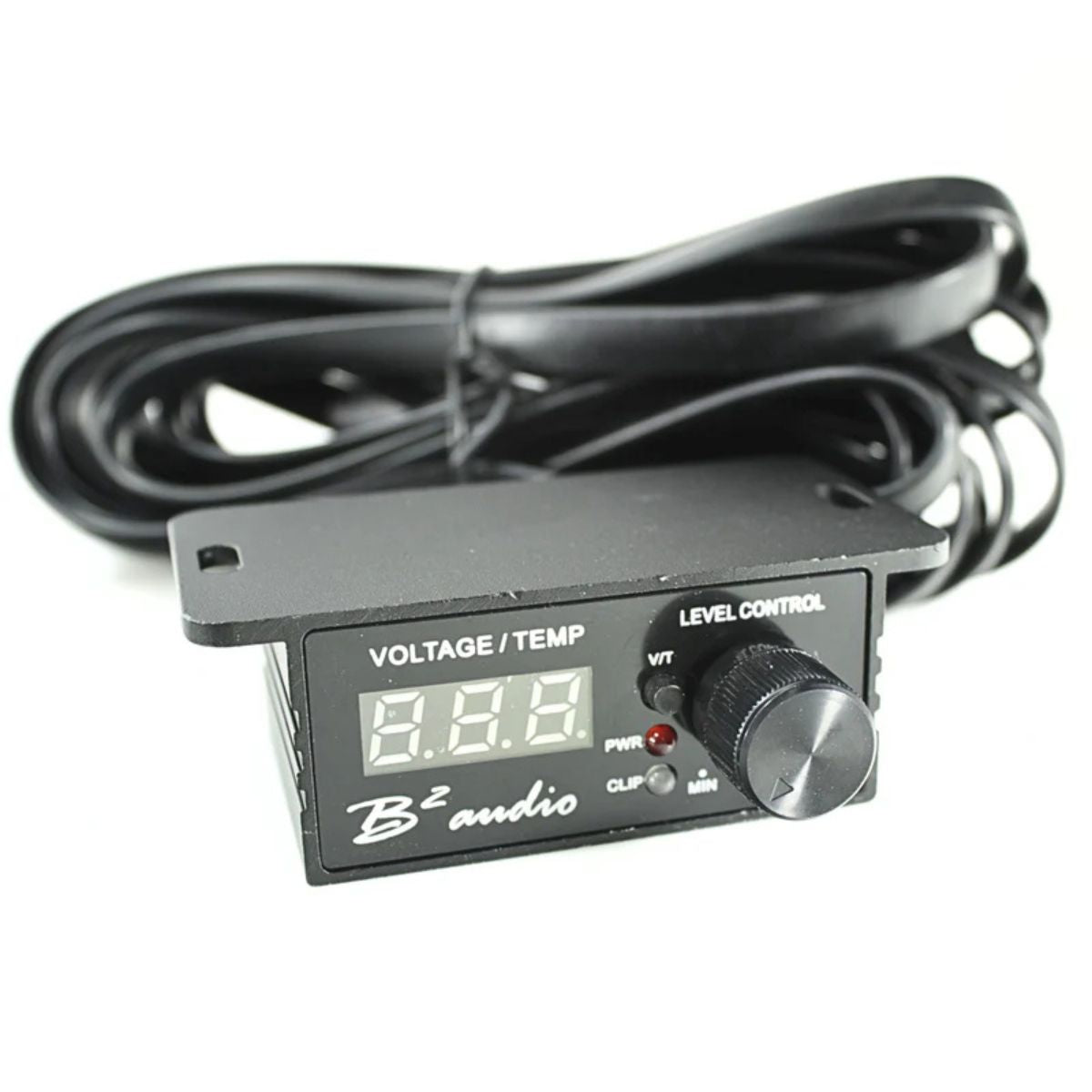

• (1) Bass Knob with Voltage and Temperature Display


• (1) Remote Wire


• Mounting Hardware

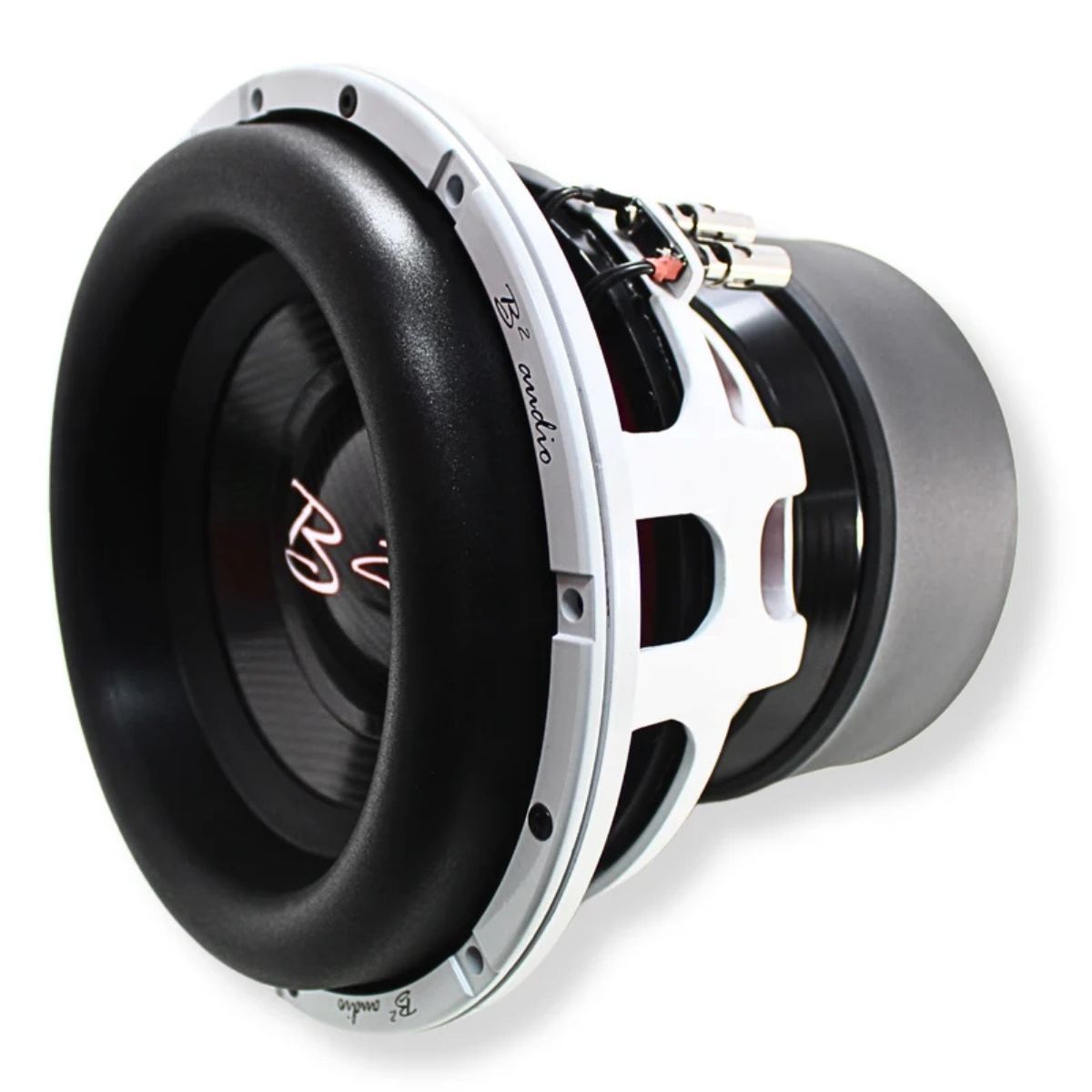

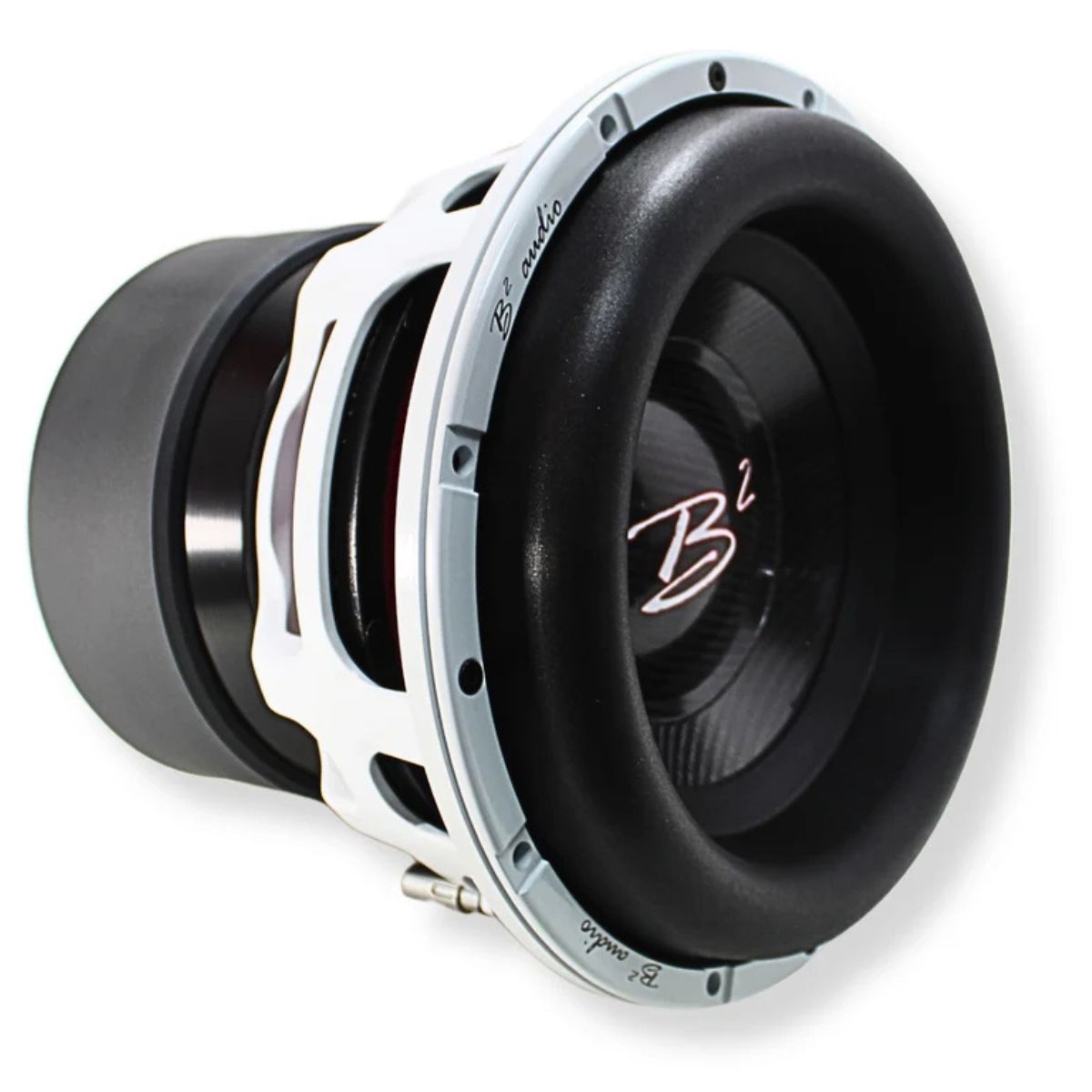

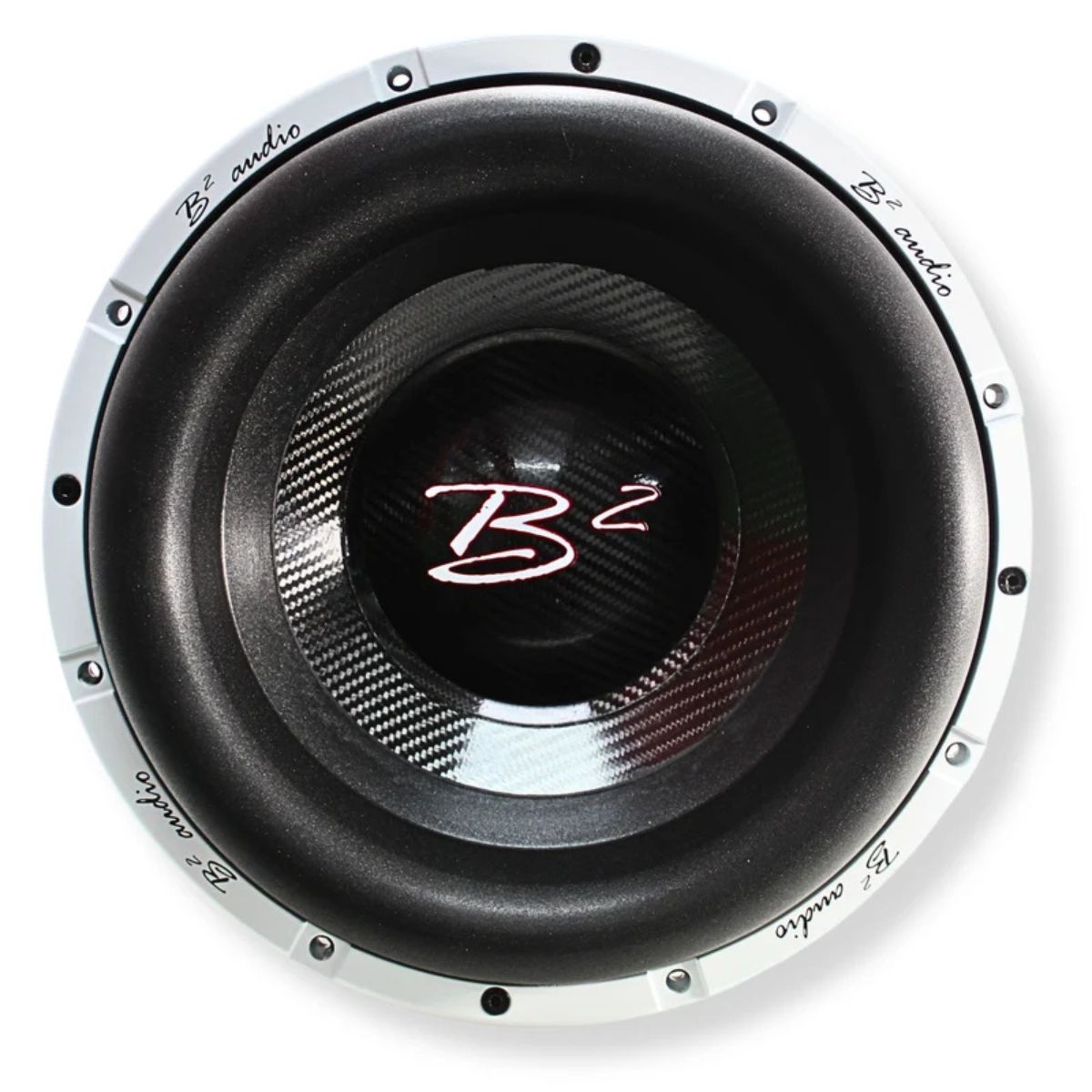

The B2 Audio RAGEXL12-D2 delivers extreme bass output with 3500 watts RMS of power handling, a massive 850 oz magnet assembly, and 23 mm of excursion. This package includes the B2 Audio RAGE 3500 amplifier, creating a properly matched high-output system for demanding street and competition builds.

The subwoofer’s dual 2-ohm voice coils can be wired in parallel for a 1-ohm final load. At 1 ohm, the included RAGE 3500 amplifier produces between 3000 and 3500 watts RMS, allowing it to drive the subwoofer near its full rated power.

A 3-inch voice coil, high-excursion suspension, 4-gauge push terminals, and heavy-duty motor structure help the RAGEXL12-D2 maintain control under extreme power. It can be used in sealed or ported enclosures, with multiple recommended configurations available to match the desired response and available space.

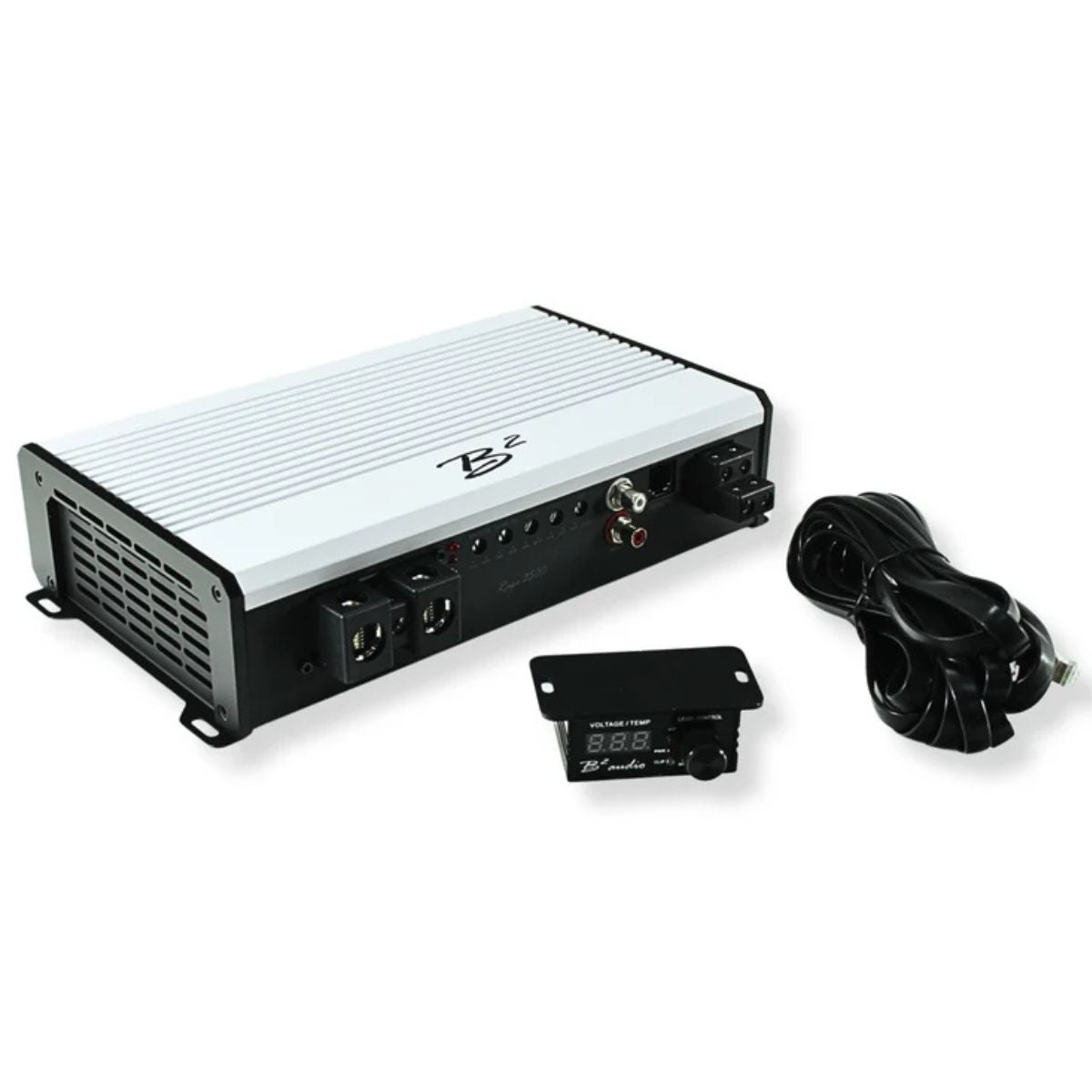

The compact Class-D amplifier includes adjustable low-pass, high-pass, and subsonic crossovers. Its included bass knob displays system voltage and amplifier temperature, helping you monitor the system while adjusting the output from the driver’s seat.

This is a high-current system that requires proper electrical support, wiring, enclosure construction, gain adjustment, and professional installation.

Features

• 12-inch RAGE XL high-excursion subwoofer


• 3500W RMS power handling


• 10,000W peak dynamic power


• Dual 2-ohm voice coils wire to a 1-ohm final load


• 3-inch voice coil


• 23 mm maximum excursion

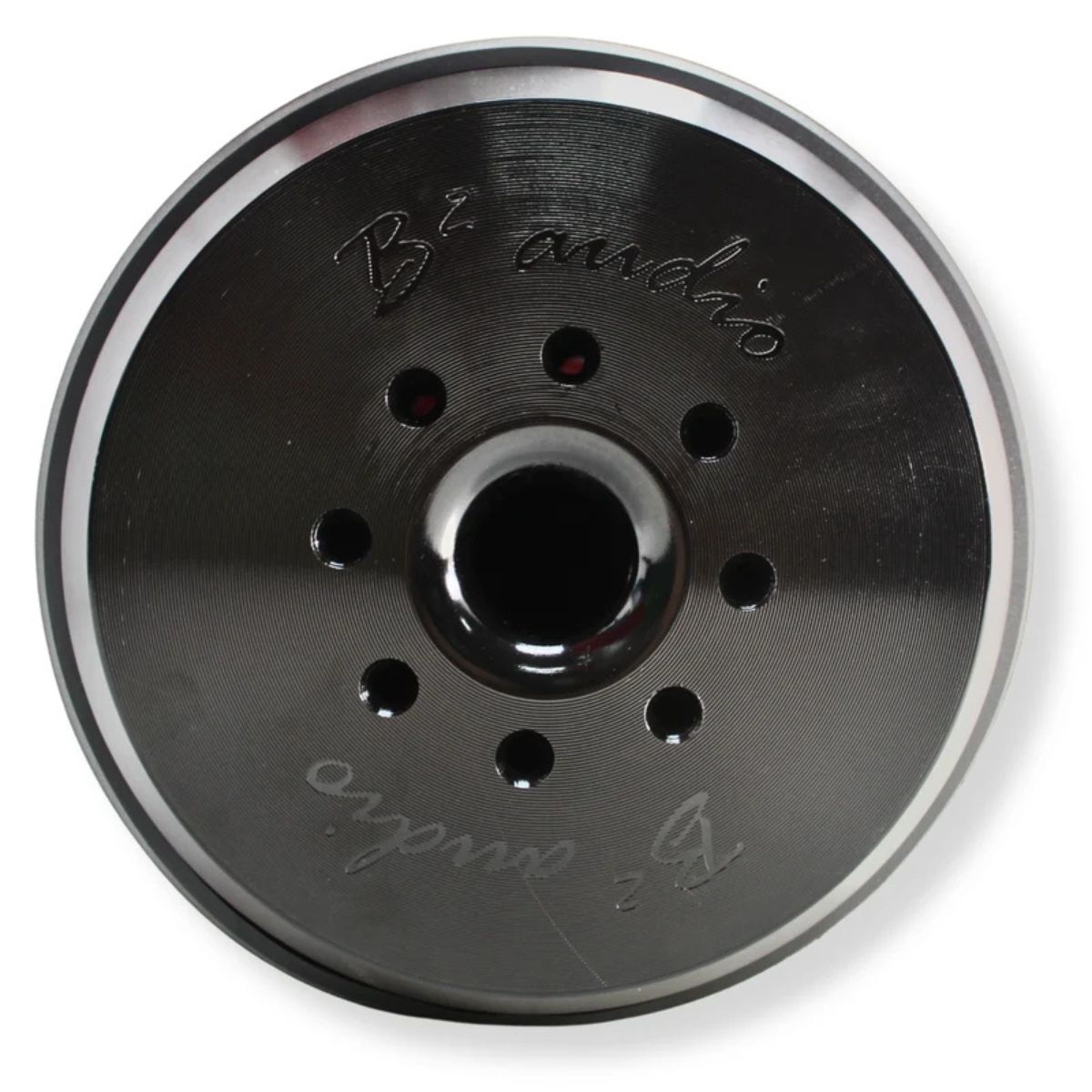

• Massive 850 oz magnet assembly


• Heavy-duty 4-gauge push terminals


• Compatible with sealed and ported enclosures


• RAGE 3500 full-range Class-D monoblock amplifier


• Up to 3500W RMS amplifier output at 1 ohm


• Adjustable low-pass, high-pass, and subsonic crossovers


• Thermal, short-circuit, and overcurrent protection


• Bass knob with voltage and temperature display included

Specifications

RAGEXL12-D2 Subwoofer

• Size: 12 inches


• RMS Power Handling: 3500 watts


• Peak Dynamic Power: 10,000 watts


• Nominal Impedance: Dual 2 ohms


• Recommended Final Load: 1 ohm


• Voice Coil Diameter: 3 inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 86 dB


• Maximum Excursion: 23 mm


• Magnet Weight: 850 oz


• Push Terminal Capacity: 4 gauge


• Displacement Volume: 8.9 L / 0.314 cubic feet


• Overall Diameter: 12.25 inches


• Mounting Diameter: 11.10 inches


• Bolt Pattern Diameter: 11.57 inches


• Overall Depth: 12.12 inches


• Mounting Depth: 10.12 inches

Thiele and Small Parameters

• Free-Air Resonance: 31 Hz


• Resistance: 3.8 ohms


• Qms: 5.99


• Qes: 0.66


• Qts: 0.59


• Vas: 22.2 L


• Cms: 70 um/N


• BL/Re: 111.1


• Moving Mass: 376.5 g


• Xmax: 23 mm

Suggested Enclosures

• Sealed Volume: 1.0 cubic foot


• Sealed Qtc: 0.605


• Sealed F3: 46 Hz


• Compact Ported Volume: 1.76 cubic feet


• Compact Port Area: 13.94 square inches


• Compact Port Length: 11.2 inches


• Compact Tuning Frequency: 38 Hz


• Ported Volume: 2.66 cubic feet


• Port Area: 30.98 square inches


• Port Length: 24.7 inches


• Ported Tuning Frequency: 33 Hz

Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.

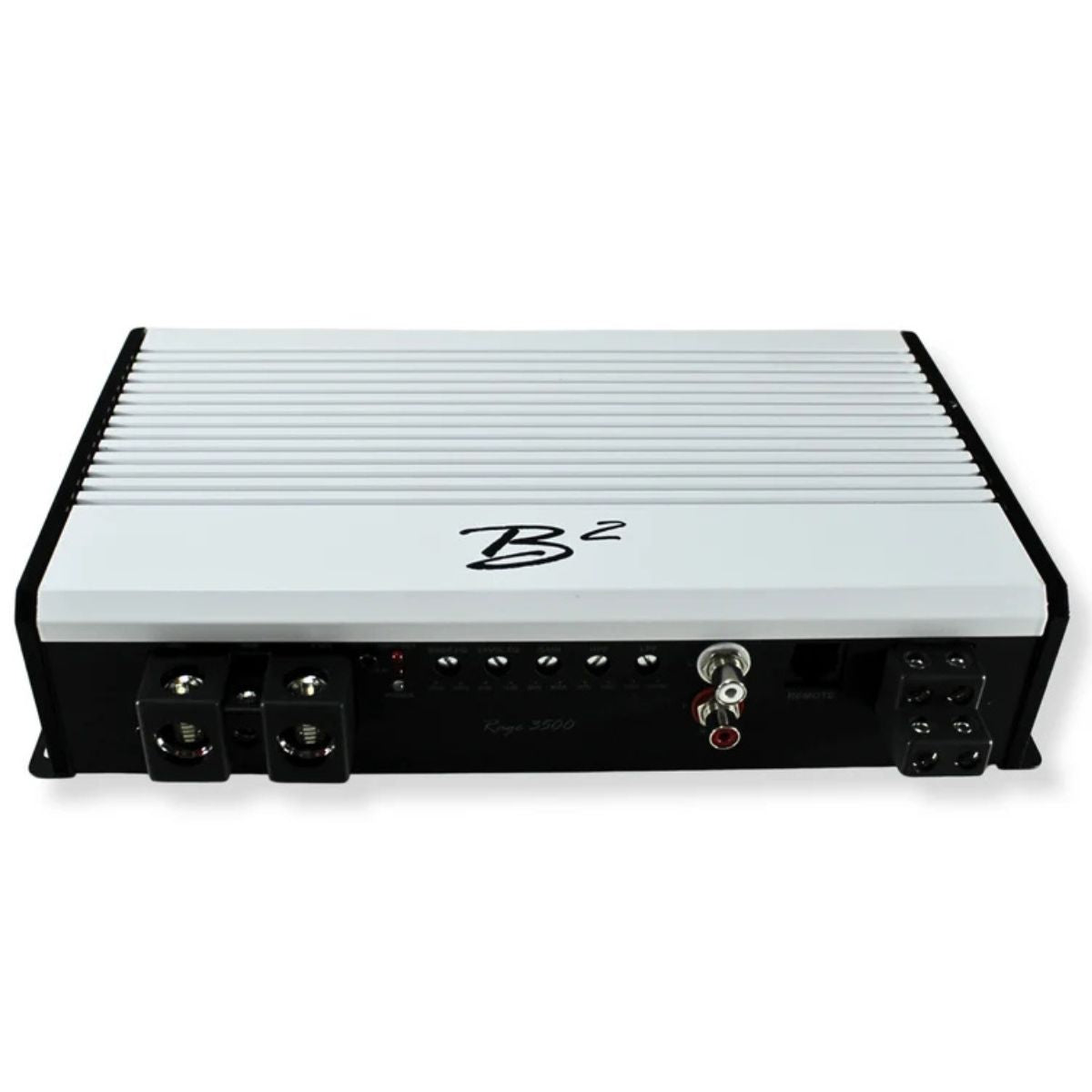

RAGE 3500 Amplifier

• Amplifier Type: Full-Range Class-D Monoblock


• RMS Power at 4 Ohms: 1050 to 1200 watts


• RMS Power at 2 Ohms: 1850 to 2150 watts


• RMS Power at 1 Ohm: 3000 to 3500 watts


• Frequency Response: 10 Hz to 20 kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 0.2V to 6V


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Bass Control Frequency: 30 Hz to 80 Hz


• Low-Pass Crossover: 50 Hz to 20 kHz


• High-Pass Crossover: 10 Hz to 2 kHz


• Subsonic Crossover: 10 Hz to 2 kHz


• Length: 11.5 inches


• Width: 7.25 inches


• Height: 2.5 inches


• Weight: 7.25 lb

One massive subwoofer, one properly matched amplifier, and up to 3500 watts RMS of system-shaking output.
