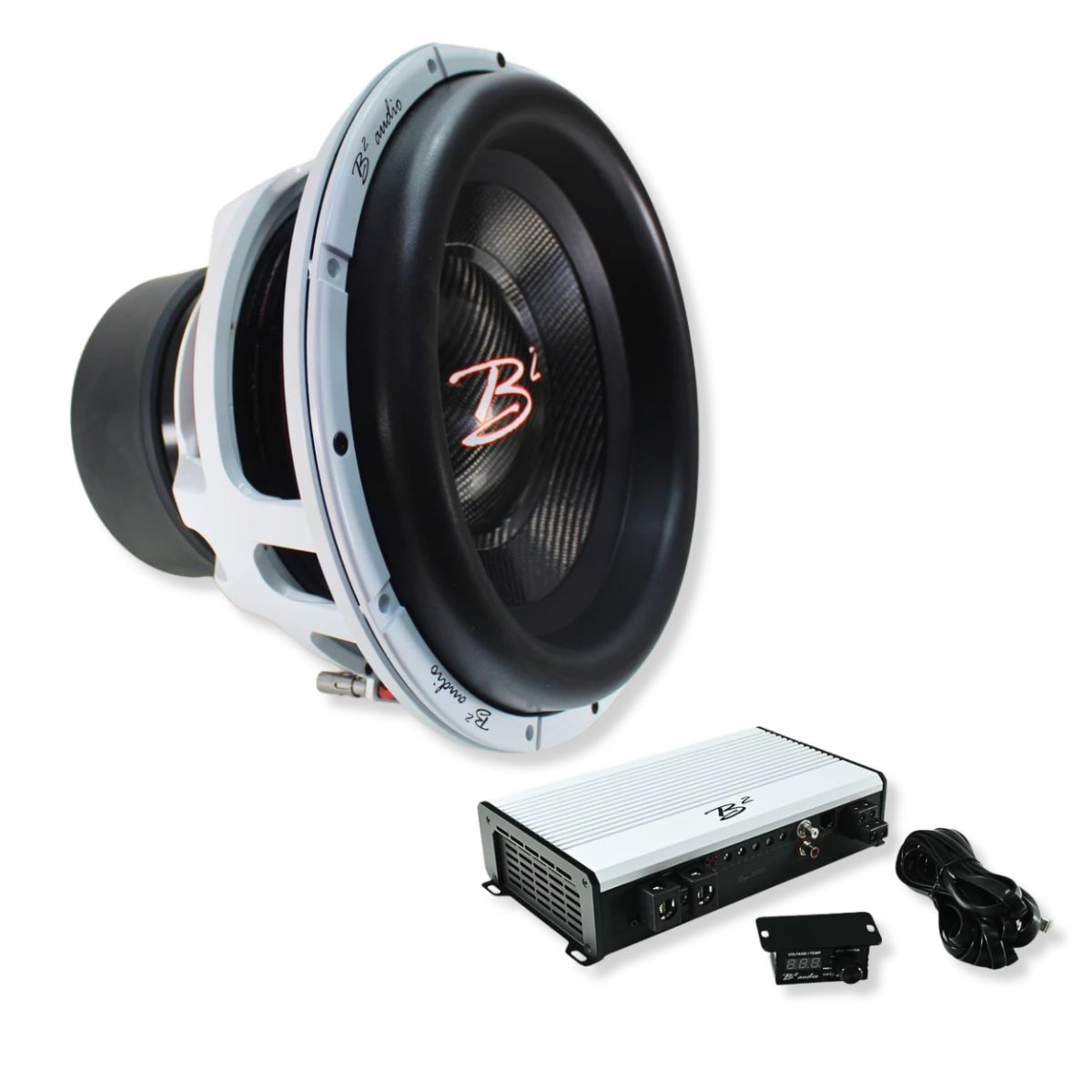

B2 Audio RAGEXL15-D2-V2 15" 3500W RMS Subwoofer with RAGE 3500 Amp

• 3500W RMS High-Excursion Subwoofer: the 15-inch RAGEXL15-D2-V2 combines a custom basket, 3-inch voice coil, and 23 mm Xmax for extreme low-frequency output.
• Matched RAGE 3500 Amplifier: the included Class-D monoblock produces between 3000 and 3500 watts RMS at the recommended 1-ohm configuration.
• Dual 2-Ohm Voice Coils: wire the coils in parallel to create a 1-ohm final load and access the amplifier’s maximum rated output.
• Flexible Enclosure Options: use a sealed enclosure for a compact, controlled system or choose a ported design for stronger output and deeper extension.
• Includes Monitoring Bass Knob: adjust the bass level while monitoring amplifier temperature and vehicle voltage from the included remote display.

B2 Audio RAGEXL15-D2-V2 15" 3500W RMS Subwoofer with RAGE 3500 Amp

This Listing Includes:

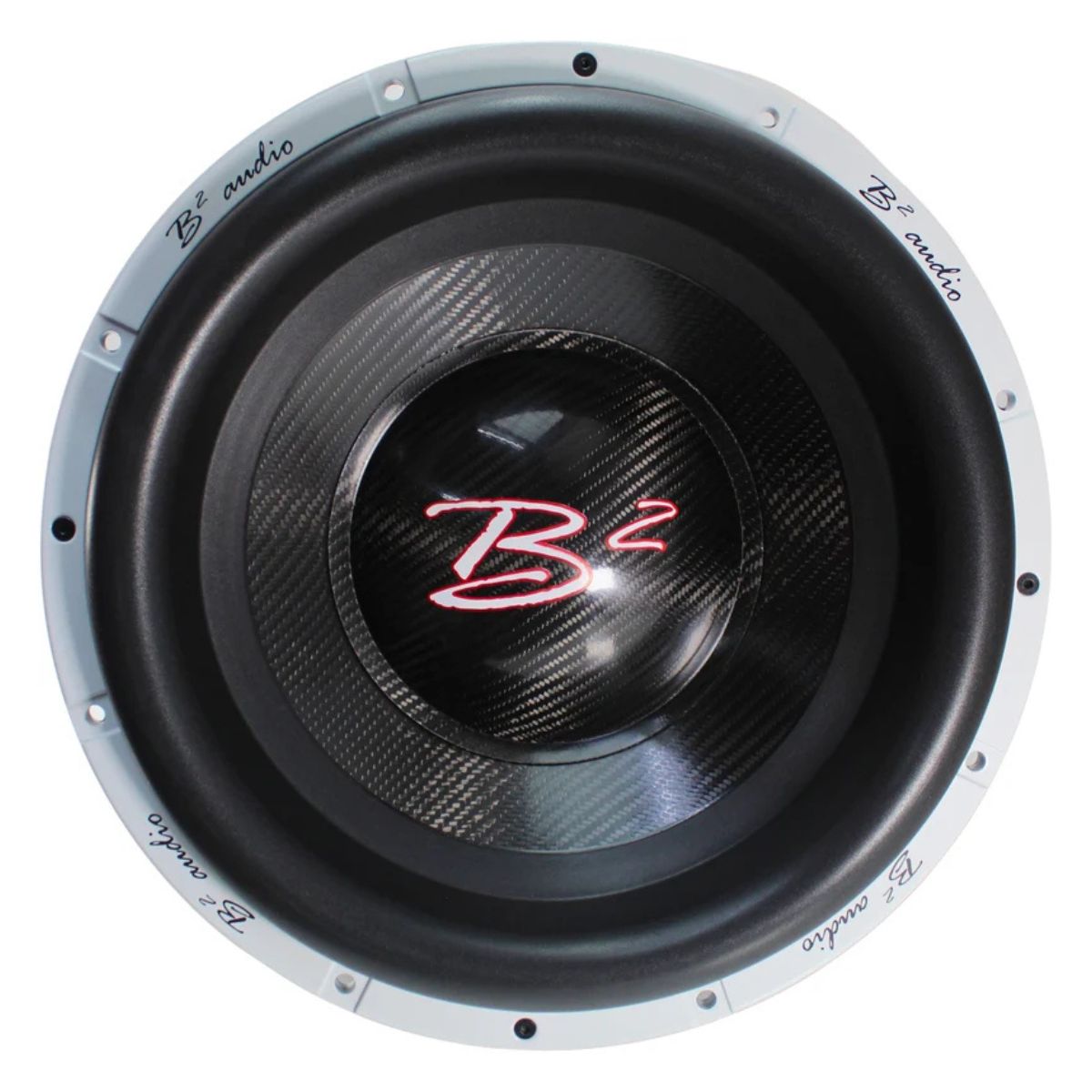

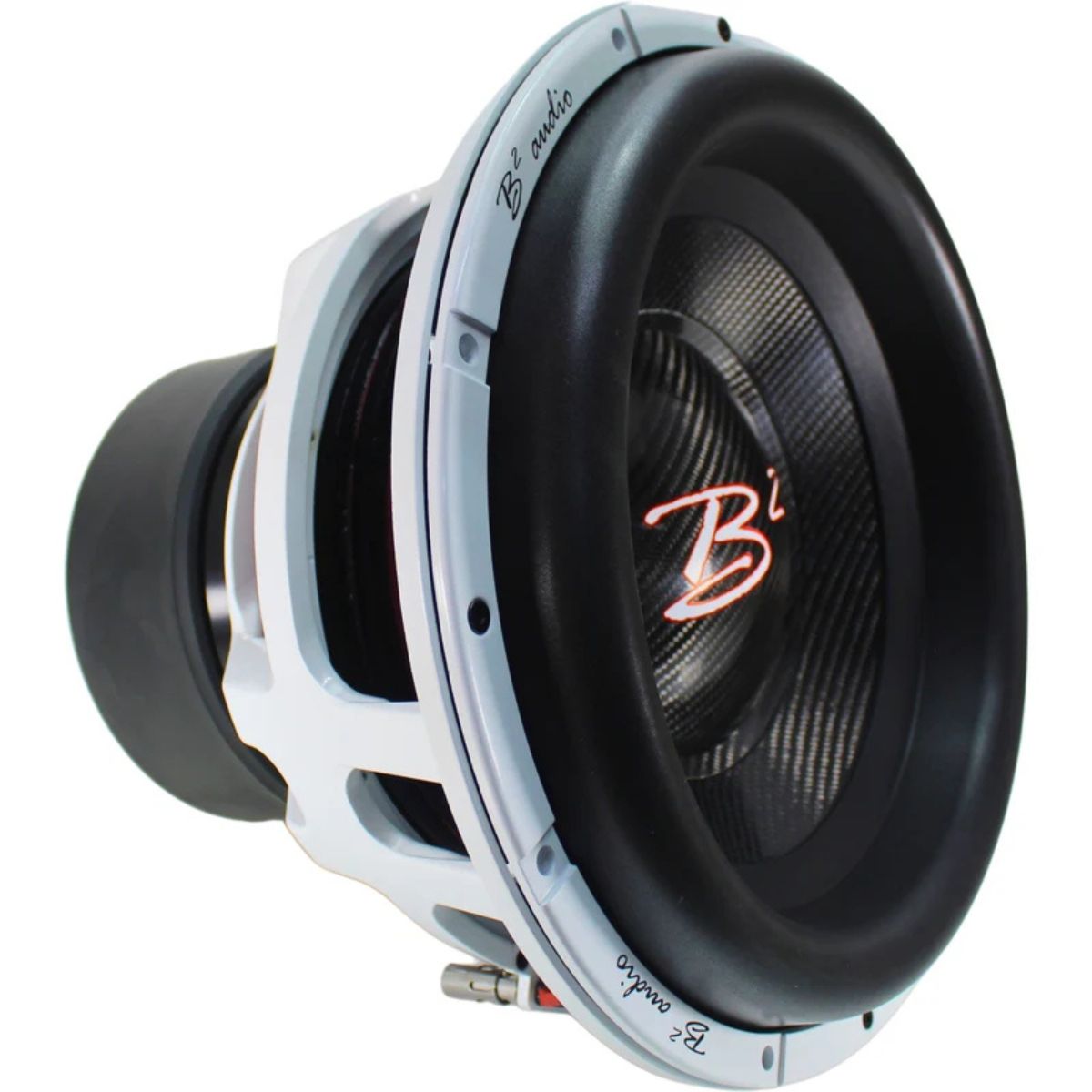

• (1) B2 Audio RAGEXL15-D2-V2 15" Dual 2-Ohm Subwoofer

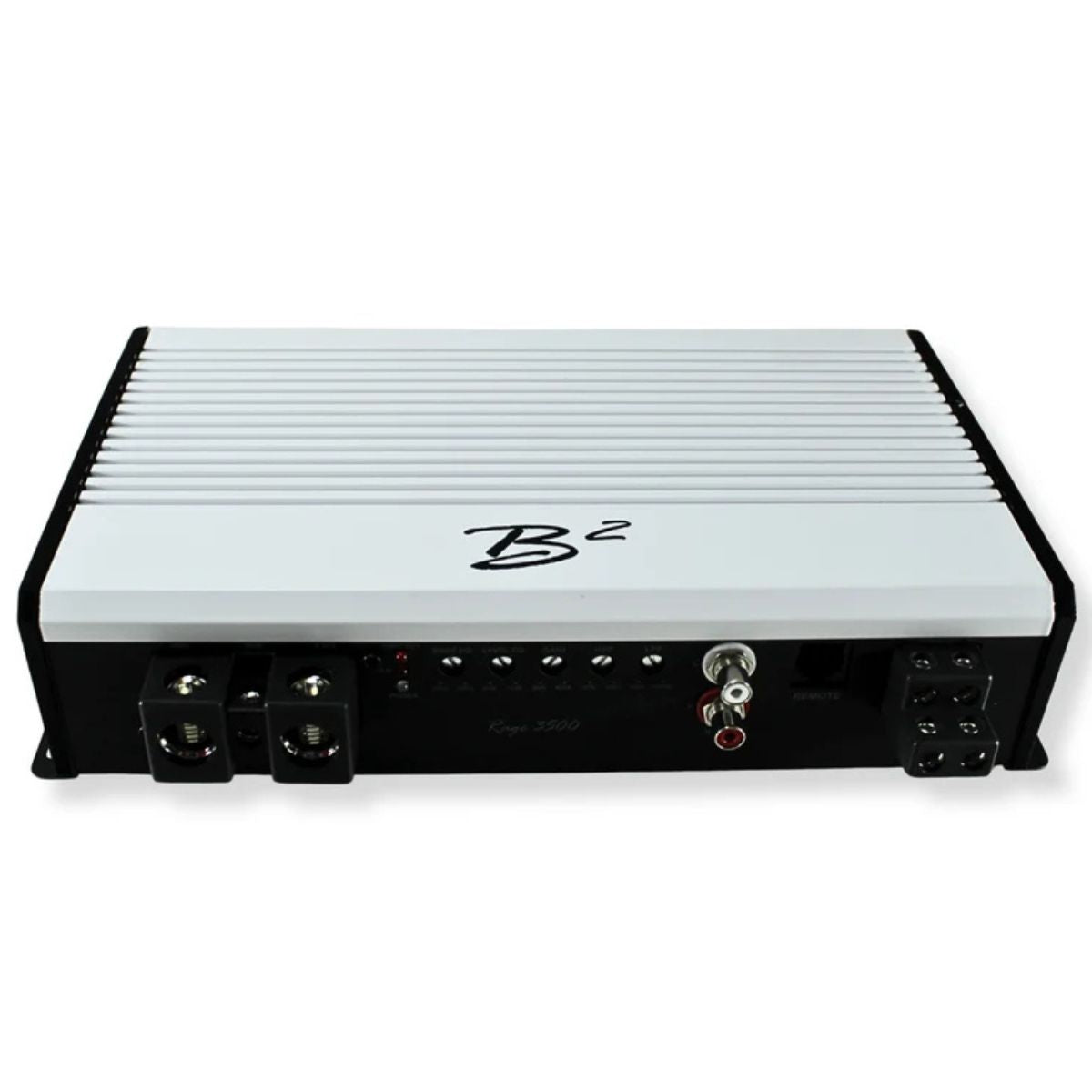

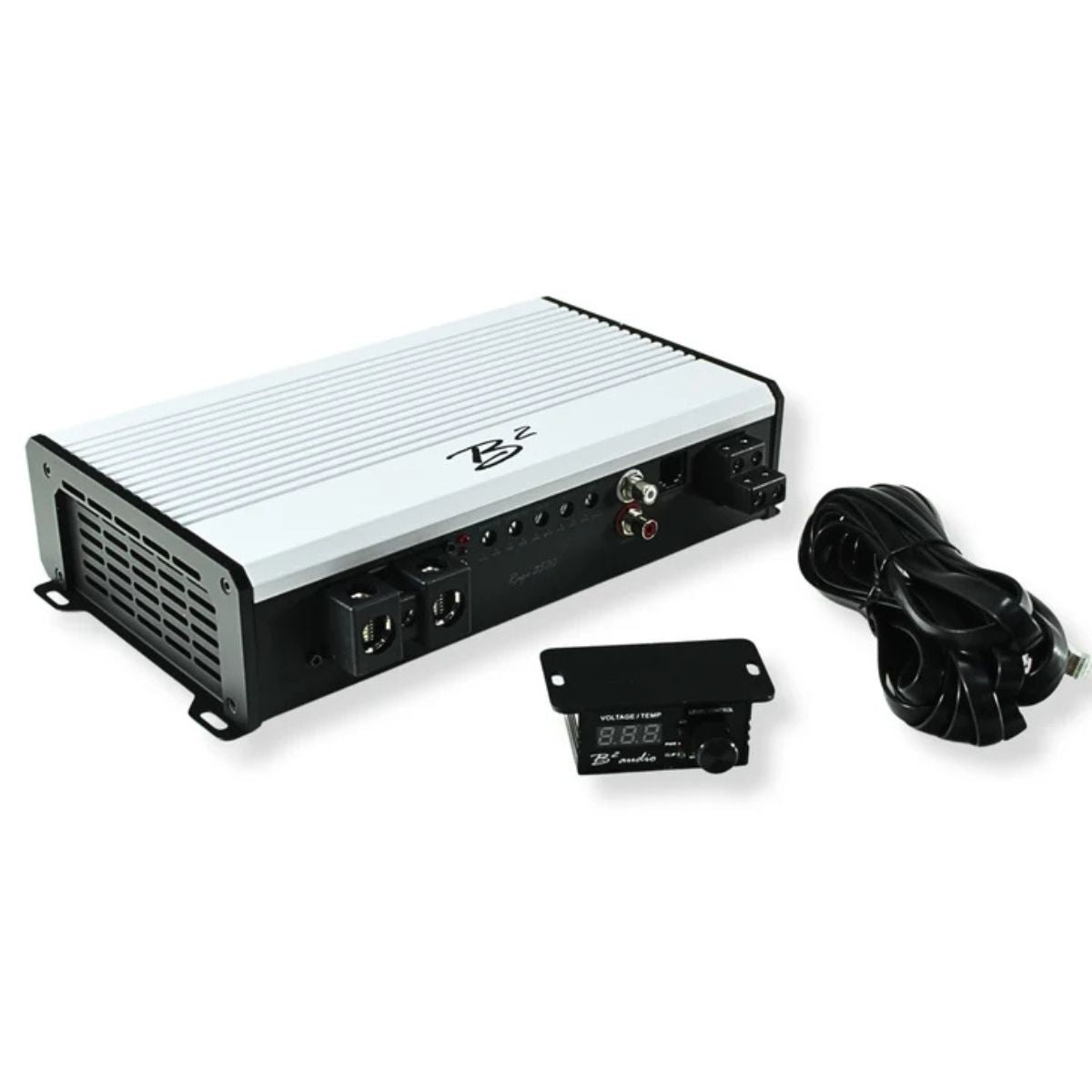

• (1) B2 Audio RAGE 3500 Monoblock Amplifier

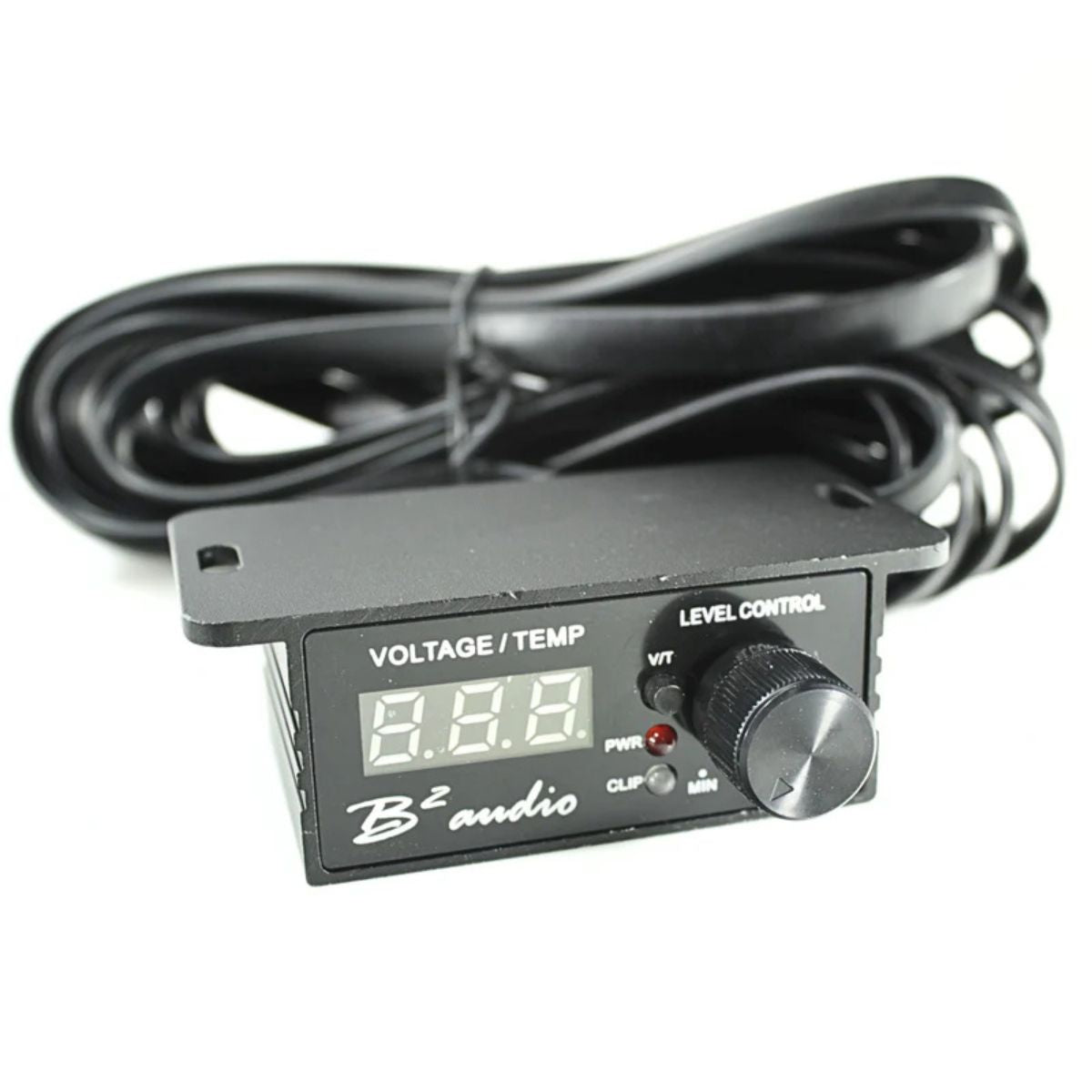

• (1) Bass Knob with Voltage and Temperature Display


• (1) Remote Wire


• Mounting Hardware

The B2 Audio RAGEXL15-D2-V2 delivers extreme low-frequency output with 3500 watts RMS of power handling, a heavy-duty 3-inch dual voice coil platform, and 23 mm of Xmax. This package includes the B2 Audio RAGE 3500 amplifier, creating a properly matched high-output system for serious street and SPL builds.

The subwoofer’s dual 2-ohm voice coils can be wired in parallel for a 1-ohm final load. At 1 ohm, the RAGE 3500 amplifier produces between 3000 and 3500 watts RMS, allowing it to drive the subwoofer near its full rated power.

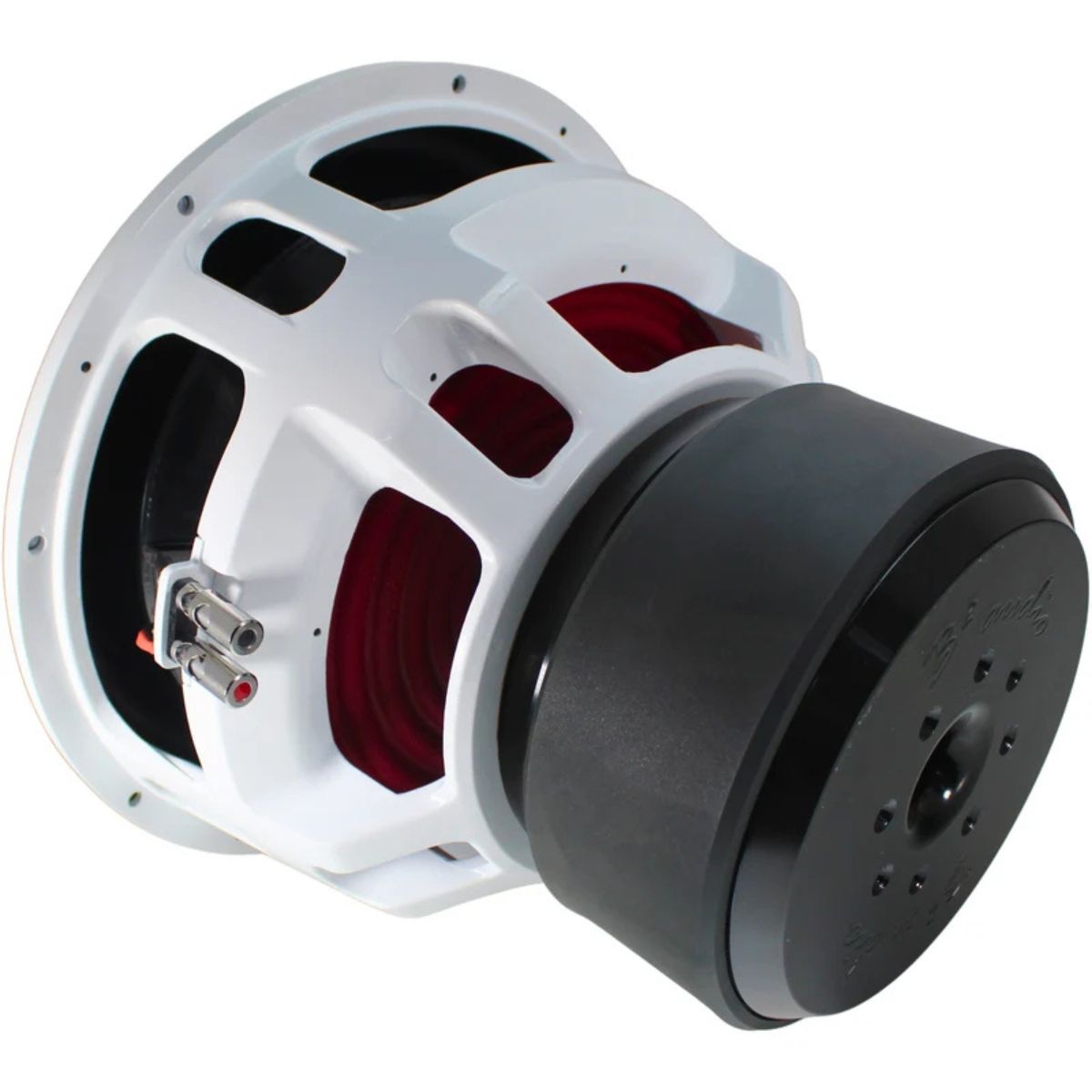

Its custom-tooled 15-inch basket, high-excursion suspension, 4-gauge push terminals, and oversized motor structure are designed to withstand demanding high-power operation. The subwoofer can be installed in sealed or ported enclosures, with configurations available for compact installations or deeper low-frequency extension.

The included full-range Class-D monoblock amplifier features adjustable low-pass, high-pass, and subsonic crossovers. Its remote bass knob lets you control the output while monitoring amplifier temperature and vehicle voltage.

This high-current system requires proper electrical support, wiring, enclosure construction, gain adjustment, and professional installation.

Features

• 15-inch RAGE XL V2 high-excursion subwoofer


• 3500W RMS and 10,000W maximum power handling


• Dual 2-ohm voice coils wire to a 1-ohm final load


• Heavy-duty 3-inch dual voice coil platform


• 23 mm Xmax and 52 mm Xmech


• Custom-tooled 15-inch basket


• Heavy-duty 4-gauge push terminals


• Compatible with sealed and ported enclosures


• RAGE 3500 full-range Class-D monoblock amplifier


• Up to 3500W RMS amplifier output at 1 ohm


• Adjustable low-pass, high-pass, and subsonic crossovers


• Thermal, short-circuit, and overcurrent protection


• Bass knob with voltage and temperature display included

Specifications

RAGEXL15-D2-V2 Subwoofer

• Size: 15 inches


• RMS Power Handling: 3500 watts


• Maximum Power Handling: 10,000 watts


• Nominal Impedance: Dual 2 ohms


• Recommended Final Load: 1 ohm


• Voice Coil Diameter: 3 inches


• Sensitivity: 87.4 dB


• Xmax: 23 mm


• Xmech: 52 mm


• Cone Area: 765.1 square centimeters


• Push Terminal Capacity: 4 gauge


• Motor Assembly Displacement: 12.6 L / 0.445 cubic feet


• Overall Diameter: 15.48 inches


• Mounting Diameter: 13.5 inches


• Bolt Pattern Diameter: 14.5 inches


• Overall Depth: 13.622 inches


• Mounting Depth: 11.69 inches

Thiele and Small Parameters

• Free-Air Resonance: 27 Hz


• Resistance: 3.8 ohms


• Qms: 5.5


• Qes: 0.74


• Qts: 0.66


• Vas: 56.4 L


• Cms: 70 um/N


• BL Factor: 116.1


• Moving Mass: 493.3 g


• Xmax: 23 mm


• Xmech: 52 mm


• Cone Area: 765.1 square centimeters

Suggested Enclosures

• Sealed Volume: 1.77 cubic feet


• Sealed Qtc: 0.689


• Sealed F3: 39 Hz


• Compact Ported Volume: 2.92 cubic feet


• Compact Port Area: 32.52 square inches


• Compact Port Length: 17.5 inches


• Compact Tuning Frequency: 38 Hz


• Ported Volume: 5.36 cubic feet


• Port Area: 32.52 square inches


• Port Length: 19.2 inches


• Ported Tuning Frequency: 27 Hz

Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.

RAGE 3500 Amplifier

• Amplifier Type: Full-Range Class-D Monoblock


• RMS Power at 4 Ohms: 1050 to 1200 watts


• RMS Power at 2 Ohms: 1850 to 2150 watts


• RMS Power at 1 Ohm: 3000 to 3500 watts


• Frequency Response: 10 Hz to 20 kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 0.2V to 6V


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Bass Control Frequency: 30 Hz to 80 Hz


• Low-Pass Crossover: 50 Hz to 20 kHz


• High-Pass Crossover: 10 Hz to 2 kHz


• Subsonic Crossover: 10 Hz to 2 kHz


• Length: 11.5 inches


• Width: 7.25 inches


• Height: 2.5 inches


• Weight: 7.25 lb

A massive 15-inch subwoofer, matched amplification, and up to 3500 watts RMS of bass built to be felt.
