RAVE Series 1000 Watt RMS 1 Ohms Monoblock Class-D Car Audio Amplifier

RAVE Series 1000W RMS 1-Ohm Monoblock Class D Car Audio Amplifier

This Listing Includes:

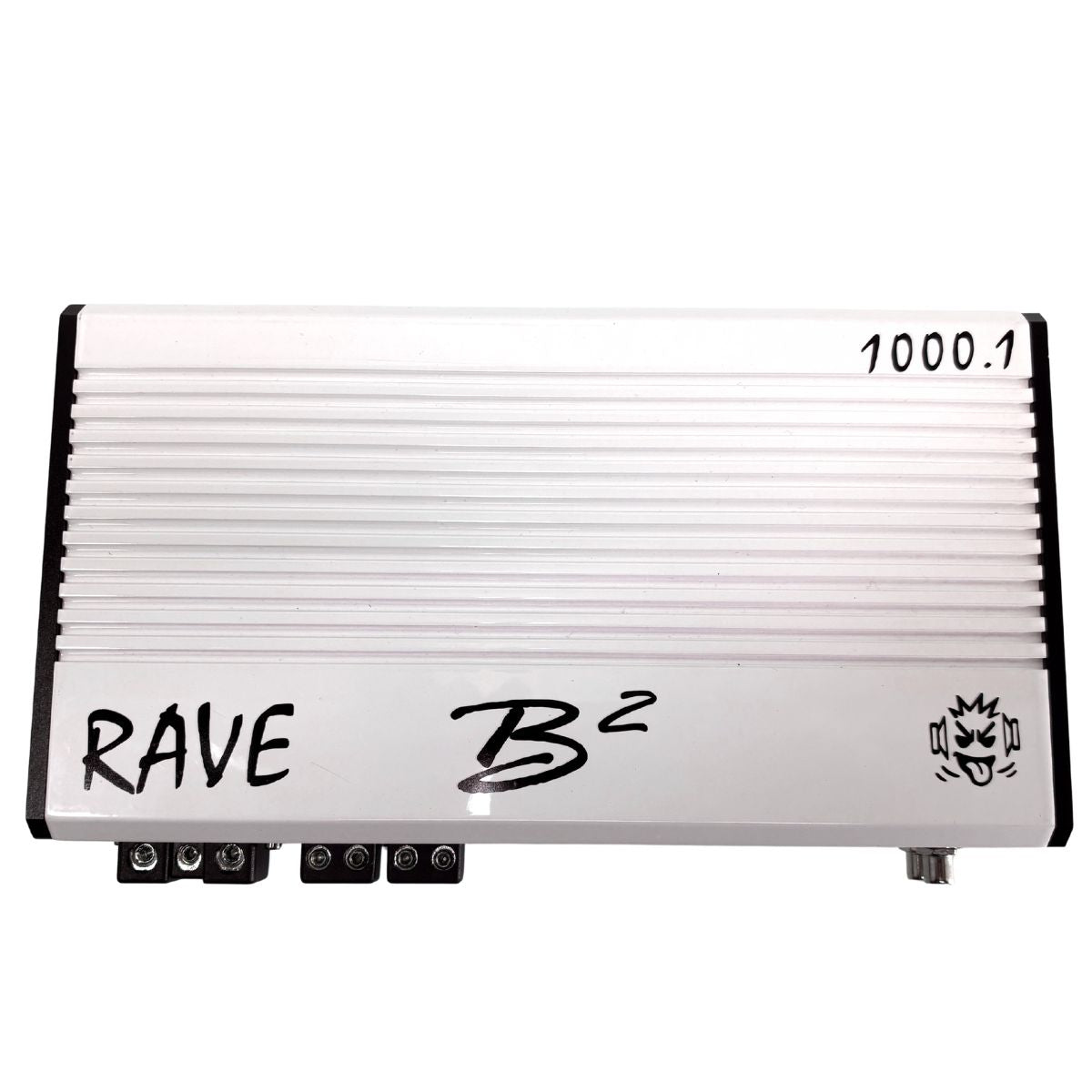

• (1) B2 Audio RAVE 1000.1 Monoblock Amplifier
• (1) Metal Remote Level Control with Clip Indicator

The B2 Audio RAVE 1000.1 is a compact monoblock amplifier built for daily-driver subwoofer systems that need clean, controlled bass power without turning the entire vehicle into a full-blown competition build.

Rated for up to 1,000W RMS at 1 ohm, the RAVE 1000.1 is a strong match for single-subwoofer builds, moderate dual-subwoofer setups, and everyday bass upgrades. It delivers the low-end punch you want for commutes, cruises, demos, and weekend shows while keeping your installation manageable.

Its efficient Class D design, adjustable low-pass crossover, subsonic filter, bass EQ, and included metal remote level control with clip indicator give you the control to tune your system confidently. Whether you are upgrading a factory system or building a louder daily, the RAVE 1000.1 brings dependable B2 Audio bass power to your ride.

Features:

• 1,000W RMS Monoblock Car Audio Amplifier
• Half-Bridge Class D Monoblock Design
• 1-Ohm Stable Design
• Built for Daily-Driver Subwoofer Systems
• 400W RMS at 4 Ohms
• 600W RMS at 2 Ohms
• 1,000W RMS at 1 Ohm
• Adjustable Low-Pass Crossover
• Adjustable Subsonic Crossover
• 50Hz / 12dB Bass EQ
• Metal Remote Level Control with Clip Indicator Included
• Compact Chassis for Clean, Real-World Installs
• 4-Gauge Power and Ground Terminals
• 90A Internally Fused
• Part of the B2 Audio RAVE Amplifier Series

Specifications:

• Model: RAVE 1000.1
• Amplifier Type: Monoblock
• Circuit Configuration: High-Efficiency Class D / Half-Bridge
• Power Rating @ 4 Ohms: 400W RMS
• Power Rating @ 2 Ohms: 600W RMS
• Power Rating @ 1 Ohm: 1,000W RMS
• Minimum Speaker Impedance: 1 Ohm
• Frequency Response: 10Hz–200Hz
• Signal-to-Noise Ratio: >95dB
• Input Sensitivity: 6V–0.2V
• High-Level Input Sensitivity: 7V
• Crossover Slope: 12dB/Octave
• Low-Pass Crossover: 10Hz–200Hz
• Subsonic Crossover: 10Hz–50Hz
• Bass EQ: 50Hz / 12dB
• Remote Level Control: Included with Clip Indicator
• Power Terminal Gauge: 4 Gauge / 21mm²
• Fuse Rating: 90A Internally Fused (with 3x 35A fuses)
• Up to 16 Volts DC

Dimensions:

• Length: 10.7"
• Width: 5.83"
• Depth: 2.48"
