B2 Audio REFERENCE Series Pair of 8" 4-Ohm SVC 180W RMS Loudspeaker/Woofer REF8W

• Seamless Series Integration: Perfectly complements the B2 Audio REFERENCE, RAGE, and MANI series, offering cohesive and harmonious audio performance.
• Unmatched Power Handling: Enjoy robust and dynamic sound with 180W RMS power, ensuring every note is delivered with precision and clarity.
• Superior Sound Quality: Experience crystal-clear sound reproduction and enhanced mid-range clarity, ideal for audiophiles and audio enthusiasts.
• Premium Build Quality: Constructed with high-quality materials for exceptional durability and long-lasting performance in any audio setup.
• Optimal Performance: Engineered with a precise 4-ohm single voice coil for efficient power distribution and peak audio fidelity.

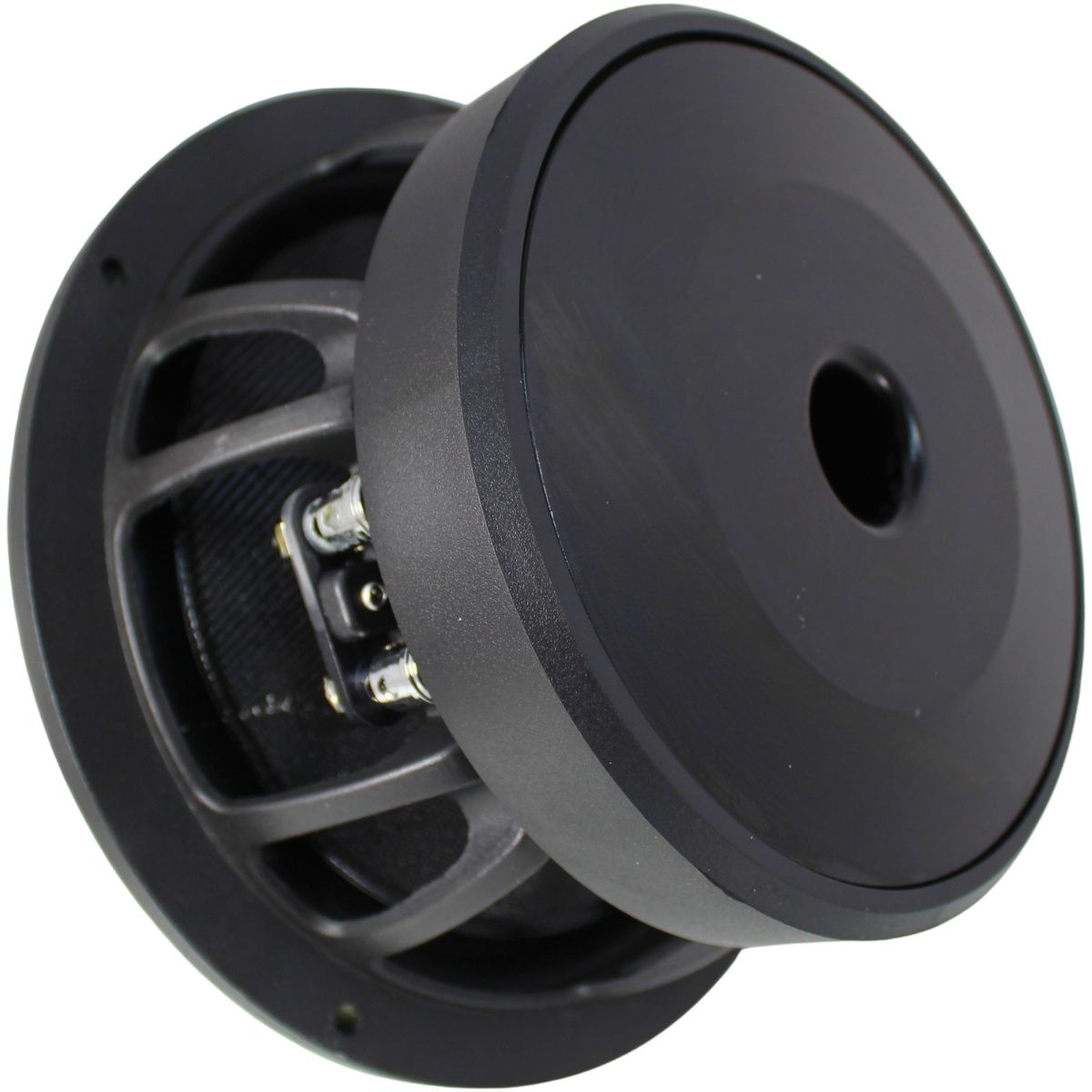

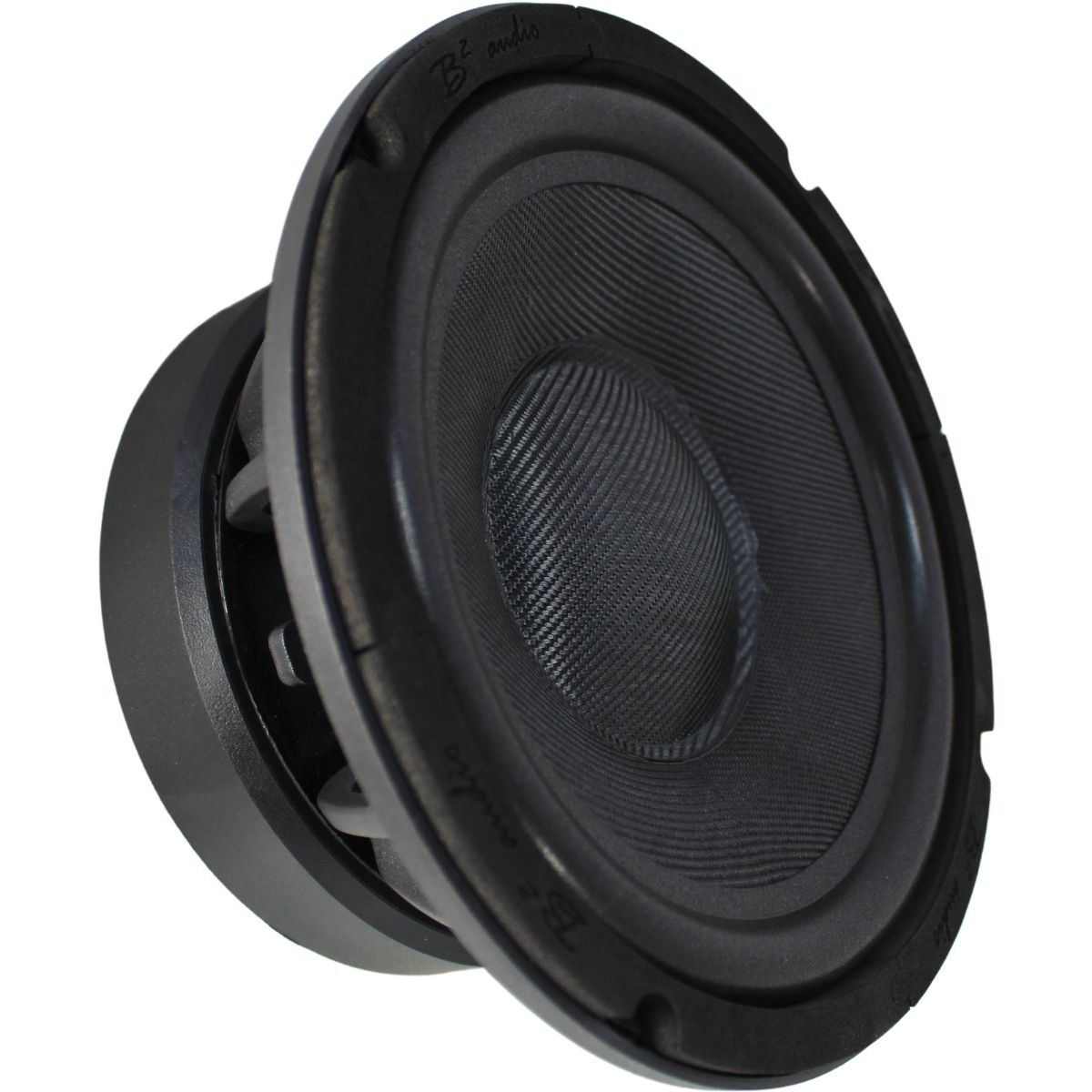

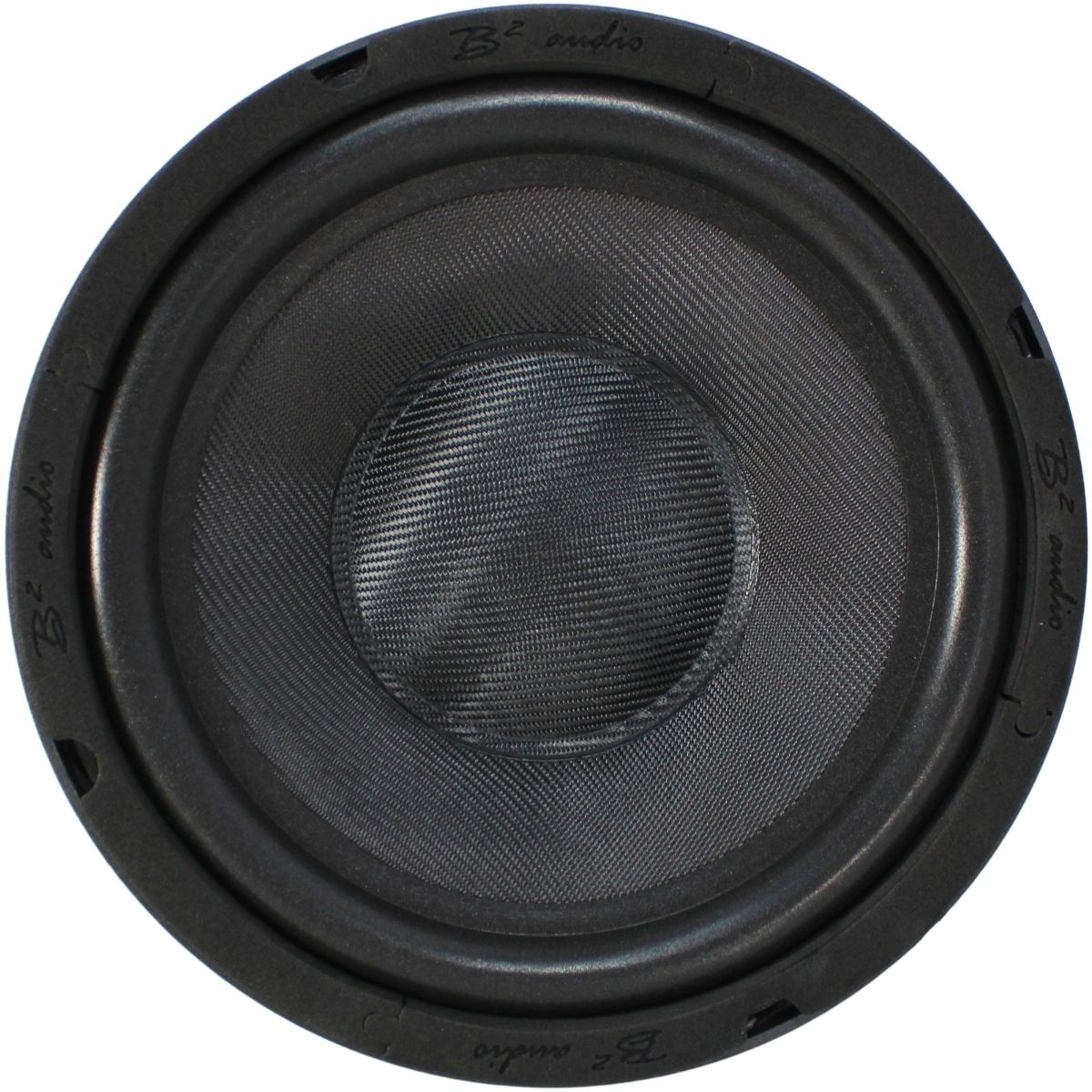

B2 Audio REFERENCE Series 8" 180W RMS 4-Ohm SVC Loudspeaker / Mid-Woofer | REF8W

This Listing Includes:

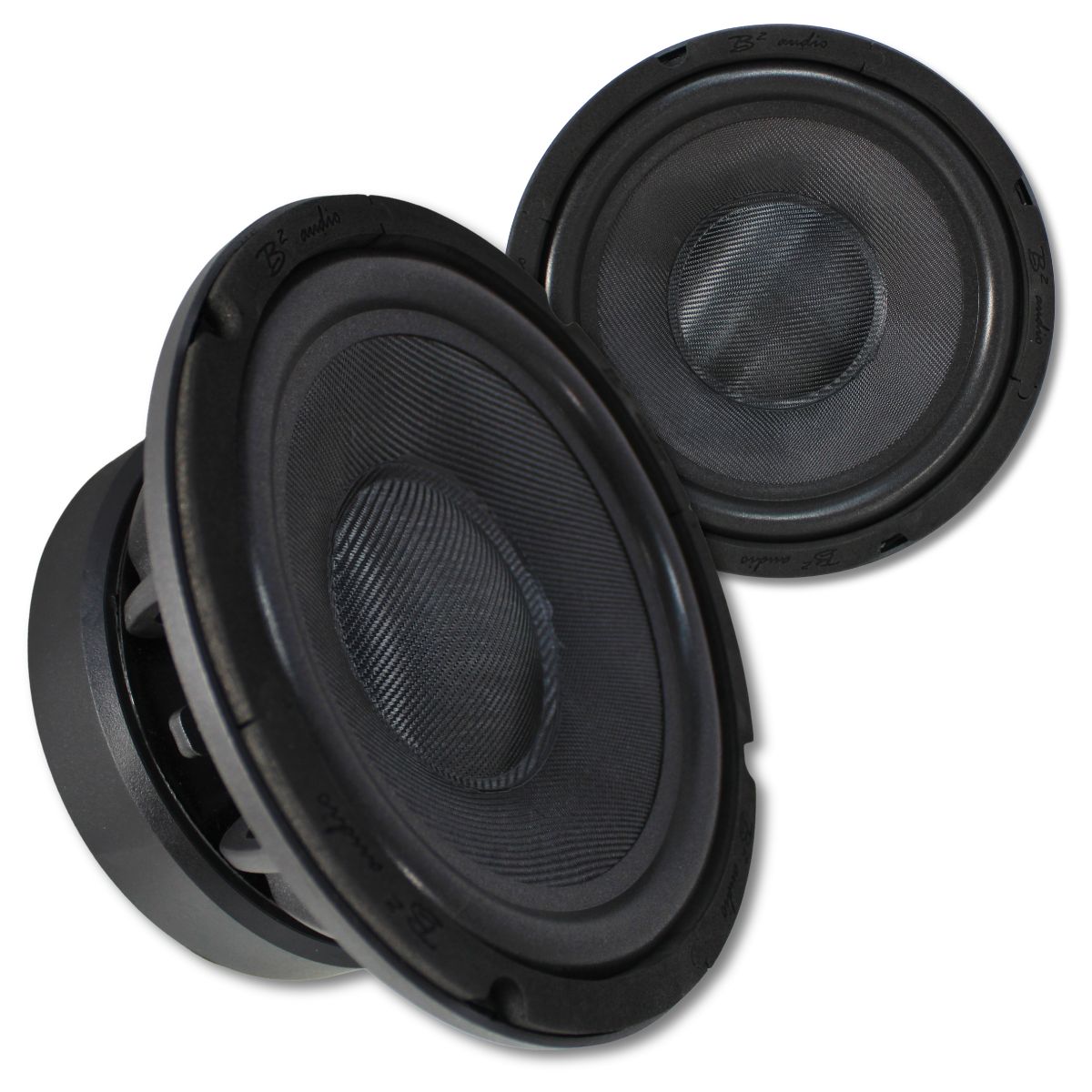

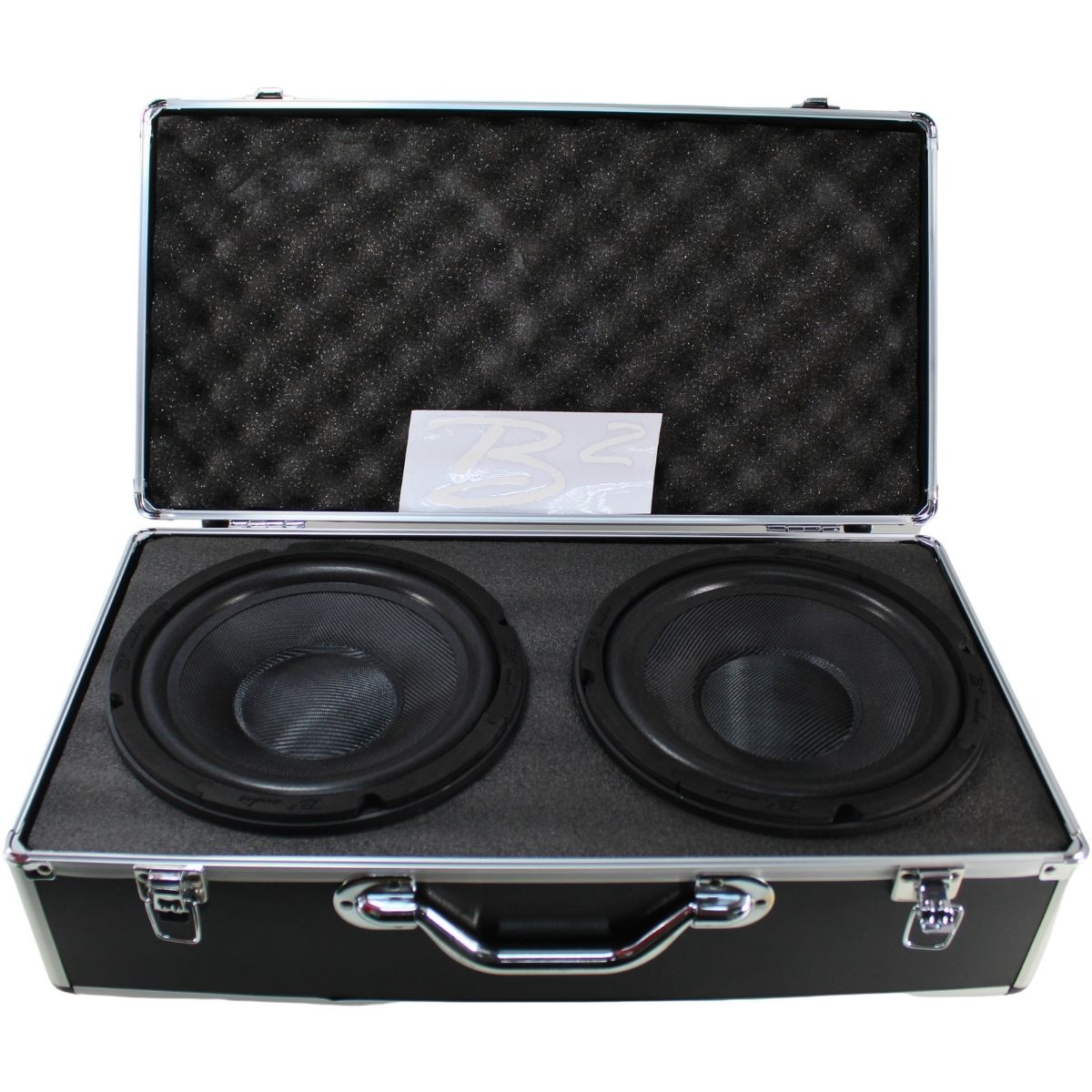

• (2) B2 Audio 8" 180 Watt RMS Mid-Woofers

Description:

Introducing the B2 Audio REFERENCE Series 8" 180W RMS 4-Ohm SVC Loudspeaker/Mid-woofer  the epitome of audio excellence. Designed to integrate seamlessly with the B2 Audio REFERENCE, RAGE, and MANI series, these speakers are engineered to deliver an unparalleled auditory experience. With a robust 180W RMS power handling and a precise 4-ohm single voice coil, they provide crystal-clear sound reproduction and dynamic mid-range clarity.

Whether you're upgrading your car audio system or crafting the perfect custom setup, the REFERENCE Series 8" loudspeakers are built to impress. The meticulous construction and high-quality materials ensure durability and performance, making them a staple for audiophiles who demand nothing but the best. Experience the pinnacle of sound quality with B2 Audio's REFERENCE Series  where power, precision, and perfection meet.

Features:

• Nominal Chassis Diameter: 8" / 200 mm


• Resonance (natural) Frequency: 48 Hz

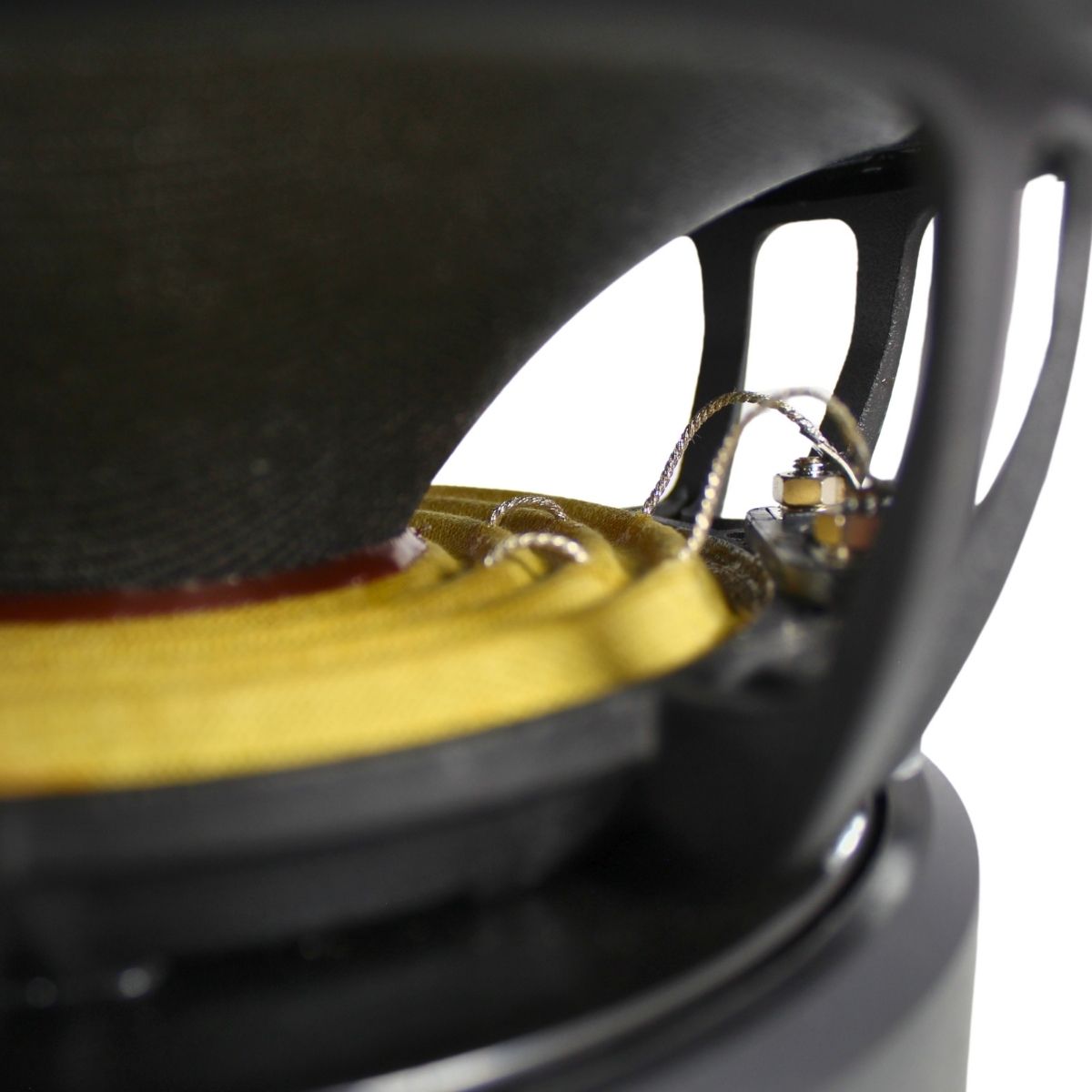

• Winding Material: GEI (inside-outside)

Specifications (Per Speaker):

• RMS Power Handling: 180W


• Maximum Power Handling: 360W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 2" / 50 mm


• Magnet Weight: 54 Oz


• Frequency Response: 48 - 3500 Hz


• Sensitivity: 95 dB


• Push Terminal Wire Size: 12 GA

Thiele and Small Parameters:

• Free Air Resonance (Fs): 48 Hz


• Resistance (Re): 3.6 Ohm


• Mechanical Factor (Qms): 8.3


• Electrical Factor (Qes): 0.16


• Total Factor (Qts): 0.15


• Equivalent Volume (Vas): 21 L


• BL Factor (BL): 14 T/m


• Moving Mass (Mms): 32 grams


• Excursion Max (Xmax): 5 mm


• Sd: 227 cm^2


• Efficiency: 1.6 %


• Le: 0.2 mH


• EBP: 320

Measurements (Per Speaker):

• Overall Diameter: 8" / 210 mm


• Mounting Diameter: 6.9" / 177 mm


• Bolt Pattern Diameter: 7.6" / 197 mm


• Overall Depth: 3.95" / 100.33 mm


• Mounting Depth: 3.5" / 88.9 mm


• Sold as: (Pair)
