B2 Audio RIOT 1800W 2-Ohm Class D 4-Channel Amplifier w/ RGB LED Illumination

• High Power Output: Delivers up to 1800W total (depending on impedance) to drive your audio system to new heights.
• Class D Efficiency: Ensures powerful performance with minimal heat generation, maximizing efficiency.
• RGB LED Lights: Customizable LED lighting to enhance the aesthetics of your car audio setup.
• 4-Channel Configuration: Perfect for powering multiple speakers or subwoofers for a balanced, high-performance sound.
• Adjustable Bass Boost: Fine-tune your bass to match your preferences with 0-12 dB of bass boost.
• Signal & Noise Performance: High signal-to-noise ratio ensures clean, clear sound.
• Durable & Compact Design: Built to last and designed to fit comfortably in tight spaces.
• Versatile Crossovers: Equipped with low-pass and Hi-Pass crossovers for precise sound control.

B2 Audio RIOT 1800W 2-Ohm Class D 4-Channel Amplifier w/ RGB LED Illumination

This Listing Includes:

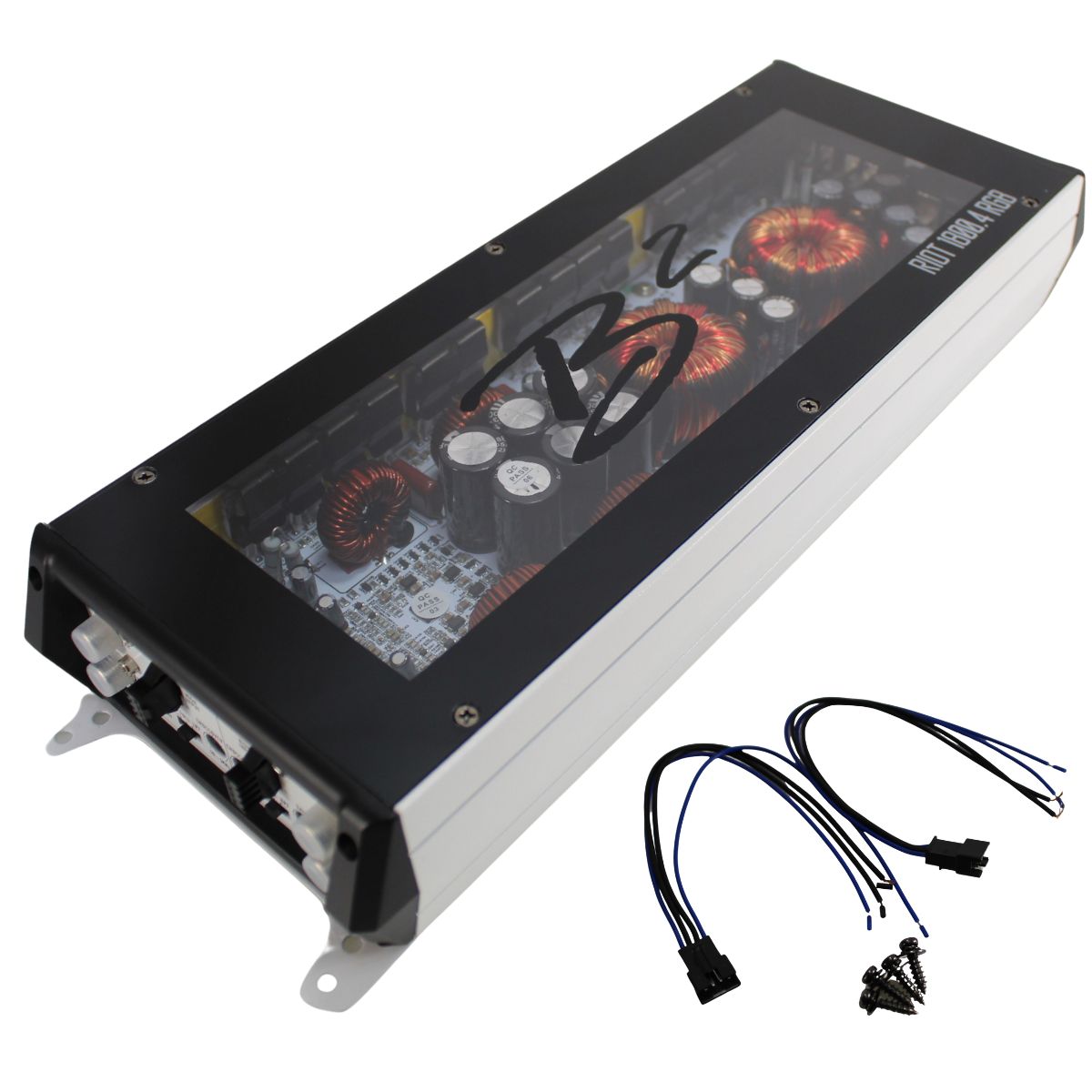

• (1) B2 Audio RIOT Series 1800 Watt 4-Channel Amplifier with RGB LED Lights

The new RIOT Series 4-Channel Amplifiers bring a host of exciting features and performance upgrades, making them an exceptional addition to your audio system. Designed for efficiency, versatility, and compactness, these amplifiers deliver powerful, high-quality sound while saving valuable space. The integrated RGB LED lighting adds a professional touch, instantly elevating the look of your installation with just the flick of a switch. For optimal performance and to minimize potential issues, we recommend upgrading your stock electrical system. A more robust electrical setup ensures enhanced power, stability, and overall amplifier performance.

Specifications

• Continuous Output Power (RMS) @ 4 Ohm 14.4V <1% THD: 4 x 300W


• Continuous Output Power (RMS) @ 2 Ohm 14.4V <1% THD: 4  x 450W


• Continuous Output Power (RMS) @ 4 Ohm Bridge 14.4V <1% THD: 2 x 900W


• Circuit Configuration: HI-EF Class D


• Frequency Response: 10 Hz - 40 KHz (-3 DB)


• Signal to Noise Ratio: >90 DB


• Input Sensitivity: 6 V - 0.4 V


• High Level Input: 10 V - 0.8 V


• Crossover Circuit: 12 DB/OCT


• Low Pass Crossover: 50 Hz - 5 KHz


• Hi Pass Crossover: 50 Hz - 5 KHz


• Power Terminal Gauge: 1 Gauge


• Operational Voltage: 10 V - 16 V


• Fuse Rating: 150 A


• Dimensions: 13.82 x 4.92 x 2.24 in

Key Features

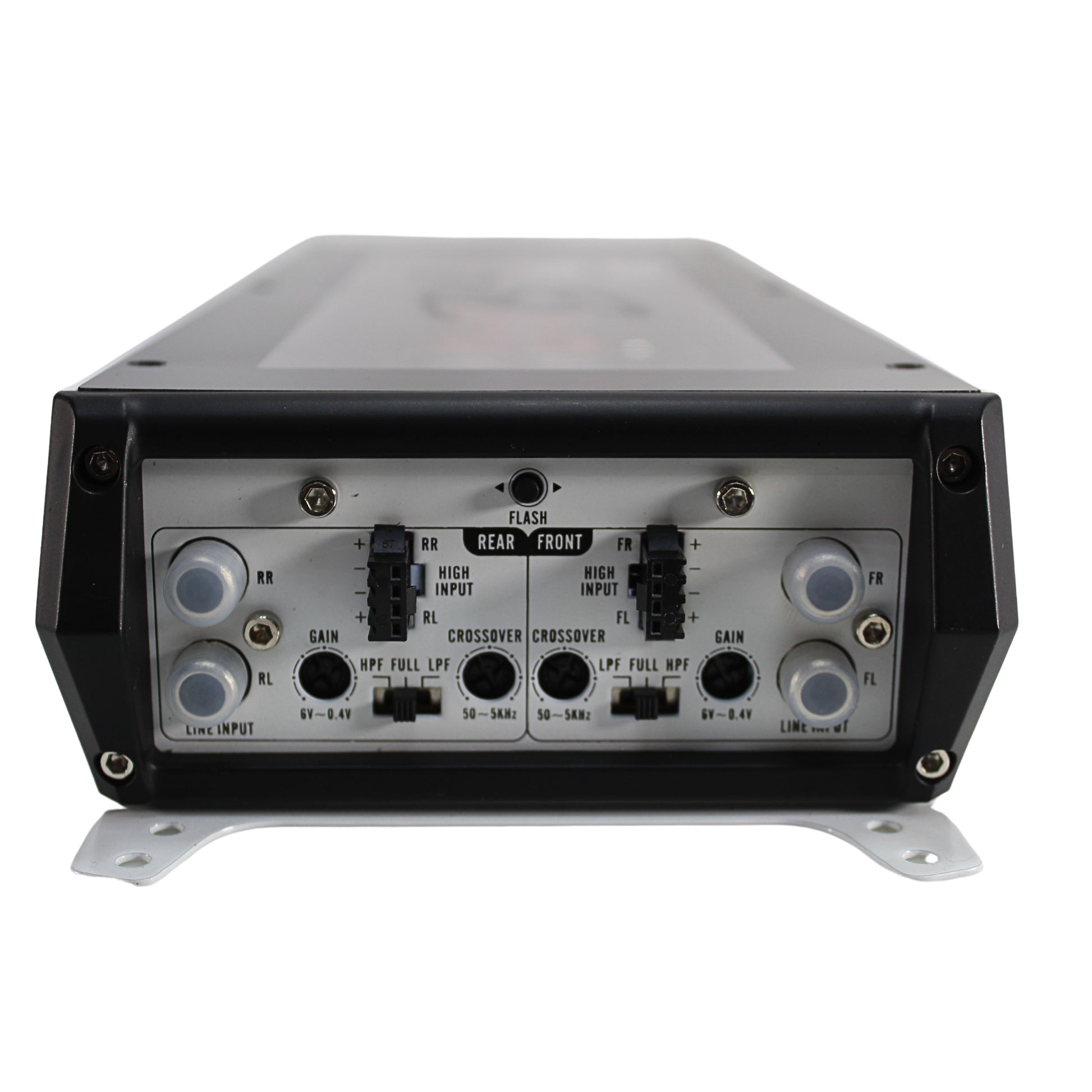

• Input: RCA Signal Input for Left & Right Channel. A minimum of 0.2V input is required for correct operation.

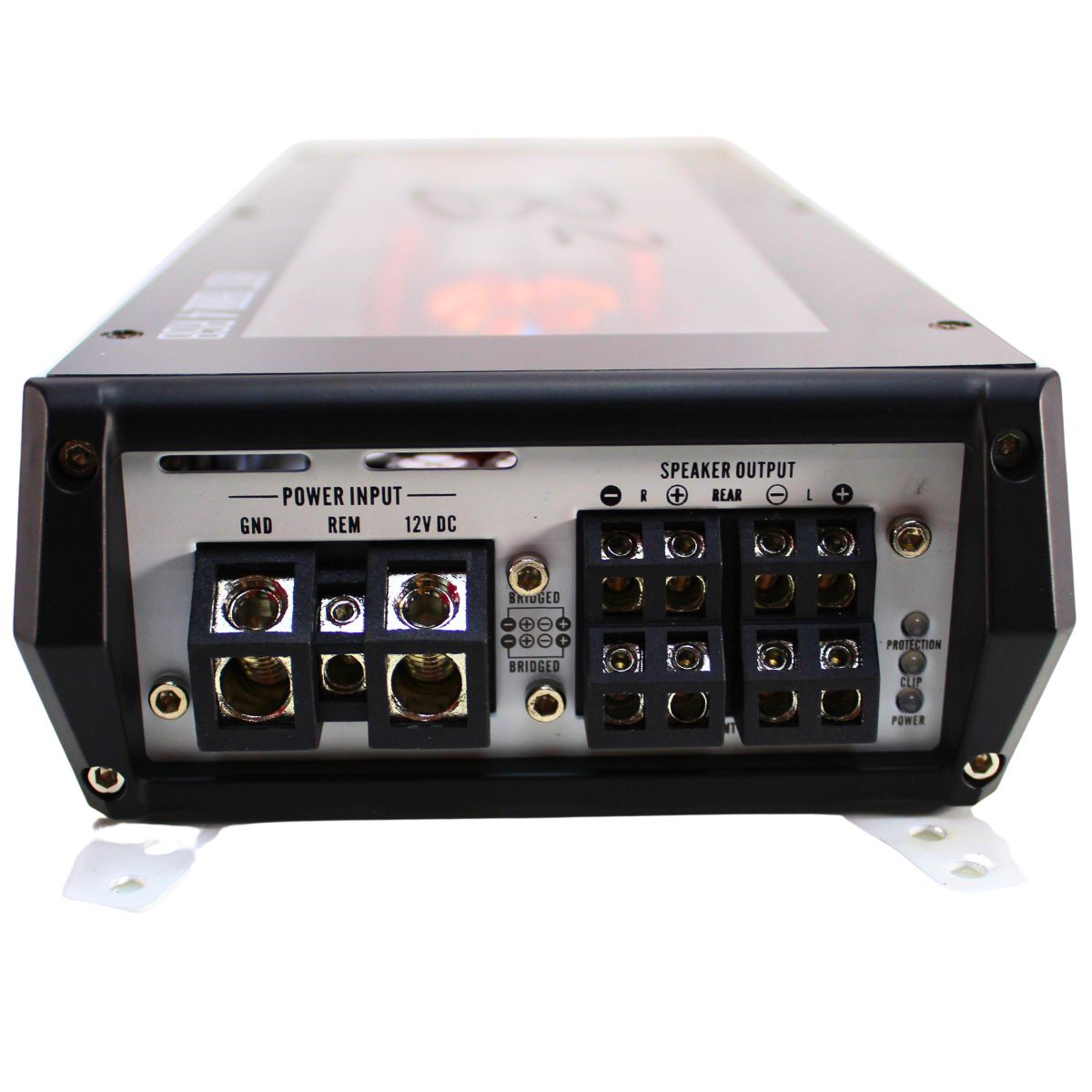

• Power & Protection Indicator: Power LED, Blue light shows correct operation. Protect LED, Red light shows general malfunction, faulty connection or thermal protection.


• Clip Indicator: The LED will light up if signal is clipped. An occasional flashing light is acceptable, a constant lit diode is not.


• Flash: Enables the sound activated LED sequences with multiple patterns and colors. The LED can be switched off by keeping the button pressed for a few seconds.
