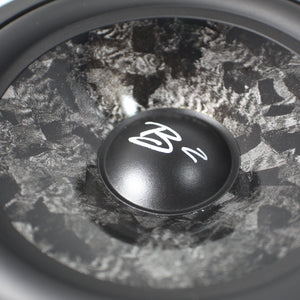

B2 Audio RIOT Series V2 6.5" 100 Watt RMS 4-Ohm Component Set With 1" Wide Band Tweeter & Crossover RIOT61

• Design: 6.5" 2-way component speaker system with a silk dome tweeter and coated paper cone midwoofers for powerful bass and clear highs.
• Midrange Power Handling: 75W RMS with a maximum power handling of 200W, ensuring clean and impactful sound.
• Tweeter Power Handling: 10W RMS with a maximum power handling of 25W, providing crisp and detailed high frequencies.
• Sensitivity: Midrange sensitivity of 88.9 dB and tweeter sensitivity of 94 dB for high output with minimal distortion.

B2 Audio RIOT 6.5" 2-Way 4-Ohm Component Set With 1" Tweeter & Crossover RIOT61

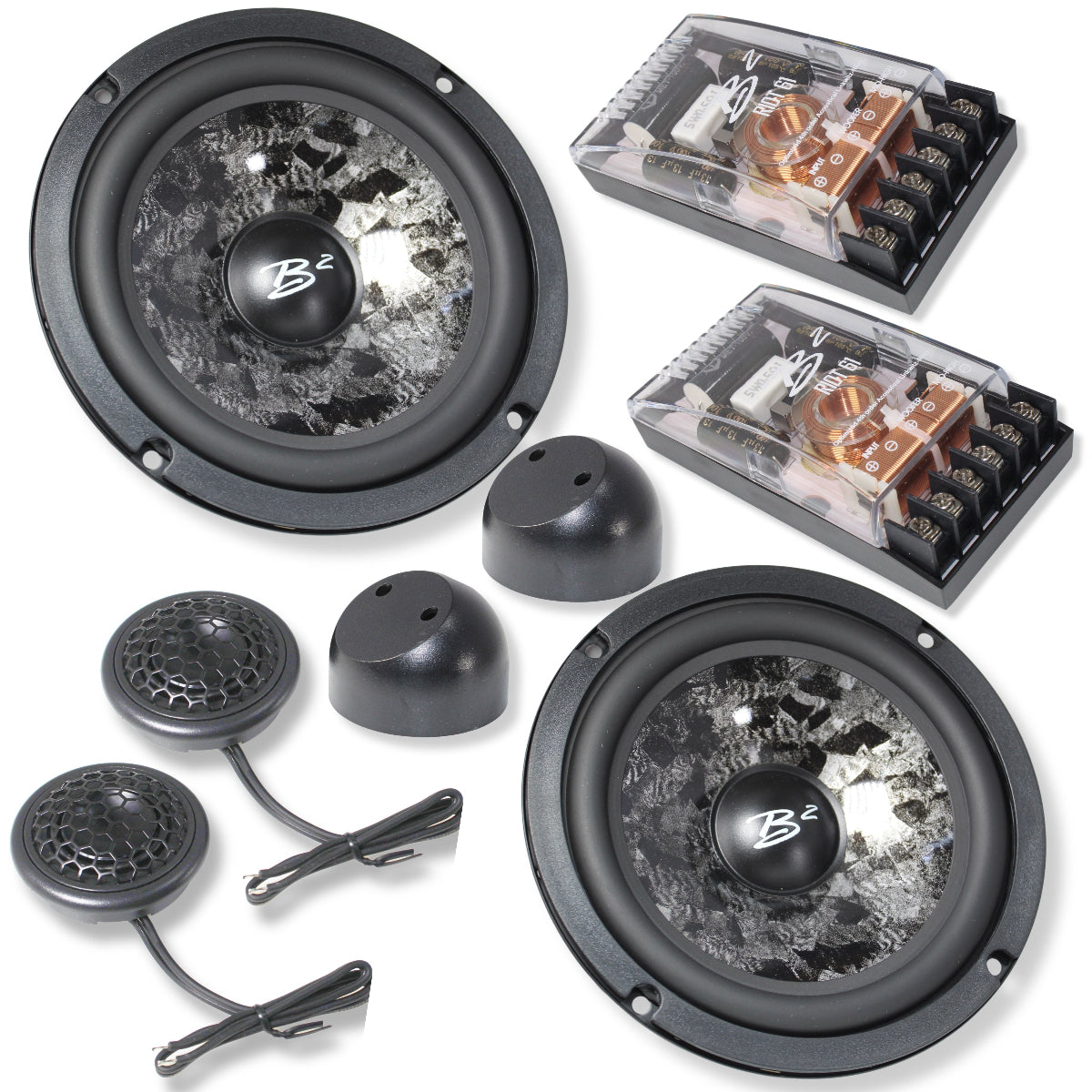

This Listing Includes:

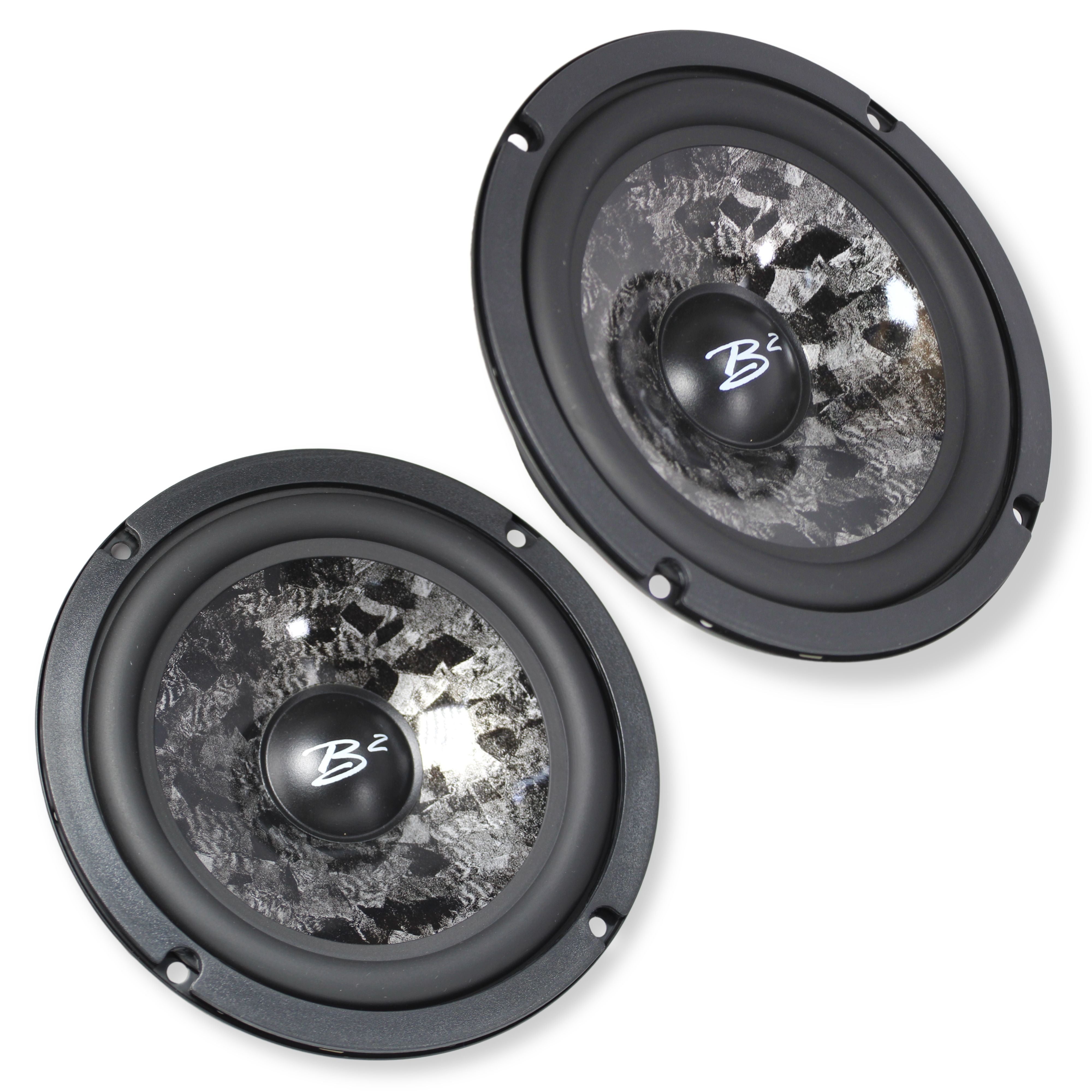

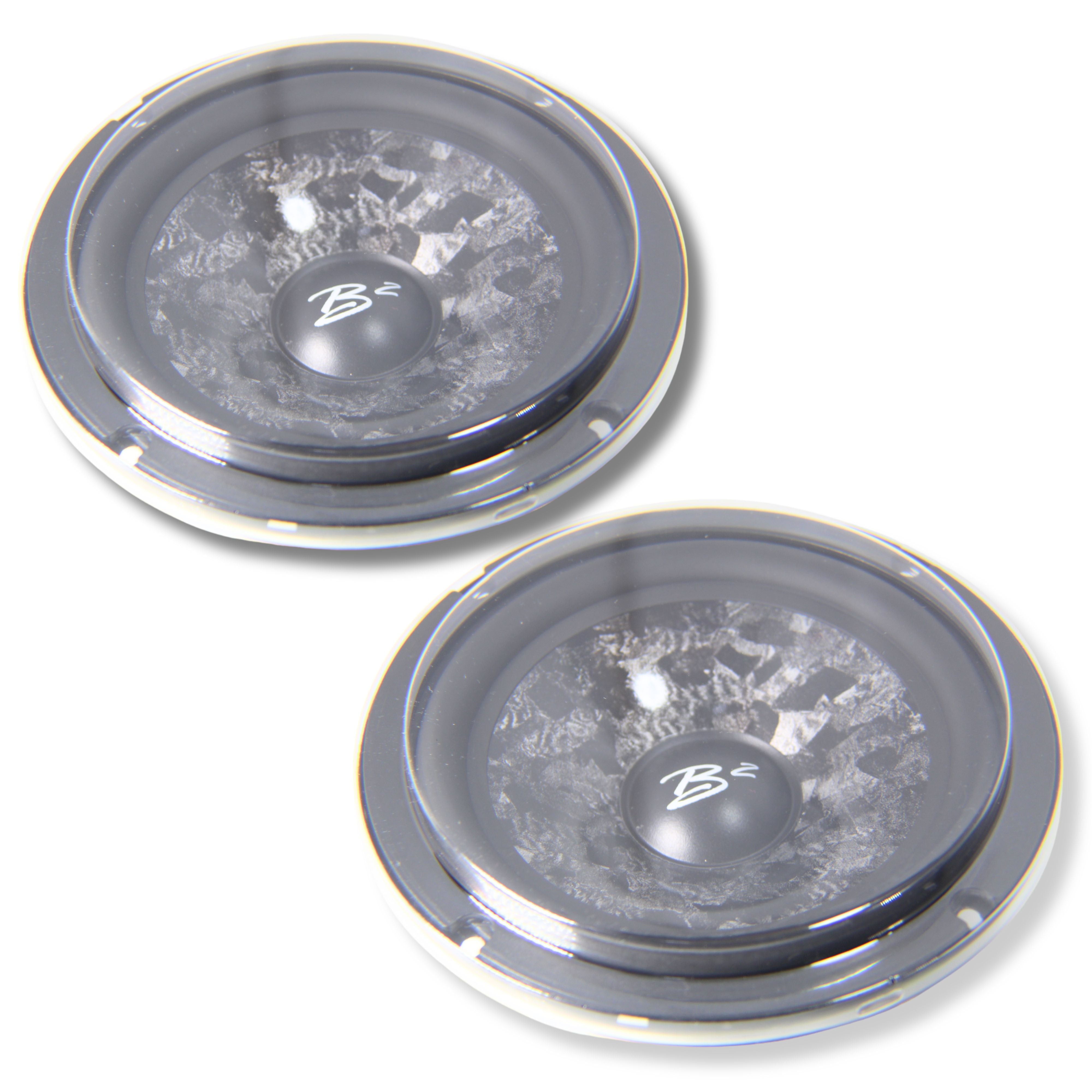

• (2) 6.5" 100W RMS Midrange Speakers

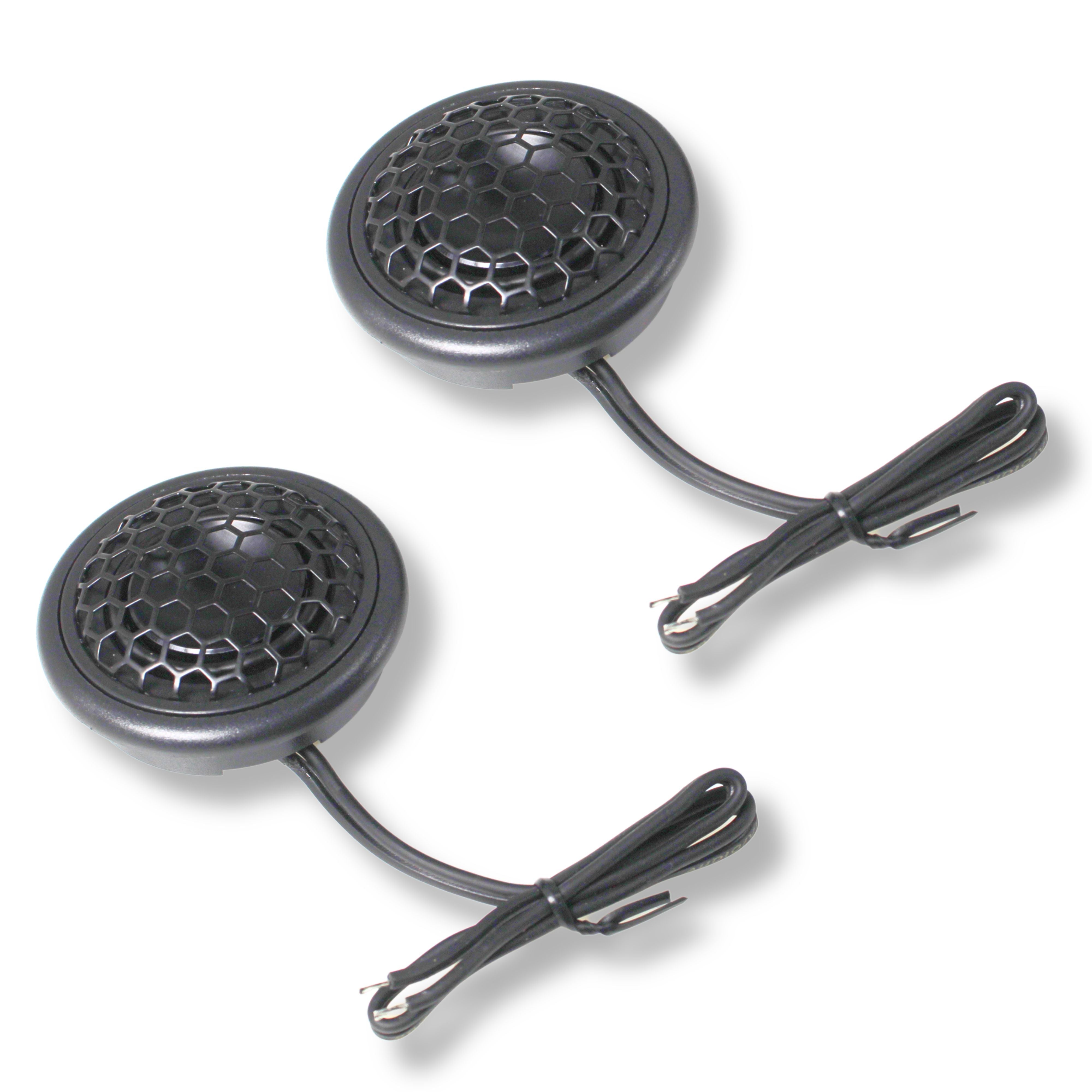

• (2) Silk Dome 10W RMS Tweeters

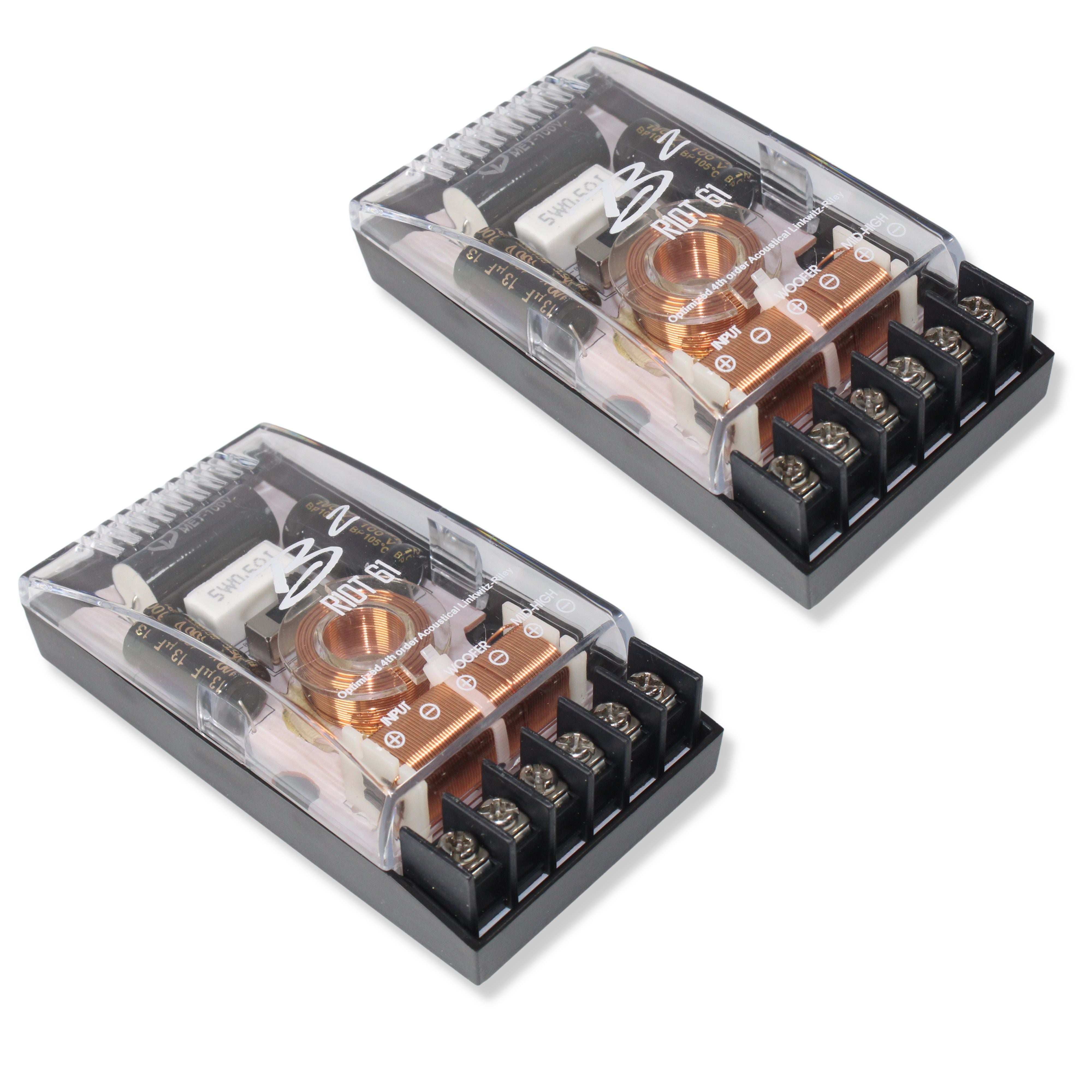

• (2) Crossovers

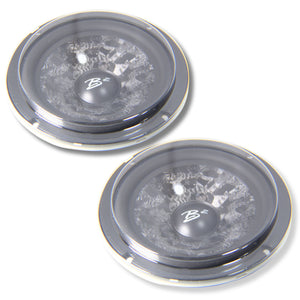

• (2) Grilles for the 6.5" Speakers

Rev up your car's audio with the RIOT61 6.5" Component Speaker Kit. Engineered for raw power and performance, it features aggressive 12 dB/octave crossovers with tweeter attenuation set at 3.5 KHz for precision. Silk dome tweeters deliver clear highs, while coated paper cone midwoofers provide a fuller sound. With easy installation and specs that scream dominance, including wide frequency response and high sensitivity, the RIOT61 ensures an immersive driving experience.

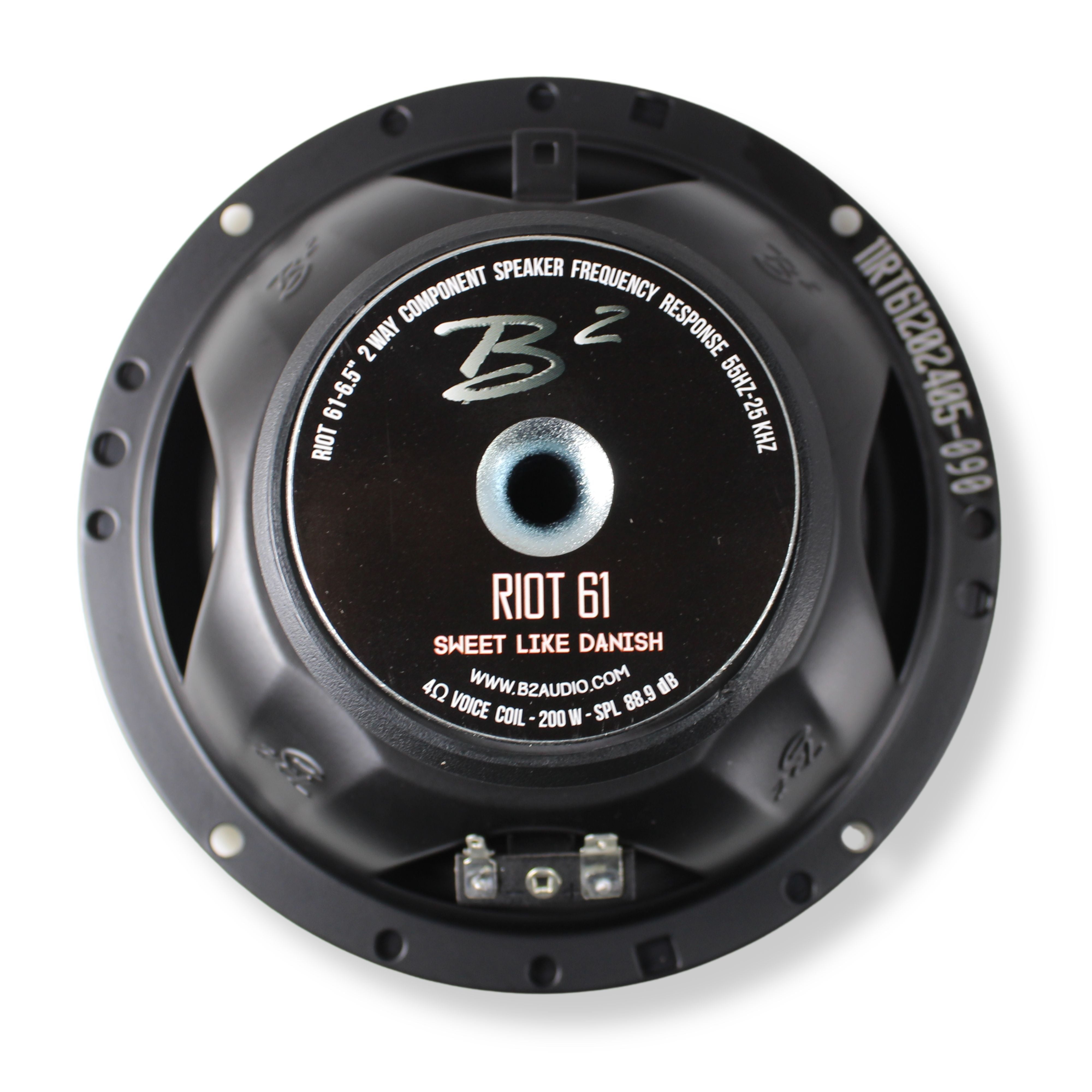

Midrange Specifications:

• Nominal Chassis Diameter: 6.5"


• RMS Power Handling: 75W


• Maximum Power Handling: 200W


• Nominal Impedance: 4 Ohm


• Resonance Frequency: 52 Hz


• Voice Coil Diameter: 1"


• Winding Material: CCA / Copper


• Magnet Type : Neo / Ferrite


• Magnet Weight: 11.7 Oz


• Cone Material: IMWRP


• Frequency Response: 55 Hz ~ 25 KHz


• Sensitivity: 88.9 dB


• Surround Type: U Shaped Rubber

Tweeter Specs:

• RMS Power Handling: 10W


• Max Power Handling: 25W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1"


• Sensitivity: 94 dB


• Free Air Resonance (Fs): 1.8 KHz

Thiele & Small Parameters:

Midrange:

• Free Air Resonance (Fs): 55 Hz


• Resistance (Re): 3.3 ohm


• Mechanical Factor (Qms): 5.54


• Electrical Factor (Qes): 0.666


• Total Factor (Qts): 0.595


• Equivalent Volume (Vas): 8.64 L


• Compliance (Cms): 560 um/N


• BL Factor (BL): 5.56 T/M


• Moving Mass (Mms): 18.89 g


• XMAX: 6.5 mm


• SD: 128.68 cm^2


• Efficiency: 0.241 Percent


• Le (1 KHz): 0.479 mH


• EBP: 82.58

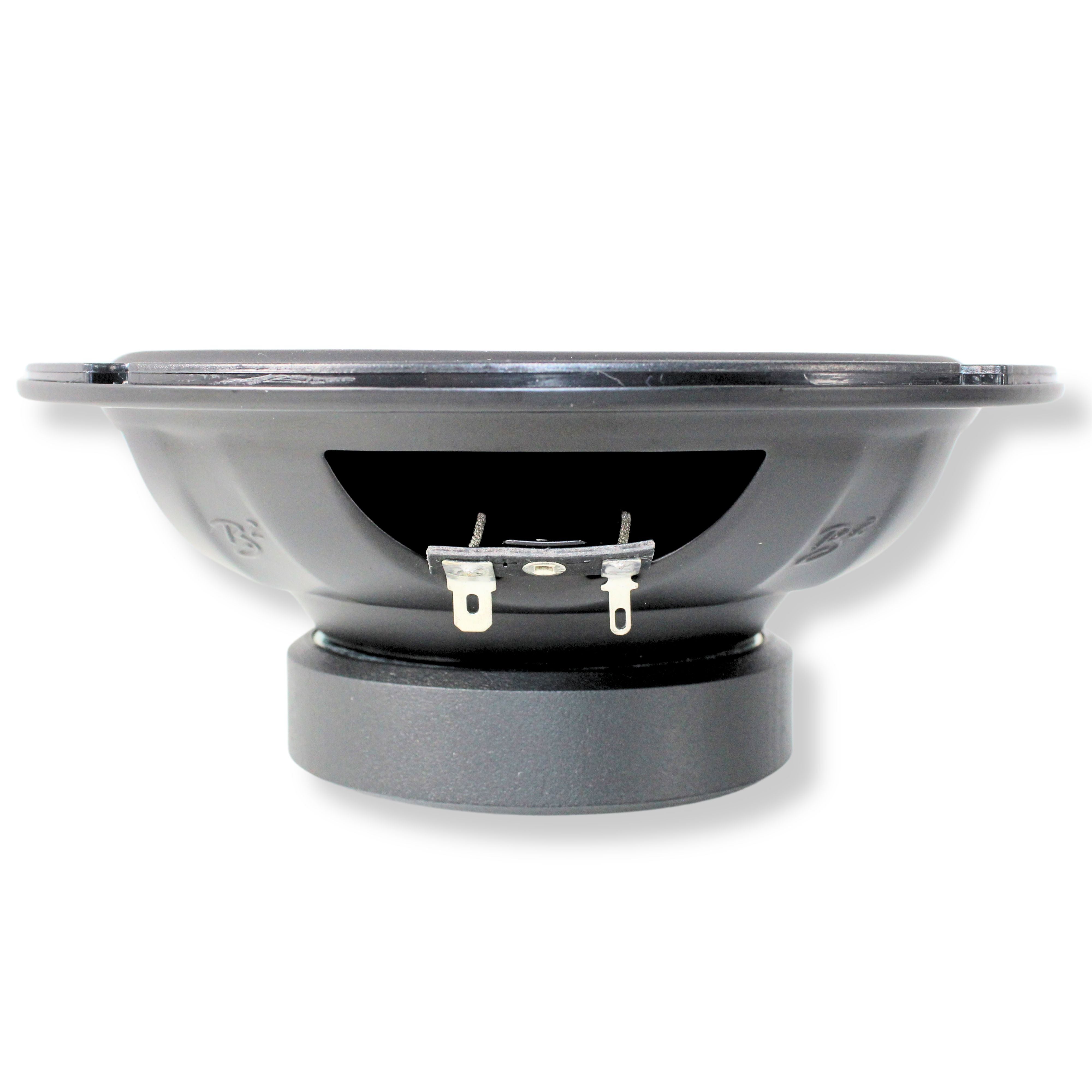

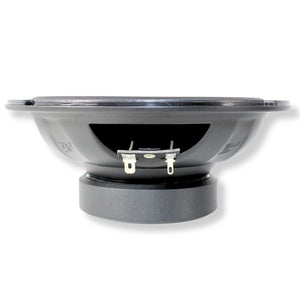

Measurements

Midrange:

• Overall Diameter: 6.53" / 166mm


• Baffle Cutout Diameter: 5.59 in / 142 mm


• Net Weight (1 pc): 0.96 kgs


• Shipping Weight (sets): 2.51 kgs


• Shipping Box (set): 385 x 195 x 100 mm


• Mounting Diameter: 5.66" / 144mm


• Front Mount Baffle Cutout: 5.55 / 141mm


• Overall Depth: 2.59 / 65.9mm


• Mounting Depth: 2.40" / 61mm


• Sold as: (Pair)

Tweeter:

• Overall Diameter: 1.96" / 50mm


• Overall Depth: 1.00" / 25.6mm


• Mounting Depth: 0.63" / 16mm
