B2 Audio RIOT Series 6.5" 100 Watt RMS 4-Ohm Component Set With 1" Wide Band Tweeter & Crossover RIOT61

• POWERFUL 2-WAY COMPONENT SYSTEM: Includes two 100W RMS midrange drivers, two 1" silk dome tweeters, and precision crossovers for full-range car audio clarity and balance.
• CRISP HIGHS & FULL MIDRANGE: Silk dome tweeters produce 94 dB sensitivity and clean treble tones, while the midwoofers handle 60Hz–23kHz for impactful low to upper mids.
• HIGH-PERFORMANCE CROSSOVERS: 12 dB/octave crossover with 3.5 kHz attenuation ensures seamless handoff between tweeter and woofer for a smooth, natural sound stage.
• COMPACT & INSTALLATION FRIENDLY: Shallow 2.4" mounting depth and included grilles allow for easy fitment in factory locations or custom builds without sacrificing output.
• Versatile Compatibility: Suitable for various vehicles, this component speaker kit is the perfect solution for upgrading stock loudspeakers.
• BUILT FOR RELIABILITY: Neo/ferrite magnet structure, 1.2" voice coil, and weather-resistant components deliver long-lasting performance for daily drivers and show builds.

B2 Audio RIOT 6.5" 2-Way 4-Ohm Component Set With 1" Tweeter & Crossover RIOT61

This Listing Includes:

• (2) 6.5" 100W RMS Midrange Speakers


• (2) Silk Dome 10W RMS Tweeters

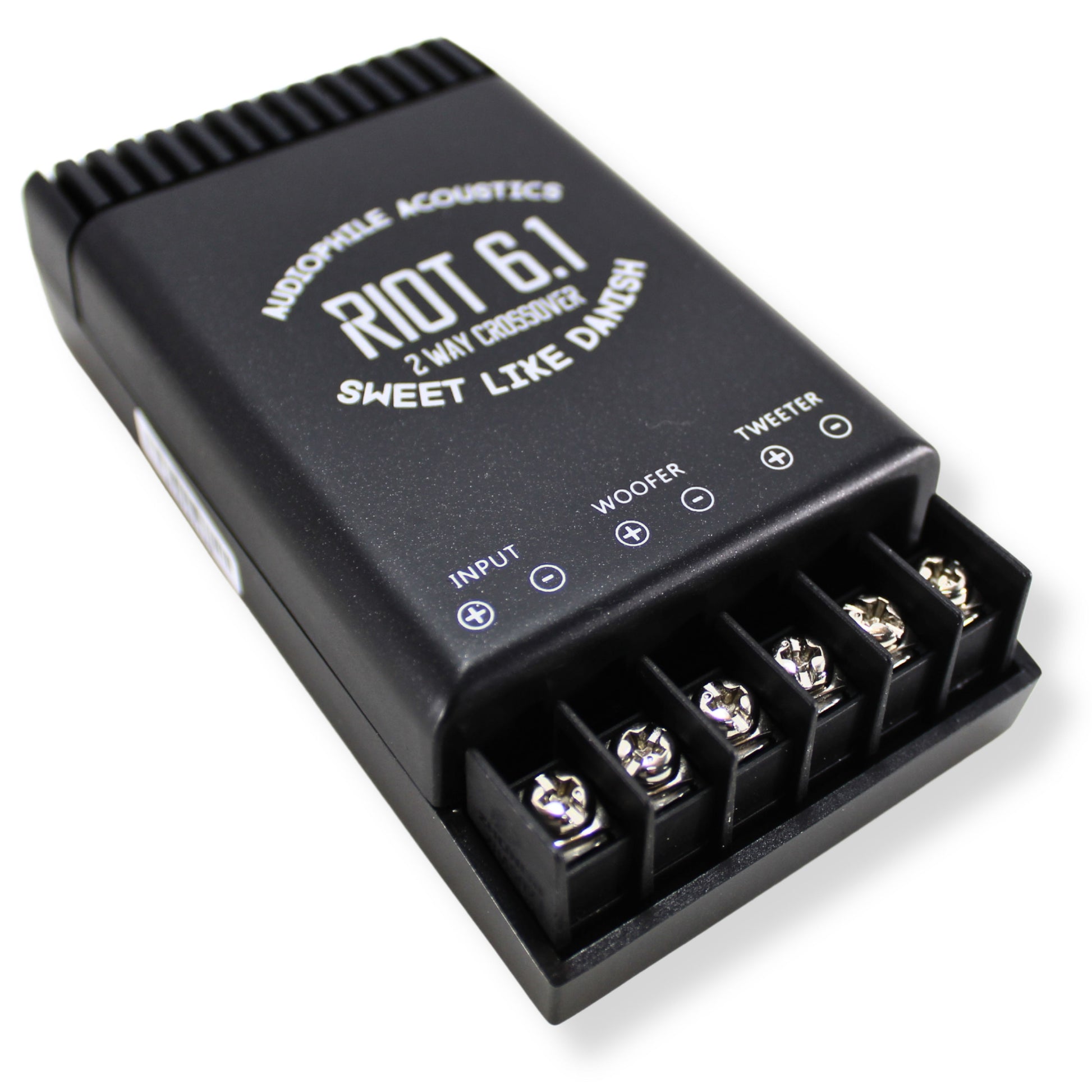

• (2) Crossovers

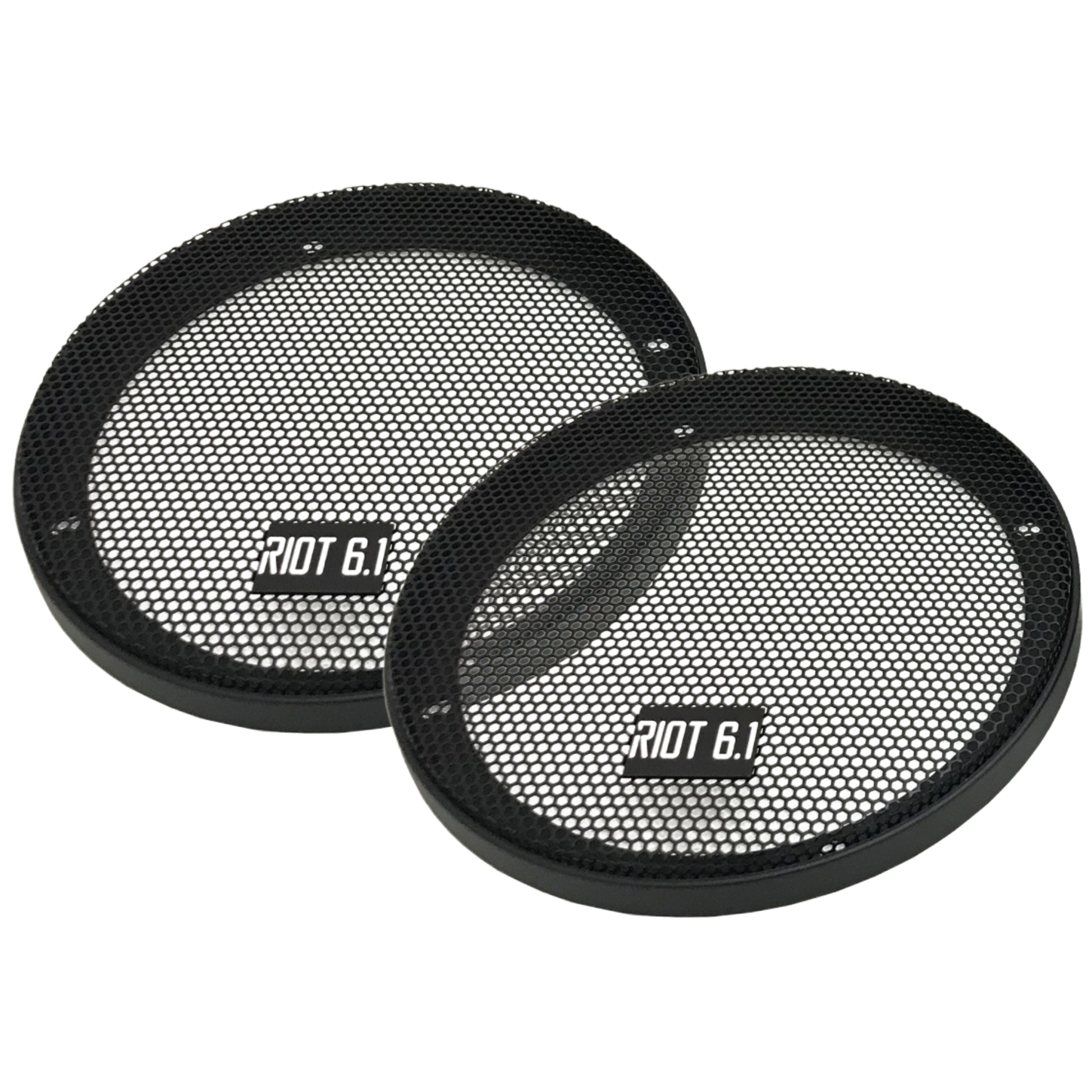

• (2) Grilles for the 6.5" Speakers

Item Description

Rev up your car's audio with the RIOT61 6.5" Component Speaker Kit. Engineered for raw power and performance, it features aggressive 12 dB/octave crossovers with tweeter attenuation set at 3.5 KHz for precision. Silk dome tweeters deliver clear highs, while coated paper cone midwoofers provide a fuller sound. With easy installation and specs that scream dominance, including wide frequency response and high sensitivity, the RIOT61 ensures an immersive driving experience.

Features

• Complete 2-Way Speaker Set – Includes two 6.5" midrange drivers, two 1" silk dome tweeters, two 12 dB/octave crossovers, and grilles.


• 100W RMS Midrange Performance – Covers a wide 60Hz–23kHz frequency response with 90.2 dB sensitivity for powerful, dynamic output.


• Silk Dome Tweeters – 94 dB sensitivity and 25W max power handling provide clean, detailed high frequencies without harshness.


• Aggressive 12 dB Crossover – Ensures optimal transition at 3.5 kHz, enhancing sound staging and tonal accuracy.


• Install-Ready Form Factor – 2.4" mounting depth and compact tweeter design fit most vehicle doors and dash panels with ease.

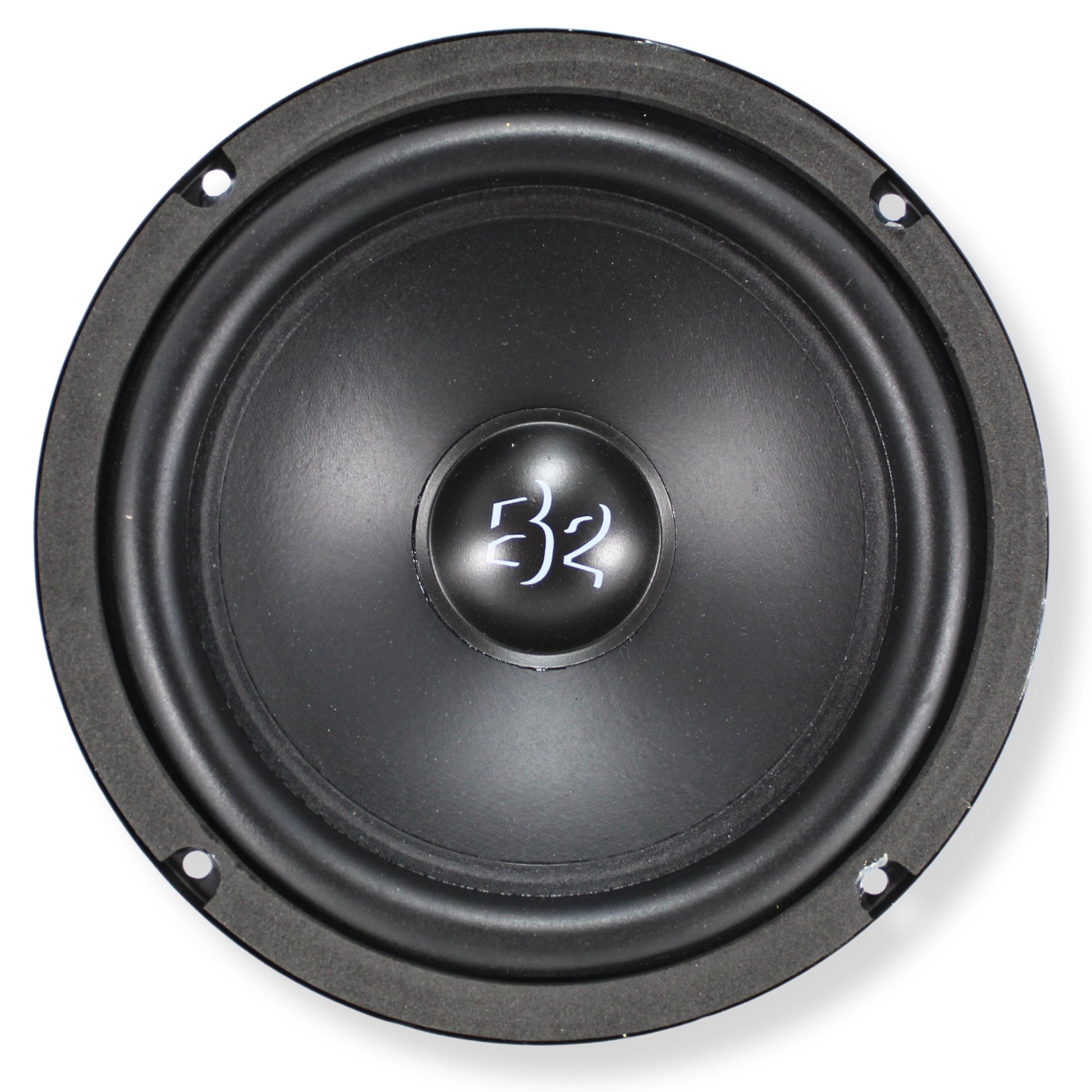

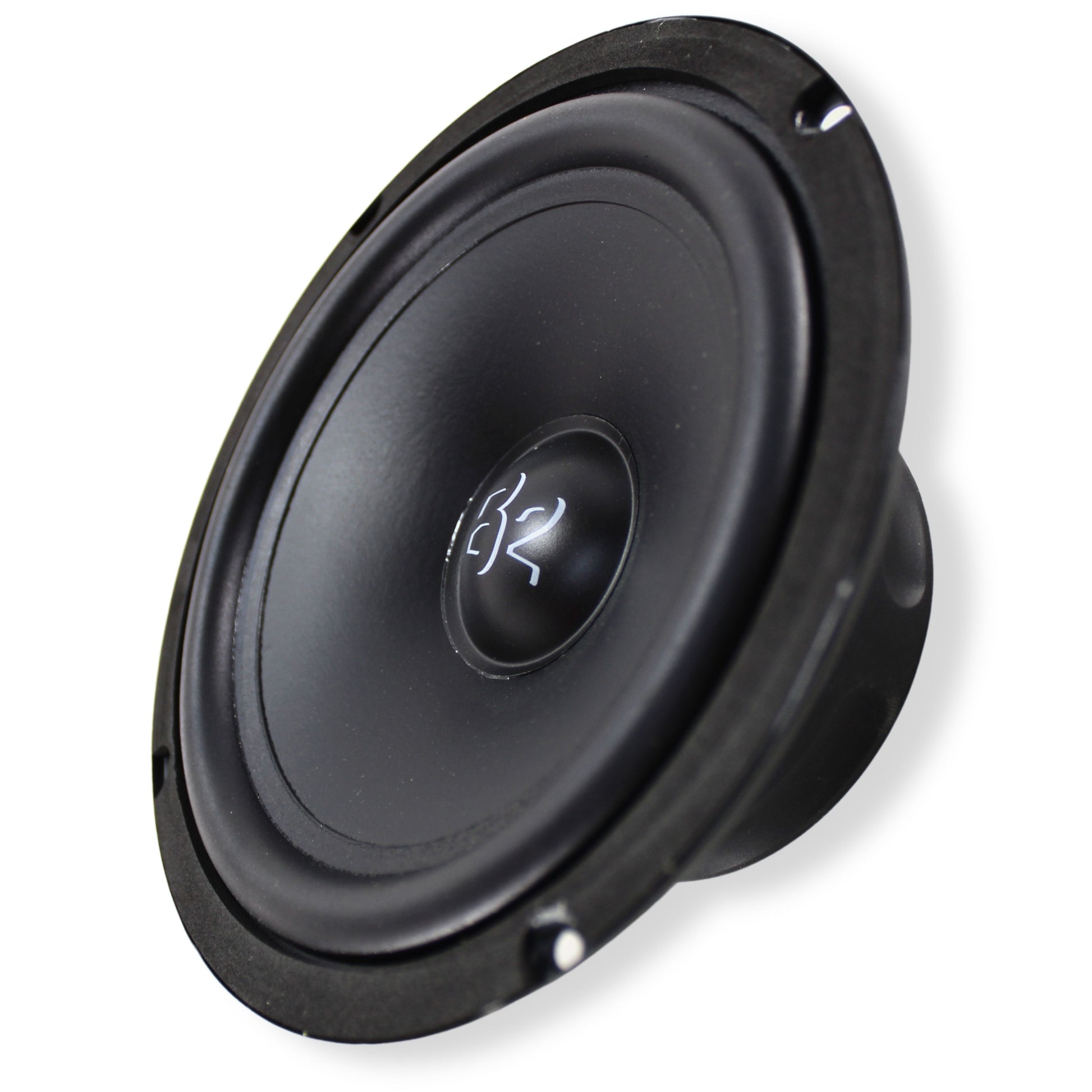

Midrange Specifications:

• RMS Power Handling: 100W


• Maximum Power Handling: 150W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1.2"


• Frequency Response: 60 Hz ~ 23 KHz


• Sensitivity: 90.2 dB

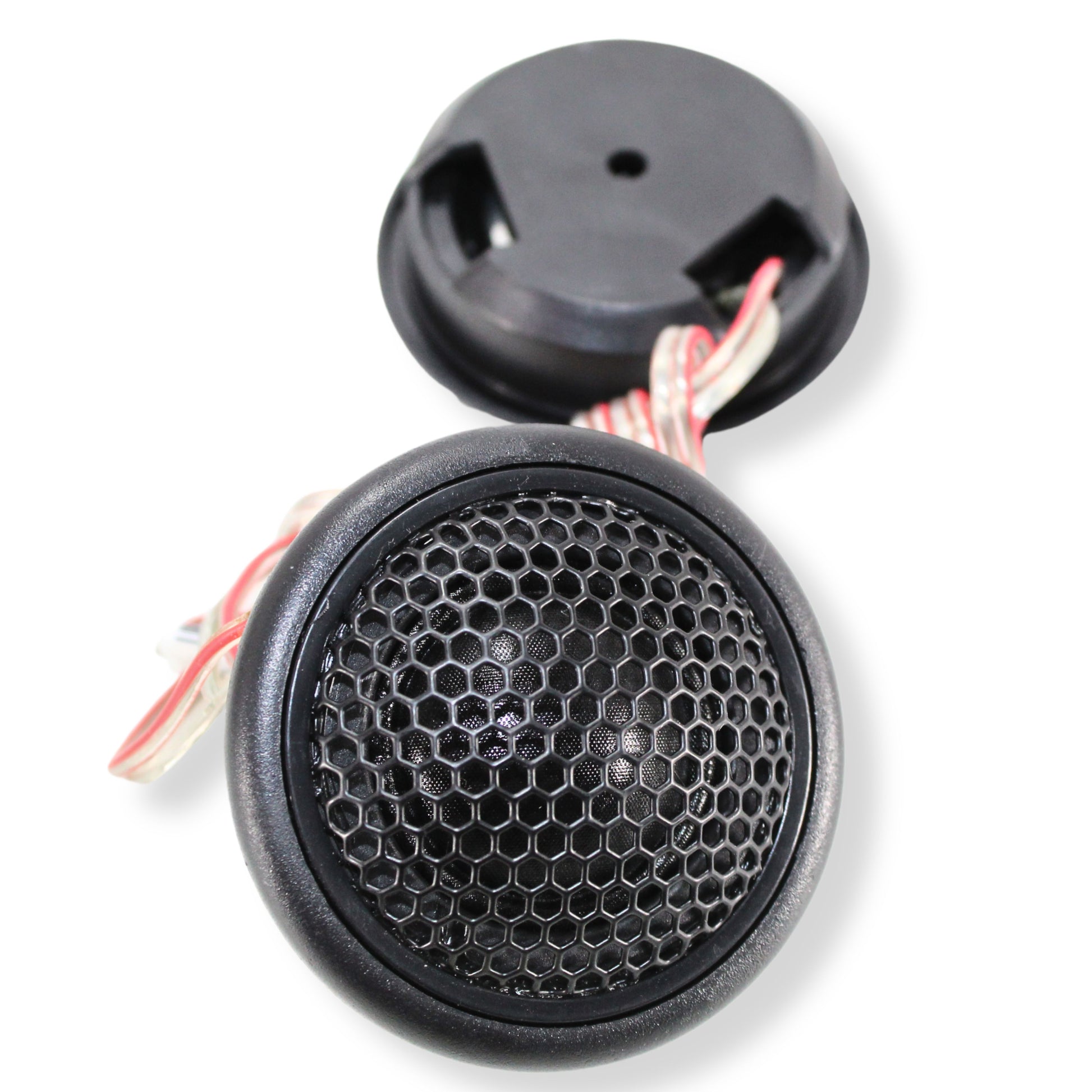

Tweeter Specs:

• RMS Power Handling: 10W


• Max Power Handling: 25W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1"


• Sensitivity: 94 dB


• Free Air Resonance (Fs): 1.8 KHz

Thiele & Small Parameters:

Midrange:

• Free Air Resonance (Fs): 62 Hz


• Resistance (Re): 3.4 ohm


• Mechanical Factor (Qms): 3.55


• Electrical Factor (Qes): 0.55


• Total Factor (Qts): 0.476


• Equivalent Volume (Vas): 14.03 L


• Compliance (Cms): 560 um/N


• BL Factor (BL): 5.32 TM


• Moving Mass (Mms): 11.73 g

Measurements

Midrange:

• Overall Diameter: 6.53" / 166mm


• Mounting Diameter: 5.66" / 144mm


• Front Mount Baffle Cutout: 5.55 / 141mm


• Overall Depth: 2.59 / 65.9mm


• Mounting Depth: 2.40" / 61mm


• Sold as: (Pair)

Tweeter:

• Overall Diameter: 1.96" / 50mm


• Overall Depth: 1.00" / 25.6mm


• Mounting Depth: 0.63" / 16mm
