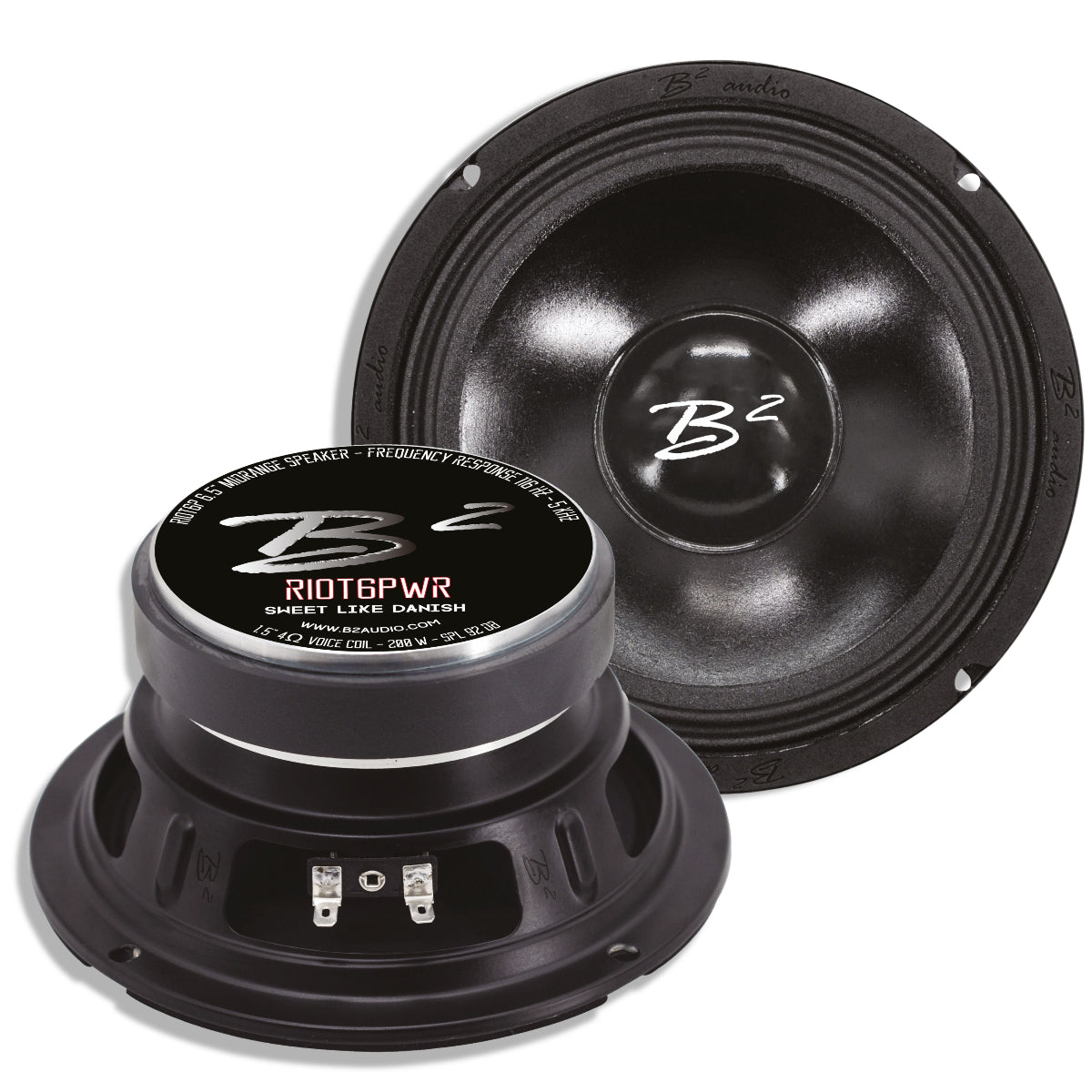

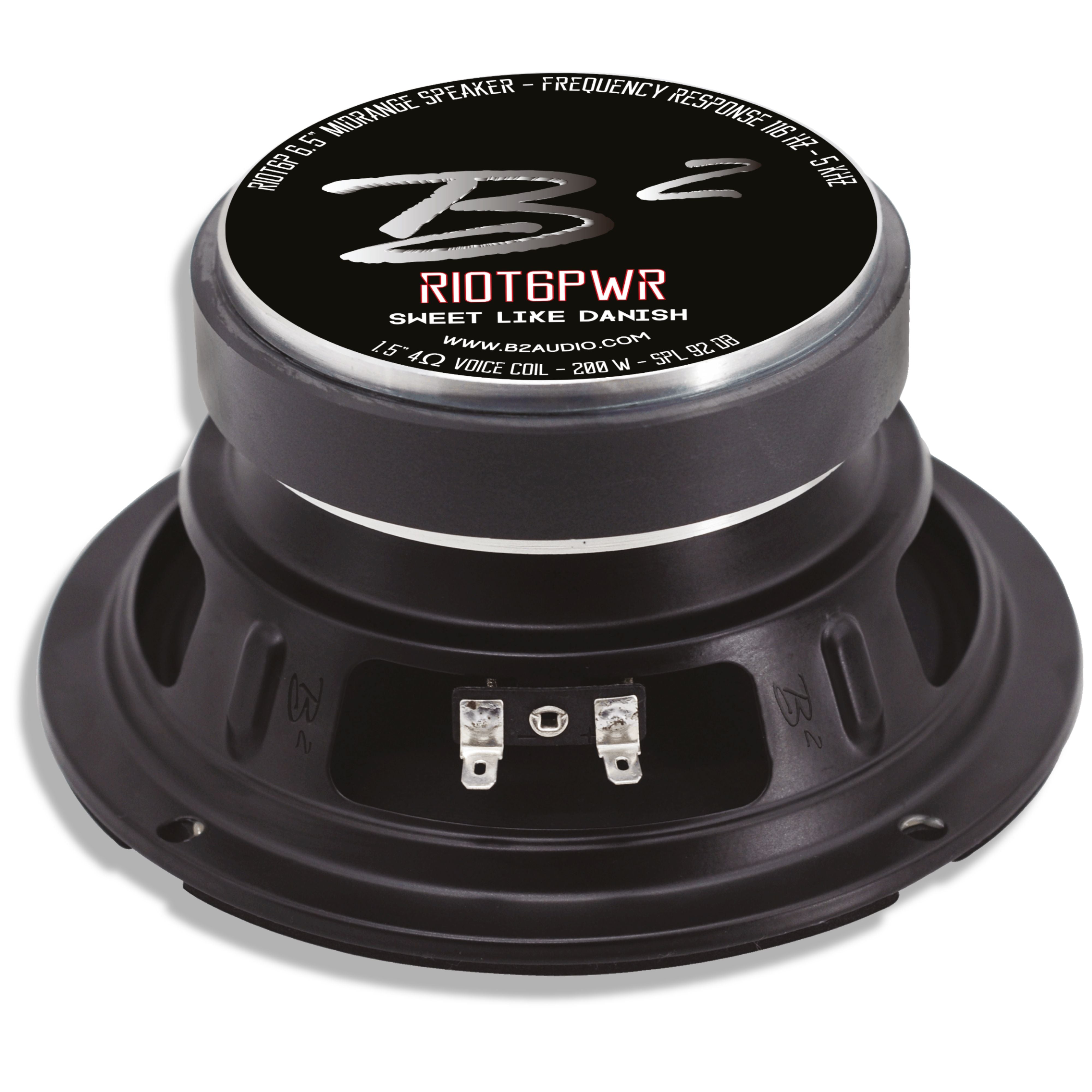

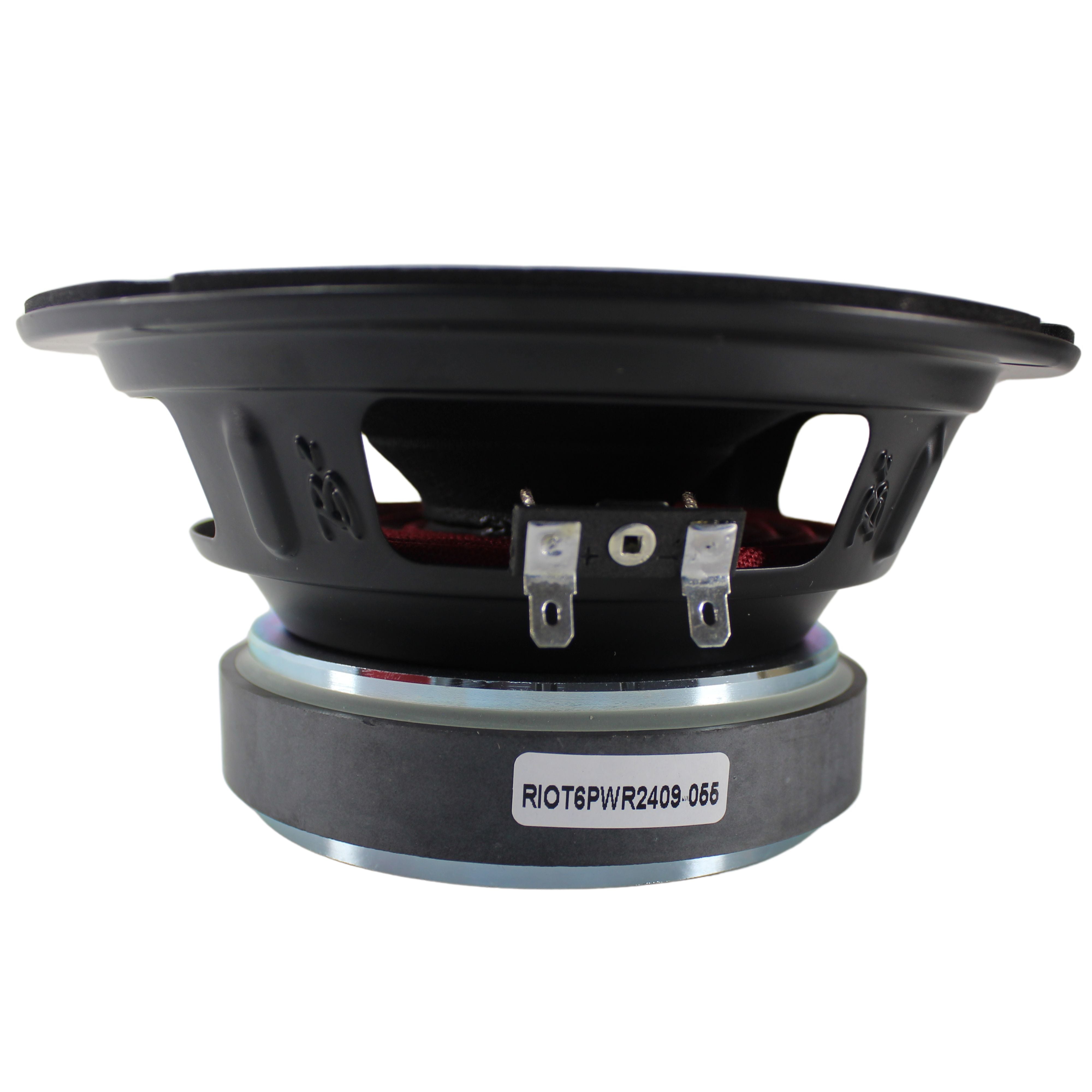

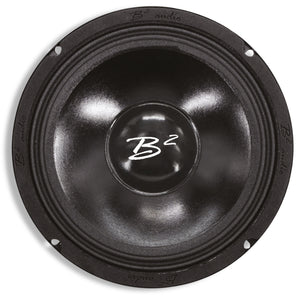

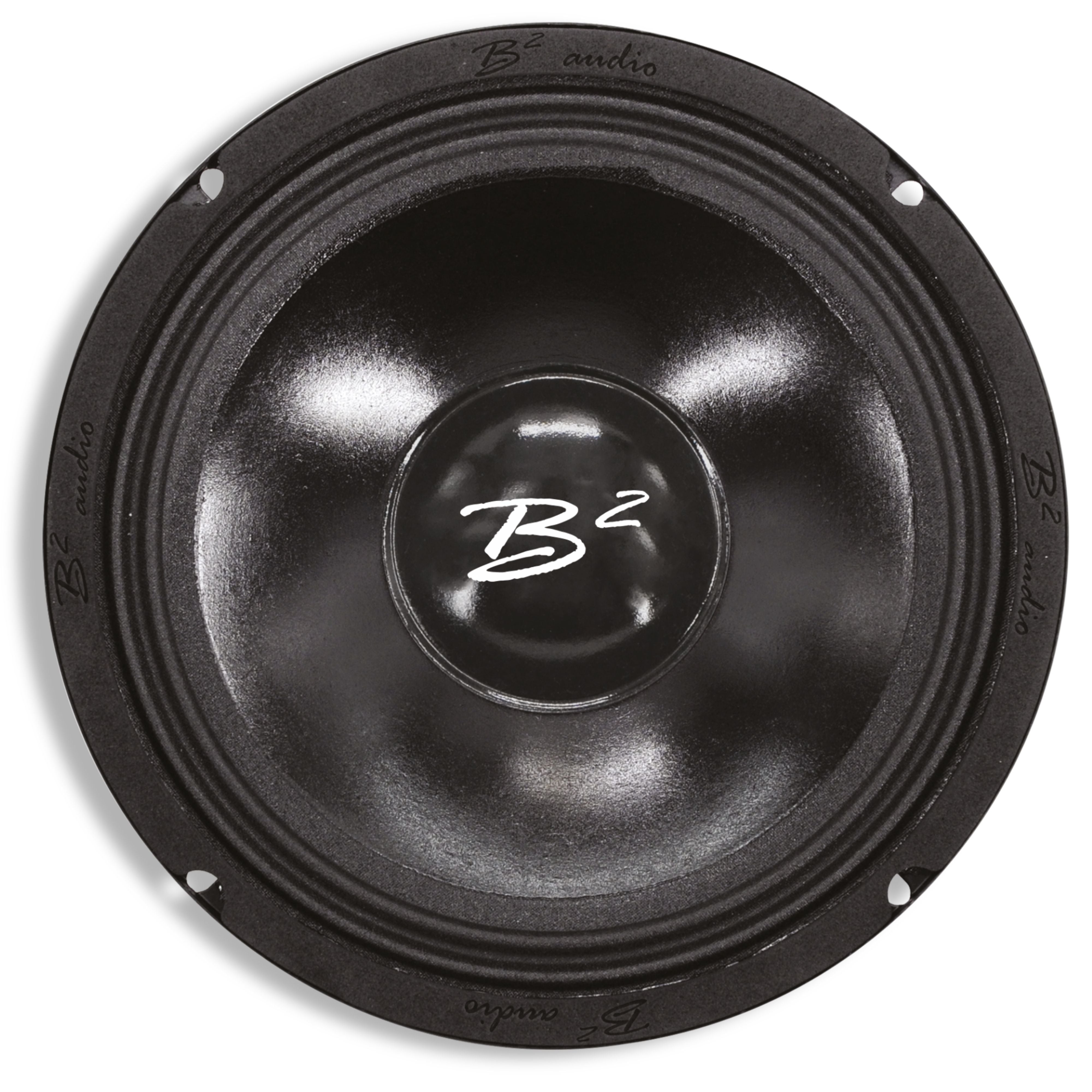

B2 Audio RIOT Series 6.5" 4-Ohm 100W RMS Mid-Range Speakers UV/Water Resistant Cone, Sold in Pairs RIOT6PWR

B2 Audio RIOT Series 6.5" 4-Ohm 100W RMS Mid-Range Speakers UV/Water Resistant Cone, Sold in Pairs RIOT6PWR

SKU:B2-RIOT6PWR

CASE QUANTITY: 4

PACKAGE WEIGHT: 7.0 LB

Regular price $107.96
Regular price Sale price $107.96
Sale Sold out
  • WIDE FREQUENCY RANGE: Covers 110 Hz to 10 KHz for immersive sound.
  • DURABLE MATERIALS: UV-protected, weatherproof cone for lasting use.
  • POWERFUL OUTPUT: Handles 100W RMS effortlessly.
  • OPTIMIZED DESIGN: Dust cap enhances sound dispersion in compact setups.
  • ENERGY EFFICIENT: High output with minimal power draw.


This Listing Includes



  • (1) Pair of RIOT Series 6.5" 4-Ohm 100W RMS Mid-Range UV/Water Resistant Speakers


Experience the precision and performance of the B2 Audio RIOT Series RIOT6PWR speaker. Crafted for OEM placements, factory upgrades, or custom installations, this 6.5-inch mid-range speaker excels in delivering balanced and dynamic sound. Its wide frequency range of 110 Hz to 10 KHz ensures rich audio, reducing the need for multiple tweeters. Built with a UV-treated, weather-resistant cone and dual U-shaped cloth surround, the RIOT6PWR offers durability and impressive sound dispersion, even in tight spaces. Perfect for car audio enthusiasts, these speakers combine efficiency, power, and resilience.


Specifications



  • Nominal Chassis Diameter: 6.5"

  • Frequency Response: 110 Hz ~ 10 KHz

  • Sensitivity: 94.12 dB

  • Nominal Impedance: 4 Ohm

  • Resonance Frequency: 115 Hz

  • Power Handling: 200 W / 100 W RMS

  • Voice Coil Diameter: 1.5"

  • Winding Material: KCCAW

  • Motor Disc Weight: 23 Oz

  • Magnet Type/Weight: Ferrite

  • Cone Material: UV-treated weatherproof paper

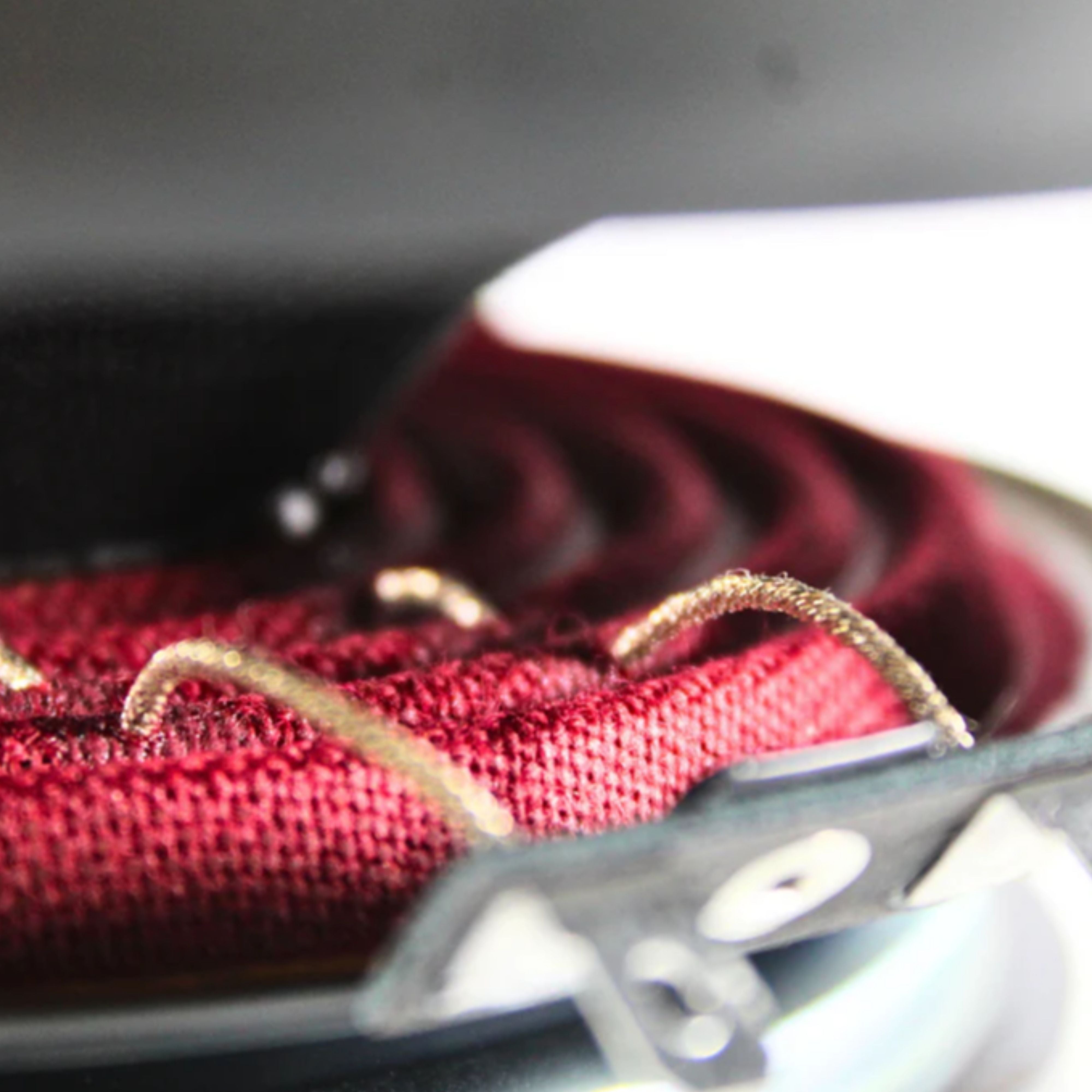

  • Surround Type: Dual U-shaped cloth


Thiele Small Parameters



  • FS: 115 Hz

  • RE: 3.80 Ohm

  • QMS 3.2

  • QES 0.74

  • QTS: 0.6

  • Cms: 145 um/N

  • BL^2/RE: 12.9

  • VAS: 3.6 L

  • MMS: 13 g

  • Xmax (one way): 3.5mm

  • SD: 132.3 cm^2

  • Efficiency: 0.74 Percent

  • EBP 155


Mounting/Shipping Information



  • Overall Diameter: 6.56 in / 168 mm

  • Baffle Cutout Diameter: 6.2 in / 158 mm

  • Bolt Circle Diameter: 5.7 in / 145 mm

  • Total Depth: 3.54 in / 90 mm

  • Mounting Depth: 3.23 in / 82 mm

  • Net Weight (1 pc): 1.6 kgs

  • Shipping Weight  (set) : 1.8 kgs

  • Shipping Box (set): 192 x 180 x 117 mm
