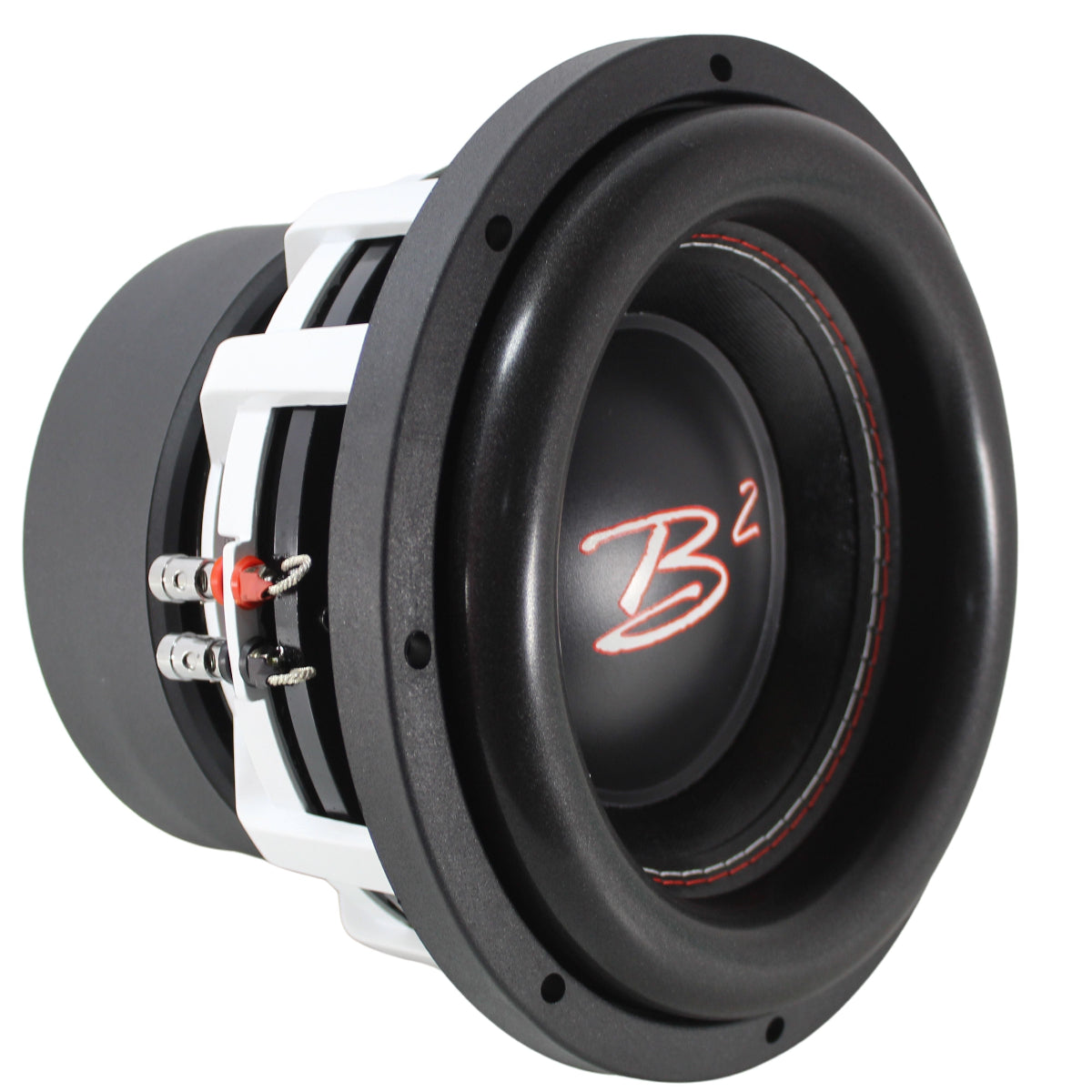

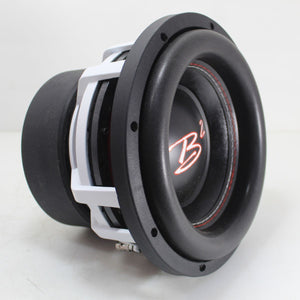

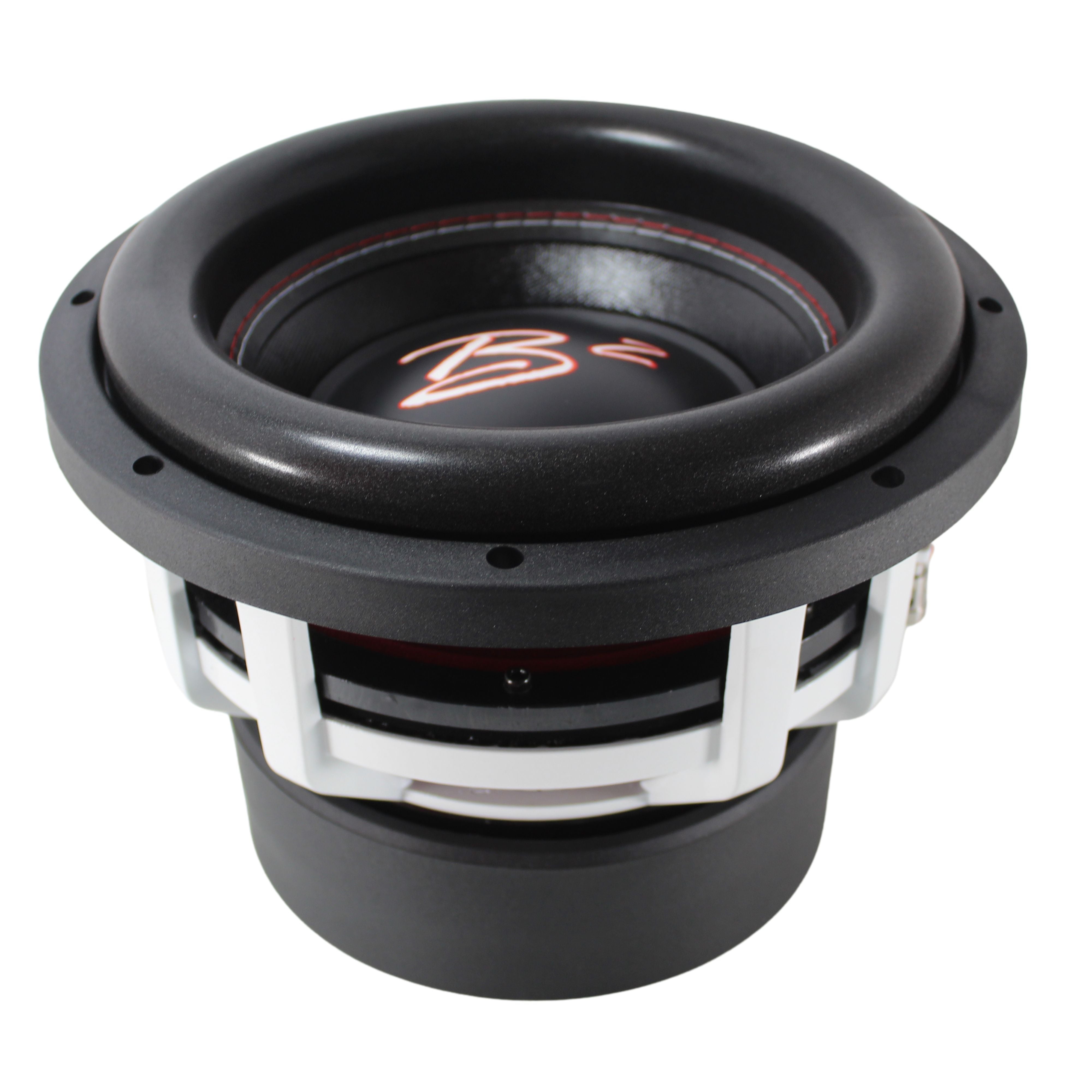

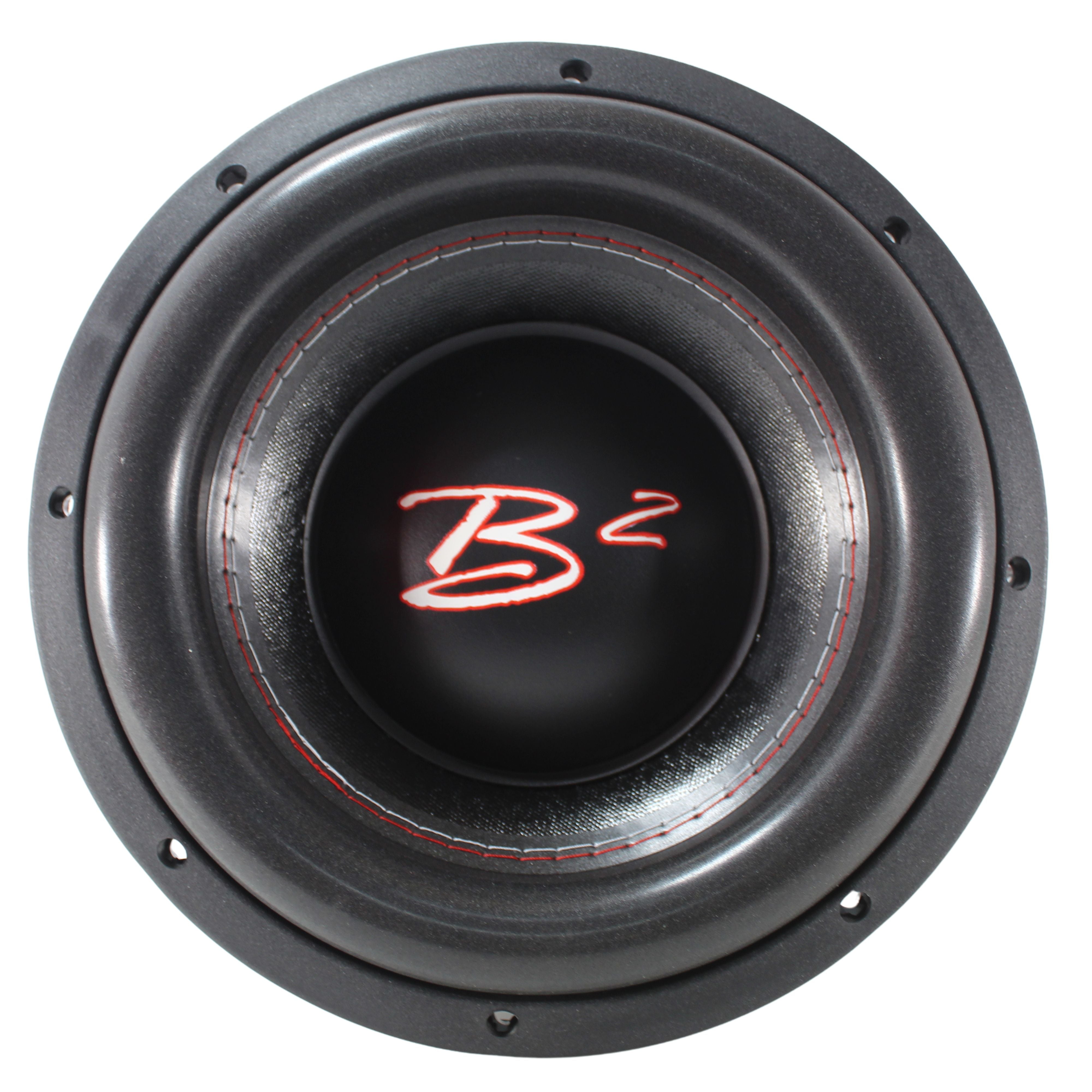

B2 Audio RIOT Series V2 10" 750 Watt RMS Dual 4-Ohm 3" Voice Coil Subwoofer

• 1000W RMS / 3000W Peak Power - Built to deliver hard-hitting bass with outstanding control and reliability for daily listening or high-output demo systems.

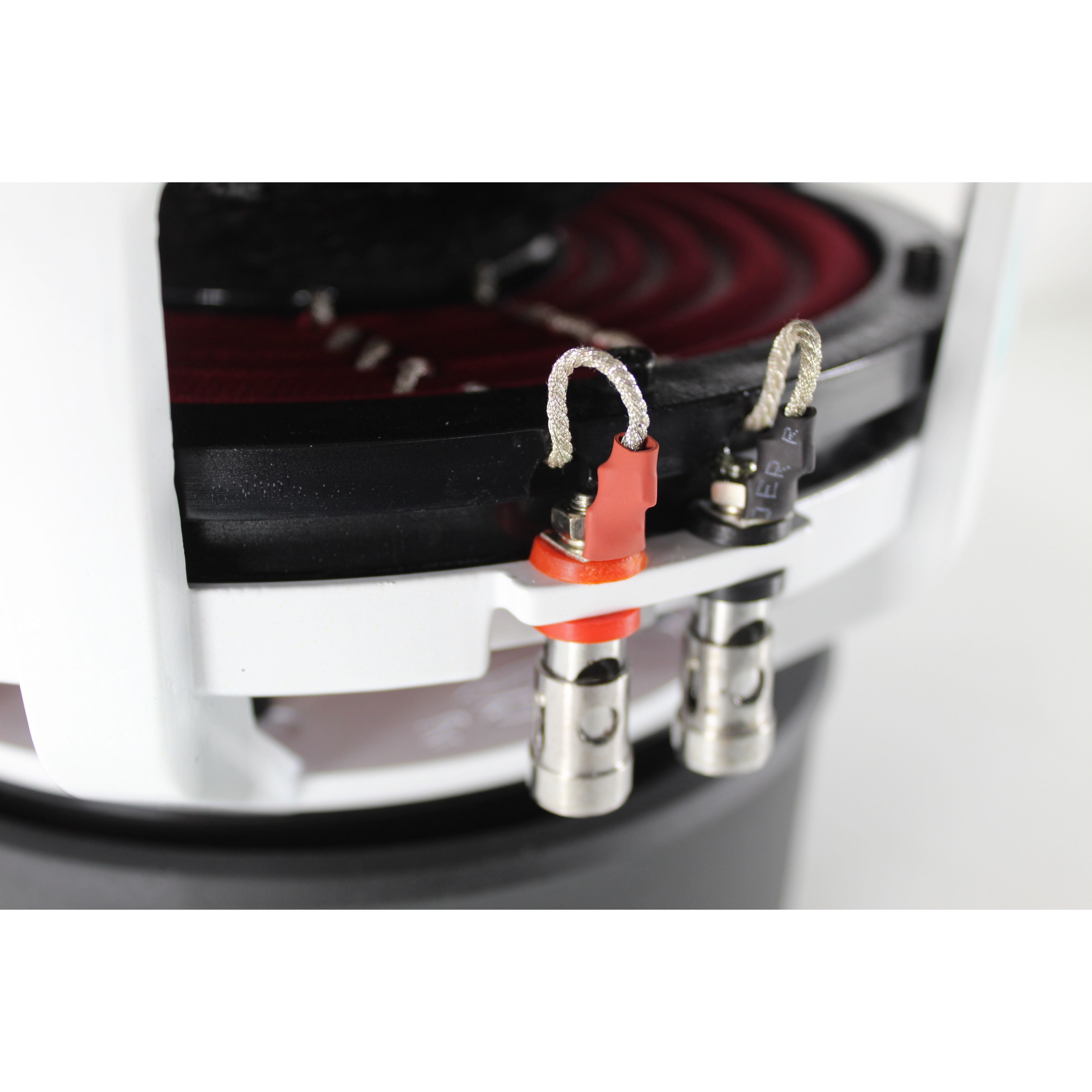

• Dual 4-Ohm Voice Coil Configuration - Flexible wiring options allow for 2-ohm or 8-ohm final impedance, making amplifier matching simple and versatile.
• High-Excursion 3" Voice Coil & 18mm XMAX - Engineered for deep, low-frequency extension with impressive excursion while maintaining clean, accurate bass response.

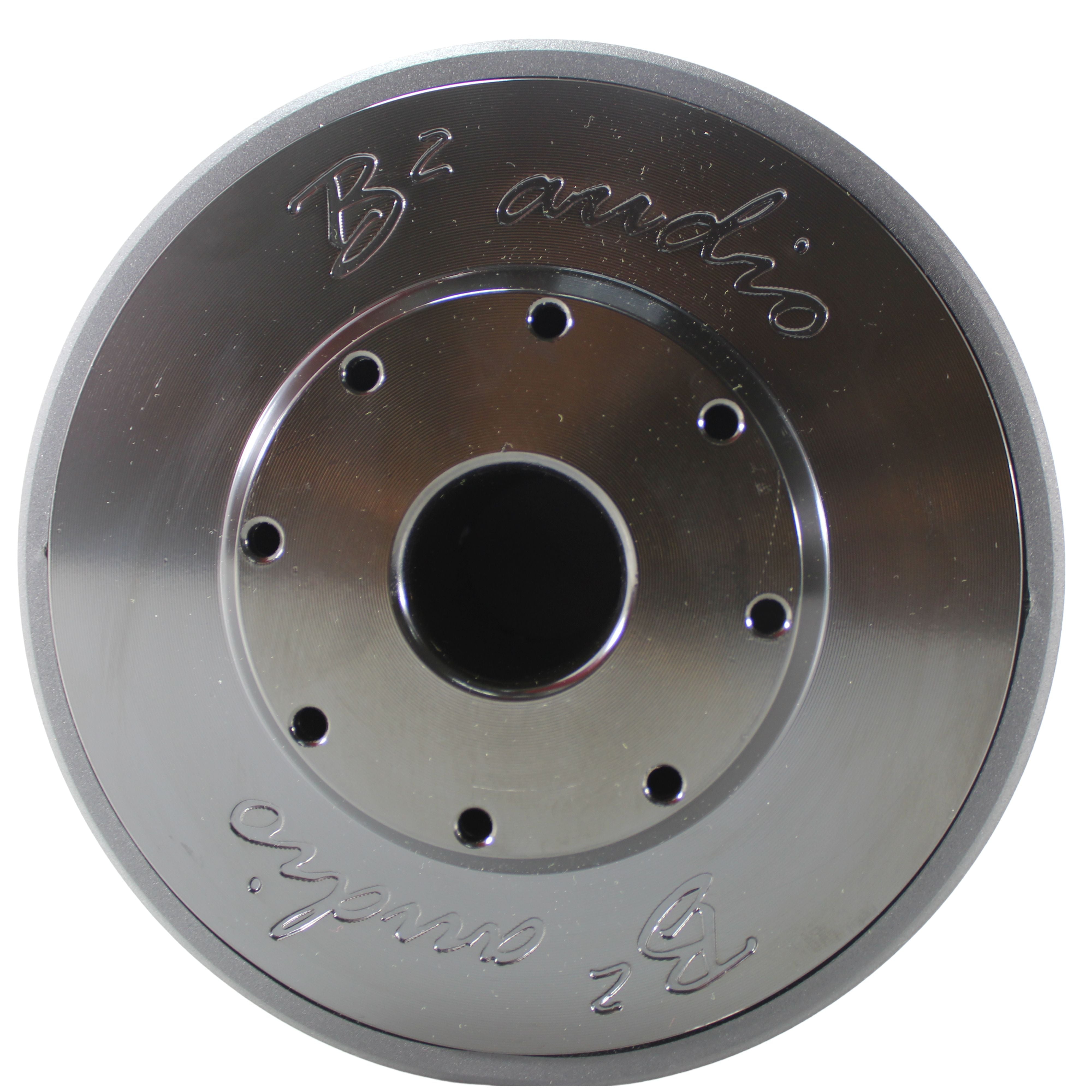

• Heavy-Duty 240 oz Motor Structure - Massive magnet assembly provides excellent power handling, improved efficiency, and precise cone control under demanding conditions.
• Works in Sealed or Ported Enclosures - Optimized for sealed, compact ported, standard ported, or 4th-order bandpass enclosures to fit a wide range of custom car audio builds.

B2 Audio 10" 1000 Watts RMS 3" Voice Coil Dual 4-Ohm Riot Series Subwoofer

This Listing Includes:

• (1) B2 Audio 10" Riot Series Subwoofer

The B2 Audio Riot Series 10" Subwoofer redefines performance and power with a compact design and robust features. With 1000 Watts RMS and a peak power handling of 3000 Watts, this subwoofer is engineered for dynamic, deep bass. It boasts a dual 4-ohm impedance configuration and a powerful 3-inch voice coil, providing versatility and optimized sound quality. Built with a 240 oz magnet and advanced materials, the Riot subwoofer delivers precise low-frequency performance while ensuring durability. Whether you're upgrading your car audio system or building a custom setup, this subwoofer is the ultimate choice for high-performance sound enthusiasts.

Specifications

• Sensitivity: 80.1 dB (1w/1m)


• Nominal Impedance: Dual 4-Ohm


• Voice Coil Diameter: 3"


• Power Handling: 1000 Watts RMS


• Peak Dynamic Power: 3000 Watts


• XMAX One Way: 18mm


• VAS: 16.9 L


• FS: 30.9 Hz


• QES: 0.76


• QMS: 6.64


• QTS: 0.68


• CMS: 110 um/N


• MMS: 241.7 g


• BL^2/RE: 62.5


• Magnet: 240 Oz


• Displacement: 3.7L / 0.13cu.ft

Dimensions

• Overall Diameter: 10.82" / 275 mm


• Overall Depth: 8.07"


• Front Mount Baffle Cutout: 9.25"


• Mounting Depth: 6.81"


• Motor Diameter: 7.40"


• Weight: 24.25 LBS

Enclosure Suggestions

Sealed

• 20 L / 0.706 cu. ft Qtc 1.1 / Qtc 0.682 / Fb 42 Hz

Ported Compact

• 35L / 1.24 cu.ft / Port Area: 12 sq in. / Port Length: 15.7" / FB: 38 Hz

Ported

• 50 L / 1.76 cu/ft / P: 12 sq in. / L: 15.7" / FB: 32 Hz

BP 4th

• 3:1 Ratio
