B2 Audio RIOT V3 12" 1000W RMS Subwoofer with RAGE 3500 Amp

• Properly Matched 1000W RMS Package: pairs the RIOT V3 12-inch subwoofer with up to 1200W RMS of amplifier power at 4 ohms.
• Heavy-Duty 12-Inch Subwoofer: features a 3-inch voice coil, 18 mm Xmax, and a powerful 240 oz motor assembly.
• Correct 4-Ohm Configuration: dual 2-ohm voice coils wire in series for safe operation with the included amplifier.
• Flexible Enclosure Options: works with sealed, ported, or fourth-order bandpass enclosures for customized bass response.
• Full-Range Class-D Amplifier: includes adjustable crossovers and a bass knob with voltage and temperature monitoring.

B2 Audio RIOT V3 12" 1000W RMS Subwoofer with RAGE 3500 Amp

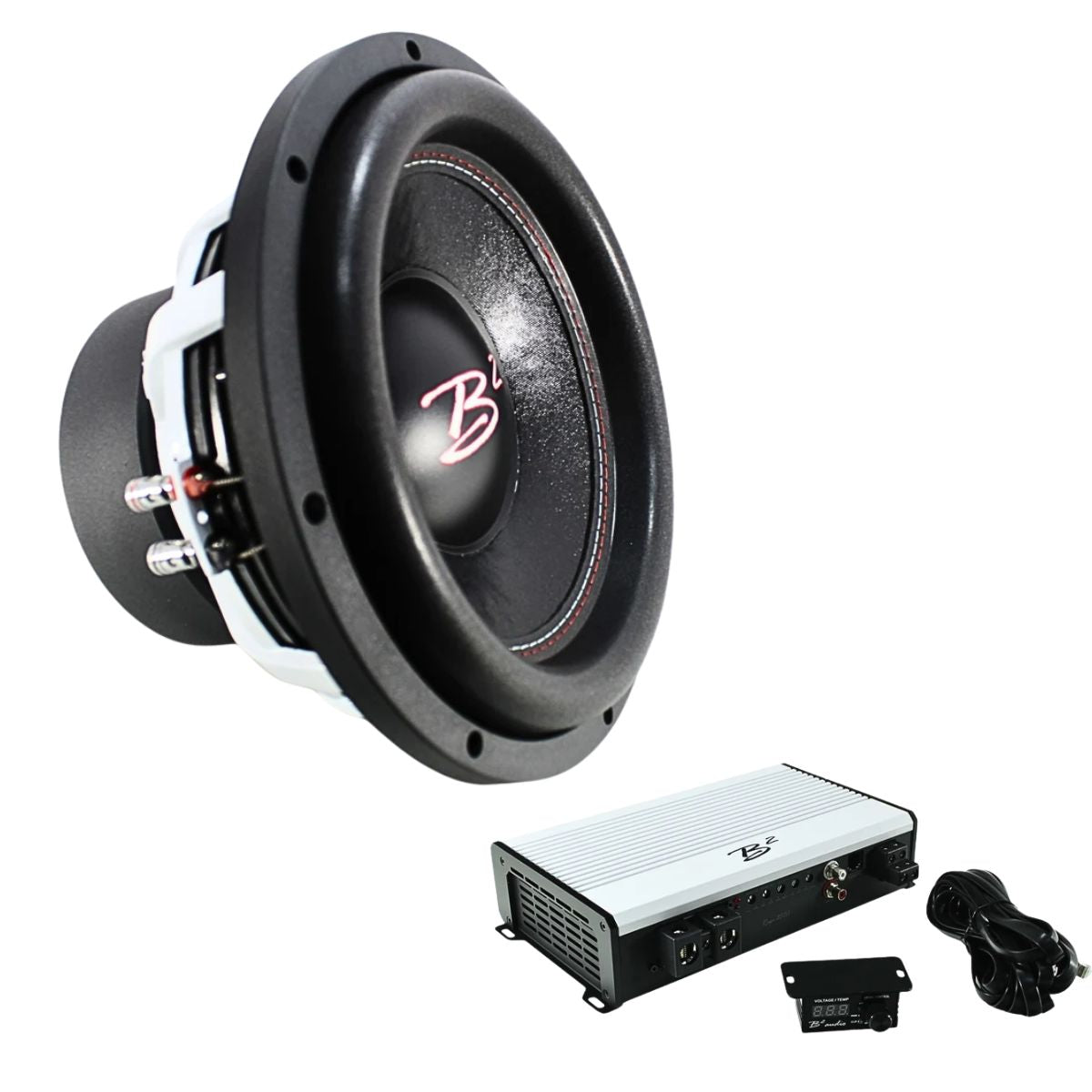

This Listing Includes:

• (1) B2 Audio RIOT V3 12" Dual 2-Ohm Subwoofer


• (1) B2 Audio RAGE 3500 Monoblock Amplifier

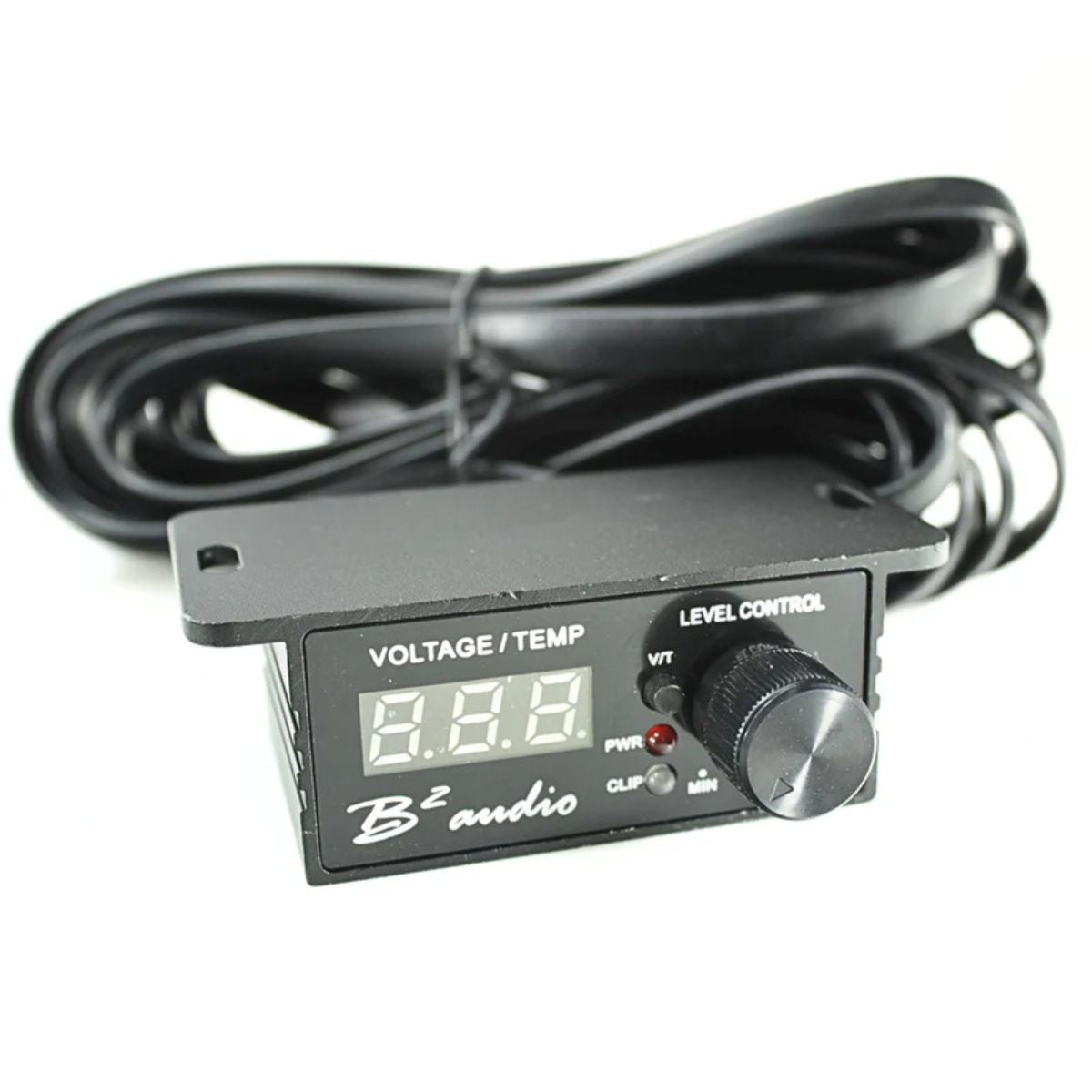

• (1) Bass Knob with Voltage and Temperature Display


• (1) Remote Wire


• (2) Hex Wrenches


• Mounting Hardware

The B2 Audio RIOT V3 12-inch subwoofer delivers powerful, controlled bass with 1000 watts RMS of power handling, a heavy-duty 3-inch voice coil, and 18 mm of Xmax. This package includes the B2 Audio RAGE 3500 monoblock amplifier, providing a strong power match when the system is correctly configured at 4 ohms.

The subwoofer’s dual 2-ohm voice coils should be wired in series to create a 4-ohm final load. At 4 ohms, the RAGE 3500 amplifier produces between 1050 and 1200 watts RMS, closely matching the subwoofer’s 1000W RMS power rating while providing useful power headroom.

The RIOT V3 features an oversized 240 oz motor assembly, 8-gauge push terminals, and a high-excursion suspension designed for demanding daily systems. It can be installed in sealed, ported, or fourth-order bandpass enclosures, allowing the system to be tuned for compact installation, deeper extension, or higher output.

The included full-range Class-D monoblock amplifier features adjustable low-pass, high-pass, and subsonic crossovers. Its remote bass knob lets you control the output while monitoring vehicle voltage and amplifier temperature.

The voice coils should not be wired in parallel for this package. A parallel connection creates a 1-ohm load, where the amplifier can produce between 3000 and 3500 watts RMS, far exceeding the subwoofer’s 1000W RMS rating.

Features

• 12-inch RIOT Series V3 high-excursion subwoofer


• 1000W RMS and 3000W maximum power handling


• Dual 2-ohm voice coils wire in series to 4 ohms


• Heavy-duty 3-inch voice coil


• 18 mm Xmax for strong low-frequency output


• Powerful 240 oz motor assembly


• Heavy-duty 8-gauge push terminals


• Compatible with sealed, ported, and bandpass enclosures


• RAGE 3500 full-range Class-D monoblock amplifier


• 1050 to 1200 watts RMS at the recommended 4-ohm load


• Adjustable low-pass, high-pass, and subsonic crossovers


• Thermal, short-circuit, and overcurrent protection


• Bass knob with voltage and temperature display included

Specifications

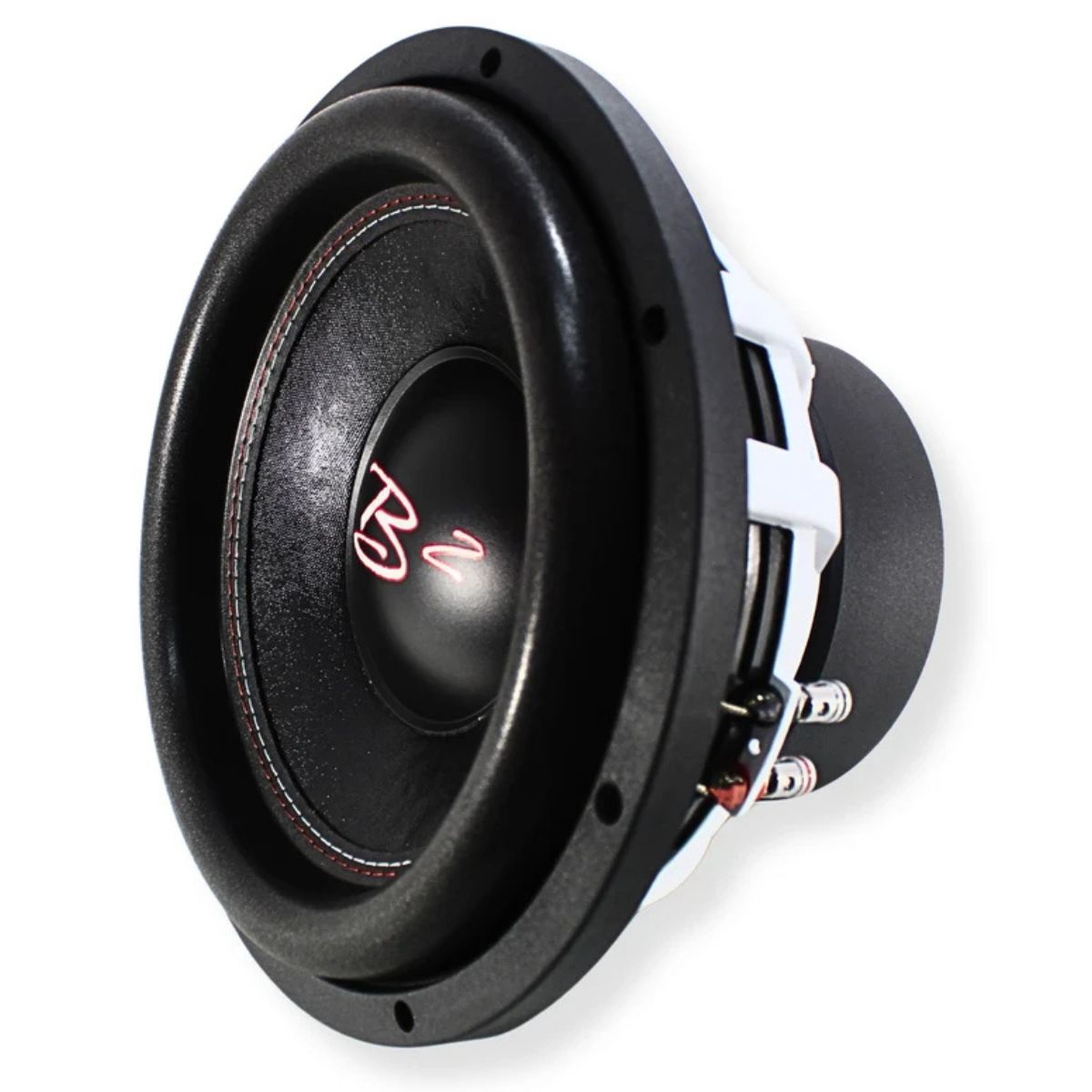

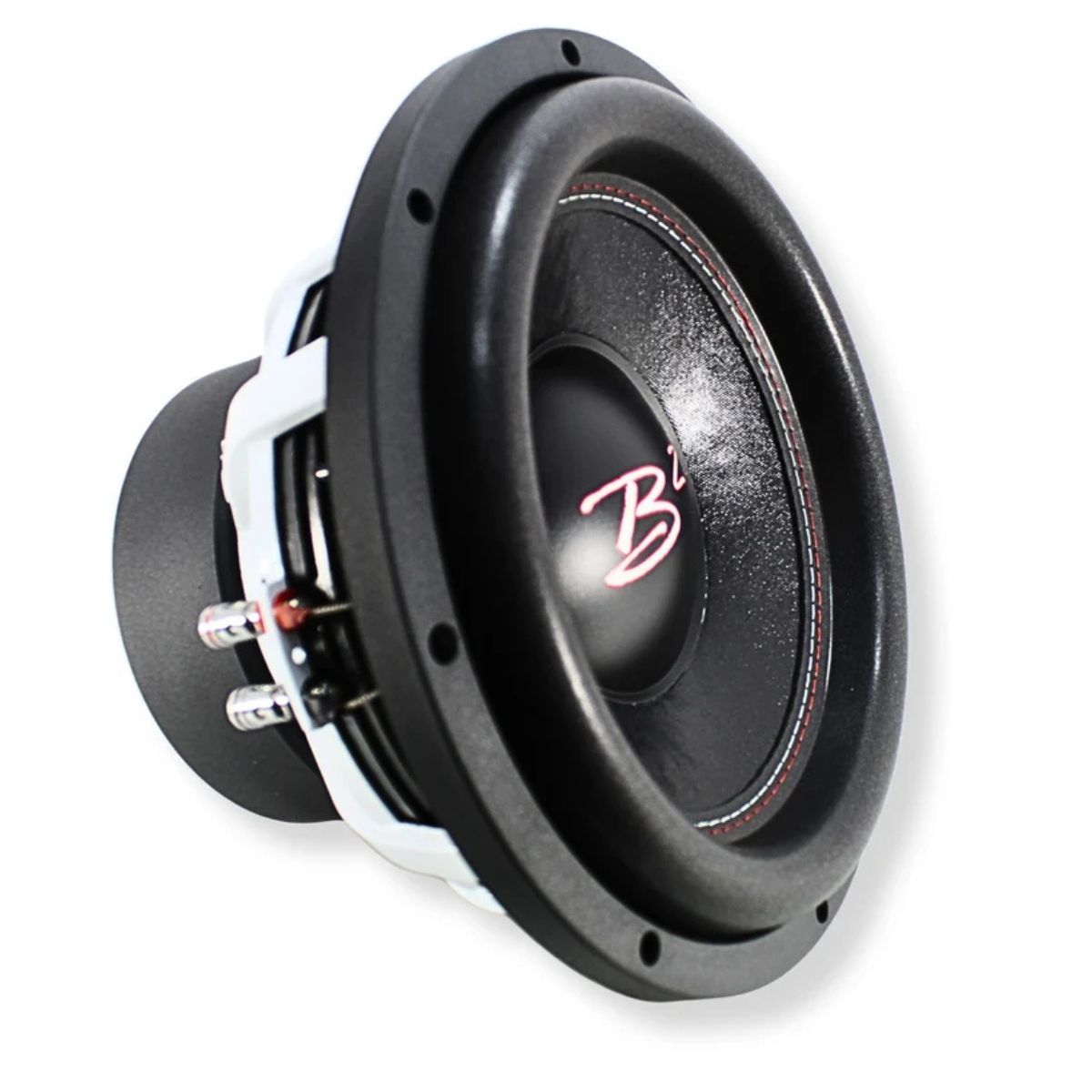

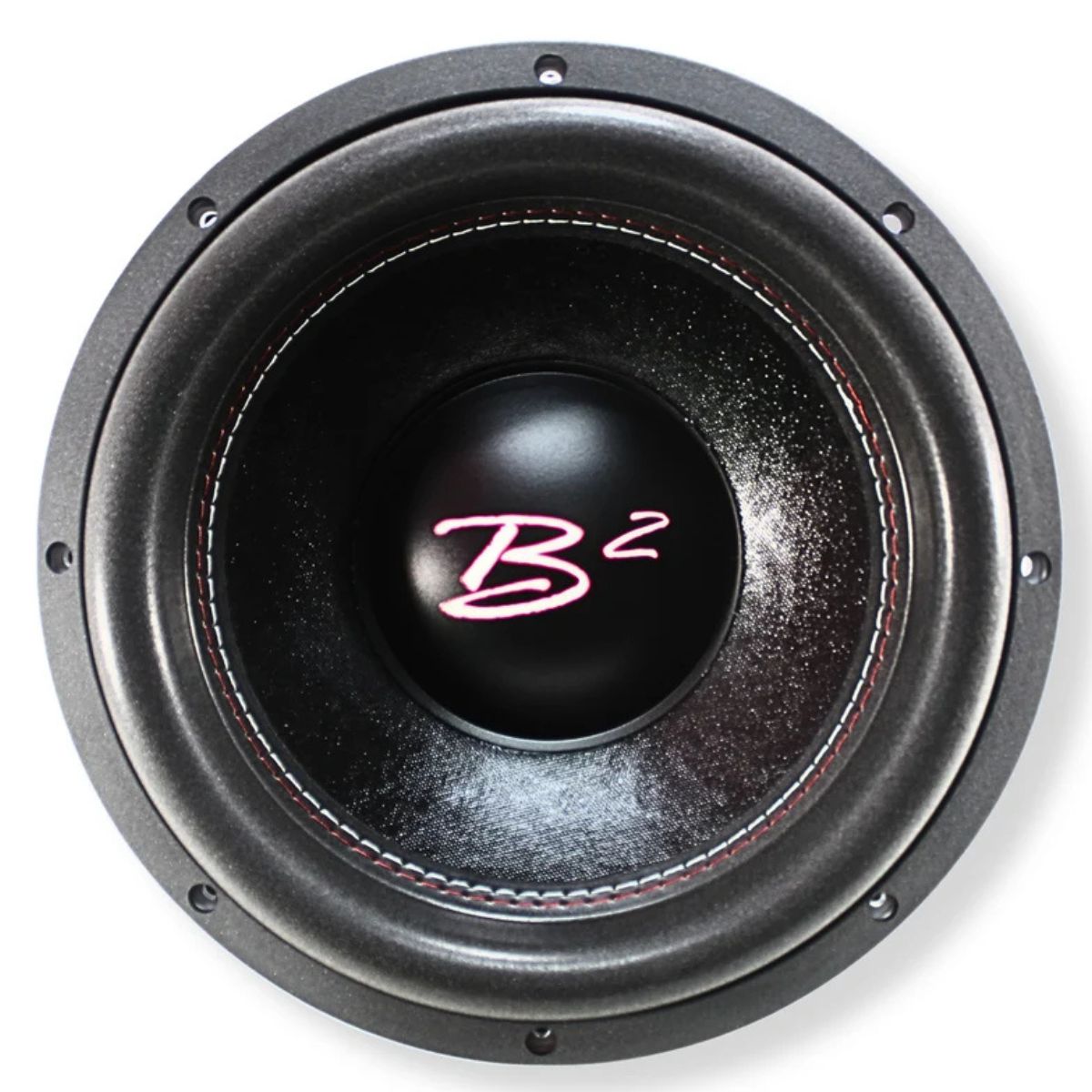

RIOT V3 12" Subwoofer

• Size: 12 inches


• RMS Power Handling: 1000 watts


• Maximum Power Handling: 3000 watts


• Nominal Impedance: Dual 2 ohms


• Recommended Final Load: 4 ohms


• Voice Coil Diameter: 3 inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 82.4 dB


• Xmax: 18 mm


• Motor Assembly Weight: 240 oz


• Push Terminal Capacity: 8 gauge


• Displacement Volume: 5.2 L / 0.19 cubic feet


• Overall Diameter: 12.80 inches


• Mounting Diameter: 11.22 inches


• Bolt Pattern Diameter: 11.93 inches


• Overall Depth: 7.99 inches


• Mounting Depth: 7.23 inches

Thiele and Small Parameters

• Free-Air Resonance: 29.9 Hz


• Resistance: 1.9 ohms


• Qms: 6.55


• Qes: 0.61


• Qts: 0.55


• Vas: 34.9 L


• Cms: 90 m/N


• BL Factor: 95.5


• Moving Mass: 300.8 g


• Xmax: 18 mm

Suggested Enclosures

• Sealed Volume: 0.89 cubic feet


• Sealed Qtc: 0.64


• Sealed F3: 49.3 Hz


• Compact Ported Volume: 1.41 cubic feet


• Compact Port Area: 12.6 square inches


• Compact Port Length: 13 inches


• Compact Tuning Frequency: 38 Hz


• Ported Volume: 2.65 cubic feet


• Port Area: 16 square inches


• Port Length: 13.3 inches


• Ported Tuning Frequency: 32 Hz


• Fourth-Order Bandpass Ratio: 3:1

Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.

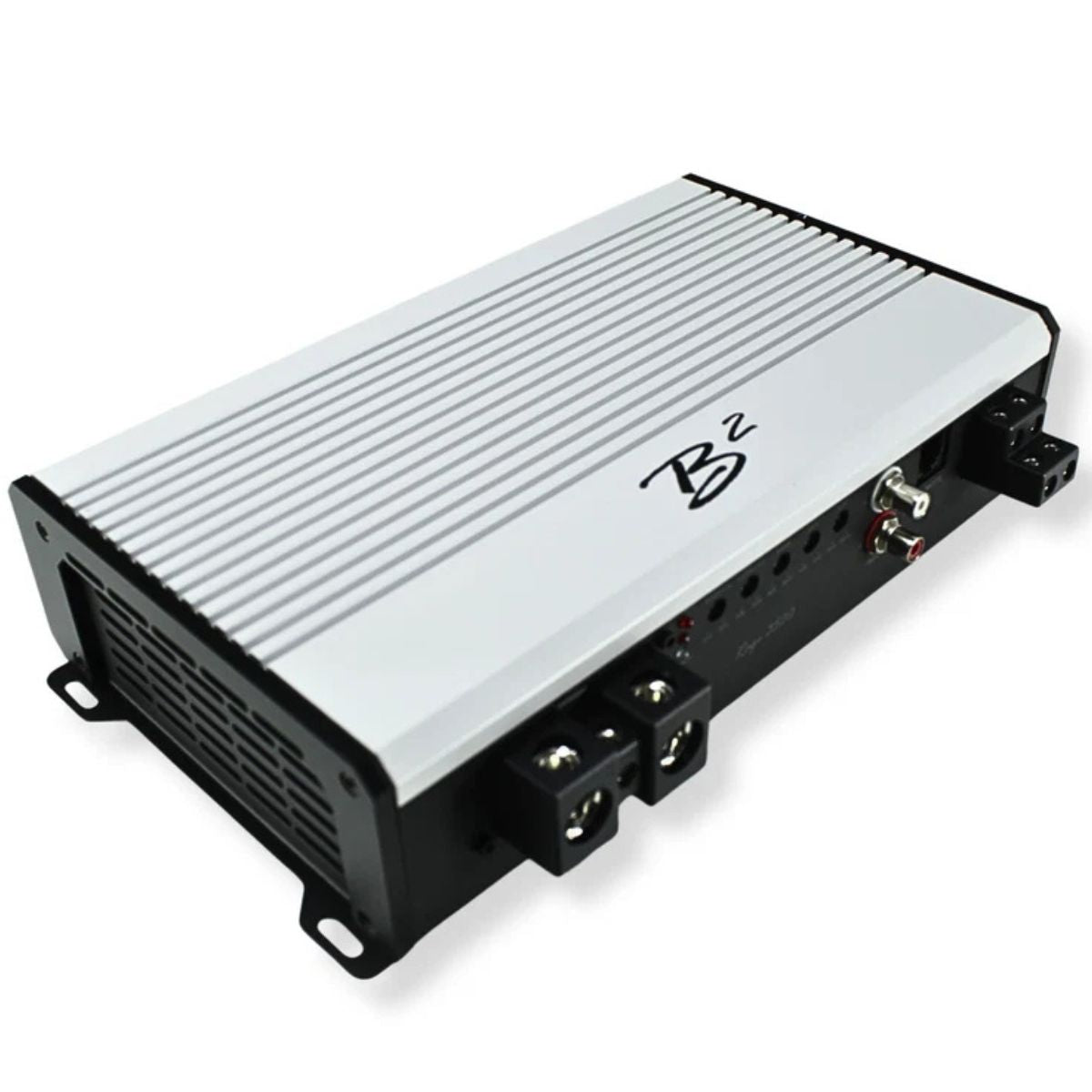

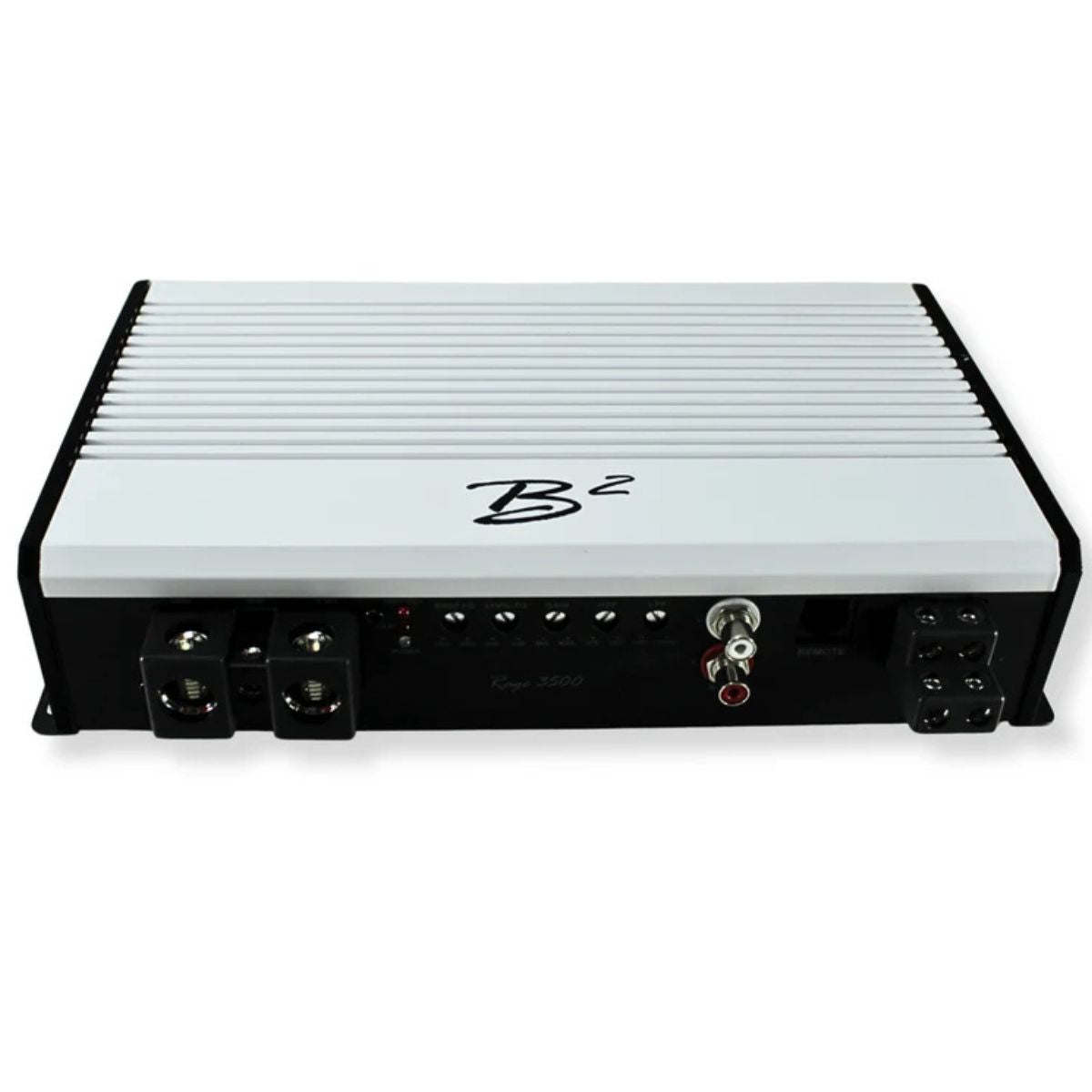

RAGE 3500 Amplifier

• Amplifier Type: Full-Range Class-D Monoblock


• RMS Power at 4 Ohms: 1050 to 1200 watts


• RMS Power at 2 Ohms: 1850 to 2150 watts


• RMS Power at 1 Ohm: 3000 to 3500 watts


• Frequency Response: 10 Hz to 20 kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 0.2V to 6V


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Bass Control Frequency: 30 Hz to 80 Hz


• Low-Pass Crossover: 50 Hz to 20 kHz


• High-Pass Crossover: 10 Hz to 2 kHz


• Subsonic Crossover: 10 Hz to 2 kHz


• Length: 11.5 inches


• Width: 7.25 inches


• Height: 2.5 inches


• Weight: 7.25 lb

The RIOT V3 subwoofer may arrive in packaging marked V2. The subwoofer packed inside is the V3 version.

A properly matched 1000W RMS package built for powerful, controlled 12-inch bass at 4 ohms.
