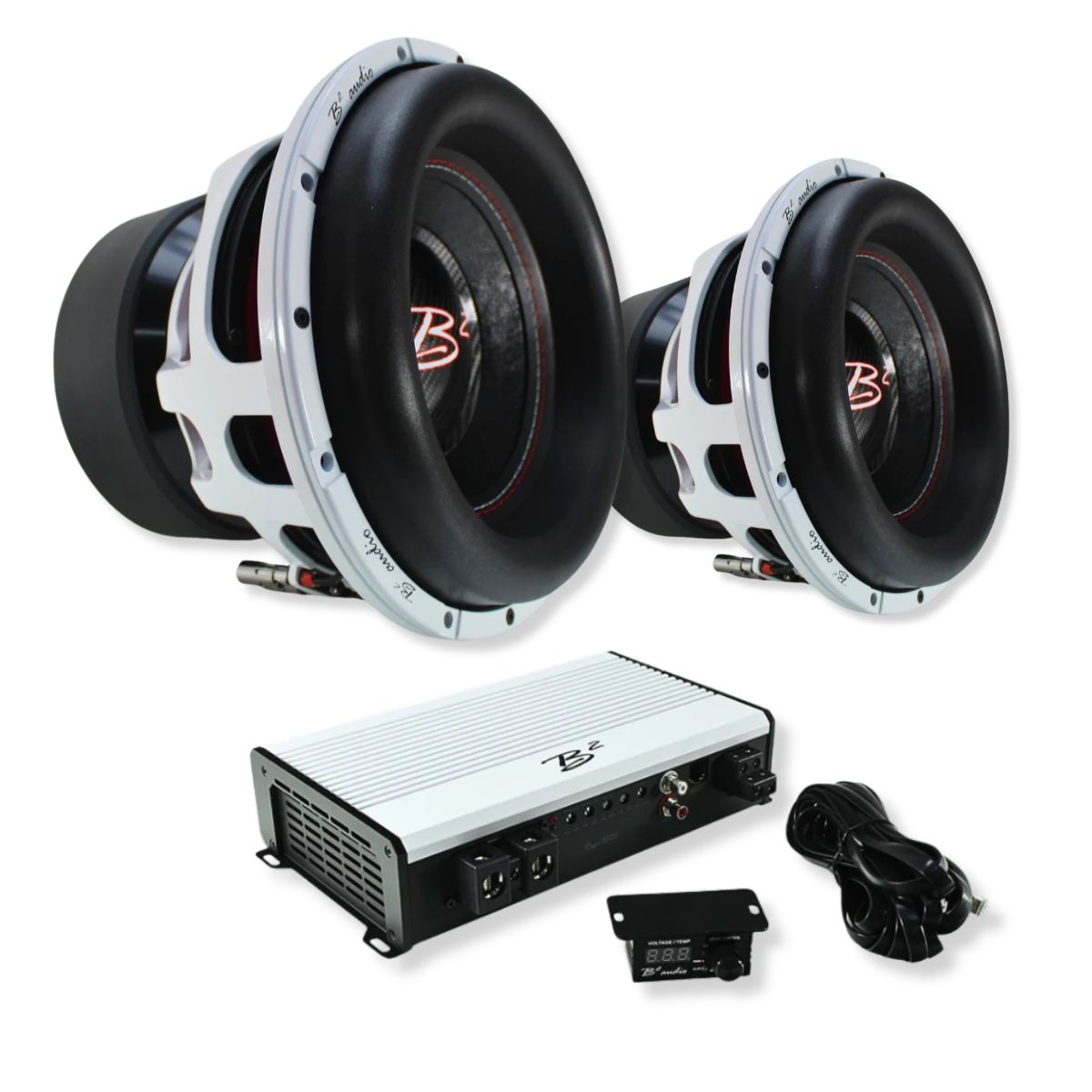

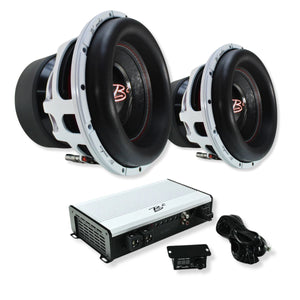

Dual B2 Audio RAGE12-D1-V4 12" 4000W RMS Subs with RAGE 3500 Amp

• High-Output Dual-Sub Package: combines 4000W RMS of subwoofer handling with up to 3500W RMS of amplifier output.
• Dual 12-Inch Bass: two RAGE V4 subwoofers provide increased cone area and powerful low-frequency output.
• Upgraded V4 Excursion: each subwoofer features a larger surround, 20 mm Xmax, and a 630 oz magnet assembly.
• Correct 1-Ohm Configuration: wire each subwoofer’s coils in series, then connect both subwoofers in parallel.
• Flexible Enclosure Options: performs in sealed, compact ported, or standard ported enclosures.

Dual B2 Audio RAGE12-D1-V4 12" 4000W RMS Subs with RAGE 3500 Amp

This Listing Includes:

• (2) B2 Audio RAGE12-D1-V4 12" Dual 1-Ohm Subwoofers

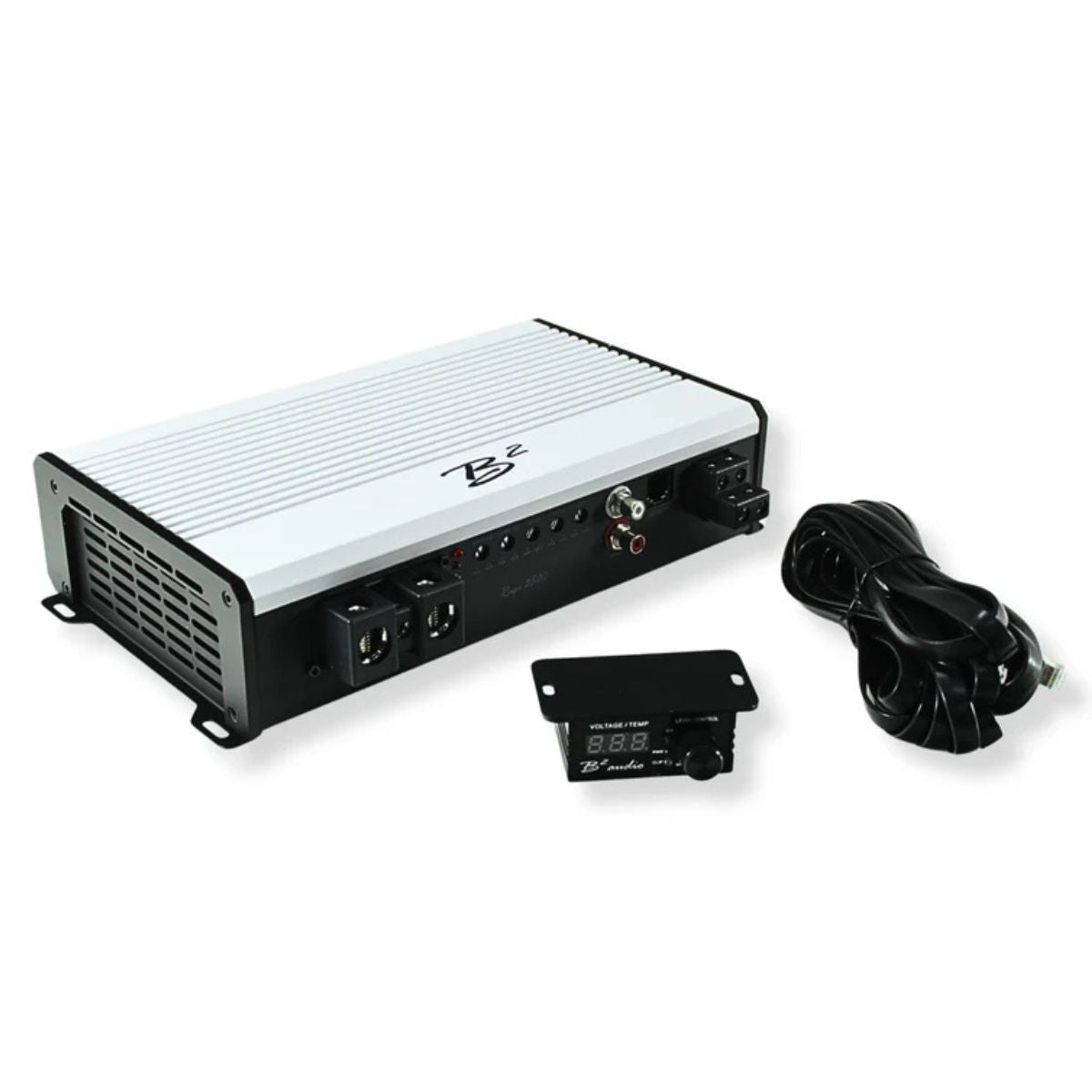

• (1) B2 Audio RAGE 3500 Monoblock Amplifier

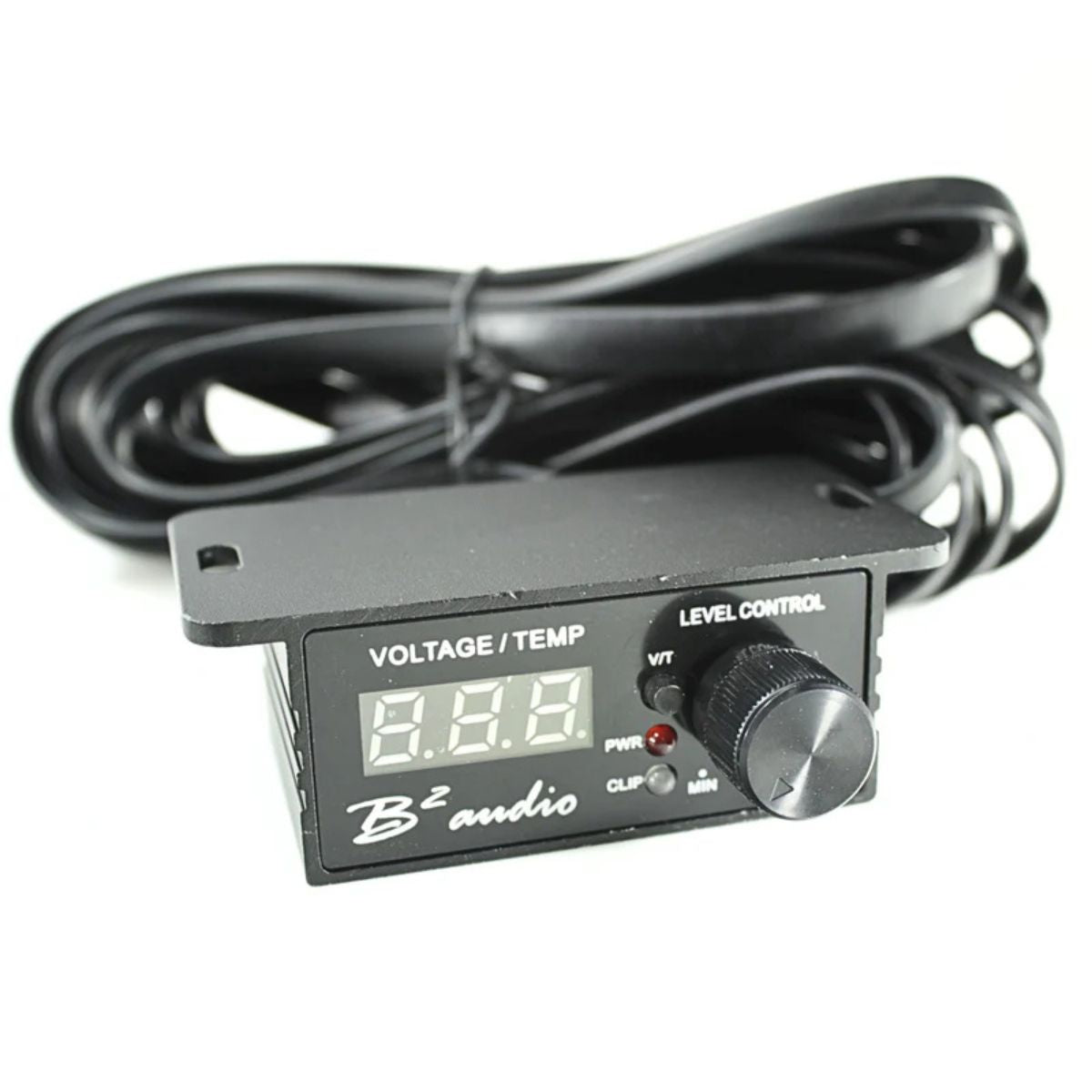

• (1) Bass Knob with Voltage and Temperature Display


• (1) Remote Wire


• (2) Hex Wrenches


• Mounting Hardware

This B2 Audio package combines two RAGE12-D1-V4 12-inch subwoofers with the RAGE 3500 monoblock amplifier. Together, the subwoofers handle 4000 watts RMS, while the amplifier delivers between 3000 and 3500 watts RMS at the recommended 1-ohm final load.

Wire each subwoofer’s dual 1-ohm voice coils in series to create a 2-ohm load per subwoofer. Then connect both subwoofers in parallel for a 1-ohm final load at the amplifier. This configuration provides powerful output while keeping the amplifier within its rated impedance range.

Features

• Two 12-inch RAGE Series V4 high-excursion subwoofers


• 4000W combined RMS power handling


• 8000W combined maximum power handling


• Dual 1-ohm voice coils on each subwoofer


• Recommended 1-ohm final system load


• Heavy-duty 3-inch voice coils


• Enlarged V4 surrounds for increased excursion


• 20 mm Xmax per subwoofer


• Massive 630 oz magnet assembly per subwoofer


• Heavy-duty 4-gauge push terminals


• Compatible with sealed and ported enclosures


• RAGE 3500 full-range Class-D monoblock amplifier


• 3000 to 3500 watts RMS at the recommended 1-ohm load


• Adjustable low-pass, high-pass, and subsonic crossovers


• Bass knob with voltage and temperature display included

Specifications

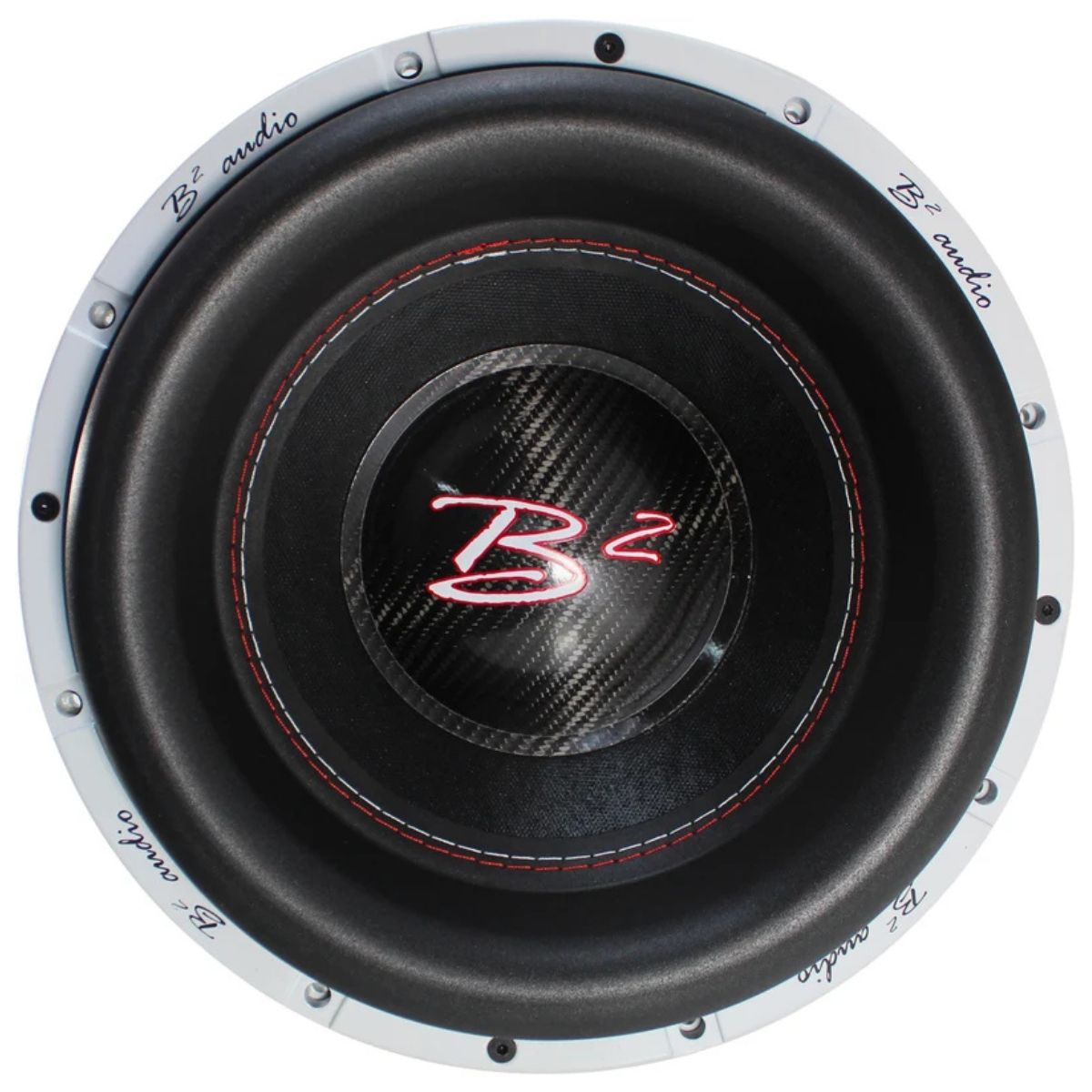

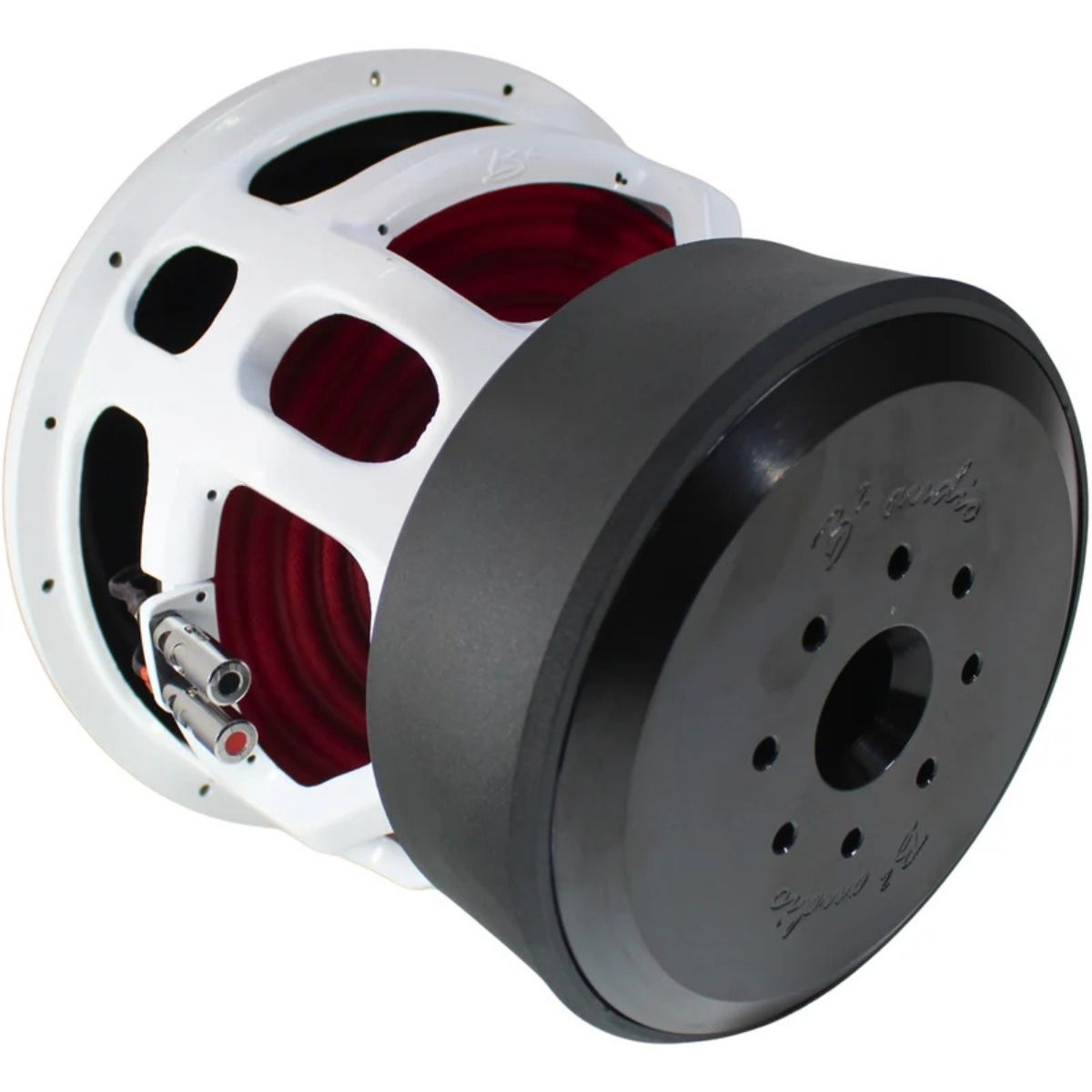

RAGE12-D1-V4 Subwoofers

• Quantity: Two


• Size: 12 inches each


• RMS Power Handling: 2000 watts each


• Combined RMS Power Handling: 4000 watts


• Maximum Power Handling: 4000 watts each


• Combined Maximum Power Handling: 8000 watts


• Nominal Impedance: Dual 1 ohm each


• Recommended Final System Load: 1 ohm


• Voice Coil Diameter: 3 inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 91.2 dB


• Xmax: 20 mm each


• Magnet Weight: 630 oz each


• Push Terminal Capacity: 4 gauge


• Displacement Volume: 0.26 cubic feet each


• Overall Diameter: 12.24 inches each


• Mounting Diameter: 11.11 inches each


• Bolt Pattern Diameter: 11.57 inches each


• Mounting Depth: 8.85 inches each


• Overall Depth: 10.21 inches each

Thiele and Small Parameters Per Subwoofer

• Free-Air Resonance: 29.5 Hz


• Resistance: 1 ohm


• Qms: 5.19


• Qes: 0.44


• Qts: 0.4


• Vas: 29.4 L


• Cms: 80 m/N


• BL Factor: 151.38


• Moving Mass: 334.6 g


• Xmax: 20 mm

Recommended Enclosures Per Subwoofer

• Sealed Volume: 1.05 cubic feet


• Sealed Qtc: 0.451


• Compact Ported Volume: 1.13 cubic feet


• Compact Port Diameter: 4 inches


• Compact Port Length: 13.2 inches


• Compact Tuning Frequency: 42 Hz


• Ported Volume: 2.25 cubic feet


• Port Area: 18.6 square inches


• Port Length: 19.7 inches


• Ported Tuning Frequency: 32 Hz

Enclosure recommendations are listed per subwoofer. Double the net volume when installing both subwoofers in a shared enclosure. Port dimensions may need to be recalculated for a shared chamber.

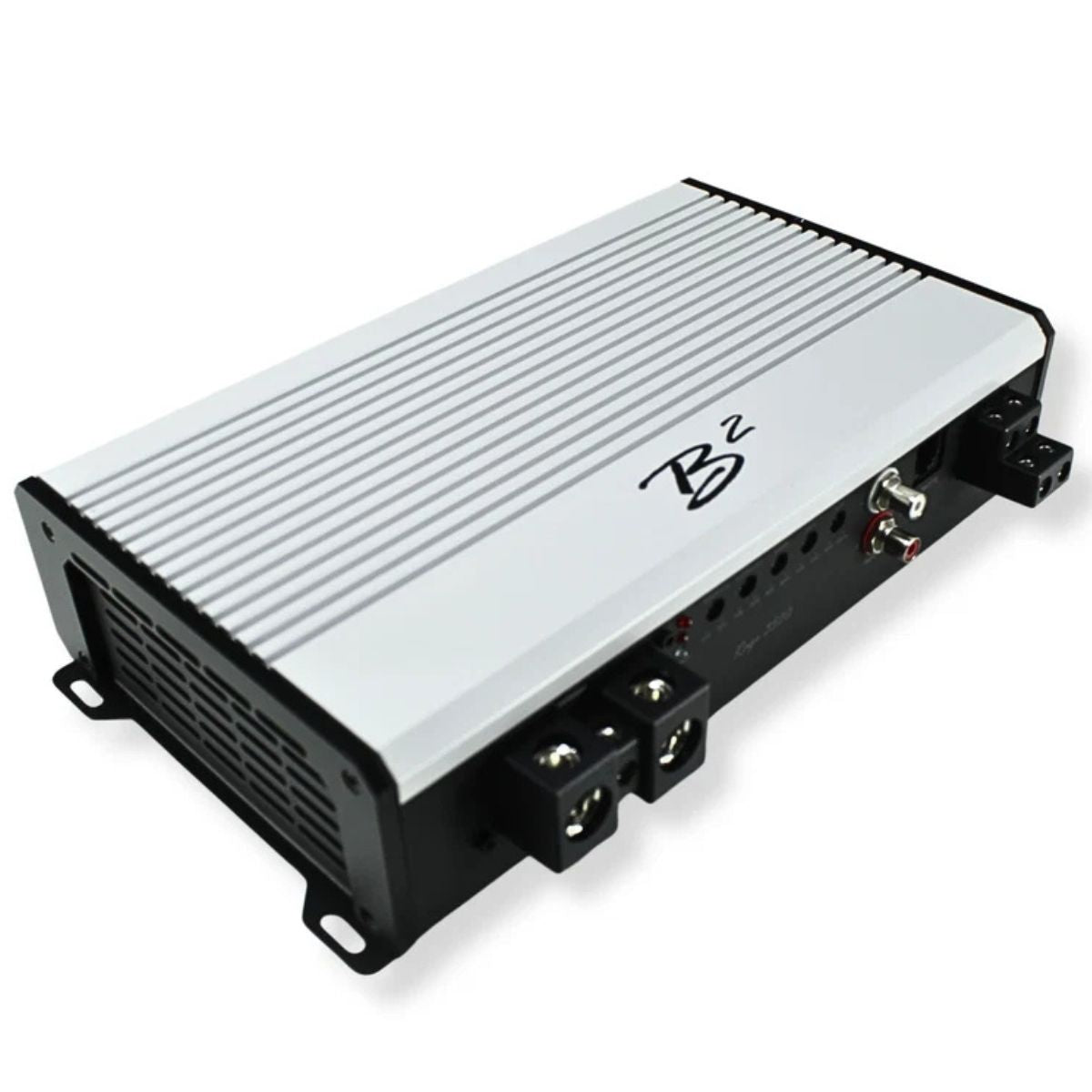

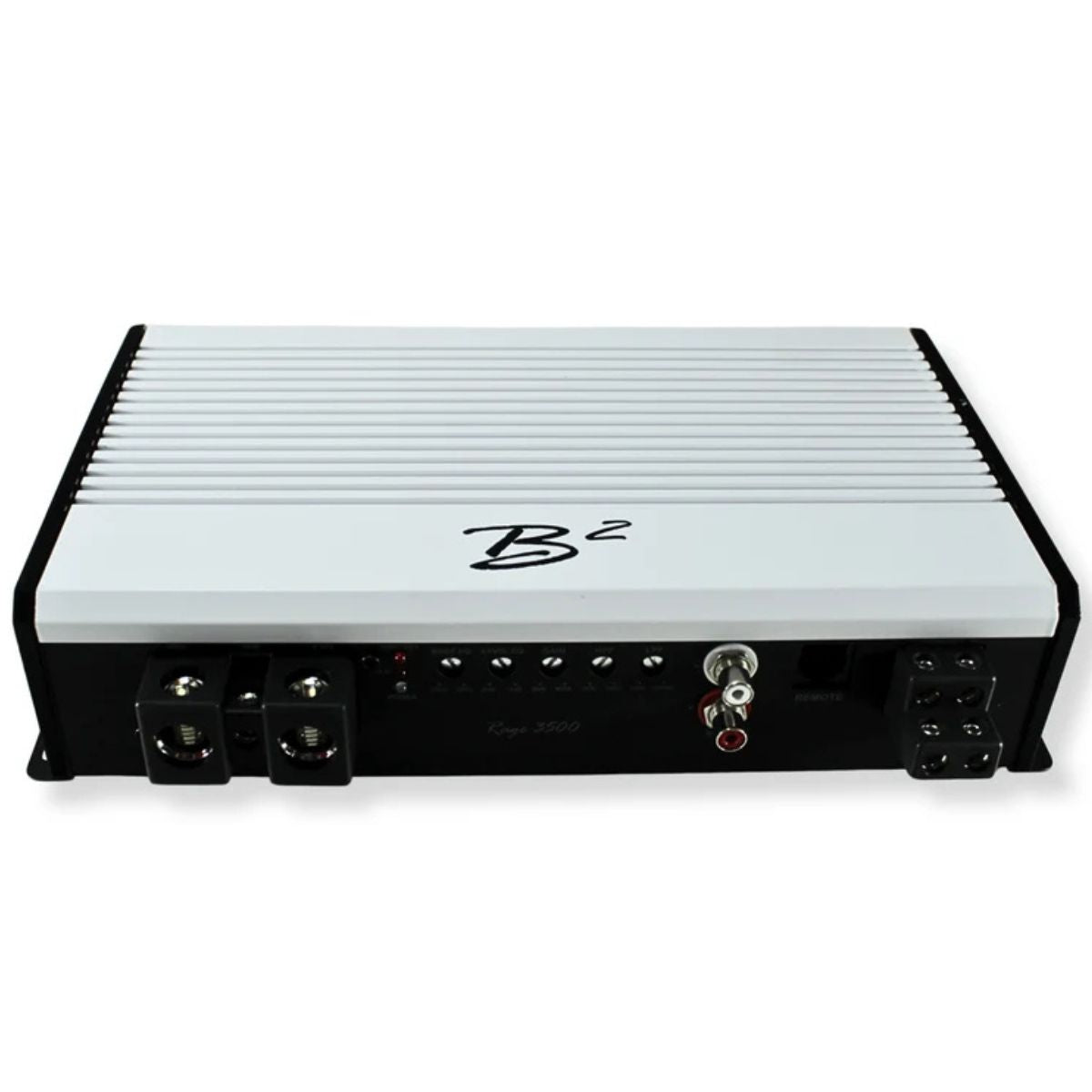

RAGE 3500 Amplifier

• Amplifier Type: Full-Range Class-D Monoblock


• RMS Power at 4 Ohms: 1050 to 1200 watts


• RMS Power at 2 Ohms: 1850 to 2150 watts


• RMS Power at 1 Ohm: 3000 to 3500 watts


• Recommended Configuration: 1-ohm final system load


• Frequency Response: 10 Hz to 20 kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 0.2V to 6V


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Bass Control Frequency: 30 Hz to 80 Hz


• Low-Pass Crossover: 50 Hz to 20 kHz


• High-Pass Crossover: 10 Hz to 2 kHz


• Subsonic Crossover: 10 Hz to 2 kHz


• Length: 11.5 inches


• Width: 7.25 inches


• Height: 2.5 inches


• Weight: 7.25 lb

Two high-excursion 12-inch subwoofers, 4000 watts RMS combined, and up to 3500 watts RMS of amplifier power at 1 ohm.
