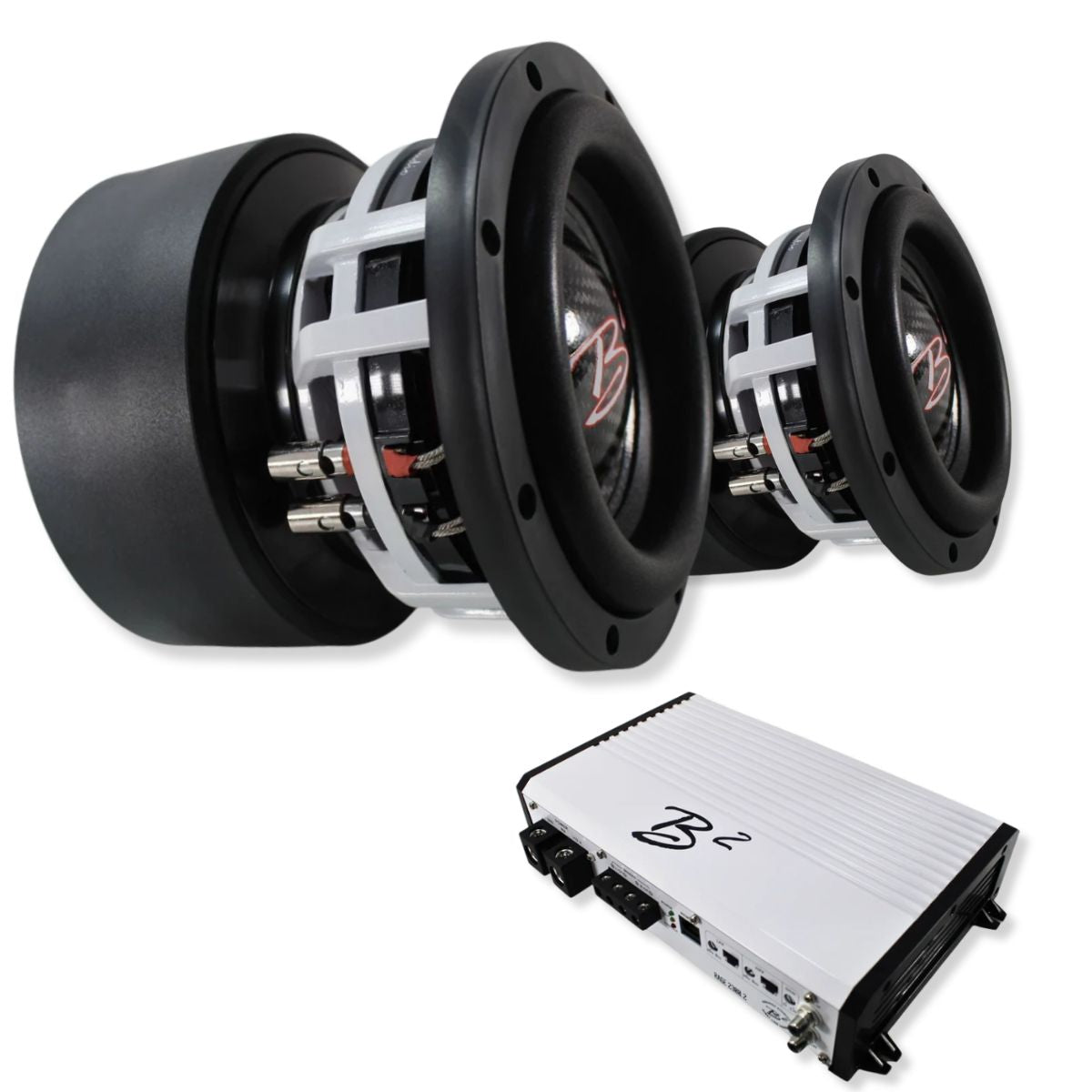

Dual B2 Audio RAMPAGE6-D1 6.5" 1000W RMS Subs with RAGE 2300.2 Amp

• Two 1000W RMS Subwoofers: includes two RAMPAGE6-D1 6.5-inch subwoofers providing 2000 watts RMS of combined power handling.
• Properly Matched Per Channel: wire each subwoofer’s dual 1-ohm coils in series, then connect one 2-ohm subwoofer to each 1150W amplifier channel.
• Compact High-Excursion Design: carbon-fiber cones, tall surrounds, and 15 mm one-way Xmax deliver powerful bass from space-conscious installations.
• Heavy-Duty Construction: each subwoofer uses a 2-inch voice coil, reinforced dust cap, 270 oz ferrite magnet, and durable foam surround.
• Flexible Enclosure Options: compatible with sealed, ported, and fourth-order bandpass boxes for custom daily, demo, or high-output systems.

Dual B2 Audio RAMPAGE6-D1 6.5" 1000W RMS Subs with RAGE 2300.2 Amp

This Listing Includes:

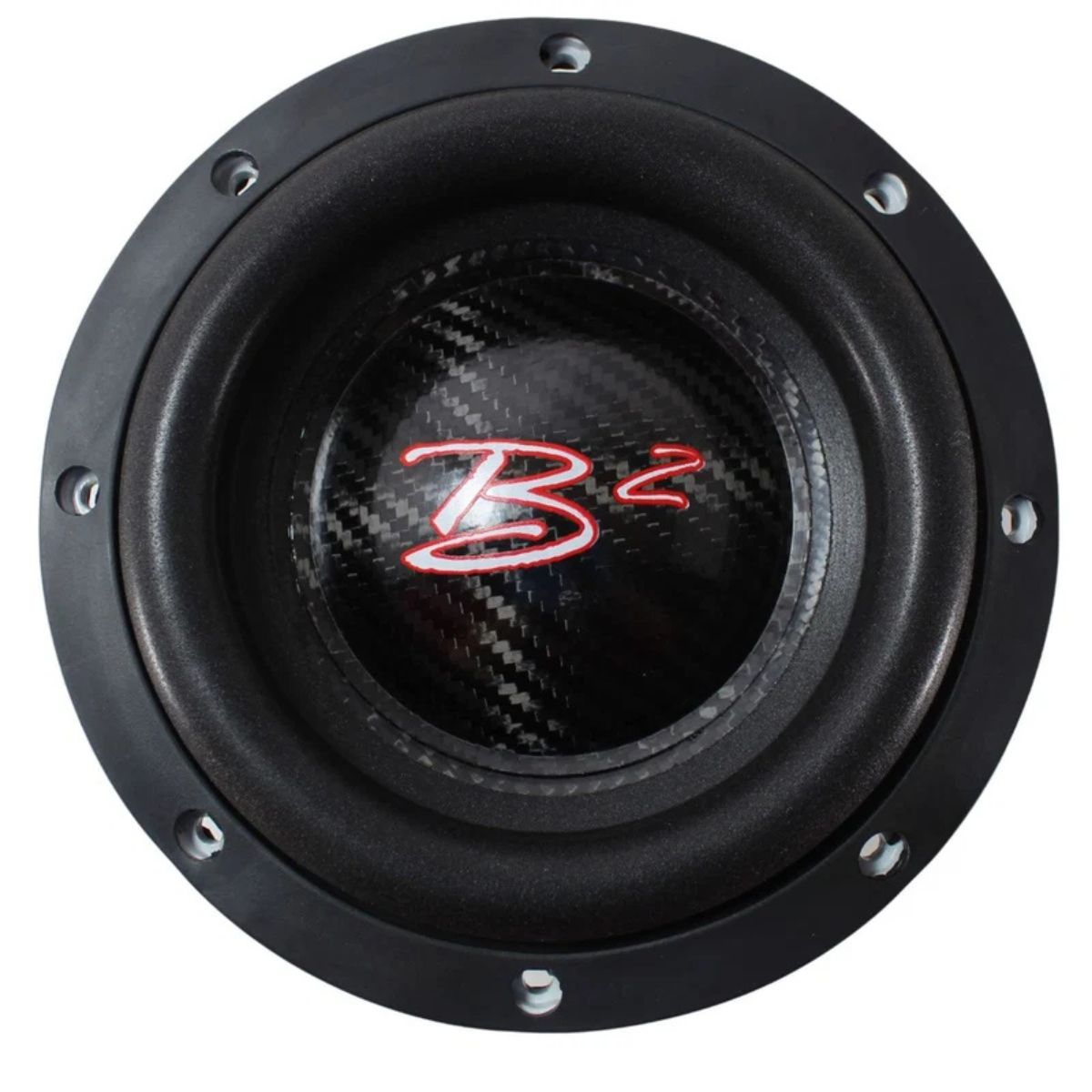

• (2) B2 Audio RAMPAGE6-D1 6.5" Dual 1-Ohm Subwoofers


• (1) B2 Audio RAGE-2300.2 2-Channel Amplifier


• (1) User Manual


• (2) Hex Wrenches


• Mounting Hardware

This B2 Audio combo pairs two compact RAMPAGE6-D1 6.5-inch subwoofers with the RAGE-2300.2 two-channel amplifier. Together, the subwoofers handle 2000 watts RMS while delivering high-excursion bass from a space-efficient platform.

Each subwoofer features dual 1-ohm voice coils that should be wired in series to create a 2-ohm load per subwoofer. Connect one 2-ohm subwoofer to each amplifier channel. At 2 ohms, the RAGE-2300.2 produces 1150 watts RMS per channel, providing a strong match for each subwoofer’s 1000W RMS rating.

Features

• Two 6.5-inch RAMPAGE high-excursion subwoofers


• 2000W combined RMS power handling


• 4000W combined maximum power handling


• Dual 1-ohm voice coils on each subwoofer


• Recommended 2-ohm load per amplifier channel


• Carbon-fiber cones with reinforced dust caps


• High-temperature 2-inch voice coils


• Tall U-shaped foam surrounds


• 15 mm one-way Xmax


• 270 oz ferrite magnet per subwoofer


• Compatible with sealed, ported, and fourth-order bandpass enclosures


• RAGE-2300.2 high-efficiency Class-D amplifier


• 1150W RMS per channel at 2 ohms


• Adjustable low-pass and high-pass crossovers


• Thermal, short-circuit, and overcurrent protection

Specifications

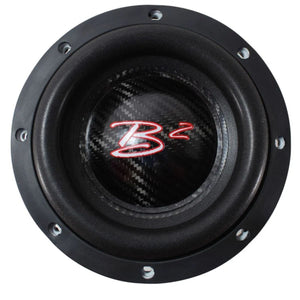

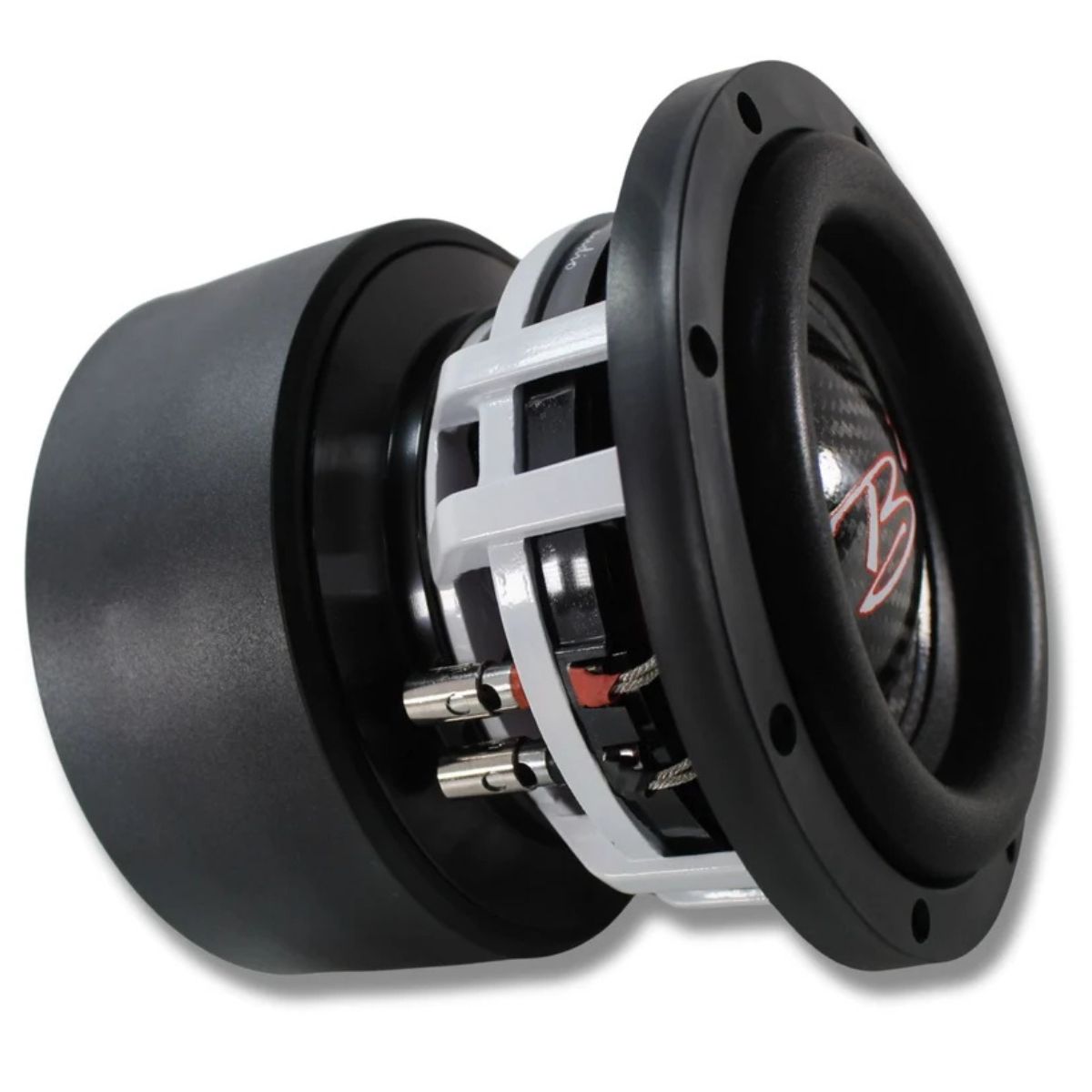

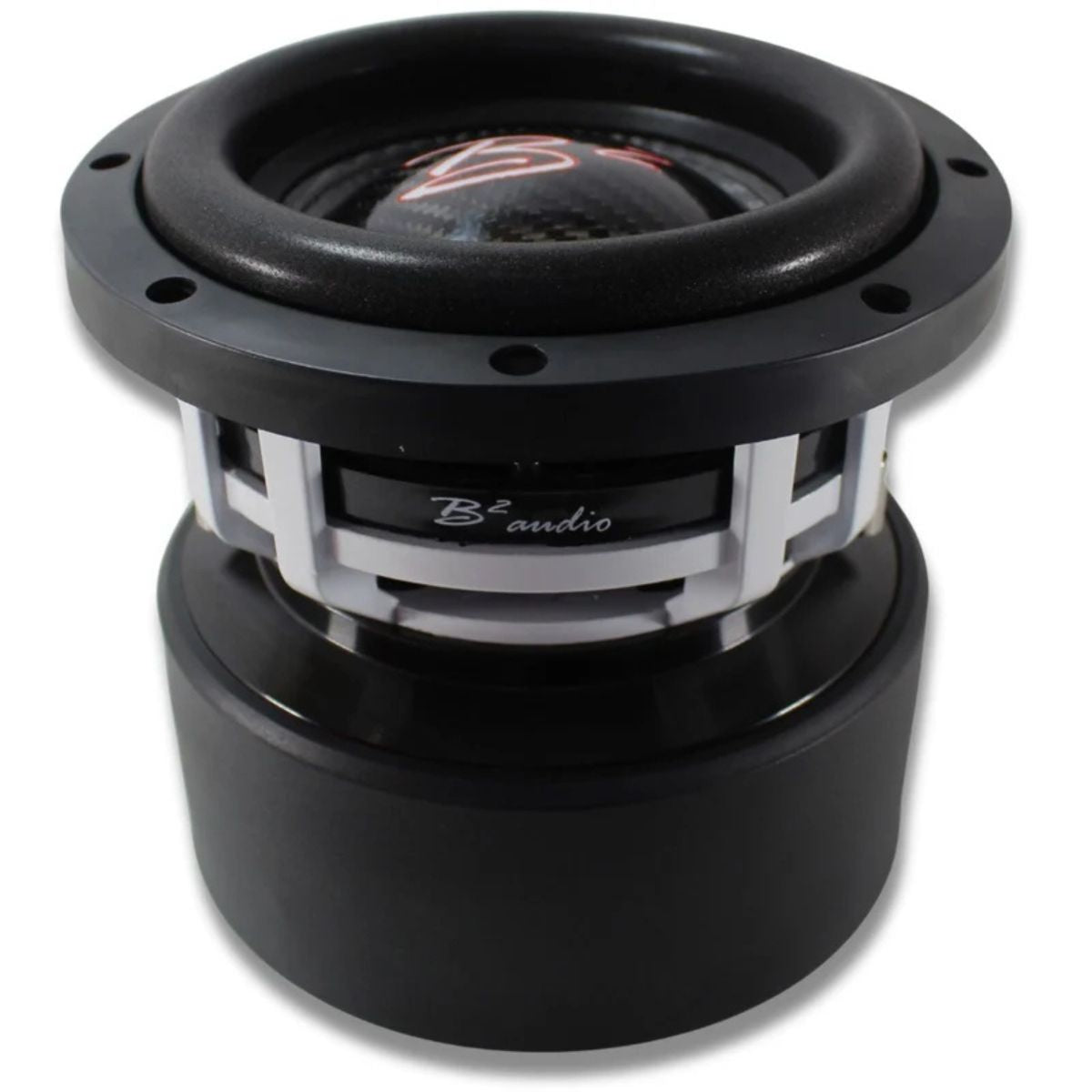

RAMPAGE6-D1 Subwoofers

• Quantity: Two


• Size: 6.5 inches each


• RMS Power Handling: 1000 watts each


• Combined RMS Power Handling: 2000 watts


• Maximum Power Handling: 2000 watts each


• Combined Maximum Power: 4000 watts


• Nominal Impedance: Dual 1 ohm each


• Recommended Load: 2 ohms per subwoofer


• Voice Coil Diameter: 2 inches


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 78.8 dB


• Xmax: 15 mm one way


• Magnet Type: Ferrite


• Magnet Weight: 270 oz each


• Cone Material: Carbon fiber


• Surround Type: Tall U-shaped foam


• Overall Diameter: 7.08 inches


• Baffle Cutout Diameter: 6.30 inches


• Total Depth: 6.34 inches


• Mounting Depth: 6.06 inches


• Weight: 12.5 lb each


• Combined Subwoofer Weight: 25 lb

Thiele and Small Parameters Per Subwoofer

• Free-Air Resonance: 42.9 Hz


• Resistance: 1.8 ohms


• Qms: 5.05


• Qes: 0.48


• Qts: 0.44


• Vas: 2.8 L


• Cms: 110 m/N


• BL Factor: 67.2 Tm


• Moving Mass: 120 g


• Xmax: 15 mm one way


• Cone Area: 133.9 square centimeters


• Efficiency: 0.05%


• Le at 1 kHz: 0.83 mH


• EBP: 84.9

Suggested Enclosures Per Subwoofer

• Sealed Volume: 0.39 cubic feet


• Sealed Qtc: 0.423


• Sealed F3: 83.7 Hz


• Compact Ported Volume: 0.42 cubic feet


• Compact Tuning Frequency: 42 Hz


• Compact Port Area: 3 square inches


• Compact Port Length: 10 inches


• Ported Volume: 0.71 cubic feet


• Ported Tuning Frequency: 40 Hz


• Port Area: 6.9 square inches


• Port Length: 14.3 inches


• Fourth-Order Bandpass Ratio: 3:1

Enclosure volumes are listed per subwoofer. Double the net volume and port requirements when placing both subwoofers in a shared enclosure.

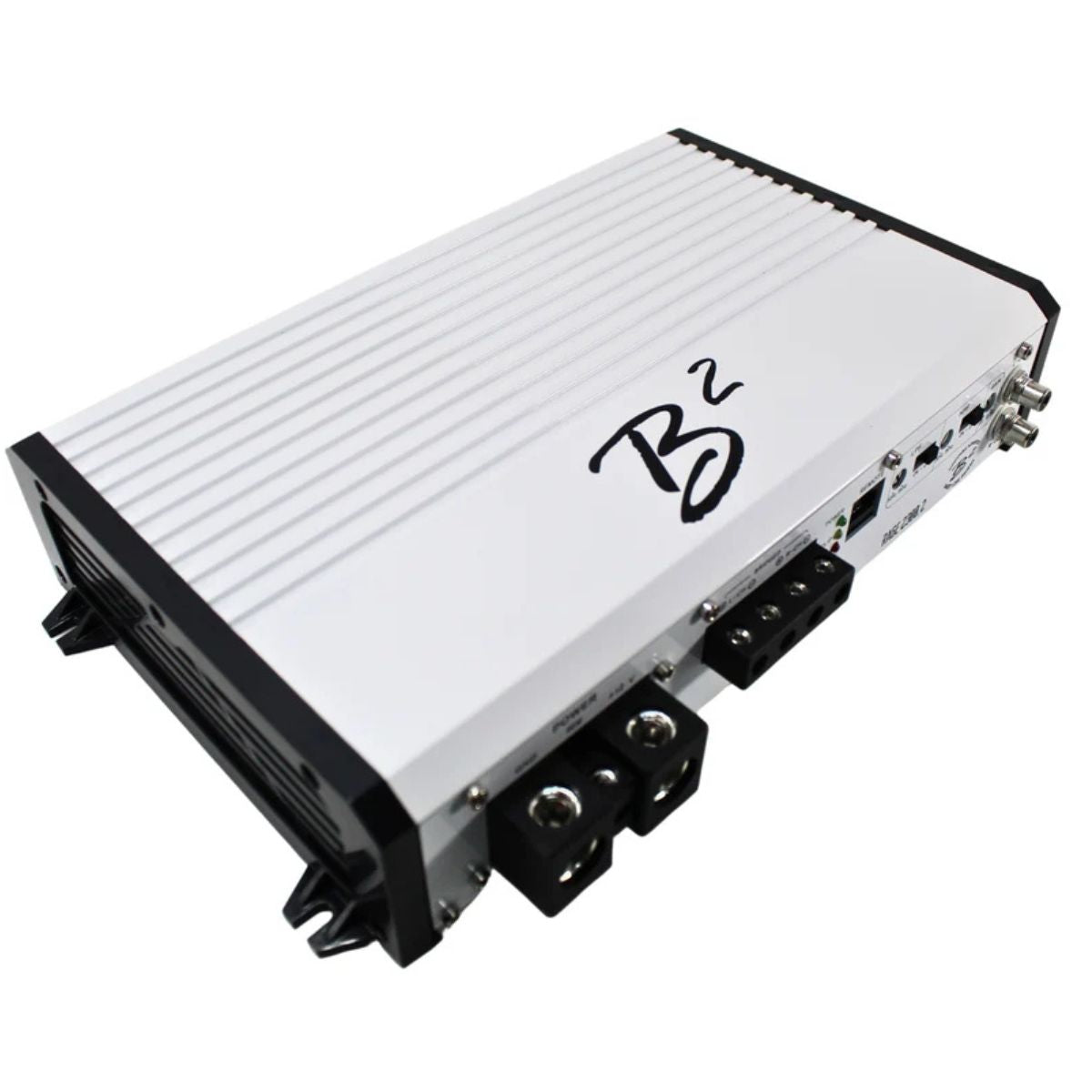

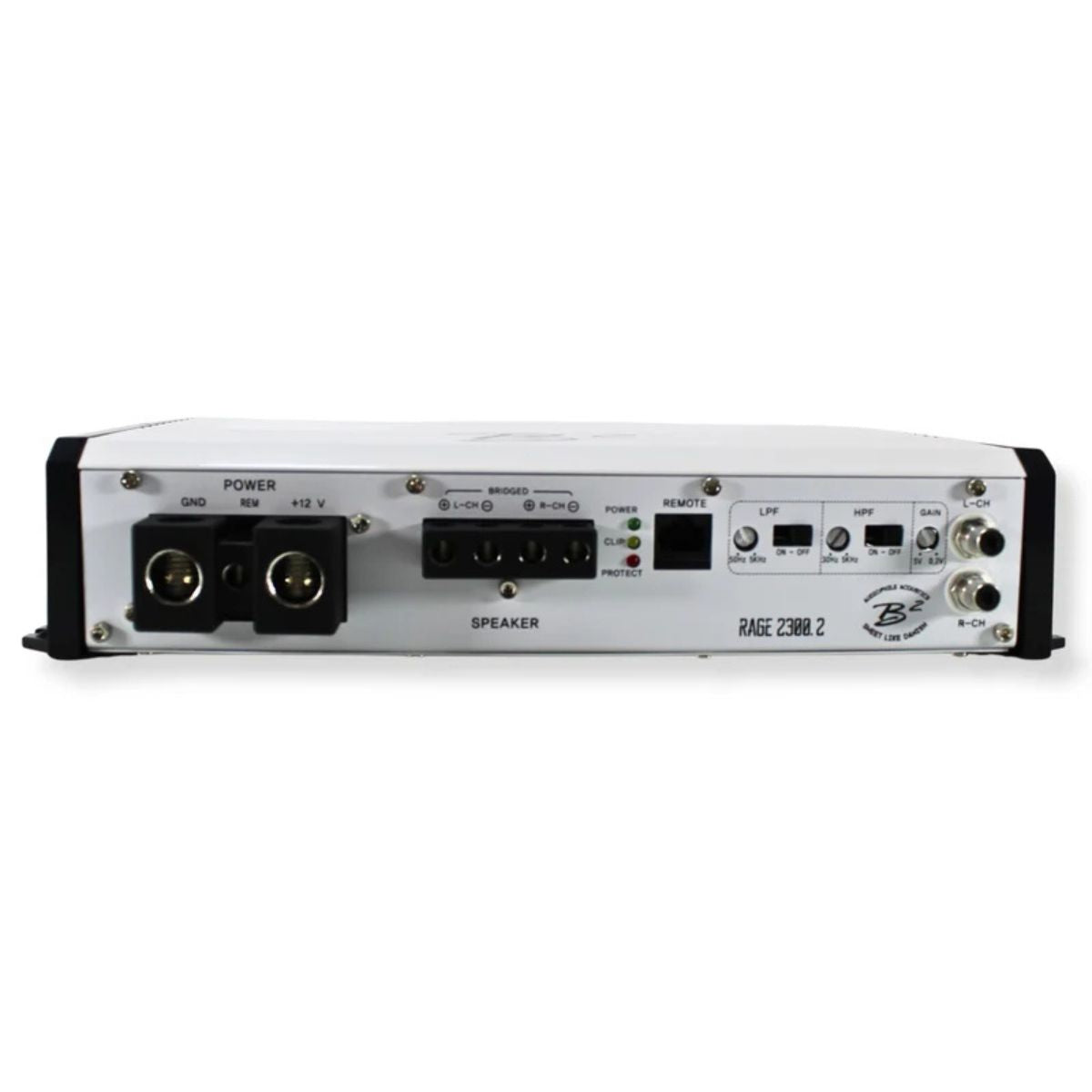

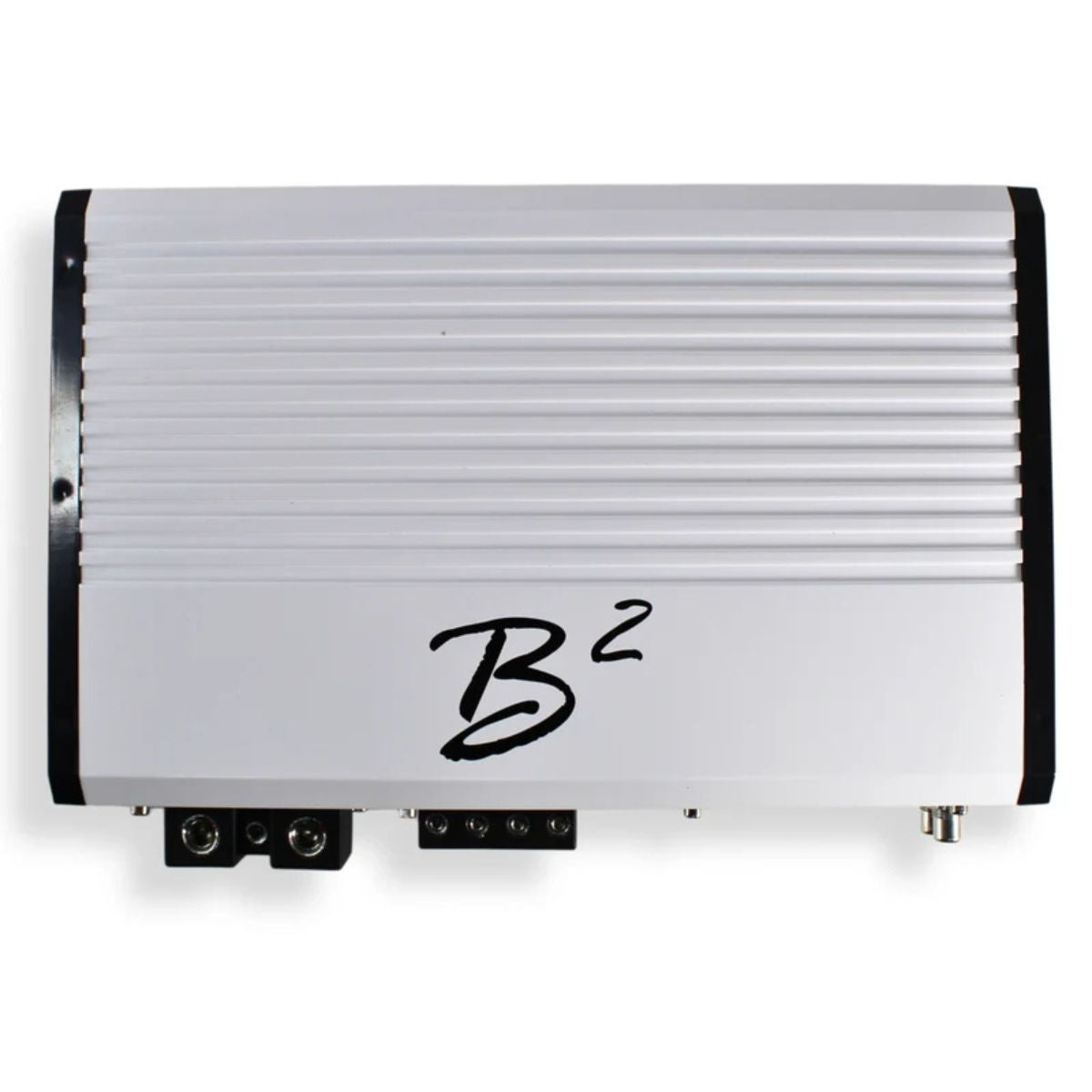

RAGE-2300.2 Amplifier

• Amplifier Type: 2-Channel Hi-EF Class-D


• RMS Power at 4 Ohms: 650 watts x 2


• RMS Power at 2 Ohms: 1150 watts x 2


• RMS Power Bridged at 4 Ohms: 2300 watts x 1


• Recommended Configuration: One 2-ohm subwoofer per channel


• Frequency Response: 10 Hz to 27 kHz


• Signal-to-Noise Ratio: Greater than 95 dB


• Input Sensitivity: 0.2V to 5V


• Crossover Slope: 24 dB per octave


• Low-Pass Crossover: 50 Hz to 5 kHz


• High-Pass Crossover: 30 Hz to 5 kHz


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Length: 12 inches


• Width: 7.87 inches


• Height: 2.75 inches

Two compact carbon-fiber subwoofers, 2000 watts RMS combined, and one amplifier properly matched at 2 ohms per channel.
