Dual RAGE V3 15" 2000W RMS D1 Subwoofers & RAGE 3500W RMS 1-Ohm Mono Amplifier

• COMPLETE B2 AUDIO BASS PACKAGE: Includes (2) B2 Audio RAGE V3 15-inch dual 1-ohm subwoofers, model B2-RAGE15-D1-V3, (1) B2 Audio RAGE 3500 Class-D monoblock amplifier, model B2-RAGE-3500, and (1) B2 voltage/temperature display bass knob with connection cable.
• 4,000W RMS DUAL-15 SUBWOOFER SYSTEM: Each RAGE V3 15 handles 2,000 watts RMS and 4,000 watts max, providing 4,000 watts RMS and 8,000 watts max combined subwoofer power handling.
• RAGE 3500 1-OHM MONOBLOCK POWER: The included Class-D amplifier delivers 3,000-3,500W RMS at 1 ohm with a sufficient electrical system. Its 0-gauge power terminal and 250A fuse rating support high-output car audio installations.
• CORRECT 1-OHM WIRING CONFIGURATION: Wire each subwoofer's dual 1-ohm voice coils in series, then wire both subwoofers in parallel for a 1-ohm final impedance. This is the recommended load for this package; do not wire this system below 1 ohm.
• BUILT FOR HIGH-OUTPUT BASS: RAGE V3 subwoofers feature carbon fiber cones with integrated dust caps, tall surrounds, 600 oz ferrite motors, 3-inch high-temperature voice coils, and 4-gauge push terminals. Properly sized OFC wiring, fusing, electrical upgrades, enclosure design, and gain setting are required; installation accessories are not included.

B2 Audio Dual RAGE V3 15" 2000W RMS D1 Subwoofers & RAGE 3500W 1-Ohm Mono Amplifier Package

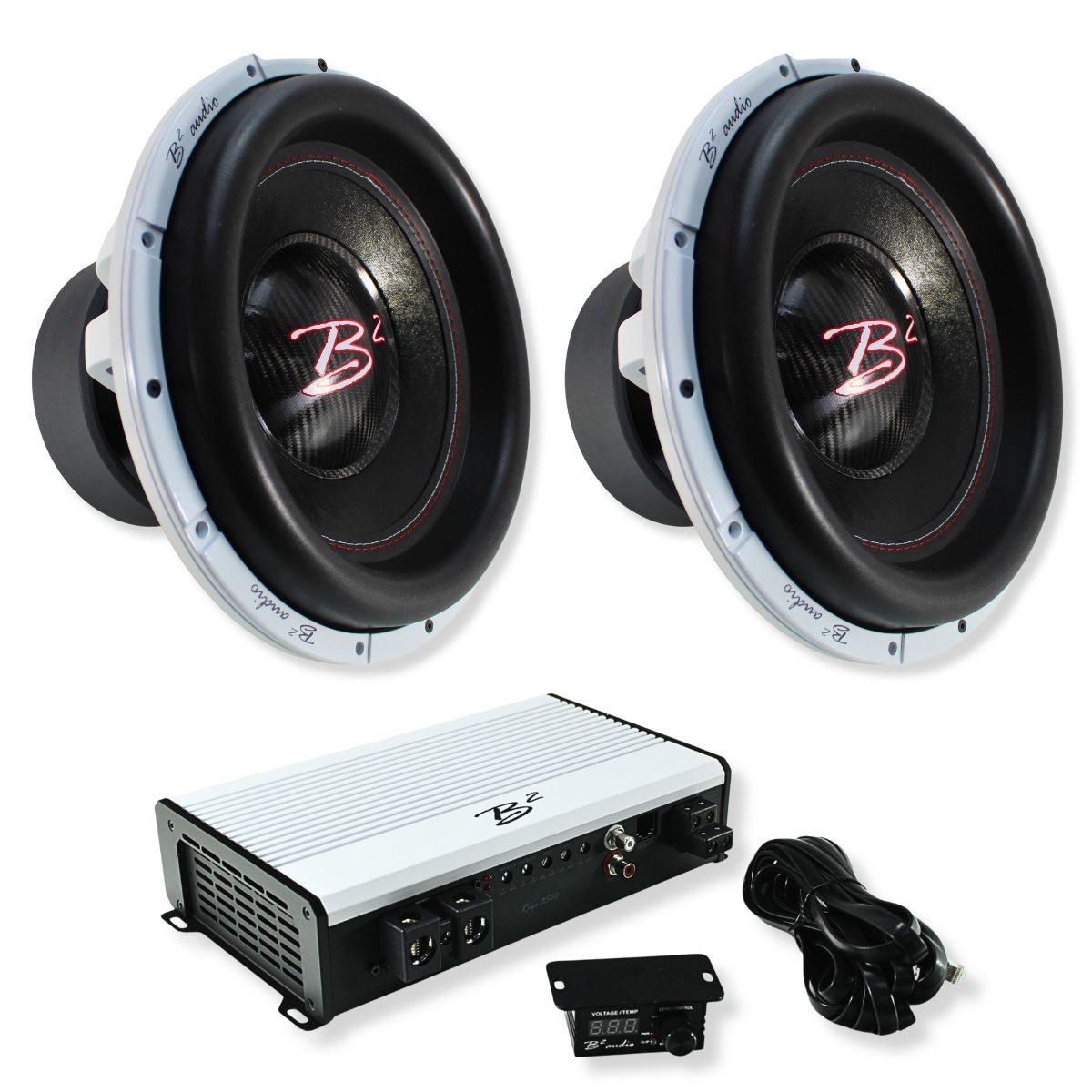

This Listing Includes:

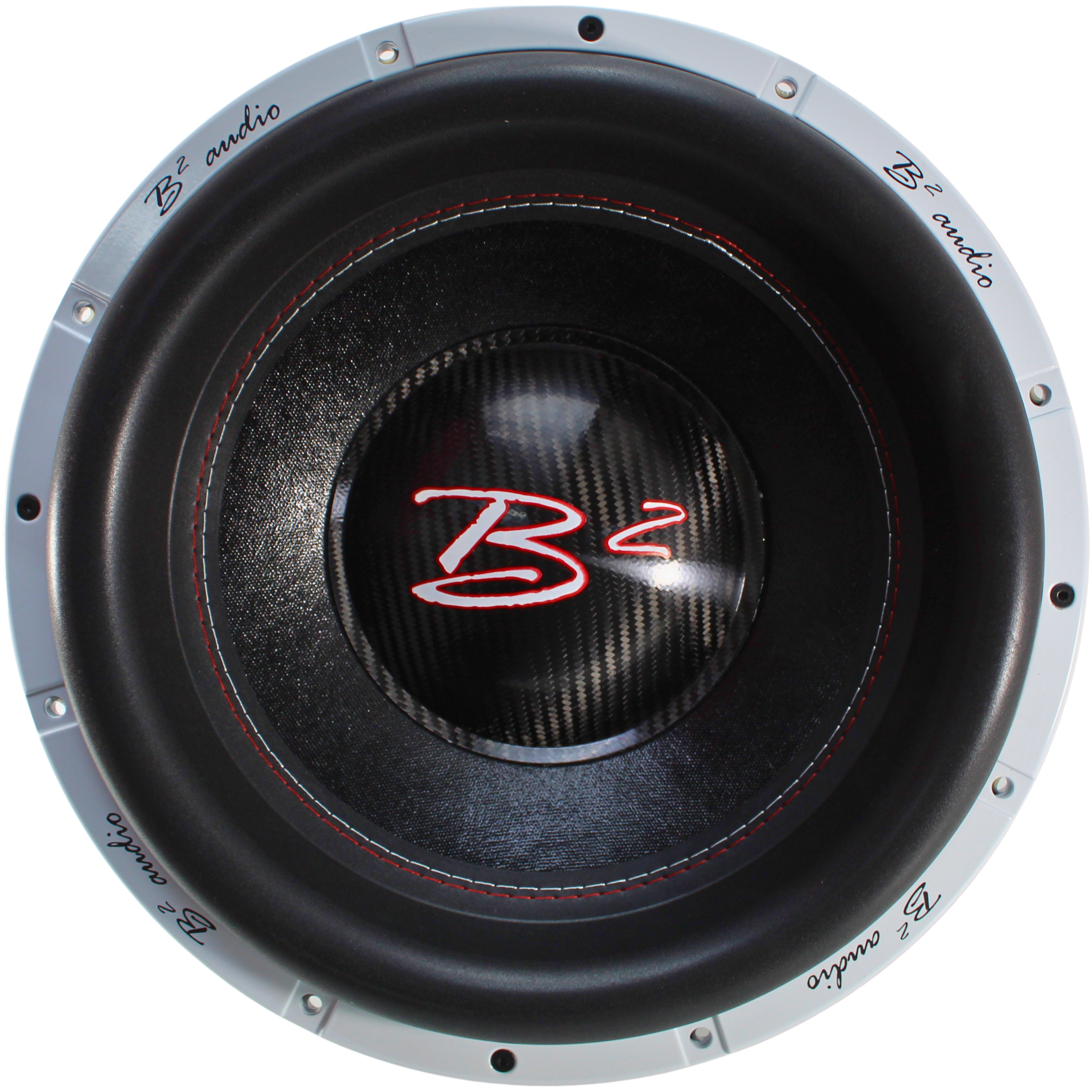

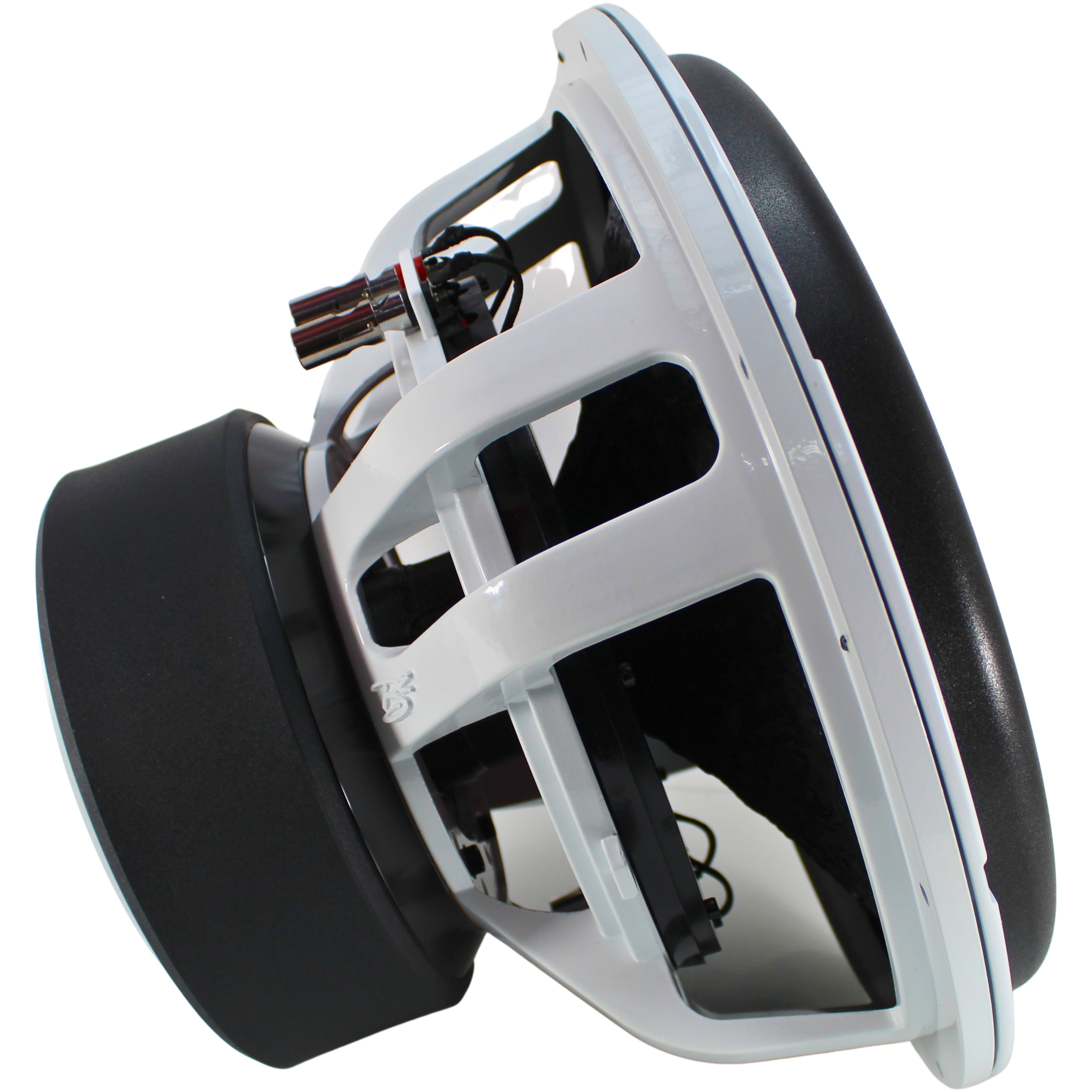

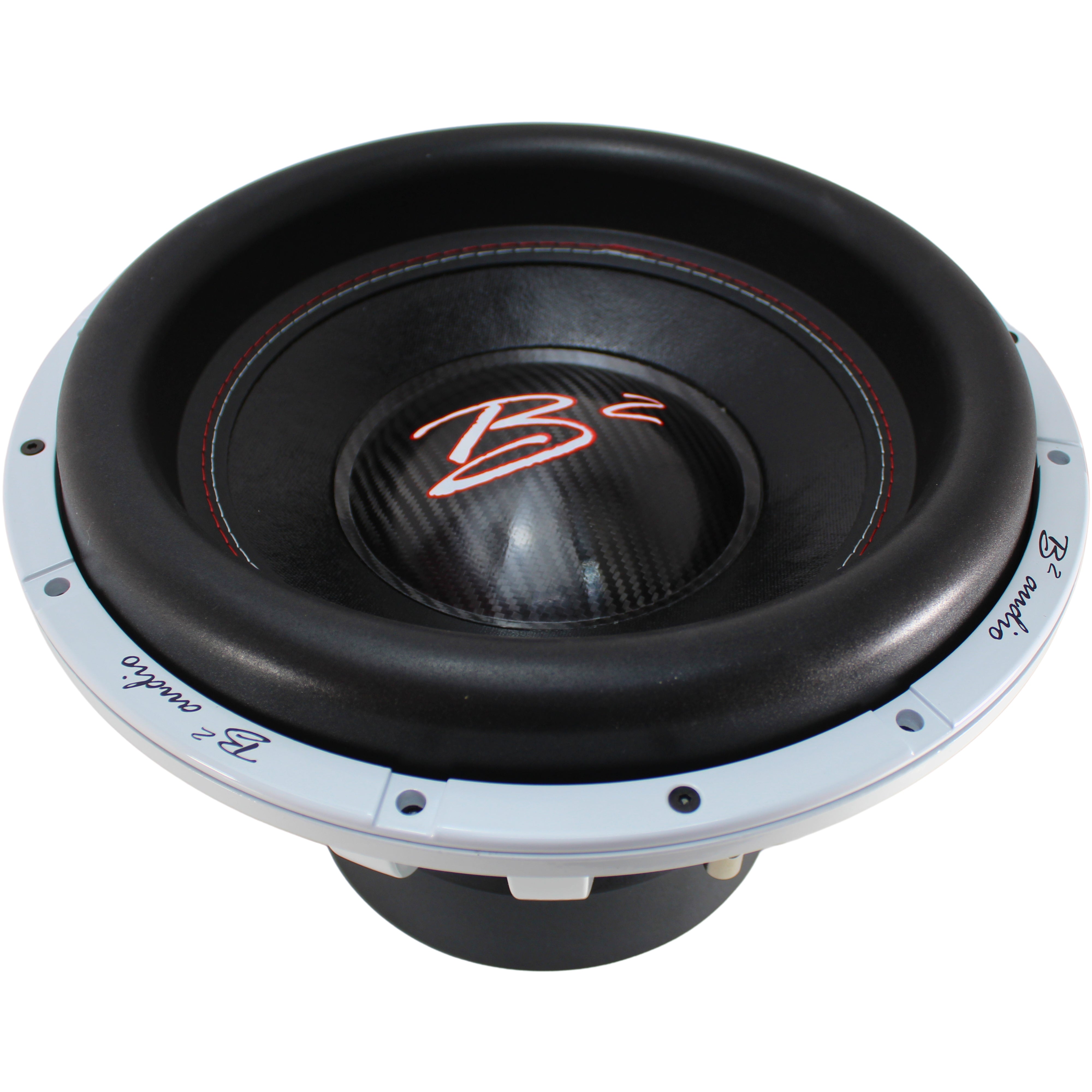

• (2) B2 Audio 15" Subwoofer B2-RAGE15-D1-V3

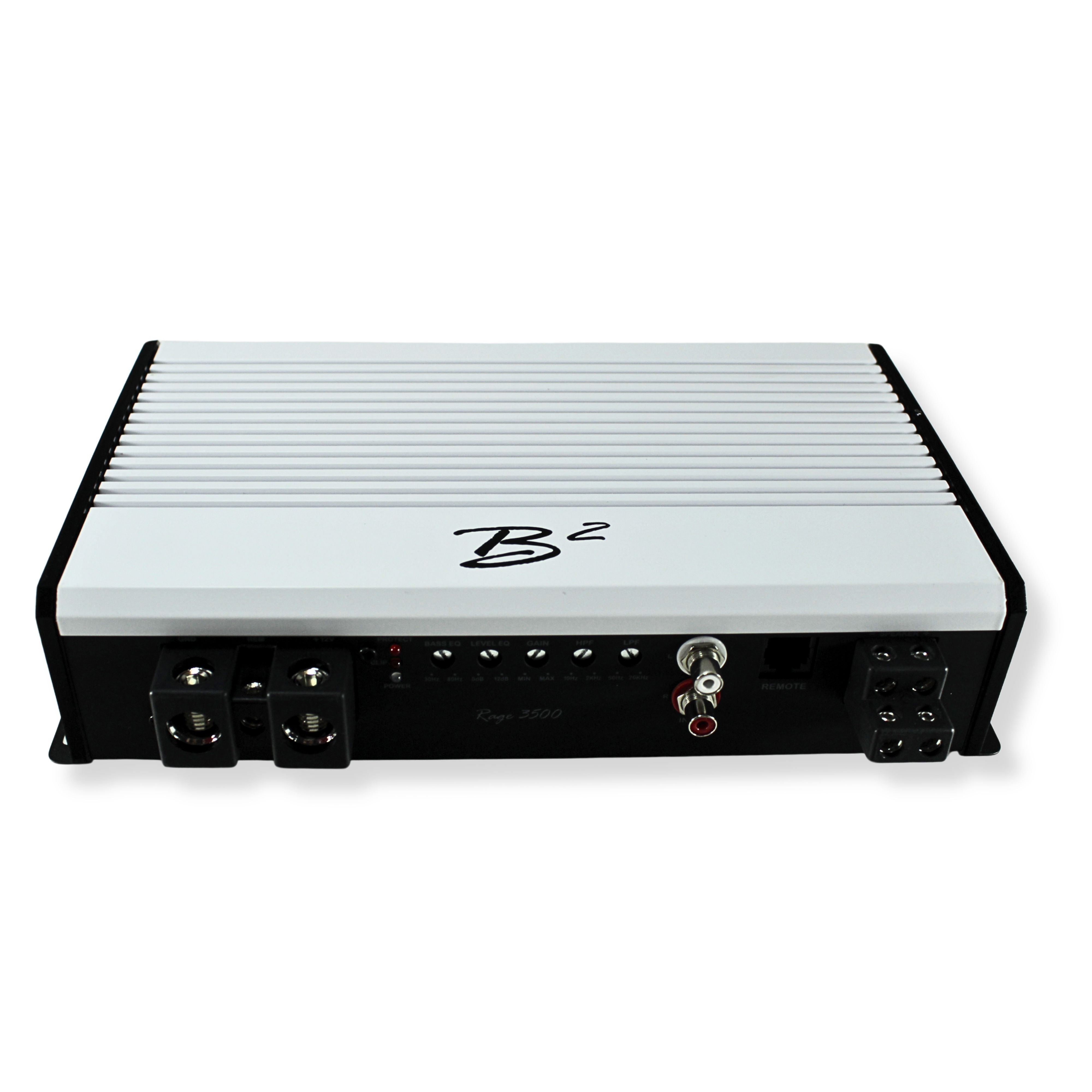

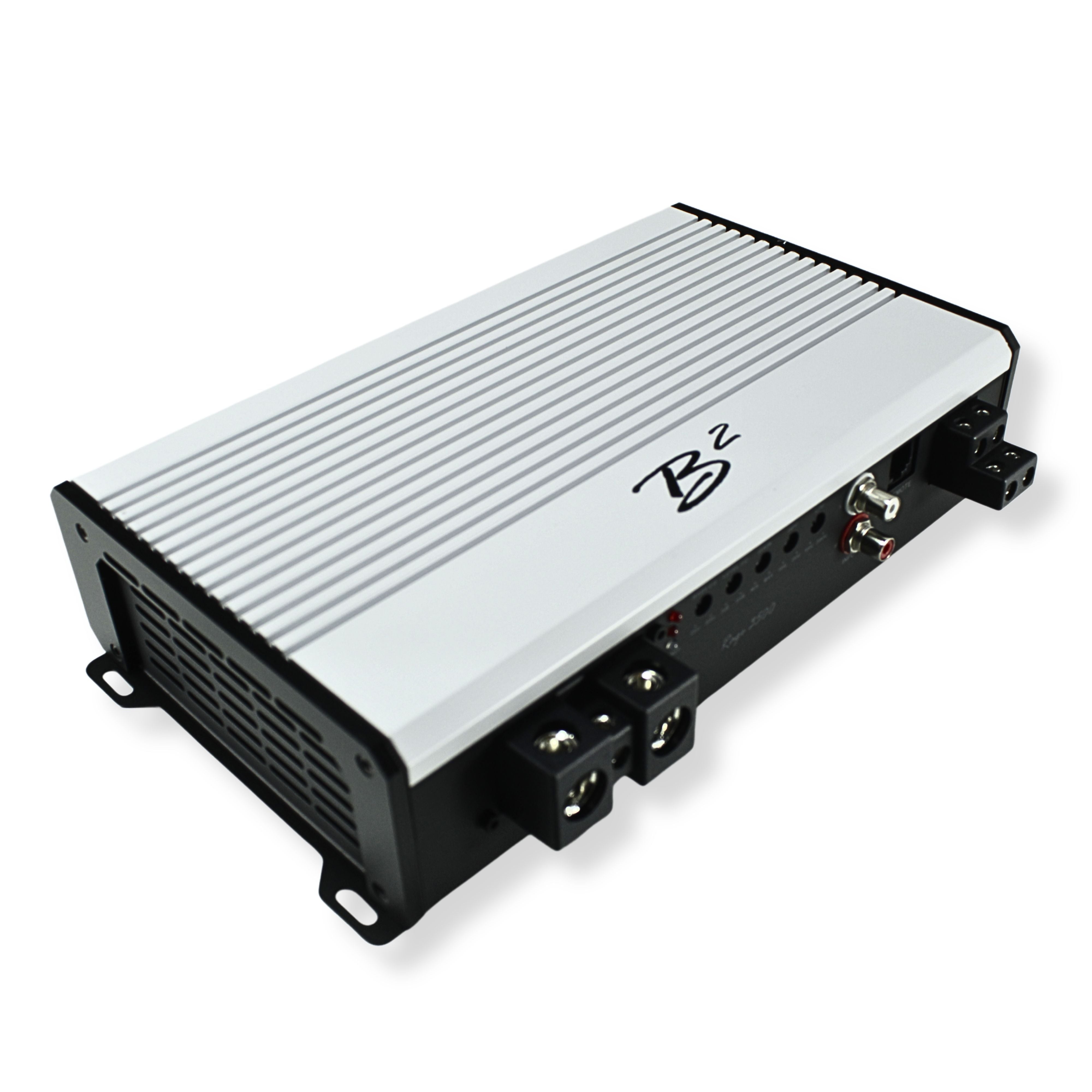

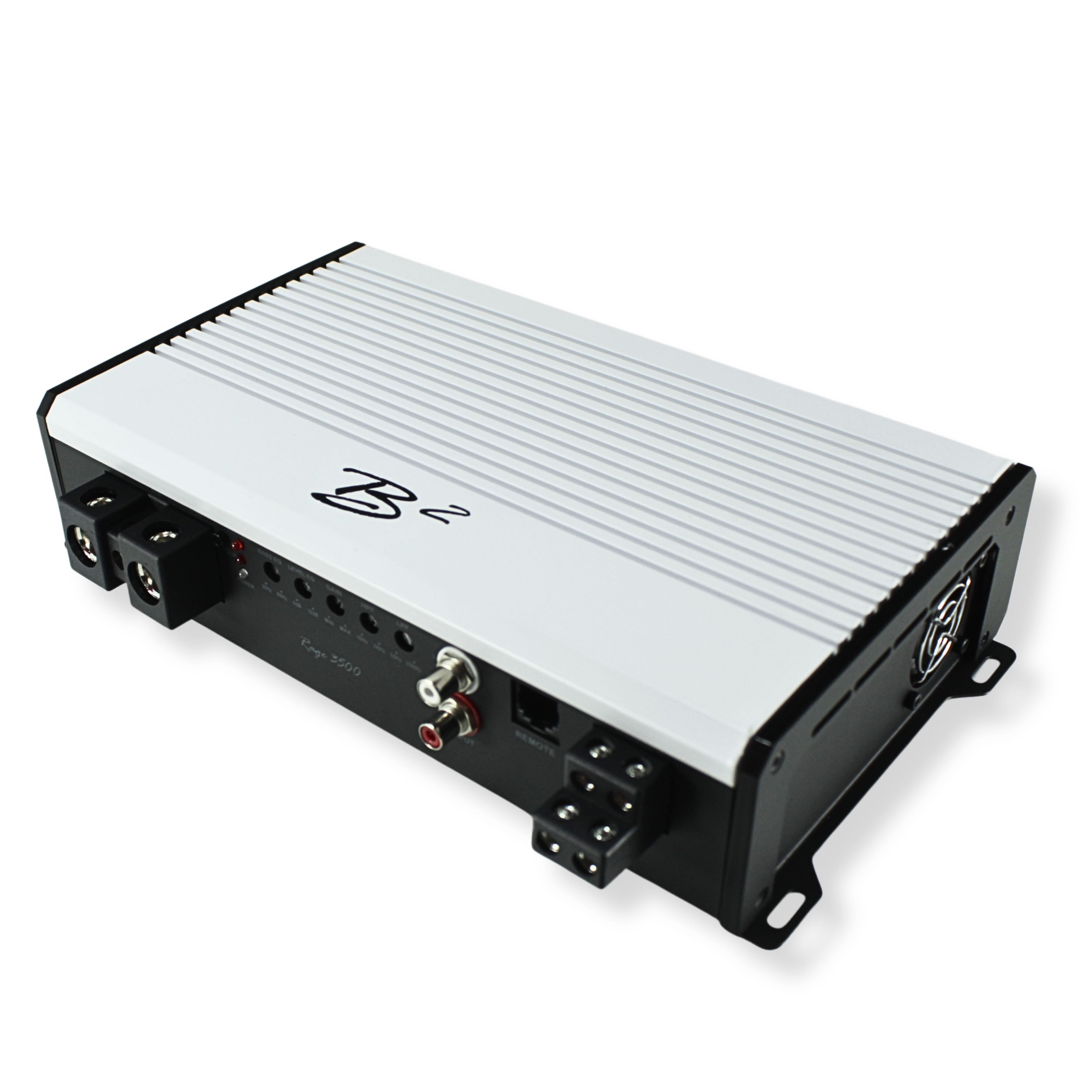

• (1) B2 Audio Mono Amplifier B2-RAGE-3500


• (1) B2 voltage/temperature display bass knob w/ connection cable

Build a powerful B2 Audio bass system with two RAGE V3 15-inch subwoofers and the RAGE 3500 monoblock amplifier. Each B2-RAGE15-D1-V3 handles 2,000 watts RMS, giving this package a combined 4,000-watt RMS subwoofer rating.

The dual 1-ohm RAGE V3 subwoofers are designed to be wired to a 1-ohm final load with the included RAGE 3500. At 1 ohm, the amplifier delivers 3,000 to 3,500 watts RMS with a sufficient electrical system, providing strong, controlled power for this high-output dual-15 build when properly installed and tuned.

RAGE V3 subwoofers feature carbon fiber cones with integrated dust caps, tall surrounds for increased excursion, 600 oz ferrite motors, and 3-inch high-temperature voice coils. The RAGE 3500 adds efficient Class-D performance, variable crossover controls, a 0-gauge power terminal, a voltage/temperature display bass knob, and protection circuitry for serious daily-driver, demo, and SPL-capable systems.

Features

• Complete B2 Audio RAGE amplifier and dual 15-inch subwoofer package


• Two RAGE V3 15-inch dual 1-ohm subwoofers


• 4,000 watts RMS combined subwoofer power handling


• 8,000 watts max combined subwoofer power handling


• Recommended 1-ohm final load for the included RAGE 3500 amplifier


• RAGE 3500 delivers 3,000-3,500W RMS at 1 ohm with a sufficient electrical system


• Carbon fiber cones, tall surrounds, 600 oz motors, and 3-inch high-temperature voice coils


• Includes voltage/temperature display bass knob with connection cable


• Built for high-output daily drivers, demos, and SPL-capable bass systems

Recommended Wiring Configuration

Wire the voice coils of each B2-RAGE15-D1-V3 in series to create a 2-ohm load per subwoofer. Then wire the two subwoofers in parallel for a 1-ohm final load at the amplifier.

Do not wire this package below 1 ohm. The RAGE 3500 is designed for a 1-ohm minimum load.

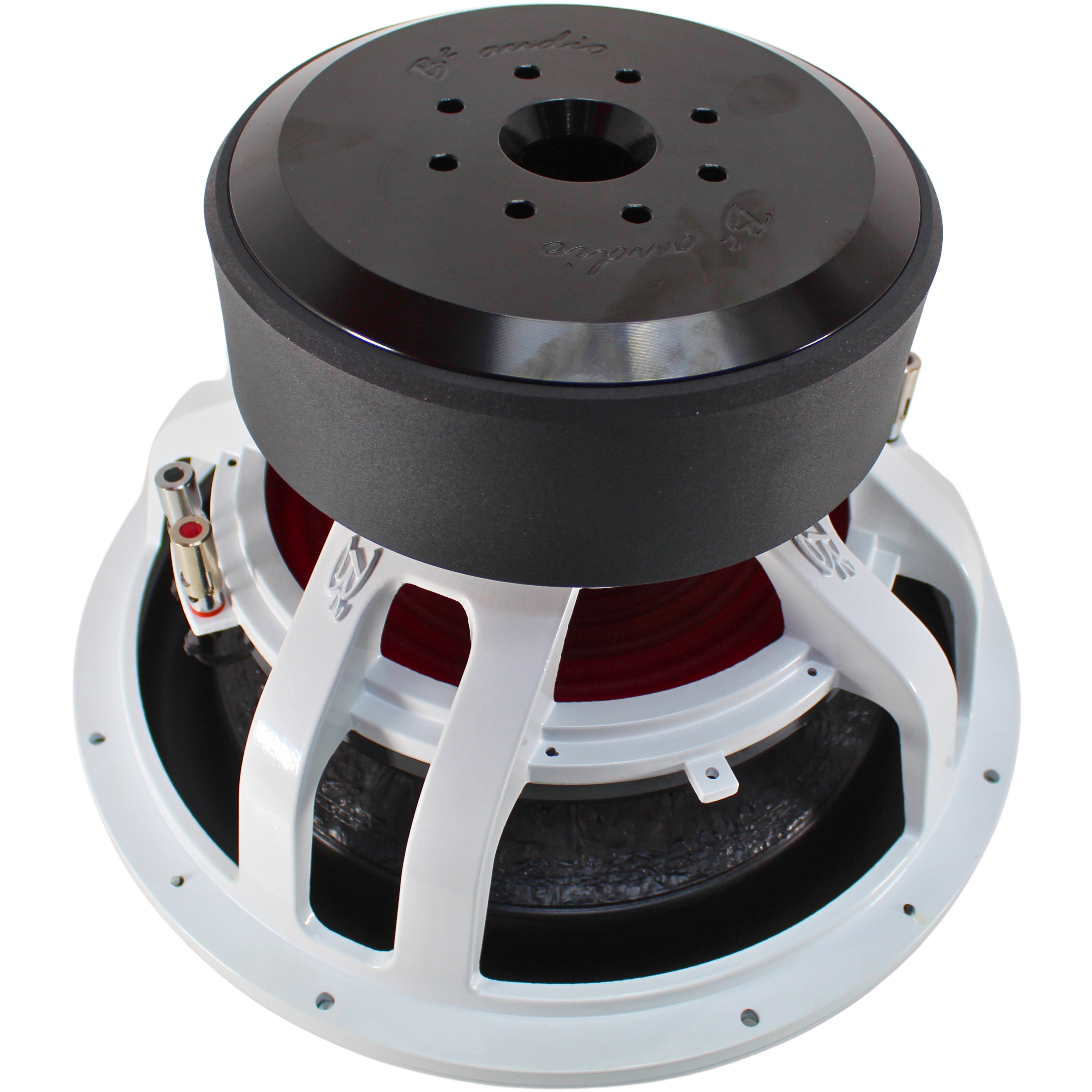

Subwoofer Specifications (Each):

• RMS Power Handling: 2,000W


• Max Power Handling: 4,000W


• Push Terminal Wire Gauge: 4 gauge


• Nominal Impedance: Dual 1 ohm


• Voice Coil Diameter: 3"


• Cone Material: Carbon fiber with integrated dust cap


• Frequency Response: 10Hz-500Hz


• Sensitivity: 82.4 dB


• Magnet Weight: 600 oz


• Displacement Volume: 10.7 L / 0.37 cu. ft.


• Free-Air Resonance (Fs): 26.8Hz


• Resistance (Re): 1 ohm


• Mechanical Factor (Qms): 5.11


• Electrical Factor (Qes): 0.41


• Total Factor (Qts): 0.38


• Equivalent Volume (Vas): 67.1 L


• Compliance (Cms): 70 m/N


• BL/Re: 200


• Moving Mass (Mms): 476.3 g


• Xmax: 20 mm


• Overall Diameter: 15.35"


• Mounting Diameter: 13.77"


• Bolt Pattern Diameter: 14.76"


• Mounting Depth: 8.89"


• Overall Depth: 10.24"

Amplifier Specifications:

• Circuit Configuration: Class-D full-range monoblock


• RMS Power at 4 Ohms: 1,050-1,200W


• RMS Power at 2 Ohms: 1,850-2,150W


• RMS Power at 1 Ohm: 3,000-3,500W


• Frequency Response: 10Hz-20kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 6V-0.2V


• Power Terminal: 0 gauge


• Fuse Rating: 250A


• Bass Level: 30Hz-80Hz


• Low-Pass Crossover: 50Hz-20kHz


• High-Pass Crossover: 10Hz-2kHz


• Subsonic Crossover: 10Hz-2kHz


• Dimensions: 11.5" L x 7.25" W x 2.5" H


• Weight: 7.25 lb

Important Installation Note

This high-current system requires a properly designed electrical upgrade, quality OFC wiring, correct fusing, a suitable enclosure, and careful gain setting. Enclosure, wiring, batteries, alternator upgrades, and installation hardware are not included.
