Dual RAGE V3 15" 2000W RMS D2 Subwoofers & RAGE 7800W RMS Mono Amplifier Package

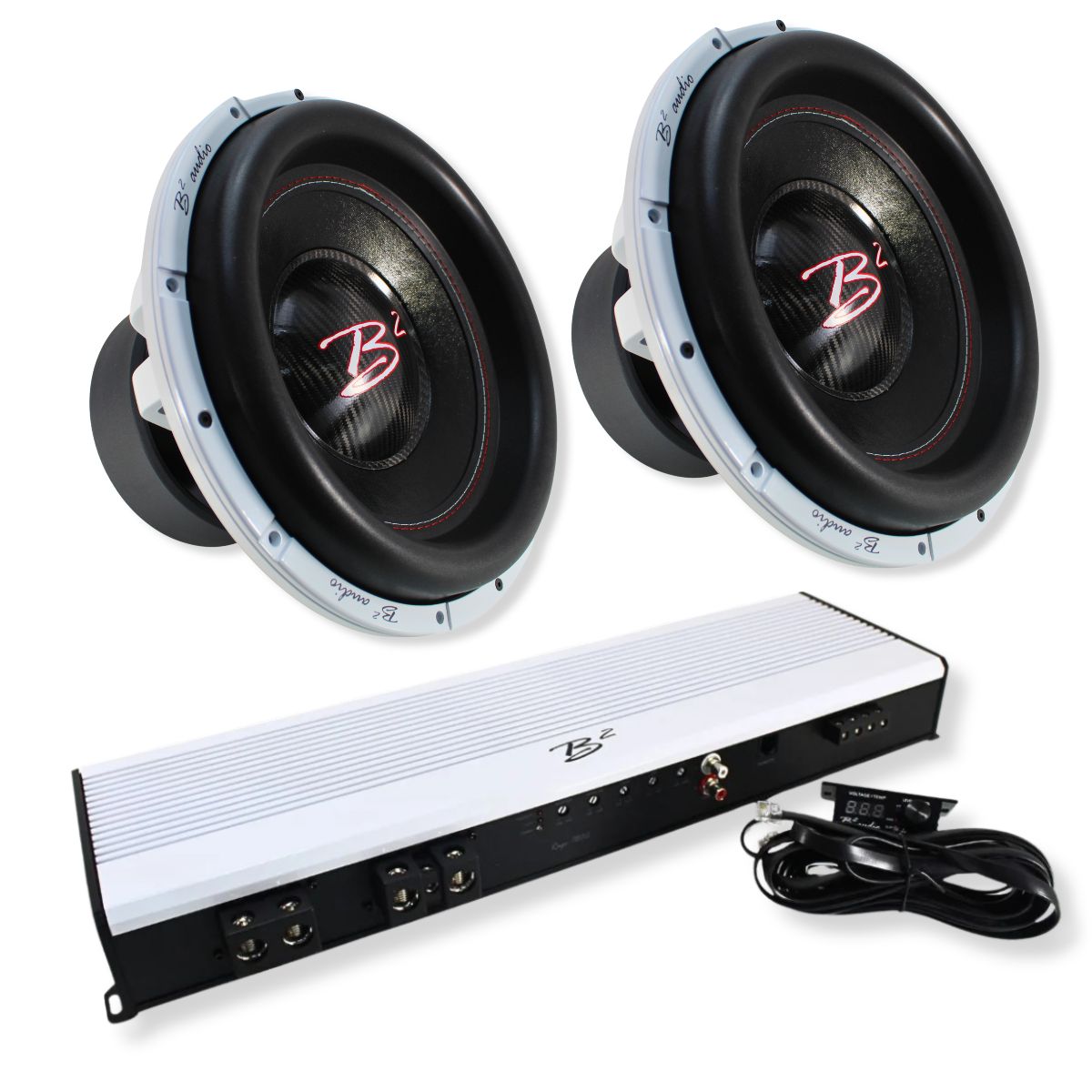

• COMPLETE B2 AUDIO BASS PACKAGE: Includes (2) B2 Audio RAGE V3 15-inch dual 2-ohm subwoofers, model B2-RAGE15-D2-V3, (1) B2 Audio RAGE 7800 Class-D monoblock amplifier, model B2-RAGE-7800, and (1) B2 voltage/temperature display bass knob with connection cable.
• 4,000W RMS DUAL-15 SUBWOOFER SYSTEM: Each RAGE V3 15 handles 2,000 watts RMS and 4,000 watts max, providing 4,000 watts RMS and 8,000 watts max combined subwoofer power handling.
• RAGE 7800 2-OHM MONOBLOCK POWER: The included Class-D amplifier delivers 4,200–4,500W RMS at 2 ohms with a sufficient electrical system. Dual 0-gauge power terminals and a 600A fuse rating support the current demands of high-output car audio systems.
• CORRECT 2-OHM WIRING CONFIGURATION: Wire each subwoofer’s dual 2-ohm voice coils in series, then wire both subwoofers in parallel for a 2-ohm final impedance. This is the recommended load for this package; do not wire the subwoofers to 0.5 ohm.
• BUILT FOR HIGH-OUTPUT BASS: RAGE V3 subwoofers feature carbon-fiber cones with integrated dust caps, tall surrounds, massive 600 oz ferrite motors, and 3-inch high-temperature voice coils. Properly sized OFC wiring, fusing, electrical upgrades, enclosure design, and gain setting are required; installation accessories are not included.

B2 Audio Dual RAGE V3 15" 2000W RMS D2 Subwoofers & RAGE 7800W Mono Amplifier Package

This Listing Includes:

• (2) B2 Audio 15" Subwoofer B2-RAGE15-D2-V3


• (1) B2 Audio Mono Amplifier B2-RAGE-7800


• (1) B2 voltage/temperature display bass knob w/ connection cable

Build a powerful B2 Audio bass system with two RAGE V3 15-inch subwoofers and the hard-hitting RAGE 7800 monoblock amplifier. Each B2-RAGE15-D2-V3 handles 2,000 watts RMS, giving this package a combined 4,000-watt RMS subwoofer rating.

The dual 2-ohm RAGE V3 subwoofers are designed to be wired to a 2-ohm final load with the included RAGE 7800. At 2 ohms, the amplifier delivers 4,200 to 4,500 watts RMS with a sufficient electrical system—an excellent power match for this high-output dual-15 build when properly installed and tuned.

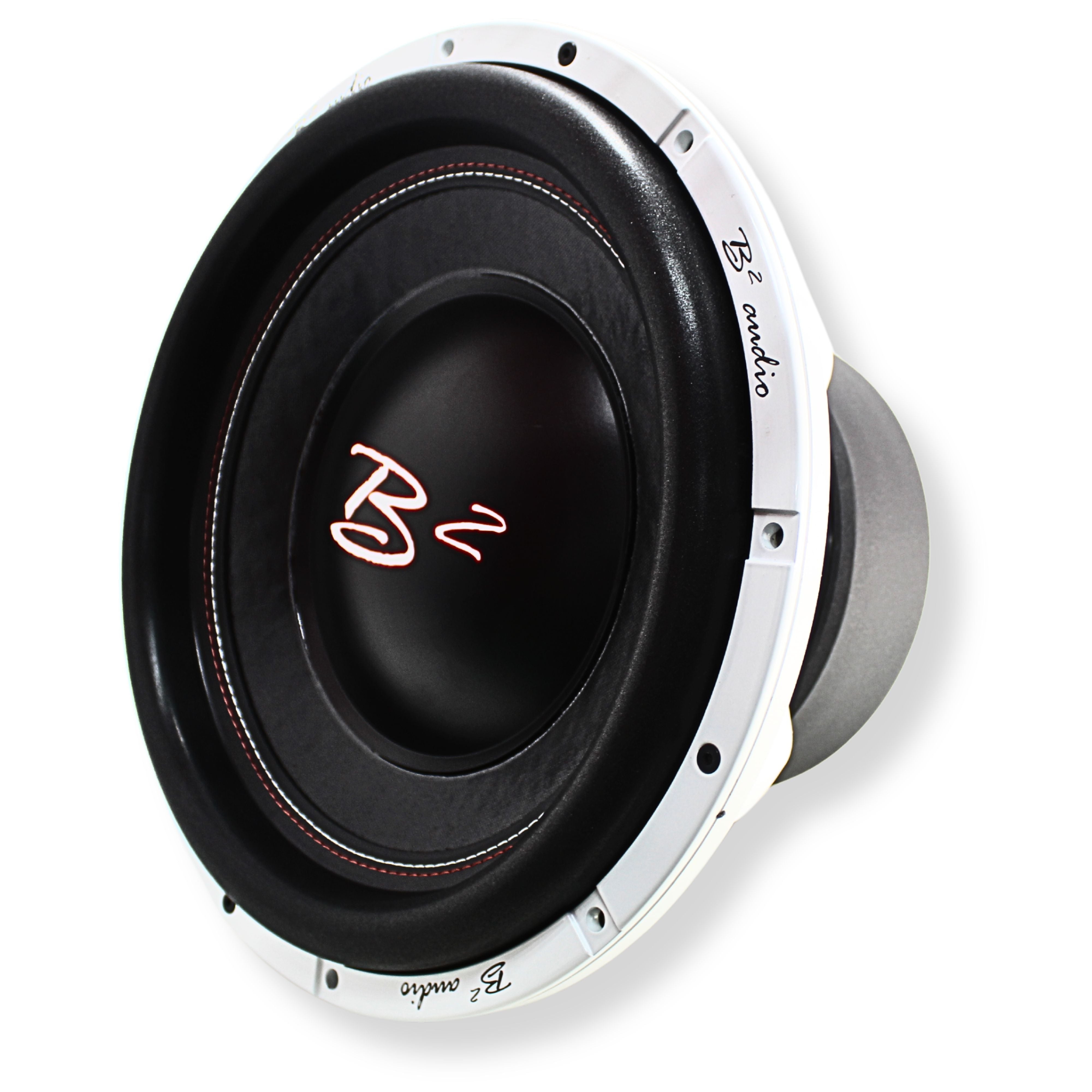

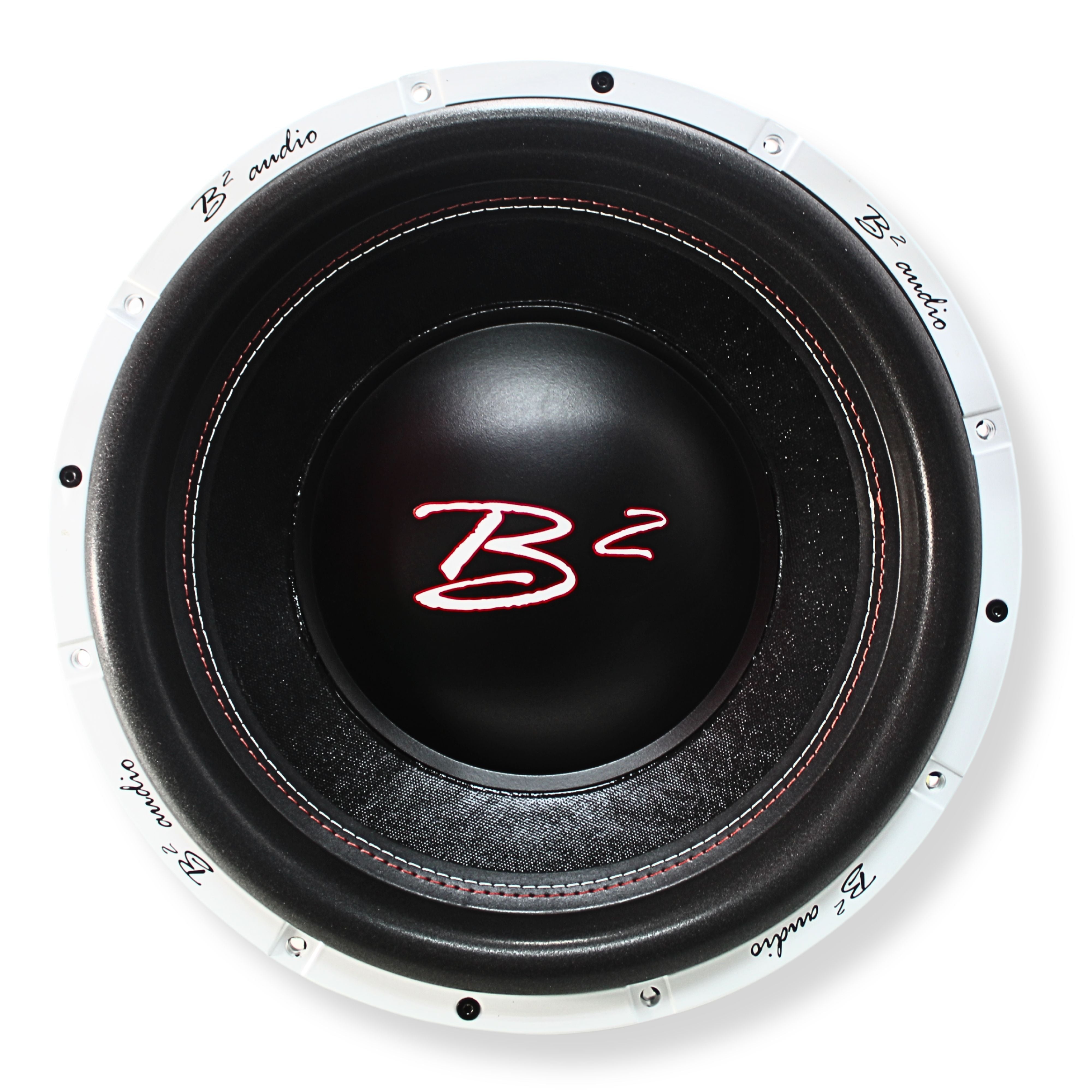

RAGE V3 subwoofers feature carbon-fiber cones with integrated dust caps, taller surrounds for enhanced excursion, massive 600 oz ferrite motors, and 3-inch high-temperature voice coils. The RAGE 7800 adds powerful Class-D performance, variable crossover controls, dual 0-gauge power terminals, a voltage/temperature display bass knob, and protection circuitry for serious daily-driver, demo, and SPL-focused systems.

Features

• Complete B2 Audio RAGE amplifier and dual 15-inch subwoofer package


• Two RAGE V3 15-inch dual 2-ohm subwoofers


• 4,000 watts RMS combined subwoofer power handling


• 8,000 watts max combined subwoofer power handling


• Recommended 2-ohm final load for the included RAGE 7800 amplifier


• RAGE 7800 delivers 4,200-4,500W RMS at 2 ohms with a sufficient electrical system


• Carbon-fiber cones, tall surrounds, 600 oz motors, and 3-inch high-temperature voice coils


• Includes voltage/temperature display bass knob with connection cable


• Built for high-output daily drivers, demos, and SPL-focused bass systems

Recommended Wiring Configuration

Wire the voice coils of each B2-RAGE15-D2-V3 in series to create a 4-ohm load per subwoofer. Then wire the two subwoofers in parallel for a 2-ohm final load at the amplifier.

Do not wire this package to 0.5 ohm. The RAGE 7800 is designed for a 1-ohm minimum load.

Subwoofer Specifications (Each):

• RMS Power Handling: 2,000W


• Max Power Handling: 4,000W

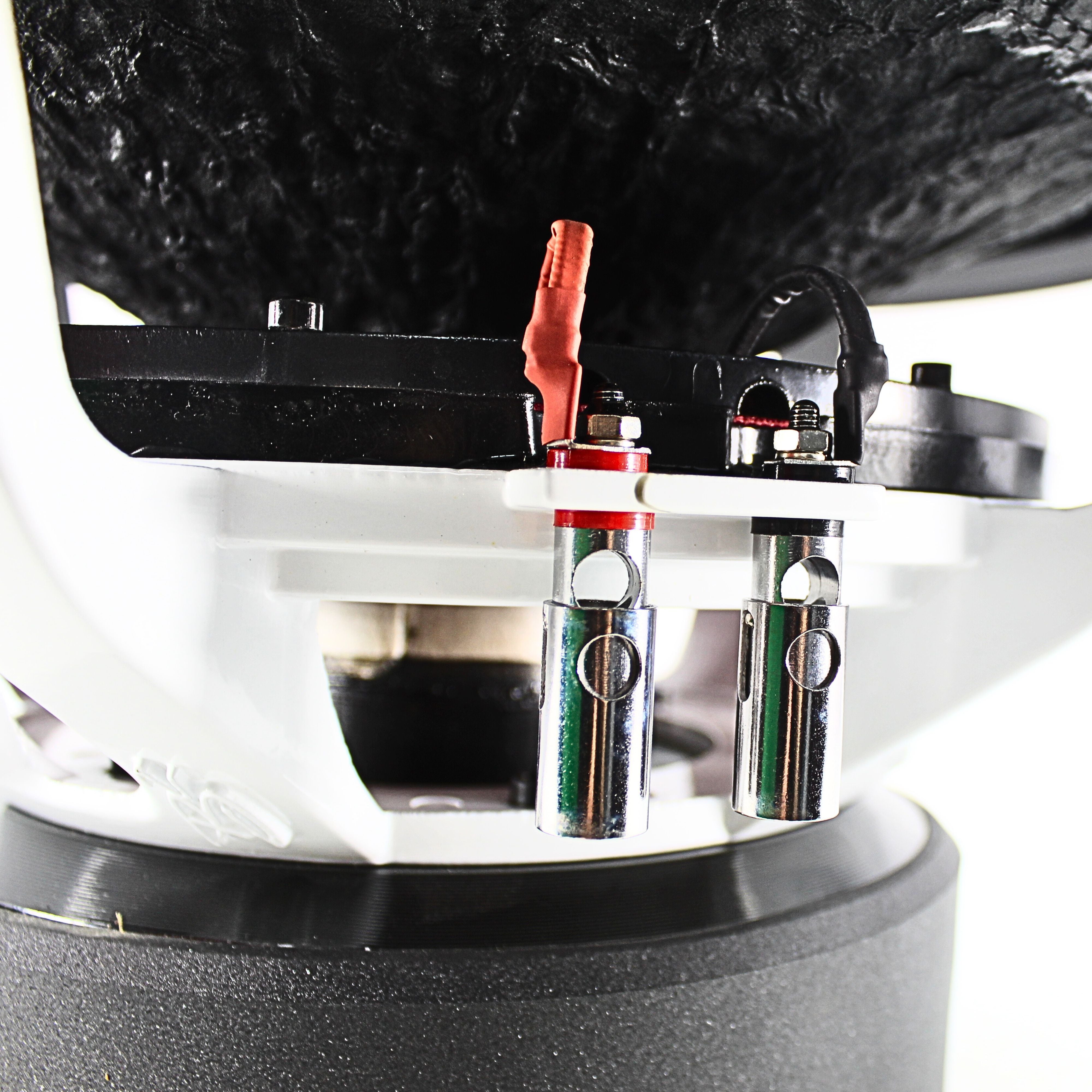

• Push Terminal Wire Gauge: 4 gauge


• Nominal Impedance: Dual 2 ohm


• Voice Coil Diameter: 3"


• Cone Material: Carbon fiber with integrated dust cap


• Frequency Response: 10Hz-500Hz


• Sensitivity: 90.6 dB


• Xmax: 20 mm

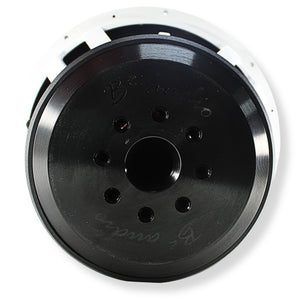

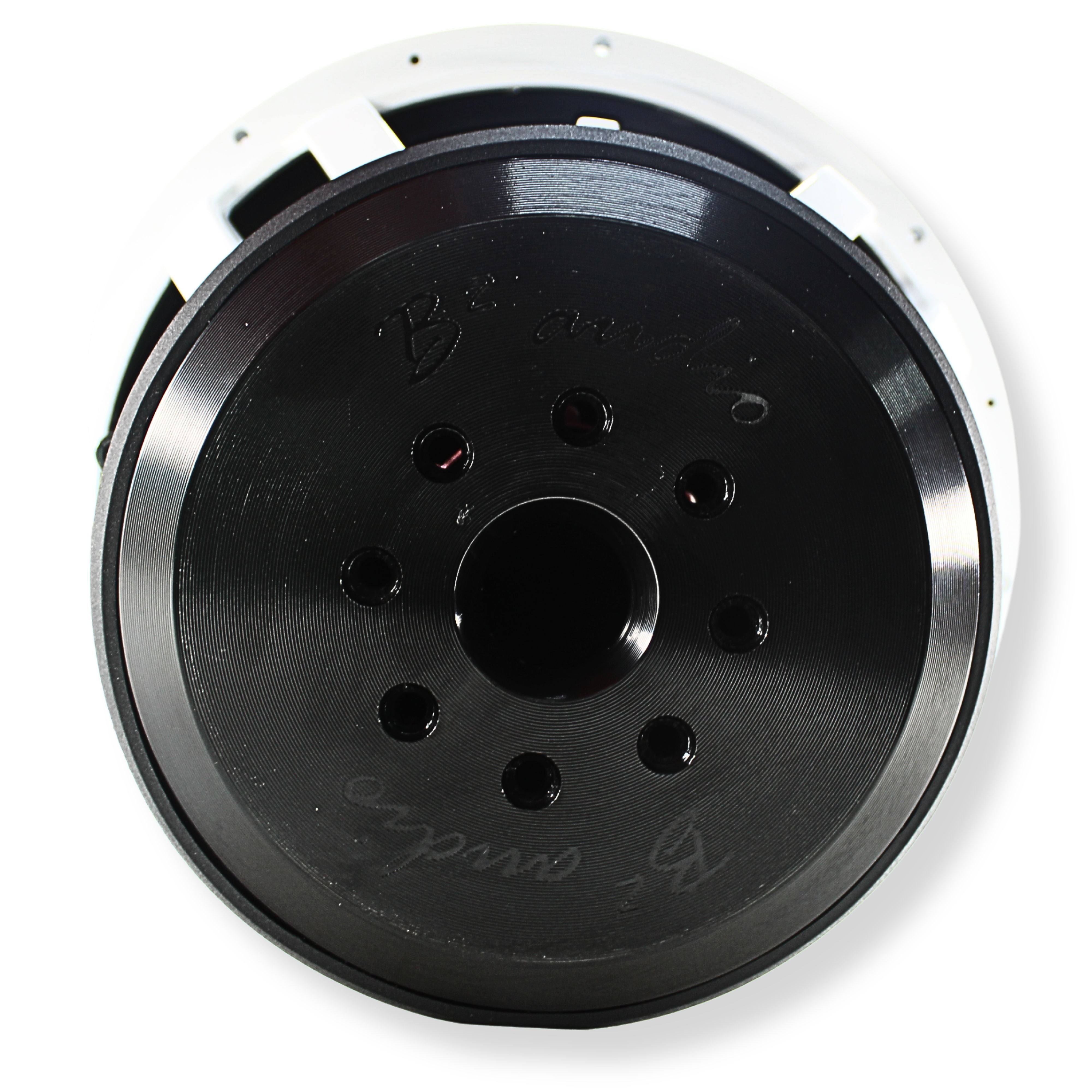

• Magnet Weight: 600 oz


• Displacement: 10.7 L / 0.37 cu. ft.


• Free-Air Resonance (Fs): 25.5Hz


• Resistance (Re): 1.9 ohm


• Mechanical Factor (Qms): 5.38


• Electrical Factor (Qes): 0.35


• Total Factor (Qts): 0.33


• Equivalent Volume (Vas): 67 L


• Compliance (Cms): 70 m/N


• BL Factor: 262.3


• Moving Mass (Mms): 524.2 g


• Overall Diameter: 15.35"


• Mounting Diameter: 13.77"


• Bolt Pattern Diameter: 14.76"


• Mounting Depth: 8.89"


• Overall Depth: 10.24"

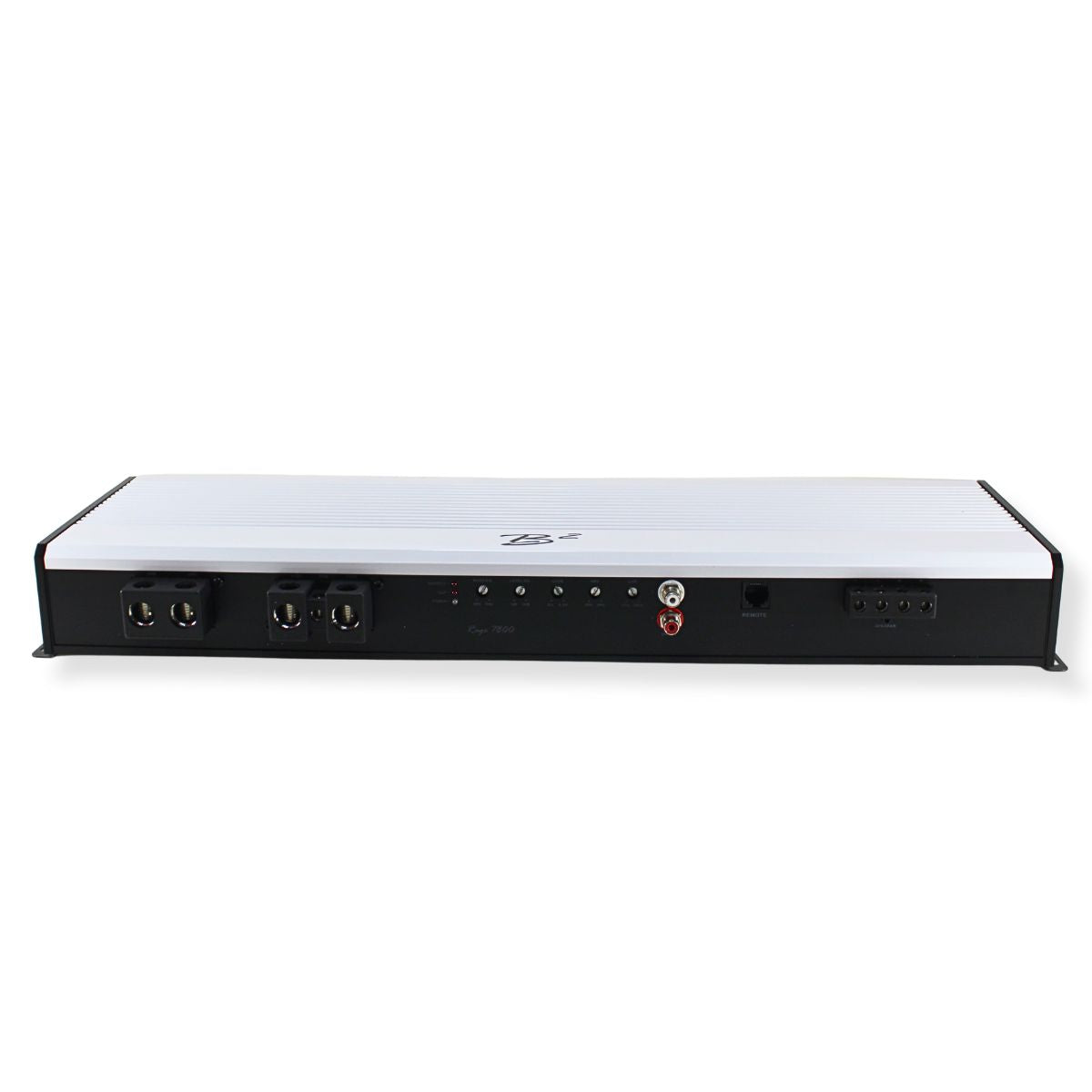

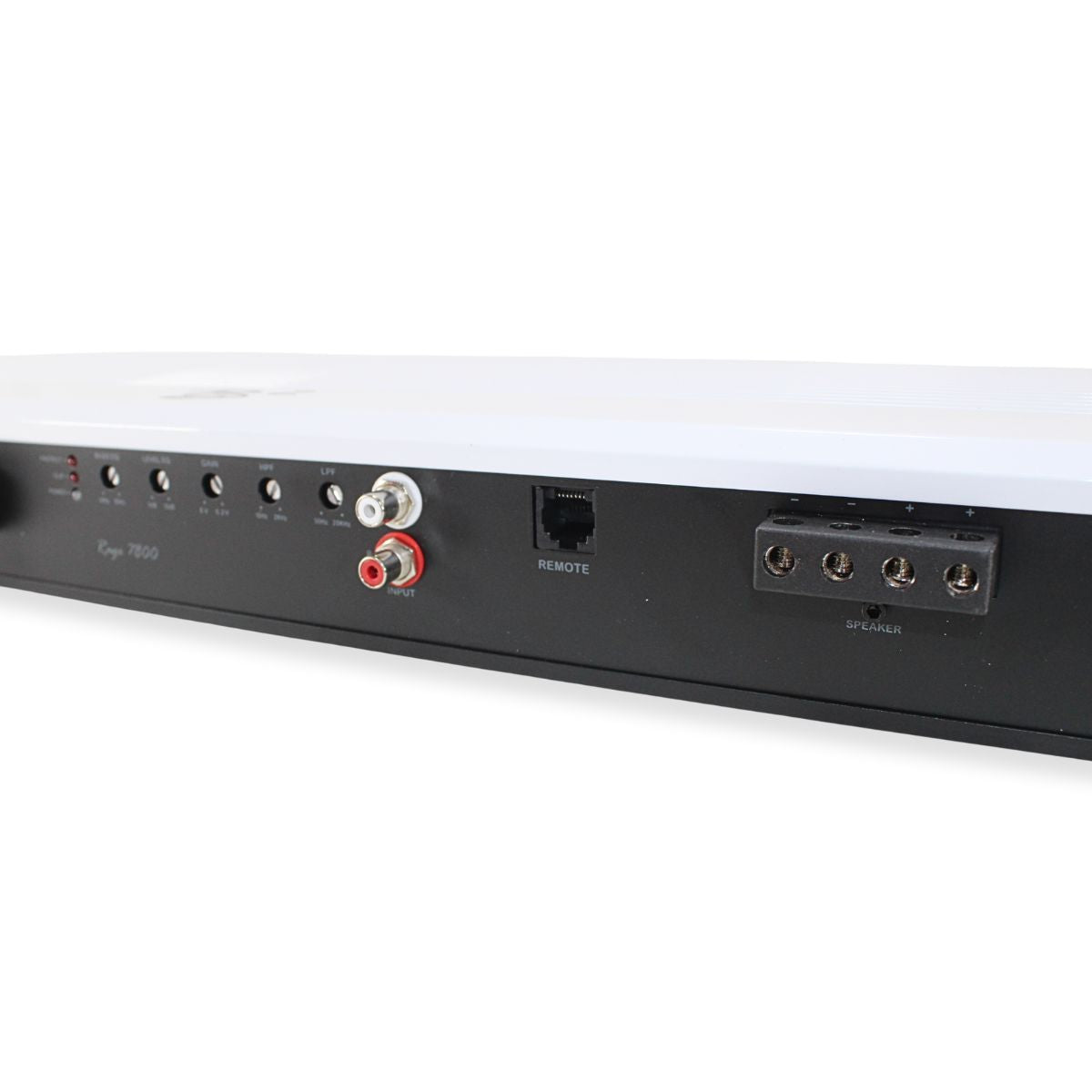

Amplifier Specifications:

• Circuit Configuration: Class-D full-range monoblock


• RMS Power at 4 Ohms: 2,400-2,600W


• RMS Power at 2 Ohms: 4,200-4,500W


• RMS Power at 1 Ohm: 7,800-8,000W


• Frequency Response: 10Hz-12.5kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 6V-0.2V

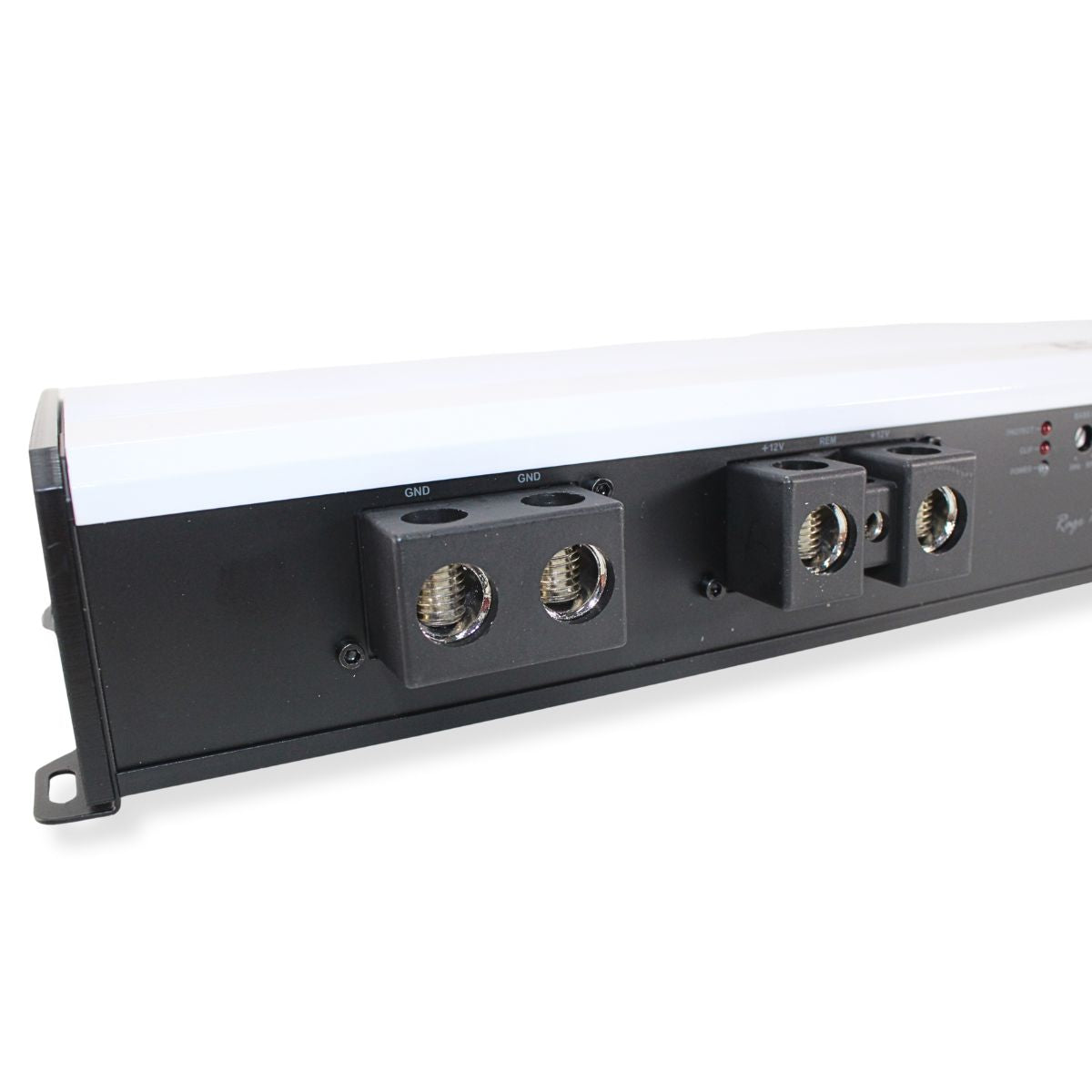

• Power Terminals: Dual 0 gauge


• Recommended Speaker Wire: 10 AWG minimum


• Fuse Rating: 600A


• Bass Level: 30Hz-80Hz


• Low-Pass Crossover: 30Hz-12.5kHz


• High-Pass Crossover: 10Hz-2kHz


• Subsonic Crossover: 10Hz-2kHz


• Dimensions: 22" L x 6.5" W x 2.5" H

Important Installation Note

This high-current system requires a properly designed electrical upgrade, quality OFC wiring, correct fusing, a suitable enclosure, and careful gain setting. Enclosure, wiring, batteries, alternator upgrades, and installation hardware are not included.
