RAGE 8" DVC 500W RMS Subwoofer w/ Tru Spec Vented Single 8" Enclosure

• Includes one B2 Audio RAGE 8" subwoofer and one Tru Spec single 8" prefab enclosure
• Select from Dual 2-Ohm or Dual 4-Ohm configuration to match your amplifier setup
• Enclosure precision-tuned to 35 Hz with 0.65 ft³ internal volume and 9.00 in² port area
• Compact footprint ideal for tight installs without sacrificing output

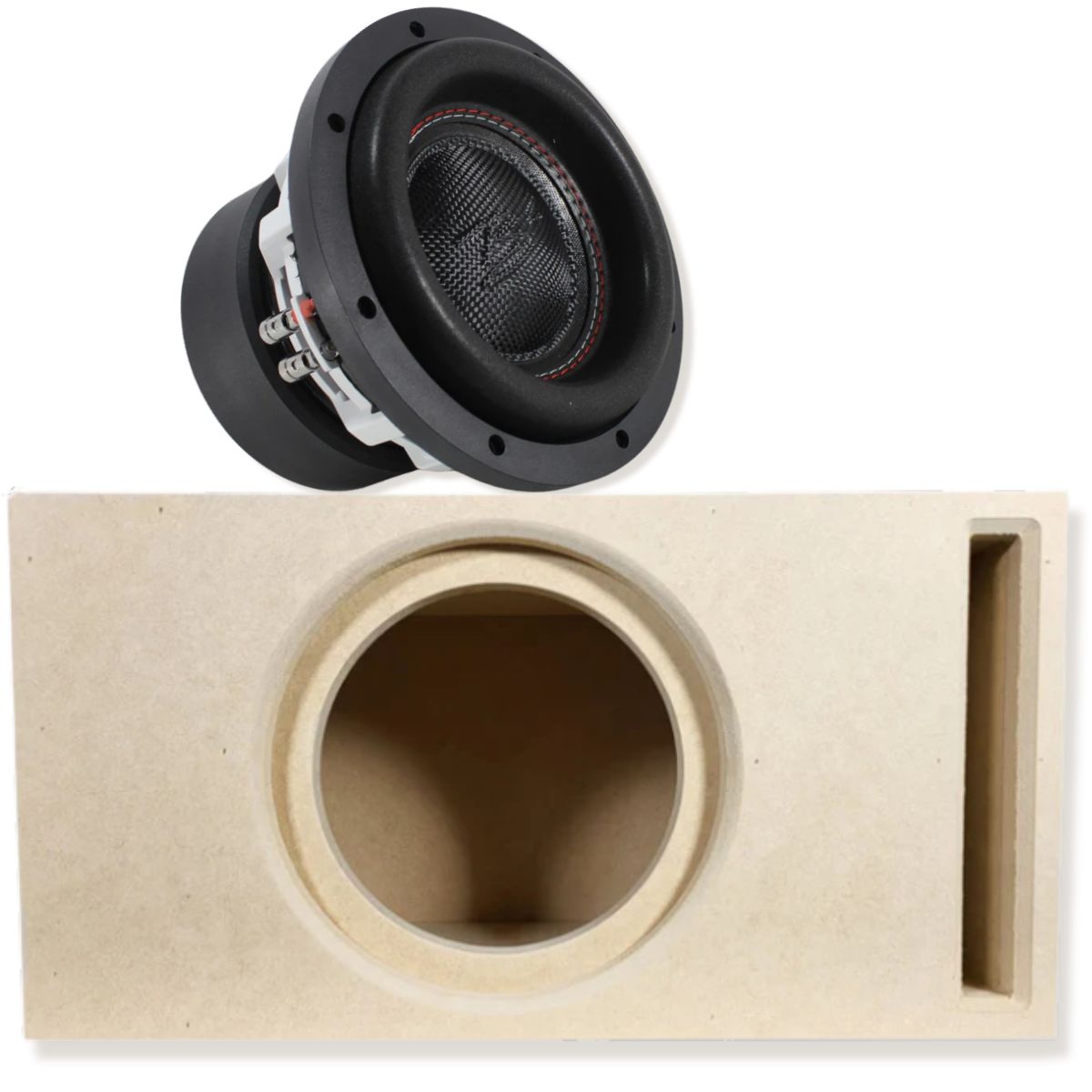

B2 Audio Single 8" RAGE Subwoofer Combo with Tru Spec Prefab Enclosure

This listing includes:

• (1) B2 Audio RAGE Series 8" Dual Voice Coil Subwoofer (Choose between Dual 2-Ohm or Dual 4-Ohm models)


• (1) Tru Spec Prefab Single 8" Subwoofer Enclosure (GP-SINGLE-8)

This single subwoofer combo is built for reliable daily performance and punchy bass in a compact footprint. Choose from the Dual 2-Ohm or Dual 4-Ohm version of the B2 Audio RAGE8 subwoofer, both offering 500W RMS power handling, 2 inch voice coils, and enhanced motor cooling. The Tru Spec GP-SINGLE-8 enclosure is crafted from 0.75 inch MDF, precision-tuned to 35 Hz, and offers just the right airspace and porting to maximize output from the RAGE8 series sub. Whether you're upgrading your factory system or starting small with serious quality, this combo delivers clean lows with a tight fit and custom-built performance.

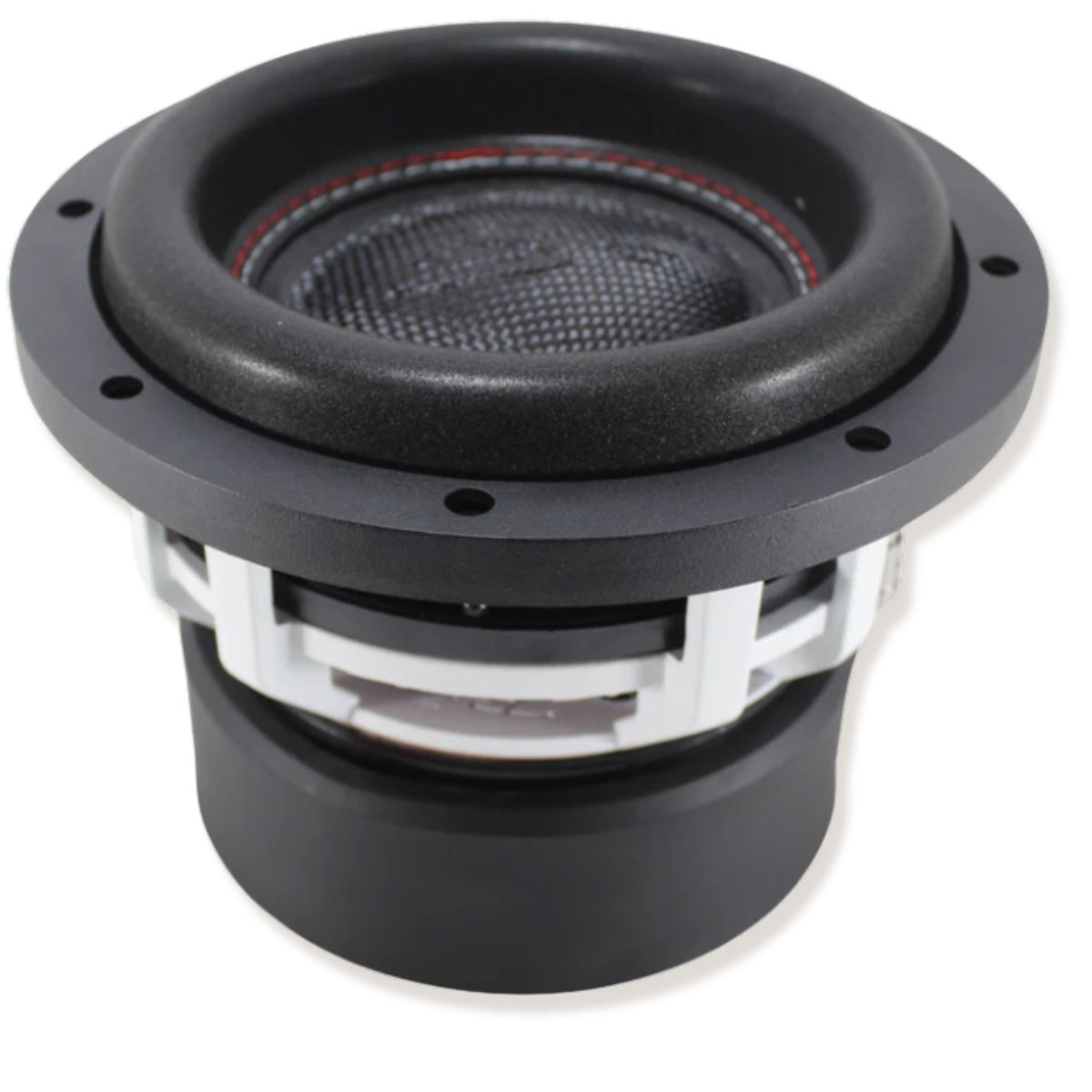

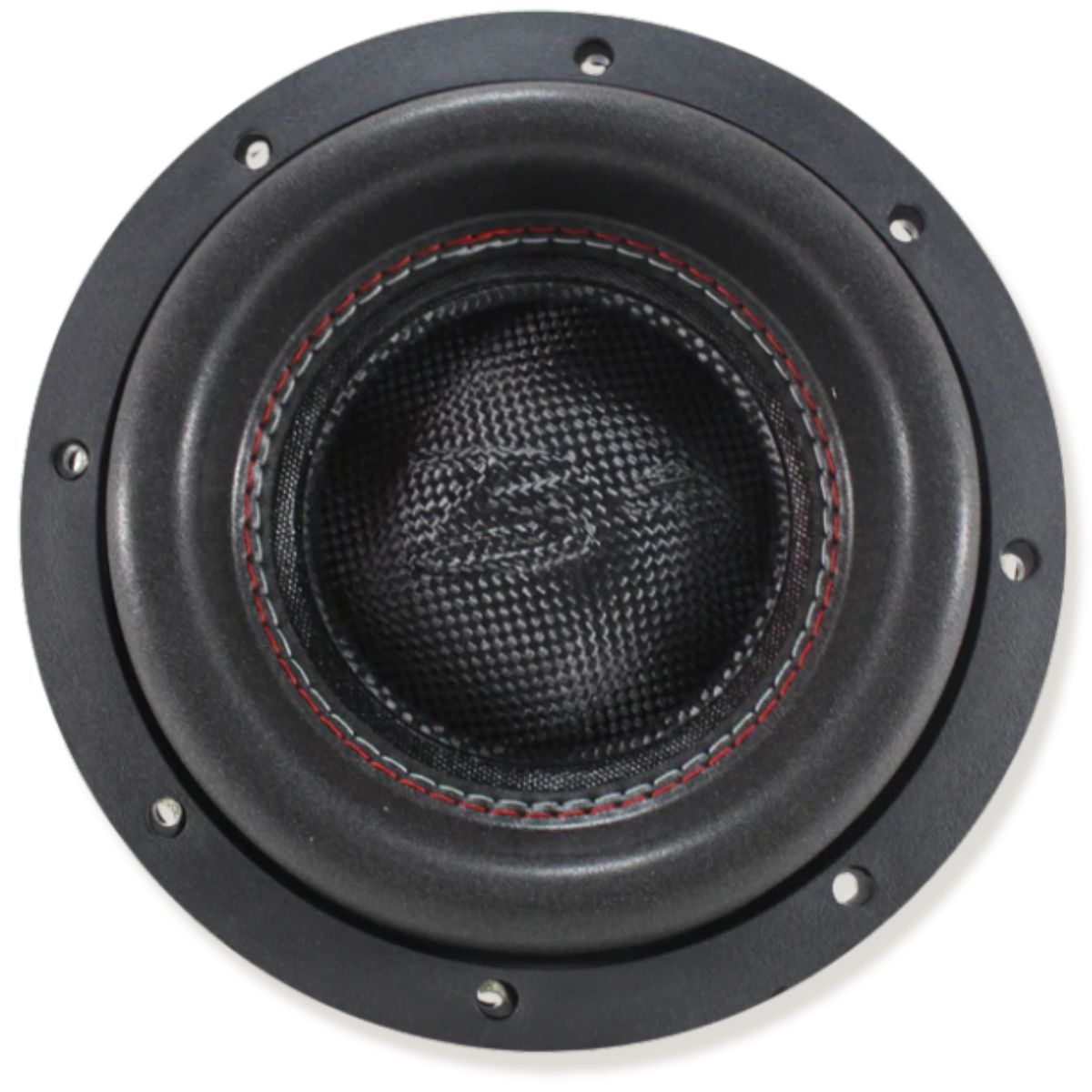

Subwoofer Specifications (B2-RAGE8-D2-V3 or RAGE8-D4-V3):

• Size: 8 inch


• RMS: 500 Watts


• Peak: 1500 Watts


• Impedance: Dual 4-Ohm

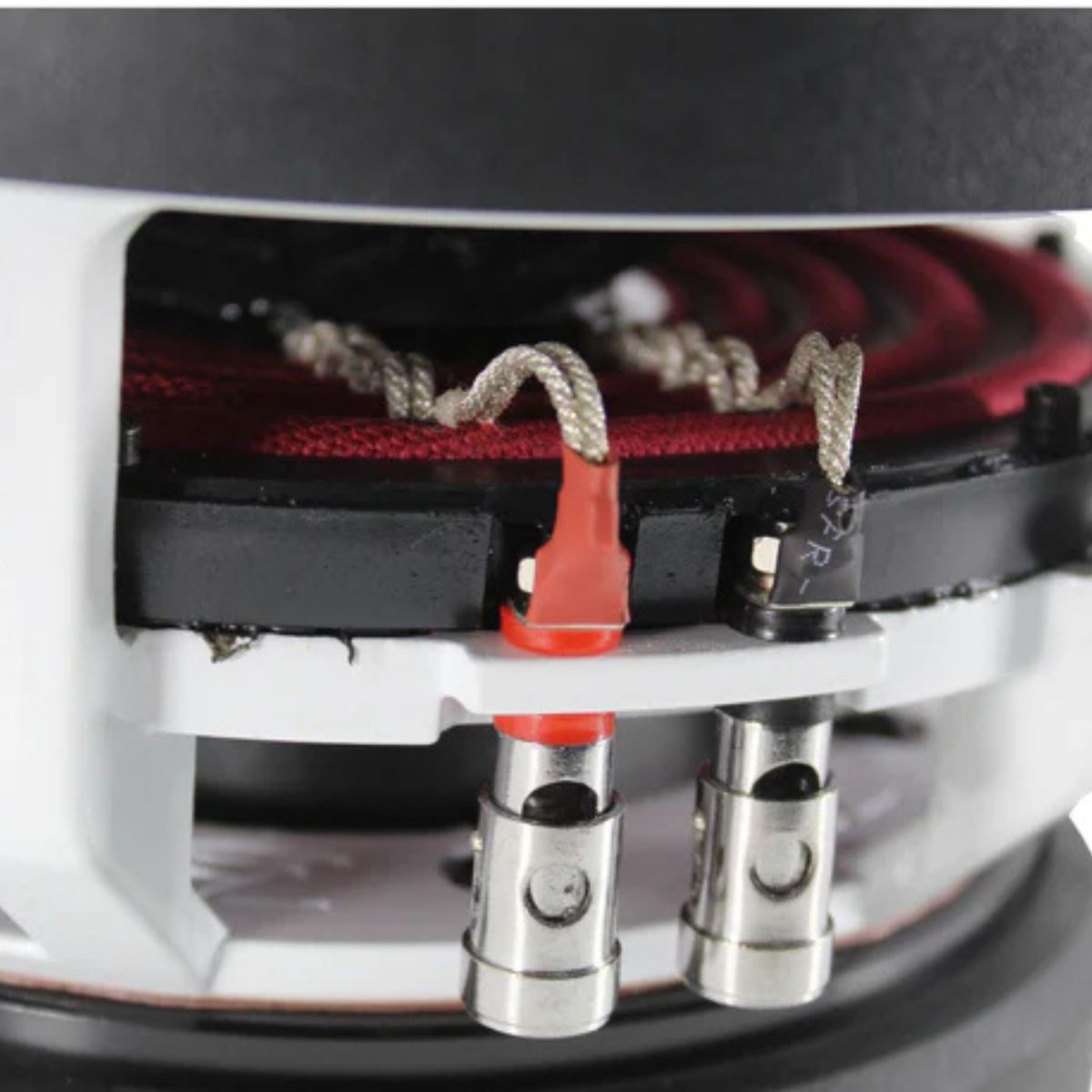

• Voice Coil: 2 inch


• Frequency Response: 10 Hz - 500 Hz


• Sensitivity: 80.6 dB


• Winding Material: Copper

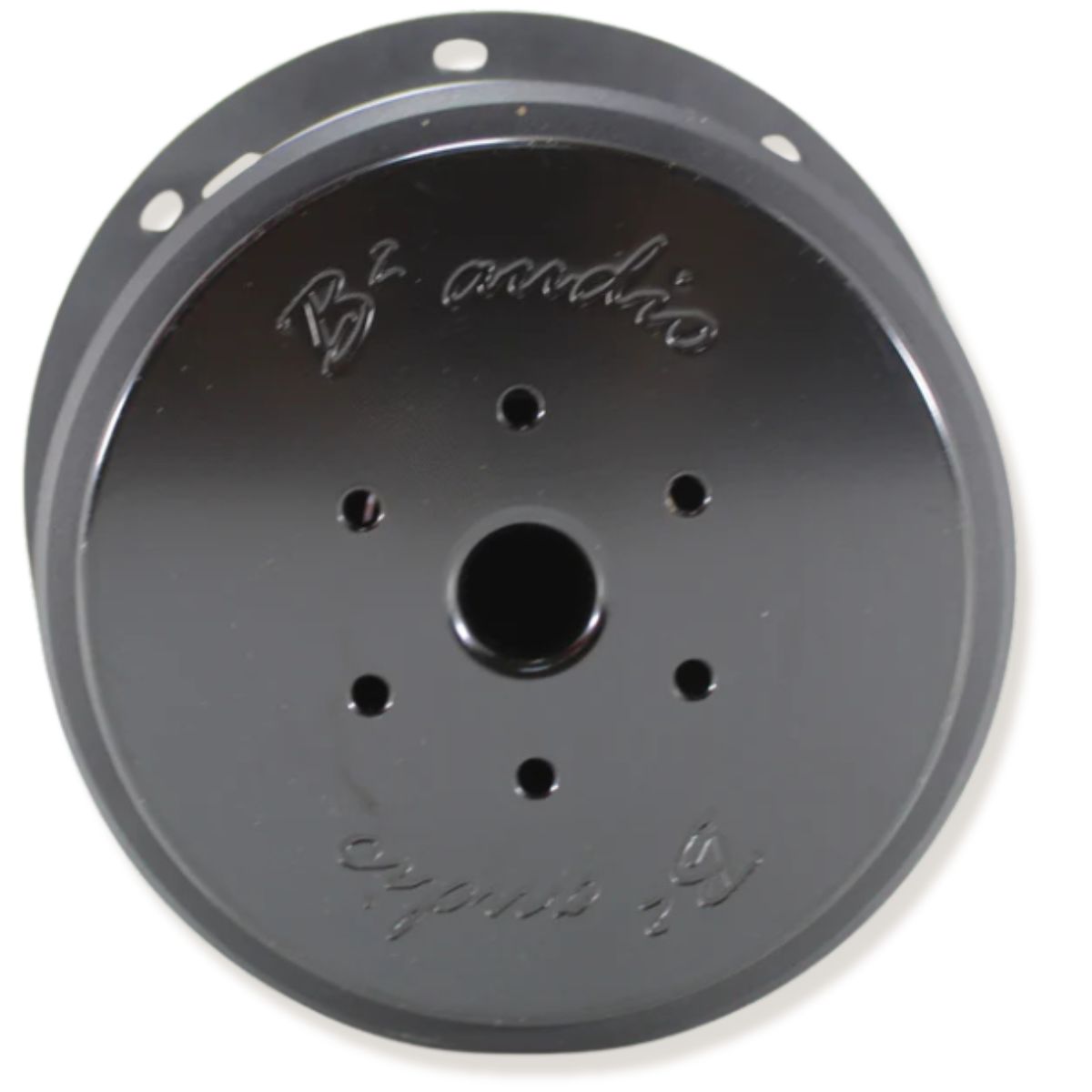

• Magnet Type: Ferrite


• Motor Assembly Weight: 175 Oz


• Cone Material: RNPP


• Surround Type: Tall U Shaped Foam

Thiele Small Parameters

• FS: 42.8 Hz


• Vas: 4.7 L


• RE(series): 6.4 Ohm


• Qms: 5.93


• Qes: 0.59


• Qts: 0.53


• CMS: 90 um/N


• BL^2/RE: 70


• MMS: 153.6 G


• Xmax (one way): 13 mm


• SD: 194.3 cm^2


• Efficiency: 0.07%


• Le(1 KHz): 3.2mH


• EBP: 73

Mounting/Shipping Information

• Overall Diameter: 8.66 in


• Baffle Cutout Diameter: 7.23 in


• Mounting Depth: 5.63 in


• Total Depth:  6.18 in


• Weight: 14.33 lbs

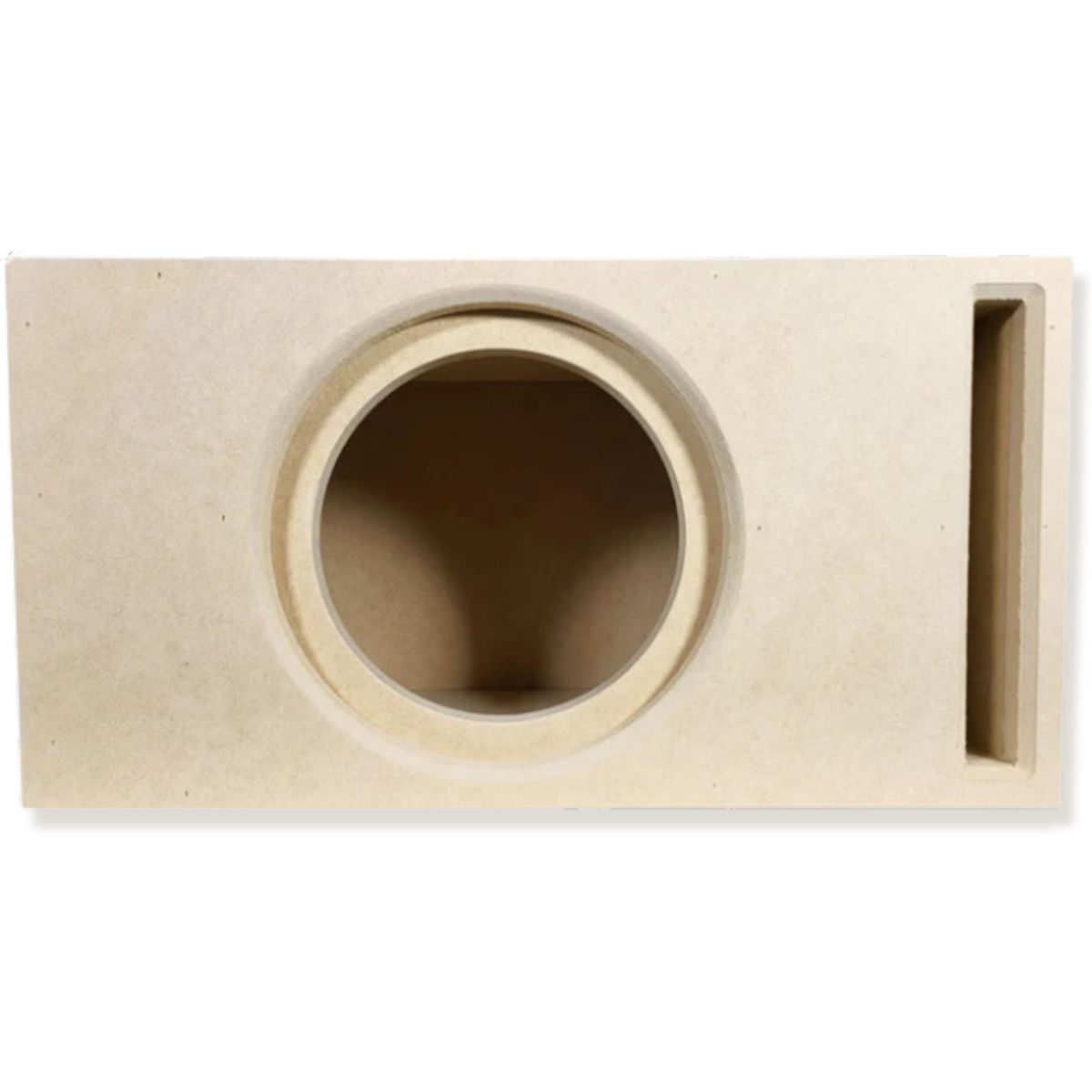

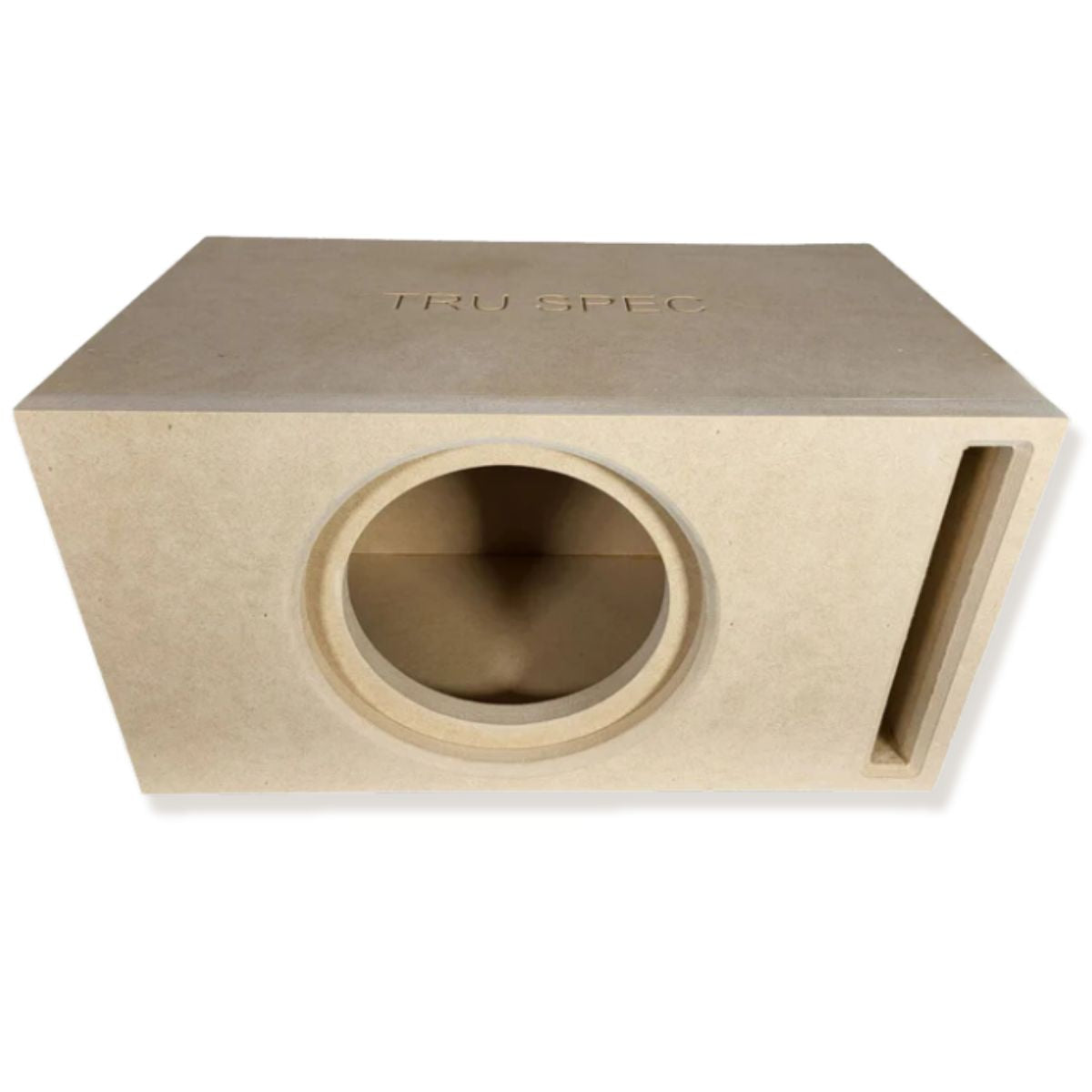

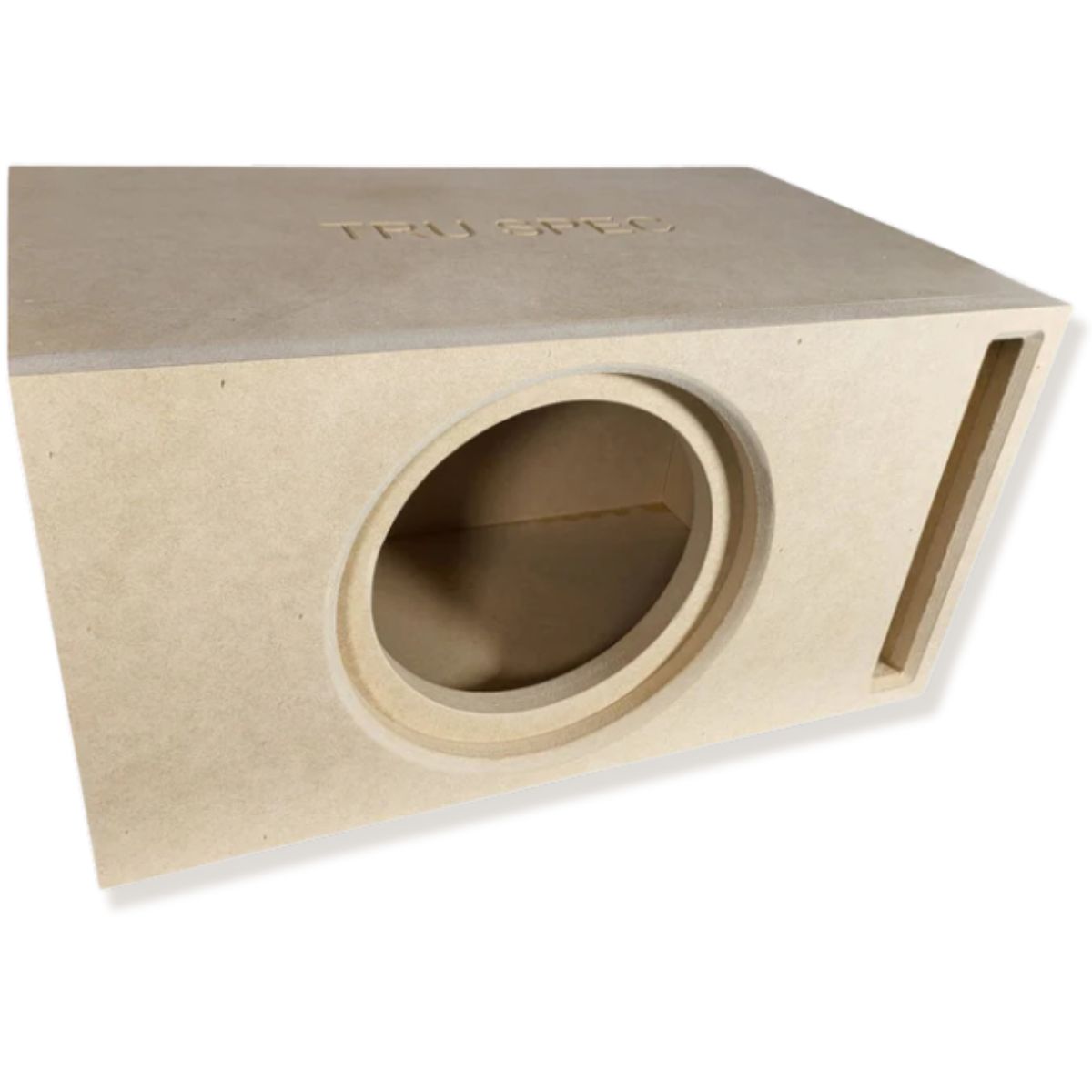

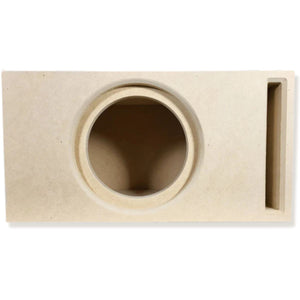

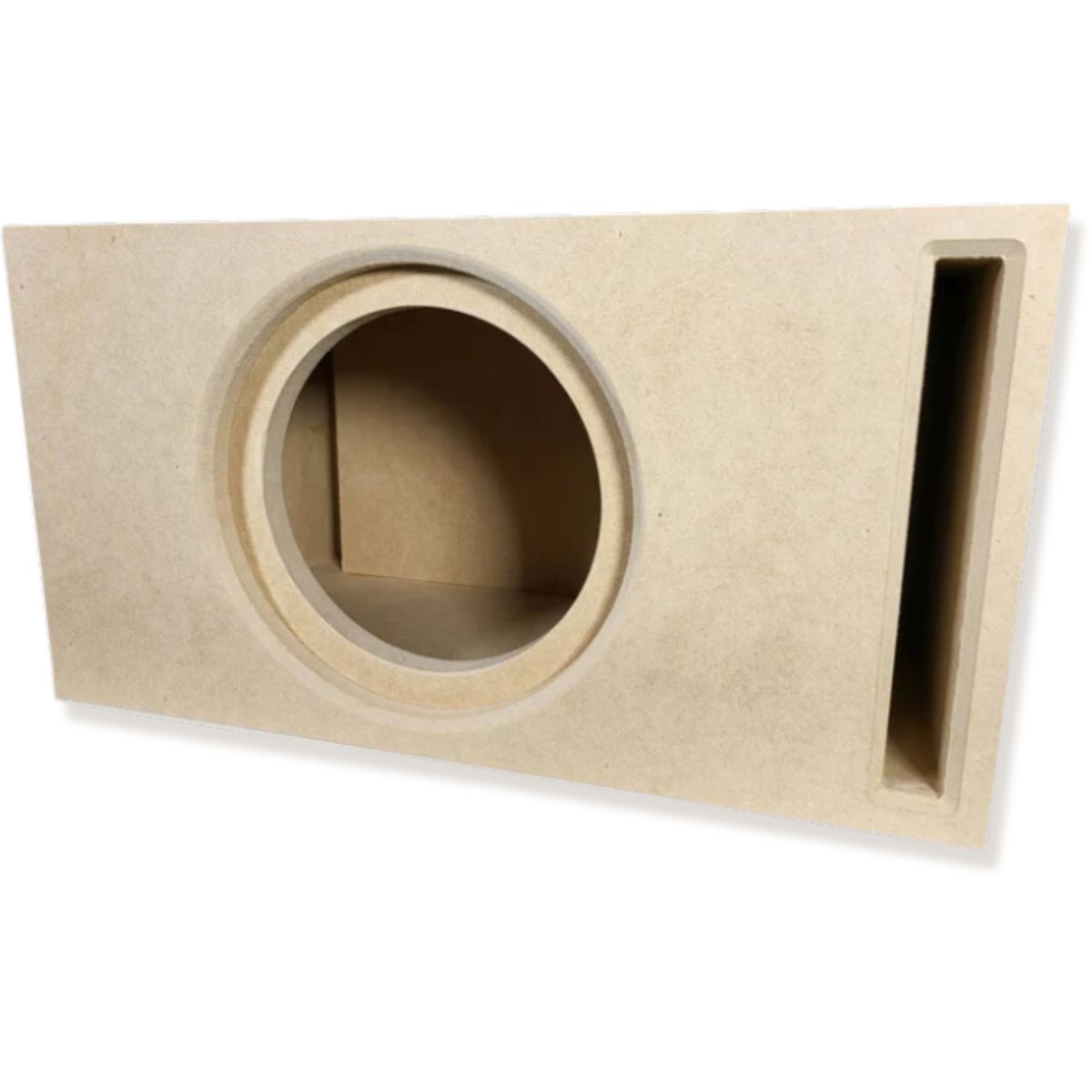

Enclosure Specifications (GP-SINGLE-8):

• Material Thickness: 0.75 in


• Net Internal Volume: 0.65 ft


• Tuning Frequency: 35 Hz


• Port Area: 9.00 in


• Cutout Diameter: 7.45 in


• Flush Trim Diameter: 9.00 in


• External Dimensions (Length x Height x Width): 20.00 in x 10.5 in x 11.26 in
