RAGEXL 12" D1 3500W RMS Subwoofer + S12ELITE Enclosure + 4800W Mono Amp B2 Audio

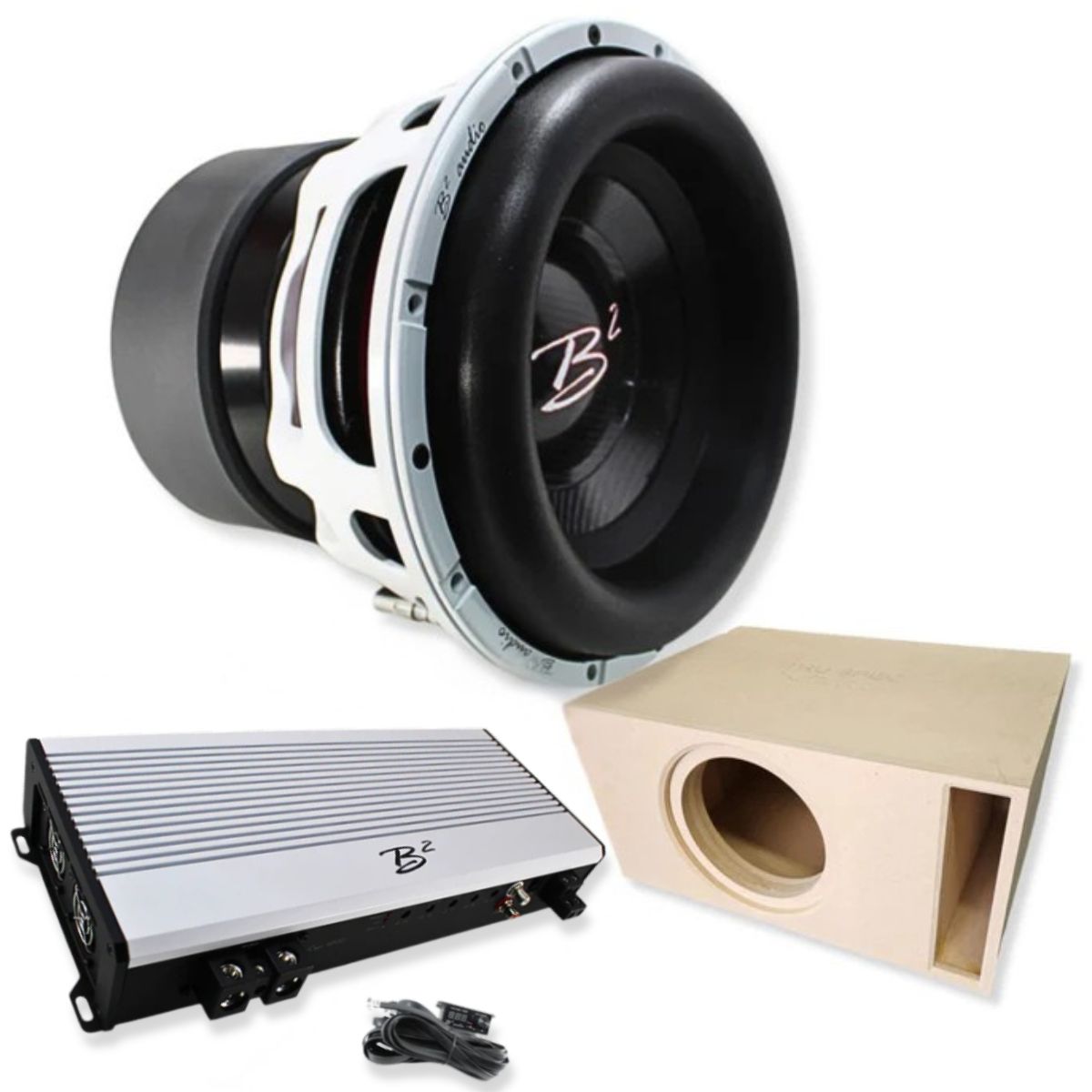

• Complete Bass Combo: Includes B2 Audio RAGEXL 12" 3500W RMS Subwoofer, Tru Spec Elite XXL 12" Enclosure, and RAGE-4800 4800W Monoblock Amplifier.
• Extreme Power Handling: RAGEXL sub delivers 3500W RMS / 10,000W peak, paired with the RAGE-4800 amp pushing up to 4800W RMS at 1-ohm.
• Precision-Tuned Enclosure: Tru Spec Elite XXL features triple and quad baffle construction, tuned at 32 Hz for maximum output and controlled low-end.
• High-Performance Design: Dual 1-ohm voice coils and full-range Class D amp with low pass, high pass, and subsonic filters for custom tuning.
• Built for Enthusiasts: Rugged build, efficient power delivery, and competition-ready performance make this combo ideal for SPL or extreme daily setups.

RAGEXL 12" D1 3500W RMS Subwoofer + S12ELITE Enclosure + 4800W Mono Amp B2 Audio

This Listing Includes:

• (1) B2-RAGEXL-12-D1-V2 3500 Watt RMS Subwoofer Dual 1-Ohm


• (1) B2-RAGE-4800 1-Ohm Class D Full Bridge Monoblock Amplifier


• (1) GP-S12ELITEXXL-B2 Tru Spec Enclosure

Please note: these items will ship separately.

Take your system to the next level with this powerhouse combo featuring the B2 Audio RAGEXL 12" 3500W RMS Subwoofer, RAGE-4800 Monoblock Amplifier, and Tru Spec Elite XXL Enclosure. The enclosure’s precision triple and quad baffle design is tuned at 32 Hz for maximum output and accuracy. The RAGEXL subwoofer brings extreme power and precision with 3500W RMS handling and 10,000W peak potential, delivering ground-shaking lows with clarity. Pair it with the RAGE-4800 amplifier’s relentless 4800W RMS at 1-ohm, and you’ve got the perfect setup for SPL domination or extreme daily builds. Built for serious enthusiasts, this combo is engineered to unleash clean, thunderous bass every time you hit play.

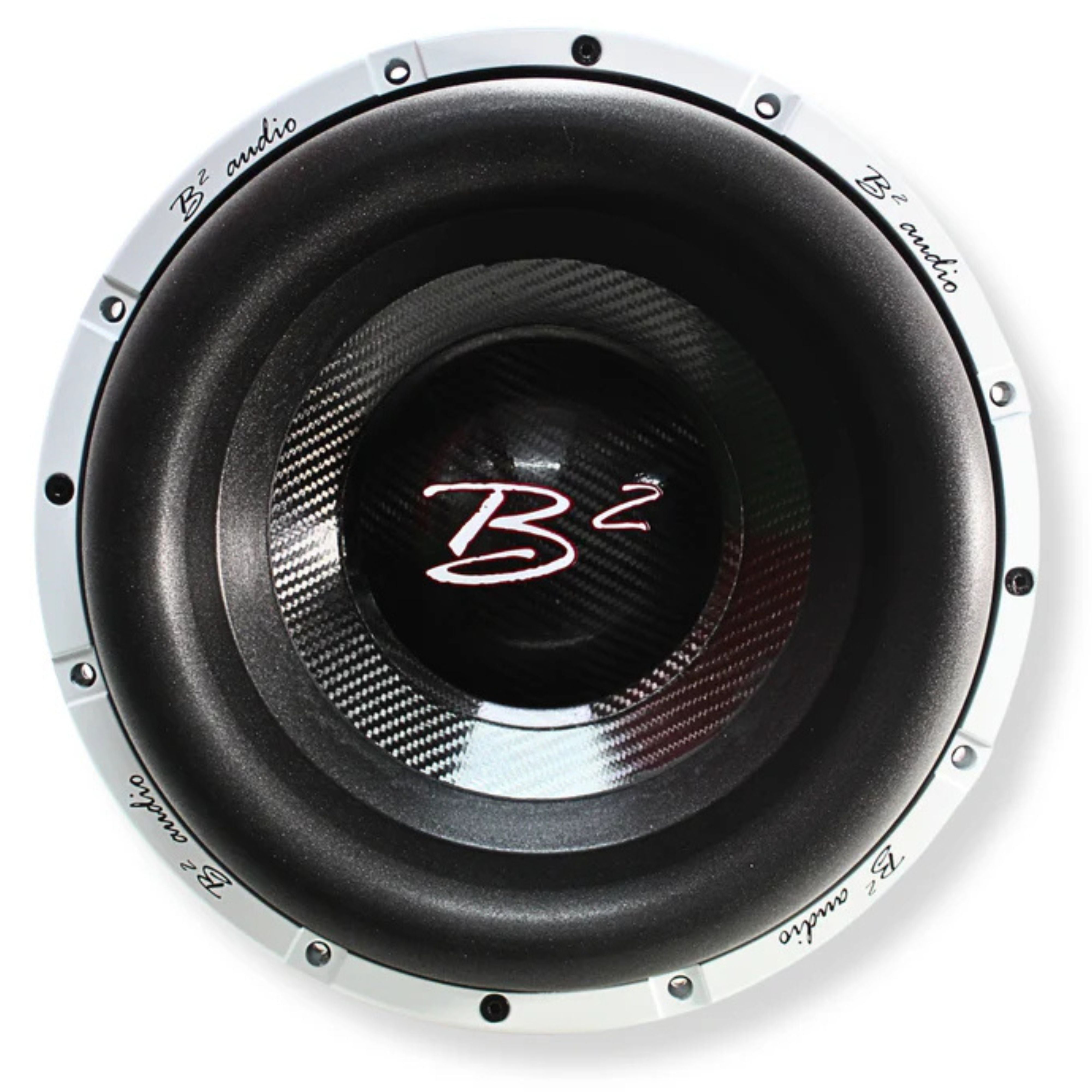

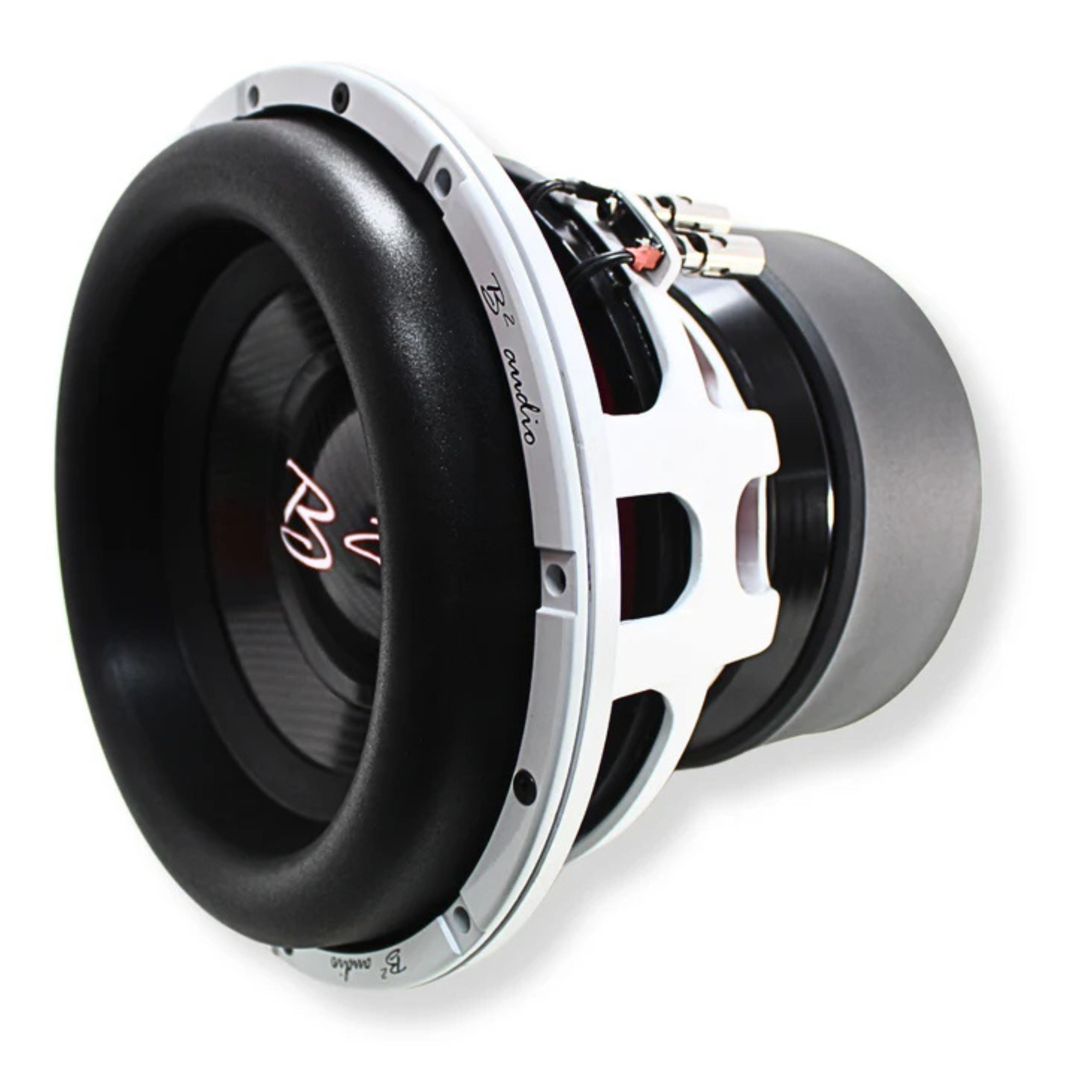

Subwoofer Specifications:

• RMS Power Handling: 3500 Watts


• Peak Dynamic Power: 10,000 Watts

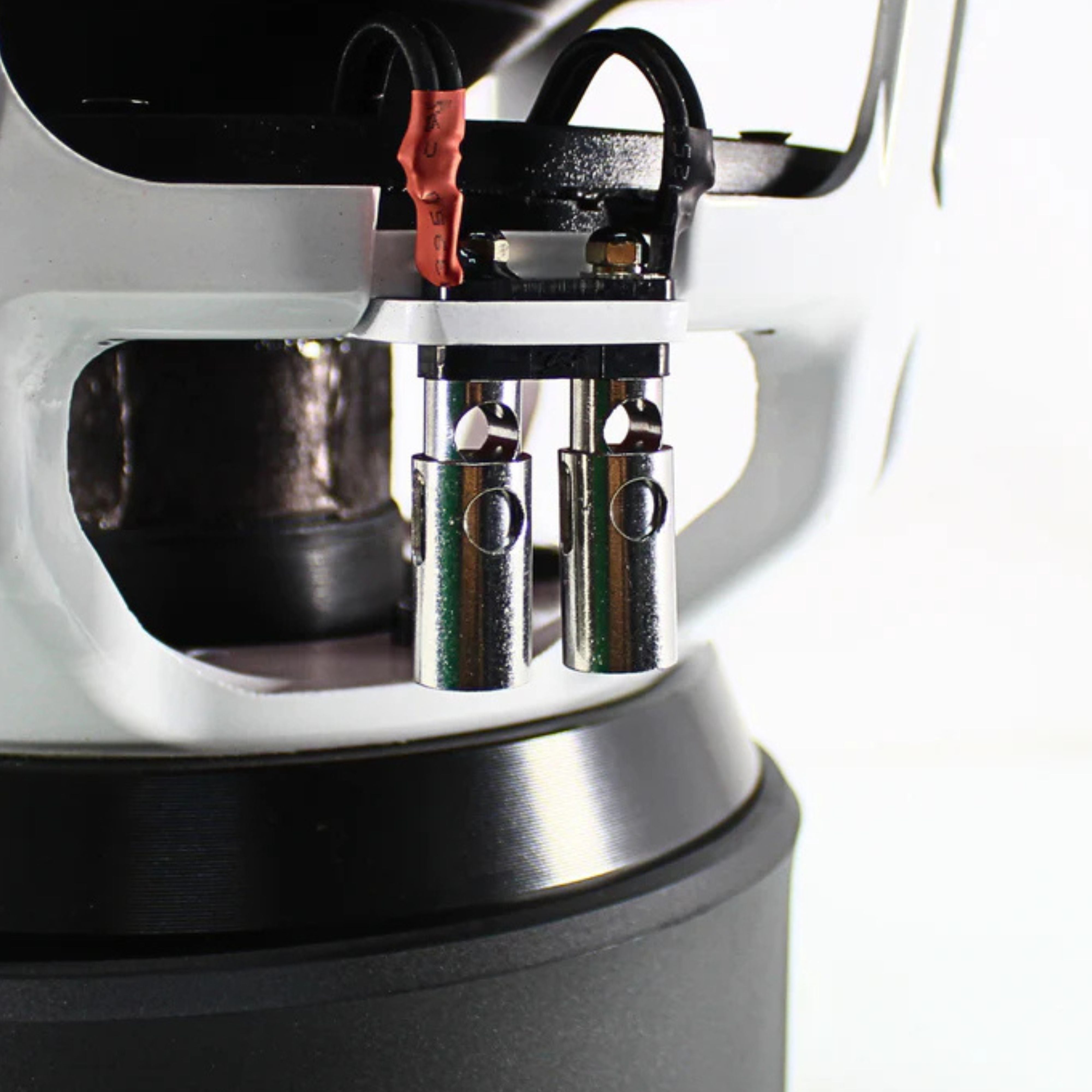

• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 1 Ohm


• Voice Coil Diameter: 3"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 88.6 dB


• Magnet Weight: 880 Oz


• Displacement Volume: 8.9 L / .314 cu ft

Thiele & Small Parameters

• Free Air Resonance (Fs): 28 Hz


• Resistance (Re): 2 Ohm


• Mechanical Factor (Qms): 5.38


• Electrical Factor (Qes): 0.54


• Total Factor (Qts): 0.49


• Equivalent Volume (Vas): 23.7 L


• Compliance (Cms): 80 um/N


• BL Factor (BL): 131.5 BL^2/RE


• Moving Mass (Mms): 403.9 g


• Excursion Max (Xmax): 23 mm

Measurements:

• Overall Diameter: 12.25" / 311 mm


• Mounting Diameter: 11.10 / 282 mm


• Bolt Pattern Diameter: 11.57" / 294 mm


• Overall Depth: 12.12" / 308 mm


• Mounting Depth: 10.12" / 257 mm

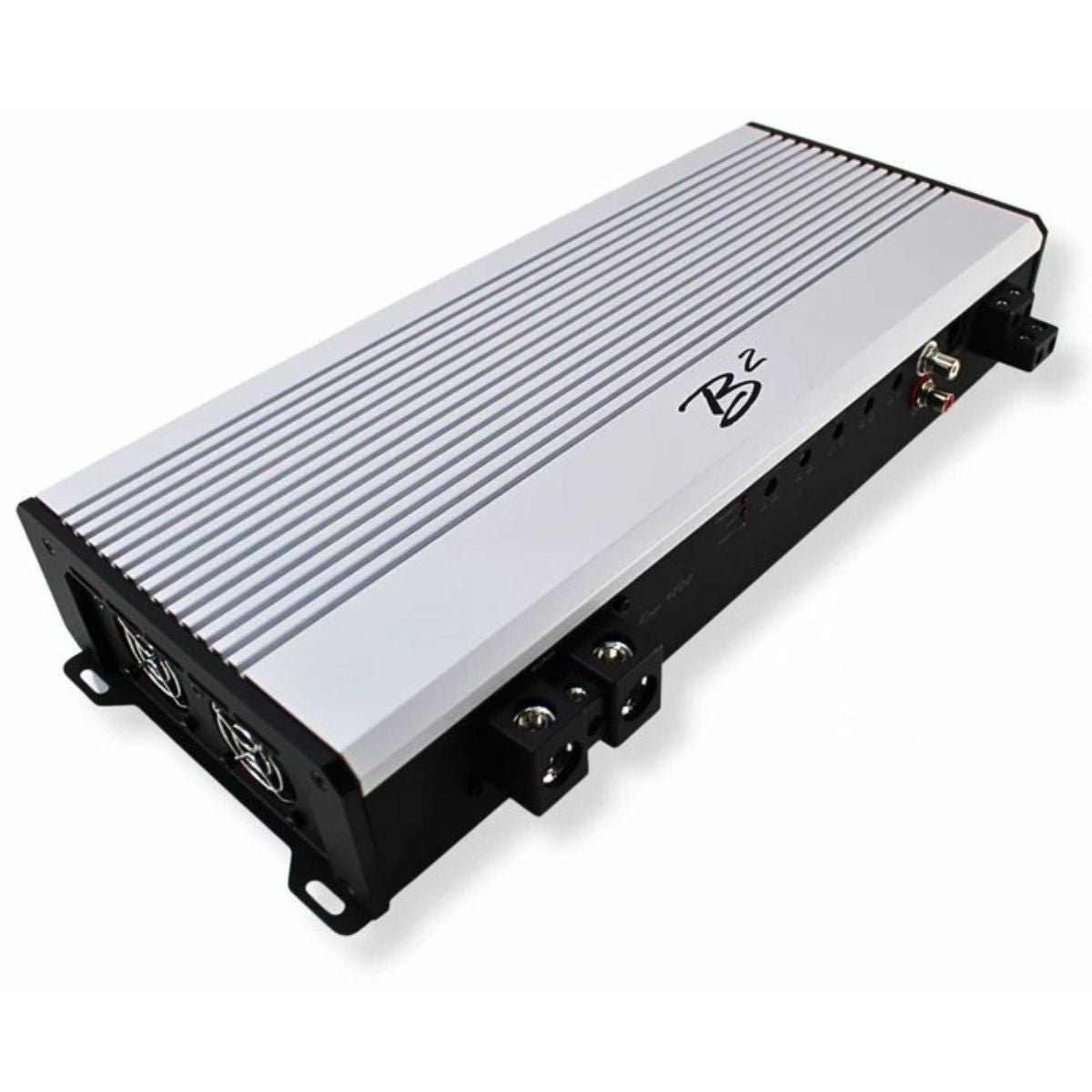

Amplifier Specifications:

• RMS Power @ 4 ohm: 1650W - 1800W


• RMS Power @ 2 ohm: 3000W - 3250W


• RMS Power @ 1 ohm: 4800W - 5000W


• Frequency Response: 10 Hz – 20 kHz


• Signal-to-Noise Ratio: >90 dB


• Input Sensitivity: 0.2 – 6 V


• Power Terminal Gauge: 0 GA


• Fuse Rating: 400A


• Bass Level Control: 30–80 Hz


• Crossover Circuit:

  Low Pass: 50 Hz – 20 kHz

  High Pass: 10 Hz – 2 kHz

  Subsonic: 10 Hz – 2 kHz

Measurements:

• Overall Length: 15.5"


• Width: 7.25"


• Height: 2.5"


• Weight: 9.90 lbs

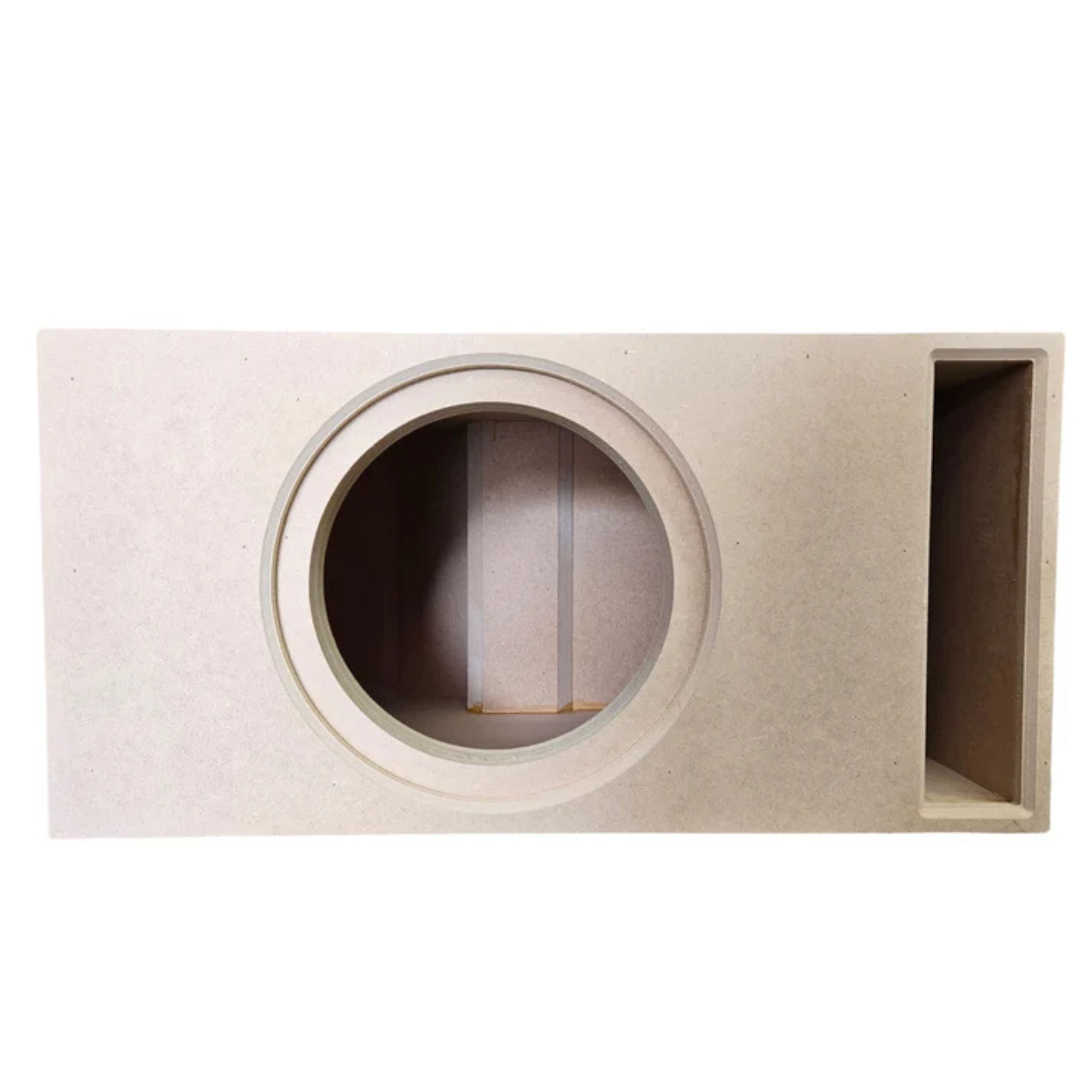

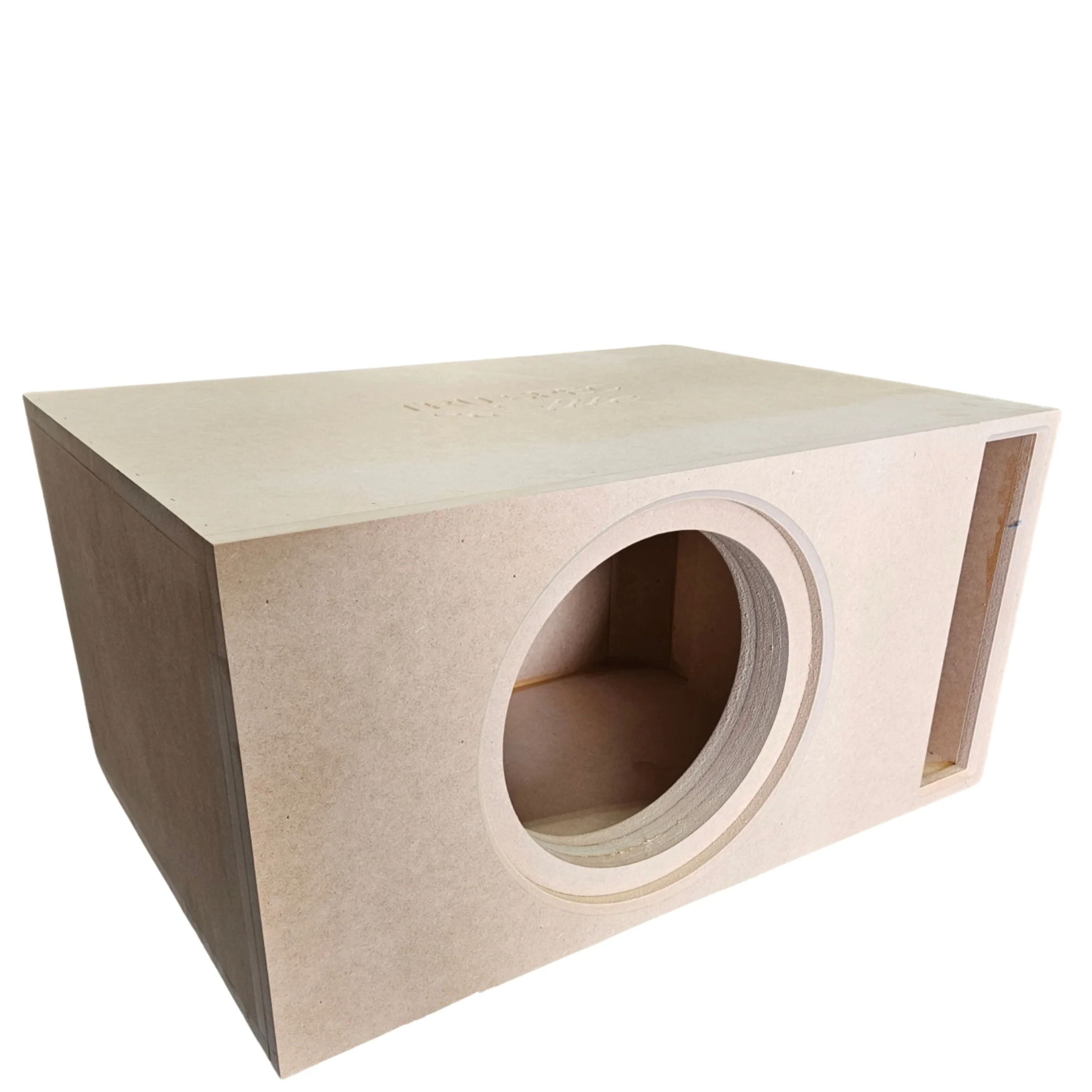

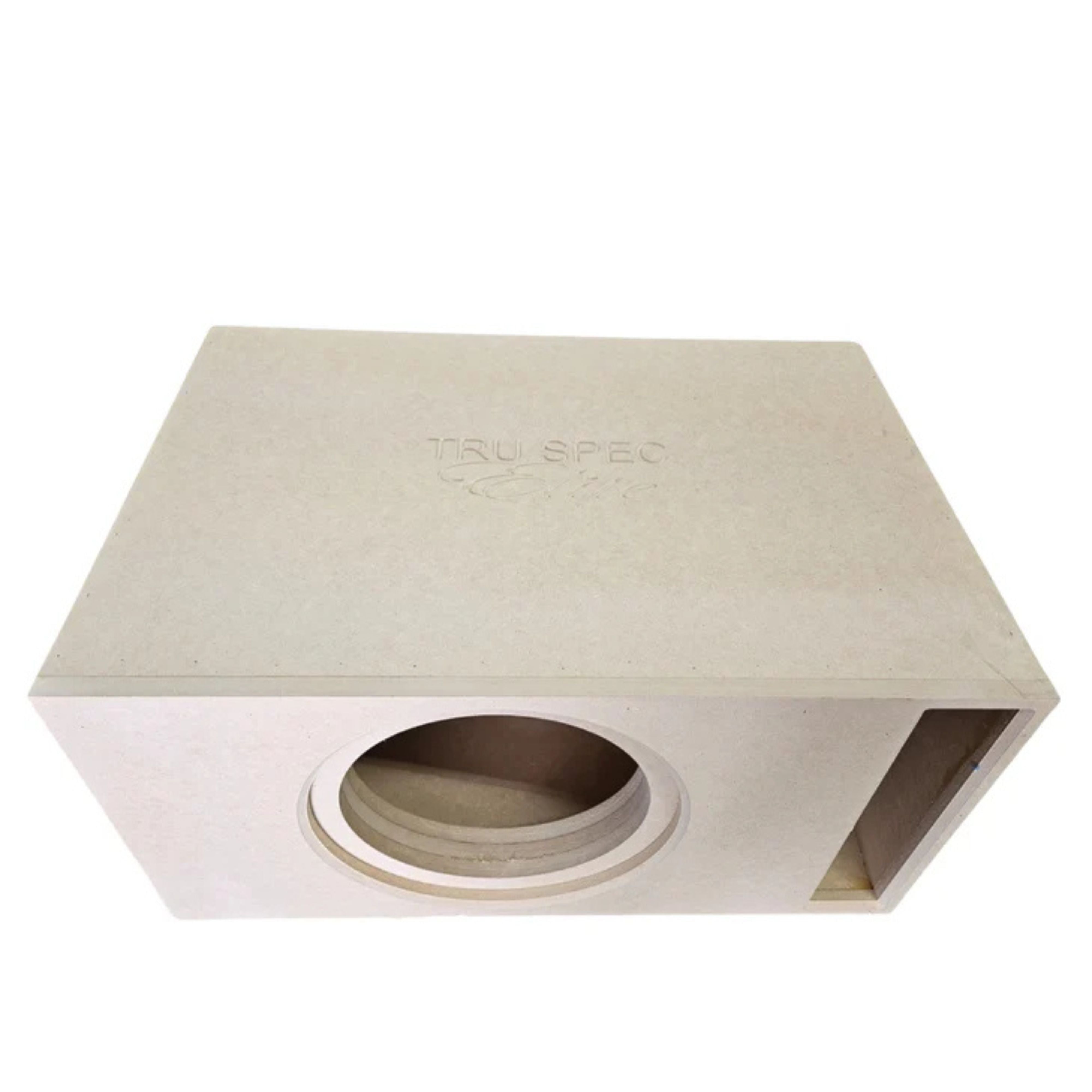

Enclosure Specifications:

• Material: MDF


• Cutout: 11.20"


• Box External Dimensions


• Width x Height x Depth (30.00" x 15.00" x 21.21")


• Material Thickness: 0.75"


• Net Internal Volume: 2.50 ft3


• Tuning Frequency: 32 Hz


• Port Area: 40.00 inch2
