RAGEXL 12" D2 3500W RMS Subwoofer + S12ELITE Enclosure + 4800W Mono Amp B2 Audio

• Complete Bass Package: Includes 3500W RMS RAGEXL 12" Subwoofer, Tru Spec Elite S12 XXL Enclosure, and RAGE-4800 5000W Monoblock Amplifier for ultimate SPL performance.
• Extreme Power Handling: RAGEXL subwoofer delivers up to 10,000W peak with deep, resonant lows, while the RAGE-4800 amp provides up to 4800W RMS at 1-ohm.
• Precision-Engineered Enclosure: Tru Spec Elite S12 XXL features triple and quad baffle design tuned at 32 Hz for maximum output and tight, controlled bass.
• Flexible, High-Performance Setup: Dual 2-Ohm subwoofer voice coils and full-range Class D amplifier with adjustable crossovers allow custom wiring and tuning for sealed, ported, or bandpass enclosures.
• Built to Last: Rugged construction, advanced materials, and built-in amplifier protection ensure reliable, competition-ready performance for SPL or high-powered daily builds.

RAGEXL 12" D2 3500W RMS Subwoofer + S12ELITE Enclosure + 4800W Mono Amp B2 Audio

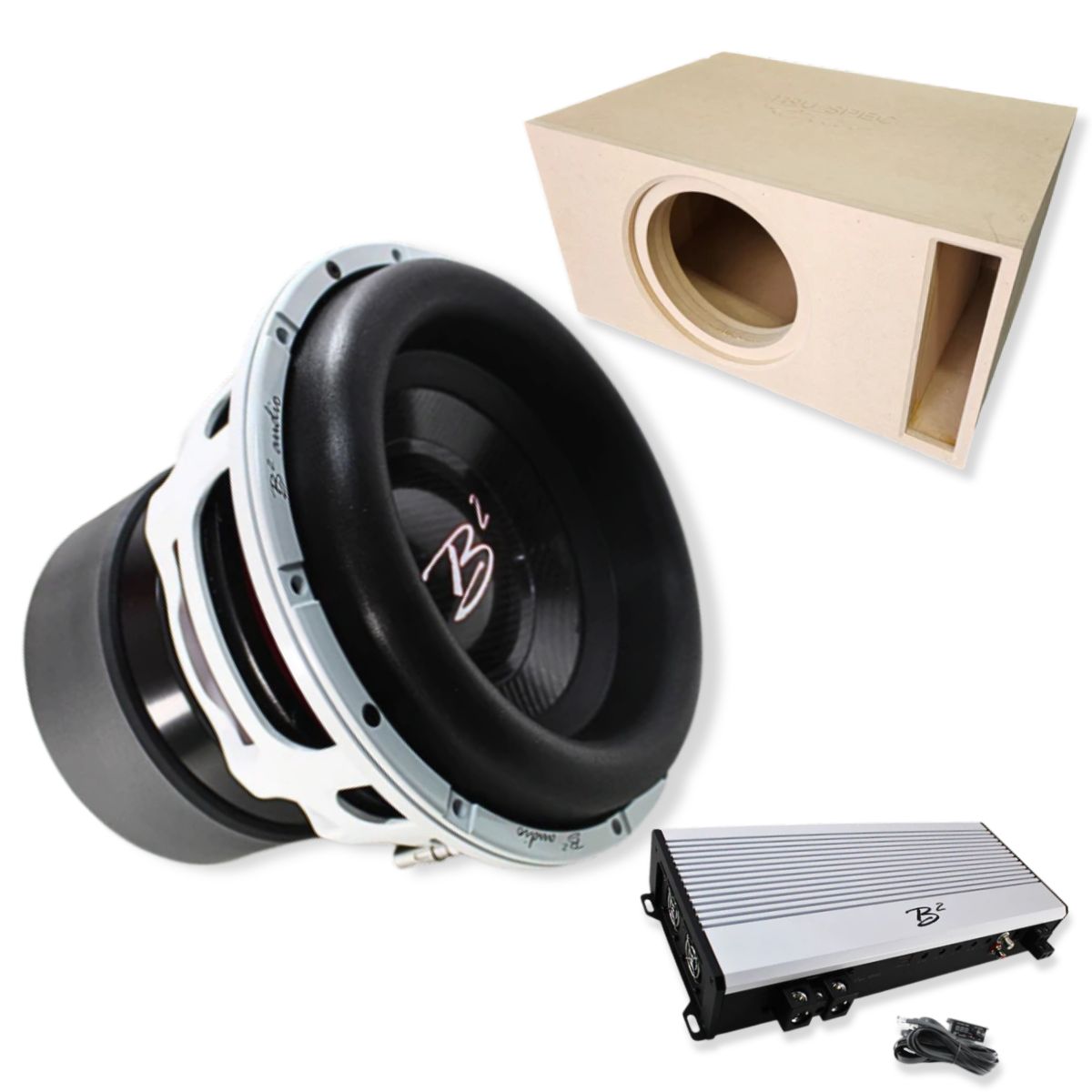

This Listing Includes:

• (1) B2-RAGEXL-12-D1-V2 3500 Watt RMS Subwoofer Dual 2-Ohm


• (1) B2-RAGE-4800 1-Ohm Class D Full Bridge Monoblock Amplifier


• (1) GP-S12ELITEXXL-B2 Tru Spec Enclosure

Please note that these items will ship separately.

Experience unmatched bass performance with this powerhouse combo. The Tru Spec Elite 12" XXL enclosure features precision-engineered triple and quad baffle construction tuned at 32 Hz for optimized output. The RAGEXL 12" subwoofer delivers a massive 3500W RMS of deep, resonant lows, while the RAGE-4800 amplifier provides thunderous power with up to 5000W RMS output. Together, this trio brings earth-shaking bass, precise response, and reliable performance for serious SPL or high-performance car audio builds.

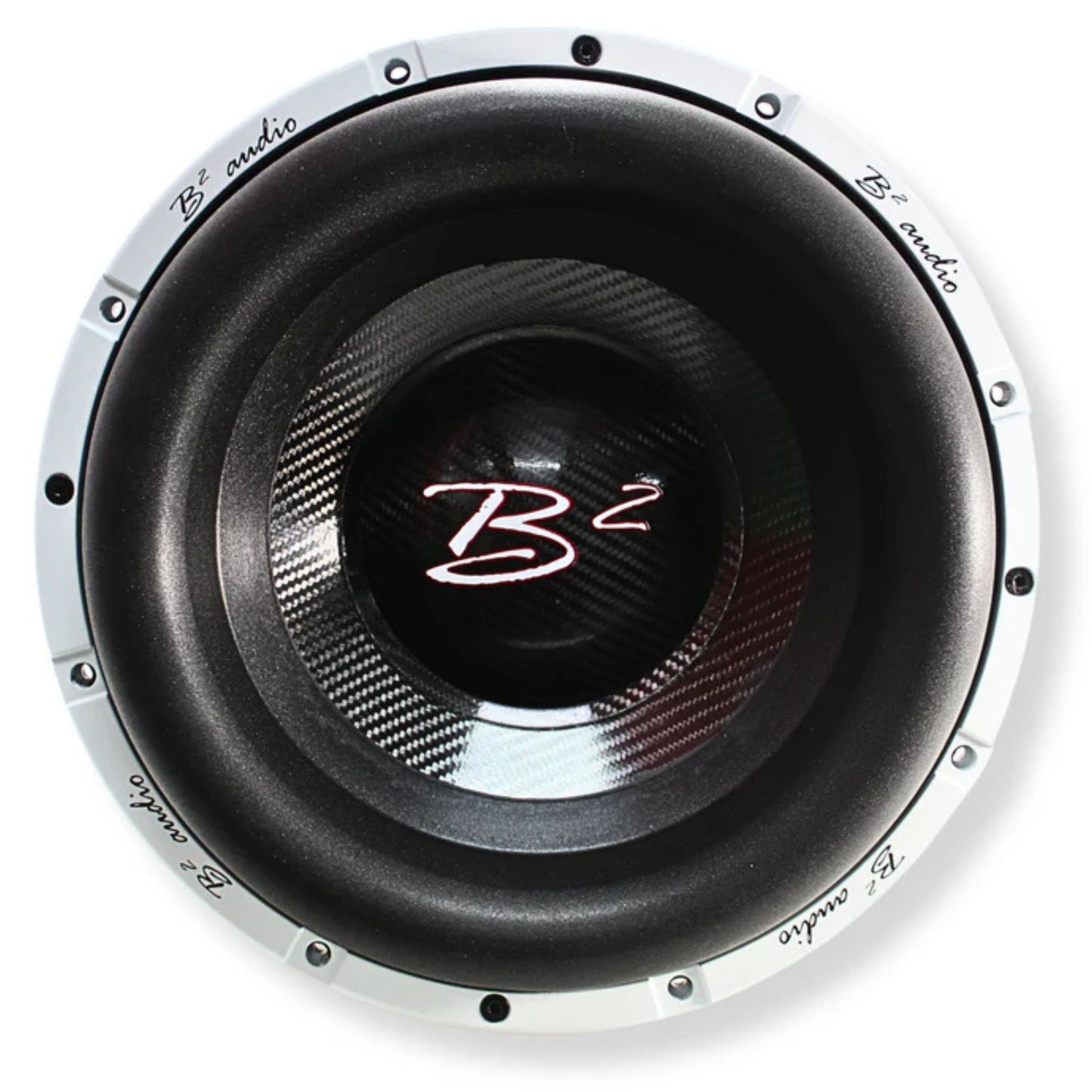

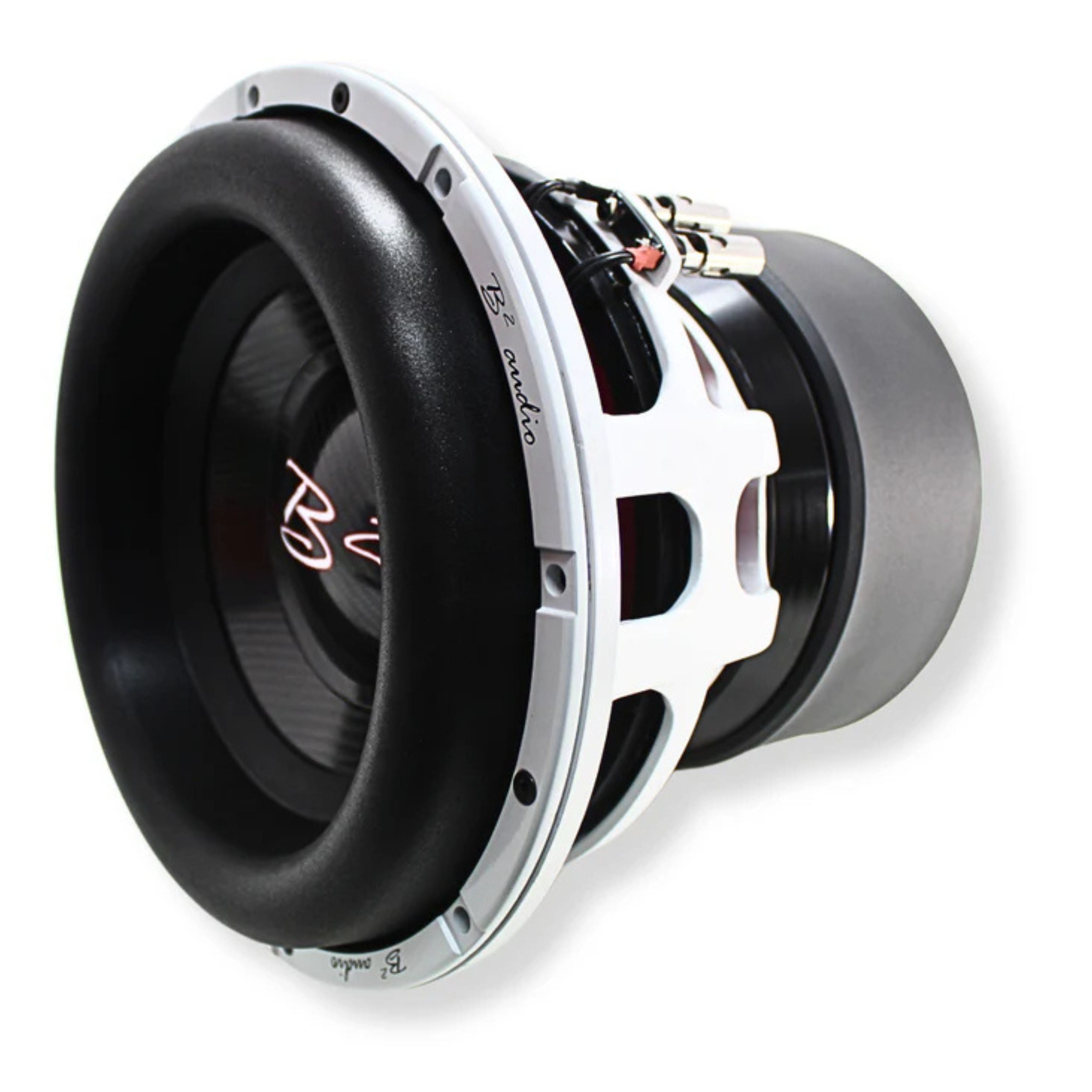

Subwoofer Specifications:

• RMS Power Handling: 3500 Watts


• Peak Dynamic Power: 10,000 Watts

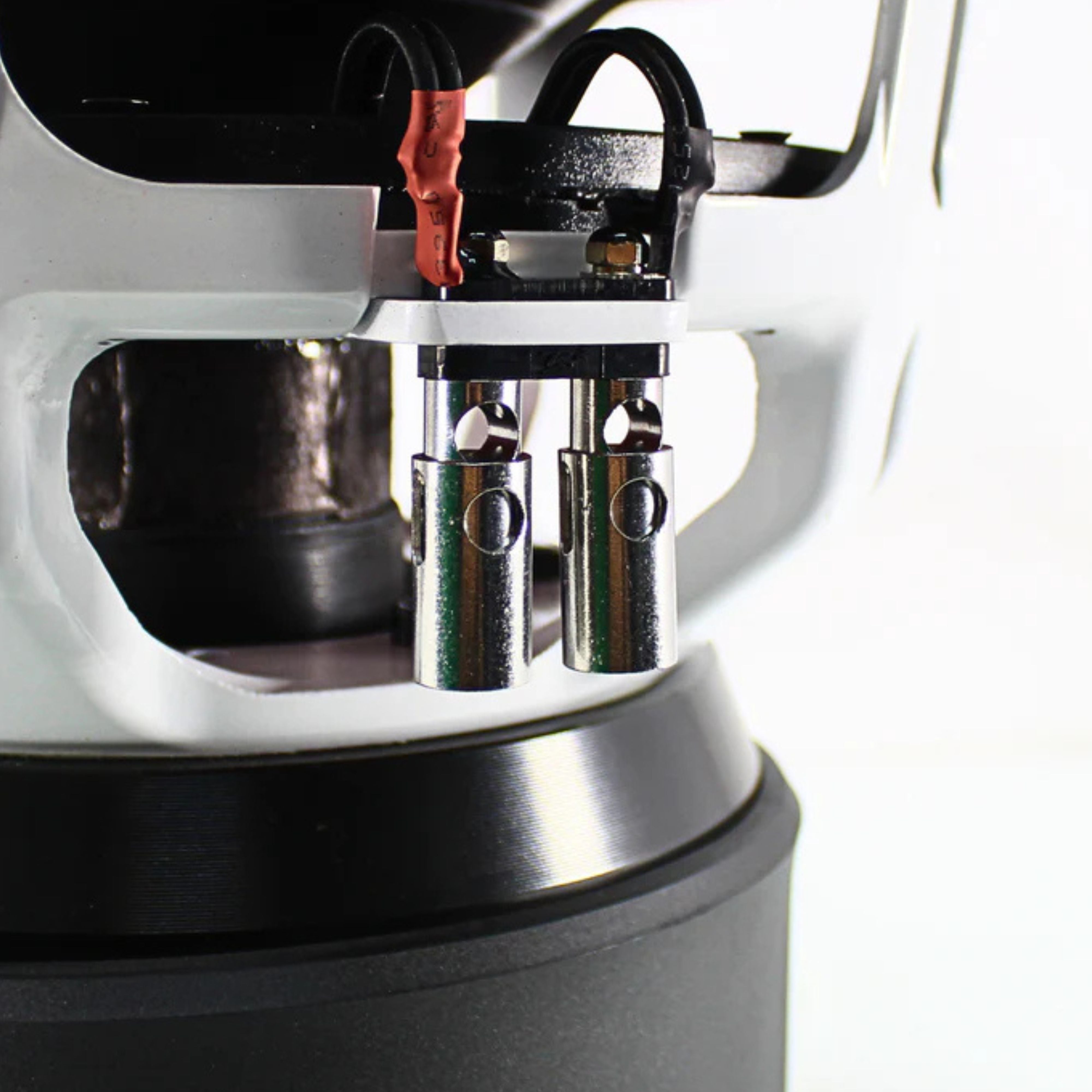

• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 2 Ohm


• Voice Coil Diameter: 3"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 88.6 dB


• Magnet Weight: 880 Oz


• Displacement Volume: 8.9 L / .314 cu ft

Thiele & Small Parameters

• Free Air Resonance (Fs): 28 Hz


• Resistance (Re): 2 Ohm


• Mechanical Factor (Qms): 5.38


• Electrical Factor (Qes): 0.54


• Total Factor (Qts): 0.49


• Equivalent Volume (Vas): 23.7 L


• Compliance (Cms): 80 um/N


• BL Factor (BL): 131.5 BL^2/RE


• Moving Mass (Mms): 403.9 g


• Excursion Max (Xmax): 23 mm

Measurements:

• Overall Diameter: 12.25" / 311 mm


• Mounting Diameter: 11.10 / 282 mm


• Bolt Pattern Diameter: 11.57" / 294 mm


• Overall Depth: 12.12" / 308 mm


• Mounting Depth: 10.12" / 257 mm

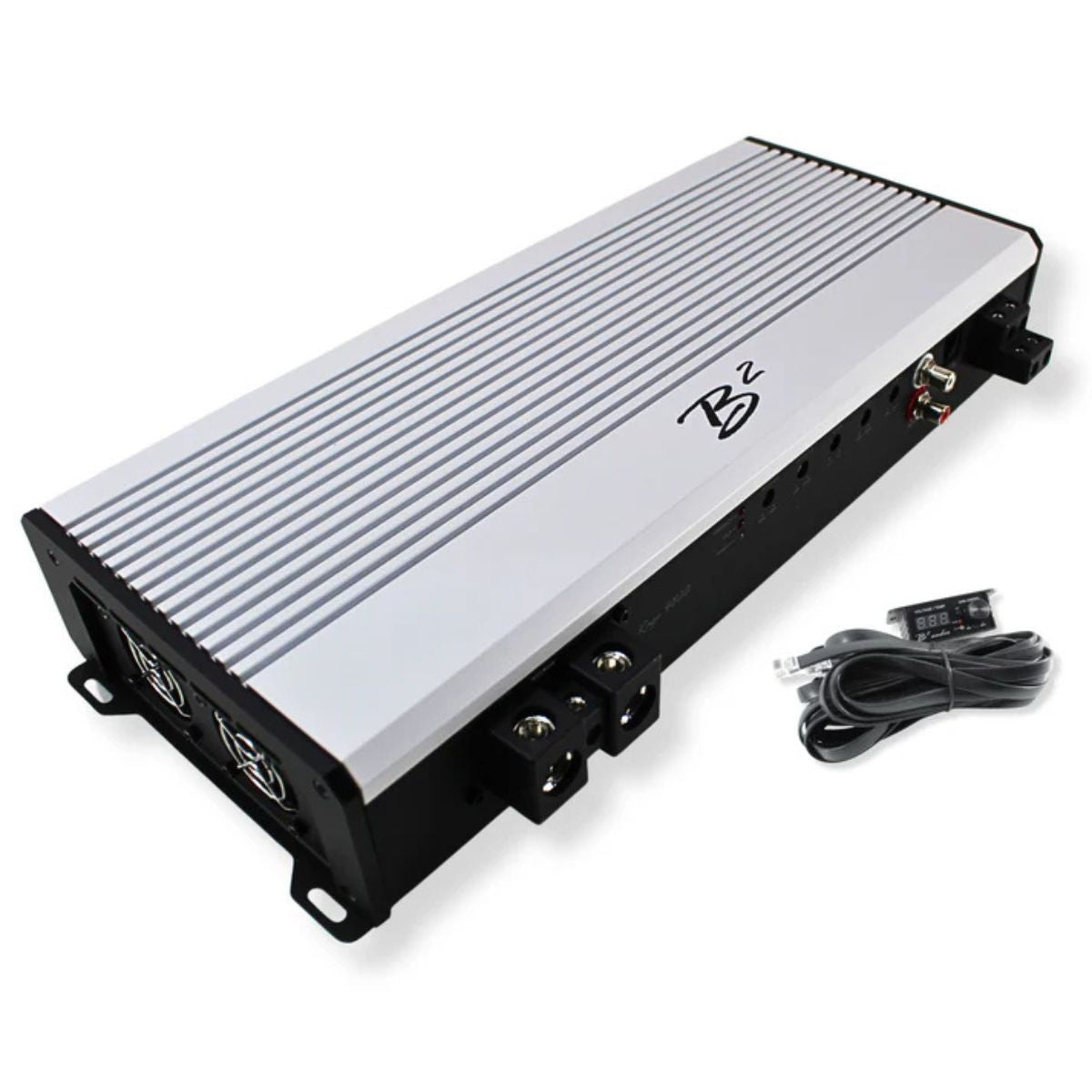

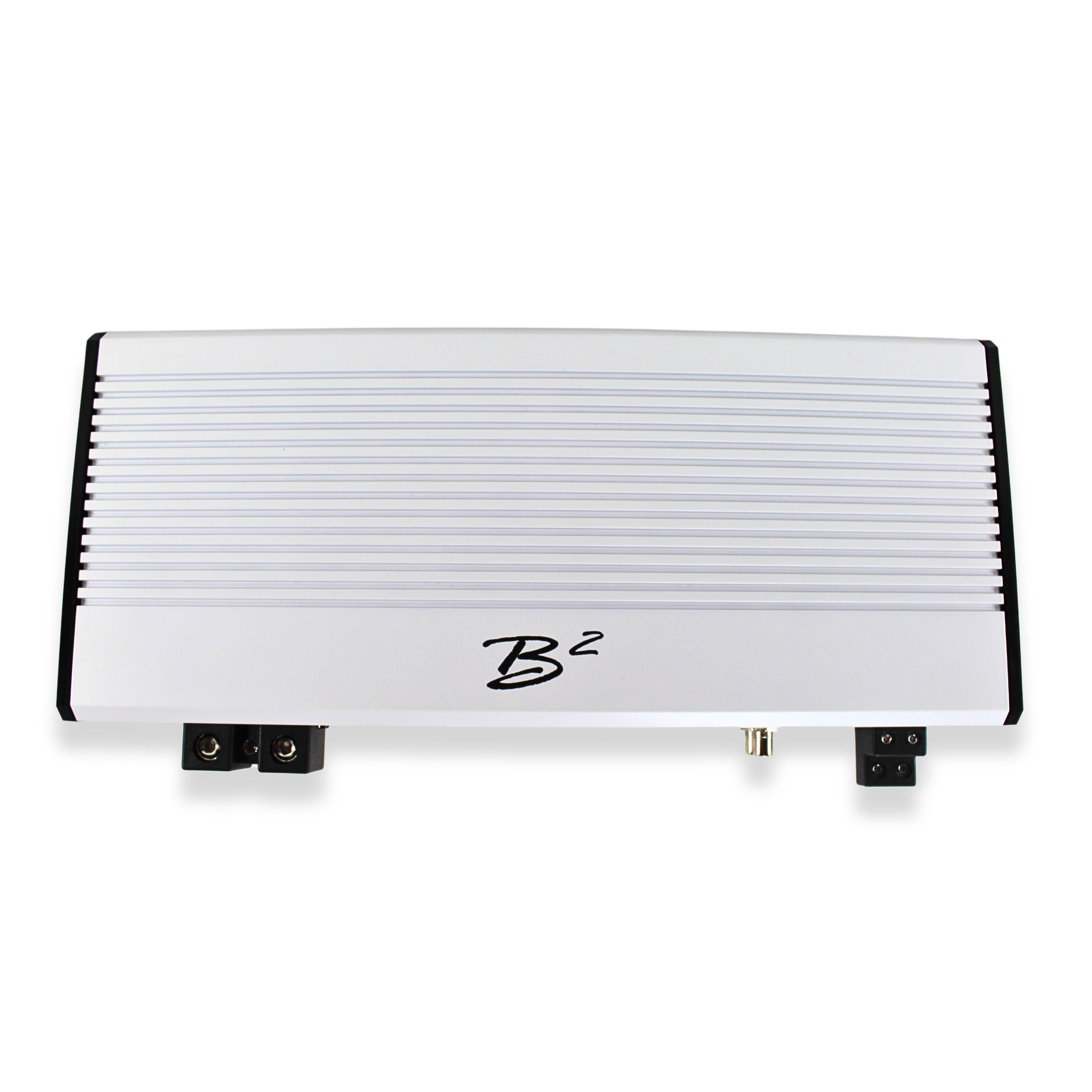

Amplifier Specifications:

• RMS Power @ 4 ohm: 1650W -1800W


• RMS Power @ 2 ohm: 3000W - 3250W


• RMS Power @ 1 ohm: 4800W - 5000W


• Frequency Response: 10 Hz – 20 kHz


• Signal-to-Noise Ratio: >90 dB


• Input Sensitivity: 0.2 – 6 V


• Power Terminal Gauge: 0 GA


• Fuse Rating: 400A


• Bass Level Control: 30–80 Hz


• Crossover Circuit:

  Low Pass: 50 Hz – 20 kHz

  High Pass: 10 Hz – 2 kHz

  Subsonic: 10 Hz – 2 kHz

Amplifier Measurements:

• Overall Length: 15.5 inches


• Overall Width: 7.25 inches


• Overall Height: 2.5 inches


• Overall Weight: 9.90 pounds

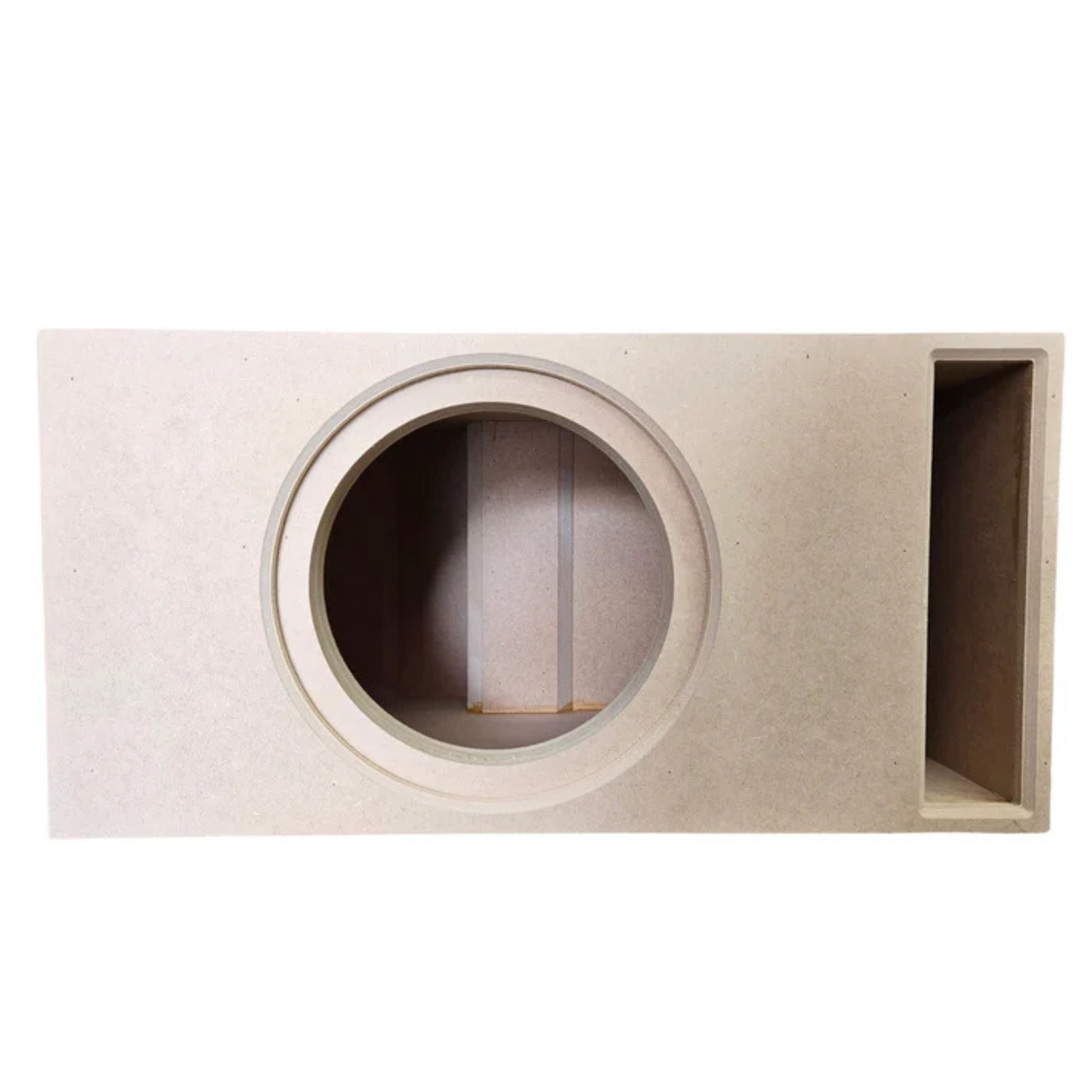

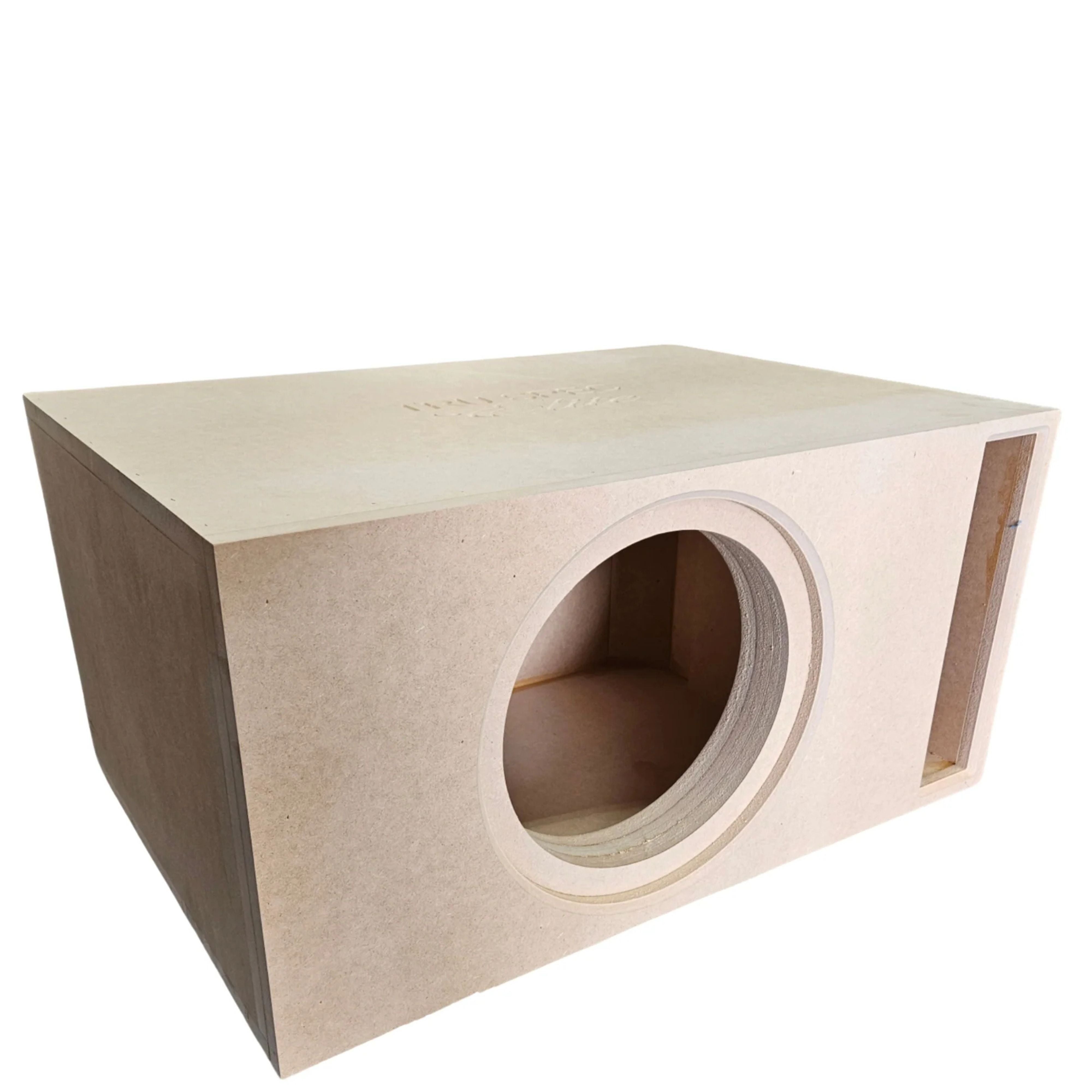

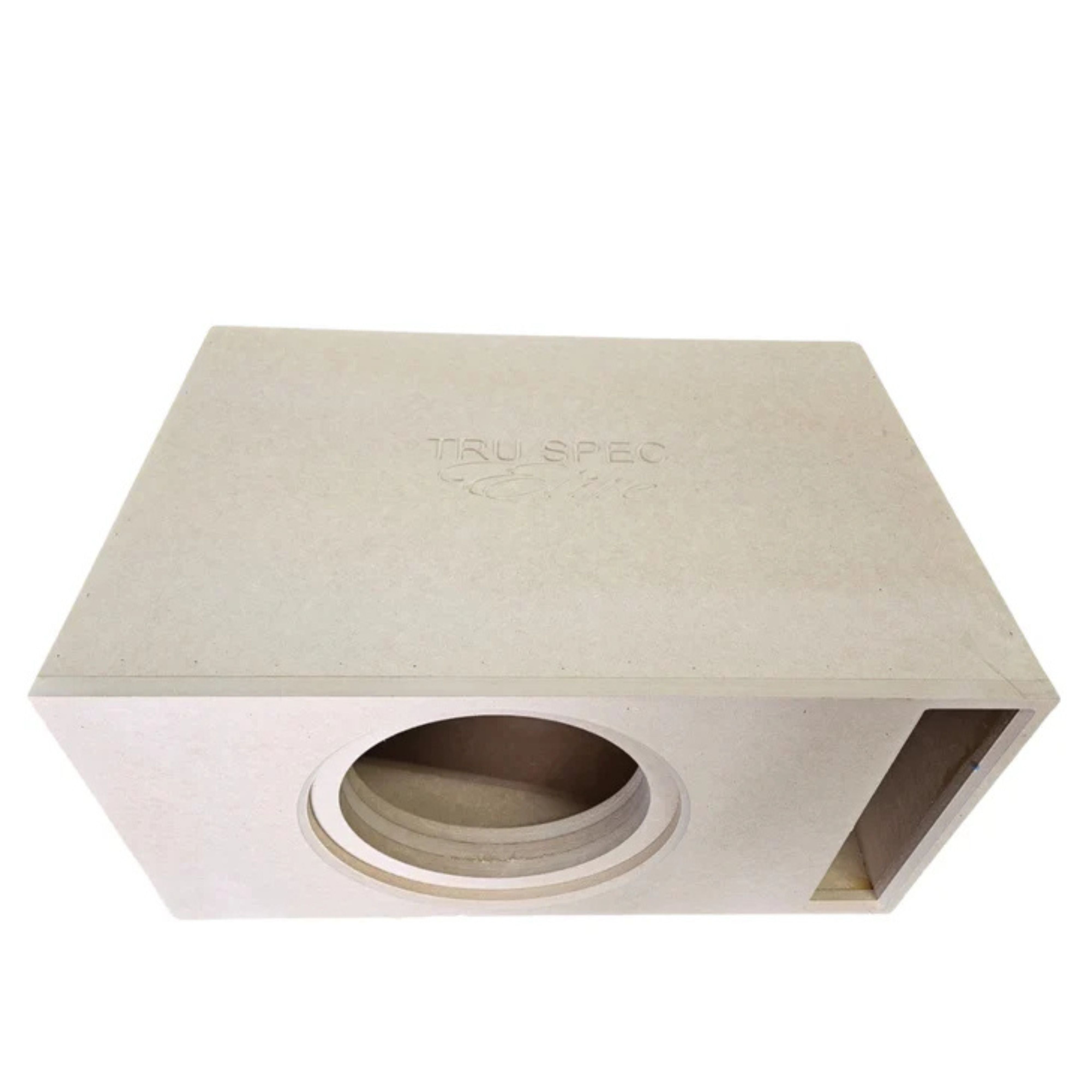

Enclosure Specifications:

• Material: MDF


• Cutout: 11.20"


• Box External Dimensions


• Width x Height x Depth (30.00" x 15.00" x 21.21")


• Material Thickness: 0.75"


• Net Internal Volume: 2.50 ft3


• Tuning Frequency: 32 Hz


• Port Area: 40.00 inch2
